◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50693 - NHR ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65B - REAR LEAF SPRING ▶
4-65B — REAR LEAF SPRING (#33662) — 10 parça

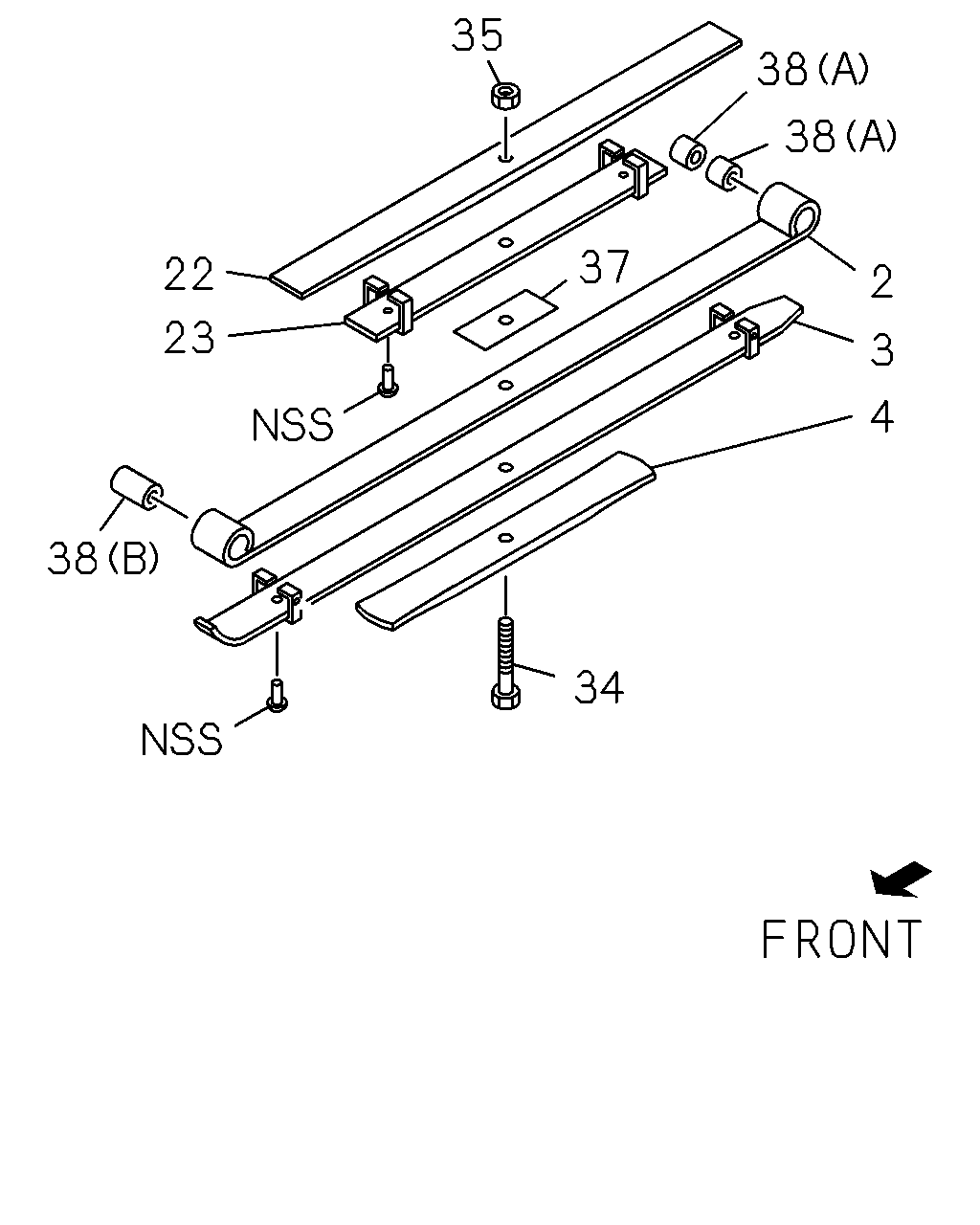

çizim 69138
35 38 38 37 22 23 2 3 4 38 34
BalonParca AdiParca NoAdetTipApplied Date
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-94343-132-1, 94343132 		8-94448-118-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-94343-132-1, 94343132 		8-94448-119-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-94343-132-1, 94343132 		8-94448-120-1 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-94343-132-1, 94343132 		8-94448-121-0 01 1 -
23 07.505 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 8-94343-132-1, 94343132 		8-94448-122-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=75 ASM PART: A = 8-94343-132-1, 94343132 		8-94448-730-0 01 1 -
35 07.506 NUT; CENTER BOLT,LEAF SPR,RR
05.002, M12 ASM PART: A = 8-94343-132-1, 94343132 		9-99110-112-0 01 1 -
37 07.518 SPACER; CENTER,LEAF SPR,RR
T=1 ASM PART: A = 8-94343-132-1, 94343132 		8-94448-734-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
07.105, (B) ASM PART: A = 8-94343-132-1, 94343132 		8-94130-354-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
07.524, (A) ASM PART: A = 8-94343-132-1, 94343132 		8-94249-427-0 02 1 -
