4-60 — REAR SUSPENSION (#33659) — 28 parça

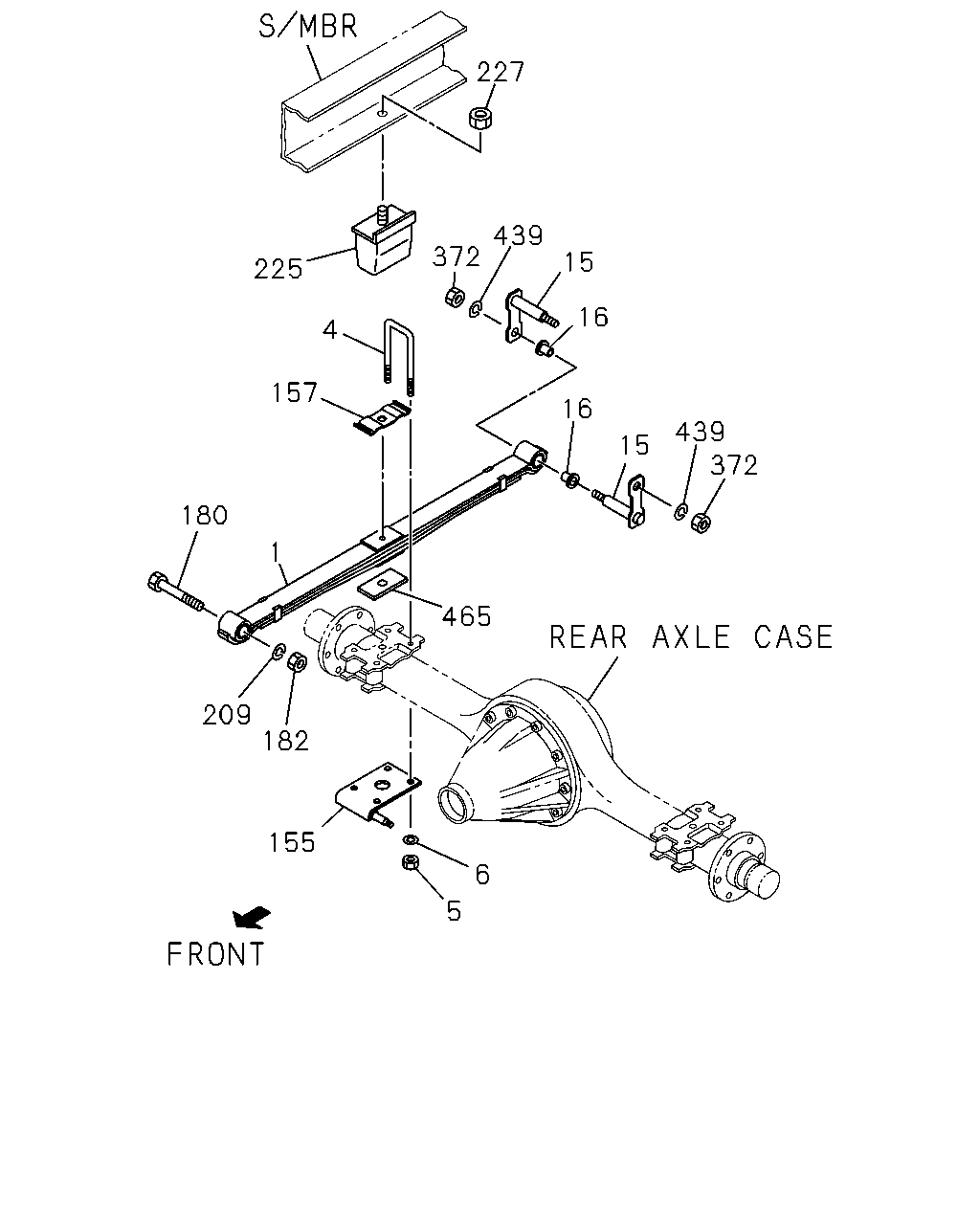

çizim 68067
227 439 372 15 225 16 4 157 16 439 372 15 180 1 465 209 182 155 6 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF 5-LEAF 		8-94343-132-1 02 1 9312- ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 3-LEAF 3-LEAF 		8-94343-134-1 02 1 9312- ● ●
4 07.516 U-BOLT; RR SPR
L=205 		8-94127-917-1 04 1 9312- ● ● ● ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
07.516 M16 		8-94107-767-0 08 1 9312- ● ● ● ● ● ●
6 07.516 WASHER; PL,U-BOLT
ID=16.4 		8-94137-482-1 08 1 9312- ● ● ● ● ● ●
15 07.523 SHACKLE; RR SPR 8-94113-322-3 04 1 9312- ● ● ● ● ● ●
16 07.524 BUSHING; SHACKLE,RR SPR 8-94113-323-2 08 1 9312- ● ● ● ● ● ●
155 07.380 BRACKET; S/ABS 8-94128-361-4 01 1 9312- ● ●
155 07.380 BRACKET; S/ABS 8-94128-360-4 01 1 9312- ● ●
157 07.518 CLAMP; UPR,RR SPR
L=130 T=4.5 		8-94119-069-2 02 1 9312- ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
L=130 T=6 		8-94165-555-1 02 1 9312- ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 M16X122 		9-51361-602-2 02 1 9312- ● ● ● ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE 		8-97076-850-2 02 1 9312- ● ● ● ● ● ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 08.915 M16 		9-99110-516-0 02 1 9312- ● ● ● ● ● ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.516 M16 		8-94107-767-0 02 1 9312-9705 ● ● ● ● ● ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> M16 FLANGE 		8-97147-389-0 02 1 9706- ● ● ● ● ● ●
209 07.529 WASHER; PL
07.172 ID=16.5 		8-97070-925-1 02 1 9312-9705 ● ● ● ● ● ●
209 07.529 WASHER; PL
KD PREPARATORY PACK<6HF> 07.172 ID=16.5 		8-97070-925-1 02 1 9706- ● ● ● ● ● ●
225 07.535 RUBBER; CUSHION,RR SPR 8-94142-044-3 02 1 9312- ● ● ● ●
225 07.535 RUBBER; CUSHION,RR SPR 8-94258-734-1 02 1 9312- ● ●
227 07.535 NUT; CUSHION RUBBER
05.586 M12 FLANGE 		0-91150-112-0 02 1 9312- ● ● ● ● ● ●
372 07.529 NUT; SHACKLE
06.870 M16 		9-99110-416-0 04 1 9312-9705 ● ● ● ● ● ●
372 07.529 NUT; SHACKLE
KD PREPARATORY PACK<6HF> 06.870 M16 		9-99110-416-0 04 1 9706- ● ● ● ● ● ●
372 07.529 NUT; SHACKLE
EXC. KD PREPARATORY PACK<6HF> M16 FLANGE 		8-97147-389-0 04 1 9706- ● ● ● ● ● ●
439 07.529 WASHER; PL,SHACKLE
07.172 ID=16.5 		8-97070-925-1 04 1 9312-9705 ● ● ● ● ● ●
439 07.529 WASHER; PL,SHACKLE
KD PREPARATORY PACK<6HF> 07.172 ID=16.5 		8-97070-925-1 04 1 9706- ● ● ● ● ● ●
465 07.518 SHIM; ADJ
RR BODY FLAT BED<RS6> 		8-97072-589-0 AR 1 9712- ● ● ● ●
465 07.518 SHIM; ADJ
RR BODY NON FLAT BED(RS5) 		8-97072-589-0 AR 1 9712- ● ●
