Sayfa 4-50 - Isuzu EPC

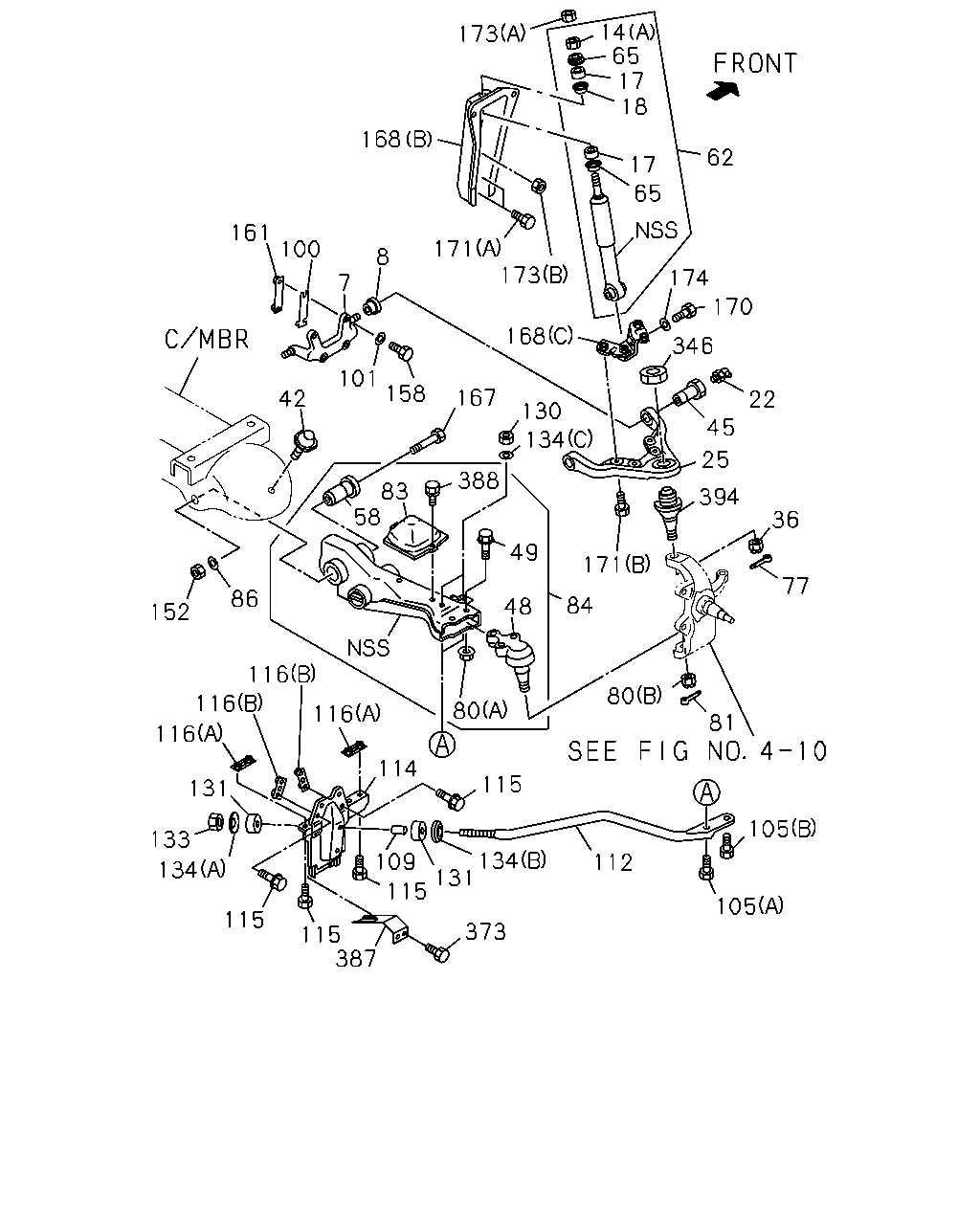

4-50 — FRONT SUSPENSION (#33657) — 307 parça

14 65 18 173 168 62 65 161 8 173 174 168 346 158 167 42 22 45 25 130 134 388 83 58 394 36 49 171 86 84 48 152 116 116 80 80 116 81 116 115 131 105 133 134 134 115 112 131 115 387 115 373 17 17 171 170 77 109 114 101 7 100 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
7	06.174 PIN; FULCRUM,UPR LINK FRT INDEPENDENT SUSPENSION(6PP)	8-94340-084-1	02	1	9312-9510	●	●	●	●	●
7	06.174 PIN; FULCRUM,UPR LINK FRT INDEPENDENT SUSPENSION(6PP)	8-94340-084-1	02	1	9511-9711				●
8	06.174 COVER; DUST,FULCRUM PIN,UPR LINK FRT INDEPENDENT SUSPENSION(6PP) 06.166	8-94233-208-1	04	1	9312-9510	●	●	●	●	●
8	06.174 COVER; DUST,FULCRUM PIN,UPR LINK FRT INDEPENDENT SUSPENSION(6PP) 06.166	8-94233-208-1	04	1	9511-9711				●
14	07.389 NUT; S/ABS,UPR FRT INDEPENDENT SUSPENSION(6PP) (A) M10	8-94317-772-0	02	1	9312-9510	●	●	●	●	●
14	07.389 NUT; S/ABS,UPR FRT INDEPENDENT SUSPENSION(6PP) (A) M10	8-94317-772-0	02	1	9511-9711				●
14	07.389 NUT; S/ABS,UPR EXC. FRT INDEPENDENT SUSPENSION(6PP) 09.011 (A) M10	9-09110-410-0	02	1	9312-9510	●	●	●	●	●	●
14	07.389 NUT; S/ABS,UPR 09.011 (A) M10	9-09110-410-0	02	1	9511-9711	●	●	●		●	●
14	07.389 NUT; S/ABS,UPR EXC. FRT INDEPENDENT SUSPENSION(6PP) 09.011 (A) M10	9-09110-410-0	02	1	9511-9711				●
14	07.389 NUT; S/ABS,UPR 09.011 (A) M10	9-09110-410-0	02	1	9712-	●	●	●	●	●	●
14	07.389 NUT; S/ABS,UPR EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.822 (B) M10	9-09111-410-0	02	1	9312-9510	●	●	●	●	●	●
14	07.389 NUT; S/ABS,UPR 06.822 (B) M10	9-09111-410-0	02	1	9511-9711	●	●	●		●	●
14	07.389 NUT; S/ABS,UPR EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.822 (B) M10	9-09111-410-0	02	1	9511-9711				●
14	07.389 NUT; S/ABS,UPR 06.822 (B) M10	9-09111-410-0	02	1	9712-	●	●	●	●	●	●
17	07.388 BUSHING; RUBBER,S/ABS	9-51631-603-0	04	1	9312-	●	●	●	●	●	●
18	07.347 WASHER; CENTERING,S/ABS FRT INDEPENDENT SUSPENSION(6PP)	8-94412-791-0	02	1	9312-9510	●	●	●	●	●
18	07.347 WASHER; CENTERING,S/ABS FRT INDEPENDENT SUSPENSION(6PP)	8-94412-791-0	02	1	9511-9711				●
18	07.347 WASHER; CENTERING,S/ABS EXC. FRT INDEPENDENT SUSPENSION(6PP) ID=13 OD=38	9-51631-063-0	02	1	9312-9510	●	●	●	●	●	●
18	07.347 WASHER; CENTERING,S/ABS ID=13 OD=38	9-51631-063-0	02	1	9511-9711	●	●	●		●	●
18	07.347 WASHER; CENTERING,S/ABS EXC. FRT INDEPENDENT SUSPENSION(6PP) ID=13 OD=38	9-51631-063-0	02	1	9511-9711				●
18	07.347 WASHER; CENTERING,S/ABS ID=13 OD=38	9-51631-063-0	02	1	9712-	●	●	●	●	●	●
22	06.166 NIPPLE; GREASE,LINK END FRT INDEPENDENT SUSPENSION(6PP) 05.556 PT1/8 ELBOW	9-09031-210-0	04	1	9312-9510	●	●	●	●	●
22	06.166 NIPPLE; GREASE,LINK END FRT INDEPENDENT SUSPENSION(6PP) 05.556 PT1/8 ELBOW	9-09031-210-0	04	1	9511-9711				●
25	06.168 ARM; UPR CONT FRT INDEPENDENT SUSPENSION(6PP)	8-97076-005-3	01	1	9312-9510	●	●	●	●	●
25	06.168 ARM; UPR CONT FRT INDEPENDENT SUSPENSION(6PP)	8-97076-005-3	01	1	9511-9711				●
25	06.168 ARM; UPR CONT FRT INDEPENDENT SUSPENSION(6PP)	8-97076-004-3	01	1	9312-9510	●	●	●	●	●
25	06.168 ARM; UPR CONT FRT INDEPENDENT SUSPENSION(6PP)	8-97076-004-3	01	1	9511-9711				●
36	06.174 NUT; UPR LINK END TO UPR LINK FRT INDEPENDENT SUSPENSION(6PP) 06.861 M18 SLOTTED	8-97017-761-0	02	1	9312-9510	●	●	●	●	●
36	06.174 NUT; UPR LINK END TO UPR LINK FRT INDEPENDENT SUSPENSION(6PP) 06.861 M18 SLOTTED	8-97017-761-0	02	1	9511-9711				●
42	06.176 RUBBER; REBOUND,FRT SUSPENSION FRT INDEPENDENT SUSPENSION(6PP)	8-97031-392-1	02	1	9312-9510	●	●	●	●	●
42	06.176 RUBBER; REBOUND,FRT SUSPENSION FRT INDEPENDENT SUSPENSION(6PP)	8-97031-392-1	02	1	9511-9711				●
45	06.164 BUSHING; UPR LINK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97089-934-2	04	1	9312-9510	●	●	●	●	●
45	06.164 BUSHING; UPR LINK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97089-934-2	04	1	9511-9711				●
48	06.174 JOINT ASM; BALL,LWR CONT ARM FRT INDEPENDENT SUSPENSION(6PP)	8-97031-370-2	02	1	9312-9510	●	●	●	●	●
48	06.174 JOINT ASM; BALL,LWR CONT ARM FRT INDEPENDENT SUSPENSION(6PP)	8-97031-370-3	02	1	9511-9711				●
49	06.174 BOLT; LWR LINK END FRT INDEPENDENT SUSPENSION(6PP) M14X84	8-97076-847-0	04	1	9312-9510	●	●	●	●	●
49	06.174 BOLT; LWR LINK END FRT INDEPENDENT SUSPENSION(6PP) M14X84	8-97076-847-0	04	1	9511-9711				●
58	06.170 BUSHING; LWR LINK FRT INDEPENDENT SUSPENSION(6PP)	8-94336-509-1	02	1	9312-9510	●	●	●	●	●
58	06.170 BUSHING; LWR LINK FRT INDEPENDENT SUSPENSION(6PP)	8-94336-509-1	02	1	9511-9711				●
62	07.345 ABSORBER ASM; SHOCK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97106-604-0	02	1	9312-9510	●	●	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97106-604-0	02	1	9511-9711				●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97107-983-0	02	1	9312-9510	●	●	●	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97107-983-0	02	1	9511-9711	●	●	●		●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97107-983-0	02	1	9511-9711				●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97107-983-0	02	1	9712-	●	●	●	●	●	●
65	07.347 WASHER; S/ABS FRT INDEPENDENT SUSPENSION(6PP) OD=40	9-51631-614-0	04	1	9312-9510	●	●	●	●	●
65	07.347 WASHER; S/ABS FRT INDEPENDENT SUSPENSION(6PP) OD=40	9-51631-614-0	04	1	9511-9711				●
65	07.347 WASHER; S/ABS EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.245 ID=10.5 OD=38	9-51631-062-0	04	1	9312-9510	●	●	●	●	●	●
65	07.347 WASHER; S/ABS 07.245 ID=10.5 OD=38	9-51631-062-0	04	1	9511-9711	●	●	●		●	●
65	07.347 WASHER; S/ABS EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.245 ID=10.5 OD=38	9-51631-062-0	04	1	9511-9711				●
65	07.347 WASHER; S/ABS 07.245 ID=10.5 OD=38	9-51631-062-0	04	1	9712-	●	●	●	●	●	●
77	06.174 PIN; SPLIT,LINK END TO KNUCKLE FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30	9-08114-030-0	02	1	9312-9510	●	●	●	●	●
77	06.174 PIN; SPLIT,LINK END TO KNUCKLE FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30	9-08114-030-0	02	1	9511-9711				●
80	06.174 NUT; LWR LINK END TO KNUCKLE FRT INDEPENDENT SUSPENSION(6PP) 07.417 (A) M14 FLANGE	8-94137-483-0	04	1	9312-9510	●	●	●	●	●
80	06.174 NUT; LWR LINK END TO KNUCKLE FRT INDEPENDENT SUSPENSION(6PP) 07.417 (A) M14 FLANGE	8-94137-483-0	04	1	9511-9711				●
80	06.174 NUT; LWR LINK END TO KNUCKLE FRT INDEPENDENT SUSPENSION(6PP) 08.915 (B) M22	9-09111-522-0	02	1	9312-9510	●	●	●	●	●
80	06.174 NUT; LWR LINK END TO KNUCKLE FRT INDEPENDENT SUSPENSION(6PP) 08.915 (B) M22	9-09111-522-0	02	1	9511-9711				●
81	06.174 PIN; SPLIT,LWR LINK TO KNUCKLE FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30	9-08114-030-0	02	1	9312-9510	●	●	●	●	●
81	06.174 PIN; SPLIT,LWR LINK TO KNUCKLE FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30	9-08114-030-0	02	1	9511-9711				●
83	06.174 RUBBER; BUMPER,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97031-391-1	02	1	9312-9510	●	●	●	●	●
83	06.174 RUBBER; BUMPER,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97031-391-1	02	1	9511-9711				●
84	06.168 ARM; LWR CONT FRT INDEPENDENT SUSPENSION(6PP)	8-97031-111-5	01	1	9312-9510	●	●	●	●	●
84	06.168 ARM; LWR CONT FRT INDEPENDENT SUSPENSION(6PP)	8-97031-111-6	01	1	9511-9711				●
84	06.168 ARM; LWR CONT FRT INDEPENDENT SUSPENSION(6PP)	8-97031-110-5	01	1	9312-9510	●	●	●	●	●
84	06.168 ARM; LWR CONT FRT INDEPENDENT SUSPENSION(6PP)	8-97031-110-6	01	1	9511-9711				●
86	06.174 WASHER; PL,LWR LINK FRT INDEPENDENT SUSPENSION(6PP) ID=23	9-09164-522-0	02	1	9312-9510	●	●	●	●	●
86	06.174 WASHER; PL,LWR LINK FRT INDEPENDENT SUSPENSION(6PP) ID=23	9-09164-522-0	02	1	9511-9711				●
100	06.164 SHIM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(6PP) T=1.6	8-94341-343-3	AR	1	9312-9510	●	●	●	●	●
100	06.164 SHIM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(6PP) T=1.6	8-94341-343-3	AR	1	9511-9711				●
100	06.164 SHIM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(6PP) T=3.2	8-94341-344-2	AR	1	9312-9510	●	●	●	●	●
100	06.164 SHIM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(6PP) T=3.2	8-94341-344-2	AR	1	9511-9711				●
100	06.164 SHIM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(6PP) T=0.8	8-97020-095-2	AR	1	9312-9510	●	●	●	●	●
100	06.164 SHIM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(6PP) T=0.8	8-97020-095-2	AR	1	9511-9711				●
101	06.174 WASHER; LK,UPR LINK FRT INDEPENDENT SUSPENSION(6PP) 05.422 ID=14.2	9-09150-814-0	08	1	9312-9510	●	●	●	●	●
101	06.174 WASHER; LK,UPR LINK FRT INDEPENDENT SUSPENSION(6PP) 05.422 ID=14.2	9-09150-814-0	08	1	9511-9711				●
105	07.172 BOLT; STRUT BAR TO LWR LINK FRT INDEPENDENT SUSPENSION(6PP) EXC. KD PREPARATORY PACK<6HF> (A) M16X102	8-97076-845-0	02	1	9312-9510	●	●	●	●	●
105	07.172 BOLT; STRUT BAR TO LWR LINK FRT INDEPENDENT SUSPENSION(6PP) EXC. KD PREPARATORY PACK<6HF> (A) M16X102	8-97076-845-1	02	1	9511-9711				●
105	07.172 BOLT; STRUT BAR TO LWR LINK FRT INDEPENDENT SUSPENSION(6PP) EXC. KD PREPARATORY PACK<6HF> (B) M16X60	8-97076-846-0	02	1	9312-9510	●	●	●	●	●
105	07.172 BOLT; STRUT BAR TO LWR LINK FRT INDEPENDENT SUSPENSION(6PP) EXC. KD PREPARATORY PACK<6HF> (B) M16X60	8-97076-846-1	02	1	9511-9711				●
105	07.172 BOLT; STRUT BAR TO LWR LINK KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) (A) M16X80	9-91061-680-0	02	1	9312-9510	●	●	●	●	●
105	07.172 BOLT; STRUT BAR TO LWR LINK KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) (A) M16X80	9-91061-680-0	02	1	9511-9711				●
105	07.172 BOLT; STRUT BAR TO LWR LINK KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) 08.900 (B) M16X35	9-92061-635-0	02	1	9312-9510	●	●	●	●	●
105	07.172 BOLT; STRUT BAR TO LWR LINK KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) 08.900 (B) M16X35	9-92061-635-0	02	1	9511-9711				●
109	06.168 TUBE; DIST,STRUT BAR FRT INDEPENDENT SUSPENSION(6PP)	8-94336-504-0	02	1	9312-9510	●	●	●	●	●
109	06.168 TUBE; DIST,STRUT BAR FRT INDEPENDENT SUSPENSION(6PP)	8-94336-504-0	02	1	9511-9711				●
112	06.168 BAR; STRUT FRT INDEPENDENT SUSPENSION(6PP)	8-97031-378-2	01	1	9312-9510	●	●	●	●	●
112	06.168 BAR; STRUT FRT INDEPENDENT SUSPENSION(6PP)	8-97031-378-2	01	1	9511-9711				●
112	06.168 BAR; STRUT FRT INDEPENDENT SUSPENSION(6PP)	8-97031-377-2	01	1	9312-9510	●	●	●	●	●
112	06.168 BAR; STRUT FRT INDEPENDENT SUSPENSION(6PP)	8-97031-377-2	01	1	9511-9711				●
114	06.168 BRACKET; SUPPORT,STRUT BAR FRT INDEPENDENT SUSPENSION(6PP)	8-97031-382-1	01	1	9312-9510	●	●	●	●	●
114	06.168 BRACKET; SUPPORT,STRUT BAR FRT INDEPENDENT SUSPENSION(6PP)	8-97031-382-1	01	1	9511-9711				●
114	06.168 BRACKET; SUPPORT,STRUT BAR FRT INDEPENDENT SUSPENSION(6PP)	8-97031-381-1	01	1	9312-9502	●	●	●	●	●
114	06.168 BRACKET; SUPPORT,STRUT BAR FRT INDEPENDENT SUSPENSION(6PP)	8-97117-096-1	01	1	9503-9510	●	●	●	●	●
114	06.168 BRACKET; SUPPORT,STRUT BAR FRT INDEPENDENT SUSPENSION(6PP)	8-97117-096-1	01	1	9511-9711				●
115	06.168 BOLT; SUPPORT BRKT TO BODY FRT INDEPENDENT SUSPENSION(6PP) M12X35	8-97016-102-1	14	1	9312-9510	●	●	●	●	●
115	06.168 BOLT; SUPPORT BRKT TO BODY FRT INDEPENDENT SUSPENSION(6PP) M12X35	8-97016-102-1	14	1	9511-9711				●
116	06.168 NUT ASM; BRKT FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97095-155-0	02	1	9312-9510	●	●	●	●	●
116	06.168 NUT ASM; BRKT FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97095-155-0	02	1	9511-9711				●
116	06.168 NUT ASM; BRKT FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97095-156-0	04	1	9312-9510	●	●	●	●	●
116	06.168 NUT ASM; BRKT FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97095-156-0	04	1	9511-9711				●
130	07.172 NUT; STRUT BAR TO LWR LINK FRT INDEPENDENT SUSPENSION(6PP) EXC. KD PREPARATORY PACK<6HF> 07.516 M16	8-94107-767-0	04	1	9312-9510	●	●	●	●	●
130	07.172 NUT; STRUT BAR TO LWR LINK FRT INDEPENDENT SUSPENSION(6PP) EXC. KD PREPARATORY PACK<6HF> 07.516 M16	8-94107-767-0	04	1	9511-9705				●
130	07.172 NUT; STRUT BAR TO LWR LINK FRT INDEPENDENT SUSPENSION(6PP) 07.529 M16 FLANGE	8-97147-389-0	04	1	9706-9706				●
130	07.172 NUT; STRUT BAR TO LWR LINK FRT INDEPENDENT SUSPENSION(6PP) EXC. KD PREPARATORY PACK<6HF> 07.529 M16 FLANGE	8-97147-389-0	04	1	9706-9711				●
130	07.172 NUT; STRUT BAR TO LWR LINK KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) 08.915 M16	9-99110-516-0	04	1	9312-9510	●	●	●	●	●
130	07.172 NUT; STRUT BAR TO LWR LINK KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) 08.915 M16	9-99110-516-0	04	1	9706-9711				●
131	07.170 RUBBER; CUSHION,STRUT BAR FRT INDEPENDENT SUSPENSION(6PP)	8-94336-507-0	04	1	9312-9510	●	●	●	●	●
131	07.170 RUBBER; CUSHION,STRUT BAR FRT INDEPENDENT SUSPENSION(6PP)	8-94336-507-0	04	1	9511-9711				●
133	07.172 NUT; STRUT BAR FRT INDEPENDENT SUSPENSION(6PP) 05.813 M22	9-09110-522-0	04	1	9312-9510	●	●	●	●	●
133	07.172 NUT; STRUT BAR FRT INDEPENDENT SUSPENSION(6PP) 05.813 M22	9-09110-522-0	04	1	9511-9711				●
134	07.172 WASHER; STRUT BAR FRT INDEPENDENT SUSPENSION(6PP) (A) OD=66 ID=22	8-97031-208-0	02	1	9312-9510	●	●	●	●	●
134	07.172 WASHER; STRUT BAR FRT INDEPENDENT SUSPENSION(6PP) (A) OD=66 ID=22	8-97031-208-0	02	1	9511-9711				●
134	07.172 WASHER; STRUT BAR FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97035-568-0	02	1	9312-9510	●	●	●	●	●
134	07.172 WASHER; STRUT BAR FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97035-568-0	02	1	9511-9711				●
134	07.172 WASHER; STRUT BAR FRT INDEPENDENT SUSPENSION(6PP) (C) ID=16.5	8-97070-925-1	04	1	9312-9510	●	●	●	●	●
134	07.172 WASHER; STRUT BAR FRT INDEPENDENT SUSPENSION(6PP) (C) ID=16.5	8-97070-925-1	04	1	9511-9705				●
134	07.172 WASHER; STRUT BAR KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) (A) ID=16.5	8-97070-925-1	04	1	9706-9711				●
152	06.172 NUT; LWR LINK TO FRT C/MBR FRT INDEPENDENT SUSPENSION(6PP) 05.813 M22	9-09110-522-0	02	1	9312-9510	●	●	●	●	●
152	06.172 NUT; LWR LINK TO FRT C/MBR FRT INDEPENDENT SUSPENSION(6PP) 05.813 M22	9-09110-522-0	02	1	9511-9711				●
158	06.178 BOLT; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(6PP) M14X70	8-97072-665-0	08	1	9312-9510	●	●	●	●	●
158	06.178 BOLT; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(6PP) M14X70	8-97072-665-0	08	1	9511-9711				●
161	06.178 NUT ASM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(6PP)	8-94464-558-0	04	1	9312-9510	●	●	●	●	●
161	06.178 NUT ASM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(6PP)	8-94464-558-0	04	1	9511-9711				●
167	06.178 BOLT; LWR LINK TO FRT C/MBR FRT INDEPENDENT SUSPENSION(6PP) M22X135	8-94374-671-1	02	1	9312-9510	●	●	●	●	●
167	06.178 BOLT; LWR LINK TO FRT C/MBR FRT INDEPENDENT SUSPENSION(6PP) M22X135	8-94374-671-1	02	1	9511-9711				●
168	07.380 BRACKET; S/ABS,FRT SUSP FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97031-383-2	02	1	9312-9510	●	●	●	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97031-383-2	02	1	9511-9711				●
168	07.380 BRACKET; S/ABS,FRT SUSP FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-000-1	02	1	9312-9510	●	●	●	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-000-1	02	1	9511-9711				●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97045-611-0	01	1	9312-9510	●	●	●	●	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP (A)	8-97045-611-0	01	1	9511-9711	●	●	●		●	●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97045-611-0	01	1	9511-9711				●
168	07.380 BRACKET; S/ABS,FRT SUSP (A)	8-97045-611-0	01	1	9712-	●	●	●	●	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97045-610-0	01	1	9312-9510	●	●	●	●	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP (A)	8-97045-610-0	01	1	9511-9711	●	●	●		●	●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97045-610-0	01	1	9511-9711				●
168	07.380 BRACKET; S/ABS,FRT SUSP (A)	8-97045-610-0	01	1	9712-	●	●	●	●	●	●
170	07.347 BOLT; S/ABS FRT INDEPENDENT SUSPENSION(6PP) 04.083 M12X70	0-10806-270-0	02	1	9312-9510	●	●	●	●	●
170	07.347 BOLT; S/ABS FRT INDEPENDENT SUSPENSION(6PP) 04.083 M12X70	0-10806-270-0	02	1	9511-9711				●
171	07.395 BOLT; S/ABS BRKT FRT INDEPENDENT SUSPENSION(6PP) (A) M12X25 FLANGE	0-28081-225-0	04	1	9312-9510	●	●	●	●	●
171	07.395 BOLT; S/ABS BRKT FRT INDEPENDENT SUSPENSION(6PP) (A) M12X25 FLANGE	0-28081-225-0	04	1	9511-9703				●
171	07.395 BOLT; S/ABS BRKT FRT INDEPENDENT SUSPENSION(6PP) (A) M12X30 FLANGE	0-28681-230-0	04	1	9704-9711				●
171	07.395 BOLT; S/ABS BRKT FRT INDEPENDENT SUSPENSION(6PP) 01.840 (B) M10X35 W/LK&PL WASHER	0-50141-035-0	08	1	9312-9510	●	●	●	●	●
171	07.395 BOLT; S/ABS BRKT FRT INDEPENDENT SUSPENSION(6PP) 01.840 (B) M10X35 W/LK&PL WASHER	0-50141-035-0	08	1	9511-9711				●
171	07.395 BOLT; S/ABS BRKT EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.704 M10X30	0-20801-030-0	08	1	9312-9510	●	●	●	●	●	●
171	07.395 BOLT; S/ABS BRKT 03.704 M10X30	0-20801-030-0	08	1	9511-9703	●	●	●		●	●
171	07.395 BOLT; S/ABS BRKT EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.704 M10X30	0-20801-030-0	08	1	9511-9703				●
171	07.395 BOLT; S/ABS BRKT 03.405 M10X30 FLANGE	0-28681-030-0	08	1	9704-9711	●	●	●		●	●
171	07.395 BOLT; S/ABS BRKT EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.405 M10X30 FLANGE	0-28681-030-0	08	1	9704-9711				●
171	07.395 BOLT; S/ABS BRKT 03.405 M10X30 FLANGE	0-28681-030-0	08	1	9712-	●	●	●	●	●	●
173	07.395 NUT; S/ABS FRT INDEPENDENT SUSPENSION(6PP) 06.606 (B) M12	8-94139-015-0	02	1	9312-9510	●	●	●	●	●
173	07.395 NUT; S/ABS FRT INDEPENDENT SUSPENSION(6PP) 06.606 (B) M12	8-94139-015-0	02	1	9511-9711				●
173	07.395 NUT; S/ABS 06.822 (A) M10	9-09111-410-0	02	1	9312-	●	●	●	●	●	●
173	07.395 NUT; S/ABS EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.917 (B) M10 FLANGE	0-91150-210-0	08	1	9312-9510	●	●	●	●	●	●
173	07.395 NUT; S/ABS 08.917 (B) M10 FLANGE	0-91150-210-0	08	1	9511-9711	●	●	●		●	●
173	07.395 NUT; S/ABS EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.917 (B) M10 FLANGE	0-91150-210-0	08	1	9511-9711				●
173	07.395 NUT; S/ABS 08.917 (B) M10 FLANGE	0-91150-210-0	08	1	9712-	●	●	●	●	●	●
174	07.347 WASHER; LK,S/ABS FRT INDEPENDENT SUSPENSION(6PP) 00.002 ID=12.2	9-09150-812-0	02	1	9312-9510	●	●	●	●	●
174	07.347 WASHER; LK,S/ABS FRT INDEPENDENT SUSPENSION(6PP) 00.002 ID=12.2	9-09150-812-0	02	1	9511-9711				●
346	06.174 NUT; LINK END FRT INDEPENDENT SUSPENSION(6PP) M52	8-97076-036-0	02	1	9312-9510	●	●	●	●	●
346	06.174 NUT; LINK END FRT INDEPENDENT SUSPENSION(6PP) M52	8-97076-036-0	02	1	9511-9711				●
373	07.346 BOLT; HEAT PROTECTOR FRT INDEPENDENT SUSPENSION(6PP) 12.187 M8X16 W/LK&PL WASHER	0-50140-816-0	02	1	9312-9510	●	●	●	●	●
373	07.346 BOLT; HEAT PROTECTOR FRT INDEPENDENT SUSPENSION(6PP) 12.187 M8X16 W/LK&PL WASHER	0-50140-816-0	02	1	9511-9703				●
373	07.346 BOLT; HEAT PROTECTOR FRT INDEPENDENT SUSPENSION(6PP) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9704-9711				●
387	06.168 PROTECTOR; HEAT,STRUT BAR FRT INDEPENDENT SUSPENSION(6PP)	8-97077-389-1	01	1	9312-9510	●	●	●	●	●
387	06.168 PROTECTOR; HEAT,STRUT BAR FRT INDEPENDENT SUSPENSION(6PP)	8-97077-389-1	01	1	9511-9711				●
388	06.174 BOLT; BUMP RUBBER FRT INDEPENDENT SUSPENSION(6PP) 08.900 M8X20 W/LK WASHER	0-50040-820-0	04	1	9312-9510	●	●	●	●	●
388	06.174 BOLT; BUMP RUBBER FRT INDEPENDENT SUSPENSION(6PP) 08.900 M8X20 W/LK WASHER	0-50040-820-0	04	1	9511-9711				●
394	06.714 END ASM; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) 06.174	8-97107-328-0	02	1	9312-9510	●	●	●	●
394	06.714 END ASM; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) 06.174	8-97107-328-0	02	1	9511-9711				●

173 14 14 65 18 171 168 185 183 173 186 65 184 191 186 186 62 188 186 183 185 184 185 63 193 68 201 186 186 197 199 73 64 66 17 17 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT INDEPENDENT SUSPENSION(6PP) 5-LEAF ASSIST SIDE 5-LEAF	8-94343-081-1	01	1	9312-9510	●	●	●	●	●	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT.	8-94343-081-1	01	1	9511-9711	●	●	●		●	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT INDEPENDENT SUSPENSION(6PP) 5-LEAF ASSIST SIDE 5-LEAF	8-94343-081-1	01	1	9511-9711				●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 5-LEAF ASSIST SIDE 5-LEAF	8-94343-081-1	01	1	9712-	●	●	●	●	●	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT INDEPENDENT SUSPENSION(6PP) 5-LEAF DRIVER SIDE 5-LEAF	8-94343-082-1	01	1	9312-9510	●	●	●	●	●	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT.	8-94343-082-1	01	1	9511-9711	●	●	●		●	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT INDEPENDENT SUSPENSION(6PP) 5-LEAF DRIVER SIDE 5-LEAF	8-94343-082-1	01	1	9511-9711				●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 5-LEAF DRIVER SIDE 5-LEAF	8-94343-082-1	01	1	9712-	●	●	●	●	●	●
14	07.389 NUT; S/ABS,UPR FRT INDEPENDENT SUSPENSION(6PP) (A) M10	8-94317-772-0	02	1	9312-9510	●	●	●	●	●
14	07.389 NUT; S/ABS,UPR FRT INDEPENDENT SUSPENSION(6PP) (A) M10	8-94317-772-0	02	1	9511-9711				●
14	07.389 NUT; S/ABS,UPR EXC. FRT INDEPENDENT SUSPENSION(6PP) 09.011 (A) M10	9-09110-410-0	02	1	9312-9510	●	●	●	●	●	●
14	07.389 NUT; S/ABS,UPR 09.011 (A) M10	9-09110-410-0	02	1	9511-9711	●	●	●		●	●
14	07.389 NUT; S/ABS,UPR EXC. FRT INDEPENDENT SUSPENSION(6PP) 09.011 (A) M10	9-09110-410-0	02	1	9511-9711				●
14	07.389 NUT; S/ABS,UPR 09.011 (A) M10	9-09110-410-0	02	1	9712-	●	●	●	●	●	●
14	07.389 NUT; S/ABS,UPR EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.822 (B) M10	9-09111-410-0	02	1	9312-9510	●	●	●	●	●	●
14	07.389 NUT; S/ABS,UPR 06.822 (B) M10	9-09111-410-0	02	1	9511-9711	●	●	●		●	●
14	07.389 NUT; S/ABS,UPR EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.822 (B) M10	9-09111-410-0	02	1	9511-9711				●
14	07.389 NUT; S/ABS,UPR 06.822 (B) M10	9-09111-410-0	02	1	9712-	●	●	●	●	●	●
17	07.388 BUSHING; RUBBER,S/ABS	9-51631-603-0	04	1	9312-	●	●	●	●	●	●
18	07.347 WASHER; CENTERING,S/ABS FRT INDEPENDENT SUSPENSION(6PP)	8-94412-791-0	02	1	9312-9510	●	●	●	●	●
18	07.347 WASHER; CENTERING,S/ABS FRT INDEPENDENT SUSPENSION(6PP)	8-94412-791-0	02	1	9511-9711				●
18	07.347 WASHER; CENTERING,S/ABS EXC. FRT INDEPENDENT SUSPENSION(6PP) ID=13 OD=38	9-51631-063-0	02	1	9312-9510	●	●	●	●	●	●
18	07.347 WASHER; CENTERING,S/ABS ID=13 OD=38	9-51631-063-0	02	1	9511-9711	●	●	●		●	●
18	07.347 WASHER; CENTERING,S/ABS EXC. FRT INDEPENDENT SUSPENSION(6PP) ID=13 OD=38	9-51631-063-0	02	1	9511-9711				●
18	07.347 WASHER; CENTERING,S/ABS ID=13 OD=38	9-51631-063-0	02	1	9712-	●	●	●	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97106-604-0	02	1	9312-9510	●	●	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97106-604-0	02	1	9511-9711				●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97107-983-0	02	1	9312-9510	●	●	●	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97107-983-0	02	1	9511-9711	●	●	●		●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97107-983-0	02	1	9511-9711				●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97107-983-0	02	1	9712-	●	●	●	●	●	●
63	07.347 WASHER; PL,S/ABS,LWR EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.529 ID=17 OD=32	9-09164-616-0	02	1	9312-9510	●	●	●	●	●	●
63	07.347 WASHER; PL,S/ABS,LWR 07.529 ID=17 OD=32	9-09164-616-0	02	1	9511-9711	●	●	●		●	●
63	07.347 WASHER; PL,S/ABS,LWR EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.529 ID=17 OD=32	9-09164-616-0	02	1	9511-9711				●
63	07.347 WASHER; PL,S/ABS,LWR 07.529 ID=17 OD=32	9-09164-616-0	02	1	9712-	●	●	●	●	●	●
64	07.347 WASHER; S/ABS,LWR EXC. FRT INDEPENDENT SUSPENSION(6PP) ID=12.5	9-51679-022-0	02	1	9312-9510	●	●	●	●	●	●
64	07.347 WASHER; S/ABS,LWR ID=12.5	9-51679-022-0	02	1	9511-9711	●	●	●		●	●
64	07.347 WASHER; S/ABS,LWR EXC. FRT INDEPENDENT SUSPENSION(6PP) ID=12.5	9-51679-022-0	02	1	9511-9711				●
64	07.347 WASHER; S/ABS,LWR ID=12.5	9-51679-022-0	02	1	9712-	●	●	●	●	●	●
65	07.347 WASHER; S/ABS FRT INDEPENDENT SUSPENSION(6PP) OD=40	9-51631-614-0	04	1	9312-9510	●	●	●	●	●
65	07.347 WASHER; S/ABS FRT INDEPENDENT SUSPENSION(6PP) OD=40	9-51631-614-0	04	1	9511-9711				●
65	07.347 WASHER; S/ABS EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.245 ID=10.5 OD=38	9-51631-062-0	04	1	9312-9510	●	●	●	●	●	●
65	07.347 WASHER; S/ABS 07.245 ID=10.5 OD=38	9-51631-062-0	04	1	9511-9711	●	●	●		●	●
65	07.347 WASHER; S/ABS EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.245 ID=10.5 OD=38	9-51631-062-0	04	1	9511-9711				●
65	07.347 WASHER; S/ABS 07.245 ID=10.5 OD=38	9-51631-062-0	04	1	9712-	●	●	●	●	●	●
66	07.389 WASHER; LK,S/ABS SETTING EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.634 ID=12.2	9-09150-512-0	02	1	9312-9505	●	●	●	●	●	●
68	07.388 BUSHING; S/ABS EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.347	8-94224-694-0	02	1	9312-9510	●	●	●	●	●	●
68	07.388 BUSHING; S/ABS 07.347	8-94224-694-0	02	1	9511-9711	●	●	●		●	●
68	07.388 BUSHING; S/ABS EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.347	8-94224-694-0	02	1	9511-9711				●
68	07.388 BUSHING; S/ABS 07.347	8-94224-694-0	02	1	9712-	●	●	●	●	●	●
73	07.347 NUT; BRKT,SHOCK EXC. FRT INDEPENDENT SUSPENSION(6PP) M12	9-99111-512-0	02	1	9312-9510	●	●	●	●	●	●
73	07.347 NUT; BRKT,SHOCK M12	9-99111-512-0	02	1	9511-9711	●	●	●		●	●
73	07.347 NUT; BRKT,SHOCK EXC. FRT INDEPENDENT SUSPENSION(6PP) M12	9-99111-512-0	02	1	9511-9711				●
73	07.347 NUT; BRKT,SHOCK M12	9-99111-512-0	02	1	9712-	●	●	●	●	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97031-383-2	02	1	9312-9510	●	●	●	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97031-383-2	02	1	9511-9711				●
168	07.380 BRACKET; S/ABS,FRT SUSP FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-000-1	02	1	9312-9510	●	●	●	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-000-1	02	1	9511-9711				●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97045-611-0	01	1	9312-9510	●	●	●	●	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP (A)	8-97045-611-0	01	1	9511-9711	●	●	●		●	●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97045-611-0	01	1	9511-9711				●
168	07.380 BRACKET; S/ABS,FRT SUSP (A)	8-97045-611-0	01	1	9712-	●	●	●	●	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97045-610-0	01	1	9312-9510	●	●	●	●	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP (A)	8-97045-610-0	01	1	9511-9711	●	●	●		●	●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97045-610-0	01	1	9511-9711				●
168	07.380 BRACKET; S/ABS,FRT SUSP (A)	8-97045-610-0	01	1	9712-	●	●	●	●	●	●
171	07.395 BOLT; S/ABS BRKT FRT INDEPENDENT SUSPENSION(6PP) (A) M12X25 FLANGE	0-28081-225-0	04	1	9312-9510	●	●	●	●	●
171	07.395 BOLT; S/ABS BRKT FRT INDEPENDENT SUSPENSION(6PP) (A) M12X25 FLANGE	0-28081-225-0	04	1	9511-9703				●
171	07.395 BOLT; S/ABS BRKT FRT INDEPENDENT SUSPENSION(6PP) (A) M12X30 FLANGE	0-28681-230-0	04	1	9704-9711				●
171	07.395 BOLT; S/ABS BRKT FRT INDEPENDENT SUSPENSION(6PP) 01.840 (B) M10X35 W/LK&PL WASHER	0-50141-035-0	08	1	9312-9510	●	●	●	●	●
171	07.395 BOLT; S/ABS BRKT FRT INDEPENDENT SUSPENSION(6PP) 01.840 (B) M10X35 W/LK&PL WASHER	0-50141-035-0	08	1	9511-9711				●
171	07.395 BOLT; S/ABS BRKT EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.704 M10X30	0-20801-030-0	08	1	9312-9510	●	●	●	●	●	●
171	07.395 BOLT; S/ABS BRKT 03.704 M10X30	0-20801-030-0	08	1	9511-9703	●	●	●		●	●
171	07.395 BOLT; S/ABS BRKT EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.704 M10X30	0-20801-030-0	08	1	9511-9703				●
171	07.395 BOLT; S/ABS BRKT 03.405 M10X30 FLANGE	0-28681-030-0	08	1	9704-9711	●	●	●		●	●
171	07.395 BOLT; S/ABS BRKT EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.405 M10X30 FLANGE	0-28681-030-0	08	1	9704-9711				●
171	07.395 BOLT; S/ABS BRKT 03.405 M10X30 FLANGE	0-28681-030-0	08	1	9712-	●	●	●	●	●	●
173	07.395 NUT; S/ABS FRT INDEPENDENT SUSPENSION(6PP) 06.606 (B) M12	8-94139-015-0	02	1	9312-9510	●	●	●	●	●
173	07.395 NUT; S/ABS FRT INDEPENDENT SUSPENSION(6PP) 06.606 (B) M12	8-94139-015-0	02	1	9511-9711				●
173	07.395 NUT; S/ABS 06.822 (A) M10	9-09111-410-0	02	1	9312-	●	●	●	●	●	●
173	07.395 NUT; S/ABS EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.917 (B) M10 FLANGE	0-91150-210-0	08	1	9312-9510	●	●	●	●	●	●
173	07.395 NUT; S/ABS 08.917 (B) M10 FLANGE	0-91150-210-0	08	1	9511-9711	●	●	●		●	●
173	07.395 NUT; S/ABS EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.917 (B) M10 FLANGE	0-91150-210-0	08	1	9511-9711				●
173	07.395 NUT; S/ABS 08.917 (B) M10 FLANGE	0-91150-210-0	08	1	9712-	●	●	●	●	●	●
183	07.436 SHACKLE; FRT SUSP EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94468-235-2	04	1	9312-9510	●	●	●	●	●	●
183	07.436 SHACKLE; FRT SUSP	8-94468-235-2	04	1	9511-9711	●	●	●		●	●
183	07.436 SHACKLE; FRT SUSP EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94468-235-2	04	1	9511-9711				●
183	07.436 SHACKLE; FRT SUSP	8-94468-235-2	04	1	9712-	●	●	●	●	●	●
184	07.436 NUT; SHACKLE EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.870 M16	9-99110-416-0	04	1	9312-9510	●	●	●	●	●	●
184	07.436 NUT; SHACKLE 06.870 M16	9-99110-416-0	04	1	9511-9705	●	●	●		●	●
184	07.436 NUT; SHACKLE EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.870 M16	9-99110-416-0	04	1	9511-9705				●
184	07.436 NUT; SHACKLE 07.529 M16 FLANGE	8-97147-389-0	04	1	9706-9706	●	●	●		●	●
184	07.436 NUT; SHACKLE EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.529 M16 FLANGE	8-97147-389-0	04	1	9706-9706				●
184	07.436 NUT; SHACKLE EXC. KD PREPARATORY PACK<6HF> 07.529 M16 FLANGE	8-97147-389-0	04	1	9706-9711	●	●	●		●	●
184	07.436 NUT; SHACKLE EXC. KD PREPARATORY PACK<6HF>,FRT INDEPENDENT SUSPENSION(6PP) 07.529 M16 FLANGE	8-97147-389-0	04	1	9706-9711				●
184	07.436 NUT; SHACKLE EXC. KD PREPARATORY PACK<6HF> 07.529 M16 FLANGE	8-97147-389-0	04	1	9712-	●	●	●	●	●	●
184	07.436 NUT; SHACKLE KD PREPARATORY PACK<6HF> EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.870 M16	9-99110-416-0	04	1	9706-9711	●	●	●	●	●	●
184	07.436 NUT; SHACKLE KD PREPARATORY PACK<6HF> 06.870 M16	9-99110-416-0	04	1	9712-	●	●	●	●	●	●
185	07.427 WASHER; LK,PIN EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.172 ID=16.5	8-97070-925-1	06	1	9312-9705	●	●	●	●	●	●
185	07.427 WASHER; LK,PIN KD PREPARATORY PACK<6HF> EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.172 ID=16.5	8-97070-925-1	06	1	9706-9711	●	●	●	●	●	●
185	07.427 WASHER; LK,PIN KD PREPARATORY PACK<6HF> 07.172 ID=16.5	8-97070-925-1	06	1	9712-	●	●	●	●	●	●
186	07.105 BUSHING; SHACKLE EXC. FRT INDEPENDENT SUSPENSION(6PP) L=38.6	8-94113-314-2	12	1	9312-9510	●	●	●	●	●	●
186	07.105 BUSHING; SHACKLE L=38.6	8-94113-314-2	12	1	9511-9711	●	●	●		●	●
186	07.105 BUSHING; SHACKLE EXC. FRT INDEPENDENT SUSPENSION(6PP) L=38.6	8-94113-314-2	12	1	9511-9711				●
186	07.105 BUSHING; SHACKLE L=38.6	8-94113-314-2	12	1	9712-	●	●	●	●	●	●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94150-265-2	02	1	9312-9510	●	●	●	●	●	●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-94150-265-2	02	1	9511-9711	●	●	●		●	●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94150-265-2	02	1	9511-9711				●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-94150-265-2	02	1	9712-	●	●	●	●	●	●
191	07.417 U-BOLT; FRT SPR EXC. FRT INDEPENDENT SUSPENSION(6PP) L=85	8-94249-417-2	04	1	9312-9510	●	●	●	●	●	●
191	07.417 U-BOLT; FRT SPR L=85	8-94249-417-3	04	1	9511-9711	●	●	●		●	●
191	07.417 U-BOLT; FRT SPR EXC. FRT INDEPENDENT SUSPENSION(6PP) L=85	8-94249-417-3	04	1	9511-9711				●
191	07.417 U-BOLT; FRT SPR L=85	8-94249-417-3	04	1	9712-	●	●	●	●	●	●
193	07.417 NUT; U BOLT EXC. FRT INDEPENDENT SUSPENSION(6PP) M14 FLANGE	8-94137-483-0	08	1	9312-9510	●	●	●	●	●	●
193	07.417 NUT; U BOLT M14 FLANGE	8-94137-483-0	08	1	9511-9711	●	●	●		●	●
193	07.417 NUT; U BOLT EXC. FRT INDEPENDENT SUSPENSION(6PP) M14 FLANGE	8-94137-483-0	08	1	9511-9711				●
193	07.417 NUT; U BOLT M14 FLANGE	8-94137-483-0	08	1	9712-	●	●	●	●	●	●
197	07.427 PIN; FRT SPR,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94117-900-1	02	1	9312-9510	●	●	●	●	●	●
197	07.427 PIN; FRT SPR,FRT	8-94117-900-1	02	1	9511-9711	●	●	●		●	●
197	07.427 PIN; FRT SPR,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94117-900-1	02	1	9511-9711				●
197	07.427 PIN; FRT SPR,FRT	8-94117-900-1	02	1	9712-	●	●	●	●	●	●
199	07.427 BOLT EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.277 M10X22 W/LK WASHER	0-50041-022-0	02	1	9312-9510	●	●	●	●	●	●
199	07.427 BOLT 02.277 M10X22 W/LK WASHER	0-50041-022-0	02	1	9511-9703	●	●	●		●	●
199	07.427 BOLT EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.277 M10X22 W/LK WASHER	0-50041-022-0	02	1	9511-9703				●
199	07.427 BOLT 03.405 M10X25 FLANGE	0-28681-025-0	02	1	9704-9711	●	●	●		●	●
199	07.427 BOLT EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.405 M10X25 FLANGE	0-28681-025-0	02	1	9704-9711				●
199	07.427 BOLT 03.405 M10X25 FLANGE	0-28681-025-0	02	1	9712-	●	●	●	●	●	●
201	07.427 NUT; PIN LK EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.870 M16	9-99110-416-0	02	1	9312-9510	●	●	●	●	●	●
201	07.427 NUT; PIN LK 06.870 M16	9-99110-416-0	02	1	9511-9705	●	●	●		●	●
201	07.427 NUT; PIN LK EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.870 M16	9-99110-416-0	02	1	9511-9705				●
201	07.427 NUT; PIN LK 07.529 M16 FLANGE	8-97147-389-0	02	1	9706-9706	●	●	●		●	●
201	07.427 NUT; PIN LK EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.529 M16 FLANGE	8-97147-389-0	02	1	9706-9706				●
201	07.427 NUT; PIN LK EXC. KD PREPARATORY PACK<6HF> 07.529 M16 FLANGE	8-97147-389-0	02	1	9706-9711	●	●	●		●	●
201	07.427 NUT; PIN LK EXC. KD PREPARATORY PACK<6HF>,FRT INDEPENDENT SUSPENSION(6PP) 07.529 M16 FLANGE	8-97147-389-0	02	1	9706-9711				●
201	07.427 NUT; PIN LK EXC. KD PREPARATORY PACK<6HF> 07.529 M16 FLANGE	8-97147-389-0	02	1	9712-	●	●	●	●	●	●
201	07.427 NUT; PIN LK KD PREPARATORY PACK<6HF> EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.870 M16	9-99110-416-0	02	1	9706-9711	●	●	●	●	●	●
201	07.427 NUT; PIN LK KD PREPARATORY PACK<6HF> 06.870 M16	9-99110-416-0	02	1	9712-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
