9 |

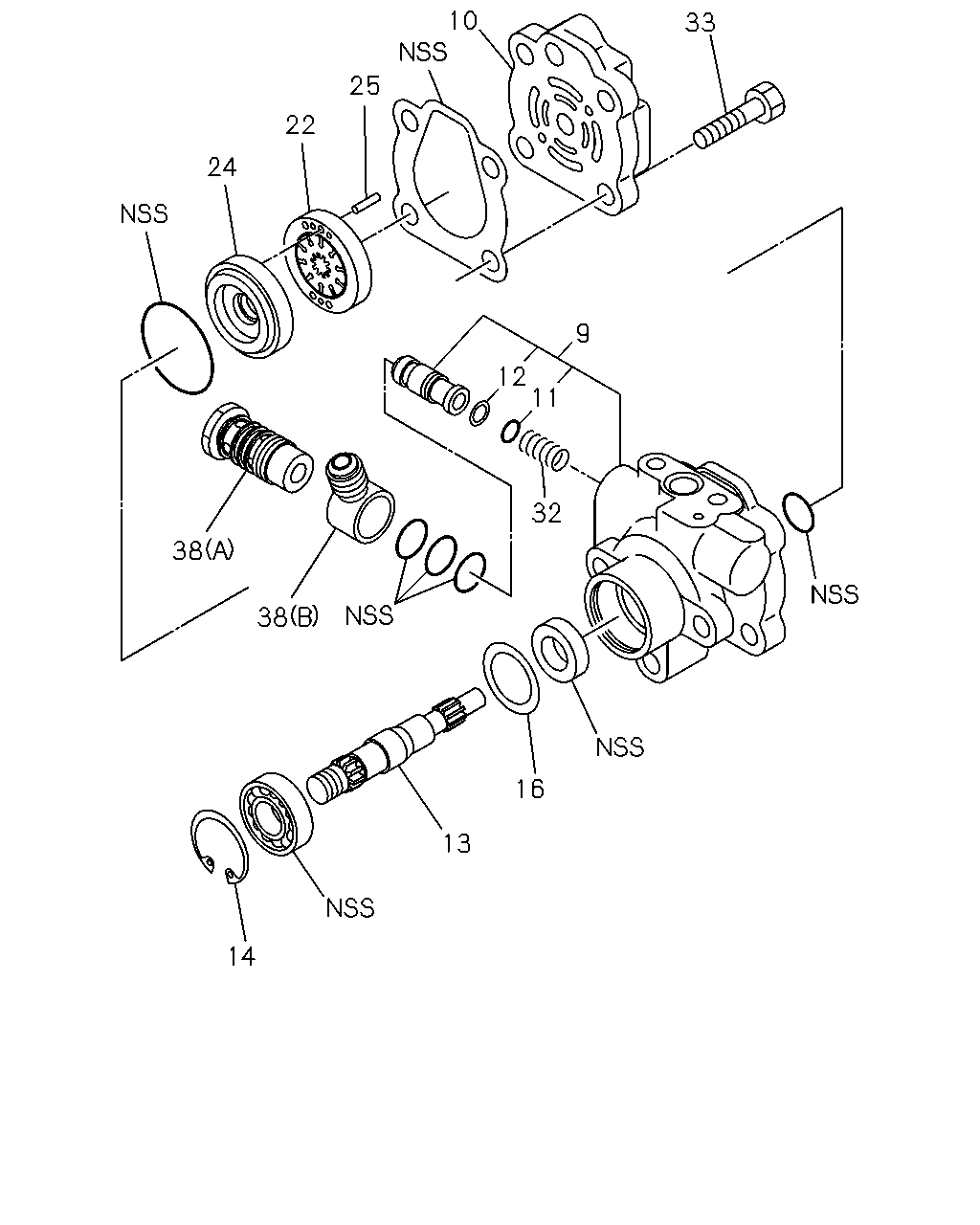

06.608 BODY ASM; FRT,OIL PUMP
ASM PART: A = 8-97084-207-0, 97084207, B = 8-97226-344-0, 97226344
|
8-97084-333-0 |
01 |
1 |
- |
| |
10 |
06.608 BODY ASM; RR,OIL PUMP
ASM PART: A = 8-97084-207-0, 97084207, B = 8-97226-344-0, 97226344
|
8-97076-460-0 |
01 |
1 |
- |
| |
11 |
06.616 RING; RET,OIL TANK
ASM PART: A = 8-97084-207-0, 97084207, B = 8-97226-344-0, 97226344
|
8-94175-185-0 |
01 |
1 |
- |
| |
12 |
06.616 FILTER; OIL PUMP
06.630
ASM PART: A = 8-97084-207-0, 97084207, B = 8-97226-344-0, 97226344
|
8-94175-184-0 |
01 |
1 |
- |
| |
13 |
06.605 SHAFT KIT; RET
06.614
ASM PART: A = 8-97084-207-0, 97084207, B = 8-97226-344-0, 97226344
|
8-97047-208-0 |
01 |
1 |
- |
| |
14 |
06.616 RING; RET,OIL PUMP
06.840, OD=37.8
ASM PART: A = 8-97084-207-0, 97084207, B = 8-97226-344-0, 97226344
|
9-09180-135-0 |
01 |
1 |
- |
| |
16 |
06.616 RING; RET,OIL PUMP
ASM PART: A = 8-97084-207-0, 97084207, B = 8-97226-344-0, 97226344
|
8-94475-374-0 |
01 |
1 |
- |
| |
22 |
06.610 CARTRIDGE ASM; OIL PUMP
ASM PART: A = 8-97084-207-0, 97084207, B = 8-97226-344-0, 97226344
|
8-94475-369-0 |
01 |
1 |
- |
| |
24 |
06.612 PLATE ASM; THRUST
06.609
ASM PART: A = 8-97084-207-0, 97084207, B = 8-97226-344-0, 97226344
|
8-97063-133-0 |
01 |
1 |
- |
| |
25 |
06.608 PIN; HSG,P/S
ASM PART: A = 8-97084-207-0, 97084207, B = 8-97226-344-0, 97226344
|
8-94475-371-0 |
02 |
1 |
- |
| |
32 |
06.606 SPRING; OIL PUMP
06.612
ASM PART: A = 8-97084-207-0, 97084207, B = 8-97226-344-0, 97226344
|
8-94475-376-0 |
01 |
1 |
- |
| |
33 |
06.606 BOLT; COVER
06.608
ASM PART: A = 8-97084-207-0, 97084207, B = 8-97226-344-0, 97226344
|
8-94475-381-0 |
04 |
1 |
- |
| |
38 |
06.624 CONNECTOR; OIL PUMP
(A) ASM PART: A = 8-97084-207-0, 97084207, B = 8-97226-344-0, 97226344
|
8-94475-377-0 |
01 |
1 |
- |
| |
38 |
06.624 CONNECTOR; OIL PUMP
(B) ASM PART: A = 8-97084-207-0, 97084207, B = 8-97226-344-0, 97226344
|
8-94475-382-0 |
01 |
1 |
- |
