◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50693 - NHR ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#33655) — 445 parça

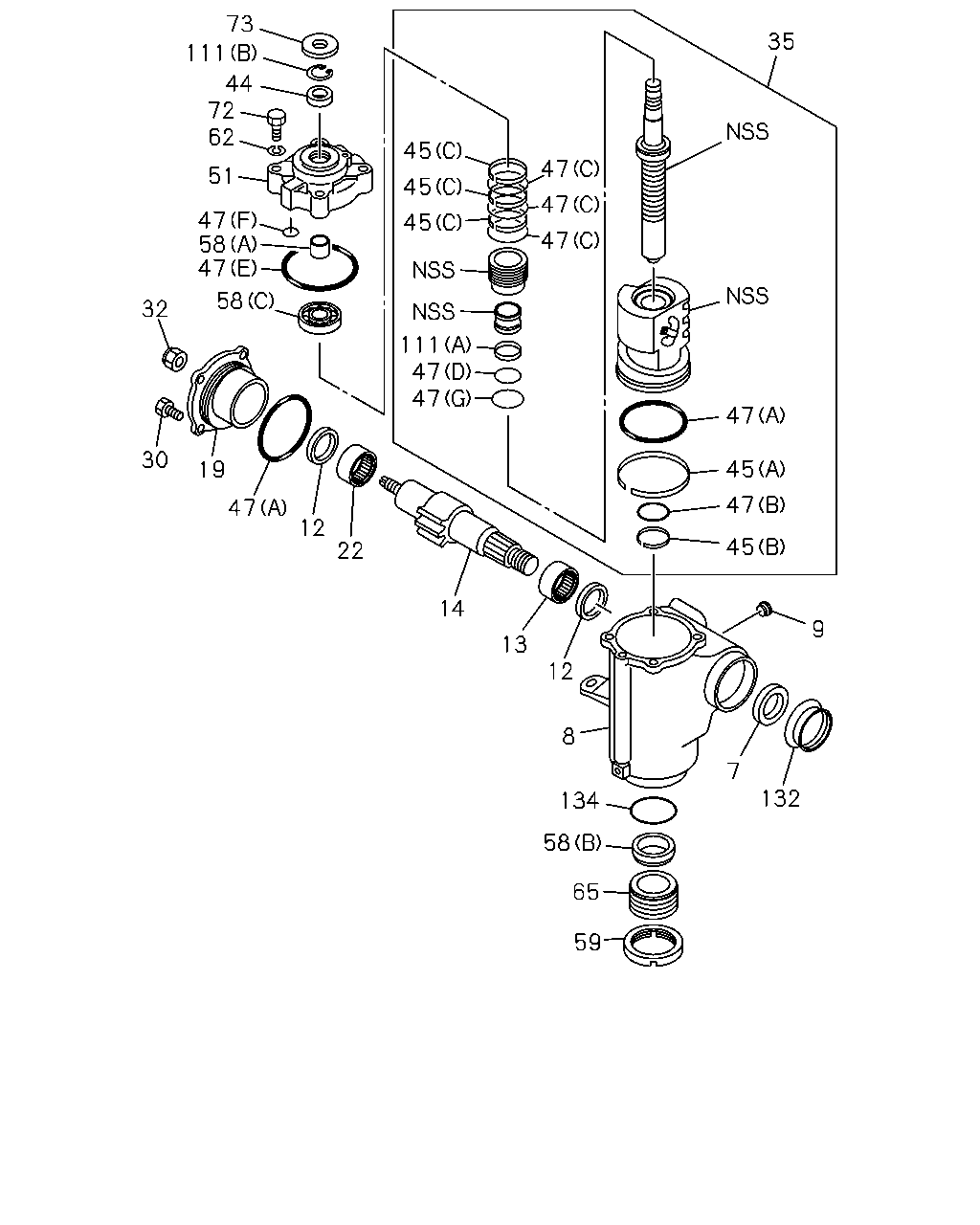

çizim 16319
73 44 72 62 35 45 47 47 51 45 47 58 47 58 45 47 32 47 47 47 30 45 19 47 47 12 22 45 14 9 13 12 8 7 134 132 58 65 59 111 111
BalonParca AdiParca NoAdetTipApplied Date
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09625-068-0 01 1 -
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		9-09924-502-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, G = 8-97145-739-0, 97145739 		8-97076-370-1 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: F = 8-97073-159-2, 97073159 		8-97076-377-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97093-576-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704 		8-97093-577-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706 		8-97108-213-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: D = 8-97069-707-0, 97069707 		8-97108-214-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
06.824 ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		1-44249-037-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		5-09605-020-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-820-0 01 1 -
12 06.855 GASKET; SHAFT,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09639-008-0 02 1 -
13 06.786 BEARING; SHAFT,BOX SIDE,STRG UNI
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09811-042-0 01 1 -
13 06.786 BEARING; SHAFT,BOX SIDE,STRG UNI
ASM PART: F = 8-97073-159-2, 97073159 		8-97014-828-0 01 1 -
13 06.786 BEARING; SHAFT,BOX SIDE,STRG UNI
ASM PART: E = 8-97073-158-1, 97073158, G = 8-97145-739-0, 97145739 		8-97076-368-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, G = 8-97145-739-0, 97145739 		8-97076-374-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: F = 8-97073-159-2, 97073159 		8-97076-379-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97093-588-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704 		8-97093-599-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: D = 8-97069-707-0, 97069707 		8-97107-730-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706 		8-97107-731-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-933-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		8-97093-601-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		8-97107-733-0 01 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		5-09811-039-0 02 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09811-042-0 01 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-839-0 01 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-836-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97093-592-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704 		8-97093-592-0 03 1 -
30 06.809 BOLT; COVER STRG UNIT
09.181, M10X22 ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		9-01911-022-0 04 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-44277-002-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-834-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
M10 ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		9-09111-410-0 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, G = 8-97145-739-0, 97145739 		8-97076-367-1 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: F = 8-97073-159-2, 97073159 		8-97076-375-1 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97093-579-0 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704 		8-97093-580-0 01 1 -
44 06.840 SEAL; OIL,SHAFT STRG UNIT
06.525 ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		5-09625-070-0 01 1 -
44 06.840 SEAL; OIL,SHAFT STRG UNIT
06.806 ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		8-94118-091-0 01 1 -
45 06.252 RING; RET
06.579, (A) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09629-003-0 01 1 -
45 06.252 RING; RET
06.579, (B) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09629-004-0 01 1 -
45 06.252 RING; RET
06.552, (C) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09629-005-0 03 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.579, (A) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-052-0 02 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.579, (B) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-053-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.552, (C) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-054-0 03 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.552, (D) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-055-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.809, (E) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-056-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.809, (F) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-057-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.552, (G) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-061-0 01 1 -
51 06.550 HOUSING; VALVE STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97093-584-0 01 1 -
51 06.550 HOUSING; VALVE STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704 		8-97093-585-0 01 1 -
58 06.835 BEARING; HSG STRG UNIT
06.786, (A) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09811-036-0 01 1 -
58 06.835 BEARING; HSG STRG UNIT
06.826, (B) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09811-041-0 01 1 -
58 06.835 BEARING; HSG STRG UNIT
06.786, (C) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09820-019-2 01 1 -
58 06.835 BEARING; HSG STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-812-0 01 1 -
59 06.521 NUT; COVER STRG UNIT
06.824 ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-44259-003-0 01 1 -
59 06.521 NUT; COVER STRG UNIT
M7.2 ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		8-94128-207-0 01 1 -
62 06.809 WASHER; HSG BOLT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09509-010-0 04 1 -
65 06.518 COVER; FRT,STRG UNIT
06.824 ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		1-44251-063-0 01 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809 ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-44579-005-0 04 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (A) ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-835-0 01 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (B) ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-836-0 03 1 -
73 06.840 COVER; DUST,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-44579-006-0 01 1 -
111 06.806 RING; BACKUP
06.552, (A) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09629-006-0 01 1 -
111 06.806 RING; BACKUP
(B) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-44579-001-0 01 1 -
132 06.822 COVER; DUST,STRG UNIT
06.855 ASM PART: A = 8-97069-704-1, 97069704 		5-44329-004-0 01 1 -
132 06.822 COVER; DUST,STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97108-208-0 01 1 -
134 06.521 GASKET; COVER,STRG UNIT
06.825 ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		1-44159-027-0 01 1 -

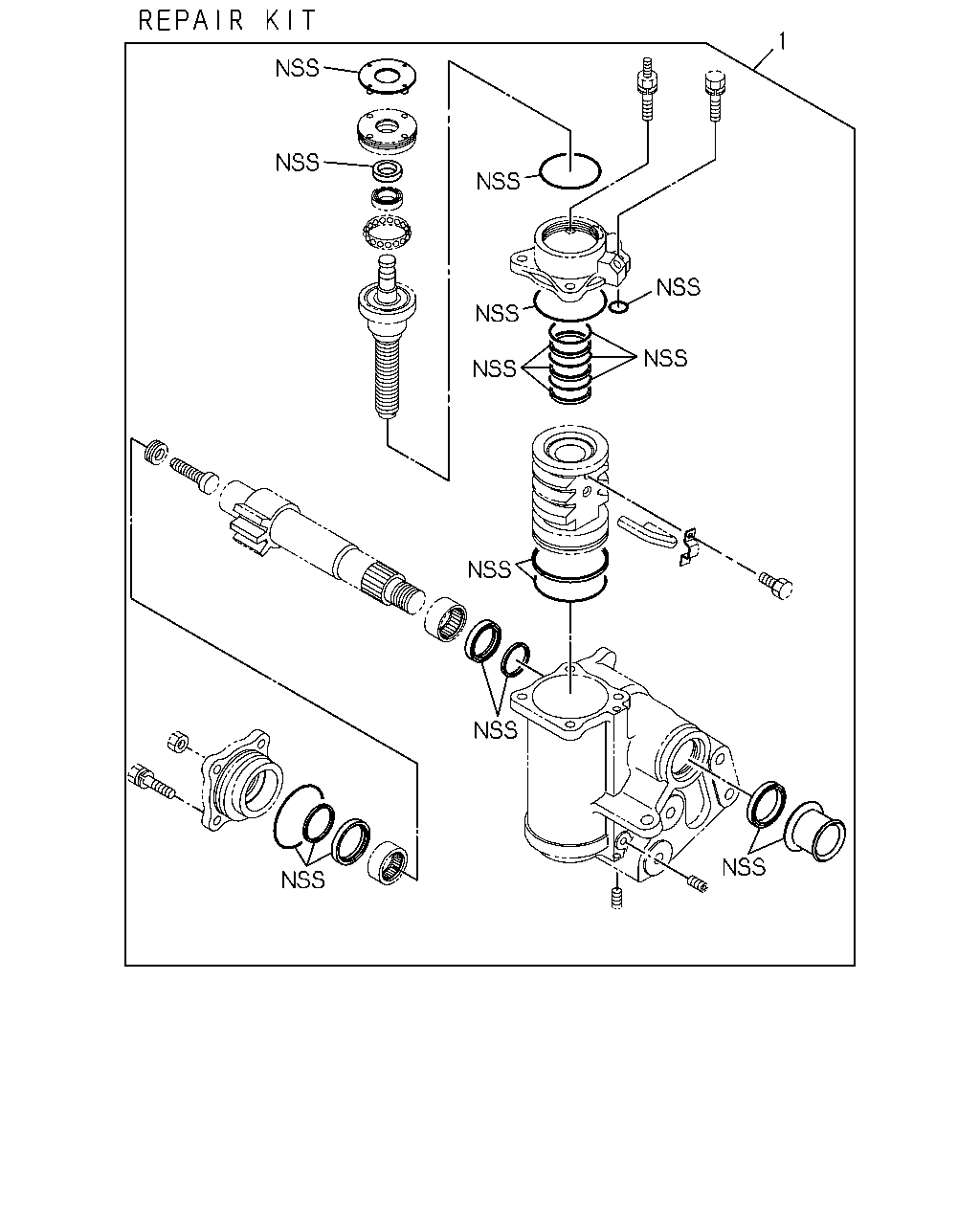

çizim 16776
1
BalonParca AdiParca NoAdetTipApplied Date
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: F = 8-97073-159-2, 97073159 		8-97076-371-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: E = 8-97073-158-1, 97073158 		8-97077-538-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-97069-704-1, 97069704 		8-97095-527-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: B = 8-97069-705-1, 97069705 		8-97108-207-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: G = 8-97145-739-0, 97145739 		8-97147-041-0 01 1 -

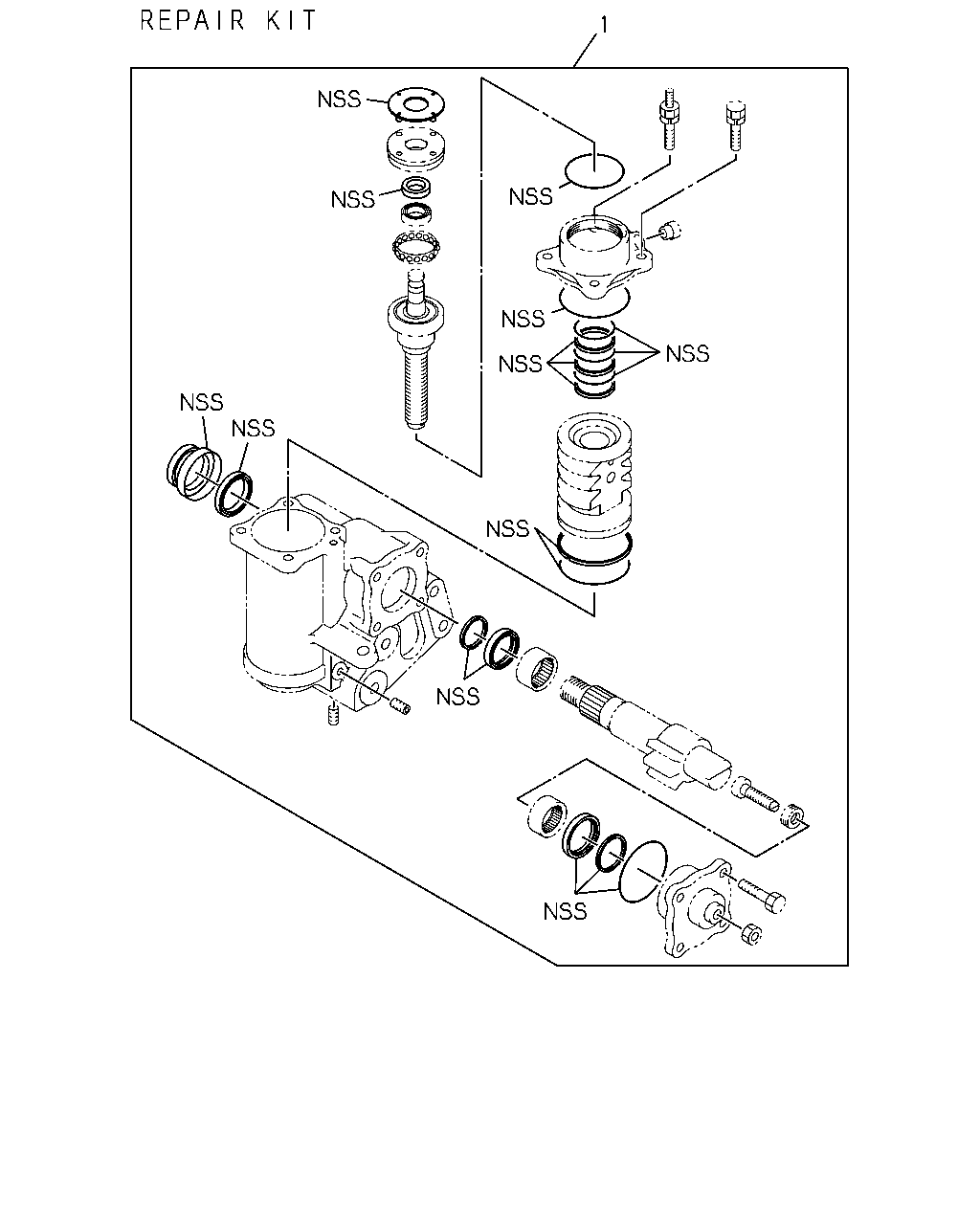

çizim 17127
1
BalonParca AdiParca NoAdetTipApplied Date
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: F = 8-97073-159-2, 97073159 		8-97076-371-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: E = 8-97073-158-1, 97073158 		8-97077-538-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-97069-704-1, 97069704 		8-97095-527-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: B = 8-97069-705-1, 97069705 		8-97108-207-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: G = 8-97145-739-0, 97145739 		8-97147-041-0 01 1 -

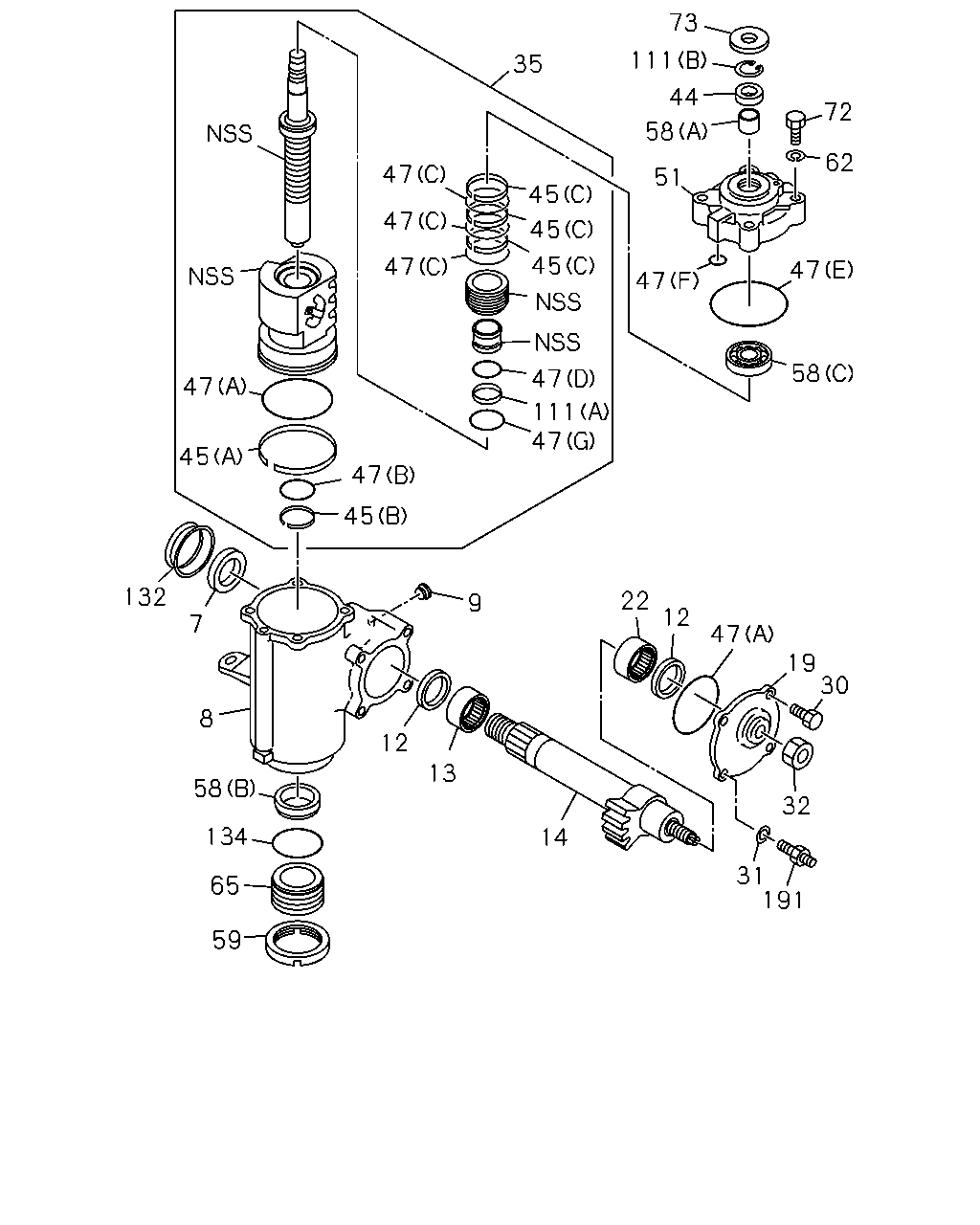

çizim 17128
73 35 58 72 62 47 51 45 45 45 47 47 47 47 47 47 58 47 45 47 45 132 22 12 9 47 30 12 8 13 58 32 134 191 65 59 111 44 7 14 31 19
BalonParca AdiParca NoAdetTipApplied Date
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09625-068-0 01 1 -
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		9-09924-502-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, G = 8-97145-739-0, 97145739 		8-97076-370-1 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: F = 8-97073-159-2, 97073159 		8-97076-377-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97093-576-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704 		8-97093-577-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706 		8-97108-213-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: D = 8-97069-707-0, 97069707 		8-97108-214-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
06.824 ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		1-44249-037-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		5-09605-020-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-820-0 01 1 -
12 06.855 GASKET; SHAFT,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09639-008-0 02 1 -
13 06.786 BEARING; SHAFT,BOX SIDE,STRG UNI
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09811-042-0 01 1 -
13 06.786 BEARING; SHAFT,BOX SIDE,STRG UNI
ASM PART: F = 8-97073-159-2, 97073159 		8-97014-828-0 01 1 -
13 06.786 BEARING; SHAFT,BOX SIDE,STRG UNI
ASM PART: E = 8-97073-158-1, 97073158, G = 8-97145-739-0, 97145739 		8-97076-368-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, G = 8-97145-739-0, 97145739 		8-97076-374-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: F = 8-97073-159-2, 97073159 		8-97076-379-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97093-588-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704 		8-97093-599-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: D = 8-97069-707-0, 97069707 		8-97107-730-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706 		8-97107-731-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-933-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		8-97093-601-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		8-97107-733-0 01 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		5-09811-039-0 02 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09811-042-0 01 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-839-0 01 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-836-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97093-592-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704 		8-97093-592-0 03 1 -
30 06.809 BOLT; COVER STRG UNIT
09.181, M10X22 ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		9-01911-022-0 04 1 -
31 06.809 WASHER; COVER STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704 		5-09509-010-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-44277-002-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-834-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
M10 ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		9-09111-410-0 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, G = 8-97145-739-0, 97145739 		8-97076-367-1 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: F = 8-97073-159-2, 97073159 		8-97076-375-1 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97093-579-0 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704 		8-97093-580-0 01 1 -
44 06.840 SEAL; OIL,SHAFT STRG UNIT
06.525 ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		5-09625-070-0 01 1 -
44 06.840 SEAL; OIL,SHAFT STRG UNIT
06.806 ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		8-94118-091-0 01 1 -
45 06.252 RING; RET
06.579, (A) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09629-003-0 01 1 -
45 06.252 RING; RET
06.579, (B) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09629-004-0 01 1 -
45 06.252 RING; RET
06.552, (C) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09629-005-0 03 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.579, (A) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-052-0 02 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.579, (B) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-053-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.552, (C) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-054-0 03 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.552, (D) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-055-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.809, (E) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-056-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.809, (F) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-057-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.552, (G) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-061-0 01 1 -
51 06.550 HOUSING; VALVE STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97093-584-0 01 1 -
51 06.550 HOUSING; VALVE STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704 		8-97093-585-0 01 1 -
58 06.835 BEARING; HSG STRG UNIT
06.786, (A) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09811-036-0 01 1 -
58 06.835 BEARING; HSG STRG UNIT
06.826, (B) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09811-041-0 01 1 -
58 06.835 BEARING; HSG STRG UNIT
06.786, (C) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09820-019-2 01 1 -
58 06.835 BEARING; HSG STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-812-0 01 1 -
59 06.521 NUT; COVER STRG UNIT
06.824 ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-44259-003-0 01 1 -
59 06.521 NUT; COVER STRG UNIT
M7.2 ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		8-94128-207-0 01 1 -
62 06.809 WASHER; HSG BOLT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09509-010-0 04 1 -
65 06.518 COVER; FRT,STRG UNIT
06.824 ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		1-44251-063-0 01 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809 ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-44579-005-0 04 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (A) ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-835-0 01 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (B) ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-836-0 03 1 -
73 06.840 COVER; DUST,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-44579-006-0 01 1 -
111 06.806 RING; BACKUP
06.552, (A) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09629-006-0 01 1 -
111 06.806 RING; BACKUP
(B) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-44579-001-0 01 1 -
132 06.822 COVER; DUST,STRG UNIT
06.855 ASM PART: A = 8-97069-704-1, 97069704 		5-44329-004-0 01 1 -
132 06.822 COVER; DUST,STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97108-208-0 01 1 -
134 06.521 GASKET; COVER,STRG UNIT
06.825 ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		1-44159-027-0 01 1 -
191 06.809 STUD; STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704 		8-97093-594-0 01 1 -
çizim 67966
132 12 47 12 1 7
BalonParca AdiParca NoAdetTipApplied Date
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: F = 8-97073-159-2, 97073159 		8-97076-371-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: E = 8-97073-158-1, 97073158 		8-97077-538-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-97069-704-1, 97069704 		8-97095-527-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: B = 8-97069-705-1, 97069705 		8-97108-207-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: G = 8-97145-739-0, 97145739 		8-97147-041-0 01 1 -
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09625-068-0 01 1 -
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		9-09924-502-0 01 1 -
12 06.855 GASKET; SHAFT,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09639-008-0 02 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.579, (A) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-052-0 02 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.579, (B) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-053-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.552, (C) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-054-0 03 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.552, (D) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-055-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.809, (E) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-056-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.809, (F) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-057-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.552, (G) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-061-0 01 1 -
132 06.822 COVER; DUST,STRG UNIT
06.855 ASM PART: A = 8-97069-704-1, 97069704 		5-44329-004-0 01 1 -
132 06.822 COVER; DUST,STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97108-208-0 01 1 -
çizim 68069
59 66 67 44 43 30 19 55 26 32 9 43 22 25 23 8 14 22 7
BalonParca AdiParca NoAdetTipApplied Date
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09625-068-0 01 1 -
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		9-09924-502-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, G = 8-97145-739-0, 97145739 		8-97076-370-1 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: F = 8-97073-159-2, 97073159 		8-97076-377-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97093-576-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704 		8-97093-577-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706 		8-97108-213-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: D = 8-97069-707-0, 97069707 		8-97108-214-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
06.824 ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		1-44249-037-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		5-09605-020-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-820-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, G = 8-97145-739-0, 97145739 		8-97076-374-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: F = 8-97073-159-2, 97073159 		8-97076-379-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97093-588-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704 		8-97093-599-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: D = 8-97069-707-0, 97069707 		8-97107-730-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706 		8-97107-731-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-933-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		8-97093-601-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		8-97107-733-0 01 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		5-09811-039-0 02 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09811-042-0 01 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-839-0 01 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-842-0 01 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		9-44277-014-0 01 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
06.828, T=1.515-1.535 ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		9-44279-008-0 AR 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
06.828, T=1.545-1.565 ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		9-44279-009-0 AR 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
06.828, T=1.575-1.595 ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		9-44279-010-0 AR 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
06.828, T=1.605-1.625 ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		9-44279-011-0 AR 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
06.828, T=1.635-1.655 ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		9-44279-012-0 AR 1 -
26 06.521 GASKET; COVER,STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		8-97107-737-0 01 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-836-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97093-592-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704 		8-97093-592-0 03 1 -
30 06.809 BOLT; COVER STRG UNIT
09.181, M10X22 ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		9-01911-022-0 04 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-44277-002-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-834-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
M10 ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		9-09111-410-0 01 1 -
43 06.525 BEARING; WORM SHAFT,STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		8-94128-202-0 02 1 -
44 06.840 SEAL; OIL,SHAFT STRG UNIT
06.525 ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		5-09625-070-0 01 1 -
44 06.840 SEAL; OIL,SHAFT STRG UNIT
06.806 ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		8-94118-091-0 01 1 -
55 06.524 WORM & BALL NUT ASM; STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706 		8-97108-218-0 01 1 -
55 06.524 WORM & BALL NUT ASM; STRG UNIT
ASM PART: D = 8-97069-707-0, 97069707 		8-97108-219-0 01 1 -
59 06.521 NUT; COVER STRG UNIT
06.824 ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-44259-003-0 01 1 -
59 06.521 NUT; COVER STRG UNIT
M7.2 ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		8-94128-207-0 01 1 -
66 06.518 COVER; REAR STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		8-97107-735-0 01 1 -
67 06.825 SEAL; OIL,PLUG,STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		8-97107-738-0 01 1 -
çizim 68632
2 47 45 45 45 47 47 47 47 58 47 47 47 45 47 45 132 12 47 12 32 134 73 111 44 111 7
BalonParca AdiParca NoAdetTipApplied Date
2 06.507 REPAIR KIT; STRG UNIT,2 YEAR
ASM PART: B = 8-97069-705-1, 97069705 		8-97108-205-0 01 1 -
2 06.507 REPAIR KIT; STRG UNIT,2 YEAR
ASM PART: A = 8-97069-704-1, 97069704 		8-97108-206-0 01 1 -
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09625-068-0 01 1 -
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		9-09924-502-0 01 1 -
12 06.855 GASKET; SHAFT,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09639-008-0 02 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-44277-002-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-834-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
M10 ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		9-09111-410-0 01 1 -
44 06.840 SEAL; OIL,SHAFT STRG UNIT
06.525 ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		5-09625-070-0 01 1 -
44 06.840 SEAL; OIL,SHAFT STRG UNIT
06.806 ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		8-94118-091-0 01 1 -
45 06.252 RING; RET
06.579, (A) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09629-003-0 01 1 -
45 06.252 RING; RET
06.579, (B) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09629-004-0 01 1 -
45 06.252 RING; RET
06.552, (C) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09629-005-0 03 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.579, (A) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-052-0 02 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.579, (B) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-053-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.552, (C) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-054-0 03 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.552, (D) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-055-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.809, (E) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-056-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.809, (F) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-057-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.552, (G) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-061-0 01 1 -
58 06.835 BEARING; HSG STRG UNIT
06.786, (A) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09811-036-0 01 1 -
58 06.835 BEARING; HSG STRG UNIT
06.826, (B) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09811-041-0 01 1 -
58 06.835 BEARING; HSG STRG UNIT
06.786, (C) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09820-019-2 01 1 -
58 06.835 BEARING; HSG STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-812-0 01 1 -
73 06.840 COVER; DUST,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-44579-006-0 01 1 -
111 06.806 RING; BACKUP
06.552, (A) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09629-006-0 01 1 -
111 06.806 RING; BACKUP
(B) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-44579-001-0 01 1 -
132 06.822 COVER; DUST,STRG UNIT
06.855 ASM PART: A = 8-97069-704-1, 97069704 		5-44329-004-0 01 1 -
132 06.822 COVER; DUST,STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97108-208-0 01 1 -
134 06.521 GASKET; COVER,STRG UNIT
06.825 ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		1-44159-027-0 01 1 -
çizim 68660
2 44 45 47 47 45 47 45 47 47 32 47 47 47 45 47 12 47 45 12 7 134 132 111 111
BalonParca AdiParca NoAdetTipApplied Date
2 06.507 REPAIR KIT; STRG UNIT,2 YEAR
ASM PART: B = 8-97069-705-1, 97069705 		8-97108-205-0 01 1 -
2 06.507 REPAIR KIT; STRG UNIT,2 YEAR
ASM PART: A = 8-97069-704-1, 97069704 		8-97108-206-0 01 1 -
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09625-068-0 01 1 -
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		9-09924-502-0 01 1 -
12 06.855 GASKET; SHAFT,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09639-008-0 02 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-44277-002-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-834-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
M10 ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		9-09111-410-0 01 1 -
44 06.840 SEAL; OIL,SHAFT STRG UNIT
06.525 ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		5-09625-070-0 01 1 -
44 06.840 SEAL; OIL,SHAFT STRG UNIT
06.806 ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		8-94118-091-0 01 1 -
45 06.252 RING; RET
06.579, (A) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09629-003-0 01 1 -
45 06.252 RING; RET
06.579, (B) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09629-004-0 01 1 -
45 06.252 RING; RET
06.552, (C) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09629-005-0 03 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.579, (A) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-052-0 02 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.579, (B) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-053-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.552, (C) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-054-0 03 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.552, (D) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-055-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.809, (E) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-056-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.809, (F) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-057-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.552, (G) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-061-0 01 1 -
111 06.806 RING; BACKUP
06.552, (A) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09629-006-0 01 1 -
111 06.806 RING; BACKUP
(B) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-44579-001-0 01 1 -
132 06.822 COVER; DUST,STRG UNIT
06.855 ASM PART: A = 8-97069-704-1, 97069704 		5-44329-004-0 01 1 -
132 06.822 COVER; DUST,STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97108-208-0 01 1 -
134 06.521 GASKET; COVER,STRG UNIT
06.825 ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		1-44159-027-0 01 1 -
çizim 68661
1 47 12 12 7 132
BalonParca AdiParca NoAdetTipApplied Date
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: F = 8-97073-159-2, 97073159 		8-97076-371-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: E = 8-97073-158-1, 97073158 		8-97077-538-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-97069-704-1, 97069704 		8-97095-527-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: B = 8-97069-705-1, 97069705 		8-97108-207-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: G = 8-97145-739-0, 97145739 		8-97147-041-0 01 1 -
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09625-068-0 01 1 -
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		9-09924-502-0 01 1 -
12 06.855 GASKET; SHAFT,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09639-008-0 02 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.579, (A) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-052-0 02 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.579, (B) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-053-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.552, (C) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-054-0 03 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.552, (D) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-055-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.809, (E) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-056-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.809, (F) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-057-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.552, (G) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-061-0 01 1 -
132 06.822 COVER; DUST,STRG UNIT
06.855 ASM PART: A = 8-97069-704-1, 97069704 		5-44329-004-0 01 1 -
132 06.822 COVER; DUST,STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97108-208-0 01 1 -
çizim 68662
59 66 67 44 43 55 9 43 7 14 22 22 8 30 23 25 32 26 19
BalonParca AdiParca NoAdetTipApplied Date
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09625-068-0 01 1 -
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		9-09924-502-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, G = 8-97145-739-0, 97145739 		8-97076-370-1 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: F = 8-97073-159-2, 97073159 		8-97076-377-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97093-576-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704 		8-97093-577-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706 		8-97108-213-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: D = 8-97069-707-0, 97069707 		8-97108-214-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
06.824 ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		1-44249-037-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		5-09605-020-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-820-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, G = 8-97145-739-0, 97145739 		8-97076-374-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: F = 8-97073-159-2, 97073159 		8-97076-379-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97093-588-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704 		8-97093-599-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: D = 8-97069-707-0, 97069707 		8-97107-730-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706 		8-97107-731-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-933-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		8-97093-601-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		8-97107-733-0 01 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		5-09811-039-0 02 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09811-042-0 01 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-839-0 01 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-842-0 01 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		9-44277-014-0 01 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
06.828, T=1.515-1.535 ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		9-44279-008-0 AR 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
06.828, T=1.545-1.565 ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		9-44279-009-0 AR 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
06.828, T=1.575-1.595 ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		9-44279-010-0 AR 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
06.828, T=1.605-1.625 ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		9-44279-011-0 AR 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
06.828, T=1.635-1.655 ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		9-44279-012-0 AR 1 -
26 06.521 GASKET; COVER,STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		8-97107-737-0 01 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-836-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97093-592-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704 		8-97093-592-0 03 1 -
30 06.809 BOLT; COVER STRG UNIT
09.181, M10X22 ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		9-01911-022-0 04 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-44277-002-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-834-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
M10 ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		9-09111-410-0 01 1 -
43 06.525 BEARING; WORM SHAFT,STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		8-94128-202-0 02 1 -
44 06.840 SEAL; OIL,SHAFT STRG UNIT
06.525 ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		5-09625-070-0 01 1 -
44 06.840 SEAL; OIL,SHAFT STRG UNIT
06.806 ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		8-94118-091-0 01 1 -
55 06.524 WORM & BALL NUT ASM; STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706 		8-97108-218-0 01 1 -
55 06.524 WORM & BALL NUT ASM; STRG UNIT
ASM PART: D = 8-97069-707-0, 97069707 		8-97108-219-0 01 1 -
59 06.521 NUT; COVER STRG UNIT
06.824 ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-44259-003-0 01 1 -
59 06.521 NUT; COVER STRG UNIT
M7.2 ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		8-94128-207-0 01 1 -
66 06.518 COVER; REAR STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		8-97107-735-0 01 1 -
67 06.825 SEAL; OIL,PLUG,STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		8-97107-738-0 01 1 -
çizim 69406
72 72 35 56 58 9 54 50 42 14 24 23 178 179 177 8 13 32 30 22 33 33 19
BalonParca AdiParca NoAdetTipApplied Date
8 06.803 BOX ASM; STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, G = 8-97145-739-0, 97145739 		8-97076-370-1 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: F = 8-97073-159-2, 97073159 		8-97076-377-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97093-576-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704 		8-97093-577-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706 		8-97108-213-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: D = 8-97069-707-0, 97069707 		8-97108-214-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
06.824 ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		1-44249-037-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		5-09605-020-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-820-0 01 1 -
13 06.786 BEARING; SHAFT,BOX SIDE,STRG UNI
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09811-042-0 01 1 -
13 06.786 BEARING; SHAFT,BOX SIDE,STRG UNI
ASM PART: F = 8-97073-159-2, 97073159 		8-97014-828-0 01 1 -
13 06.786 BEARING; SHAFT,BOX SIDE,STRG UNI
ASM PART: E = 8-97073-158-1, 97073158, G = 8-97145-739-0, 97145739 		8-97076-368-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, G = 8-97145-739-0, 97145739 		8-97076-374-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: F = 8-97073-159-2, 97073159 		8-97076-379-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97093-588-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704 		8-97093-599-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: D = 8-97069-707-0, 97069707 		8-97107-730-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706 		8-97107-731-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-933-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		8-97093-601-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		8-97107-733-0 01 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		5-09811-039-0 02 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09811-042-0 01 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-839-0 01 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-842-0 01 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		9-44277-014-0 01 1 -
24 06.822 RETAINER; STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-841-0 01 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-836-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97093-592-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704 		8-97093-592-0 03 1 -
30 06.809 BOLT; COVER STRG UNIT
09.181, M10X22 ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		9-01911-022-0 04 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-44277-002-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-834-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
M10 ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		9-09111-410-0 01 1 -
33 06.806 PLUG; DRAIN,STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-820-0 02 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, G = 8-97145-739-0, 97145739 		8-97076-367-1 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: F = 8-97073-159-2, 97073159 		8-97076-375-1 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97093-579-0 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704 		8-97093-580-0 01 1 -
42 06.586 HOUSING & SEAL ASM; STRG UNIT
ASM PART: F = 8-97073-159-2, 97073159 		8-97014-822-0 01 1 -
42 06.586 HOUSING & SEAL ASM; STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, G = 8-97145-739-0, 97145739 		8-97076-366-0 01 1 -
50 06.586 HOUSING ASM; VALVE STRG UNIT
ASM PART: F = 8-97073-159-2, 97073159 		8-97014-821-0 01 1 -
50 06.586 HOUSING ASM; VALVE STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, G = 8-97145-739-0, 97145739 		8-97076-365-0 01 1 -
54 06.835 CASE; BEARING STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-810-0 01 1 -
56 06.560 PLUG & SEAL ASM; STRG UNIT
06.850 ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97076-364-1 01 1 -
58 06.835 BEARING; HSG STRG UNIT
06.786, (A) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09811-036-0 01 1 -
58 06.835 BEARING; HSG STRG UNIT
06.826, (B) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09811-041-0 01 1 -
58 06.835 BEARING; HSG STRG UNIT
06.786, (C) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09820-019-2 01 1 -
58 06.835 BEARING; HSG STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-812-0 01 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809 ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-44579-005-0 04 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (A) ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-835-0 01 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (B) ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-836-0 03 1 -
177 06.822 TUBE; BALL BRG STRG UNIT
ASM PART: F = 8-97073-159-2, 97073159 		8-97014-809-0 02 1 -
177 06.822 TUBE; BALL BRG STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, G = 8-97145-739-0, 97145739 		8-97077-537-0 02 1 -
178 06.822 CLIP; BALL TUBE STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-808-0 01 1 -
179 06.822 SCREW; CLIP STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159 		8-97014-807-0 02 1 -
çizim 70692
72 35 56 58 54 50 42 178 13 8 23 33 33 24 22 30 32 72 9 177 14 19 179
BalonParca AdiParca NoAdetTipApplied Date
8 06.803 BOX ASM; STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, G = 8-97145-739-0, 97145739 		8-97076-370-1 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: F = 8-97073-159-2, 97073159 		8-97076-377-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97093-576-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704 		8-97093-577-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706 		8-97108-213-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: D = 8-97069-707-0, 97069707 		8-97108-214-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
06.824 ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		1-44249-037-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		5-09605-020-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-820-0 01 1 -
13 06.786 BEARING; SHAFT,BOX SIDE,STRG UNI
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09811-042-0 01 1 -
13 06.786 BEARING; SHAFT,BOX SIDE,STRG UNI
ASM PART: F = 8-97073-159-2, 97073159 		8-97014-828-0 01 1 -
13 06.786 BEARING; SHAFT,BOX SIDE,STRG UNI
ASM PART: E = 8-97073-158-1, 97073158, G = 8-97145-739-0, 97145739 		8-97076-368-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, G = 8-97145-739-0, 97145739 		8-97076-374-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: F = 8-97073-159-2, 97073159 		8-97076-379-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97093-588-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704 		8-97093-599-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: D = 8-97069-707-0, 97069707 		8-97107-730-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706 		8-97107-731-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-933-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		8-97093-601-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		8-97107-733-0 01 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		5-09811-039-0 02 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09811-042-0 01 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-839-0 01 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-842-0 01 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		9-44277-014-0 01 1 -
24 06.822 RETAINER; STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-841-0 01 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-836-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97093-592-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704 		8-97093-592-0 03 1 -
30 06.809 BOLT; COVER STRG UNIT
09.181, M10X22 ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		9-01911-022-0 04 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-44277-002-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-834-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
M10 ASM PART: C = 8-97069-706-0, 97069706, D = 8-97069-707-0, 97069707 		9-09111-410-0 01 1 -
33 06.806 PLUG; DRAIN,STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-820-0 02 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, G = 8-97145-739-0, 97145739 		8-97076-367-1 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: F = 8-97073-159-2, 97073159 		8-97076-375-1 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97093-579-0 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704 		8-97093-580-0 01 1 -
42 06.586 HOUSING & SEAL ASM; STRG UNIT
ASM PART: F = 8-97073-159-2, 97073159 		8-97014-822-0 01 1 -
42 06.586 HOUSING & SEAL ASM; STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, G = 8-97145-739-0, 97145739 		8-97076-366-0 01 1 -
50 06.586 HOUSING ASM; VALVE STRG UNIT
ASM PART: F = 8-97073-159-2, 97073159 		8-97014-821-0 01 1 -
50 06.586 HOUSING ASM; VALVE STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, G = 8-97145-739-0, 97145739 		8-97076-365-0 01 1 -
54 06.835 CASE; BEARING STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-810-0 01 1 -
56 06.560 PLUG & SEAL ASM; STRG UNIT
06.850 ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97076-364-1 01 1 -
58 06.835 BEARING; HSG STRG UNIT
06.786, (A) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09811-036-0 01 1 -
58 06.835 BEARING; HSG STRG UNIT
06.826, (B) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09811-041-0 01 1 -
58 06.835 BEARING; HSG STRG UNIT
06.786, (C) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09820-019-2 01 1 -
58 06.835 BEARING; HSG STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-812-0 01 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809 ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-44579-005-0 04 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (A) ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-835-0 01 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (B) ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-836-0 03 1 -
177 06.822 TUBE; BALL BRG STRG UNIT
ASM PART: F = 8-97073-159-2, 97073159 		8-97014-809-0 02 1 -
177 06.822 TUBE; BALL BRG STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, G = 8-97145-739-0, 97145739 		8-97077-537-0 02 1 -
178 06.822 CLIP; BALL TUBE STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159, G = 8-97145-739-0, 97145739 		8-97014-808-0 01 1 -
179 06.822 SCREW; CLIP STRG UNIT
ASM PART: E = 8-97073-158-1, 97073158, F = 8-97073-159-2, 97073159 		8-97014-807-0 02 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
