4-36 — POWER STEERING CONTROL; ENGINE SIDE (#33654) — 26 parça

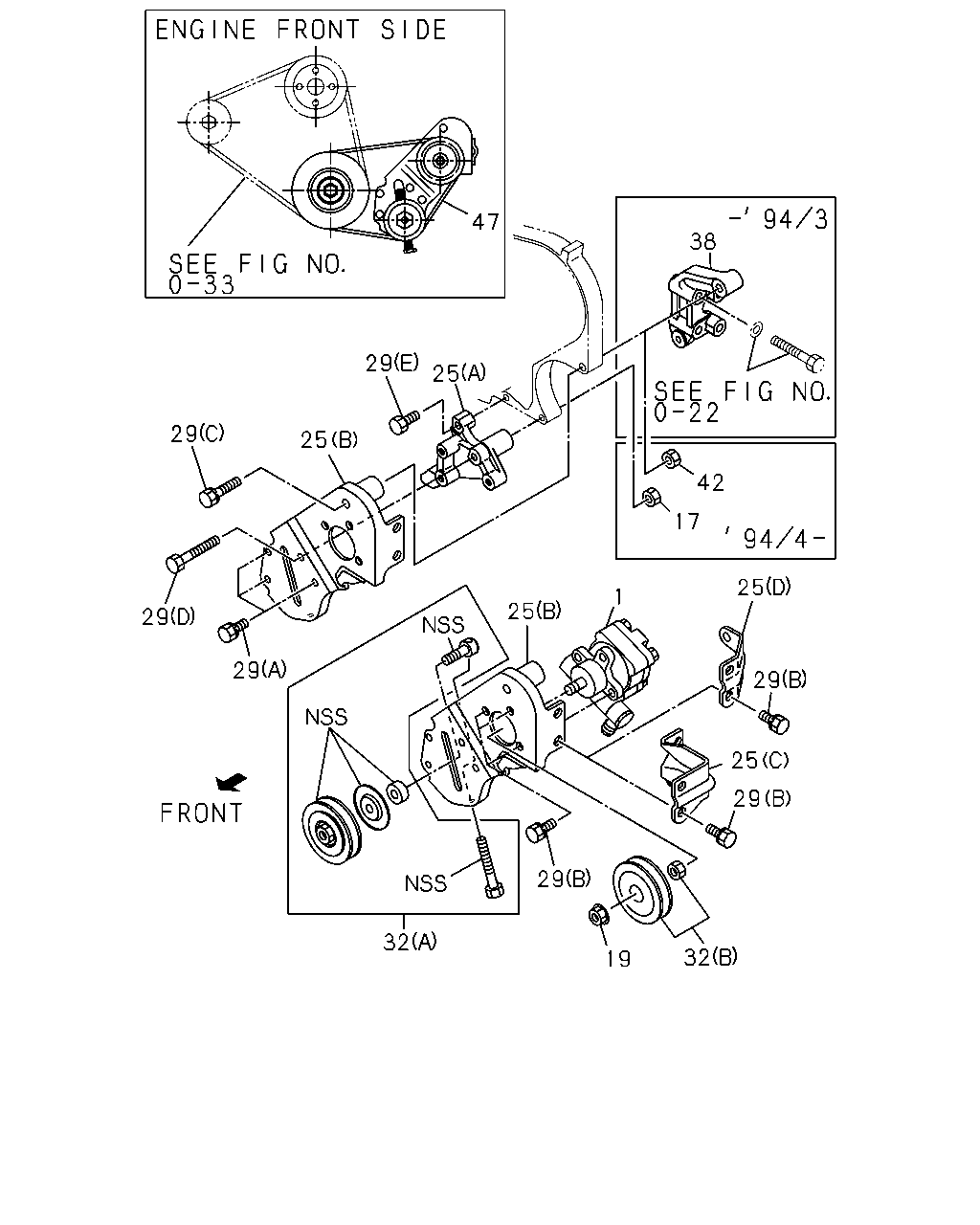

çizim 71230
38 47 29 25 29 25 42 25 25 29 29 29 25 29 29 32 19 17 1 32
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> 		8-97084-207-0 01 1 9312- ● ● ● ● ● ●
17 06.606 NUT; POWER STRG PUMP
07.633 M8 FLANGE 		0-91150-108-0 01 1 9404-9407 ● ● ● ● ● ●
17 06.606 NUT; POWER STRG PUMP
POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9408- ● ● ● ● ● ●
19 07.874 NUT; PULLEY,OIL PUMP
POWER STEERING<N40> 06.606 M12 		8-94139-015-0 01 1 9312- ● ● ● ● ● ●
25 06.606 BRACKET; P/S PUMP
POWER STEERING<N40> (B) 		8-97065-974-0 01 1 9312- ● ● ● ● ● ●
25 06.606 BRACKET; P/S PUMP
POWER STEERING<N40> (A) 		8-97065-975-0 01 1 9312-9405 ● ● ● ● ● ●
25 06.606 BRACKET; P/S PUMP
POWER STEERING<N40> (A) 		8-97107-869-0 01 1 9406- ● ● ● ● ● ●
25 06.606 BRACKET; P/S PUMP
POWER STEERING<N40> (C) 		8-97065-976-0 01 1 9312-9403 ● ● ● ● ● ●
25 06.606 BRACKET; P/S PUMP
POWER STEERING<N40> (D) 		8-97107-872-0 01 1 9404- ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
POWER STEERING<N40> 04.785 (A) M8X18 W/LK WASHER 		0-50040-818-0 03 1 9312-9706 ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
POWER STEERING<N40> 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 9707- ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
POWER STEERING<N40> 11.377 (B) M10X20 W/LK WASHER 		0-50041-020-0 07 1 9312-9403 ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
POWER STEERING<N40> 11.377 (B) M10X20 W/LK WASHER 		0-50041-020-0 05 1 9404-9706 ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
POWER STEERING<N40> 03.611 (B) M10X20 FLANGE 		0-28681-020-0 05 1 9707- ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
POWER STEERING<N40> (C) M10X123 		8-94134-127-1 01 1 9312-9403 ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
POWER STEERING<N40> 06.606 (C) M10X100 W/LK WASHER 		0-50041-000-0 01 1 9404-9706 ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
POWER STEERING<N40> 09.198 (C) M10X100 FLANGE 		0-28081-000-0 01 1 9707- ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
POWER STEERING<N40> (D) M8X105 		8-94134-128-1 01 1 9312-9706 ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
POWER STEERING<N40> 03.278 (D) M8X100 FLANGE 		0-28080-800-0 01 1 9707- ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
POWER STEERING<N40> 00.206 (E) M8X65 W/LK WASHER 		8-94205-986-1 01 1 9312-9706 ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
POWER STEERING<N40> 01.251 (E) M8X60 FLANGE 		0-28080-860-0 01 1 9707- ● ● ● ● ● ●
32 06.665 PULLEY; IDLER,P/S
POWER STEERING<N40> 06.655 (A) 		8-94128-866-0 01 1 9312- ● ● ● ● ● ●
32 06.665 PULLEY; IDLER,P/S
POWER STEERING<N40> (B) 		8-97084-332-0 01 1 9312- ● ● ● ● ● ●
38 06.606 BRACKET; POWER STRG,ENG FOOT
POWER STEERING<N40> 		8-94141-413-2 01 1 9312-9403 ● ● ● ● ● ●
42 06.672 NUT; ADJ PLATE
POWER STEERING<N40> 04.785 M10 FLANGE 		0-91150-110-0 01 1 9404- ● ● ● ● ● ●
47 01.066 BELT; P/S PUMP
POWER STEERING<N40> 		8-97085-131-0 01 1 9312- ● ● ● ● ● ●
