4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#33653) — 185 parça

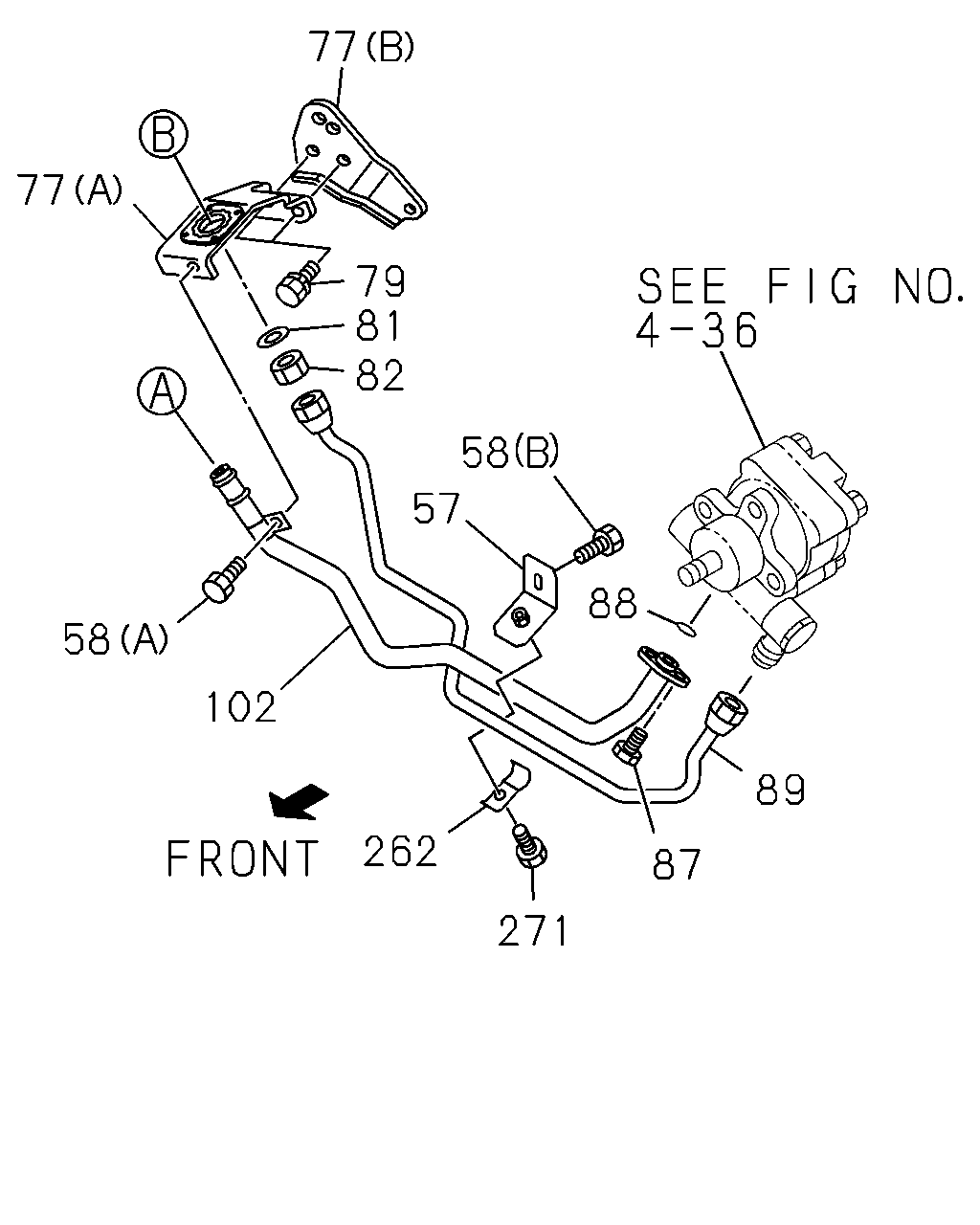

77 77 79 81 82 58 57 88 58 102 89 262 87 271

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
57	06.672 BRACKET; POWER STRG PIPE POWER STEERING<N40>	8-97101-943-0	01	1	9312-	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 12.809 (C) M6X16 FLANGE	0-28280-616-0	01	1	9312-9608	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 04.439 (C) M6X16 FLANGE	0-28680-616-0	01	1	9609-	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 04.595 (B) M8X20 FLANGE	0-28480-820-0	01	1	9312-	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 08.080 (A) M6X16	8-94238-894-0	01	1	9312-	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE POWER STEERING<N40> (A)	8-97074-053-0	01	1	9312-	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE POWER STEERING<N40> (B)	8-97075-615-0	01	1	9312-9608	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1 ENG(RLF) POWER STEERING<N40> (B)	8-97075-615-0	01	1	9609-	●	●			●
77	06.672 BRACKET; POWER STEERING HOSE POWER STEERING<N40> (B)	8-97075-615-0	01	1	9609-			●	●		●
77	06.672 BRACKET; POWER STEERING HOSE 4JG2 ENG(RJC) POWER STEERING<N40> (B)	8-97073-947-0	01	1	9609-	●	●			●
79	06.672 BOLT; BRKT POWER STEERING<N40> 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9312-	●	●	●	●	●	●
81	06.672 WASHER; LK,FLEX HOSE POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	02	1	9312-	●	●	●	●	●	●
82	06.672 NUT; FLEX HOSE,P/S POWER STEERING<N40> 06.897 M16	8-94370-339-0	01	1	9312-	●	●	●	●	●	●
87	06.672 BOLT; POWER STRG PIPE POWER STEERING<N40> 00.206 M8X12 W/LK WASHER	0-50040-812-0	02	1	9312-9608	●	●	●	●	●	●
87	06.672 BOLT; POWER STRG PIPE POWER STEERING<N40> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9609-	●	●	●	●	●	●
88	06.673 RING; OIL PIPE POWER STEERING<N40> 06.609 ID=11.0	9-09561-111-0	01	1	9312-	●	●	●	●	●	●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP)	8-97102-201-1	01	1	9312-9510	●	●	●	●	●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP)	8-97102-201-1	01	1	9511-9711				●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97102-202-0	01	1	9312-9510	●	●	●	●	●	●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H POWER STEERING<N40>	8-97102-202-0	01	1	9511-9605	●	●	●		●	●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97102-202-0	01	1	9511-9605				●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H POWER STEERING<N40>	8-97148-571-0	01	1	9606-9711	●	●	●		●	●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97148-571-0	01	1	9606-9711				●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H POWER STEERING<N40>	8-97148-571-0	01	1	9712-	●	●	●	●	●	●
102	06.671 PIPE; SUCTION,P/S POWER STEERING<N40> 06.670	8-97069-333-1	01	1	9312-9509	●	●	●	●	●	●
102	06.671 PIPE; SUCTION,P/S POWER STEERING<N40>	8-97136-516-0	01	1	9510-	●	●	●	●	●	●
262	06.672 CLIP; P/S PIPE POWER STEERING<N40>	8-94154-657-1	01	1	9312-	●	●	●	●	●	●
271	06.672 BOLT; P/S OIL PIPE FIX POWER STEERING<N40> 06.525 M8X30	8-94247-692-0	01	1	9312-	●	●	●	●	●	●

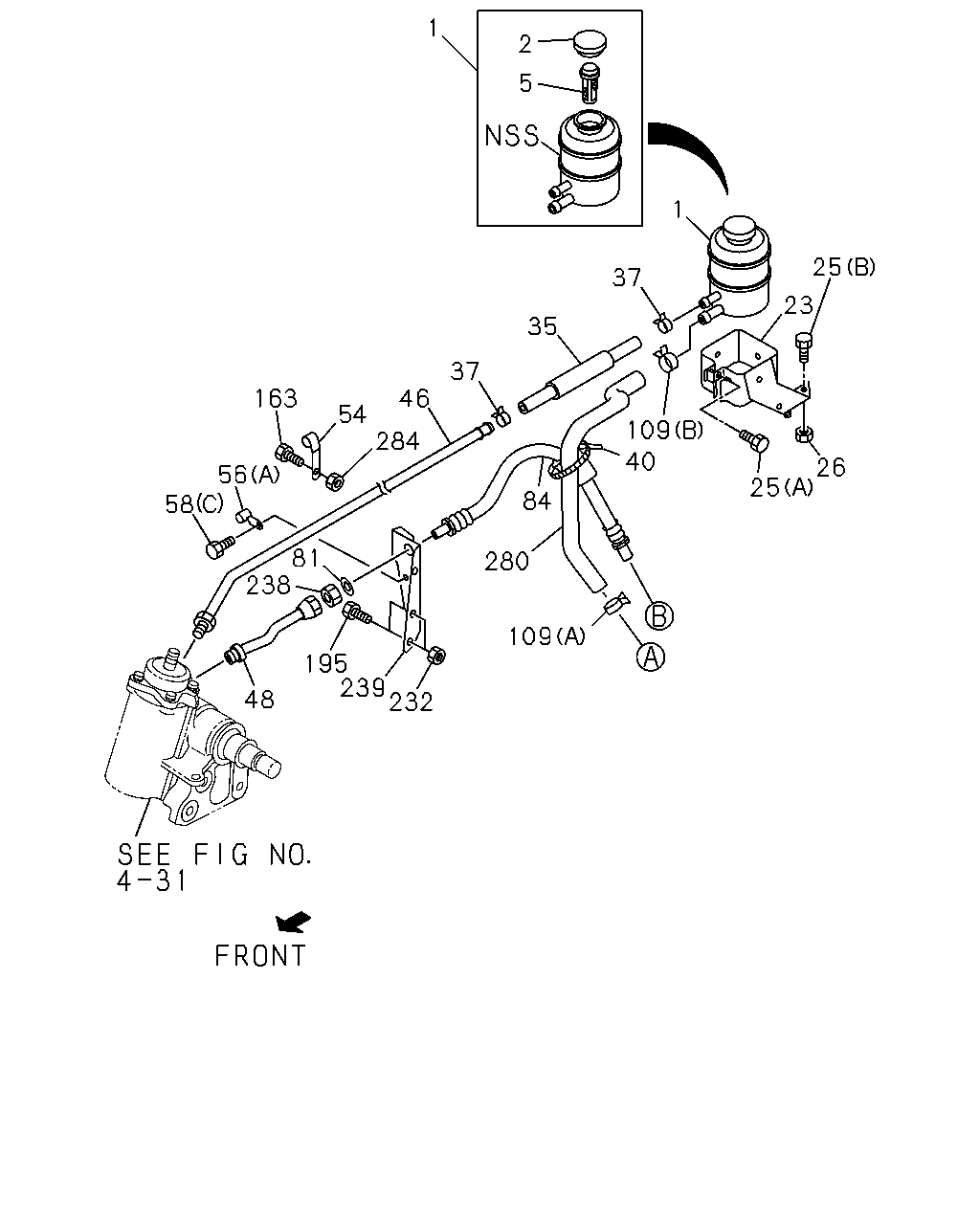

1 2 5 1 25 37 23 35 37 163 46 54 284 109 40 26 25 56 58 84 81 238 280 109 195 239 232 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	06.635 TANK ASM; OIL,P/S POWER STEERING<N40>	8-97107-987-0	01	1	9312-	●	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S POWER STEERING<N40> 06.635	8-94146-153-2	01	1	9312-	●	●	●	●	●	●
5	06.600 STRAINER; OIL TANK,P/S POWER STEERING<N40>	8-97094-732-0	01	1	9312-	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S POWER STEERING<N40>	8-97066-500-3	01	1	9312-	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP) 08.155 (B) M8X25 FLANGE	0-28480-825-0	01	1	9312-9510	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP) 08.155 (B) M8X25 FLANGE	0-28480-825-0	01	1	9511-9608				●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> 00.785 (A) M6X20 FLANGE	0-28480-620-0	01	1	9312-	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.531 (B) M8X25 FLANGE	0-28080-825-0	01	1	9312-9510	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> 01.531 (B) M8X25 FLANGE	0-28080-825-0	01	1	9511-9608	●	●	●		●	●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.531 (B) M8X25 FLANGE	0-28080-825-0	01	1	9511-9608				●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	9609-	●	●	●	●	●	●
26	06.635 NUT; OIL TANK TO BRKT POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	01	1	9312-9510	●	●	●	●	●	●
26	06.635 NUT; OIL TANK TO BRKT POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	01	1	9511-9711	●	●	●		●	●
26	06.635 NUT; OIL TANK TO BRKT POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	01	1	9511-9711				●
26	06.635 NUT; OIL TANK TO BRKT POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP)	8-97081-443-0	01	1	9312-9510	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP)	8-97081-443-0	01	1	9511-9711				●
35	06.671 HOSE; RETURN,P/S TANK POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97081-444-3	01	1	9312-9510	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK POWER STEERING<N40>	8-97081-444-3	01	1	9511-9711	●	●	●		●	●
35	06.671 HOSE; RETURN,P/S TANK POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97081-444-3	01	1	9511-9711				●
35	06.671 HOSE; RETURN,P/S TANK POWER STEERING<N40>	8-97081-444-3	01	1	9712-	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S POWER STEERING<N40> 04.930 ID=16	8-94238-568-0	02	1	9312-	●	●	●	●	●	●
40	06.672 CLIP; BAND POWER STEERING<N40> 02.559 L=250	5-09707-030-1	01	1	9312-	●	●	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP)	8-97081-441-0	01	1	9312-9510	●	●			●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97081-442-2	01	1	9312-9510	●	●			●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97081-442-2	01	1	9511-	●	●			●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP)	8-97092-094-1	01	1	9312-9510			●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP)	8-97092-094-1	01	1	9511-9711				●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97092-092-2	01	1	9312-9510			●	●		●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97092-092-2	01	1	9511-9711			●			●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97092-092-2	01	1	9511-9711				●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97092-092-2	01	1	9712-			●	●		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP)	8-97081-439-0	01	1	9312-9510	●	●			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97081-440-1	01	1	9312-9510	●	●			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97081-440-2	01	1	9511-	●	●			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP)	8-97092-089-1	01	1	9312-9510			●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP)	8-97092-089-1	01	1	9511-9711				●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97092-087-1	01	1	9312-9510			●	●		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97092-087-1	01	1	9511-9711			●			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97092-087-1	01	1	9511-9711				●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97092-087-2	01	1	9712-			●	●		●
54	06.672 CLIP; OIL PIPE POWER STEERING<N40> ID=11 L=40	8-94259-342-0	01	1	9312-	●	●	●	●	●	●
56	06.672 CLIP; OIL PIPE POWER STEERING<N40> (A) ID=11 L=40	8-94123-171-1	01	1	9312-	●	●			●
56	06.672 CLIP; OIL PIPE POWER STEERING<N40> 04.930 (B) ID=10X2 H=37.5	8-97018-546-0	01	1	9312-			●	●		●
56	06.672 CLIP; OIL PIPE POWER STEERING<N40> 03.302 (C) ID=11 L=16	9-09525-022-0	01	1	9312-			●	●		●
58	06.672 BOLT; CLIP POWER STEERING<N40> 12.809 (C) M6X16 FLANGE	0-28280-616-0	01	1	9312-9608	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 04.439 (C) M6X16 FLANGE	0-28680-616-0	01	1	9609-	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 04.595 (B) M8X20 FLANGE	0-28480-820-0	01	1	9312-	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 08.080 (A) M6X16	8-94238-894-0	01	1	9312-	●	●	●	●	●	●
81	06.672 WASHER; LK,FLEX HOSE POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	02	1	9312-	●	●	●	●	●	●
84	06.670 HOSE; FLEX,P/S POWER STEERING<N40>	8-97047-717-4	01	1	9312-	●	●			●
84	06.670 HOSE; FLEX,P/S POWER STEERING<N40>	8-97078-368-4	01	1	9312-			●	●		●
109	06.672 CLIP; RUBBER HOSE POWER STEERING<N40> (A),(B) ID=21	8-94242-034-0	02	1	9312-9404	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE POWER STEERING<N40> (A) ID=21	8-94242-034-0	01	1	9405-	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE POWER STEERING<N40> 08.846 (B) ID=22	8-94382-401-0	01	1	9405-	●	●	●	●	●	●
163	06.671 BOLT; OIL PIPE POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP) 08.155 M8X25 FLANGE	0-28480-825-0	01	1	9312-9510	●	●	●	●	●
163	06.671 BOLT; OIL PIPE POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP) 08.155 M8X25 FLANGE	0-28480-825-0	01	1	9511-9608				●
163	06.671 BOLT; OIL PIPE POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9312-9510	●	●	●	●	●	●
163	06.671 BOLT; OIL PIPE POWER STEERING<N40> 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9511-9608	●	●	●		●	●
163	06.671 BOLT; OIL PIPE POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9511-9608				●
163	06.671 BOLT; OIL PIPE POWER STEERING<N40> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9609-	●	●	●	●	●	●
195	06.635 BOLT; BRKT POWER STEERING<N40> 08.155 M8X25 FLANGE	0-28480-825-0	02	1	9312-9606	●	●			●
195	06.635 BOLT; BRKT POWER STEERING<N40> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9607-	●	●			●
195	06.635 BOLT; BRKT POWER STEERING<N40> 09.003 M10X35	0-28281-035-0	02	1	9312-9608			●	●		●
195	06.635 BOLT; BRKT POWER STEERING<N40> 03.162 M10X35 FLANGE	0-28681-035-0	02	1	9609-			●	●		●
232	06.672 NUT; BRKT POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-9510	●	●			●
232	06.672 NUT; BRKT POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	02	1	9511-	●	●			●
232	06.672 NUT; BRKT POWER STEERING<N40> 04.785 M10 FLANGE	0-91150-110-0	02	1	9312-			●	●		●
238	06.670 NUT; FLEX HOSE POWER STEERING<N40> 06.897 M16	8-94370-339-0	01	1	9312-	●	●	●	●	●	●
239	06.606 BRACKET; FLEX HOSE POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP) 04.047	8-97047-898-0	01	1	9312-9510	●	●			●
239	06.606 BRACKET; FLEX HOSE POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97089-879-0	01	1	9312-9510	●	●			●
239	06.606 BRACKET; FLEX HOSE POWER STEERING<N40>	8-97089-879-0	01	1	9511-	●	●			●
239	06.606 BRACKET; FLEX HOSE POWER STEERING<N40>	8-97092-085-1	01	1	9312-			●	●		●
280	06.672 HOSE; P/S OIL PUMP,INL POWER STEERING<N40>	8-97062-797-1	01	1	9312-	●	●	●	●	●	●
284	06.670 NUT; PIPE POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	01	1	9312-9510	●	●	●	●	●	●
284	06.670 NUT; PIPE POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	01	1	9511-9711	●	●	●		●	●
284	06.670 NUT; PIPE POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	01	1	9511-9711				●
284	06.670 NUT; PIPE POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-	●	●	●	●	●	●

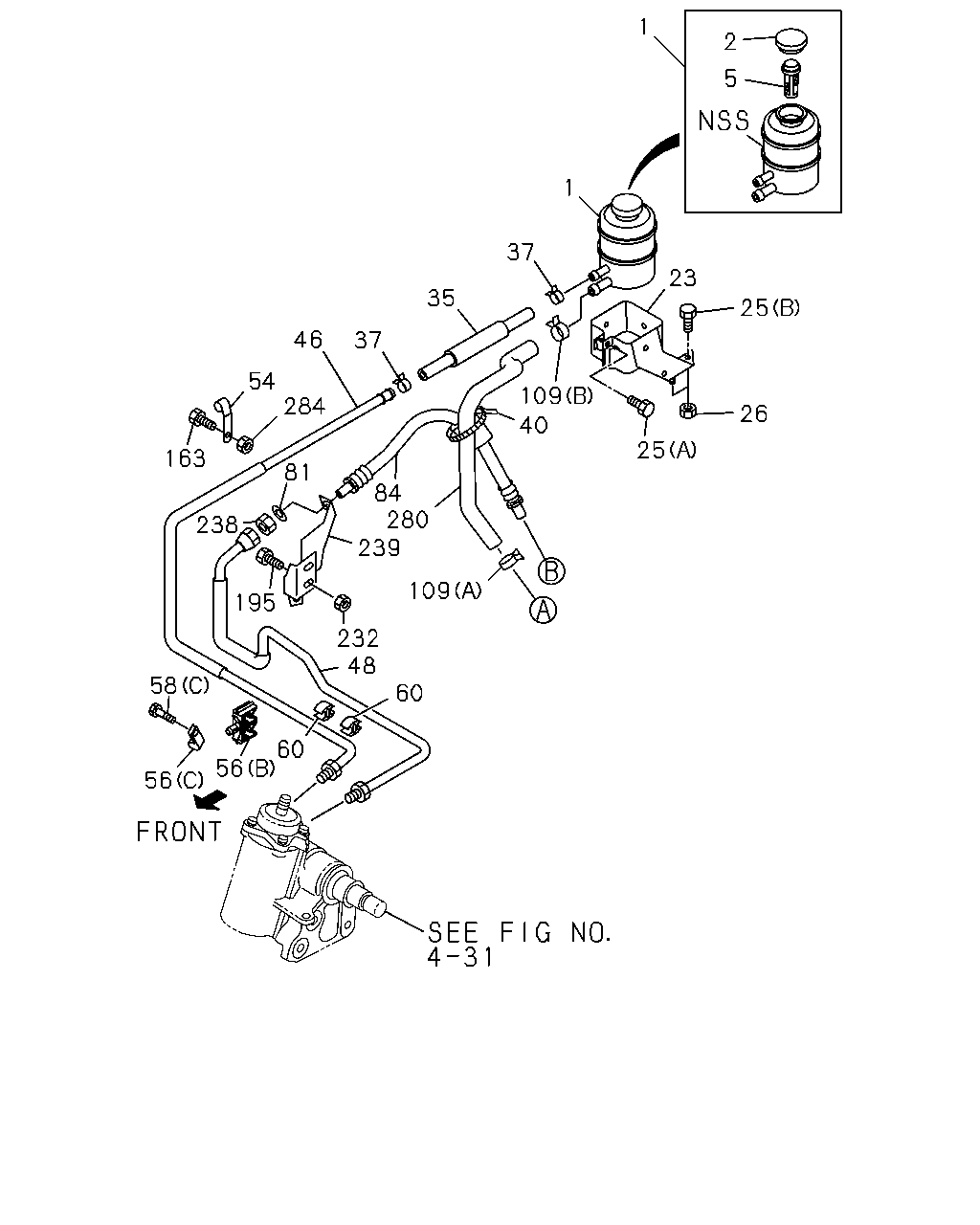

1 2 5 1 37 23 35 25 46 37 54 284 109 40 26 25 163 81 84 280 239 238 109 195 232 48 58 60 60 56 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	06.635 TANK ASM; OIL,P/S POWER STEERING<N40>	8-97107-987-0	01	1	9312-	●	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S POWER STEERING<N40> 06.635	8-94146-153-2	01	1	9312-	●	●	●	●	●	●
5	06.600 STRAINER; OIL TANK,P/S POWER STEERING<N40>	8-97094-732-0	01	1	9312-	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S POWER STEERING<N40>	8-97066-500-3	01	1	9312-	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP) 08.155 (B) M8X25 FLANGE	0-28480-825-0	01	1	9312-9510	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP) 08.155 (B) M8X25 FLANGE	0-28480-825-0	01	1	9511-9608				●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> 00.785 (A) M6X20 FLANGE	0-28480-620-0	01	1	9312-	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.531 (B) M8X25 FLANGE	0-28080-825-0	01	1	9312-9510	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> 01.531 (B) M8X25 FLANGE	0-28080-825-0	01	1	9511-9608	●	●	●		●	●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.531 (B) M8X25 FLANGE	0-28080-825-0	01	1	9511-9608				●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	9609-	●	●	●	●	●	●
26	06.635 NUT; OIL TANK TO BRKT POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	01	1	9312-9510	●	●	●	●	●	●
26	06.635 NUT; OIL TANK TO BRKT POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	01	1	9511-9711	●	●	●		●	●
26	06.635 NUT; OIL TANK TO BRKT POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	01	1	9511-9711				●
26	06.635 NUT; OIL TANK TO BRKT POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP)	8-97081-443-0	01	1	9312-9510	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP)	8-97081-443-0	01	1	9511-9711				●
35	06.671 HOSE; RETURN,P/S TANK POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97081-444-3	01	1	9312-9510	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK POWER STEERING<N40>	8-97081-444-3	01	1	9511-9711	●	●	●		●	●
35	06.671 HOSE; RETURN,P/S TANK POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97081-444-3	01	1	9511-9711				●
35	06.671 HOSE; RETURN,P/S TANK POWER STEERING<N40>	8-97081-444-3	01	1	9712-	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S POWER STEERING<N40> 04.930 ID=16	8-94238-568-0	02	1	9312-	●	●	●	●	●	●
40	06.672 CLIP; BAND POWER STEERING<N40> 02.559 L=250	5-09707-030-1	01	1	9312-	●	●	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP)	8-97081-441-0	01	1	9312-9510	●	●			●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97081-442-2	01	1	9312-9510	●	●			●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97081-442-2	01	1	9511-	●	●			●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP)	8-97092-094-1	01	1	9312-9510			●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP)	8-97092-094-1	01	1	9511-9711				●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97092-092-2	01	1	9312-9510			●	●		●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97092-092-2	01	1	9511-9711			●			●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97092-092-2	01	1	9511-9711				●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97092-092-2	01	1	9712-			●	●		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP)	8-97081-439-0	01	1	9312-9510	●	●			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97081-440-1	01	1	9312-9510	●	●			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97081-440-2	01	1	9511-	●	●			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP)	8-97092-089-1	01	1	9312-9510			●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP)	8-97092-089-1	01	1	9511-9711				●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97092-087-1	01	1	9312-9510			●	●		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97092-087-1	01	1	9511-9711			●			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97092-087-1	01	1	9511-9711				●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97092-087-2	01	1	9712-			●	●		●
54	06.672 CLIP; OIL PIPE POWER STEERING<N40> ID=11 L=40	8-94259-342-0	01	1	9312-	●	●	●	●	●	●
56	06.672 CLIP; OIL PIPE POWER STEERING<N40> (A) ID=11 L=40	8-94123-171-1	01	1	9312-	●	●			●
56	06.672 CLIP; OIL PIPE POWER STEERING<N40> 04.930 (B) ID=10X2 H=37.5	8-97018-546-0	01	1	9312-			●	●		●
56	06.672 CLIP; OIL PIPE POWER STEERING<N40> 03.302 (C) ID=11 L=16	9-09525-022-0	01	1	9312-			●	●		●
58	06.672 BOLT; CLIP POWER STEERING<N40> 12.809 (C) M6X16 FLANGE	0-28280-616-0	01	1	9312-9608	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 04.439 (C) M6X16 FLANGE	0-28680-616-0	01	1	9609-	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 04.595 (B) M8X20 FLANGE	0-28480-820-0	01	1	9312-	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 08.080 (A) M6X16	8-94238-894-0	01	1	9312-	●	●	●	●	●	●
60	06.672 CLAMP; PIPE,RETURN POWER STEERING<N40> ID=10X2 H=22	8-94252-455-2	02	1	9312-			●	●		●
81	06.672 WASHER; LK,FLEX HOSE POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	02	1	9312-	●	●	●	●	●	●
84	06.670 HOSE; FLEX,P/S POWER STEERING<N40>	8-97047-717-4	01	1	9312-	●	●			●
84	06.670 HOSE; FLEX,P/S POWER STEERING<N40>	8-97078-368-4	01	1	9312-			●	●		●
109	06.672 CLIP; RUBBER HOSE POWER STEERING<N40> (A),(B) ID=21	8-94242-034-0	02	1	9312-9404	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE POWER STEERING<N40> (A) ID=21	8-94242-034-0	01	1	9405-	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE POWER STEERING<N40> 08.846 (B) ID=22	8-94382-401-0	01	1	9405-	●	●	●	●	●	●
163	06.671 BOLT; OIL PIPE POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP) 08.155 M8X25 FLANGE	0-28480-825-0	01	1	9312-9510	●	●	●	●	●
163	06.671 BOLT; OIL PIPE POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP) 08.155 M8X25 FLANGE	0-28480-825-0	01	1	9511-9608				●
163	06.671 BOLT; OIL PIPE POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9312-9510	●	●	●	●	●	●
163	06.671 BOLT; OIL PIPE POWER STEERING<N40> 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9511-9608	●	●	●		●	●
163	06.671 BOLT; OIL PIPE POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9511-9608				●
163	06.671 BOLT; OIL PIPE POWER STEERING<N40> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9609-	●	●	●	●	●	●
195	06.635 BOLT; BRKT POWER STEERING<N40> 08.155 M8X25 FLANGE	0-28480-825-0	02	1	9312-9606	●	●			●
195	06.635 BOLT; BRKT POWER STEERING<N40> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9607-	●	●			●
195	06.635 BOLT; BRKT POWER STEERING<N40> 09.003 M10X35	0-28281-035-0	02	1	9312-9608			●	●		●
195	06.635 BOLT; BRKT POWER STEERING<N40> 03.162 M10X35 FLANGE	0-28681-035-0	02	1	9609-			●	●		●
232	06.672 NUT; BRKT POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-9510	●	●			●
232	06.672 NUT; BRKT POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	02	1	9511-	●	●			●
232	06.672 NUT; BRKT POWER STEERING<N40> 04.785 M10 FLANGE	0-91150-110-0	02	1	9312-			●	●		●
238	06.670 NUT; FLEX HOSE POWER STEERING<N40> 06.897 M16	8-94370-339-0	01	1	9312-	●	●	●	●	●	●
239	06.606 BRACKET; FLEX HOSE POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP) 04.047	8-97047-898-0	01	1	9312-9510	●	●			●
239	06.606 BRACKET; FLEX HOSE POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97089-879-0	01	1	9312-9510	●	●			●
239	06.606 BRACKET; FLEX HOSE POWER STEERING<N40>	8-97089-879-0	01	1	9511-	●	●			●
239	06.606 BRACKET; FLEX HOSE POWER STEERING<N40>	8-97092-085-1	01	1	9312-			●	●		●
280	06.672 HOSE; P/S OIL PUMP,INL POWER STEERING<N40>	8-97062-797-1	01	1	9312-	●	●	●	●	●	●
284	06.670 NUT; PIPE POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	01	1	9312-9510	●	●	●	●	●	●
284	06.670 NUT; PIPE POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	01	1	9511-9711	●	●	●		●	●
284	06.670 NUT; PIPE POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	01	1	9511-9711				●
284	06.670 NUT; PIPE POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
