Sayfa 4-33 - Isuzu EPC

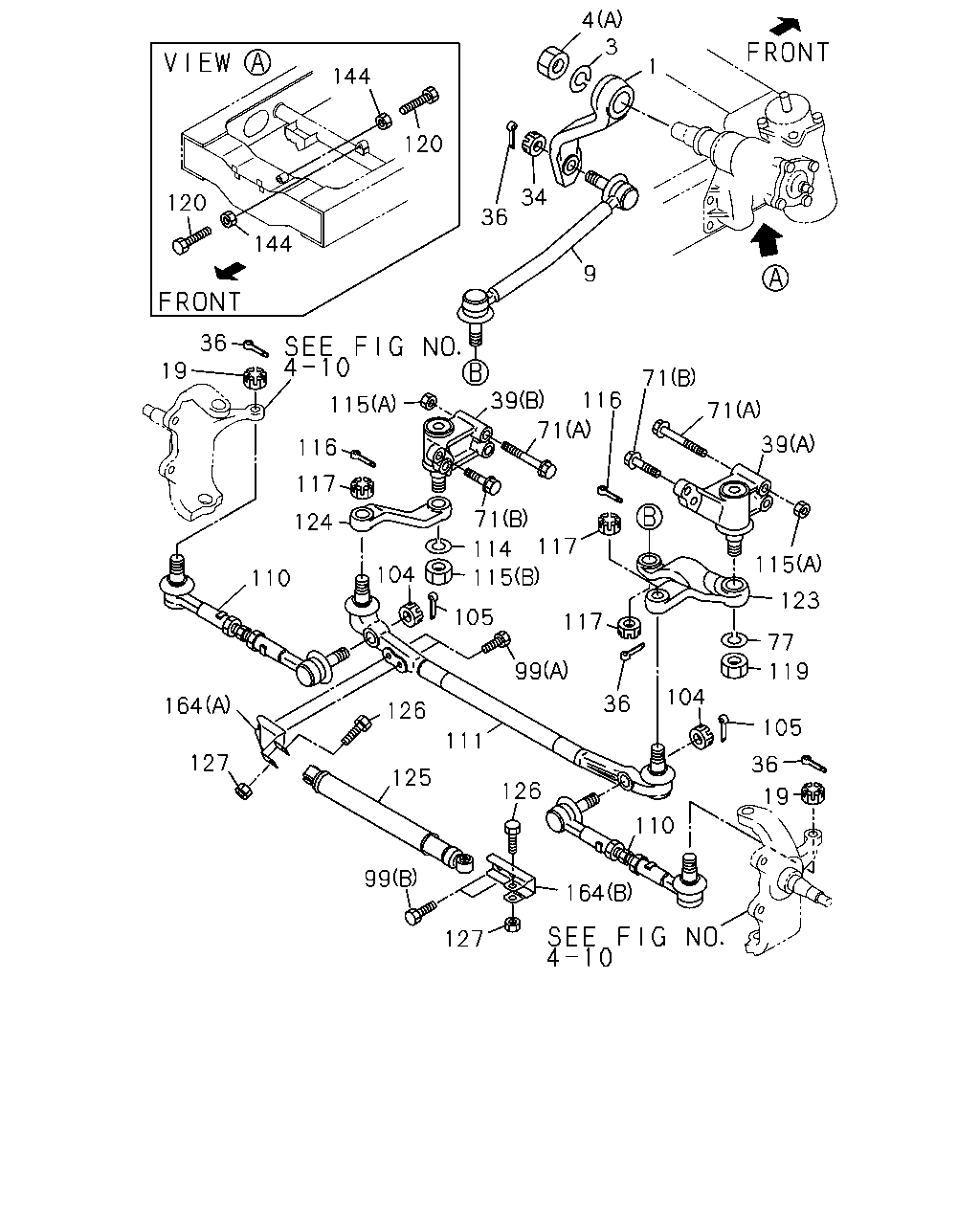

4-33 — STEERING LINKAGE (#33652) — 318 parça

3 4 1 4 9 36 117 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	06.859 ARM; PITMAN,STRG EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97032-929-0	01	1	9312-9503	●	●	●	●	●	●
1	06.859 ARM; PITMAN,STRG EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97109-289-1	01	1	9504-9510	●	●	●	●	●	●
1	06.859 ARM; PITMAN,STRG	8-97109-289-1	01	1	9511-9711	●	●	●		●	●
1	06.859 ARM; PITMAN,STRG EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97109-289-1	01	1	9511-9711				●
1	06.859 ARM; PITMAN,STRG	8-97109-289-1	01	1	9712-	●	●	●	●	●	●
1	06.859 ARM; PITMAN,STRG FRT INDEPENDENT SUSPENSION(6PP)	8-97070-362-1	01	1	9312-9510	●	●			●
1	06.859 ARM; PITMAN,STRG FRT INDEPENDENT SUSPENSION(6PP)	8-97070-552-1	01	1	9312-9510			●	●
1	06.859 ARM; PITMAN,STRG FRT INDEPENDENT SUSPENSION(6PP)	8-97070-552-2	01	1	9511-9711				●
3	06.861 WASHER; LK,PITMAN ARM FRT INDEPENDENT SUSPENSION(6PP) 08.931 ID=27.5	9-09150-527-0	01	1	9312-9510	●	●	●	●	●
3	06.861 WASHER; LK,PITMAN ARM FRT INDEPENDENT SUSPENSION(6PP) 08.931 ID=27.5	9-09150-527-0	01	1	9511-9711				●
3	06.861 WASHER; LK,PITMAN ARM EXC. FRT INDEPENDENT SUSPENSION(6PP) ID=22.5	9-09150-522-0	01	1	9312-9510	●	●	●	●	●	●
3	06.861 WASHER; LK,PITMAN ARM ID=22.5	9-09150-522-0	01	1	9511-9711	●	●	●		●	●
3	06.861 WASHER; LK,PITMAN ARM EXC. FRT INDEPENDENT SUSPENSION(6PP) ID=22.5	9-09150-522-0	01	1	9511-9711				●
3	06.861 WASHER; LK,PITMAN ARM ID=22.5	9-09150-522-0	01	1	9712-	●	●	●	●	●	●
4	06.861 NUT; PITMAN ARM FRT INDEPENDENT SUSPENSION(6PP) (A) M27	5-12378-002-0	01	1	9312-9510	●	●	●	●	●
4	06.861 NUT; PITMAN ARM FRT INDEPENDENT SUSPENSION(6PP) (A) M27	5-12378-002-0	01	1	9511-9711				●
4	06.861 NUT; PITMAN ARM EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.915 (B) M22	9-09111-522-0	01	1	9312-9510	●	●	●	●	●	●
4	06.861 NUT; PITMAN ARM 08.915 (B) M22	9-09111-522-0	01	1	9511-9711	●	●	●		●	●
4	06.861 NUT; PITMAN ARM EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.915 (B) M22	9-09111-522-0	01	1	9511-9711				●
4	06.861 NUT; PITMAN ARM 08.915 (B) M22	9-09111-522-0	01	1	9712-	●	●	●	●	●	●
4	06.861 NUT; PITMAN ARM EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) M18 SLOTTED	8-97017-761-0	01	1	9312-9510	●	●			●
4	06.861 NUT; PITMAN ARM (A) M18 SLOTTED	8-97017-761-0	01	1	9511-	●	●			●
9	06.870 LINK; DRAG FRT INDEPENDENT SUSPENSION(6PP)	8-97107-323-0	01	1	9312-9510	●	●			●
9	06.870 LINK; DRAG EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97107-332-0	01	1	9312-9510	●	●			●
9	06.870 LINK; DRAG	8-97107-332-1	01	1	9511-	●	●			●
9	06.870 LINK; DRAG FRT INDEPENDENT SUSPENSION(6PP)	8-97070-496-2	01	1	9312-9510			●	●
9	06.870 LINK; DRAG FRT INDEPENDENT SUSPENSION(6PP)	8-97070-496-2	01	1	9511-9711				●
9	06.870 LINK; DRAG EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97034-285-1	01	1	9312-9510			●	●		●
9	06.870 LINK; DRAG	8-97034-285-2	01	1	9511-9711			●			●
9	06.870 LINK; DRAG EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97034-285-2	01	1	9511-9711				●
9	06.870 LINK; DRAG	8-97034-285-2	01	1	9712-			●	●		●
36	06.881 PIN; SPLIT,DRAG LINK FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30	9-08114-030-0	03	1	9312-9510	●	●	●	●	●
36	06.881 PIN; SPLIT,DRAG LINK FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30	9-08114-030-0	03	1	9511-9711				●
36	06.881 PIN; SPLIT,DRAG LINK 09.023 OD=3.7 L=30	9-08114-030-0	01	1	9312-9510	●	●	●	●	●	●
36	06.881 PIN; SPLIT,DRAG LINK EXC. FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30	9-08114-030-0	01	1	9312-9510			●	●
36	06.881 PIN; SPLIT,DRAG LINK 09.023 OD=3.7 L=30	9-08114-030-0	01	1	9312-9510						●
36	06.881 PIN; SPLIT,DRAG LINK 09.023 OD=3.7 L=30	9-08114-030-0	01	1	9511-9711	●	●	●	●	●	●
36	06.881 PIN; SPLIT,DRAG LINK 09.023 OD=3.7 L=30	9-08114-030-0	01	1	9511-9711			●			●
36	06.881 PIN; SPLIT,DRAG LINK EXC. FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30	9-08114-030-0	01	1	9511-9711				●
36	06.881 PIN; SPLIT,DRAG LINK 09.023 OD=3.7 L=30	9-08114-030-0	01	1	9712-	●	●	●	●	●	●
36	06.881 PIN; SPLIT,DRAG LINK 09.023 OD=3.7 L=30	9-08114-030-0	01	1	9712-			●	●		●
116	06.897 PIN; SPLIT,TRACK ROD,CENTER FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30	9-08114-030-0	AR	1	9312-9510	●	●	●	●	●
116	06.897 PIN; SPLIT,TRACK ROD,CENTER 09.023 OD=3.7 L=30	9-08114-030-0	01	1	9511-9711	●	●			●
116	06.897 PIN; SPLIT,TRACK ROD,CENTER FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30	9-08114-030-0	01	1	9511-9711				●
116	06.897 PIN; SPLIT,TRACK ROD,CENTER FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30	9-08114-030-0	01	1	9511-9711				●
116	06.897 PIN; SPLIT,TRACK ROD,CENTER 09.023 OD=3.7 L=30	9-08114-030-0	01	1	9712-	●	●			●
117	06.233 NUT; DRAG LINK FRT INDEPENDENT SUSPENSION(6PP) 06.861 M18 SLOTTED	8-97017-761-0	02	1	9312-9510	●	●	●	●	●
117	06.233 NUT; DRAG LINK FRT INDEPENDENT SUSPENSION(6PP) 06.861 M18 SLOTTED	8-97017-761-0	02	1	9511-9711				●
117	06.233 NUT; DRAG LINK 06.861 M18 SLOTTED	8-97017-761-0	01	1	9312-	●	●	●	●	●	●

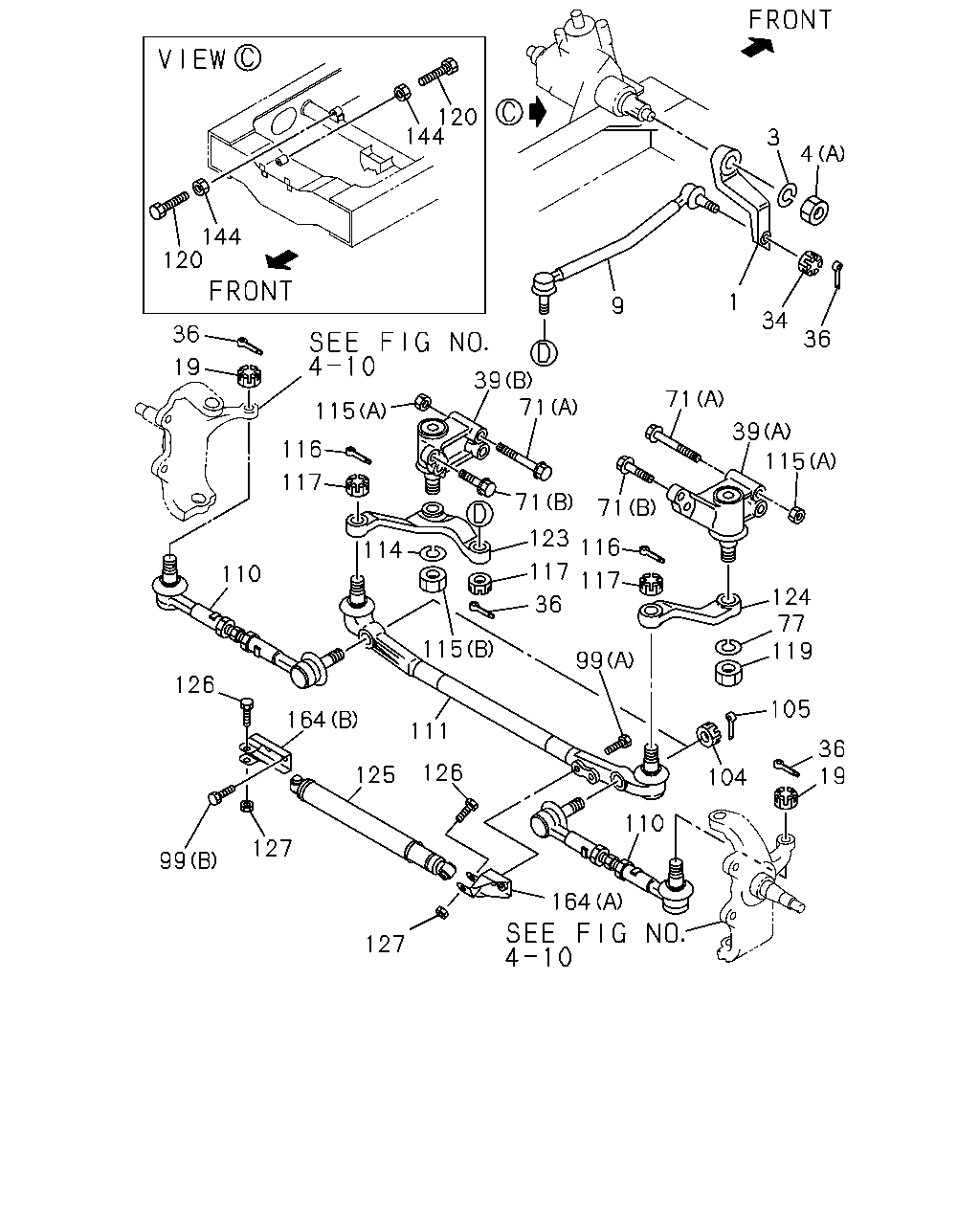

120 144 3 4 144 120 1 9 34 36 36 19 39 71 71 39 115 71 71 123 36 124 77 99 126 105 164 36 19 126 125 104 127 99 164 127 116 117 114 110 117 116 117 115 111 110 119 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	06.859 ARM; PITMAN,STRG EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97032-929-0	01	1	9312-9503	●	●	●	●	●	●
1	06.859 ARM; PITMAN,STRG EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97109-289-1	01	1	9504-9510	●	●	●	●	●	●
1	06.859 ARM; PITMAN,STRG	8-97109-289-1	01	1	9511-9711	●	●	●		●	●
1	06.859 ARM; PITMAN,STRG EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97109-289-1	01	1	9511-9711				●
1	06.859 ARM; PITMAN,STRG	8-97109-289-1	01	1	9712-	●	●	●	●	●	●
1	06.859 ARM; PITMAN,STRG FRT INDEPENDENT SUSPENSION(6PP)	8-97070-362-1	01	1	9312-9510	●	●			●
1	06.859 ARM; PITMAN,STRG FRT INDEPENDENT SUSPENSION(6PP)	8-97070-552-1	01	1	9312-9510			●	●
1	06.859 ARM; PITMAN,STRG FRT INDEPENDENT SUSPENSION(6PP)	8-97070-552-2	01	1	9511-9711				●
3	06.861 WASHER; LK,PITMAN ARM FRT INDEPENDENT SUSPENSION(6PP) 08.931 ID=27.5	9-09150-527-0	01	1	9312-9510	●	●	●	●	●
3	06.861 WASHER; LK,PITMAN ARM FRT INDEPENDENT SUSPENSION(6PP) 08.931 ID=27.5	9-09150-527-0	01	1	9511-9711				●
3	06.861 WASHER; LK,PITMAN ARM EXC. FRT INDEPENDENT SUSPENSION(6PP) ID=22.5	9-09150-522-0	01	1	9312-9510	●	●	●	●	●	●
3	06.861 WASHER; LK,PITMAN ARM ID=22.5	9-09150-522-0	01	1	9511-9711	●	●	●		●	●
3	06.861 WASHER; LK,PITMAN ARM EXC. FRT INDEPENDENT SUSPENSION(6PP) ID=22.5	9-09150-522-0	01	1	9511-9711				●
3	06.861 WASHER; LK,PITMAN ARM ID=22.5	9-09150-522-0	01	1	9712-	●	●	●	●	●	●
4	06.861 NUT; PITMAN ARM FRT INDEPENDENT SUSPENSION(6PP) (A) M27	5-12378-002-0	01	1	9312-9510	●	●	●	●	●
4	06.861 NUT; PITMAN ARM FRT INDEPENDENT SUSPENSION(6PP) (A) M27	5-12378-002-0	01	1	9511-9711				●
4	06.861 NUT; PITMAN ARM EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.915 (B) M22	9-09111-522-0	01	1	9312-9510	●	●	●	●	●	●
4	06.861 NUT; PITMAN ARM 08.915 (B) M22	9-09111-522-0	01	1	9511-9711	●	●	●		●	●
4	06.861 NUT; PITMAN ARM EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.915 (B) M22	9-09111-522-0	01	1	9511-9711				●
4	06.861 NUT; PITMAN ARM 08.915 (B) M22	9-09111-522-0	01	1	9712-	●	●	●	●	●	●
4	06.861 NUT; PITMAN ARM EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) M18 SLOTTED	8-97017-761-0	01	1	9312-9510	●	●			●
4	06.861 NUT; PITMAN ARM (A) M18 SLOTTED	8-97017-761-0	01	1	9511-	●	●			●
9	06.870 LINK; DRAG FRT INDEPENDENT SUSPENSION(6PP)	8-97107-323-0	01	1	9312-9510	●	●			●
9	06.870 LINK; DRAG EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97107-332-0	01	1	9312-9510	●	●			●
9	06.870 LINK; DRAG	8-97107-332-1	01	1	9511-	●	●			●
9	06.870 LINK; DRAG FRT INDEPENDENT SUSPENSION(6PP)	8-97070-496-2	01	1	9312-9510			●	●
9	06.870 LINK; DRAG FRT INDEPENDENT SUSPENSION(6PP)	8-97070-496-2	01	1	9511-9711				●
9	06.870 LINK; DRAG EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97034-285-1	01	1	9312-9510			●	●		●
9	06.870 LINK; DRAG	8-97034-285-2	01	1	9511-9711			●			●
9	06.870 LINK; DRAG EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97034-285-2	01	1	9511-9711				●
9	06.870 LINK; DRAG	8-97034-285-2	01	1	9712-			●	●		●
19	06.865 NUT; PITMAN ARM,STOPPER FRT INDEPENDENT SUSPENSION(6PP)	8-97017-762-0	02	1	9312-9510	●	●	●	●	●
19	06.865 NUT; PITMAN ARM,STOPPER FRT INDEPENDENT SUSPENSION(6PP)	8-97017-762-0	02	1	9511-9711				●
34	06.233 NUT; DRAG LINK TO PITMAN ARM FRT INDEPENDENT SUSPENSION(6PP) 06.861 M18 SLOTTED	8-97017-761-0	01	1	9312-9510	●	●			●
34	06.233 NUT; DRAG LINK TO PITMAN ARM 06.861 M18 SLOTTED	8-97017-761-0	01	1	9312-9510			●	●		●
34	06.233 NUT; DRAG LINK TO PITMAN ARM 06.861 M18 SLOTTED	8-97017-761-0	01	1	9511-			●	●		●
36	06.881 PIN; SPLIT,DRAG LINK FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30	9-08114-030-0	03	1	9312-9510	●	●	●	●	●
36	06.881 PIN; SPLIT,DRAG LINK FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30	9-08114-030-0	03	1	9511-9711				●
36	06.881 PIN; SPLIT,DRAG LINK 09.023 OD=3.7 L=30	9-08114-030-0	01	1	9312-9510	●	●	●	●	●	●
36	06.881 PIN; SPLIT,DRAG LINK EXC. FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30	9-08114-030-0	01	1	9312-9510			●	●
36	06.881 PIN; SPLIT,DRAG LINK 09.023 OD=3.7 L=30	9-08114-030-0	01	1	9312-9510						●
36	06.881 PIN; SPLIT,DRAG LINK 09.023 OD=3.7 L=30	9-08114-030-0	01	1	9511-9711	●	●	●	●	●	●
36	06.881 PIN; SPLIT,DRAG LINK 09.023 OD=3.7 L=30	9-08114-030-0	01	1	9511-9711			●			●
36	06.881 PIN; SPLIT,DRAG LINK EXC. FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30	9-08114-030-0	01	1	9511-9711				●
36	06.881 PIN; SPLIT,DRAG LINK 09.023 OD=3.7 L=30	9-08114-030-0	01	1	9712-	●	●	●	●	●	●
36	06.881 PIN; SPLIT,DRAG LINK 09.023 OD=3.7 L=30	9-08114-030-0	01	1	9712-			●	●		●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97107-325-0	01	1	9312-9510	●	●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97107-325-0	01	1	9511-9711				●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97107-324-0	01	1	9312-9510	●	●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97107-324-0	01	1	9511-9711				●
71	06.896 BOLT; RELAY LEVER BRKT FRT INDEPENDENT SUSPENSION(6PP) EXC. KD PREPARATORY PACK<6HF> (A) M12X93.5	8-97085-383-0	04	1	9312-9510	●	●	●	●	●
71	06.896 BOLT; RELAY LEVER BRKT FRT INDEPENDENT SUSPENSION(6PP) EXC. KD PREPARATORY PACK<6HF> (A) M12X93.5	8-97085-383-0	04	1	9511-9711				●
71	06.896 BOLT; RELAY LEVER BRKT FRT INDEPENDENT SUSPENSION(6PP) EXC. KD PREPARATORY PACK<6HF> (B) M12X43.5	8-97085-384-0	04	1	9312-9510	●	●	●	●	●
71	06.896 BOLT; RELAY LEVER BRKT FRT INDEPENDENT SUSPENSION(6PP) EXC. KD PREPARATORY PACK<6HF> (B) M12X43.5	8-97085-384-0	04	1	9511-9711				●
71	06.896 BOLT; RELAY LEVER BRKT KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) 07.172 (A) M12X90	0-10811-290-0	04	1	9312-9510	●	●	●	●	●
71	06.896 BOLT; RELAY LEVER BRKT KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) 07.172 (A) M12X90	0-10811-290-0	04	1	9511-9711				●
71	06.896 BOLT; RELAY LEVER BRKT KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) 03.890 (B) M12X40	9-92061-240-0	04	1	9312-9510	●	●	●	●	●
71	06.896 BOLT; RELAY LEVER BRKT KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) 03.890 (B) M12X40	9-92061-240-0	04	1	9511-9711				●
77	06.897 WASHER; LK,RELAY LEVER FRT INDEPENDENT SUSPENSION(6PP) 08.931 ID=20.2	9-09150-520-0	01	1	9312-9510	●	●	●	●	●
77	06.897 WASHER; LK,RELAY LEVER FRT INDEPENDENT SUSPENSION(6PP) 08.931 ID=20.2	9-09150-520-0	01	1	9511-9711				●
99	06.896 BOLT; BRKT SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP) 09.008 (B) M10X20 FLANGE	0-28081-020-0	02	1	9312-9510	●	●	●	●	●
99	06.896 BOLT; BRKT SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP) 09.008 (B) M10X20 FLANGE	0-28081-020-0	02	1	9511-9704				●
99	06.896 BOLT; BRKT SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP) 03.611 (B) M10X20 FLANGE	0-28681-020-0	02	1	9705-9711				●
99	06.896 BOLT; BRKT SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP) 00.685 (A) M10X50 FLANGE	0-28081-050-0	02	1	9312-9510	●	●	●	●	●
99	06.896 BOLT; BRKT SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP) 00.685 (A) M10X50 FLANGE	0-28081-050-0	02	1	9511-9711				●
104	06.233 NUT; ROD END FRT INDEPENDENT SUSPENSION(6PP) 06.234 M16 SLOTTED	1-09442-021-1	02	1	9312-9510	●	●	●	●	●
104	06.233 NUT; ROD END FRT INDEPENDENT SUSPENSION(6PP) 06.234 M16 SLOTTED	1-09442-021-1	02	1	9511-9711				●
105	06.865 PIN; SPLIT,ROD END FRT INDEPENDENT SUSPENSION(6PP) 06.022 OD=3.7 L=25	9-08114-025-0	02	1	9312-9510	●	●	●	●	●
105	06.865 PIN; SPLIT,ROD END FRT INDEPENDENT SUSPENSION(6PP) 06.022 OD=3.7 L=25	9-08114-025-0	02	1	9511-9711				●
110	06.870 ROD; TRACK,OUTER FRT INDEPENDENT SUSPENSION(6PP)	8-97107-318-0	02	1	9312-9401	●	●			●
110	06.870 ROD; TRACK,OUTER FRT INDEPENDENT SUSPENSION(6PP)	8-97107-318-0	02	1	9402-9510	●	●	●	●	●
110	06.870 ROD; TRACK,OUTER FRT INDEPENDENT SUSPENSION(6PP)	8-97107-318-0	02	1	9511-9711				●
110	06.870 ROD; TRACK,OUTER FRT INDEPENDENT SUSPENSION(6PP)	8-97076-008-0	02	1	9312-9401			●	●
111	06.870 ROD; TRACK,CENTER FRT INDEPENDENT SUSPENSION(6PP)	8-97107-321-0	01	1	9312-9510	●	●			●
111	06.870 ROD; TRACK,CENTER FRT INDEPENDENT SUSPENSION(6PP)	8-97062-180-2	01	1	9312-9510			●	●
111	06.870 ROD; TRACK,CENTER FRT INDEPENDENT SUSPENSION(6PP)	8-97062-180-2	01	1	9511-9711				●
114	06.515 WASHER; RELAY LEVER BRKT FRT INDEPENDENT SUSPENSION(6PP) 08.931 ID=20.2	9-09150-520-0	01	1	9312-9510	●	●	●	●	●
114	06.515 WASHER; RELAY LEVER BRKT FRT INDEPENDENT SUSPENSION(6PP) 08.931 ID=20.2	9-09150-520-0	01	1	9511-9711				●
115	06.896 NUT; RELAY LEVER BRKT FRT INDEPENDENT SUSPENSION(6PP) 06.606 (A) M12	8-94139-015-0	08	1	9312-9510	●	●	●	●	●
115	06.896 NUT; RELAY LEVER BRKT FRT INDEPENDENT SUSPENSION(6PP) 06.606 (A) M12	8-94139-015-0	08	1	9511-9711				●
115	06.896 NUT; RELAY LEVER BRKT FRT INDEPENDENT SUSPENSION(6PP) 08.915 (B) M20	9-99111-520-0	01	1	9312-9510	●	●	●	●	●
115	06.896 NUT; RELAY LEVER BRKT FRT INDEPENDENT SUSPENSION(6PP) 08.915 (B) M20	9-99111-520-0	01	1	9511-9711				●
116	06.897 PIN; SPLIT,TRACK ROD,CENTER FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30	9-08114-030-0	AR	1	9312-9510	●	●	●	●	●
116	06.897 PIN; SPLIT,TRACK ROD,CENTER 09.023 OD=3.7 L=30	9-08114-030-0	01	1	9511-9711	●	●			●
116	06.897 PIN; SPLIT,TRACK ROD,CENTER FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30	9-08114-030-0	01	1	9511-9711				●
116	06.897 PIN; SPLIT,TRACK ROD,CENTER FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30	9-08114-030-0	01	1	9511-9711				●
116	06.897 PIN; SPLIT,TRACK ROD,CENTER 09.023 OD=3.7 L=30	9-08114-030-0	01	1	9712-	●	●			●
117	06.233 NUT; DRAG LINK FRT INDEPENDENT SUSPENSION(6PP) 06.861 M18 SLOTTED	8-97017-761-0	02	1	9312-9510	●	●	●	●	●
117	06.233 NUT; DRAG LINK FRT INDEPENDENT SUSPENSION(6PP) 06.861 M18 SLOTTED	8-97017-761-0	02	1	9511-9711				●
117	06.233 NUT; DRAG LINK 06.861 M18 SLOTTED	8-97017-761-0	01	1	9312-	●	●	●	●	●	●
119	06.897 NUT; RELAY LEVER FRT INDEPENDENT SUSPENSION(6PP) 08.915 M20	9-99111-520-0	01	1	9312-9510	●	●	●	●	●
119	06.897 NUT; RELAY LEVER FRT INDEPENDENT SUSPENSION(6PP) 08.915 M20	9-99111-520-0	01	1	9511-9711				●
120	06.897 BOLT; RELAY LEVER STOPPER FRT INDEPENDENT SUSPENSION(6PP)	8-97014-919-0	02	1	9312-9510	●	●	●	●	●
120	06.897 BOLT; RELAY LEVER STOPPER FRT INDEPENDENT SUSPENSION(6PP)	8-97014-919-0	02	1	9511-9711				●
123	06.895 LEVER; RELAY,RH FRT INDEPENDENT SUSPENSION(6PP)	8-97031-398-0	01	1	9312-9510	●	●			●
123	06.895 LEVER; RELAY,RH FRT INDEPENDENT SUSPENSION(6PP)	8-97061-692-0	01	1	9312-9510			●	●
123	06.895 LEVER; RELAY,RH FRT INDEPENDENT SUSPENSION(6PP)	8-97061-692-0	01	1	9511-9711				●
124	06.859 LEVER; RELAY,STRG LINKAGE FRT INDEPENDENT SUSPENSION(6PP)	8-97036-547-1	01	1	9312-9510	●	●	●	●	●
124	06.859 LEVER; RELAY,STRG LINKAGE FRT INDEPENDENT SUSPENSION(6PP)	8-97036-547-1	01	1	9511-9711				●
125	06.865 DAMPER; STEERING SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP)	8-97012-618-1	01	1	9312-9510	●	●	●	●	●
125	06.865 DAMPER; STEERING SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP)	8-97012-618-1	01	1	9511-9711				●
126	06.865 BOLT; STRG DAMPER TO RELAY LEVER SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP) 00.685 M10X45 FLANGE	0-28081-045-0	02	1	9312-9510	●	●	●	●	●
126	06.865 BOLT; STRG DAMPER TO RELAY LEVER SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP) 00.685 M10X45 FLANGE	0-28081-045-0	02	1	9511-9711				●
127	06.865 NUT; STRG DAMPER SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP) 08.917 M10 FLANGE	0-91150-210-0	02	1	9312-9510	●	●	●	●	●
127	06.865 NUT; STRG DAMPER SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP) 08.917 M10 FLANGE	0-91150-210-0	02	1	9511-9711				●
144	06.896 NUT; STOPPER BRKT FRT INDEPENDENT SUSPENSION(6PP) 05.816 M12	9-99110-412-0	02	1	9312-9510	●	●	●	●	●
144	06.896 NUT; STOPPER BRKT FRT INDEPENDENT SUSPENSION(6PP) 05.816 M12	9-99110-412-0	02	1	9511-9711				●
164	06.896 BRACKET; STEERING DAMPER SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97012-595-2	01	1	9312-9510	●	●	●	●	●
164	06.896 BRACKET; STEERING DAMPER SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97012-595-2	01	1	9511-9711				●
164	06.896 BRACKET; STEERING DAMPER SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97025-765-1	01	1	9312-9510	●	●	●	●	●
164	06.896 BRACKET; STEERING DAMPER SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97025-765-1	01	1	9511-9711				●

3 120 34 36 120 36 19 116 39 71 115 39 116 71 115 124 115 123 105 117 99 36 164 126 105 127 36 125 126 99 164 127 144 144 9 1 4 117 110 104 114 117 77 119 104 19 110 111 71 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	06.859 ARM; PITMAN,STRG EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97032-929-0	01	1	9312-9503	●	●	●	●	●	●
1	06.859 ARM; PITMAN,STRG EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97109-289-1	01	1	9504-9510	●	●	●	●	●	●
1	06.859 ARM; PITMAN,STRG	8-97109-289-1	01	1	9511-9711	●	●	●		●	●
1	06.859 ARM; PITMAN,STRG EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97109-289-1	01	1	9511-9711				●
1	06.859 ARM; PITMAN,STRG	8-97109-289-1	01	1	9712-	●	●	●	●	●	●
1	06.859 ARM; PITMAN,STRG FRT INDEPENDENT SUSPENSION(6PP)	8-97070-362-1	01	1	9312-9510	●	●			●
1	06.859 ARM; PITMAN,STRG FRT INDEPENDENT SUSPENSION(6PP)	8-97070-552-1	01	1	9312-9510			●	●
1	06.859 ARM; PITMAN,STRG FRT INDEPENDENT SUSPENSION(6PP)	8-97070-552-2	01	1	9511-9711				●
3	06.861 WASHER; LK,PITMAN ARM FRT INDEPENDENT SUSPENSION(6PP) 08.931 ID=27.5	9-09150-527-0	01	1	9312-9510	●	●	●	●	●
3	06.861 WASHER; LK,PITMAN ARM FRT INDEPENDENT SUSPENSION(6PP) 08.931 ID=27.5	9-09150-527-0	01	1	9511-9711				●
3	06.861 WASHER; LK,PITMAN ARM EXC. FRT INDEPENDENT SUSPENSION(6PP) ID=22.5	9-09150-522-0	01	1	9312-9510	●	●	●	●	●	●
3	06.861 WASHER; LK,PITMAN ARM ID=22.5	9-09150-522-0	01	1	9511-9711	●	●	●		●	●
3	06.861 WASHER; LK,PITMAN ARM EXC. FRT INDEPENDENT SUSPENSION(6PP) ID=22.5	9-09150-522-0	01	1	9511-9711				●
3	06.861 WASHER; LK,PITMAN ARM ID=22.5	9-09150-522-0	01	1	9712-	●	●	●	●	●	●
4	06.861 NUT; PITMAN ARM FRT INDEPENDENT SUSPENSION(6PP) (A) M27	5-12378-002-0	01	1	9312-9510	●	●	●	●	●
4	06.861 NUT; PITMAN ARM FRT INDEPENDENT SUSPENSION(6PP) (A) M27	5-12378-002-0	01	1	9511-9711				●
4	06.861 NUT; PITMAN ARM EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.915 (B) M22	9-09111-522-0	01	1	9312-9510	●	●	●	●	●	●
4	06.861 NUT; PITMAN ARM 08.915 (B) M22	9-09111-522-0	01	1	9511-9711	●	●	●		●	●
4	06.861 NUT; PITMAN ARM EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.915 (B) M22	9-09111-522-0	01	1	9511-9711				●
4	06.861 NUT; PITMAN ARM 08.915 (B) M22	9-09111-522-0	01	1	9712-	●	●	●	●	●	●
4	06.861 NUT; PITMAN ARM EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) M18 SLOTTED	8-97017-761-0	01	1	9312-9510	●	●			●
4	06.861 NUT; PITMAN ARM (A) M18 SLOTTED	8-97017-761-0	01	1	9511-	●	●			●
9	06.870 LINK; DRAG FRT INDEPENDENT SUSPENSION(6PP)	8-97107-323-0	01	1	9312-9510	●	●			●
9	06.870 LINK; DRAG EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97107-332-0	01	1	9312-9510	●	●			●
9	06.870 LINK; DRAG	8-97107-332-1	01	1	9511-	●	●			●
9	06.870 LINK; DRAG FRT INDEPENDENT SUSPENSION(6PP)	8-97070-496-2	01	1	9312-9510			●	●
9	06.870 LINK; DRAG FRT INDEPENDENT SUSPENSION(6PP)	8-97070-496-2	01	1	9511-9711				●
9	06.870 LINK; DRAG EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97034-285-1	01	1	9312-9510			●	●		●
9	06.870 LINK; DRAG	8-97034-285-2	01	1	9511-9711			●			●
9	06.870 LINK; DRAG EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97034-285-2	01	1	9511-9711				●
9	06.870 LINK; DRAG	8-97034-285-2	01	1	9712-			●	●		●
19	06.865 NUT; PITMAN ARM,STOPPER FRT INDEPENDENT SUSPENSION(6PP)	8-97017-762-0	02	1	9312-9510	●	●	●	●	●
19	06.865 NUT; PITMAN ARM,STOPPER FRT INDEPENDENT SUSPENSION(6PP)	8-97017-762-0	02	1	9511-9711				●
34	06.233 NUT; DRAG LINK TO PITMAN ARM FRT INDEPENDENT SUSPENSION(6PP) 06.861 M18 SLOTTED	8-97017-761-0	01	1	9312-9510	●	●			●
34	06.233 NUT; DRAG LINK TO PITMAN ARM 06.861 M18 SLOTTED	8-97017-761-0	01	1	9312-9510			●	●		●
34	06.233 NUT; DRAG LINK TO PITMAN ARM 06.861 M18 SLOTTED	8-97017-761-0	01	1	9511-			●	●		●
36	06.881 PIN; SPLIT,DRAG LINK FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30	9-08114-030-0	03	1	9312-9510	●	●	●	●	●
36	06.881 PIN; SPLIT,DRAG LINK FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30	9-08114-030-0	03	1	9511-9711				●
36	06.881 PIN; SPLIT,DRAG LINK 09.023 OD=3.7 L=30	9-08114-030-0	01	1	9312-9510	●	●	●	●	●	●
36	06.881 PIN; SPLIT,DRAG LINK EXC. FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30	9-08114-030-0	01	1	9312-9510			●	●
36	06.881 PIN; SPLIT,DRAG LINK 09.023 OD=3.7 L=30	9-08114-030-0	01	1	9312-9510						●
36	06.881 PIN; SPLIT,DRAG LINK 09.023 OD=3.7 L=30	9-08114-030-0	01	1	9511-9711	●	●	●	●	●	●
36	06.881 PIN; SPLIT,DRAG LINK 09.023 OD=3.7 L=30	9-08114-030-0	01	1	9511-9711			●			●
36	06.881 PIN; SPLIT,DRAG LINK EXC. FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30	9-08114-030-0	01	1	9511-9711				●
36	06.881 PIN; SPLIT,DRAG LINK 09.023 OD=3.7 L=30	9-08114-030-0	01	1	9712-	●	●	●	●	●	●
36	06.881 PIN; SPLIT,DRAG LINK 09.023 OD=3.7 L=30	9-08114-030-0	01	1	9712-			●	●		●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97107-325-0	01	1	9312-9510	●	●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97107-325-0	01	1	9511-9711				●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97107-324-0	01	1	9312-9510	●	●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97107-324-0	01	1	9511-9711				●
71	06.896 BOLT; RELAY LEVER BRKT FRT INDEPENDENT SUSPENSION(6PP) EXC. KD PREPARATORY PACK<6HF> (A) M12X93.5	8-97085-383-0	04	1	9312-9510	●	●	●	●	●
71	06.896 BOLT; RELAY LEVER BRKT FRT INDEPENDENT SUSPENSION(6PP) EXC. KD PREPARATORY PACK<6HF> (A) M12X93.5	8-97085-383-0	04	1	9511-9711				●
71	06.896 BOLT; RELAY LEVER BRKT FRT INDEPENDENT SUSPENSION(6PP) EXC. KD PREPARATORY PACK<6HF> (B) M12X43.5	8-97085-384-0	04	1	9312-9510	●	●	●	●	●
71	06.896 BOLT; RELAY LEVER BRKT FRT INDEPENDENT SUSPENSION(6PP) EXC. KD PREPARATORY PACK<6HF> (B) M12X43.5	8-97085-384-0	04	1	9511-9711				●
71	06.896 BOLT; RELAY LEVER BRKT KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) 07.172 (A) M12X90	0-10811-290-0	04	1	9312-9510	●	●	●	●	●
71	06.896 BOLT; RELAY LEVER BRKT KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) 07.172 (A) M12X90	0-10811-290-0	04	1	9511-9711				●
71	06.896 BOLT; RELAY LEVER BRKT KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) 03.890 (B) M12X40	9-92061-240-0	04	1	9312-9510	●	●	●	●	●
71	06.896 BOLT; RELAY LEVER BRKT KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) 03.890 (B) M12X40	9-92061-240-0	04	1	9511-9711				●
77	06.897 WASHER; LK,RELAY LEVER FRT INDEPENDENT SUSPENSION(6PP) 08.931 ID=20.2	9-09150-520-0	01	1	9312-9510	●	●	●	●	●
77	06.897 WASHER; LK,RELAY LEVER FRT INDEPENDENT SUSPENSION(6PP) 08.931 ID=20.2	9-09150-520-0	01	1	9511-9711				●
99	06.896 BOLT; BRKT SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP) 09.008 (B) M10X20 FLANGE	0-28081-020-0	02	1	9312-9510	●	●	●	●	●
99	06.896 BOLT; BRKT SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP) 09.008 (B) M10X20 FLANGE	0-28081-020-0	02	1	9511-9704				●
99	06.896 BOLT; BRKT SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP) 03.611 (B) M10X20 FLANGE	0-28681-020-0	02	1	9705-9711				●
99	06.896 BOLT; BRKT SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP) 00.685 (A) M10X50 FLANGE	0-28081-050-0	02	1	9312-9510	●	●	●	●	●
99	06.896 BOLT; BRKT SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP) 00.685 (A) M10X50 FLANGE	0-28081-050-0	02	1	9511-9711				●
104	06.233 NUT; ROD END FRT INDEPENDENT SUSPENSION(6PP) 06.234 M16 SLOTTED	1-09442-021-1	02	1	9312-9510	●	●	●	●	●
104	06.233 NUT; ROD END FRT INDEPENDENT SUSPENSION(6PP) 06.234 M16 SLOTTED	1-09442-021-1	02	1	9511-9711				●
105	06.865 PIN; SPLIT,ROD END FRT INDEPENDENT SUSPENSION(6PP) 06.022 OD=3.7 L=25	9-08114-025-0	02	1	9312-9510	●	●	●	●	●
105	06.865 PIN; SPLIT,ROD END FRT INDEPENDENT SUSPENSION(6PP) 06.022 OD=3.7 L=25	9-08114-025-0	02	1	9511-9711				●
110	06.870 ROD; TRACK,OUTER FRT INDEPENDENT SUSPENSION(6PP)	8-97107-318-0	02	1	9312-9401	●	●			●
110	06.870 ROD; TRACK,OUTER FRT INDEPENDENT SUSPENSION(6PP)	8-97107-318-0	02	1	9402-9510	●	●	●	●	●
110	06.870 ROD; TRACK,OUTER FRT INDEPENDENT SUSPENSION(6PP)	8-97107-318-0	02	1	9511-9711				●
110	06.870 ROD; TRACK,OUTER FRT INDEPENDENT SUSPENSION(6PP)	8-97076-008-0	02	1	9312-9401			●	●
111	06.870 ROD; TRACK,CENTER FRT INDEPENDENT SUSPENSION(6PP)	8-97107-321-0	01	1	9312-9510	●	●			●
111	06.870 ROD; TRACK,CENTER FRT INDEPENDENT SUSPENSION(6PP)	8-97062-180-2	01	1	9312-9510			●	●
111	06.870 ROD; TRACK,CENTER FRT INDEPENDENT SUSPENSION(6PP)	8-97062-180-2	01	1	9511-9711				●
114	06.515 WASHER; RELAY LEVER BRKT FRT INDEPENDENT SUSPENSION(6PP) 08.931 ID=20.2	9-09150-520-0	01	1	9312-9510	●	●	●	●	●
114	06.515 WASHER; RELAY LEVER BRKT FRT INDEPENDENT SUSPENSION(6PP) 08.931 ID=20.2	9-09150-520-0	01	1	9511-9711				●
115	06.896 NUT; RELAY LEVER BRKT FRT INDEPENDENT SUSPENSION(6PP) 06.606 (A) M12	8-94139-015-0	08	1	9312-9510	●	●	●	●	●
115	06.896 NUT; RELAY LEVER BRKT FRT INDEPENDENT SUSPENSION(6PP) 06.606 (A) M12	8-94139-015-0	08	1	9511-9711				●
115	06.896 NUT; RELAY LEVER BRKT FRT INDEPENDENT SUSPENSION(6PP) 08.915 (B) M20	9-99111-520-0	01	1	9312-9510	●	●	●	●	●
115	06.896 NUT; RELAY LEVER BRKT FRT INDEPENDENT SUSPENSION(6PP) 08.915 (B) M20	9-99111-520-0	01	1	9511-9711				●
116	06.897 PIN; SPLIT,TRACK ROD,CENTER FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30	9-08114-030-0	AR	1	9312-9510	●	●	●	●	●
116	06.897 PIN; SPLIT,TRACK ROD,CENTER 09.023 OD=3.7 L=30	9-08114-030-0	01	1	9511-9711	●	●			●
116	06.897 PIN; SPLIT,TRACK ROD,CENTER FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30	9-08114-030-0	01	1	9511-9711				●
116	06.897 PIN; SPLIT,TRACK ROD,CENTER FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30	9-08114-030-0	01	1	9511-9711				●
116	06.897 PIN; SPLIT,TRACK ROD,CENTER 09.023 OD=3.7 L=30	9-08114-030-0	01	1	9712-	●	●			●
117	06.233 NUT; DRAG LINK FRT INDEPENDENT SUSPENSION(6PP) 06.861 M18 SLOTTED	8-97017-761-0	02	1	9312-9510	●	●	●	●	●
117	06.233 NUT; DRAG LINK FRT INDEPENDENT SUSPENSION(6PP) 06.861 M18 SLOTTED	8-97017-761-0	02	1	9511-9711				●
117	06.233 NUT; DRAG LINK 06.861 M18 SLOTTED	8-97017-761-0	01	1	9312-	●	●	●	●	●	●
119	06.897 NUT; RELAY LEVER FRT INDEPENDENT SUSPENSION(6PP) 08.915 M20	9-99111-520-0	01	1	9312-9510	●	●	●	●	●
119	06.897 NUT; RELAY LEVER FRT INDEPENDENT SUSPENSION(6PP) 08.915 M20	9-99111-520-0	01	1	9511-9711				●
120	06.897 BOLT; RELAY LEVER STOPPER FRT INDEPENDENT SUSPENSION(6PP)	8-97014-919-0	02	1	9312-9510	●	●	●	●	●
120	06.897 BOLT; RELAY LEVER STOPPER FRT INDEPENDENT SUSPENSION(6PP)	8-97014-919-0	02	1	9511-9711				●
123	06.895 LEVER; RELAY,RH FRT INDEPENDENT SUSPENSION(6PP)	8-97031-398-0	01	1	9312-9510	●	●			●
123	06.895 LEVER; RELAY,RH FRT INDEPENDENT SUSPENSION(6PP)	8-97061-692-0	01	1	9312-9510			●	●
123	06.895 LEVER; RELAY,RH FRT INDEPENDENT SUSPENSION(6PP)	8-97061-692-0	01	1	9511-9711				●
124	06.859 LEVER; RELAY,STRG LINKAGE FRT INDEPENDENT SUSPENSION(6PP)	8-97036-547-1	01	1	9312-9510	●	●	●	●	●
124	06.859 LEVER; RELAY,STRG LINKAGE FRT INDEPENDENT SUSPENSION(6PP)	8-97036-547-1	01	1	9511-9711				●
125	06.865 DAMPER; STEERING SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP)	8-97012-618-1	01	1	9312-9510	●	●	●	●	●
125	06.865 DAMPER; STEERING SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP)	8-97012-618-1	01	1	9511-9711				●
126	06.865 BOLT; STRG DAMPER TO RELAY LEVER SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP) 00.685 M10X45 FLANGE	0-28081-045-0	02	1	9312-9510	●	●	●	●	●
126	06.865 BOLT; STRG DAMPER TO RELAY LEVER SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP) 00.685 M10X45 FLANGE	0-28081-045-0	02	1	9511-9711				●
127	06.865 NUT; STRG DAMPER SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP) 08.917 M10 FLANGE	0-91150-210-0	02	1	9312-9510	●	●	●	●	●
127	06.865 NUT; STRG DAMPER SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP) 08.917 M10 FLANGE	0-91150-210-0	02	1	9511-9711				●
144	06.896 NUT; STOPPER BRKT FRT INDEPENDENT SUSPENSION(6PP) 05.816 M12	9-99110-412-0	02	1	9312-9510	●	●	●	●	●
144	06.896 NUT; STOPPER BRKT FRT INDEPENDENT SUSPENSION(6PP) 05.816 M12	9-99110-412-0	02	1	9511-9711				●
164	06.896 BRACKET; STEERING DAMPER SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97012-595-2	01	1	9312-9510	●	●	●	●	●
164	06.896 BRACKET; STEERING DAMPER SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97012-595-2	01	1	9511-9711				●
164	06.896 BRACKET; STEERING DAMPER SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97025-765-1	01	1	9312-9510	●	●	●	●	●
164	06.896 BRACKET; STEERING DAMPER SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97025-765-1	01	1	9511-9711				●

4 3 1 36 34 9 117 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	06.859 ARM; PITMAN,STRG EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97032-929-0	01	1	9312-9503	●	●	●	●	●	●
1	06.859 ARM; PITMAN,STRG EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97109-289-1	01	1	9504-9510	●	●	●	●	●	●
1	06.859 ARM; PITMAN,STRG	8-97109-289-1	01	1	9511-9711	●	●	●		●	●
1	06.859 ARM; PITMAN,STRG EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97109-289-1	01	1	9511-9711				●
1	06.859 ARM; PITMAN,STRG	8-97109-289-1	01	1	9712-	●	●	●	●	●	●
1	06.859 ARM; PITMAN,STRG FRT INDEPENDENT SUSPENSION(6PP)	8-97070-362-1	01	1	9312-9510	●	●			●
1	06.859 ARM; PITMAN,STRG FRT INDEPENDENT SUSPENSION(6PP)	8-97070-552-1	01	1	9312-9510			●	●
1	06.859 ARM; PITMAN,STRG FRT INDEPENDENT SUSPENSION(6PP)	8-97070-552-2	01	1	9511-9711				●
3	06.861 WASHER; LK,PITMAN ARM FRT INDEPENDENT SUSPENSION(6PP) 08.931 ID=27.5	9-09150-527-0	01	1	9312-9510	●	●	●	●	●
3	06.861 WASHER; LK,PITMAN ARM FRT INDEPENDENT SUSPENSION(6PP) 08.931 ID=27.5	9-09150-527-0	01	1	9511-9711				●
3	06.861 WASHER; LK,PITMAN ARM EXC. FRT INDEPENDENT SUSPENSION(6PP) ID=22.5	9-09150-522-0	01	1	9312-9510	●	●	●	●	●	●
3	06.861 WASHER; LK,PITMAN ARM ID=22.5	9-09150-522-0	01	1	9511-9711	●	●	●		●	●
3	06.861 WASHER; LK,PITMAN ARM EXC. FRT INDEPENDENT SUSPENSION(6PP) ID=22.5	9-09150-522-0	01	1	9511-9711				●
3	06.861 WASHER; LK,PITMAN ARM ID=22.5	9-09150-522-0	01	1	9712-	●	●	●	●	●	●
4	06.861 NUT; PITMAN ARM FRT INDEPENDENT SUSPENSION(6PP) (A) M27	5-12378-002-0	01	1	9312-9510	●	●	●	●	●
4	06.861 NUT; PITMAN ARM FRT INDEPENDENT SUSPENSION(6PP) (A) M27	5-12378-002-0	01	1	9511-9711				●
4	06.861 NUT; PITMAN ARM EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.915 (B) M22	9-09111-522-0	01	1	9312-9510	●	●	●	●	●	●
4	06.861 NUT; PITMAN ARM 08.915 (B) M22	9-09111-522-0	01	1	9511-9711	●	●	●		●	●
4	06.861 NUT; PITMAN ARM EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.915 (B) M22	9-09111-522-0	01	1	9511-9711				●
4	06.861 NUT; PITMAN ARM 08.915 (B) M22	9-09111-522-0	01	1	9712-	●	●	●	●	●	●
4	06.861 NUT; PITMAN ARM EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) M18 SLOTTED	8-97017-761-0	01	1	9312-9510	●	●			●
4	06.861 NUT; PITMAN ARM (A) M18 SLOTTED	8-97017-761-0	01	1	9511-	●	●			●
9	06.870 LINK; DRAG FRT INDEPENDENT SUSPENSION(6PP)	8-97107-323-0	01	1	9312-9510	●	●			●
9	06.870 LINK; DRAG EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97107-332-0	01	1	9312-9510	●	●			●
9	06.870 LINK; DRAG	8-97107-332-1	01	1	9511-	●	●			●
9	06.870 LINK; DRAG FRT INDEPENDENT SUSPENSION(6PP)	8-97070-496-2	01	1	9312-9510			●	●
9	06.870 LINK; DRAG FRT INDEPENDENT SUSPENSION(6PP)	8-97070-496-2	01	1	9511-9711				●
9	06.870 LINK; DRAG EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97034-285-1	01	1	9312-9510			●	●		●
9	06.870 LINK; DRAG	8-97034-285-2	01	1	9511-9711			●			●
9	06.870 LINK; DRAG EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97034-285-2	01	1	9511-9711				●
9	06.870 LINK; DRAG	8-97034-285-2	01	1	9712-			●	●		●
34	06.233 NUT; DRAG LINK TO PITMAN ARM FRT INDEPENDENT SUSPENSION(6PP) 06.861 M18 SLOTTED	8-97017-761-0	01	1	9312-9510	●	●			●
34	06.233 NUT; DRAG LINK TO PITMAN ARM 06.861 M18 SLOTTED	8-97017-761-0	01	1	9312-9510			●	●		●
34	06.233 NUT; DRAG LINK TO PITMAN ARM 06.861 M18 SLOTTED	8-97017-761-0	01	1	9511-			●	●		●
36	06.881 PIN; SPLIT,DRAG LINK FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30	9-08114-030-0	03	1	9312-9510	●	●	●	●	●
36	06.881 PIN; SPLIT,DRAG LINK FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30	9-08114-030-0	03	1	9511-9711				●
36	06.881 PIN; SPLIT,DRAG LINK 09.023 OD=3.7 L=30	9-08114-030-0	01	1	9312-9510	●	●	●	●	●	●
36	06.881 PIN; SPLIT,DRAG LINK EXC. FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30	9-08114-030-0	01	1	9312-9510			●	●
36	06.881 PIN; SPLIT,DRAG LINK 09.023 OD=3.7 L=30	9-08114-030-0	01	1	9312-9510						●
36	06.881 PIN; SPLIT,DRAG LINK 09.023 OD=3.7 L=30	9-08114-030-0	01	1	9511-9711	●	●	●	●	●	●
36	06.881 PIN; SPLIT,DRAG LINK 09.023 OD=3.7 L=30	9-08114-030-0	01	1	9511-9711			●			●
36	06.881 PIN; SPLIT,DRAG LINK EXC. FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30	9-08114-030-0	01	1	9511-9711				●
36	06.881 PIN; SPLIT,DRAG LINK 09.023 OD=3.7 L=30	9-08114-030-0	01	1	9712-	●	●	●	●	●	●
36	06.881 PIN; SPLIT,DRAG LINK 09.023 OD=3.7 L=30	9-08114-030-0	01	1	9712-			●	●		●
117	06.233 NUT; DRAG LINK FRT INDEPENDENT SUSPENSION(6PP) 06.861 M18 SLOTTED	8-97017-761-0	02	1	9312-9510	●	●	●	●	●
117	06.233 NUT; DRAG LINK FRT INDEPENDENT SUSPENSION(6PP) 06.861 M18 SLOTTED	8-97017-761-0	02	1	9511-9711				●
117	06.233 NUT; DRAG LINK 06.861 M18 SLOTTED	8-97017-761-0	01	1	9312-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
