Sayfa 4-31 - Isuzu EPC

4-31 — STEERING COLUMN AND SHAFT (#33651) — 306 parça

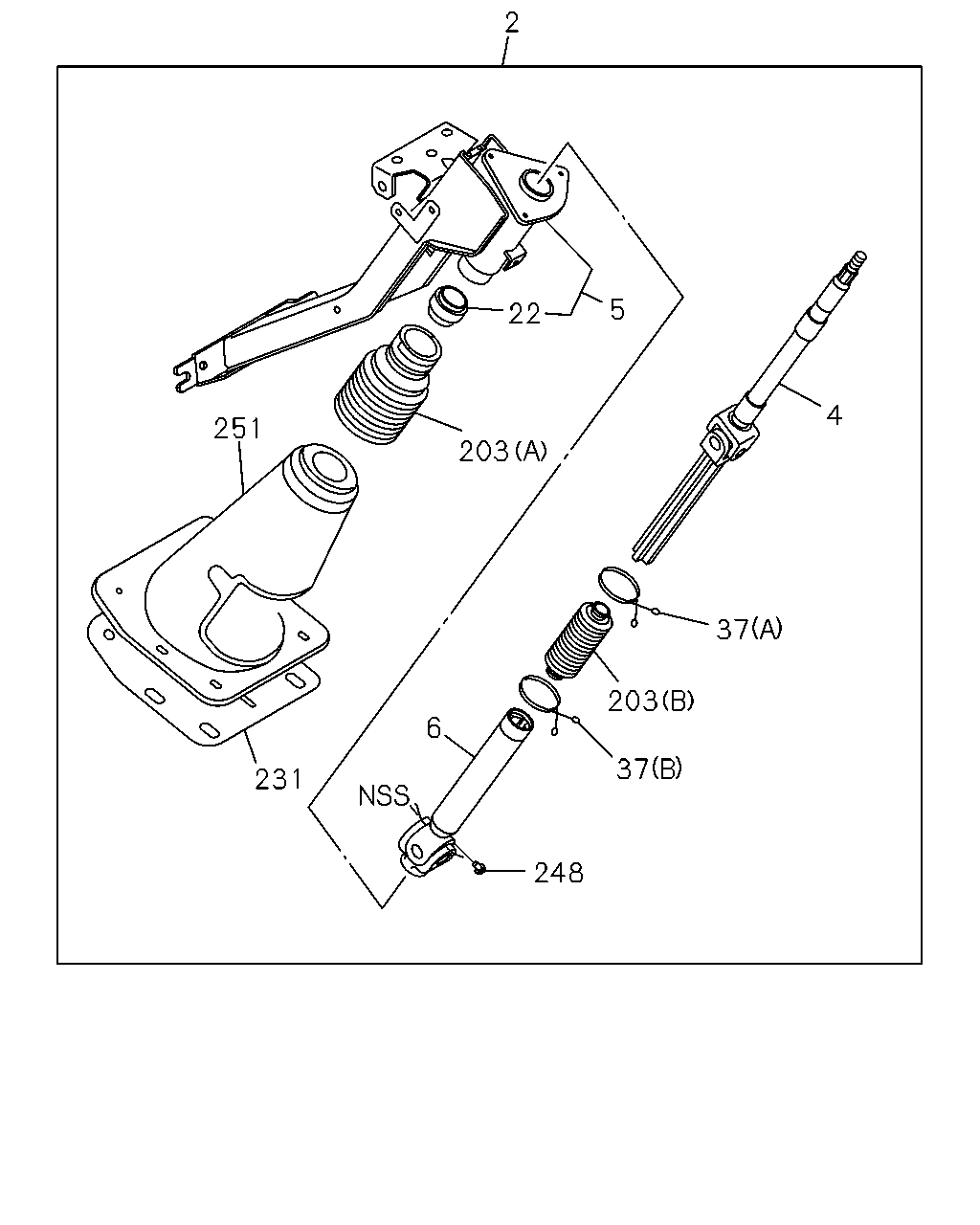

2 5 22 4 251 203 37 203 6 37 231 248

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	06.518 SHAFT ASM; STRG COATING PACK-STEERING COLUMN & SHAFT<6UJ> EXC. TILT STEERING<N33> DARK BEIGE	8-97097-018-5	01	1	9501-9604	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> DARK BEIGE	8-97097-018-7	01	1	9605-9605	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> DARK BEIGE	8-97157-807-0	01	1	9606-9702	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> DARK BEIGE	8-97158-974-0	01	1	9703-9711	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97159-172-0	01	1	9712-	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> DARK BEIGE	8-97097-016-5	01	1	9312-9412	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ> DARK BEIGE	8-97097-016-6	01	1	9501-9605	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ> DARK BEIGE	8-97157-804-0	01	1	9606-9711	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ> BLACK	8-97159-170-1	01	1	9712-	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE	8-97097-019-6	01	1	9501-9605	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE	8-97157-806-0	01	1	9606-9711	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97159-171-1	01	1	9712-	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> DARK BEIGE	8-97097-017-5	01	1	9312-9412	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE	8-97097-017-5	01	1	9501-9604	●	●	●	●	●	●
4	06.524 SHAFT; STRG	8-97096-763-0	01	1	9312-9702	●	●	●	●	●	●
4	06.524 SHAFT; STRG TILT STEERING<N33>	8-97096-763-0	01	1	9703-9712	●	●	●	●	●	●
4	06.524 SHAFT; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97201-106-0	01	1	9801-	●	●	●	●	●	●
4	06.524 SHAFT; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ>	8-97201-110-1	01	1	9801-	●	●	●	●	●	●
4	06.524 SHAFT; STRG EXC. TILT STEERING<N33>	8-97173-634-0	01	1	9703-	●	●	●	●	●	●
5	06.518 COLUMN; STRG	8-97093-792-1	01	1	9312-9412	●	●	●	●	●	●
5	06.518 COLUMN; STRG EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ>	8-97093-792-1	01	1	9501-9604	●	●	●	●	●	●
5	06.518 COLUMN; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ>	8-97093-792-2	01	1	9605-	●	●	●	●	●	●
5	06.518 COLUMN; STRG COATING PACK-STEERING COLUMN & SHAFT<6UJ> EXC. TILT STEERING<N33>	8-97093-791-1	01	1	9501-9604	●	●	●	●	●	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97146-719-0	01	1	9605-9702	●	●	●	●	●	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33> 06.760	8-97173-626-0	01	1	9703-	●	●	●	●	●	●
5	06.518 COLUMN; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97096-767-2	01	1	9501-	●	●	●	●	●	●
6	06.524 SHAFT; STRG LWR	8-97094-625-1	01	1	9312-9702	●	●	●	●	●	●
6	06.524 SHAFT; STRG LWR TILT STEERING<N33>	8-97094-625-1	01	1	9703-9712	●	●	●	●	●	●
6	06.524 SHAFT; STRG LWR TILT STEERING<N33>	8-97201-107-0	01	1	9801-	●	●	●	●	●	●
6	06.524 SHAFT; STRG LWR EXC. TILT STEERING<N33>	8-97173-635-0	01	1	9703-	●	●	●	●	●	●
22	06.525 BUSHING; STRG COLUMN	8-97076-821-0	01	1	9312-9702	●	●	●	●	●	●
22	06.525 BUSHING; STRG COLUMN TILT STEERING<N33>	8-97076-821-0	01	1	9703-	●	●	●	●	●	●
22	06.525 BUSHING; STRG COLUMN EXC. TILT STEERING<N33>	8-97201-085-0	01	1	9703-	●	●	●	●	●	●
37	06.525 CLAMP; BOOT TO SHAFT (B)	8-94165-569-0	01	1	9312-9702	●	●	●	●	●	●
37	06.525 CLAMP; BOOT TO SHAFT TILT STEERING<N33> (B)	8-94165-569-0	01	1	9703-	●	●	●	●	●	●
37	06.525 CLAMP; BOOT TO SHAFT (A)	8-94165-570-0	01	1	9312-9702	●	●	●	●	●	●
37	06.525 CLAMP; BOOT TO SHAFT TILT STEERING<N33> (A)	8-94165-570-0	01	1	9703-	●	●	●	●	●	●
37	06.525 CLAMP; BOOT TO SHAFT EXC. TILT STEERING<N33> (A),(B)	8-97173-630-0	02	1	9703-	●	●	●	●	●	●
203	06.525 BOOT; STRG COLUMN LWR 06.518 (B)	8-97076-822-0	01	1	9312-9702	●	●	●	●	●	●
203	06.525 BOOT; STRG COLUMN LWR TILT STEERING<N33> 06.518 (B)	8-97076-822-0	01	1	9703-	●	●	●	●	●	●
203	06.525 BOOT; STRG COLUMN LWR (A)	8-97127-878-0	01	1	9312-9604	●	●	●	●	●	●
203	06.525 BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> (A)	8-94159-074-0	01	1	9605-9702	●	●	●	●	●	●
203	06.525 BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> (A)	8-97173-631-0	01	1	9703-	●	●	●	●	●	●
203	06.525 BOOT; STRG COLUMN LWR TILT STEERING<N33> 06.518 (A)	8-94127-878-0	01	1	9605-9712	●	●	●	●	●	●
203	06.525 BOOT; STRG COLUMN LWR TILT STEERING<N33> (A)	8-97201-115-0	01	1	9801-	●	●	●	●	●	●
203	06.525 BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> 06.518 (B)	8-97173-632-0	01	1	9703-	●	●	●	●	●	●
231	06.525 SEAL; RUBBER,STRG COLUMN	8-97076-808-1	01	1	9312-9702	●	●	●	●	●	●
231	06.525 SEAL; RUBBER,STRG COLUMN TILT STEERING<N33>	8-97076-808-1	01	1	9703-	●	●	●	●	●	●
231	06.525 SEAL; RUBBER,STRG COLUMN EXC. TILT STEERING<N33>	8-97173-628-0	01	1	9703-	●	●	●	●	●	●
248	06.518 SCREW; YOKE	8-97076-819-0	01	1	9312-9702	●	●	●	●	●	●
248	06.518 SCREW; YOKE TILT STEERING<N33>	8-97076-819-0	01	1	9703-9712	●	●	●	●	●	●
251	06.518 COVER; LWR 06.578 DARK BEIGE	8-97097-466-1	01	1	9312-9605	●	●	●	●	●	●
251	06.518 COVER; LWR 06.578 DARK BEIGE	8-97157-808-0	01	1	9606-9702	●	●	●	●	●	●
251	06.518 COVER; LWR TILT STEERING<N33> 06.578 DARK BEIGE	8-97157-808-0	01	1	9703-9711	●	●	●	●	●	●
251	06.518 COVER; LWR TILT STEERING<N33> 06.578 BLACK	8-97159-168-1	01	1	9712-	●	●	●	●	●	●
251	06.518 COVER; LWR EXC. TILT STEERING<N33> 06.578 DARK BEIGE	8-97158-976-0	01	1	9703-9711	●	●	●	●	●	●
251	06.518 COVER; LWR EXC. TILT STEERING<N33> 06.578 BLACK	8-97159-175-0	01	1	9712-	●	●	●	●	●	●

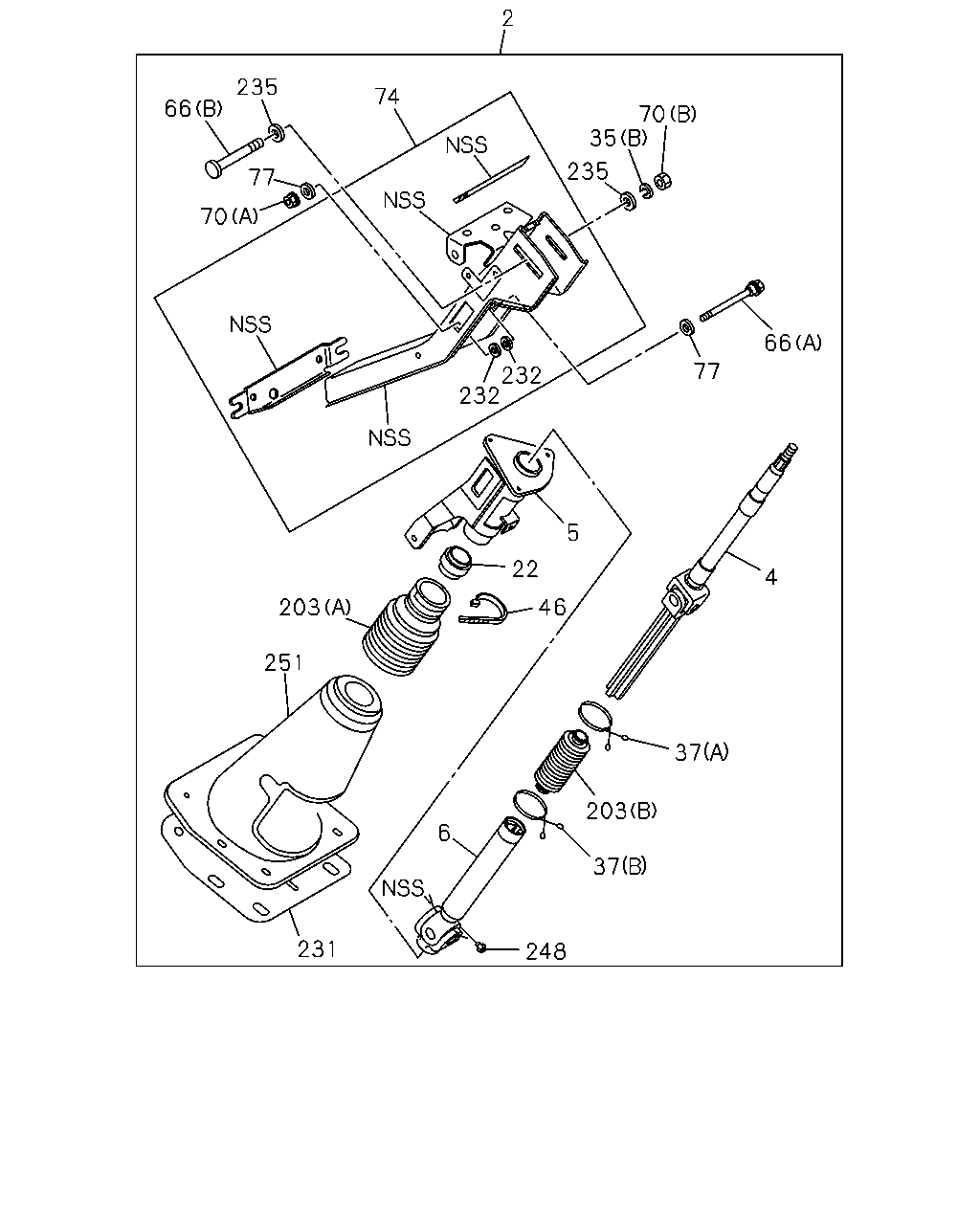

2 235 66 74 35 235 66 232 232 5 22 203 46 251 37 203 6 37 248 77 70 77 4 231 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	06.518 SHAFT ASM; STRG COATING PACK-STEERING COLUMN & SHAFT<6UJ> EXC. TILT STEERING<N33> DARK BEIGE	8-97097-018-5	01	1	9501-9604	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> DARK BEIGE	8-97097-018-7	01	1	9605-9605	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> DARK BEIGE	8-97157-807-0	01	1	9606-9702	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> DARK BEIGE	8-97158-974-0	01	1	9703-9711	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97159-172-0	01	1	9712-	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> DARK BEIGE	8-97097-016-5	01	1	9312-9412	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ> DARK BEIGE	8-97097-016-6	01	1	9501-9605	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ> DARK BEIGE	8-97157-804-0	01	1	9606-9711	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ> BLACK	8-97159-170-1	01	1	9712-	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE	8-97097-019-6	01	1	9501-9605	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE	8-97157-806-0	01	1	9606-9711	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97159-171-1	01	1	9712-	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> DARK BEIGE	8-97097-017-5	01	1	9312-9412	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE	8-97097-017-5	01	1	9501-9604	●	●	●	●	●	●
4	06.524 SHAFT; STRG	8-97096-763-0	01	1	9312-9702	●	●	●	●	●	●
4	06.524 SHAFT; STRG TILT STEERING<N33>	8-97096-763-0	01	1	9703-9712	●	●	●	●	●	●
4	06.524 SHAFT; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97201-106-0	01	1	9801-	●	●	●	●	●	●
4	06.524 SHAFT; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ>	8-97201-110-1	01	1	9801-	●	●	●	●	●	●
4	06.524 SHAFT; STRG EXC. TILT STEERING<N33>	8-97173-634-0	01	1	9703-	●	●	●	●	●	●
5	06.518 COLUMN; STRG	8-97093-792-1	01	1	9312-9412	●	●	●	●	●	●
5	06.518 COLUMN; STRG EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ>	8-97093-792-1	01	1	9501-9604	●	●	●	●	●	●
5	06.518 COLUMN; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ>	8-97093-792-2	01	1	9605-	●	●	●	●	●	●
5	06.518 COLUMN; STRG COATING PACK-STEERING COLUMN & SHAFT<6UJ> EXC. TILT STEERING<N33>	8-97093-791-1	01	1	9501-9604	●	●	●	●	●	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97146-719-0	01	1	9605-9702	●	●	●	●	●	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33> 06.760	8-97173-626-0	01	1	9703-	●	●	●	●	●	●
5	06.518 COLUMN; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97096-767-2	01	1	9501-	●	●	●	●	●	●
6	06.524 SHAFT; STRG LWR	8-97094-625-1	01	1	9312-9702	●	●	●	●	●	●
6	06.524 SHAFT; STRG LWR TILT STEERING<N33>	8-97094-625-1	01	1	9703-9712	●	●	●	●	●	●
6	06.524 SHAFT; STRG LWR TILT STEERING<N33>	8-97201-107-0	01	1	9801-	●	●	●	●	●	●
6	06.524 SHAFT; STRG LWR EXC. TILT STEERING<N33>	8-97173-635-0	01	1	9703-	●	●	●	●	●	●
22	06.525 BUSHING; STRG COLUMN	8-97076-821-0	01	1	9312-9702	●	●	●	●	●	●
22	06.525 BUSHING; STRG COLUMN TILT STEERING<N33>	8-97076-821-0	01	1	9703-	●	●	●	●	●	●
22	06.525 BUSHING; STRG COLUMN EXC. TILT STEERING<N33>	8-97201-085-0	01	1	9703-	●	●	●	●	●	●
35	06.525 WASHER; LK,STRG SHAFT 08.929 (A) ID=10.2	9-09150-810-0	01	1	9312-9801	●	●	●	●	●	●
35	06.525 WASHER; LK,STRG SHAFT EXC. TILT STEERING<N33> 08.929 (A) ID=10.2	9-09150-810-0	01	1	9802-	●	●	●	●	●	●
35	06.525 WASHER; LK,STRG SHAFT TILT STEERING<N33> 00.002 (A) ID=8.2	9-09150-508-0	01	1	9802-	●	●	●	●	●	●
35	06.525 WASHER; LK,STRG SHAFT EXC. TILT STEERING<N33> (B)	8-97093-758-0	01	1	9312-9604	●	●	●	●	●	●
37	06.525 CLAMP; BOOT TO SHAFT (B)	8-94165-569-0	01	1	9312-9702	●	●	●	●	●	●
37	06.525 CLAMP; BOOT TO SHAFT TILT STEERING<N33> (B)	8-94165-569-0	01	1	9703-	●	●	●	●	●	●
37	06.525 CLAMP; BOOT TO SHAFT (A)	8-94165-570-0	01	1	9312-9702	●	●	●	●	●	●
37	06.525 CLAMP; BOOT TO SHAFT TILT STEERING<N33> (A)	8-94165-570-0	01	1	9703-	●	●	●	●	●	●
37	06.525 CLAMP; BOOT TO SHAFT EXC. TILT STEERING<N33> (A),(B)	8-97173-630-0	02	1	9703-	●	●	●	●	●	●
46	06.521 CLIP; BOOT	8-97076-809-0	01	1	9312-9604	●	●	●	●	●	●
66	06.514 BOLT; STRG COLUMN 04.634 (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9312-	●	●	●	●	●	●
66	06.514 BOLT; STRG COLUMN TILT STEERING<N33> (A)	8-97076-831-0	01	1	9312-	●	●	●	●	●	●
66	06.514 BOLT; STRG COLUMN EXC. TILT STEERING<N33> (A)	8-97093-756-0	01	1	9312-9604	●	●	●	●	●	●
66	06.514 BOLT; STRG COLUMN EXC. TILT STEERING<N33> (B)	8-97093-757-0	01	1	9312-9604	●	●	●	●	●	●
70	06.514 NUT; STRG COLUMN (A)	8-97076-807-0	01	1	9312-9604	●	●	●	●	●	●
70	06.514 NUT; STRG COLUMN TILT STEERING<N33> (A)	8-97076-807-0	01	1	9605-	●	●	●	●	●	●
70	06.514 NUT; STRG COLUMN EXC. TILT STEERING<N33> 04.634 (B) M12	9-99110-512-0	01	1	9312-9604	●	●	●	●	●	●
74	06.760 BRACKET; SUPPORT,STRG EXC. TILT STEERING<N33>	8-97093-793-3	01	1	9312-9510	●	●	●	●	●	●
77	06.760 WASHER; PL,COLUMN TILT STEERING<N33>	8-97076-804-0	01	1	9312-	●	●	●	●	●	●
77	06.760 WASHER; PL,COLUMN EXC. TILT STEERING<N33>	8-97076-804-0	02	1	9312-9604	●	●	●	●	●	●
203	06.525 BOOT; STRG COLUMN LWR 06.518 (B)	8-97076-822-0	01	1	9312-9702	●	●	●	●	●	●
203	06.525 BOOT; STRG COLUMN LWR TILT STEERING<N33> 06.518 (B)	8-97076-822-0	01	1	9703-	●	●	●	●	●	●
203	06.525 BOOT; STRG COLUMN LWR (A)	8-97127-878-0	01	1	9312-9604	●	●	●	●	●	●
203	06.525 BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> (A)	8-94159-074-0	01	1	9605-9702	●	●	●	●	●	●
203	06.525 BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> (A)	8-97173-631-0	01	1	9703-	●	●	●	●	●	●
203	06.525 BOOT; STRG COLUMN LWR TILT STEERING<N33> 06.518 (A)	8-94127-878-0	01	1	9605-9712	●	●	●	●	●	●
203	06.525 BOOT; STRG COLUMN LWR TILT STEERING<N33> (A)	8-97201-115-0	01	1	9801-	●	●	●	●	●	●
203	06.525 BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> 06.518 (B)	8-97173-632-0	01	1	9703-	●	●	●	●	●	●
231	06.525 SEAL; RUBBER,STRG COLUMN	8-97076-808-1	01	1	9312-9702	●	●	●	●	●	●
231	06.525 SEAL; RUBBER,STRG COLUMN TILT STEERING<N33>	8-97076-808-1	01	1	9703-	●	●	●	●	●	●
231	06.525 SEAL; RUBBER,STRG COLUMN EXC. TILT STEERING<N33>	8-97173-628-0	01	1	9703-	●	●	●	●	●	●
232	06.514 SPACER; STRG SHAFT TILT STEERING<N33> (B)	8-97076-805-0	02	1	9312-	●	●	●	●	●	●
232	06.514 SPACER; STRG SHAFT TILT STEERING<N33> (A)	8-97076-806-0	01	1	9312-	●	●	●	●	●	●
232	06.514 SPACER; STRG SHAFT TILT STEERING<N33> (C)	8-97148-277-0	01	1	9605-	●	●	●	●	●	●
232	06.514 SPACER; STRG SHAFT EXC. TILT STEERING<N33>	8-97093-754-0	02	1	9312-9403	●	●	●	●	●	●
235	06.515 WASHER; PL,STRG SHAFT EXC. TILT STEERING<N33>	8-97093-755-0	02	1	9312-9604	●	●	●	●	●	●
248	06.518 SCREW; YOKE	8-97076-819-0	01	1	9312-9702	●	●	●	●	●	●
248	06.518 SCREW; YOKE TILT STEERING<N33>	8-97076-819-0	01	1	9703-9712	●	●	●	●	●	●
251	06.518 COVER; LWR 06.578 DARK BEIGE	8-97097-466-1	01	1	9312-9605	●	●	●	●	●	●
251	06.518 COVER; LWR 06.578 DARK BEIGE	8-97157-808-0	01	1	9606-9702	●	●	●	●	●	●
251	06.518 COVER; LWR TILT STEERING<N33> 06.578 DARK BEIGE	8-97157-808-0	01	1	9703-9711	●	●	●	●	●	●
251	06.518 COVER; LWR TILT STEERING<N33> 06.578 BLACK	8-97159-168-1	01	1	9712-	●	●	●	●	●	●
251	06.518 COVER; LWR EXC. TILT STEERING<N33> 06.578 DARK BEIGE	8-97158-976-0	01	1	9703-9711	●	●	●	●	●	●
251	06.518 COVER; LWR EXC. TILT STEERING<N33> 06.578 BLACK	8-97159-175-0	01	1	9712-	●	●	●	●	●	●

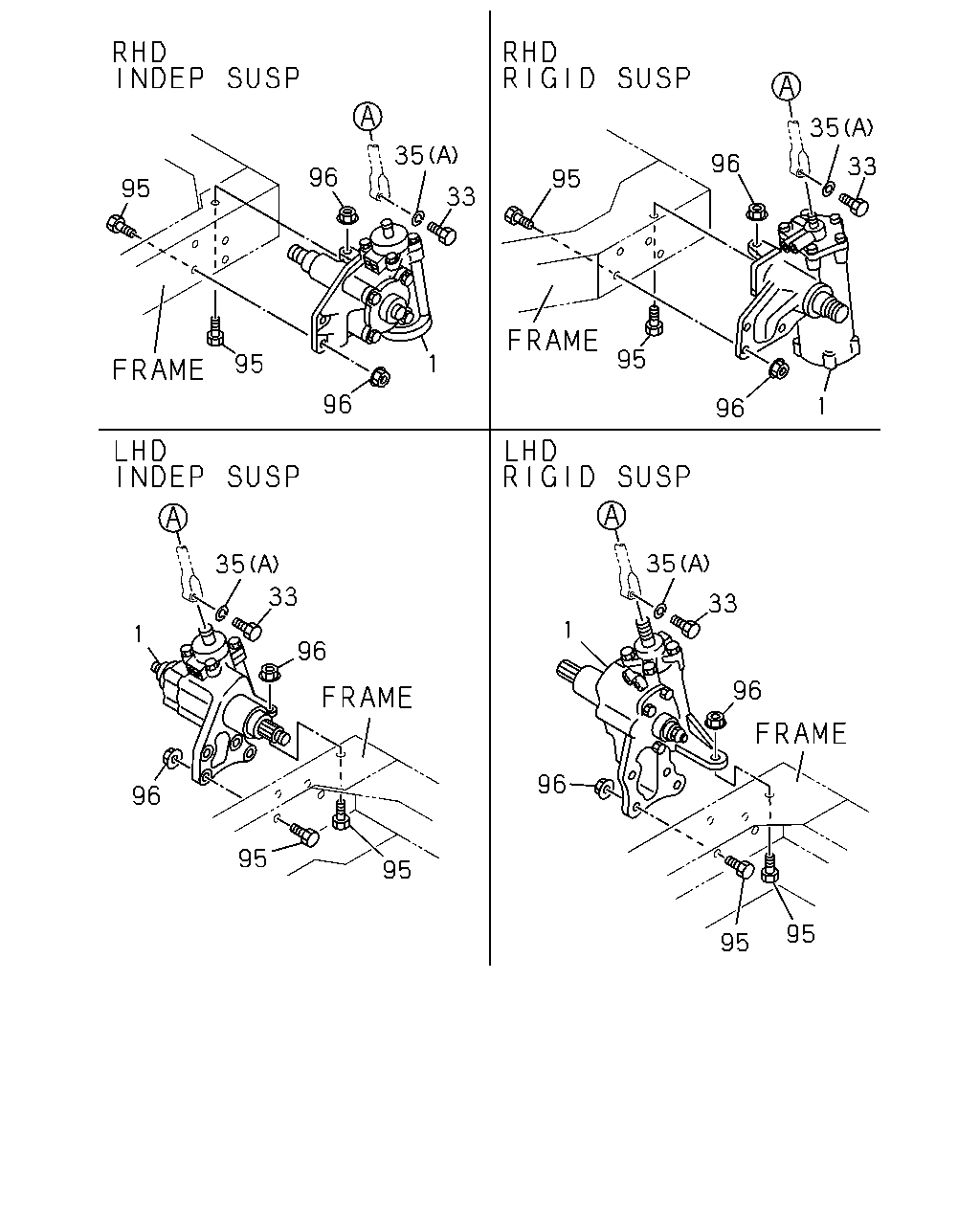

35 35 96 33 96 95 95 33 95 95 96 96 35 35 33 33 96 96 96 96 95 95 95 95 1 1 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP)	8-97073-159-2	01	1	9312-9510	●	●			●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97073-158-1	01	1	9312-9510	●	●			●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40>	8-97073-158-1	01	1	9511-9601	●	●			●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40>	8-97145-739-0	01	1	9602-	●	●			●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40>,FRT INDEPENDENT SUSPENSION(6PP)	8-97069-707-0	01	1	9312-9510	●	●			●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40>	8-97069-707-0	01	1	9511-	●	●			●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP)	8-97069-704-1	01	1	9312-9510			●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP)	8-97069-704-1	01	1	9511-9711				●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97069-705-1	01	1	9312-9510			●	●		●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40>	8-97069-705-1	01	1	9511-9711			●			●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97069-705-1	01	1	9511-9711				●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40>	8-97069-705-1	01	1	9712-			●	●		●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40>,FRT INDEPENDENT SUSPENSION(6PP)	8-97069-706-0	01	1	9312-9510			●	●		●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40>	8-97069-706-0	01	1	9511-9711			●			●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40>,FRT INDEPENDENT SUSPENSION(6PP)	8-97069-706-0	01	1	9511-9711				●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40>	8-97069-706-0	01	1	9712-			●	●		●
33	06.525 BOLT; STRG SHAFT TO UNIT M10X33	8-94249-011-1	01	1	9312-9801	●	●	●	●	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT EXC. TILT STEERING<N33> M10X33	8-94249-011-1	01	1	9802-	●	●	●	●	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT TILT STEERING<N33> M8X30	8-94247-692-0	01	1	9802-	●	●	●	●	●	●
35	06.525 WASHER; LK,STRG SHAFT 08.929 (A) ID=10.2	9-09150-810-0	01	1	9312-9801	●	●	●	●	●	●
35	06.525 WASHER; LK,STRG SHAFT EXC. TILT STEERING<N33> 08.929 (A) ID=10.2	9-09150-810-0	01	1	9802-	●	●	●	●	●	●
35	06.525 WASHER; LK,STRG SHAFT TILT STEERING<N33> 00.002 (A) ID=8.2	9-09150-508-0	01	1	9802-	●	●	●	●	●	●
35	06.525 WASHER; LK,STRG SHAFT EXC. TILT STEERING<N33> (B)	8-97093-758-0	01	1	9312-9604	●	●	●	●	●	●
95	06.509 BOLT; STRG UNIT M12X39	8-97029-320-0	05	1	9312-9809	●	●	●	●	●	●
95	06.509 BOLT; STRG UNIT M12X45	8-97212-810-0	05	1	9810-	●	●	●	●	●	●
96	06.509 NUT; STRG UNIT M12 FLANGE	8-94436-194-0	05	1	9312-	●	●	●	●	●	●

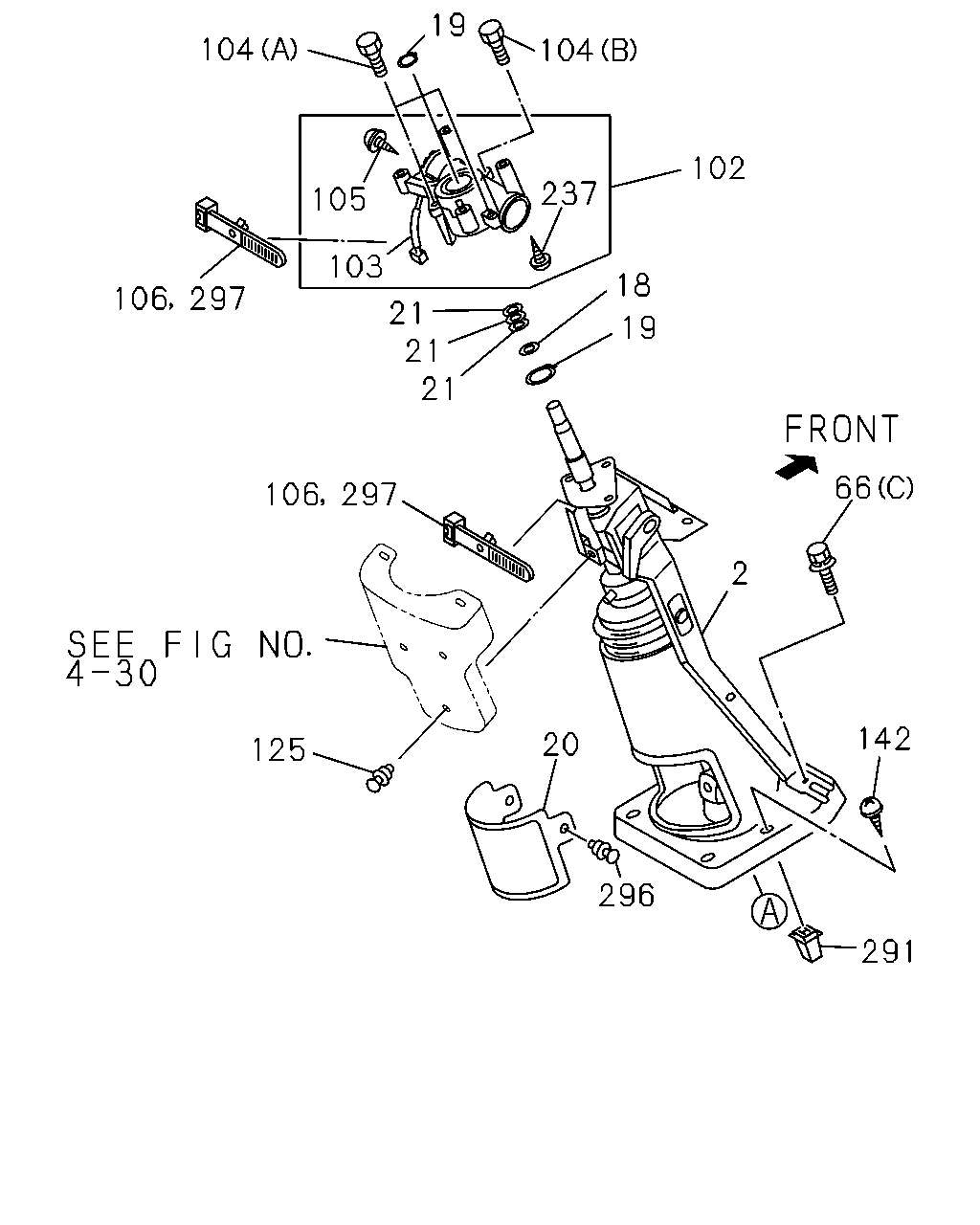

19 104 104 102 237 105 103 21 21 21 18 19 66 2 142 20 125 296 291 106 297 106 297

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	06.518 SHAFT ASM; STRG COATING PACK-STEERING COLUMN & SHAFT<6UJ> EXC. TILT STEERING<N33> DARK BEIGE	8-97097-018-5	01	1	9501-9604	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> DARK BEIGE	8-97097-018-7	01	1	9605-9605	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> DARK BEIGE	8-97157-807-0	01	1	9606-9702	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> DARK BEIGE	8-97158-974-0	01	1	9703-9711	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97159-172-0	01	1	9712-	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> DARK BEIGE	8-97097-016-5	01	1	9312-9412	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ> DARK BEIGE	8-97097-016-6	01	1	9501-9605	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ> DARK BEIGE	8-97157-804-0	01	1	9606-9711	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ> BLACK	8-97159-170-1	01	1	9712-	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE	8-97097-019-6	01	1	9501-9605	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE	8-97157-806-0	01	1	9606-9711	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97159-171-1	01	1	9712-	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> DARK BEIGE	8-97097-017-5	01	1	9312-9412	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE	8-97097-017-5	01	1	9501-9604	●	●	●	●	●	●
18	06.525 WASHER; STEERING SHAFT 06.500 ID=19	8-94146-919-0	01	1	9312-	●	●	●	●	●	●
19	06.515 RING; SNAP,STRG SHAFT 00.349 ID=17.5	9-09180-019-0	02	1	9312-	●	●	●	●	●	●
20	06.525 COVER; STRG SHAFT DARK BEIGE	8-97097-005-1	01	1	9312-9704	●	●	●	●	●	●
20	06.525 COVER; STRG SHAFT DARK BEIGE	8-97158-892-0	01	1	9705-9711	●	●	●	●	●	●
20	06.525 COVER; STRG SHAFT 06.578 BLACK	8-97159-169-0	01	1	9712-	●	●	●	●	●	●
21	06.500 WASHER; WAVE,STRG LOCK TO SHAFT	8-94174-865-0	03	1	9312-	●	●	●	●	●	●
66	06.514 BOLT; STRG COLUMN 04.634 (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9312-	●	●	●	●	●	●
66	06.514 BOLT; STRG COLUMN TILT STEERING<N33> (A)	8-97076-831-0	01	1	9312-	●	●	●	●	●	●
66	06.514 BOLT; STRG COLUMN EXC. TILT STEERING<N33> (A)	8-97093-756-0	01	1	9312-9604	●	●	●	●	●	●
66	06.514 BOLT; STRG COLUMN EXC. TILT STEERING<N33> (B)	8-97093-757-0	01	1	9312-9604	●	●	●	●	●	●
102	06.500 LOCK ASM; STRG EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97088-277-0	01	1	9312-9501	●	●	●	●	●	●
102	06.500 LOCK ASM; STRG EXC. SAVE MECH TROUBLE DOOR LOCK<6LK>	8-97117-962-0	01	1	9502-9510	●	●	●	●	●	●
102	06.500 LOCK ASM; STRG	8-97117-962-0	01	1	9511-9612	●	●		●	●	●
102	06.500 LOCK ASM; STRG EXC. SAVE MECH TROUBLE DOOR LOCK<6LK>	8-97117-962-0	01	1	9511-9612			●
102	06.500 LOCK ASM; STRG	8-97170-365-0	01	1	9701-9807	●	●		●	●	●
102	06.500 LOCK ASM; STRG EXC. SAVE MECH TROUBLE DOOR LOCK<6LK>	8-97170-365-0	01	1	9701-9807			●
102	06.500 LOCK ASM; STRG	8-97170-365-0	01	1	9808-	●	●		●	●
102	06.500 LOCK ASM; STRG EXC. SAVE MECH TROUBLE DOOR LOCK<6LK>	8-97170-365-0	01	1	9808-			●			●
102	06.500 LOCK ASM; STRG SAUDI ARABIA EQUIPMENT(EU2)	8-97046-219-0	01	1	9312-9501			●	●
102	06.500 LOCK ASM; STRG SAVE MECH TROUBLE DOOR LOCK<6LK>	8-97117-961-0	01	1	9502-9510			●	●
102	06.500 LOCK ASM; STRG SAVE MECH TROUBLE DOOR LOCK<6LK>	8-97117-961-0	01	1	9511-9612			●
102	06.500 LOCK ASM; STRG SAVE MECH TROUBLE DOOR LOCK<6LK>	8-97171-457-0	01	1	9701-9807			●
102	06.500 LOCK ASM; STRG SAVE MECH TROUBLE DOOR LOCK<6LK>	8-97171-457-0	01	1	9808-			●			●
103	02.188 SWITCH; IGNITION EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97088-268-0	01	1	9312-9501	●	●	●	●	●	●
103	02.188 SWITCH; IGNITION EXC. SAVE MECH TROUBLE DOOR LOCK<6LK>	8-97117-997-0	01	1	9502-9510	●	●	●	●	●	●
103	02.188 SWITCH; IGNITION	8-97117-997-0	01	1	9511-9807	●	●		●	●	●
103	02.188 SWITCH; IGNITION EXC. SAVE MECH TROUBLE DOOR LOCK<6LK>	8-97117-997-0	01	1	9511-9807			●
103	02.188 SWITCH; IGNITION	8-97117-997-0	01	1	9808-	●	●		●	●
103	02.188 SWITCH; IGNITION EXC. SAVE MECH TROUBLE DOOR LOCK<6LK>	8-97117-997-0	01	1	9808-			●			●
103	02.188 SWITCH; IGNITION SAUDI ARABIA EQUIPMENT(EU2)	8-97080-580-0	01	1	9312-9501			●	●
103	02.188 SWITCH; IGNITION SAVE MECH TROUBLE DOOR LOCK<6LK>	8-97117-996-0	01	1	9502-9510			●	●
103	02.188 SWITCH; IGNITION SAVE MECH TROUBLE DOOR LOCK<6LK>	8-97117-996-0	01	1	9511-9807			●
103	02.188 SWITCH; IGNITION SAVE MECH TROUBLE DOOR LOCK<6LK>	8-97117-996-0	01	1	9808-			●			●
104	06.500 BOLT; STRG LOCK TO COLUMN (A) M6X25	8-94279-204-0	02	1	9312-9501	●	●	●	●	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN (B) M6X21 TORQUE BOLT	8-94331-124-0	01	1	9312-9501	●	●	●	●	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN (A),(B) M6X25 W/LK&PL WASHER	8-97122-790-0	03	1	9502-9806	●	●	●	●	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN (A),(B) M6X30 W/LK&PL WASHER	8-97189-885-0	03	1	9807-	●	●	●	●	●	●
105	06.500 SCREW; IGN SW M4X12 W/LK WASHER	9-03910-412-0	01	1	9312-	●	●	●	●	●	●
106	02.892 CLIP; HARNESS,STRG COLUMN 02.559 L=250	5-09707-030-0	01	1	9312-9504	●	●	●	●	●	●
106	02.892 CLIP; HARNESS,STRG COLUMN 02.587 L=172	8-94232-620-0	01	1	9312-9504	●	●	●	●	●	●
125	06.521 CLIP; STRG SHAFT DARK BEIGE	8-97856-011-0	01	1	9312-9711	●	●	●	●	●	●
125	06.521 CLIP; STRG SHAFT DARK GRAY	8-97857-542-0	01	1	9712-	●	●	●	●	●	●
142	06.518 SCREW; BRKT COWL M5X20 TAPPING W/PL WASHER	0-74305-520-0	06	1	9312-	●	●	●	●	●	●
237	02.195 SCREW; DOOR WARNING SW SAUDI ARABIA EQUIPMENT(EU2) 11.950 M3X8 W/LK WASHER	9-03910-308-0	02	1	9312-9501			●	●
237	02.195 SCREW; DOOR WARNING SW SAVE MECH TROUBLE DOOR LOCK<6LK> 11.950 M3X8 W/LK WASHER	9-03910-308-0	02	1	9502-9510			●	●
237	02.195 SCREW; DOOR WARNING SW SAVE MECH TROUBLE DOOR LOCK<6LK> 11.950 M3X8 W/LK WASHER	9-03910-308-0	02	1	9511-9807			●
237	02.195 SCREW; DOOR WARNING SW SAVE MECH TROUBLE DOOR LOCK<6LK> 11.950 M3X8 W/LK WASHER	9-03910-308-0	02	1	9808-			●			●
291	06.518 GROMMET; STRG SHAFT COVER 04.931 H=15	8-94463-268-1	06	1	9312-	●	●	●	●	●	●
296	06.525 CLIP; COVER 06.521 DARK BEIGE	8-97856-011-0	01	1	9312-9711	●	●	●	●	●	●
296	06.525 CLIP; COVER BLACK	8-97868-409-0	01	1	9712-	●	●	●	●	●	●
297	06.525 CLIP; BAND 02.559 L=145	8-94257-575-1	03	1	9505-	●	●	●	●	●	●

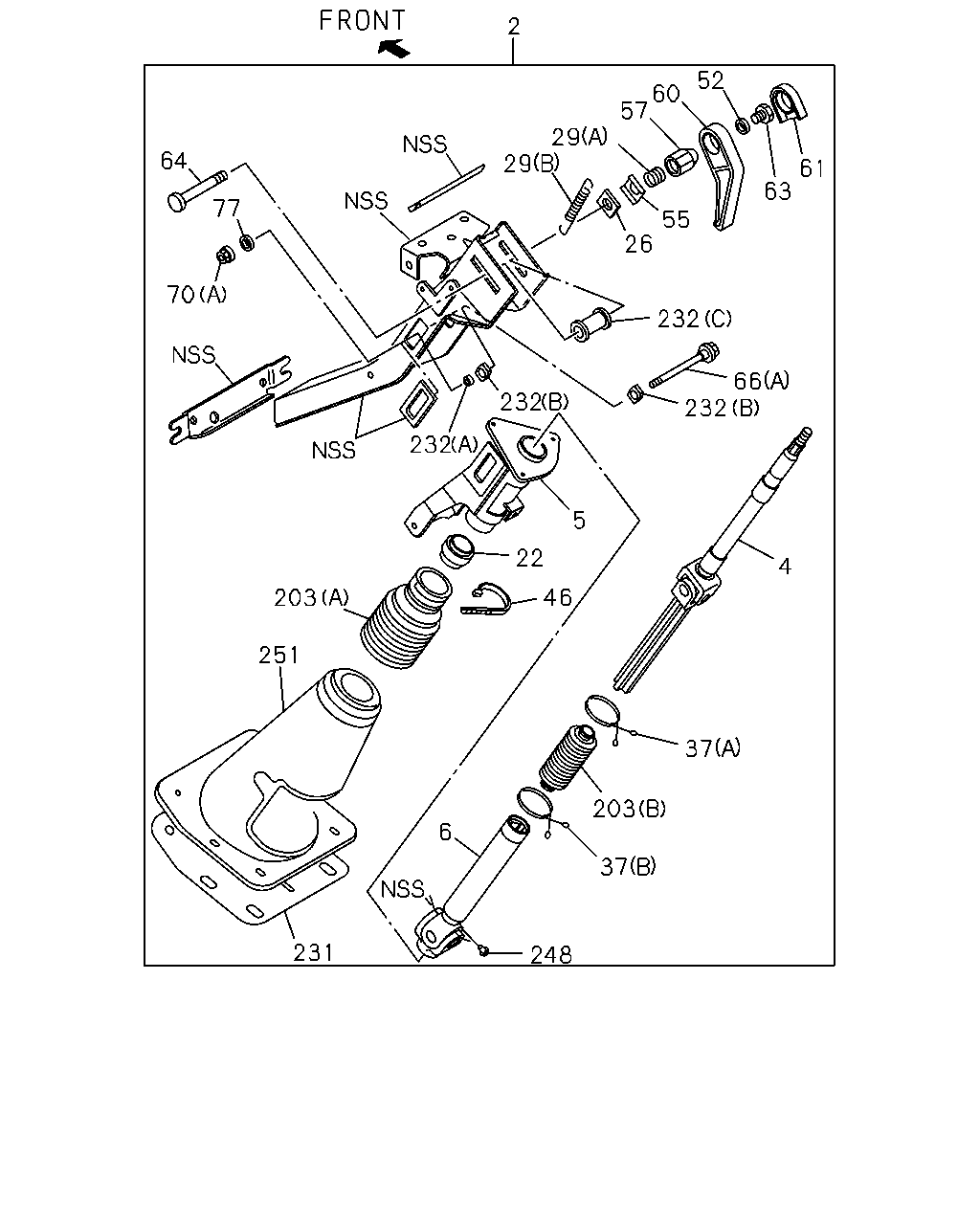

2 52 60 57 29 29 64 61 63 55 26 232 232 232 66 232 5 22 203 46 251 37 203 6 37 248 77 70 4 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	06.518 SHAFT ASM; STRG COATING PACK-STEERING COLUMN & SHAFT<6UJ> EXC. TILT STEERING<N33> DARK BEIGE	8-97097-018-5	01	1	9501-9604	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> DARK BEIGE	8-97097-018-7	01	1	9605-9605	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> DARK BEIGE	8-97157-807-0	01	1	9606-9702	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> DARK BEIGE	8-97158-974-0	01	1	9703-9711	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97159-172-0	01	1	9712-	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> DARK BEIGE	8-97097-016-5	01	1	9312-9412	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ> DARK BEIGE	8-97097-016-6	01	1	9501-9605	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ> DARK BEIGE	8-97157-804-0	01	1	9606-9711	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ> BLACK	8-97159-170-1	01	1	9712-	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE	8-97097-019-6	01	1	9501-9605	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE	8-97157-806-0	01	1	9606-9711	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97159-171-1	01	1	9712-	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> DARK BEIGE	8-97097-017-5	01	1	9312-9412	●	●	●	●	●	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE	8-97097-017-5	01	1	9501-9604	●	●	●	●	●	●
4	06.524 SHAFT; STRG	8-97096-763-0	01	1	9312-9702	●	●	●	●	●	●
4	06.524 SHAFT; STRG TILT STEERING<N33>	8-97096-763-0	01	1	9703-9712	●	●	●	●	●	●
4	06.524 SHAFT; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97201-106-0	01	1	9801-	●	●	●	●	●	●
4	06.524 SHAFT; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ>	8-97201-110-1	01	1	9801-	●	●	●	●	●	●
4	06.524 SHAFT; STRG EXC. TILT STEERING<N33>	8-97173-634-0	01	1	9703-	●	●	●	●	●	●
5	06.518 COLUMN; STRG	8-97093-792-1	01	1	9312-9412	●	●	●	●	●	●
5	06.518 COLUMN; STRG EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ>	8-97093-792-1	01	1	9501-9604	●	●	●	●	●	●
5	06.518 COLUMN; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & S HAFT<6UJ>	8-97093-792-2	01	1	9605-	●	●	●	●	●	●
5	06.518 COLUMN; STRG COATING PACK-STEERING COLUMN & SHAFT<6UJ> EXC. TILT STEERING<N33>	8-97093-791-1	01	1	9501-9604	●	●	●	●	●	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97146-719-0	01	1	9605-9702	●	●	●	●	●	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33> 06.760	8-97173-626-0	01	1	9703-	●	●	●	●	●	●
5	06.518 COLUMN; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97096-767-2	01	1	9501-	●	●	●	●	●	●
6	06.524 SHAFT; STRG LWR	8-97094-625-1	01	1	9312-9702	●	●	●	●	●	●
6	06.524 SHAFT; STRG LWR TILT STEERING<N33>	8-97094-625-1	01	1	9703-9712	●	●	●	●	●	●
6	06.524 SHAFT; STRG LWR TILT STEERING<N33>	8-97201-107-0	01	1	9801-	●	●	●	●	●	●
6	06.524 SHAFT; STRG LWR EXC. TILT STEERING<N33>	8-97173-635-0	01	1	9703-	●	●	●	●	●	●
22	06.525 BUSHING; STRG COLUMN	8-97076-821-0	01	1	9312-9702	●	●	●	●	●	●
22	06.525 BUSHING; STRG COLUMN TILT STEERING<N33>	8-97076-821-0	01	1	9703-	●	●	●	●	●	●
22	06.525 BUSHING; STRG COLUMN EXC. TILT STEERING<N33>	8-97201-085-0	01	1	9703-	●	●	●	●	●	●
26	06.514 PLATE; ADJ TILT STEERING<N33>	8-97076-827-0	01	1	9312-	●	●	●	●	●	●
29	06.514 SPRING; COLUMN TILT STEERING<N33> (B)	8-97076-811-0	01	1	9312-	●	●	●	●	●	●
29	06.514 SPRING; COLUMN TILT STEERING<N33> (A)	8-97076-829-0	01	1	9312-	●	●	●	●	●	●
37	06.525 CLAMP; BOOT TO SHAFT (B)	8-94165-569-0	01	1	9312-9702	●	●	●	●	●	●
37	06.525 CLAMP; BOOT TO SHAFT TILT STEERING<N33> (B)	8-94165-569-0	01	1	9703-	●	●	●	●	●	●
37	06.525 CLAMP; BOOT TO SHAFT (A)	8-94165-570-0	01	1	9312-9702	●	●	●	●	●	●
37	06.525 CLAMP; BOOT TO SHAFT TILT STEERING<N33> (A)	8-94165-570-0	01	1	9703-	●	●	●	●	●	●
37	06.525 CLAMP; BOOT TO SHAFT EXC. TILT STEERING<N33> (A),(B)	8-97173-630-0	02	1	9703-	●	●	●	●	●	●
46	06.521 CLIP; BOOT	8-97076-809-0	01	1	9312-9604	●	●	●	●	●	●
52	06.514 WASHER; PL,ADJ LEVER TILT STEERING<N33>	8-97076-813-0	01	1	9312-	●	●	●	●	●	●
55	06.514 PLATE; GUIDE TILT STEERING<N33>	8-97076-828-0	01	1	9312-	●	●	●	●	●	●
57	06.518 NUT; ADJ BOLT TILT STEERING<N33>	8-97076-826-0	01	1	9312-	●	●	●	●	●	●
60	06.518 LEVER; ADJ,STRG COLUMN TILT STEERING<N33>	8-97076-830-0	01	1	9312-	●	●	●	●	●	●
61	06.514 CAP; ADJ LEVER,TILT STRG TILT STEERING<N33>	8-97076-814-0	01	1	9312-	●	●	●	●	●	●
63	06.514 BOLT; ADJ LEVER,TILT STRG TILT STEERING<N33>	8-97076-824-0	01	1	9312-	●	●	●	●	●	●
64	06.518 BOLT; ADJ,PROTECTOR TILT STEERING<N33>	8-97076-825-0	01	1	9312-	●	●	●	●	●	●
66	06.514 BOLT; STRG COLUMN 04.634 (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9312-	●	●	●	●	●	●
66	06.514 BOLT; STRG COLUMN TILT STEERING<N33> (A)	8-97076-831-0	01	1	9312-	●	●	●	●	●	●
66	06.514 BOLT; STRG COLUMN EXC. TILT STEERING<N33> (A)	8-97093-756-0	01	1	9312-9604	●	●	●	●	●	●
66	06.514 BOLT; STRG COLUMN EXC. TILT STEERING<N33> (B)	8-97093-757-0	01	1	9312-9604	●	●	●	●	●	●
70	06.514 NUT; STRG COLUMN (A)	8-97076-807-0	01	1	9312-9604	●	●	●	●	●	●
70	06.514 NUT; STRG COLUMN TILT STEERING<N33> (A)	8-97076-807-0	01	1	9605-	●	●	●	●	●	●
70	06.514 NUT; STRG COLUMN EXC. TILT STEERING<N33> 04.634 (B) M12	9-99110-512-0	01	1	9312-9604	●	●	●	●	●	●
77	06.760 WASHER; PL,COLUMN TILT STEERING<N33>	8-97076-804-0	01	1	9312-	●	●	●	●	●	●
77	06.760 WASHER; PL,COLUMN EXC. TILT STEERING<N33>	8-97076-804-0	02	1	9312-9604	●	●	●	●	●	●
203	06.525 BOOT; STRG COLUMN LWR 06.518 (B)	8-97076-822-0	01	1	9312-9702	●	●	●	●	●	●
203	06.525 BOOT; STRG COLUMN LWR TILT STEERING<N33> 06.518 (B)	8-97076-822-0	01	1	9703-	●	●	●	●	●	●
203	06.525 BOOT; STRG COLUMN LWR (A)	8-97127-878-0	01	1	9312-9604	●	●	●	●	●	●
203	06.525 BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> (A)	8-94159-074-0	01	1	9605-9702	●	●	●	●	●	●
203	06.525 BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> (A)	8-97173-631-0	01	1	9703-	●	●	●	●	●	●
203	06.525 BOOT; STRG COLUMN LWR TILT STEERING<N33> 06.518 (A)	8-94127-878-0	01	1	9605-9712	●	●	●	●	●	●
203	06.525 BOOT; STRG COLUMN LWR TILT STEERING<N33> (A)	8-97201-115-0	01	1	9801-	●	●	●	●	●	●
203	06.525 BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> 06.518 (B)	8-97173-632-0	01	1	9703-	●	●	●	●	●	●
231	06.525 SEAL; RUBBER,STRG COLUMN	8-97076-808-1	01	1	9312-9702	●	●	●	●	●	●
231	06.525 SEAL; RUBBER,STRG COLUMN TILT STEERING<N33>	8-97076-808-1	01	1	9703-	●	●	●	●	●	●
231	06.525 SEAL; RUBBER,STRG COLUMN EXC. TILT STEERING<N33>	8-97173-628-0	01	1	9703-	●	●	●	●	●	●
232	06.514 SPACER; STRG SHAFT TILT STEERING<N33> (B)	8-97076-805-0	02	1	9312-	●	●	●	●	●	●
232	06.514 SPACER; STRG SHAFT TILT STEERING<N33> (A)	8-97076-806-0	01	1	9312-	●	●	●	●	●	●
232	06.514 SPACER; STRG SHAFT TILT STEERING<N33> (C)	8-97148-277-0	01	1	9605-	●	●	●	●	●	●
232	06.514 SPACER; STRG SHAFT EXC. TILT STEERING<N33>	8-97093-754-0	02	1	9312-9403	●	●	●	●	●	●
248	06.518 SCREW; YOKE	8-97076-819-0	01	1	9312-9702	●	●	●	●	●	●
248	06.518 SCREW; YOKE TILT STEERING<N33>	8-97076-819-0	01	1	9703-9712	●	●	●	●	●	●
251	06.518 COVER; LWR 06.578 DARK BEIGE	8-97097-466-1	01	1	9312-9605	●	●	●	●	●	●
251	06.518 COVER; LWR 06.578 DARK BEIGE	8-97157-808-0	01	1	9606-9702	●	●	●	●	●	●
251	06.518 COVER; LWR TILT STEERING<N33> 06.578 DARK BEIGE	8-97157-808-0	01	1	9703-9711	●	●	●	●	●	●
251	06.518 COVER; LWR TILT STEERING<N33> 06.578 BLACK	8-97159-168-1	01	1	9712-	●	●	●	●	●	●
251	06.518 COVER; LWR EXC. TILT STEERING<N33> 06.578 DARK BEIGE	8-97158-976-0	01	1	9703-9711	●	●	●	●	●	●
251	06.518 COVER; LWR EXC. TILT STEERING<N33> 06.578 BLACK	8-97159-175-0	01	1	9712-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
