◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50693 - NHR ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-11 - FRONT HUB AND DRUM OR ROTOR ▶
4-11 — FRONT HUB AND DRUM OR ROTOR (#33647) — 62 parça

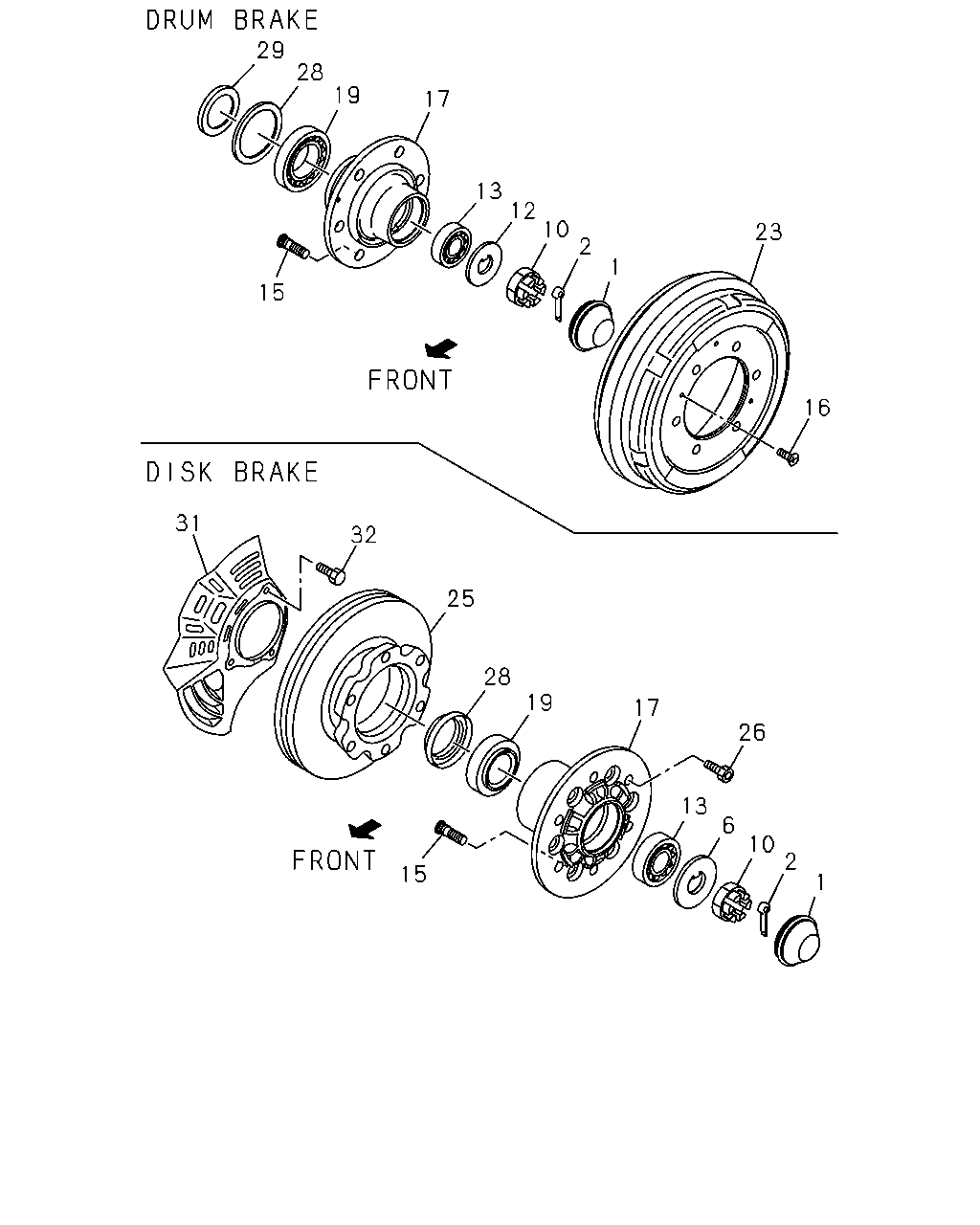

çizim 68061
29 28 17 13 12 2 23 15 16 32 25 28 19 26 13 6 2 15 19 1 10 10 1 17 31
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 06.330 CAP; HUB,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97012-619-0 02 1 9312-9510 ● ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97012-619-0 02 1 9511-9711 ●
1 06.330 CAP; HUB,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97012-620-0 02 1 9312-9711 ● ● ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-97012-620-0 02 1 9712- ● ● ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT 9-08105-040-0 02 1 9312-9711 ● ● ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT 9-08105-040-0 02 1 9712-9809 ● ● ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		9-08115-040-0 02 1 9810- ● ● ● ● ● ●
6 05.812 WASHER; LK,FRT HUB
FRT INDEPENDENT SUSPENSION(6PP) 06.321 		8-94247-356-1 02 1 9312-9510 ● ● ● ● ●
6 05.812 WASHER; LK,FRT HUB
FRT INDEPENDENT SUSPENSION(6PP) 06.321 		8-94247-356-1 02 1 9511-9711 ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 9312-9711 ● ● ● ● ● ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 9712- ● ● ● ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94247-356-1 02 1 9312-9711 ● ● ● ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG 8-94247-356-1 02 1 9712- ● ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) NSK 		9-00093-172-0 02 1 9312-9510 ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) NSK 		9-00093-172-0 02 1 9511-9711 ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.311 KOYO 		5-09812-025-0 02 1 9312-9711 ● ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
06.311 KOYO 		5-09812-025-0 02 1 9712- ● ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.311 NSK 		9-00032-206-0 02 1 9312-9711 ● ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
06.311 NSK 		9-00032-206-0 02 1 9712- ● ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) M14X45 LH THREAD 		8-94342-389-0 06 1 9312-9411 ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) M14X39 LH THREAD 		8-97126-491-0 06 1 9412-9510 ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) M14X39 LH THREAD 		8-97126-491-0 06 1 9511-9711 ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) M14X45 RH THREAD 		8-94342-388-0 06 1 9312-9411 ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) M14X39 RH THREAD 		8-97126-490-0 06 1 9412-9510 ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) M14X39 RH THREAD 		8-97126-490-0 06 1 9511-9711 ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) M14X45 LH THREAD 		8-94336-622-0 06 1 9312-9411 ● ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) M14X40 LH THREAD 		8-97126-487-0 06 1 9412-9711 ● ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M14X40 LH THREAD 		8-97126-487-0 06 1 9712- ● ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) M14X45 RH THREAD 		8-94336-621-0 06 1 9312-9411 ● ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) M14X40 RH THREAD 		8-97126-486-0 06 1 9412-9711 ● ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M14X40 RH THREAD 		8-97126-486-0 06 1 9712- ● ● ● ● ● ●
16 05.812 SCREW; DRUM TO HUB
EXC. FRT INDEPENDENT SUSPENSION(6PP) M6X16 CK-HEAD 		9-03090-616-0 02 1 9312-9711 ● ● ● ● ● ●
16 05.812 SCREW; DRUM TO HUB
M6X16 CK-HEAD 		9-03090-616-0 02 1 9712- ● ● ● ● ● ●
17 06.307 HUB; FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) 		8-94365-825-3 02 1 9312-9510 ● ● ● ● ●
17 06.307 HUB; FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) 		8-94365-825-3 02 1 9511-9711 ●
17 06.307 HUB; FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97034-769-0 02 1 9312-9711 ● ● ● ● ● ●
17 06.307 HUB; FRT AXLE 8-97034-769-0 02 1 9712- ● ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) NSK 		8-94336-289-0 02 1 9312-9510 ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) NSK 		8-94336-289-0 02 1 9511-9711 ●
19 06.311 BEARING; HUB INNER,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) KOYO 		8-94336-290-0 02 1 9312-9406 ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) NSK 		8-94248-077-0 02 1 9312-9711 ● ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		8-94248-077-0 02 1 9712- ● ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) KOYO 		8-94248-078-0 02 1 9312-9711 ● ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
KOYO 		8-94248-078-0 02 1 9712- ● ● ● ● ● ●
23 05.809 DRUM; BRK,FRT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97034-798-1 02 1 9312-9711 ● ● ● ● ● ●
23 05.809 DRUM; BRK,FRT 8-97034-798-1 02 1 9712- ● ● ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-94365-784-2 02 1 9312-9510 ● ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-94365-784-2 02 1 9511-9711 ●
26 05.812 BOLT; BRK,DISC TO HUB
FRT INDEPENDENT SUSPENSION(6PP) 		8-97081-913-0 12 1 9312-9510 ● ● ● ● ●
26 05.812 BOLT; BRK,DISC TO HUB
FRT INDEPENDENT SUSPENSION(6PP) 		8-97081-913-0 12 1 9511-9711 ●
28 06.326 SEAL; OIL,FRT HUB
FRT INDEPENDENT SUSPENSION(6PP) 		8-94368-555-0 02 1 9312-9510 ● ● ● ● ●
28 06.326 SEAL; OIL,FRT HUB
FRT INDEPENDENT SUSPENSION(6PP) 		8-94368-555-0 02 1 9511-9711 ●
28 06.326 SEAL; OIL,FRT HUB
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94248-116-1 02 1 9312-9711 ● ● ● ● ● ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-116-1 02 1 9712- ● ● ● ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
EXC. FRT INDEPENDENT SUSPENSION(6PP) AICO 		8-94246-301-0 02 1 9312-9711 ● ● ● ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
AICO 		8-94246-301-0 02 1 9712- ● ● ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97042-775-1 01 1 9312-9510 ● ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97042-775-1 01 1 9511-9711 ●
31 04.665 COVER; DUST,FRT BRAKE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97042-774-1 01 1 9312-9510 ● ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97042-774-1 01 1 9511-9711 ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
FRT INDEPENDENT SUSPENSION(6PP) M8X10 W/LK WASHER 		8-97025-916-0 06 1 9312-9510 ● ● ● ● ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
FRT INDEPENDENT SUSPENSION(6PP) M8X10 W/LK WASHER 		8-97025-916-0 06 1 9511-9711 ●
