Sayfa 4-10 - Isuzu EPC

4-10 — FRONT AXLE (#33646) — 194 parça

132 129 131 86 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP)	8-94375-103-3	01	1	9312-9510	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP)	8-94375-103-3	01	1	9511-9711				●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP)	8-94375-102-3	01	1	9312-9510	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP)	8-94375-102-3	01	1	9511-9711				●
2	06.020 KNUCKLE; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94248-851-4	01	1	9312-9711	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE	8-94248-851-4	01	1	9712-	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94248-850-4	01	1	9312-9711	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE	8-94248-850-4	01	1	9712-	●	●	●	●	●	●
86	07.428 BOLT; TORSION BAR,HEIGHT CONT FRT INDEPENDENT SUSPENSION(6PP)	8-97081-578-1	02	1	9312-9510	●	●	●	●	●
86	07.428 BOLT; TORSION BAR,HEIGHT CONT FRT INDEPENDENT SUSPENSION(6PP)	8-97081-578-1	02	1	9511-9711				●
129	07.412 BAR; TORSION,FRT SUSP FRT INDEPENDENT SUSPENSION(6PP)	8-97035-768-1	01	1	9312-9410	●	●	●	●	●
129	07.412 BAR; TORSION,FRT SUSP FRT INDEPENDENT SUSPENSION(6PP)	8-94336-139-0	01	1	9411-9510	●	●	●	●	●
129	07.412 BAR; TORSION,FRT SUSP FRT INDEPENDENT SUSPENSION(6PP)	8-94336-139-0	01	1	9511-9711				●
129	07.412 BAR; TORSION,FRT SUSP FRT INDEPENDENT SUSPENSION(6PP)	8-97035-767-1	01	1	9312-9410	●	●	●	●	●
129	07.412 BAR; TORSION,FRT SUSP FRT INDEPENDENT SUSPENSION(6PP)	8-94336-138-0	01	1	9411-9510	●	●	●	●	●
129	07.412 BAR; TORSION,FRT SUSP FRT INDEPENDENT SUSPENSION(6PP)	8-94336-138-0	01	1	9511-9711				●
131	07.436 ARM; HEIGHT CONT FRT INDEPENDENT SUSPENSION(6PP)	8-94336-208-2	01	1	9312-9510	●	●	●	●	●
131	07.436 ARM; HEIGHT CONT FRT INDEPENDENT SUSPENSION(6PP)	8-94336-208-3	01	1	9511-9711				●
131	07.436 ARM; HEIGHT CONT FRT INDEPENDENT SUSPENSION(6PP)	8-94336-207-2	01	1	9312-9510	●	●	●	●	●
131	07.436 ARM; HEIGHT CONT FRT INDEPENDENT SUSPENSION(6PP)	8-94336-207-3	01	1	9511-9711				●
132	07.436 COLLAR; TORSION BAR FRT INDEPENDENT SUSPENSION(6PP)	8-94336-145-0	02	1	9312-9510	●	●	●	●	●
132	07.436 COLLAR; TORSION BAR FRT INDEPENDENT SUSPENSION(6PP)	8-94336-145-0	02	1	9511-9711				●

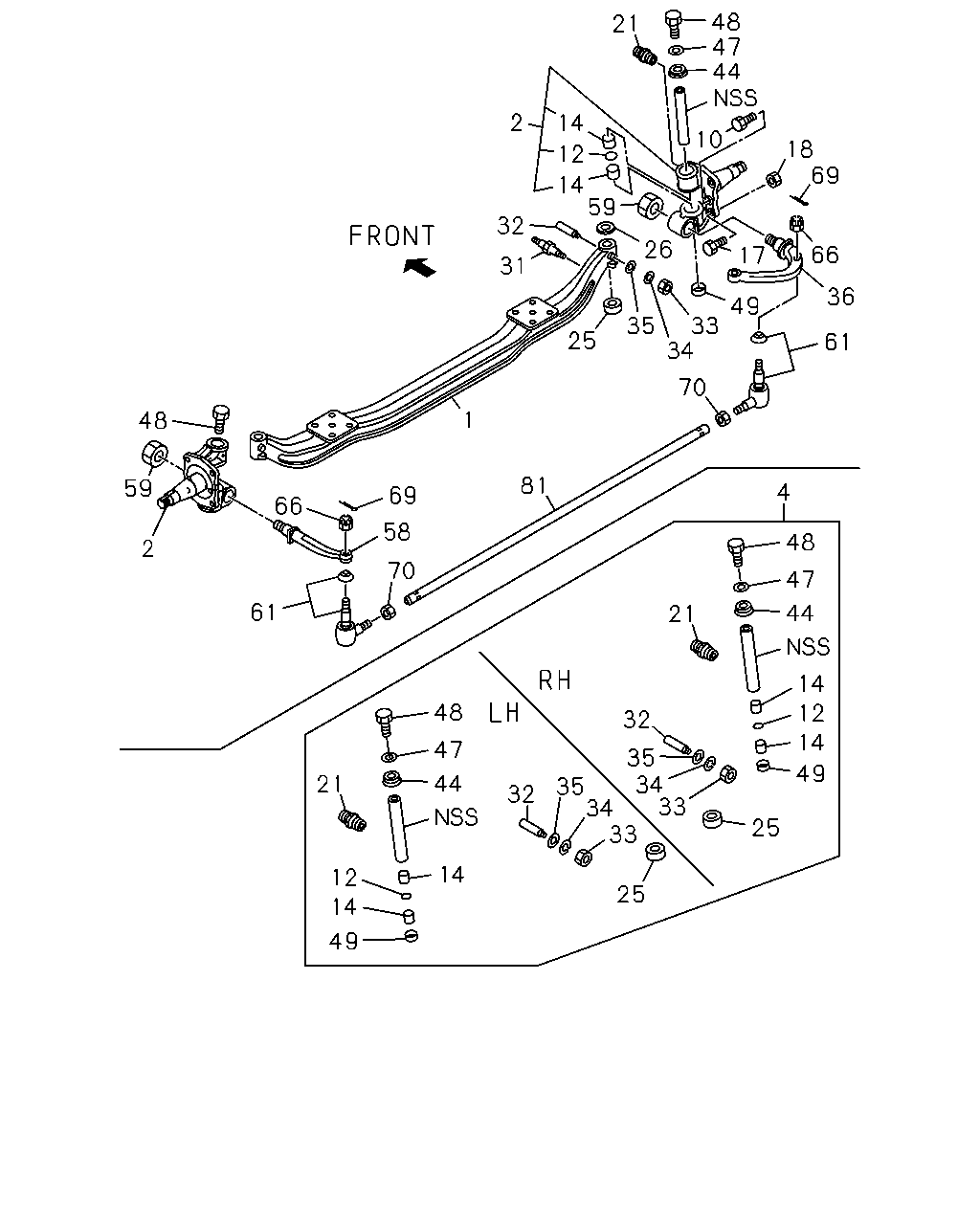

48 47 10 12 2 2 18 69 26 59 32 66 58 49 25 33 34 35 61 48 59 69 36 66 2 48 4 4 61 2 48 32 47 35 34 33 32 21 35 34 33 25 49 25 14 44 14 31 17 1 81 70 4 44 14 12 14 44 14 12 14 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	06.008 AXLE; FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94113-402-5	01	1	9312-9711	●	●	●	●	●	●
1	06.008 AXLE; FRT	8-94113-402-5	01	1	9712-	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP)	8-94375-103-3	01	1	9312-9510	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP)	8-94375-103-3	01	1	9511-9711				●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP)	8-94375-102-3	01	1	9312-9510	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP)	8-94375-102-3	01	1	9511-9711				●
2	06.020 KNUCKLE; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94248-851-4	01	1	9312-9711	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE	8-94248-851-4	01	1	9712-	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94248-850-4	01	1	9312-9711	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE	8-94248-850-4	01	1	9712-	●	●	●	●	●	●
4	06.203 KING PIN KIT EXC. FRT INDEPENDENT SUSPENSION(6PP)	5-87831-029-2	01	1	9312-9711	●	●	●	●	●	●
4	06.203 KING PIN KIT	5-87831-029-2	01	1	9712-	●	●	●	●	●	●
10	06.009 PLUG; PLATE,KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94107-661-0	01	1	9312-9711	●	●	●	●	●	●
10	06.009 PLUG; PLATE,KNUCKLE	8-94107-661-0	01	1	9712-	●	●	●	●	●	●
12	06.021 GASKET; KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	9-09561-225-0	02	1	9312-9711	●	●	●	●	●	●
12	06.021 GASKET; KNUCKLE	9-09561-225-0	02	1	9712-	●	●	●	●	●	●
14	06.021 BUSHING; KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94102-046-2	04	1	9312-9711	●	●	●	●	●	●
14	06.021 BUSHING; KING PIN	8-94102-046-2	04	1	9712-	●	●	●	●	●	●
17	06.009 BOLT; STOPPER KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97071-957-0	03	1	9312-9711	●	●	●	●	●	●
17	06.009 BOLT; STOPPER KNUCKLE	8-97071-957-0	03	1	9712-	●	●	●	●	●	●
18	06.216 NUT; STOPPER BOLT,KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	9-09840-025-0	03	1	9312-9407	●	●	●	●	●	●
18	06.216 NUT; STOPPER BOLT,KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.347 M12	9-99111-512-0	03	1	9408-9711	●	●	●	●	●	●
18	06.216 NUT; STOPPER BOLT,KNUCKLE 07.347 M12	9-99111-512-0	03	1	9712-	●	●	●	●	●	●
21	06.166 NIPPLE; GREASE,KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.255 L=11.5	8-94150-094-0	02	1	9312-9711	●	●	●	●	●	●
21	06.166 NIPPLE; GREASE,KING PIN 06.255 L=11.5	8-94150-094-0	02	1	9712-	●	●	●	●	●	●
21	06.166 NIPPLE; GREASE,KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.984 M6 STRAIGHT	9-09031-006-0	02	1	9312-9711	●	●	●	●	●	●
21	06.166 NIPPLE; GREASE,KING PIN 08.984 M6 STRAIGHT	9-09031-006-0	02	1	9712-	●	●	●	●	●	●
25	06.210 BEARING; THRUST,KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94162-578-0	02	1	9312-9711	●	●	●	●	●	●
25	06.210 BEARING; THRUST,KING PIN	8-94162-578-0	02	1	9712-	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.225 T=0.50	8-94162-570-0	AR	1	9312-9711	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG 06.225 T=0.50	8-94162-570-0	AR	1	9712-	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.225 T=0.55	8-94162-571-0	AR	1	9312-9711	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG 06.225 T=0.55	8-94162-571-0	AR	1	9712-	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.225 T=0.60	8-94162-572-0	AR	1	9312-9711	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG 06.225 T=0.60	8-94162-572-0	AR	1	9712-	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.225 T=0.65	8-94162-573-0	AR	1	9312-9711	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG 06.225 T=0.65	8-94162-573-0	AR	1	9712-	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.225 T=0.70	8-94174-347-0	AR	1	9312-9711	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG 06.225 T=0.70	8-94174-347-0	AR	1	9712-	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.225 T=0.80	8-94174-349-0	AR	1	9312-9711	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG 06.225 T=0.80	8-94174-349-0	AR	1	9712-	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.225 T=0.90	8-94174-351-0	AR	1	9312-9711	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG 06.225 T=0.90	8-94174-351-0	AR	1	9712-	●	●	●	●	●	●
31	07.347 PIN; S/ABS,LWR EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94249-010-1	02	1	9312-9711	●	●	●	●	●	●
31	07.347 PIN; S/ABS,LWR	8-94249-010-1	02	1	9712-	●	●	●	●	●	●
32	06.216 BOLT; KEY,KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94247-725-0	02	1	9312-9706	●	●	●	●	●	●
32	06.216 BOLT; KEY,KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97141-945-1	02	1	9707-9711	●	●	●	●	●	●
32	06.216 BOLT; KEY,KING PIN	8-97141-945-1	02	1	9712-	●	●	●	●	●	●
33	06.216 NUT; KEY BOLT EXC. FRT INDEPENDENT SUSPENSION(6PP) 09.011 M10	9-09110-410-0	02	1	9312-9711	●	●	●	●	●	●
33	06.216 NUT; KEY BOLT 09.011 M10	9-09110-410-0	02	1	9712-	●	●	●	●	●	●
34	06.216 WASHER; LK,KEY BOLT EXC. FRT INDEPENDENT SUSPENSION(6PP) 00.002 ID=10.2	9-09150-510-0	02	1	9312-9711	●	●	●	●	●	●
34	06.216 WASHER; LK,KEY BOLT 00.002 ID=10.2	9-09150-510-0	02	1	9712-	●	●	●	●	●	●
35	06.216 WASHER; PL,KEY BOLT TO KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.792 ID=10.5 OD=26	9-09160-710-0	02	1	9312-9706	●	●	●	●	●	●
36	06.103 ARM; KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.525	8-97070-138-0	01	1	9312-9711	●	●			●
36	06.103 ARM; KNUCKLE 02.525	8-97070-138-0	01	1	9712-	●	●			●
36	06.103 ARM; KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97070-139-0	01	1	9312-9711			●	●		●
36	06.103 ARM; KNUCKLE	8-97070-139-0	01	1	9712-			●	●		●
44	06.225 COVER; KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP) OD=36	8-94248-675-0	02	1	9312-9711	●	●	●	●	●	●
44	06.225 COVER; KING PIN OD=36	8-94248-675-0	02	1	9712-	●	●	●	●	●	●
47	06.225 WASHER; PL,COVER,KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.896 ID=10.5	9-09164-510-0	02	1	9312-9711	●	●	●	●	●	●
47	06.225 WASHER; PL,COVER,KING PIN 06.896 ID=10.5	9-09164-510-0	02	1	9712-	●	●	●	●	●	●
48	06.225 BOLT; COVER EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.642 M10X16	0-20801-016-0	02	1	9312-9711	●	●	●	●	●	●
48	06.225 BOLT; COVER 04.642 M10X16	0-20801-016-0	02	1	9712-	●	●	●	●	●	●
49	06.225 CAP; KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94248-566-0	02	1	9312-9711	●	●	●	●	●	●
49	06.225 CAP; KNUCKLE	8-94248-566-0	02	1	9712-	●	●	●	●	●	●
58	06.103 ARM; TIE ROD EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97032-912-0	01	1	9312-9711	●	●			●
58	06.103 ARM; TIE ROD	8-97032-912-0	01	1	9712-	●	●			●
58	06.103 ARM; TIE ROD EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97032-913-0	01	1	9312-9711			●	●		●
58	06.103 ARM; TIE ROD	8-97032-913-0	01	1	9712-			●	●		●
59	06.104 NUT; TIE ROD ARM EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94247-724-0	02	1	9312-9711	●	●	●	●	●	●
59	06.104 NUT; TIE ROD ARM	8-94247-724-0	02	1	9712-	●	●	●	●	●	●
61	06.233 ROD END; TIE ROD EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97107-349-1	01	1	9312-9711	●	●	●	●	●	●
61	06.233 ROD END; TIE ROD	8-97107-349-2	01	1	9712-	●	●	●	●	●	●
61	06.233 ROD END; TIE ROD EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97107-348-1	01	1	9312-9711	●	●	●	●	●	●
61	06.233 ROD END; TIE ROD	8-97107-348-2	01	1	9712-	●	●	●	●	●	●
66	06.234 NUT; TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.917 M16 SLOTTED	9-99116-516-0	02	1	9312-9711	●	●	●	●	●	●
66	06.234 NUT; TIE ROD END 08.917 M16 SLOTTED	9-99116-516-0	02	1	9712-	●	●	●	●	●	●
69	06.255 PIN; SPLIT,TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.022 OD=3.7 L=25	9-08114-025-0	02	1	9312-9703	●	●	●	●	●	●
69	06.255 PIN; SPLIT,TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.271 OD=3.7 L=20	9-08114-020-0	02	1	9704-9711	●	●	●	●	●	●
69	06.255 PIN; SPLIT,TIE ROD END 01.271 OD=3.7 L=20	9-08114-020-0	02	1	9712-	●	●	●	●	●	●
70	06.234 NUT; TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(6PP) M20 LH THREAD	8-94254-726-0	01	1	9312-9711	●	●	●	●	●	●
70	06.234 NUT; TIE ROD END M20 LH THREAD	8-94254-726-0	01	1	9712-	●	●	●	●	●	●
70	06.234 NUT; TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(6PP) RH THREAD M20	9-99111-420-0	01	1	9312-9711	●	●	●	●	●	●
70	06.234 NUT; TIE ROD END RH THREAD M20	9-99111-420-0	01	1	9712-	●	●	●	●	●	●
81	06.230 ROD; TIE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97061-866-0	01	1	9312-9711	●	●	●	●	●	●
81	06.230 ROD; TIE	8-97061-866-0	01	1	9712-	●	●	●	●	●	●

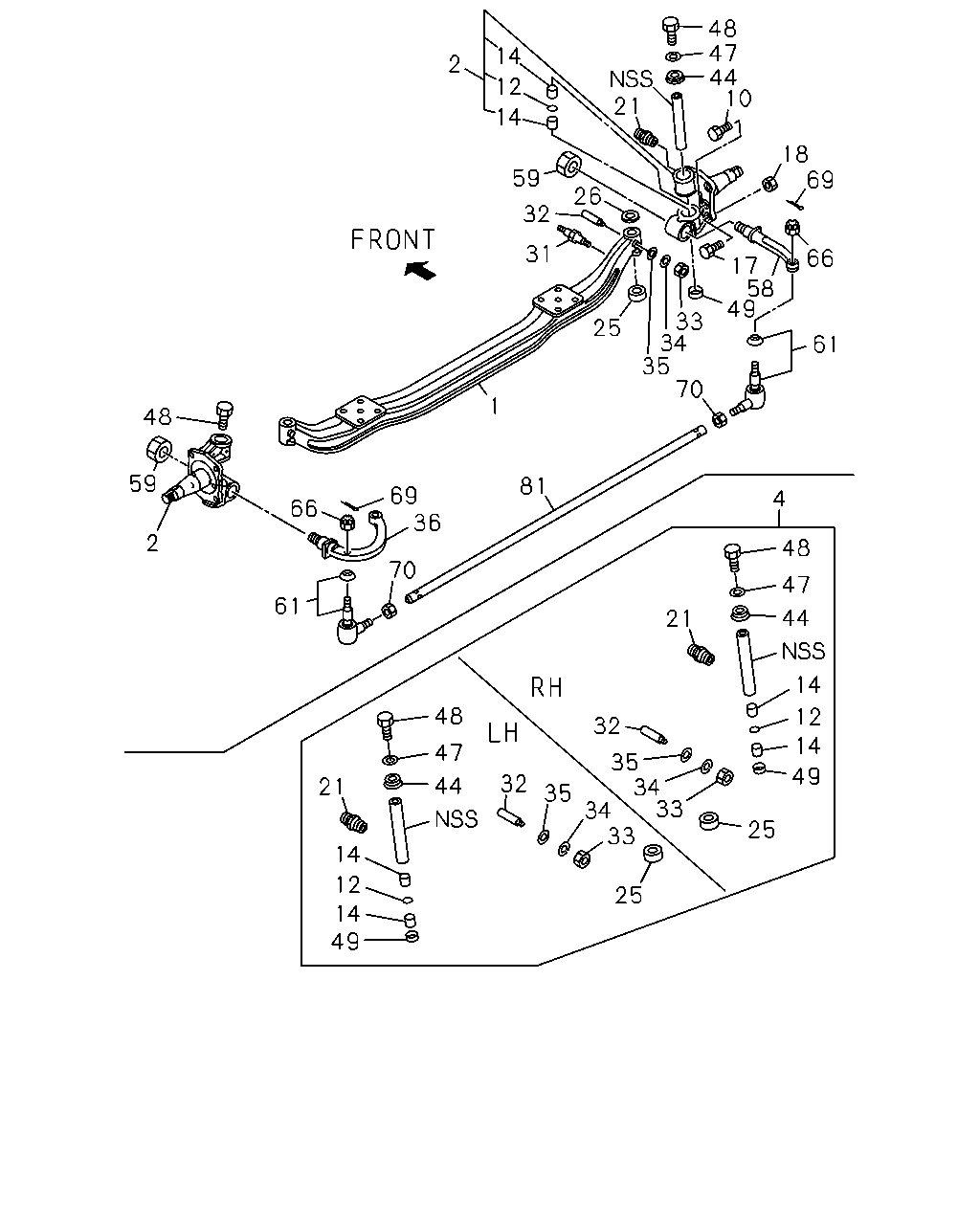

48 47 21 2 12 59 26 18 69 32 66 31 36 49 35 34 25 61 48 59 81 69 66 58 48 2 47 61 2 49 48 32 47 35 34 21 35 34 33 32 25 12 49 25 44 10 14 14 17 33 70 1 70 44 33 14 14 14 12 44 14 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	06.008 AXLE; FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94113-402-5	01	1	9312-9711	●	●	●	●	●	●
1	06.008 AXLE; FRT	8-94113-402-5	01	1	9712-	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP)	8-94375-103-3	01	1	9312-9510	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP)	8-94375-103-3	01	1	9511-9711				●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP)	8-94375-102-3	01	1	9312-9510	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP)	8-94375-102-3	01	1	9511-9711				●
2	06.020 KNUCKLE; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94248-851-4	01	1	9312-9711	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE	8-94248-851-4	01	1	9712-	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94248-850-4	01	1	9312-9711	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE	8-94248-850-4	01	1	9712-	●	●	●	●	●	●
4	06.203 KING PIN KIT EXC. FRT INDEPENDENT SUSPENSION(6PP)	5-87831-029-2	01	1	9312-9711	●	●	●	●	●	●
4	06.203 KING PIN KIT	5-87831-029-2	01	1	9712-	●	●	●	●	●	●
10	06.009 PLUG; PLATE,KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94107-661-0	01	1	9312-9711	●	●	●	●	●	●
10	06.009 PLUG; PLATE,KNUCKLE	8-94107-661-0	01	1	9712-	●	●	●	●	●	●
12	06.021 GASKET; KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	9-09561-225-0	02	1	9312-9711	●	●	●	●	●	●
12	06.021 GASKET; KNUCKLE	9-09561-225-0	02	1	9712-	●	●	●	●	●	●
14	06.021 BUSHING; KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94102-046-2	04	1	9312-9711	●	●	●	●	●	●
14	06.021 BUSHING; KING PIN	8-94102-046-2	04	1	9712-	●	●	●	●	●	●
17	06.009 BOLT; STOPPER KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97071-957-0	03	1	9312-9711	●	●	●	●	●	●
17	06.009 BOLT; STOPPER KNUCKLE	8-97071-957-0	03	1	9712-	●	●	●	●	●	●
18	06.216 NUT; STOPPER BOLT,KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	9-09840-025-0	03	1	9312-9407	●	●	●	●	●	●
18	06.216 NUT; STOPPER BOLT,KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.347 M12	9-99111-512-0	03	1	9408-9711	●	●	●	●	●	●
18	06.216 NUT; STOPPER BOLT,KNUCKLE 07.347 M12	9-99111-512-0	03	1	9712-	●	●	●	●	●	●
21	06.166 NIPPLE; GREASE,KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.255 L=11.5	8-94150-094-0	02	1	9312-9711	●	●	●	●	●	●
21	06.166 NIPPLE; GREASE,KING PIN 06.255 L=11.5	8-94150-094-0	02	1	9712-	●	●	●	●	●	●
21	06.166 NIPPLE; GREASE,KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.984 M6 STRAIGHT	9-09031-006-0	02	1	9312-9711	●	●	●	●	●	●
21	06.166 NIPPLE; GREASE,KING PIN 08.984 M6 STRAIGHT	9-09031-006-0	02	1	9712-	●	●	●	●	●	●
25	06.210 BEARING; THRUST,KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94162-578-0	02	1	9312-9711	●	●	●	●	●	●
25	06.210 BEARING; THRUST,KING PIN	8-94162-578-0	02	1	9712-	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.225 T=0.50	8-94162-570-0	AR	1	9312-9711	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG 06.225 T=0.50	8-94162-570-0	AR	1	9712-	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.225 T=0.55	8-94162-571-0	AR	1	9312-9711	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG 06.225 T=0.55	8-94162-571-0	AR	1	9712-	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.225 T=0.60	8-94162-572-0	AR	1	9312-9711	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG 06.225 T=0.60	8-94162-572-0	AR	1	9712-	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.225 T=0.65	8-94162-573-0	AR	1	9312-9711	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG 06.225 T=0.65	8-94162-573-0	AR	1	9712-	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.225 T=0.70	8-94174-347-0	AR	1	9312-9711	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG 06.225 T=0.70	8-94174-347-0	AR	1	9712-	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.225 T=0.80	8-94174-349-0	AR	1	9312-9711	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG 06.225 T=0.80	8-94174-349-0	AR	1	9712-	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.225 T=0.90	8-94174-351-0	AR	1	9312-9711	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG 06.225 T=0.90	8-94174-351-0	AR	1	9712-	●	●	●	●	●	●
31	07.347 PIN; S/ABS,LWR EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94249-010-1	02	1	9312-9711	●	●	●	●	●	●
31	07.347 PIN; S/ABS,LWR	8-94249-010-1	02	1	9712-	●	●	●	●	●	●
32	06.216 BOLT; KEY,KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94247-725-0	02	1	9312-9706	●	●	●	●	●	●
32	06.216 BOLT; KEY,KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97141-945-1	02	1	9707-9711	●	●	●	●	●	●
32	06.216 BOLT; KEY,KING PIN	8-97141-945-1	02	1	9712-	●	●	●	●	●	●
33	06.216 NUT; KEY BOLT EXC. FRT INDEPENDENT SUSPENSION(6PP) 09.011 M10	9-09110-410-0	02	1	9312-9711	●	●	●	●	●	●
33	06.216 NUT; KEY BOLT 09.011 M10	9-09110-410-0	02	1	9712-	●	●	●	●	●	●
34	06.216 WASHER; LK,KEY BOLT EXC. FRT INDEPENDENT SUSPENSION(6PP) 00.002 ID=10.2	9-09150-510-0	02	1	9312-9711	●	●	●	●	●	●
34	06.216 WASHER; LK,KEY BOLT 00.002 ID=10.2	9-09150-510-0	02	1	9712-	●	●	●	●	●	●
35	06.216 WASHER; PL,KEY BOLT TO KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.792 ID=10.5 OD=26	9-09160-710-0	02	1	9312-9706	●	●	●	●	●	●
36	06.103 ARM; KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.525	8-97070-138-0	01	1	9312-9711	●	●			●
36	06.103 ARM; KNUCKLE 02.525	8-97070-138-0	01	1	9712-	●	●			●
36	06.103 ARM; KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97070-139-0	01	1	9312-9711			●	●		●
36	06.103 ARM; KNUCKLE	8-97070-139-0	01	1	9712-			●	●		●
44	06.225 COVER; KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP) OD=36	8-94248-675-0	02	1	9312-9711	●	●	●	●	●	●
44	06.225 COVER; KING PIN OD=36	8-94248-675-0	02	1	9712-	●	●	●	●	●	●
47	06.225 WASHER; PL,COVER,KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.896 ID=10.5	9-09164-510-0	02	1	9312-9711	●	●	●	●	●	●
47	06.225 WASHER; PL,COVER,KING PIN 06.896 ID=10.5	9-09164-510-0	02	1	9712-	●	●	●	●	●	●
48	06.225 BOLT; COVER EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.642 M10X16	0-20801-016-0	02	1	9312-9711	●	●	●	●	●	●
48	06.225 BOLT; COVER 04.642 M10X16	0-20801-016-0	02	1	9712-	●	●	●	●	●	●
49	06.225 CAP; KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94248-566-0	02	1	9312-9711	●	●	●	●	●	●
49	06.225 CAP; KNUCKLE	8-94248-566-0	02	1	9712-	●	●	●	●	●	●
58	06.103 ARM; TIE ROD EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97032-912-0	01	1	9312-9711	●	●			●
58	06.103 ARM; TIE ROD	8-97032-912-0	01	1	9712-	●	●			●
58	06.103 ARM; TIE ROD EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97032-913-0	01	1	9312-9711			●	●		●
58	06.103 ARM; TIE ROD	8-97032-913-0	01	1	9712-			●	●		●
59	06.104 NUT; TIE ROD ARM EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94247-724-0	02	1	9312-9711	●	●	●	●	●	●
59	06.104 NUT; TIE ROD ARM	8-94247-724-0	02	1	9712-	●	●	●	●	●	●
61	06.233 ROD END; TIE ROD EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97107-349-1	01	1	9312-9711	●	●	●	●	●	●
61	06.233 ROD END; TIE ROD	8-97107-349-2	01	1	9712-	●	●	●	●	●	●
61	06.233 ROD END; TIE ROD EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97107-348-1	01	1	9312-9711	●	●	●	●	●	●
61	06.233 ROD END; TIE ROD	8-97107-348-2	01	1	9712-	●	●	●	●	●	●
66	06.234 NUT; TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.917 M16 SLOTTED	9-99116-516-0	02	1	9312-9711	●	●	●	●	●	●
66	06.234 NUT; TIE ROD END 08.917 M16 SLOTTED	9-99116-516-0	02	1	9712-	●	●	●	●	●	●
69	06.255 PIN; SPLIT,TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.022 OD=3.7 L=25	9-08114-025-0	02	1	9312-9703	●	●	●	●	●	●
69	06.255 PIN; SPLIT,TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.271 OD=3.7 L=20	9-08114-020-0	02	1	9704-9711	●	●	●	●	●	●
69	06.255 PIN; SPLIT,TIE ROD END 01.271 OD=3.7 L=20	9-08114-020-0	02	1	9712-	●	●	●	●	●	●
70	06.234 NUT; TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(6PP) M20 LH THREAD	8-94254-726-0	01	1	9312-9711	●	●	●	●	●	●
70	06.234 NUT; TIE ROD END M20 LH THREAD	8-94254-726-0	01	1	9712-	●	●	●	●	●	●
70	06.234 NUT; TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(6PP) RH THREAD M20	9-99111-420-0	01	1	9312-9711	●	●	●	●	●	●
70	06.234 NUT; TIE ROD END RH THREAD M20	9-99111-420-0	01	1	9712-	●	●	●	●	●	●
81	06.230 ROD; TIE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97061-866-0	01	1	9312-9711	●	●	●	●	●	●
81	06.230 ROD; TIE	8-97061-866-0	01	1	9712-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
