4-01 — PROPELLER SHAFT (#33645) — 18 parça

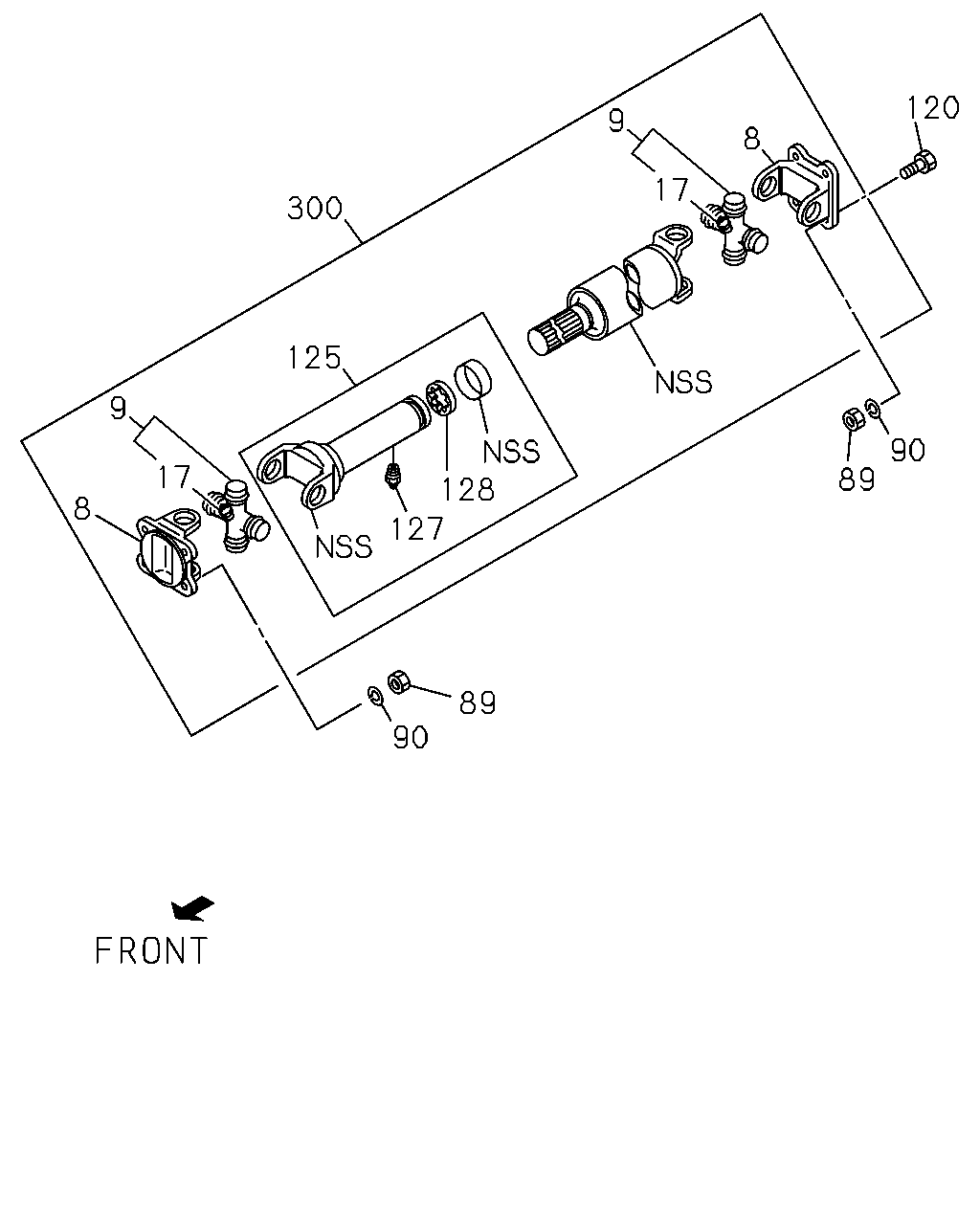

çizim 65598
120 9 8 17 300 125 9 89 128 127 17 8 89 90 90
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 05.544 YOKE; FLANGE,PROP SHAFT 8-97087-078-0 02 1 9312-9807 ● ● ● ● ● ●
8 05.544 YOKE; FLANGE,PROP SHAFT 8-97211-116-0 02 1 9808- ● ● ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT 8-97071-812-1 02 1 9312-9705 ● ● ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT 8-97180-697-0 02 1 9706-9807 ● ● ● ● ● ●
9 05.548 JOURNAL ASM; PROP SHAFT 8-97211-135-0 02 1 9808- ● ● ● ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
05.586 		8-94310-818-0 02 1 9312-9501 ● ● ● ● ● ●
17 05.601 NIPPLE; GREASE,PROP SHAFT
08.984 M6 STRAIGHT 		9-09031-006-0 02 1 9502- ● ● ● ● ● ●
89 05.586 NUT; YOKE TO RR AXLE
M10 		8-94159-009-1 08 1 9312- ● ● ● ● ● ●
90 05.586 WASHER; LK,YOKE TO RR AXLE
00.002 ID=10.2 		9-09150-610-0 08 1 9312- ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M10X27 		8-94146-552-2 04 1 9312-9710 ● ● ● ● ● ●
120 05.586 BOLT; YOKE TO RR AXLE
M10X29 		8-97168-458-1 04 1 9711- ● ● ● ● ● ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
L=177 		8-97049-301-1 01 1 9312-9807 ● ● ● ● ● ●
125 05.545 YOKE ASM; SPLINED,PROP SHAFT
L=177 		8-97211-131-0 01 1 9808- ● ● ● ● ● ●
127 05.586 NIPPLE; GREASE,SPLINED YOKE
08.984 M6 STRAIGHT 		9-09031-006-0 01 1 9312- ● ● ● ● ● ●
128 05.586 SEAL; SLEEVE
05.545 		8-97020-597-1 01 1 9312- ● ● ● ● ● ●
300 05.544 SHAFT ASM; PROP,RR
L=1122 		8-97048-404-2 01 1 9312-9705 ● ● ● ● ● ●
300 05.544 SHAFT ASM; PROP,RR
L=1122 		8-97180-955-0 01 1 9706-9807 ● ● ● ● ● ●
300 05.544 SHAFT ASM; PROP,RR
L=1122 		8-97211-661-0 01 1 9808- ● ● ● ● ● ●
