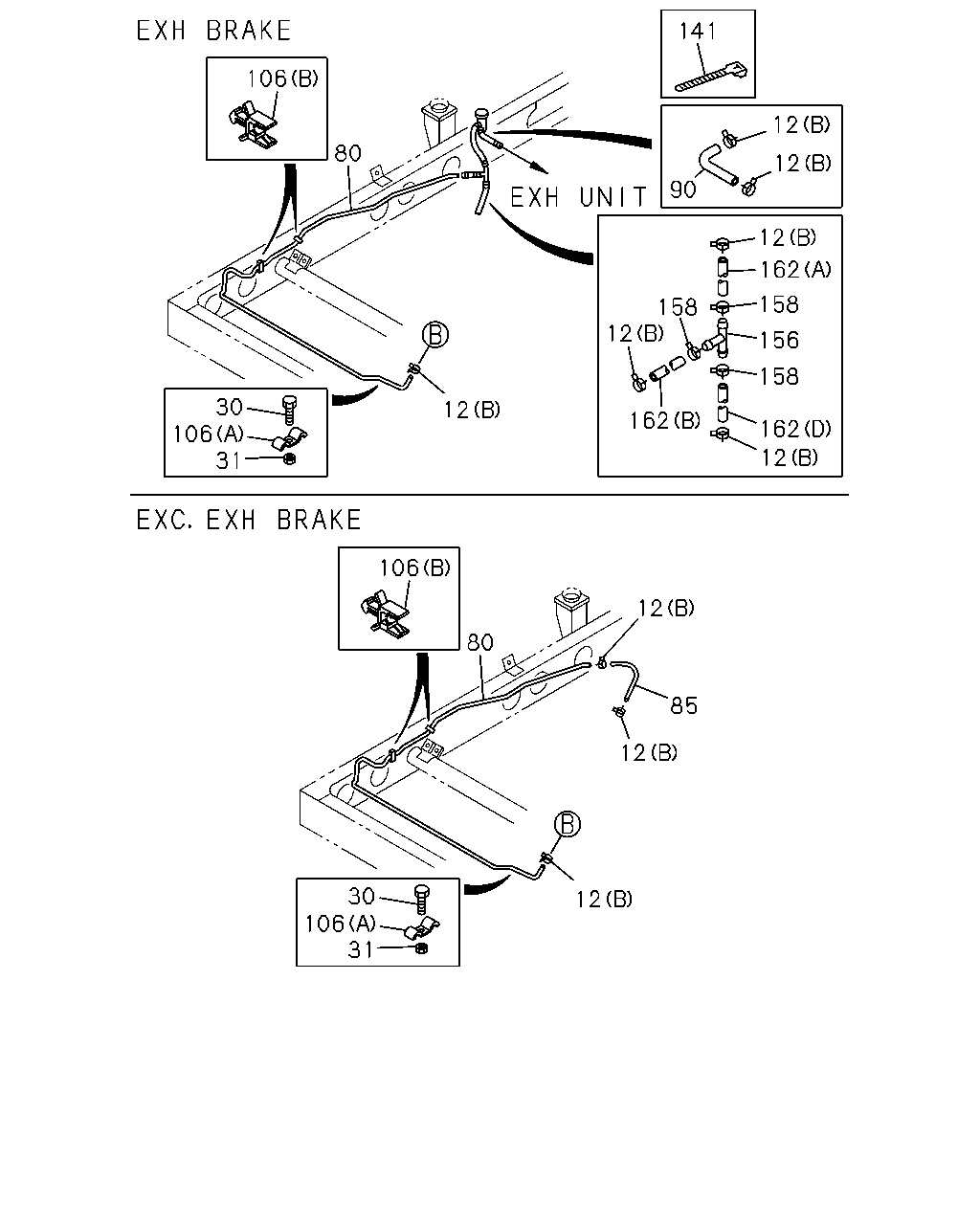

3-60 — BRAKE PIPING; VACUUM (#33644) — 132 parça

141 106 12 80 12 90 12 162 158 158 12 156 158 30 106 31 12 162 12 106 12 80 85 12 30 106 31 12 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (A) ID=14.5	8-94167-480-0	03	1	9312-	●	●	●	●	●	●
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	06	1	9312-	●	●	●	●	●	●
12	04.681 CLIP; HOSE EXC. EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	03	1	9312-	●	●	●	●	●	●
30	04.686 BOLT; CLIP,VAC PIPE 03.670 M6X20 FLANGE	0-28080-620-0	01	1	9312-9711	●	●	●	●	●	●
30	04.686 BOLT; CLIP,VAC PIPE 04.930 M6X20 FLANGE	0-28680-620-0	01	1	9712-	●	●	●	●	●	●
31	04.686 NUT; CLIP,VAC PIPE EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.594 M6 FLANGE	0-91150-106-0	01	1	9409-9711	●	●	●	●	●	●
31	04.686 NUT; CLIP,VAC PIPE 04.594 M6 FLANGE	0-91150-106-0	01	1	9712-	●	●	●	●	●	●
80	04.930 PIPE; VAC,ENG SIDE FRT INDEPENDENT SUSPENSION(6PP)	8-97080-706-1	01	1	9312-9510	●	●			●
80	04.930 PIPE; VAC,ENG SIDE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97070-034-1	01	1	9312-9510	●	●			●
80	04.930 PIPE; VAC,ENG SIDE	8-97070-034-1	01	1	9511-	●	●			●
80	04.930 PIPE; VAC,ENG SIDE FRT INDEPENDENT SUSPENSION(6PP)	8-97070-306-2	01	1	9312-9404			●	●
80	04.930 PIPE; VAC,ENG SIDE FRT INDEPENDENT SUSPENSION(6PP)	8-97113-764-0	01	1	9405-9510			●	●
80	04.930 PIPE; VAC,ENG SIDE FRT INDEPENDENT SUSPENSION(6PP)	8-97113-764-1	01	1	9511-9711				●
80	04.930 PIPE; VAC,ENG SIDE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97070-374-3	01	1	9312-9703			●	●		●
80	04.930 PIPE; VAC,ENG SIDE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97178-175-0	01	1	9704-			●	●		●
85	04.931 HOSE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8>	8-97082-928-2	01	1	9312-9404	●	●	●	●	●	●
85	04.931 HOSE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	9405-	●	●	●	●	●	●
90	04.931 HOSE; VAC,MAG VLV EXHAUST BRAKE<NF8> 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	01	1	9312-	●	●	●	●	●	●
106	04.930 CLIP; PIPE 04.686 (A) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	9312-	●	●	●	●	●	●
106	04.930 CLIP; PIPE EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.485 (B) ID=10 H=36	8-94249-686-1	02	1	9312-9711	●	●	●	●	●	●
106	04.930 CLIP; PIPE 03.485 (B) ID=10 H=36	8-94249-686-1	02	1	9712-	●	●	●	●	●	●
106	04.930 CLIP; PIPE FRT INDEPENDENT SUSPENSION(6PP) (B) ID=10 H=45.5	8-97017-902-0	01	1	9312-9510			●	●
106	04.930 CLIP; PIPE FRT INDEPENDENT SUSPENSION(6PP) (B) ID=10 H=45.5	8-97017-902-0	01	1	9511-9711				●
141	04.686 CLIP; 3 WAY JOINT EXHAUST BRAKE<NF8> 02.559 L=250	5-09707-030-1	01	1	9312-	●	●	●	●	●	●
156	04.931 JOINT; 3 WAY EXHAUST BRAKE<NF8> L=430	8-94467-387-0	01	1	9312-	●	●	●	●	●	●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 ID=14.5	8-94167-480-0	03	1	9312-	●	●	●	●	●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	9312-	●	●	●	●	●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	9312-	●	●	●	●	●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	9312-	●	●	●	●	●	●
162	04.931 HOSE; VAC FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97102-371-1	01	1	9312-9407	●	●			●
162	04.931 HOSE; VAC FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97102-998-2	01	1	9408-9510	●	●			●
162	04.931 HOSE; VAC EXC. FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97102-369-2	01	1	9312-9510	●	●			●
162	04.931 HOSE; VAC (C)	8-97102-369-2	01	1	9511-	●	●			●
162	04.931 HOSE; VAC FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97078-978-0	01	1	9312-9510			●	●
162	04.931 HOSE; VAC FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97078-978-0	01	1	9511-9711				●
162	04.931 HOSE; VAC EXC. FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97078-785-0	01	1	9312-			●	●		●

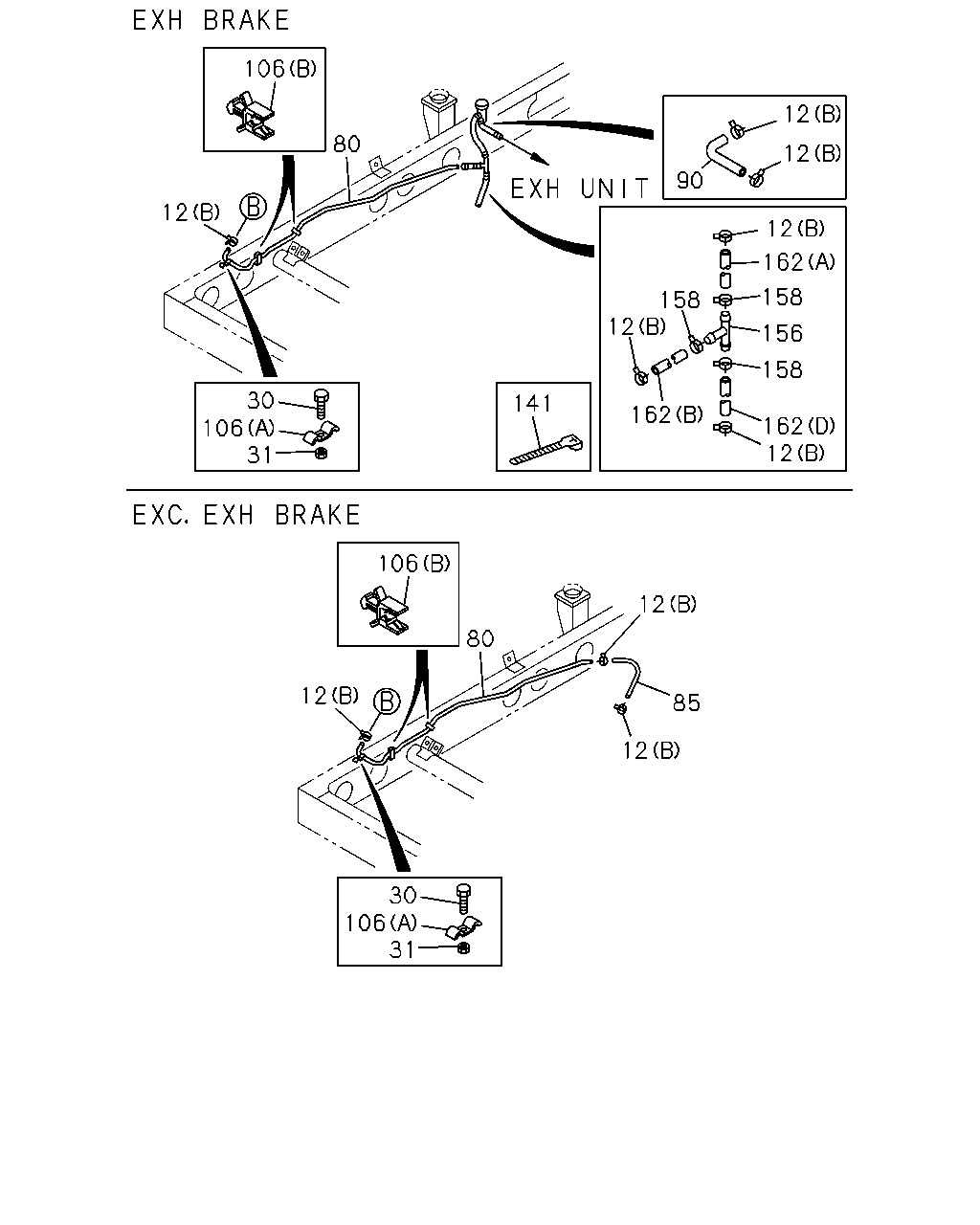

106 12 80 12 90 12 12 162 158 158 12 156 158 30 106 31 141 162 12 106 12 80 12 85 12 30 106 31 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (A) ID=14.5	8-94167-480-0	03	1	9312-	●	●	●	●	●	●
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	06	1	9312-	●	●	●	●	●	●
12	04.681 CLIP; HOSE EXC. EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	03	1	9312-	●	●	●	●	●	●
30	04.686 BOLT; CLIP,VAC PIPE 03.670 M6X20 FLANGE	0-28080-620-0	01	1	9312-9711	●	●	●	●	●	●
30	04.686 BOLT; CLIP,VAC PIPE 04.930 M6X20 FLANGE	0-28680-620-0	01	1	9712-	●	●	●	●	●	●
31	04.686 NUT; CLIP,VAC PIPE EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.594 M6 FLANGE	0-91150-106-0	01	1	9409-9711	●	●	●	●	●	●
31	04.686 NUT; CLIP,VAC PIPE 04.594 M6 FLANGE	0-91150-106-0	01	1	9712-	●	●	●	●	●	●
80	04.930 PIPE; VAC,ENG SIDE FRT INDEPENDENT SUSPENSION(6PP)	8-97080-706-1	01	1	9312-9510	●	●			●
80	04.930 PIPE; VAC,ENG SIDE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97070-034-1	01	1	9312-9510	●	●			●
80	04.930 PIPE; VAC,ENG SIDE	8-97070-034-1	01	1	9511-	●	●			●
80	04.930 PIPE; VAC,ENG SIDE FRT INDEPENDENT SUSPENSION(6PP)	8-97070-306-2	01	1	9312-9404			●	●
80	04.930 PIPE; VAC,ENG SIDE FRT INDEPENDENT SUSPENSION(6PP)	8-97113-764-0	01	1	9405-9510			●	●
80	04.930 PIPE; VAC,ENG SIDE FRT INDEPENDENT SUSPENSION(6PP)	8-97113-764-1	01	1	9511-9711				●
80	04.930 PIPE; VAC,ENG SIDE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97070-374-3	01	1	9312-9703			●	●		●
80	04.930 PIPE; VAC,ENG SIDE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97178-175-0	01	1	9704-			●	●		●
85	04.931 HOSE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8>	8-97082-928-2	01	1	9312-9404	●	●	●	●	●	●
85	04.931 HOSE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	9405-	●	●	●	●	●	●
90	04.931 HOSE; VAC,MAG VLV EXHAUST BRAKE<NF8> 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	01	1	9312-	●	●	●	●	●	●
106	04.930 CLIP; PIPE 04.686 (A) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	9312-	●	●	●	●	●	●
106	04.930 CLIP; PIPE EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.485 (B) ID=10 H=36	8-94249-686-1	02	1	9312-9711	●	●	●	●	●	●
106	04.930 CLIP; PIPE 03.485 (B) ID=10 H=36	8-94249-686-1	02	1	9712-	●	●	●	●	●	●
106	04.930 CLIP; PIPE FRT INDEPENDENT SUSPENSION(6PP) (B) ID=10 H=45.5	8-97017-902-0	01	1	9312-9510			●	●
106	04.930 CLIP; PIPE FRT INDEPENDENT SUSPENSION(6PP) (B) ID=10 H=45.5	8-97017-902-0	01	1	9511-9711				●
141	04.686 CLIP; 3 WAY JOINT EXHAUST BRAKE<NF8> 02.559 L=250	5-09707-030-1	01	1	9312-	●	●	●	●	●	●
156	04.931 JOINT; 3 WAY EXHAUST BRAKE<NF8> L=430	8-94467-387-0	01	1	9312-	●	●	●	●	●	●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 ID=14.5	8-94167-480-0	03	1	9312-	●	●	●	●	●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	9312-	●	●	●	●	●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	9312-	●	●	●	●	●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	9312-	●	●	●	●	●	●
162	04.931 HOSE; VAC FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97102-371-1	01	1	9312-9407	●	●			●
162	04.931 HOSE; VAC FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97102-998-2	01	1	9408-9510	●	●			●
162	04.931 HOSE; VAC EXC. FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97102-369-2	01	1	9312-9510	●	●			●
162	04.931 HOSE; VAC (C)	8-97102-369-2	01	1	9511-	●	●			●
162	04.931 HOSE; VAC FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97078-978-0	01	1	9312-9510			●	●
162	04.931 HOSE; VAC FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97078-978-0	01	1	9511-9711				●
162	04.931 HOSE; VAC EXC. FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97078-785-0	01	1	9312-			●	●		●

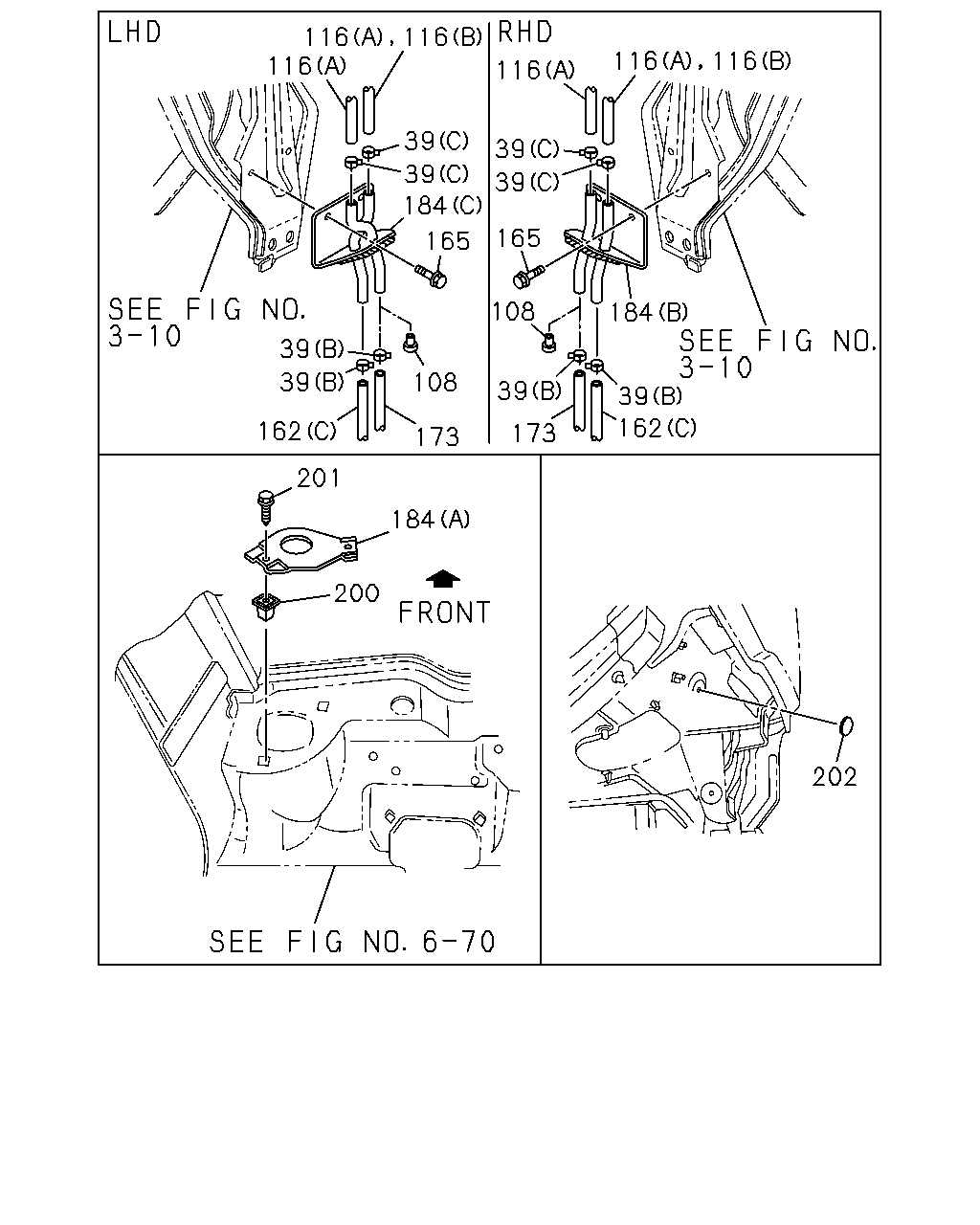

116 39 39 39 39 184 165 165 108 184 39 39 108 39 39 162 162 173 173 201 184 200 202 116 116 116 116 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
39	04.681 CLIP; HOSE,VAC EXHAUST BRAKE<NF8> 04.930 (B) ID=16	5-09707-023-2	02	1	9312-	●	●	●	●	●	●
39	04.681 CLIP; HOSE,VAC EXHAUST BRAKE<NF8> 04.930 (C) ID=16	8-94238-568-0	03	1	9312-	●	●	●	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. EXHAUST BRAKE<NF8> 04.930 (B) ID=16	5-09707-023-2	01	1	9312-	●	●	●	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. EXHAUST BRAKE<NF8> 04.930 (C) ID=16	8-94238-568-0	02	1	9312-	●	●	●	●	●	●
39	04.681 CLIP; HOSE,VAC (A) ID=25.5	8-97077-492-0	01	1	9312-	●	●			●
39	04.681 CLIP; HOSE,VAC EXHAUST BRAKE<NF8> (A) ID=25.5	8-97077-492-0	01	1	9312-			●	●		●
108	04.931 GROMMET; PIPE EXC. EXHAUST BRAKE<NF8>	9-09956-353-0	01	1	9312-	●	●	●	●	●	●
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> (A)	8-97035-969-1	01	1	9312-	●	●	●	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. EXHAUST BRAKE<NF8> (B)	8-97035-980-1	01	1	9312-	●	●	●	●	●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	9312-	●	●	●	●	●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	9312-	●	●	●	●	●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	9312-	●	●	●	●	●	●
162	04.931 HOSE; VAC FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97102-371-1	01	1	9312-9407	●	●			●
162	04.931 HOSE; VAC FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97102-998-2	01	1	9408-9510	●	●			●
162	04.931 HOSE; VAC EXC. FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97102-369-2	01	1	9312-9510	●	●			●
162	04.931 HOSE; VAC (C)	8-97102-369-2	01	1	9511-	●	●			●
162	04.931 HOSE; VAC FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97078-978-0	01	1	9312-9510			●	●
162	04.931 HOSE; VAC FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97078-978-0	01	1	9511-9711				●
162	04.931 HOSE; VAC EXC. FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97078-785-0	01	1	9312-			●	●		●
165	04.686 BOLT; BRKT 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	02	1	9312-9406	●	●	●	●	●	●
165	04.686 BOLT; BRKT 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9407-9605	●	●	●	●	●	●
165	04.686 BOLT; BRKT 04.439 M6X16 FLANGE	0-28680-616-0	02	1	9606-	●	●	●	●	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE EXHAUST BRAKE<NF8>	8-97108-637-0	01	1	9312-9503	●	●			●
173	04.931 HOSE; VAC,VAC TANK SIDE EXHAUST BRAKE<NF8>	8-97129-875-0	01	1	9504-	●	●			●
173	04.931 HOSE; VAC,VAC TANK SIDE EXHAUST BRAKE<NF8>	8-97081-537-3	01	1	9312-9503			●	●		●
173	04.931 HOSE; VAC,VAC TANK SIDE EXHAUST BRAKE<NF8>	8-97129-872-0	01	1	9504-			●	●		●
184	04.685 BRACKET; UNION FIX (B)	8-97035-967-3	01	1	9312-	●	●			●
184	04.685 BRACKET; UNION FIX (A)	8-97094-014-2	01	1	9312-			●	●		●
184	04.685 BRACKET; UNION FIX (C)	8-97094-377-4	01	1	9312-			●	●		●
200	04.931 GROMMET; SCREW H=15	8-94463-268-1	02	1	9312-			●	●		●
201	04.686 SCREW; BRKT 10.240 M5X16 TAPPING W/PL WASHER	0-74305-516-0	02	1	9312-			●	●		●
202	04.686 SEAL EXC. EXHAUST BRAKE<NF8> 16.592 OD=20 T=0.4 BLACK	1-76798-020-0	01	1	9401-9609			●	●		●
202	04.686 SEAL EXC. EXHAUST BRAKE<NF8> 16.592 OD=20 T=0.4 BLACK	1-76798-020-0	01	1	9610-	●	●	●	●	●	●

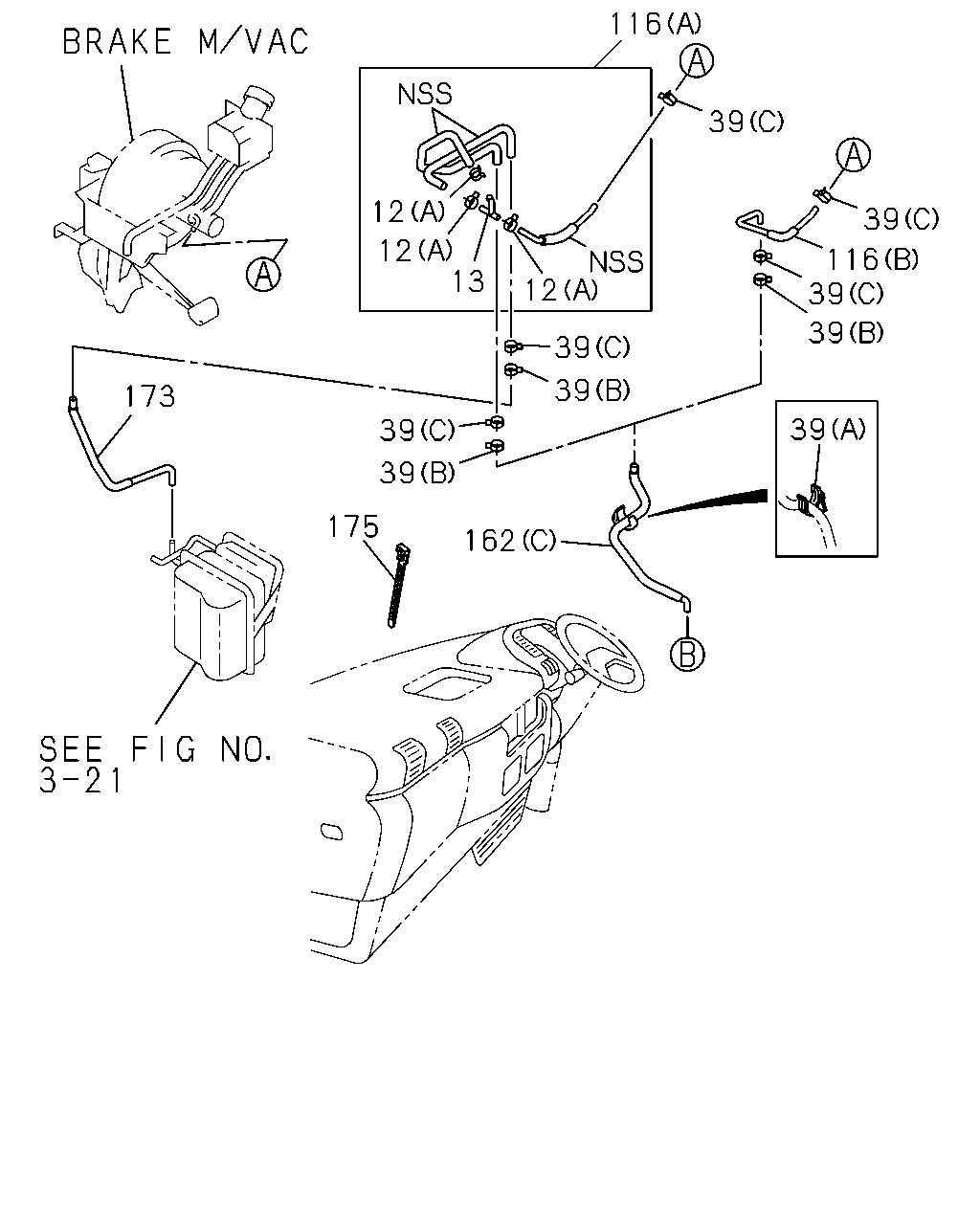

39 12 12 13 12 39 39 39 39 39 173 39 39 39 175 162 116 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (A) ID=14.5	8-94167-480-0	03	1	9312-	●	●	●	●	●	●
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	06	1	9312-	●	●	●	●	●	●
12	04.681 CLIP; HOSE EXC. EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	03	1	9312-	●	●	●	●	●	●
13	04.681 JOINT; HOSE,VAC EXHAUST BRAKE<NF8> 04.686 3WAY	8-94441-184-0	01	1	9312-	●	●	●	●	●	●
39	04.681 CLIP; HOSE,VAC EXHAUST BRAKE<NF8> 04.930 (B) ID=16	5-09707-023-2	02	1	9312-	●	●	●	●	●	●
39	04.681 CLIP; HOSE,VAC EXHAUST BRAKE<NF8> 04.930 (C) ID=16	8-94238-568-0	03	1	9312-	●	●	●	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. EXHAUST BRAKE<NF8> 04.930 (B) ID=16	5-09707-023-2	01	1	9312-	●	●	●	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. EXHAUST BRAKE<NF8> 04.930 (C) ID=16	8-94238-568-0	02	1	9312-	●	●	●	●	●	●
39	04.681 CLIP; HOSE,VAC (A) ID=25.5	8-97077-492-0	01	1	9312-	●	●			●
39	04.681 CLIP; HOSE,VAC EXHAUST BRAKE<NF8> (A) ID=25.5	8-97077-492-0	01	1	9312-			●	●		●
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> (A)	8-97035-969-1	01	1	9312-	●	●	●	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. EXHAUST BRAKE<NF8> (B)	8-97035-980-1	01	1	9312-	●	●	●	●	●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	9312-	●	●	●	●	●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	9312-	●	●	●	●	●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	9312-	●	●	●	●	●	●
162	04.931 HOSE; VAC FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97102-371-1	01	1	9312-9407	●	●			●
162	04.931 HOSE; VAC FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97102-998-2	01	1	9408-9510	●	●			●
162	04.931 HOSE; VAC EXC. FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97102-369-2	01	1	9312-9510	●	●			●
162	04.931 HOSE; VAC (C)	8-97102-369-2	01	1	9511-	●	●			●
162	04.931 HOSE; VAC FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97078-978-0	01	1	9312-9510			●	●
162	04.931 HOSE; VAC FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97078-978-0	01	1	9511-9711				●
162	04.931 HOSE; VAC EXC. FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97078-785-0	01	1	9312-			●	●		●
173	04.931 HOSE; VAC,VAC TANK SIDE EXHAUST BRAKE<NF8>	8-97108-637-0	01	1	9312-9503	●	●			●
173	04.931 HOSE; VAC,VAC TANK SIDE EXHAUST BRAKE<NF8>	8-97129-875-0	01	1	9504-	●	●			●
173	04.931 HOSE; VAC,VAC TANK SIDE EXHAUST BRAKE<NF8>	8-97081-537-3	01	1	9312-9503			●	●		●
173	04.931 HOSE; VAC,VAC TANK SIDE EXHAUST BRAKE<NF8>	8-97129-872-0	01	1	9504-			●	●		●
175	04.930 CLIP; BAND,VAC HOSE EXHAUST BRAKE<NF8> 02.559 L=219.5	1-09987-136-0	01	1	9312-			●	●		●
