◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50693 - NHR ▶ 3 - Brakes, Brake System ▶ 3-58 - FIXING PARTS; OIL PIPING ▶
3-58 — FIXING PARTS; OIL PIPING (#33643) — 114 parça

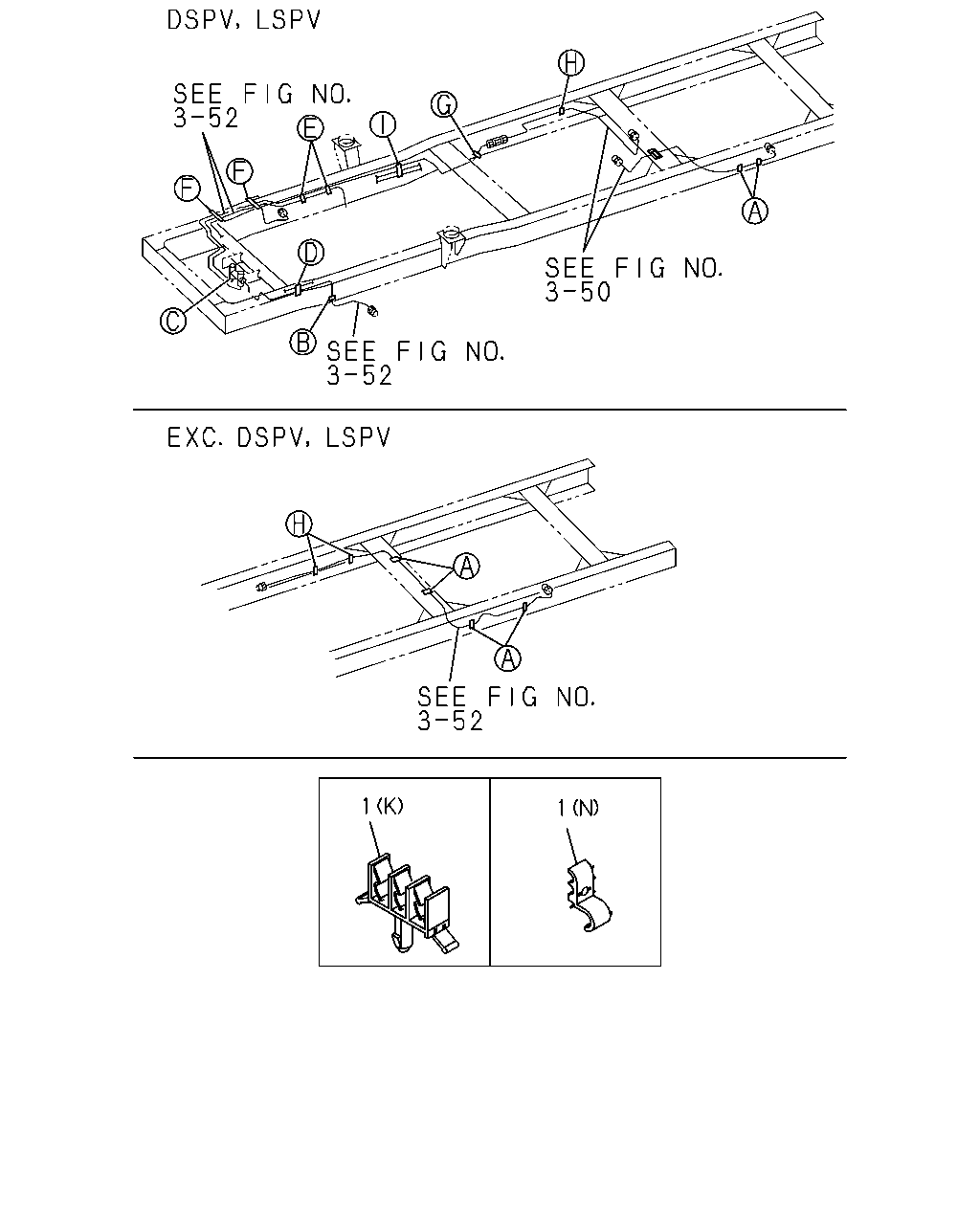

çizim 68077
1 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) 00.785 (A) B=14 L=16 		9-09916-996-0 02 1 9312-9510 ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) 00.785 (A) B=14 L=16 		9-09916-996-0 02 1 9511-9711 ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) 03.162 (B) ID=9 & 7 L=15 & 15 		8-97031-813-0 01 1 9312-9510 ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) (C) ID=13 & 7 L=16 & 14 		1-09700-070-0 01 1 9511-9711 ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) (C) ID=13 & 7 L=16 & 14 		1-09700-070-0 01 1 9312-9510 ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) (C) ID=13 & 7 L=16 & 14 		1-09700-070-0 01 1 9312-9510 ● ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) (C) ID=7 & 7 L=15 & 15 		1-09700-059-0 01 1 9511-9711 ●
1 04.686 CLIP; OIL PIPE TO BODY
(D) ID=4.8 H=26 		8-94249-685-0 02 1 9312-9510 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(D) ID=4.8 H=26 		8-94249-685-0 02 1 9312-9510 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=4.8 H=26 		8-94249-685-0 02 1 9312-9510 ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(D) ID=4.8 H=26 		8-94249-685-0 02 1 9312-9510 ●
1 04.686 CLIP; OIL PIPE TO BODY
(D) ID=4.8 H=26 		8-94249-685-0 02 1 9511- ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(D) ID=4.8 H=26 		8-94249-685-0 02 1 9511- ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=4.8 H=26 		8-94249-685-0 02 1 9511- ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(D) ID=4.8 H=26 		8-94249-685-0 01 1 9312- ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(E) ID=4.8X2 		8-94316-410-0 01 1 9312-9404 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) (E) ID=4.8X2 		8-94316-410-0 01 1 9312-9404 ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(E) ID=4.8X2 		8-94316-410-0 01 1 9405- ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
EXC. FRT INDEPENDENT SUSPENSION(6PP) (F) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 02 1 9312-9406 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
EXC. FRT INDEPENDENT SUSPENSION(6PP) (F) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 9407-9510 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
EXC. FRT INDEPENDENT SUSPENSION(6PP) (F) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 9511- ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
EXC. FRT INDEPENDENT SUSPENSION(6PP) (F) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 9511- ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.162 (G) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 9312-9711 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
03.162 (G) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 9712- ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) 00.785 (A) B=14 L=16 		9-09916-996-0 01 1 9312-9510 ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) 03.162 (B) ID=9 & 7 L=15 & 15 		8-97031-813-0 01 1 9511-9711 ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) 06.672 (H) ID=10 & 4.8X3 		8-97038-938-0 01 1 9312-9510 ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) (I) ID=9 L=20 		9-09545-108-0 01 1 9312-9312 ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) 04.047 (J) ID=9 		9-09524-825-0 01 1 9401-9510 ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(K) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9312-9510 ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
EXC. FRT INDEPENDENT SUSPENSION(6PP) (K) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9312-9510 ● ●
1 04.686 CLIP; OIL PIPE TO BODY
EXC. FRT INDEPENDENT SUSPENSION(6PP) (K) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9511-9711 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(K) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9712- ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) 03.162 (G) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 9312-9510 ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) 03.162 (G) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 9312-9510 ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) 03.162 (G) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 9511-9711 ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) 03.162 (G) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 9511-9711 ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) (L) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 9312-9510 ● ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) (L) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 9511-9711 ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) (M) ID=21 L=24 		8-94176-807-1 01 1 9312-9510 ● ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) (M) ID=21 L=24 		8-94176-807-1 01 1 9511-9711 ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) (N) 		8-97074-319-1 01 1 9312-9510 ● ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) (N) 		8-97074-319-1 01 1 9511-9711 ●

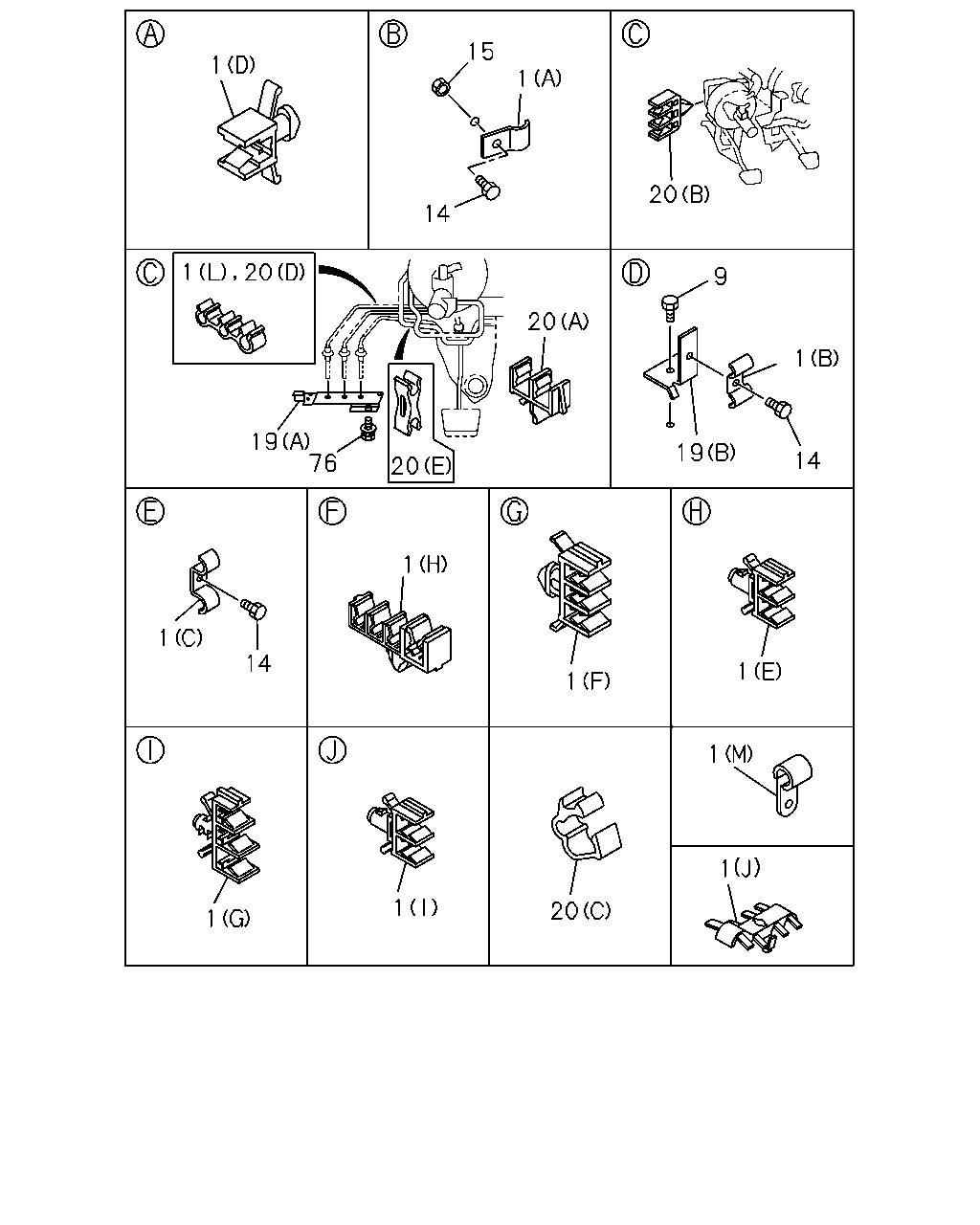

çizim 68100
15 1 1 20 14 20 1 9 20 1 19 76 19 14 20 1 1 14 1 1 1 1 1 20 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) 00.785 (A) B=14 L=16 		9-09916-996-0 02 1 9312-9510 ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) 00.785 (A) B=14 L=16 		9-09916-996-0 02 1 9511-9711 ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) 03.162 (B) ID=9 & 7 L=15 & 15 		8-97031-813-0 01 1 9312-9510 ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) (C) ID=13 & 7 L=16 & 14 		1-09700-070-0 01 1 9511-9711 ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) (C) ID=13 & 7 L=16 & 14 		1-09700-070-0 01 1 9312-9510 ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) (C) ID=13 & 7 L=16 & 14 		1-09700-070-0 01 1 9312-9510 ● ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) (C) ID=7 & 7 L=15 & 15 		1-09700-059-0 01 1 9511-9711 ●
1 04.686 CLIP; OIL PIPE TO BODY
(D) ID=4.8 H=26 		8-94249-685-0 02 1 9312-9510 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(D) ID=4.8 H=26 		8-94249-685-0 02 1 9312-9510 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=4.8 H=26 		8-94249-685-0 02 1 9312-9510 ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(D) ID=4.8 H=26 		8-94249-685-0 02 1 9312-9510 ●
1 04.686 CLIP; OIL PIPE TO BODY
(D) ID=4.8 H=26 		8-94249-685-0 02 1 9511- ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(D) ID=4.8 H=26 		8-94249-685-0 02 1 9511- ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=4.8 H=26 		8-94249-685-0 02 1 9511- ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(D) ID=4.8 H=26 		8-94249-685-0 01 1 9312- ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(E) ID=4.8X2 		8-94316-410-0 01 1 9312-9404 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) (E) ID=4.8X2 		8-94316-410-0 01 1 9312-9404 ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(E) ID=4.8X2 		8-94316-410-0 01 1 9405- ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
EXC. FRT INDEPENDENT SUSPENSION(6PP) (F) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 02 1 9312-9406 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
EXC. FRT INDEPENDENT SUSPENSION(6PP) (F) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 9407-9510 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
EXC. FRT INDEPENDENT SUSPENSION(6PP) (F) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 9511- ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
EXC. FRT INDEPENDENT SUSPENSION(6PP) (F) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 9511- ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.162 (G) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 9312-9711 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
03.162 (G) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 9712- ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) 00.785 (A) B=14 L=16 		9-09916-996-0 01 1 9312-9510 ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) 03.162 (B) ID=9 & 7 L=15 & 15 		8-97031-813-0 01 1 9511-9711 ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) 06.672 (H) ID=10 & 4.8X3 		8-97038-938-0 01 1 9312-9510 ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) (I) ID=9 L=20 		9-09545-108-0 01 1 9312-9312 ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) 04.047 (J) ID=9 		9-09524-825-0 01 1 9401-9510 ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(K) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9312-9510 ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
EXC. FRT INDEPENDENT SUSPENSION(6PP) (K) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9312-9510 ● ●
1 04.686 CLIP; OIL PIPE TO BODY
EXC. FRT INDEPENDENT SUSPENSION(6PP) (K) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9511-9711 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(K) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9712- ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) 03.162 (G) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 9312-9510 ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) 03.162 (G) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 9312-9510 ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) 03.162 (G) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 9511-9711 ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) 03.162 (G) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 9511-9711 ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) (L) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 9312-9510 ● ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) (L) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 9511-9711 ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) (M) ID=21 L=24 		8-94176-807-1 01 1 9312-9510 ● ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) (M) ID=21 L=24 		8-94176-807-1 01 1 9511-9711 ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) (N) 		8-97074-319-1 01 1 9312-9510 ● ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) (N) 		8-97074-319-1 01 1 9511-9711 ●
9 04.686 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 07.010 M8X20 FLANGE 		0-28080-820-0 01 1 9312-9510 ● ● ● ● ●
9 04.686 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 07.010 M8X20 FLANGE 		0-28080-820-0 01 1 9511-9711 ●
14 04.686 BOLT; CLIP,OIL PIPE
FRT INDEPENDENT SUSPENSION(6PP) 03.670 M6X20 FLANGE 		0-28080-620-0 02 1 9312-9510 ● ● ● ● ●
14 04.686 BOLT; CLIP,OIL PIPE
FRT INDEPENDENT SUSPENSION(6PP) 03.670 M6X20 FLANGE 		0-28080-620-0 02 1 9312-9510 ● ●
14 04.686 BOLT; CLIP,OIL PIPE
FRT INDEPENDENT SUSPENSION(6PP) 03.670 M6X20 FLANGE 		0-28080-620-0 02 1 9511-9711 ●
14 04.686 BOLT; CLIP,OIL PIPE
FRT INDEPENDENT SUSPENSION(6PP) 03.670 M6X20 FLANGE 		0-28080-620-0 02 1 9511-9711 ●
14 04.686 BOLT; CLIP,OIL PIPE
FRT INDEPENDENT SUSPENSION(6PP) 07.010 M8X20 FLANGE 		0-28080-820-0 01 1 9312-9510 ● ● ● ● ●
14 04.686 BOLT; CLIP,OIL PIPE
FRT INDEPENDENT SUSPENSION(6PP) 07.010 M8X20 FLANGE 		0-28080-820-0 01 1 9511-9711 ●
14 04.686 BOLT; CLIP,OIL PIPE
FRT INDEPENDENT SUSPENSION(6PP) 03.670 M6X20 FLANGE 		0-28080-620-0 01 1 9312-9510 ● ● ● ● ●
14 04.686 BOLT; CLIP,OIL PIPE
FRT INDEPENDENT SUSPENSION(6PP) 03.670 M6X20 FLANGE 		0-28080-620-0 01 1 9312-9510 ● ● ● ● ●
14 04.686 BOLT; CLIP,OIL PIPE
FRT INDEPENDENT SUSPENSION(6PP) 03.670 M6X20 FLANGE 		0-28080-620-0 01 1 9312-9510 ● ● ●
14 04.686 BOLT; CLIP,OIL PIPE
FRT INDEPENDENT SUSPENSION(6PP) 03.670 M6X20 FLANGE 		0-28080-620-0 01 1 9511-9711 ●
14 04.686 BOLT; CLIP,OIL PIPE
FRT INDEPENDENT SUSPENSION(6PP) 03.670 M6X20 FLANGE 		0-28080-620-0 01 1 9511-9711 ●
14 04.686 BOLT; CLIP,OIL PIPE
FRT INDEPENDENT SUSPENSION(6PP) 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9312-9510 ● ●
14 04.686 BOLT; CLIP,OIL PIPE
FRT INDEPENDENT SUSPENSION(6PP) 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9511-9711 ●
15 04.686 NUT; CLIP,OIL PIPE
FRT INDEPENDENT SUSPENSION(6PP) 04.594 M6 FLANGE 		0-91150-106-0 01 1 9312-9510 ● ● ● ● ●
15 04.686 NUT; CLIP,OIL PIPE
FRT INDEPENDENT SUSPENSION(6PP) 04.594 M6 FLANGE 		0-91150-106-0 01 1 9511-9711 ●
19 04.686 BRACKET; OIL PIPE
FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97068-790-0 01 1 9312-9510 ● ● ● ● ●
19 04.686 BRACKET; OIL PIPE
FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97068-790-0 01 1 9511-9711 ●
19 04.686 BRACKET; OIL PIPE
(A) 		8-97042-258-4 01 1 9312- ● ● ●
20 04.686 CLIP; BRK PIPE
04.868 (E) ID=4.6X2 		8-94241-454-0 01 1 9312- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(B) ID=6.35 & 4.76X2 		8-94250-923-2 01 1 9312- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(A) ID=4.8X2 		8-94113-470-0 01 1 9312- ● ● ●
20 04.686 CLIP; BRK PIPE
(D) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 9312- ● ● ●
20 04.686 CLIP; BRK PIPE
(C) ID=6.35 & 4.76X2 		8-94107-732-1 01 1 9401- ● ● ●
20 04.686 CLIP; BRK PIPE
(D) ID=6.4 & 4.8X2 		8-94146-043-0 03 1 9312- ● ● ●
76 04.686 BOLT; BRKT,OIL PIPE
16.714 M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 9401-9605 ● ● ●
76 04.686 BOLT; BRKT,OIL PIPE
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9606- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
