Isuzu WW
▶
TRUCKS
▶
NHR
▶
50693 - NHR
▶
3 - Brakes, Brake System
▶
3-55 - BRAKE PIPING; OIL,REAR
▶

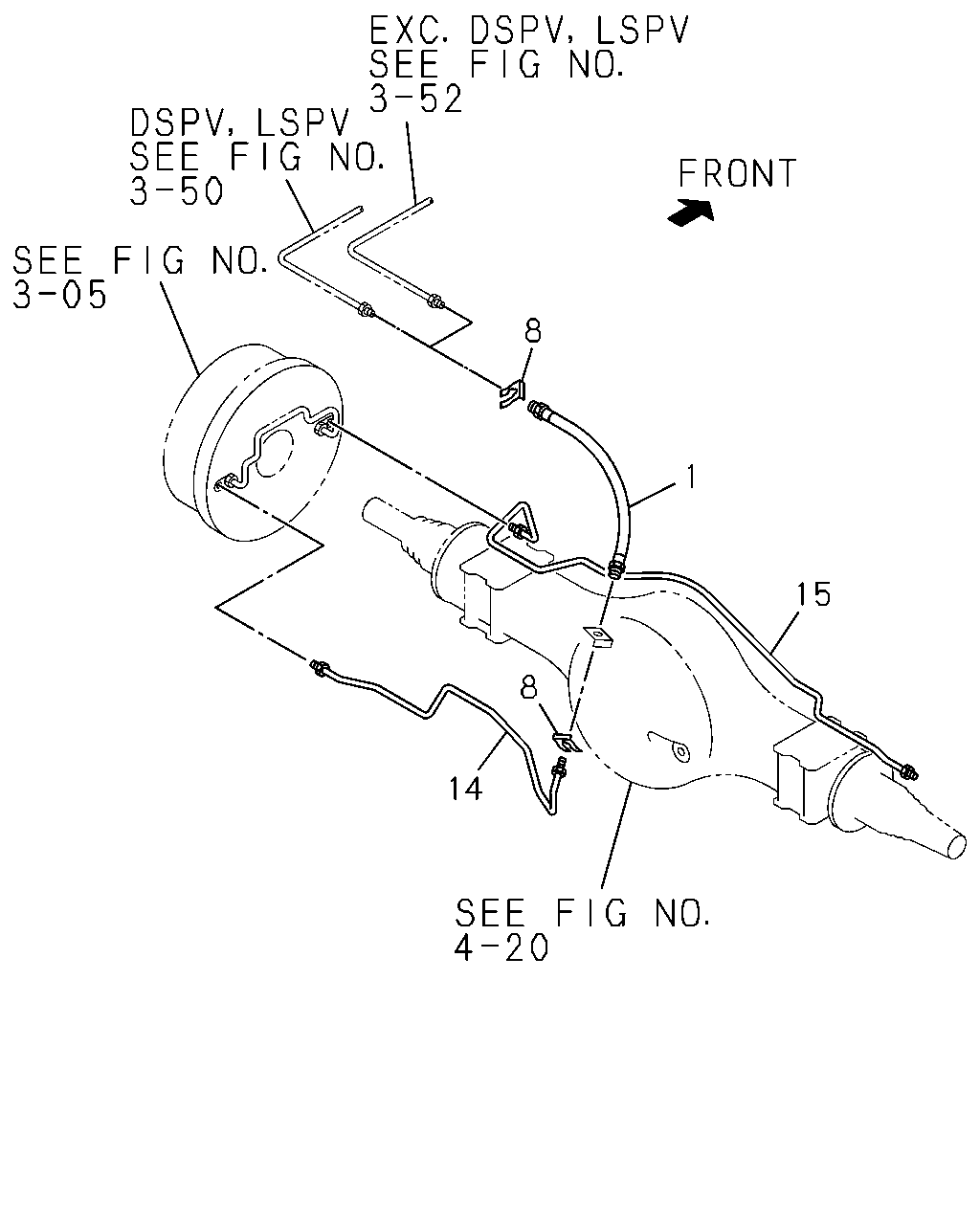

3-55 — BRAKE PIPING; OIL,REAR
(#33642) — 10 parça
Tümü
A - NHB5SF
B - NHB5WF
C - NHB6SF
D - NHB6WF
E - NHN5SF
F - NHN6SF
8
1
15
8
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
04.680 HOSE; FLEX,RR BRK
L=370
8-97035-574-0
01
1
9312-
●
●
●
●
●
●
8
04.686 CLIP; RR BRK
04.681
8-94137-662-0
02
1
9312-
●
●
●
●
●
●
14
04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
FRT INDEPENDENT SUSPENSION(6PP)
8-97048-185-0
01
1
9312-9510
●
●
●
●
14
04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
FRT INDEPENDENT SUSPENSION(6PP)
8-97048-185-0
01
1
9511-9711
●
14
04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
EXC. FRT INDEPENDENT SUSPENSION(6PP)
8-97035-850-0
01
1
9312-
●
●
●
●
14
04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
8-97034-532-1
01
1
9312-
●
●
15
04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
FRT INDEPENDENT SUSPENSION(6PP)
8-97105-828-0
01
1
9312-9510
●
●
●
●
15
04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
FRT INDEPENDENT SUSPENSION(6PP)
8-97105-828-0
01
1
9511-9711
●
15
04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
EXC. FRT INDEPENDENT SUSPENSION(6PP)
8-97105-827-0
01
1
9312-
●
●
●
●
15
04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
8-97089-923-0
01
1
9312-
●
●
