3-52 — BRAKE PIPING; OIL,FRONT (#33641) — 71 parça
çizim 17055
13 48 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT DSPV<JL8> 		8-97041-000-3 01 1 9312-9510 ● ● ● ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH> 		8-97041-000-3 01 1 9511- ● ● ● ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
BRK WHL LK CONT LSPV<6PH> 		8-97093-658-3 01 1 9511-9711 ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
BRK WHL LK CONT LSPV<6PH> 		8-97093-659-3 01 1 9511-9711 ●

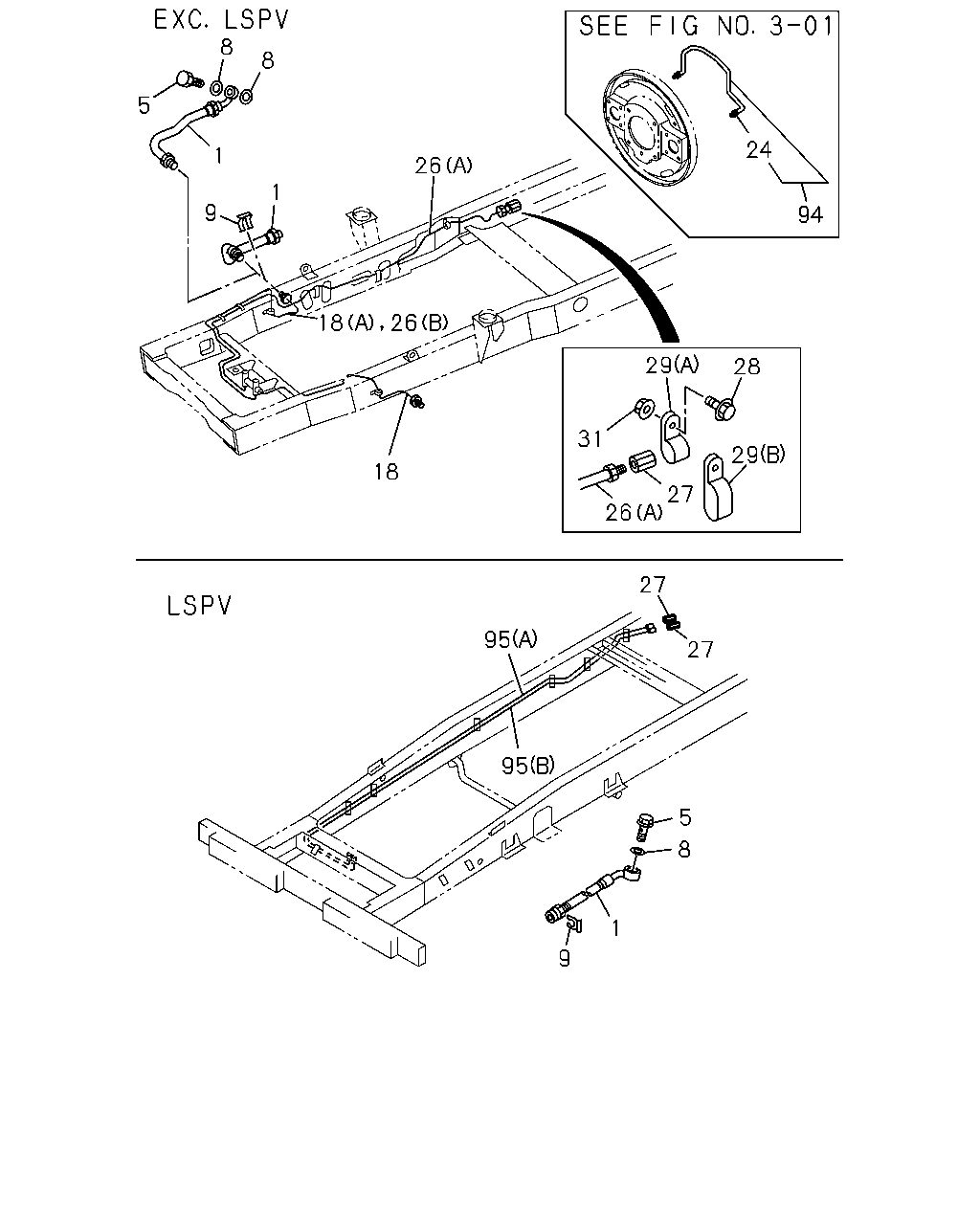

çizim 70570
8 8 5 24 1 26 1 9 94 18 26 29 28 31 29 18 27 26 27 95 27 95 5 8 1 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.680 HOSE; FLEX,FRT BRK
FRT INDEPENDENT SUSPENSION(6PP) 		8-97035-064-0 02 1 9312-9510 ● ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
FRT INDEPENDENT SUSPENSION(6PP) 		8-97035-064-0 02 1 9511-9711 ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97035-063-0 02 1 9312-9711 ● ● ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-97035-063-0 02 1 9712- ● ● ● ● ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(6PP) 04.665 M10X22 		5-09675-017-0 02 1 9312-9510 ● ● ● ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(6PP) 04.665 M10X22 		5-09675-017-0 02 1 9511-9711 ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(6PP) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 9312-9510 ● ● ● ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(6PP) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 9511-9711 ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 9312-9711 ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.681 		8-94137-662-0 02 1 9312-9711 ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 9712- ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 9712- ● ● ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97070-291-5 01 1 9312-9510 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97081-935-0 01 1 9312-9510 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97035-629-1 01 1 9312-9510 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 8-97035-629-1 01 1 9511- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97035-630-2 01 1 9312-9510 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 8-97035-630-2 01 1 9511- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
FRT INDEPENDENT SUSPENSION(6PP) 05.476 		8-97075-570-2 01 1 9312-9510 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
FRT INDEPENDENT SUSPENSION(6PP) 05.476 		8-97075-570-2 01 1 9511-9711 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97073-488-1 01 1 9312-9510 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
FRT INDEPENDENT SUSPENSION(6PP) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97073-488-1 01 1 9511-9711 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97091-059-3 01 1 9312- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97090-026-2 01 1 9312- ● ● ●
24 04.686 NUT; UNION,OIL PIPE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.963 		9-09217-625-0 02 1 9312-9711 ● ● ● ● ● ●
24 04.686 NUT; UNION,OIL PIPE
08.963 		9-09217-625-0 02 1 9712- ● ● ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97049-501-1 01 1 9312-9510 ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97092-863-4 01 1 9312-9510 ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
(A) 		8-97092-863-4 01 1 9511- ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97073-489-3 01 1 9312-9404 ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97113-551-0 01 1 9405-9510 ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
FRT INDEPENDENT SUSPENSION(6PP) EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97113-551-0 01 1 9511-9711 ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97089-975-2 01 1 9312- ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) 04.685 (B) 		8-97122-630-0 01 1 9511-9601 ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) 04.685 (B) 		8-97146-895-0 01 1 9602-9711 ●
27 04.686 UNION; BRK PIPE
EXC. BRK WHL LK CONT DSPV<JL8>,FRT INDEPENDENT SUSPENSION(6PP) 08.963 M10 STRAIGHT 		9-09227-005-0 01 1 9312-9510 ● ● ● ● ● ●
27 04.686 UNION; BRK PIPE
FRT INDEPENDENT SUSPENSION(6PP) 08.963 M10 STRAIGHT 		9-09227-005-0 01 1 9312-9510 ● ● ● ● ●
27 04.686 UNION; BRK PIPE
EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 08.963 M10 STRAIGHT 		9-09227-005-0 01 1 9511-9608 ● ● ● ● ● ●
27 04.686 UNION; BRK PIPE
FRT INDEPENDENT SUSPENSION(6PP) EXC. BRK WHL LK CONT LSPV<6PH> 08.963 M10 STRAIGHT 		9-09227-005-0 01 1 9511-9608 ●
27 04.686 UNION; BRK PIPE
08.963 M10 STRAIGHT 		9-09227-005-0 01 1 9609-9711 ● ● ● ● ●
27 04.686 UNION; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH> 08.963 M10 STRAIGHT 		9-09227-005-0 01 1 9609-9711 ●
27 04.686 UNION; BRK PIPE
08.963 M10 STRAIGHT 		9-09227-005-0 01 1 9712- ● ● ● ● ● ●
27 04.686 UNION; BRK PIPE
BRK WHL LK CONT LSPV<6PH> 08.963 M10 STRAIGHT 		9-09227-005-0 02 1 9511-9711 ●
28 04.686 BOLT; UNION CLIP
EXC. BRK WHL LK CONT DSPV<JL8>,FRT INDEPENDENT SUSPENSION(6PP) M6X25 FLANGE 		0-28080-625-0 01 1 9312-9510 ● ● ● ● ● ●
28 04.686 BOLT; UNION CLIP
FRT INDEPENDENT SUSPENSION(6PP) M6X25 FLANGE 		0-28080-625-0 01 1 9312-9510 ● ● ● ● ●
28 04.686 BOLT; UNION CLIP
EXC. BRK WHL LK CONT DSPV<JL8>,FRT INDEPENDENT SUSPENSION(6PP) M6X25 FLANGE 		0-28080-625-0 01 1 9511-9610 ● ● ● ● ● ●
28 04.686 BOLT; UNION CLIP
FRT INDEPENDENT SUSPENSION(6PP) M6X25 FLANGE 		0-28080-625-0 01 1 9511-9610 ●
28 04.686 BOLT; UNION CLIP
02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9611- ● ● ● ● ● ●
29 04.686 CLIP; UNION
EXC. BRK WHL LK CONT DSPV<JL8>,FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) ID=16 L=20 		9-09525-532-0 01 1 9312-9510 ● ● ● ● ● ●
29 04.686 CLIP; UNION
FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) ID=16 L=20 		9-09525-532-0 01 1 9312-9510 ● ● ● ● ●
29 04.686 CLIP; UNION
EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) ID=16 L=20 		9-09525-532-0 01 1 9511-9608 ● ● ● ● ● ●
29 04.686 CLIP; UNION
FRT INDEPENDENT SUSPENSION(6PP) EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (A) ID=16 L=20 		9-09525-532-0 01 1 9511-9608 ●
29 04.686 CLIP; UNION
03.162 (A) ID=16 L=20 		9-09525-532-0 01 1 9609-9711 ● ● ● ● ●
29 04.686 CLIP; UNION
EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (A) ID=16 L=20 		9-09525-532-0 01 1 9609-9711 ●
29 04.686 CLIP; UNION
03.162 (A) ID=16 L=20 		9-09525-532-0 01 1 9712- ● ● ● ● ● ●
29 04.686 CLIP; UNION
BRK WHL LK CONT LSPV<6PH> (B) ID=16X2 L=20 		9-09535-533-0 01 1 9511-9711 ●
31 04.686 NUT; UNION CLIP
EXC. BRK WHL LK CONT DSPV<JL8>,FRT INDEPENDENT SUSPENSION(6PP) 04.594 M6 FLANGE 		0-91150-106-0 01 1 9312-9510 ● ● ● ● ● ●
31 04.686 NUT; UNION CLIP
FRT INDEPENDENT SUSPENSION(6PP) 04.594 M6 FLANGE 		0-91150-106-0 01 1 9312-9510 ● ● ● ● ●
31 04.686 NUT; UNION CLIP
EXC. BRK WHL LK CONT DSPV<JL8>,FRT INDEPENDENT SUSPENSION(6PP) 04.594 M6 FLANGE 		0-91150-106-0 01 1 9511-9608 ● ● ● ● ● ●
31 04.686 NUT; UNION CLIP
FRT INDEPENDENT SUSPENSION(6PP) 04.594 M6 FLANGE 		0-91150-106-0 01 1 9511-9608 ●
31 04.686 NUT; UNION CLIP
04.594 M6 FLANGE 		0-91150-106-0 01 1 9609- ● ● ● ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97081-151-0 01 1 9312-9711 ● ● ● ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97081-151-0 01 1 9712- ● ● ● ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97081-184-0 01 1 9312-9711 ● ● ● ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97081-184-0 01 1 9712- ● ● ● ● ● ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97122-632-2 01 1 9511-9711 ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97122-636-1 01 1 9511-9711 ●
