Sayfa 3-50 - Isuzu EPC

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#33640) — 58 parça

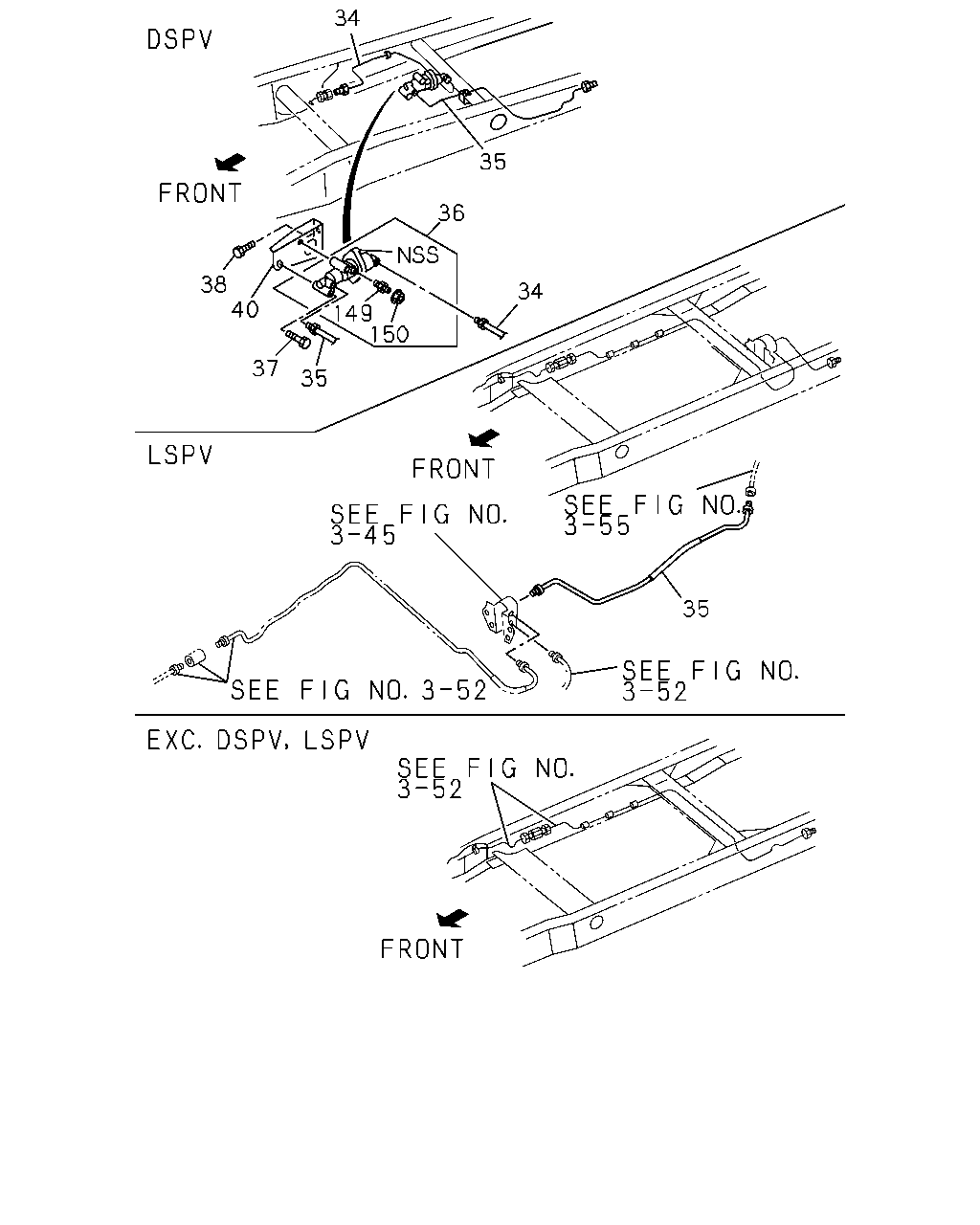

34 35 36 38 40 34 149 150 37 35 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
34	04.685 PIPE; BRK,UNION TO DSPV BRK WHL LK CONT DSPV<JL8>	5-47411-773-0	01	1	9312-	●	●	●	●	●	●
35	04.685 PIPE; BRK,VLV TO RR AXLE BRK WHL LK CONT DSPV<JL8>	8-97091-258-1	01	1	9312-	●	●	●	●	●	●
35	04.685 PIPE; BRK,VLV TO RR AXLE BRK WHL LK CONT LSPV<6PH>	8-97100-892-0	01	1	9511-9711				●
36	04.690 VALVE ASM; DSPV BRK WHL LK CONT DSPV<JL8>	8-97082-058-0	01	1	9312-	●	●	●	●	●	●
37	04.690 BOLT; BRKT TO DSPV BRK WHL LK CONT DSPV<JL8> 01.840 M8X70 W/LK WASHER	0-50040-870-0	02	1	9312-	●	●	●	●	●	●
38	04.690 BOLT; BRKT TO FRAME BRK WHL LK CONT DSPV<JL8> 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9312-	●	●	●	●	●	●
40	04.690 BRACKET BRK WHL LK CONT DSPV<JL8>	8-94156-783-4	01	1	9312-	●	●	●	●	●	●
149	04.685 PLUG; BLEEDER,DSV BRK WHL LK CONT DSPV<JL8>	8-97093-663-0	01	1	9312-	●	●	●	●	●	●
150	04.685 CAP; BLEEDER PLUG,DSV BRK WHL LK CONT DSPV<JL8>	8-97093-662-0	01	1	9312-	●	●	●	●	●	●

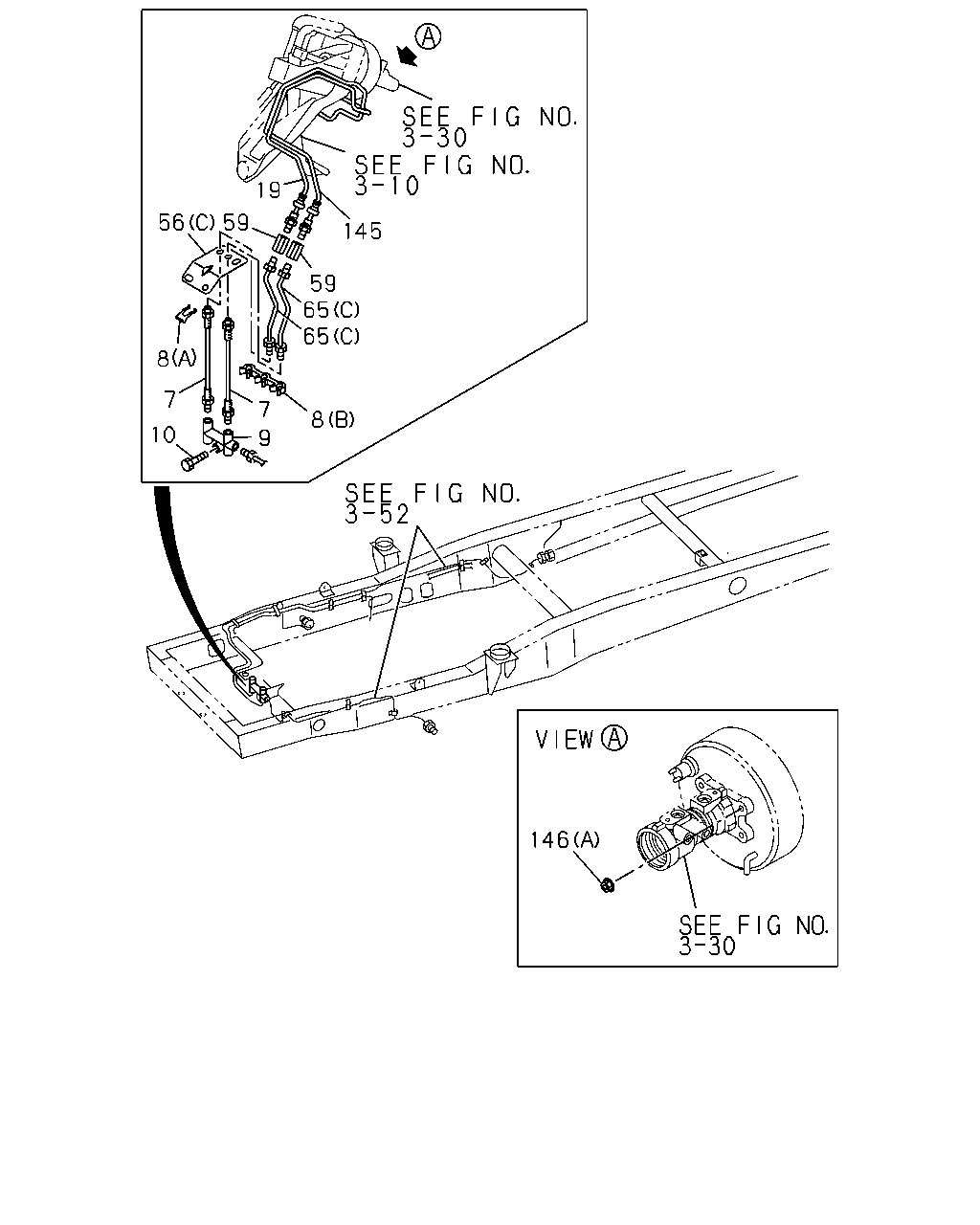

145 59 65 65 8 8 10 146 19 59 56 7 7 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-97035-573-0	02	1	9312-9711	●	●	●	●	●	●
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-97171-031-0	02	1	9712-	●	●	●	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 00.785 (A)	8-94167-006-0	02	1	9312-	●	●	●	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 04.686 (B)	8-97076-471-0	01	1	9312-	●	●	●	●	●	●
9	04.686 JOINT; BRK & CLU PIPE,CAB SIDE	5-47456-009-0	01	1	9312-9510	●	●	●	●	●	●
9	04.686 JOINT; BRK & CLU PIPE,CAB SIDE	5-47456-009-0	01	1	9511-9711	●	●	●		●	●
9	04.686 JOINT; BRK & CLU PIPE,CAB SIDE EXC. BRK WHL LK CONT LSPV<6PH>	5-47456-009-0	01	1	9511-9711				●
9	04.686 JOINT; BRK & CLU PIPE,CAB SIDE	5-47456-009-0	01	1	9712-	●	●	●	●	●	●
10	04.686 BOLT; JOINT M6X40 W/LK&PL WASHER	0-51240-640-0	01	1	9312-9703	●	●	●	●	●	●
10	04.686 BOLT; JOINT 03.163 M6X40 FLANGE	0-28680-640-0	01	1	9704-	●	●	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION	8-97035-976-0	01	1	9312-	●	●			●
19	04.685 PIPE; BRK,M/CYL TO UNION	8-97094-346-3	01	1	9312-			●	●		●
56	04.686 BRACKET; UNION,BRK (C)	8-97078-564-1	01	1	9312-	●	●			●
56	04.686 BRACKET; UNION,BRK (A)	8-97102-365-0	01	1	9312-			●	●		●
56	04.686 BRACKET; UNION,BRK (B)	8-97102-366-2	01	1	9312-			●	●		●
59	04.686 UNION; BRK PIPE 08.963 M10 STRAIGHT	9-09227-005-0	02	1	9312-	●	●	●	●	●	●
65	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE (C)	8-97035-978-0	02	1	9312-	●	●			●
65	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE (B)	5-47411-763-0	01	1	9312-			●	●		●
65	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE (A)	8-97070-296-2	01	1	9312-			●	●		●
145	04.685 PIPE; BRK,METERING VLV TO UNION	8-97035-976-0	01	1	9312-	●	●			●
145	04.685 PIPE; BRK,METERING VLV TO UNION	8-97094-346-3	01	1	9312-			●	●		●
146	04.685 NUT; BRKT 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	9312-	●	●	●	●	●	●
146	04.685 NUT; BRKT 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	9312-			●	●		●

155 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
10	04.686 BOLT; JOINT M6X40 W/LK&PL WASHER	0-51240-640-0	01	1	9312-9703	●	●	●	●	●	●
10	04.686 BOLT; JOINT 03.163 M6X40 FLANGE	0-28680-640-0	01	1	9704-	●	●	●	●	●	●
155	04.686 JOINT; 6WAY BRK WHL LK CONT LSPV<6PH>	8-97120-033-1	01	1	9511-9711				●

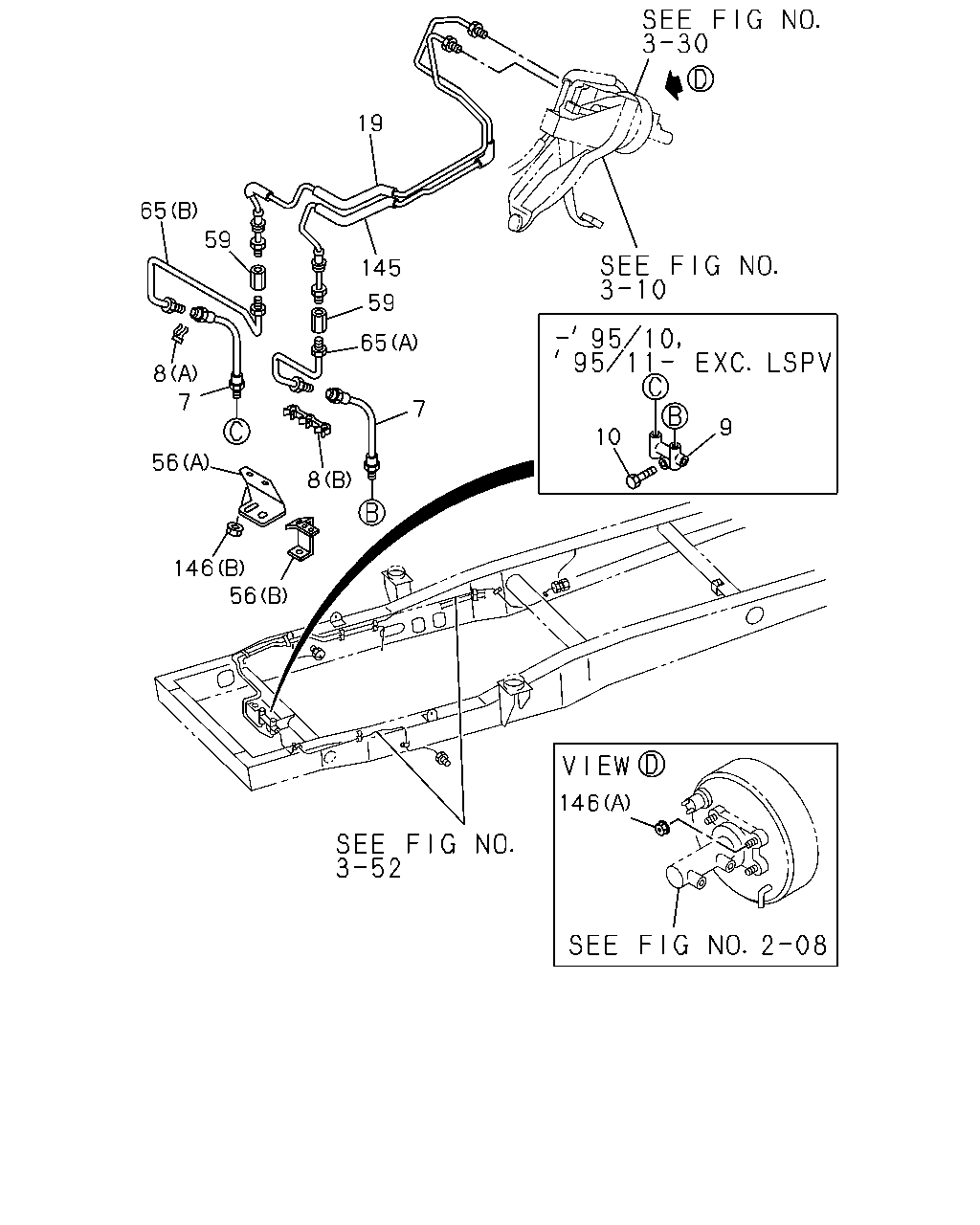

19 65 59 145 59 65 8 7 7 9 10 56 8 146 56 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-97035-573-0	02	1	9312-9711	●	●	●	●	●	●
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-97171-031-0	02	1	9712-	●	●	●	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 00.785 (A)	8-94167-006-0	02	1	9312-	●	●	●	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 04.686 (B)	8-97076-471-0	01	1	9312-	●	●	●	●	●	●
9	04.686 JOINT; BRK & CLU PIPE,CAB SIDE	5-47456-009-0	01	1	9312-9510	●	●	●	●	●	●
9	04.686 JOINT; BRK & CLU PIPE,CAB SIDE	5-47456-009-0	01	1	9511-9711	●	●	●		●	●
9	04.686 JOINT; BRK & CLU PIPE,CAB SIDE EXC. BRK WHL LK CONT LSPV<6PH>	5-47456-009-0	01	1	9511-9711				●
9	04.686 JOINT; BRK & CLU PIPE,CAB SIDE	5-47456-009-0	01	1	9712-	●	●	●	●	●	●
10	04.686 BOLT; JOINT M6X40 W/LK&PL WASHER	0-51240-640-0	01	1	9312-9703	●	●	●	●	●	●
10	04.686 BOLT; JOINT 03.163 M6X40 FLANGE	0-28680-640-0	01	1	9704-	●	●	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION	8-97035-976-0	01	1	9312-	●	●			●
19	04.685 PIPE; BRK,M/CYL TO UNION	8-97094-346-3	01	1	9312-			●	●		●
56	04.686 BRACKET; UNION,BRK (C)	8-97078-564-1	01	1	9312-	●	●			●
56	04.686 BRACKET; UNION,BRK (A)	8-97102-365-0	01	1	9312-			●	●		●
56	04.686 BRACKET; UNION,BRK (B)	8-97102-366-2	01	1	9312-			●	●		●
59	04.686 UNION; BRK PIPE 08.963 M10 STRAIGHT	9-09227-005-0	02	1	9312-	●	●	●	●	●	●
65	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE (C)	8-97035-978-0	02	1	9312-	●	●			●
65	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE (B)	5-47411-763-0	01	1	9312-			●	●		●
65	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE (A)	8-97070-296-2	01	1	9312-			●	●		●
145	04.685 PIPE; BRK,METERING VLV TO UNION	8-97035-976-0	01	1	9312-	●	●			●
145	04.685 PIPE; BRK,METERING VLV TO UNION	8-97094-346-3	01	1	9312-			●	●		●
146	04.685 NUT; BRKT 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	9312-	●	●	●	●	●	●
146	04.685 NUT; BRKT 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	9312-			●	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
