4-33 — STEERING LINKAGE (#33639) — 28 parça

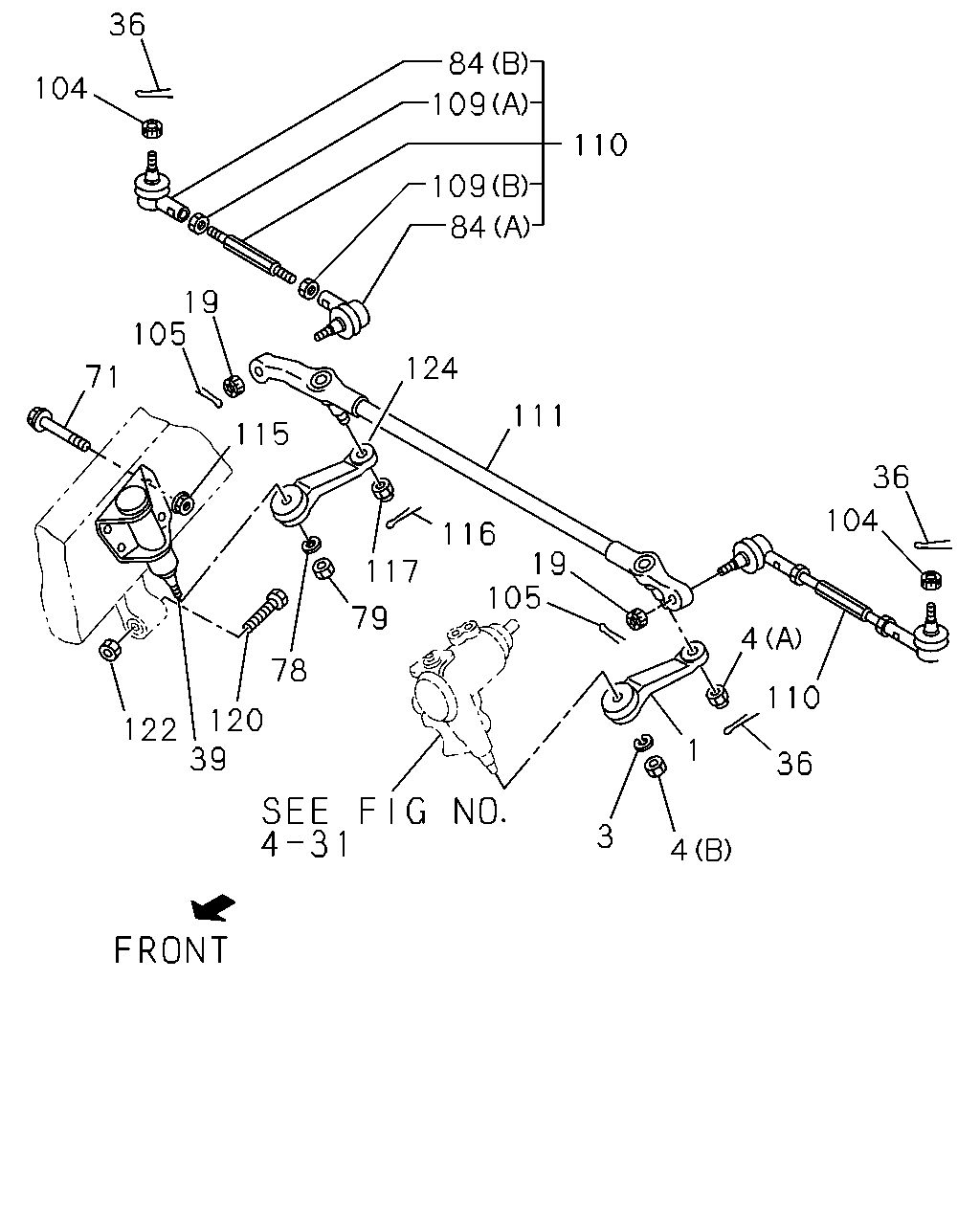

çizim 67312
36 84 109 104 110 109 84 19 105 71 124 111 115 36 104 78 116 19 105 117 79 4 110 120 122 39 1 36 3 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; PITMAN,STRG 8-97026-252-0 01 1 9112- ● ●
3 WASHER; LK,PITMAN ARM
ID=22.5 		9-09150-522-0 01 1 9112- ● ●
4 NUT; PITMAN ARM
(A) M14 		8-94124-555-0 01 1 9112- ● ●
4 NUT; PITMAN ARM
(B) M22 		9-09111-522-0 01 1 9112- ● ●
19 NUT; PITMAN ARM,STOPPER
M14 		8-94465-411-0 02 1 9112- ● ●
36 PIN; SPLIT,DRAG LINK
OD=2.8 L=25 		9-08113-025-0 03 1 9112-9504 ● ●
36 PIN; SPLIT,DRAG LINK
OD=2.8 L=25 		9-08113-025-0 01 1 9505- ● ●
36 PIN; SPLIT,DRAG LINK
OD=2.8 L=25 		9-08113-025-0 02 1 9505- ● ●
39 LEVER ASM; RELAY,STRG LINKAGE
EUROPE/CANARY EQUIPMENT(EK4) 		8-97035-386-2 01 1 9112- ● ●
39 LEVER ASM; RELAY,STRG LINKAGE
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97039-326-1 01 1 9112- ● ●
71 BOLT; RELAY LEVER BRKT
M10X92 FLANGE 		8-94313-798-1 04 1 9112- ● ●
78 WASHER; LINK,RELAY LEVER
ID=16.2 		9-09150-816-0 01 1 9112- ● ●
79 NUT; RELAY LEVER
M16 		9-99111-416-0 01 1 9112-9511 ● ●
79 NUT; RELAY LEVER
M16 		9-99111-516-0 01 1 9512- ● ●
84 ROD END; TRACK ROD
(A) RH THREAD 		8-97020-953-1 02 1 9112- ● ●
84 ROD END; TRACK ROD
(B) LH THREAD 		8-97020-954-2 02 1 9112- ● ●
104 NUT; ROD END
M14 		8-94465-411-0 02 1 9112- ● ●
105 PIN; SPLIT,ROD END
OD=2.8 L=25 		9-08113-025-0 02 1 9112- ● ●
109 NUT; ROD
(A) M14 LH THREAD 		5-09400-010-0 02 1 9112- ● ●
109 NUT; ROD
(B) M14 		9-99110-414-0 02 1 9112- ● ●
110 ROD; TRACK,OUTER
L=299 		8-97020-952-2 02 1 9112- ● ●
111 ROD; TRACK,CENTER 8-97020-951-2 01 1 9112- ● ●
115 NUT; RELAY LEVER BRKT
M10 FLANGE 		8-94313-797-0 04 1 9112- ● ●
116 PIN; SPLIT,TRACK ROD,CENTER
OD=2.8 L=20 		9-08113-020-0 01 1 9112- ● ●
117 NUT; DRAG LINK
M12 SLOTTED 		9-99117-512-0 01 1 9112- ● ●
120 BOLT; RELAY LEVER STOPPER
M10X62 		8-94447-449-0 02 1 9112- ● ●
122 NUT; RELAY LEVER STOPPER
M10 		9-09111-410-0 02 1 9112- ● ●
124 LEVER; RELAY,STRG LINKAGE 8-94404-000-5 01 1 9112- ● ●
