Sayfa 4-31 - Isuzu EPC

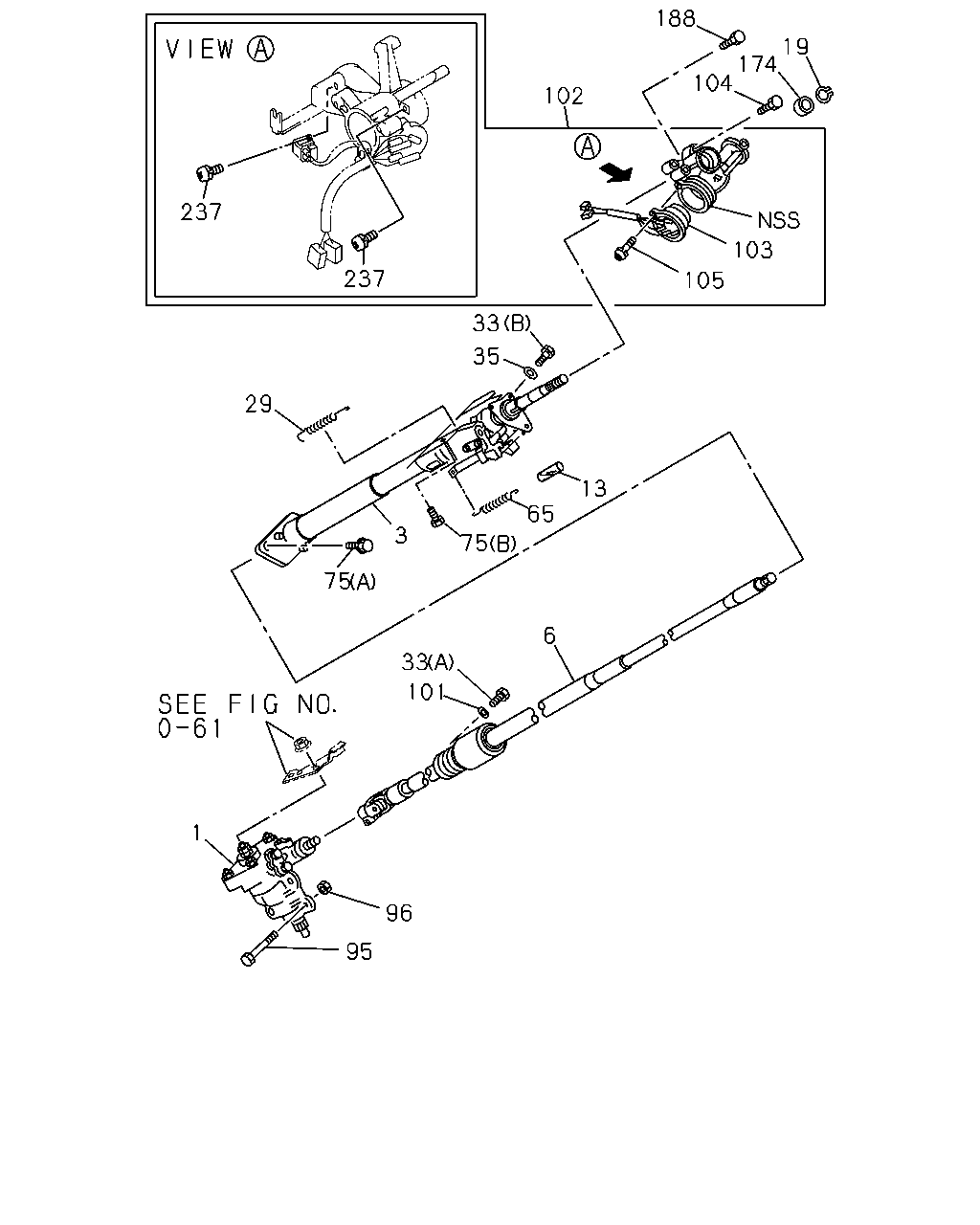

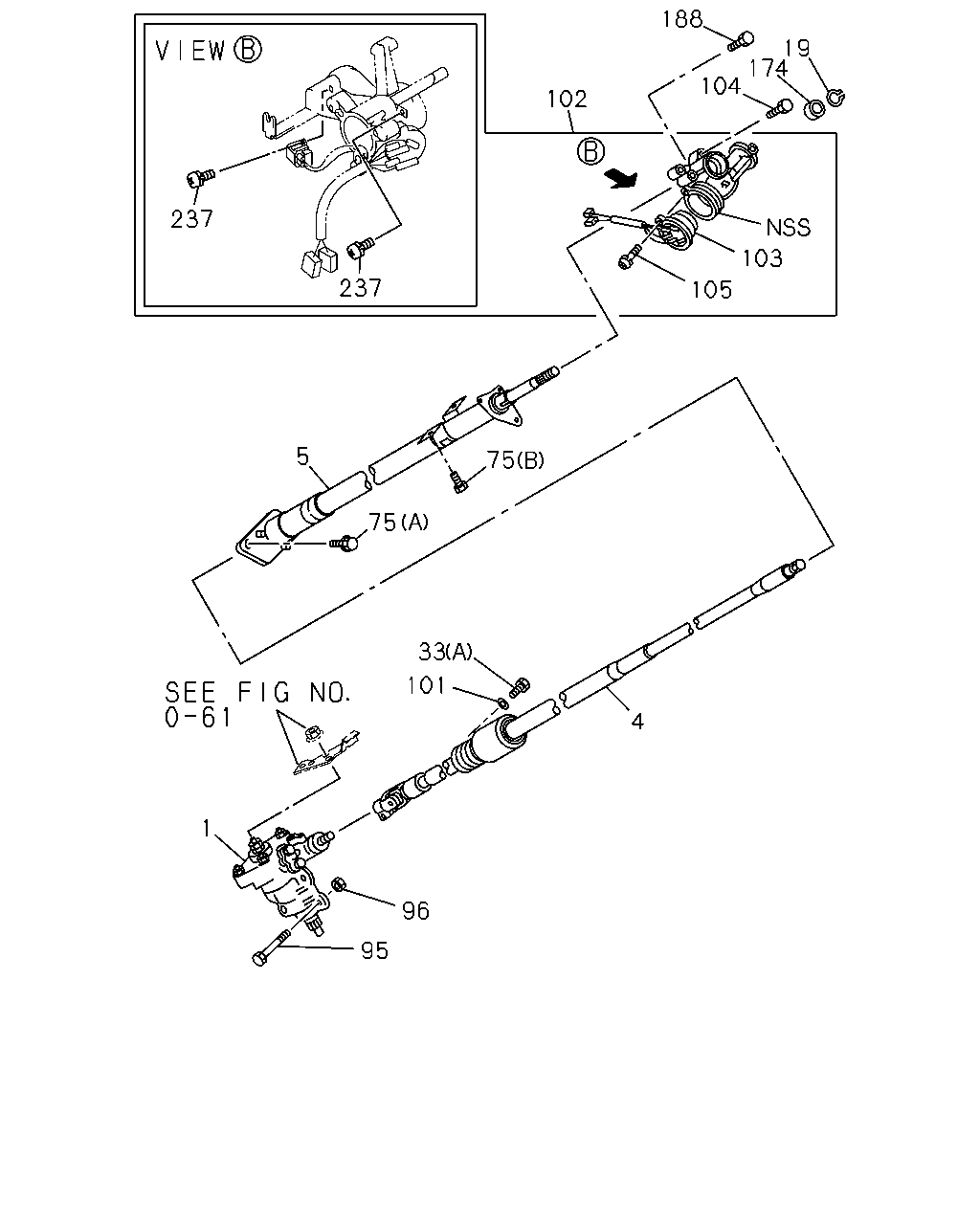

4-31 — STEERING COLUMN AND SHAFT (#33638) — 420 parça

188 19 174 104 102 237 103 105 237 5 75 75 33 101 4 1 6 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-94375-203-4	01	1	9112-9208	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU)	8-94375-203-4	01	1	9209-9403	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97101-355-1	01	1	9404-9607	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU)	8-97101-355-1	01	1	9404-9607		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97109-986-0	01	1	9608-	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97080-321-1	01	1	9209-9403	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97101-354-1	01	1	9404-9504		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4JG2 ENG(RJC)	8-97101-354-1	01	1	9505-9607		●
4	SHAFT; STRG EXC. TILT STEERING<N33>	8-97066-992-0	01	1	9112-9112	●	●
4	SHAFT; STRG EXC. TILT STEERING<N33>	8-97077-929-1	01	1	9201-9504	●	●
4	SHAFT; STRG EXC. TILT STEERING<N33>	8-97112-178-0	01	1	9505-9607	●	●
4	SHAFT; STRG EXC. AIR BAG DRIVER<AJ3>,TILT STEERING<N33>	8-97112-178-0	01	1	9608-	●	●
4	SHAFT; STRG AIR BAG DRIVER<AJ3> EXC. TILT STEERING<N33>	8-97134-416-0	01	1	9608-	●	●
5	COLUMN; STRG EXC. TILT STEERING<N33>	8-97066-900-0	01	1	9112-9112	●	●
5	COLUMN; STRG EXC. TILT STEERING<N33>	8-97077-927-0	01	1	9201-9209	●	●
5	COLUMN; STRG EXC. TILT STEERING<N33> 920914-	8-97069-498-0	01	1	9209-9312	●	●
5	COLUMN; STRG EXC. TILT STEERING<N33>	8-97088-689-0	01	1	9401-9504	●	●
5	COLUMN; STRG EXC. TILT STEERING<N33>	8-97112-185-0	01	1	9505-9607	●	●
5	COLUMN; STRG EXC. AIR BAG DRIVER<AJ3>,TILT STEERING<N33>	8-97112-185-0	01	1	9608-	●	●
5	COLUMN; STRG AIR BAG DRIVER<AJ3> EXC. TILT STEERING<N33>	8-97134-413-0	01	1	9608-	●	●
6	SHAFT; STRG LWR TILT STEERING<N33>	8-97066-993-0	01	1	9112-9112	●	●
6	SHAFT; STRG LWR TILT STEERING<N33>	8-97077-928-1	01	1	9201-9504	●	●
6	SHAFT; STRG LWR TILT STEERING<N33>	8-97112-176-0	01	1	9505-9607	●	●
6	SHAFT; STRG LWR TILT STEERING<N33>	8-97124-163-1	01	1	9608-	●	●
19	RING; SNAP,STRG SHAFT ID=18.5	9-09180-420-0	01	1	9112-9504	●	●
19	RING; SNAP,STRG SHAFT ID=20.5	9-09180-022-0	01	1	9505-	●	●
33	BOLT; STRG SHAFT TO UNIT (A) M8X30	8-94247-692-0	01	1	9112-	●	●
33	BOLT; STRG SHAFT TO UNIT TILT STEERING<N33> (B)	8-94477-976-1	01	1	9112-	●	●
75	BOLT; STRG COLUMN (A) M8X25	8-94152-496-1	02	1	9112-	●	●
75	BOLT; STRG COLUMN (B) M8X32 W/LK&PL WASHER	8-97014-296-0	02	1	9112-9504	●	●
75	BOLT; STRG COLUMN (B) M8X35	8-97100-457-0	02	1	9505-	●	●
95	BOLT; STRG UNIT M10X92 FLANGE	8-94313-798-1	04	1	9112-	●	●
101	WASHER; LK,STRG SHAFT TO UNIT ID=8.2	9-09150-508-0	01	1	9112-	●	●
102	LOCK ASM; STRG A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4)	8-94375-509-3	01	1	9112-9504	●	●
102	LOCK ASM; STRG A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC>	8-97124-157-1	01	1	9505-9509	●	●
102	LOCK ASM; STRG A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC>	8-97135-991-0	01	1	9510-	●	●
102	LOCK ASM; STRG A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC>	8-97128-155-0	01	1	9505-9509	●	●
102	LOCK ASM; STRG A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC>	8-97135-990-0	01	1	9510-	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN)	8-94375-507-0	01	1	9112-9205	●	●
102	LOCK ASM; STRG A/T THM(RMQ) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94375-507-0	01	1	9112-9205	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-94375-507-1	01	1	9206-9308	●	●
102	LOCK ASM; STRG A/T THM(RMQ) EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2)	8-94375-507-1	01	1	9206-9308	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN) EUROPE/CANARY EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC>	8-97124-158-1	01	1	9505-9509	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN) EUROPE/CANARY EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC>	8-97135-989-0	01	1	9510-9607	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN) IMMOBILIZER SYSTEM<7KC>	8-97135-989-0	01	1	9608-	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-94375-507-2	01	1	9309-9504	●	●
102	LOCK ASM; STRG A/T THM(RMQ) EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2)	8-94375-507-2	01	1	9309-9504	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN) EUROPE/CANARY EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC>	8-97081-618-3	01	1	9505-9509	●	●
102	LOCK ASM; STRG EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2)	8-97081-618-3	01	1	9505-9509	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN) EUROPE/CANARY EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC>	8-97135-987-0	01	1	9510-	●	●
102	LOCK ASM; STRG EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2)	8-97135-987-0	01	1	9510-	●	●
102	LOCK ASM; STRG SAUDI ARABIA EQUIPMENT(EU2)	8-94375-508-3	01	1	9206-9504	●	●
102	LOCK ASM; STRG SAUDI ARABIA EQUIPMENT(EU2)	8-97128-154-0	01	1	9505-9509	●	●
102	LOCK ASM; STRG SAUDI ARABIA EQUIPMENT(EU2)	8-97135-988-0	01	1	9510-	●	●
103	SWITCH; IGNITION A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4)	8-97017-855-0	01	1	9112-9205	●	●
103	SWITCH; IGNITION A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4)	8-97017-855-0	01	1	9206-9208	●	●
103	SWITCH; IGNITION SAUDI ARABIA EQUIPMENT(EU2)	8-97017-855-0	01	1	9206-9208	●	●
103	SWITCH; IGNITION M/T MUA 5 SPEED(RMN)	8-97018-792-0	01	1	9112-9205	●	●
103	SWITCH; IGNITION A/T THM(RMQ) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97018-792-0	01	1	9112-9205	●	●
103	SWITCH; IGNITION M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97018-792-0	01	1	9206-9208	●	●
103	SWITCH; IGNITION A/T THM(RMQ) EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2)	8-97018-792-0	01	1	9206-9208	●	●
103	SWITCH; IGNITION M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97090-861-0	01	1	9309-9504	●	●
103	SWITCH; IGNITION A/T THM(RMQ) EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2)	8-97090-861-0	01	1	9309-9504	●	●
103	SWITCH; IGNITION M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2),IMMOBILIZER SYSTEM<7KC>	8-97128-961-0	01	1	9505-9607	●	●
103	SWITCH; IGNITION A/T THM(RMQ) EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2)	8-97128-961-0	01	1	9505-9607	●	●
103	SWITCH; IGNITION EUROPE/CANARY EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC>	8-97128-961-0	01	1	9505-9607	●	●
103	SWITCH; IGNITION A/T THM(RMQ) IMMOBILIZER SYSTEM<7KC> EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97128-961-0	01	1	9608-	●	●
103	SWITCH; IGNITION M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97128-961-0	01	1	9608-	●	●
103	SWITCH; IGNITION SAUDI ARABIA EQUIPMENT(EU2)	8-97017-855-0	01	1	9209-9301	●	●
103	SWITCH; IGNITION SAUDI ARABIA EQUIPMENT(EU2)	8-97090-860-1	01	1	9302-9504	●	●
103	SWITCH; IGNITION A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4)	8-97090-860-1	01	1	9302-9504	●	●
103	SWITCH; IGNITION A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC>	8-97128-960-0	01	1	9505-	●	●
103	SWITCH; IGNITION SAUDI ARABIA EQUIPMENT(EU2)	8-97128-960-0	01	1	9505-	●	●
103	SWITCH; IGNITION EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97018-792-0	01	1	9209-9301	●	●
103	SWITCH; IGNITION M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97090-861-0	01	1	9302-9308	●	●
103	SWITCH; IGNITION A/T THM(RMQ) EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2)	8-97090-861-0	01	1	9302-9308	●	●
104	BOLT; STRG LOCK TO COLUMN (A) M6X16 W/LK WASHER	0-50040-616-0	01	1	9505-9707	●	●
104	BOLT; STRG LOCK TO COLUMN (A) M6X16 FLANGE	0-28080-616-0	01	1	9708-	●	●
104	BOLT; STRG LOCK TO COLUMN EUROPE/CANARY EQUIPMENT(EK4) M6X25 W/LK WASHER	9-01900-625-0	02	1	9112-9204	●	●
104	BOLT; STRG LOCK TO COLUMN EUROPE/CANARY EQUIPMENT(EK4) M6X25 W/LK WASHER	0-50040-625-0	02	1	9205-9208	●	●
104	BOLT; STRG LOCK TO COLUMN EXC. EUROPE/CANARY EQUIPMENT(EK4) M6X25 W/LK WASHER	9-01900-625-0	03	1	9112-9204	●	●
104	BOLT; STRG LOCK TO COLUMN EXC. EUROPE/CANARY EQUIPMENT(EK4) M6X25 W/LK WASHER	0-50040-625-0	03	1	9205-9208	●	●
104	BOLT; STRG LOCK TO COLUMN EUROPE/CANARY EQUIPMENT(EK4) M6X25 W/LK WASHER	0-50040-625-0	02	1	9209-9308	●	●
104	BOLT; STRG LOCK TO COLUMN EXC. EUROPE/CANARY EQUIPMENT(EK4) M6X25 W/LK WASHER	0-50040-625-0	03	1	9209-9308	●	●
104	BOLT; STRG LOCK TO COLUMN EUROPE/CANARY EQUIPMENT(EK4) M6X25 W/LK WASHER	0-50040-625-0	02	1	9309-9411	●	●
104	BOLT; STRG LOCK TO COLUMN EUROPE/CANARY EQUIPMENT(EK4) M6X25 W/LK&PL WASHER	8-97122-790-0	02	1	9412-9504	●	●
104	BOLT; STRG LOCK TO COLUMN EUROPE/CANARY EQUIPMENT(EK4) (B) M6X25 W/LK&PL WASHER	8-97122-790-0	01	1	9505-	●	●
104	BOLT; STRG LOCK TO COLUMN EXC. EUROPE/CANARY EQUIPMENT(EK4) M6X25 W/LK WASHER	0-50040-625-0	03	1	9309-9411	●	●
104	BOLT; STRG LOCK TO COLUMN EXC. EUROPE/CANARY EQUIPMENT(EK4) M6X25 W/LK&PL WASHER	8-97122-790-0	03	1	9412-9504	●	●
104	BOLT; STRG LOCK TO COLUMN EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) M6X25 W/LK&PL WASHER	8-97122-790-0	02	1	9505-	●	●
105	SCREW; IGN SW M4X12 W/LK WASHER	9-03910-412-0	01	1	9112-9504	●	●
105	SCREW; IGN SW EUROPE/CANARY EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> M4X12	9-03465-412-0	01	1	9505-9509	●	●
105	SCREW; IGN SW EUROPE/CANARY EQUIPMENT(EK4) M4X12	9-03465-412-0	01	1	9510-9607	●	●
105	SCREW; IGN SW M4X12	9-03465-412-0	01	1	9608-	●	●
105	SCREW; IGN SW EUROPE/CANARY EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> M3X8 W/LK WASHER	9-03910-308-0	01	1	9505-9509	●	●
174	RUBBER; CUSHION,STRG COLUMN	8-94385-036-0	01	1	9112-9504	●	●
174	RUBBER; CUSHION,STRG COLUMN	8-97081-806-0	01	1	9505-9605	●	●
174	RUBBER; CUSHION,STRG COLUMN	8-97176-325-0	01	1	9606-9708	●	●
174	RUBBER; CUSHION,STRG COLUMN	8-97170-762-0	01	1	9709-	●	●
188	BOLT; TORQUE,STEERING EUROPE/CANARY EQUIPMENT(EK4)	8-94474-206-0	01	1	9112-	●	●
237	SCREW; DOOR WARNING SW SAUDI ARABIA EQUIPMENT(EU2) M3X8 W/LK WASHER	9-03910-308-0	02	1	9309-9504	●	●
237	SCREW; DOOR WARNING SW A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4) M3X8 W/LK WASHER	9-03910-308-0	02	1	9309-9504	●	●
237	SCREW; DOOR WARNING SW A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> M3X8 W/LK WASHER	9-03910-308-0	01	1	9505-	●	●
237	SCREW; DOOR WARNING SW SAUDI ARABIA EQUIPMENT(EU2) M3X8 W/LK WASHER	9-03910-308-0	01	1	9505-	●	●

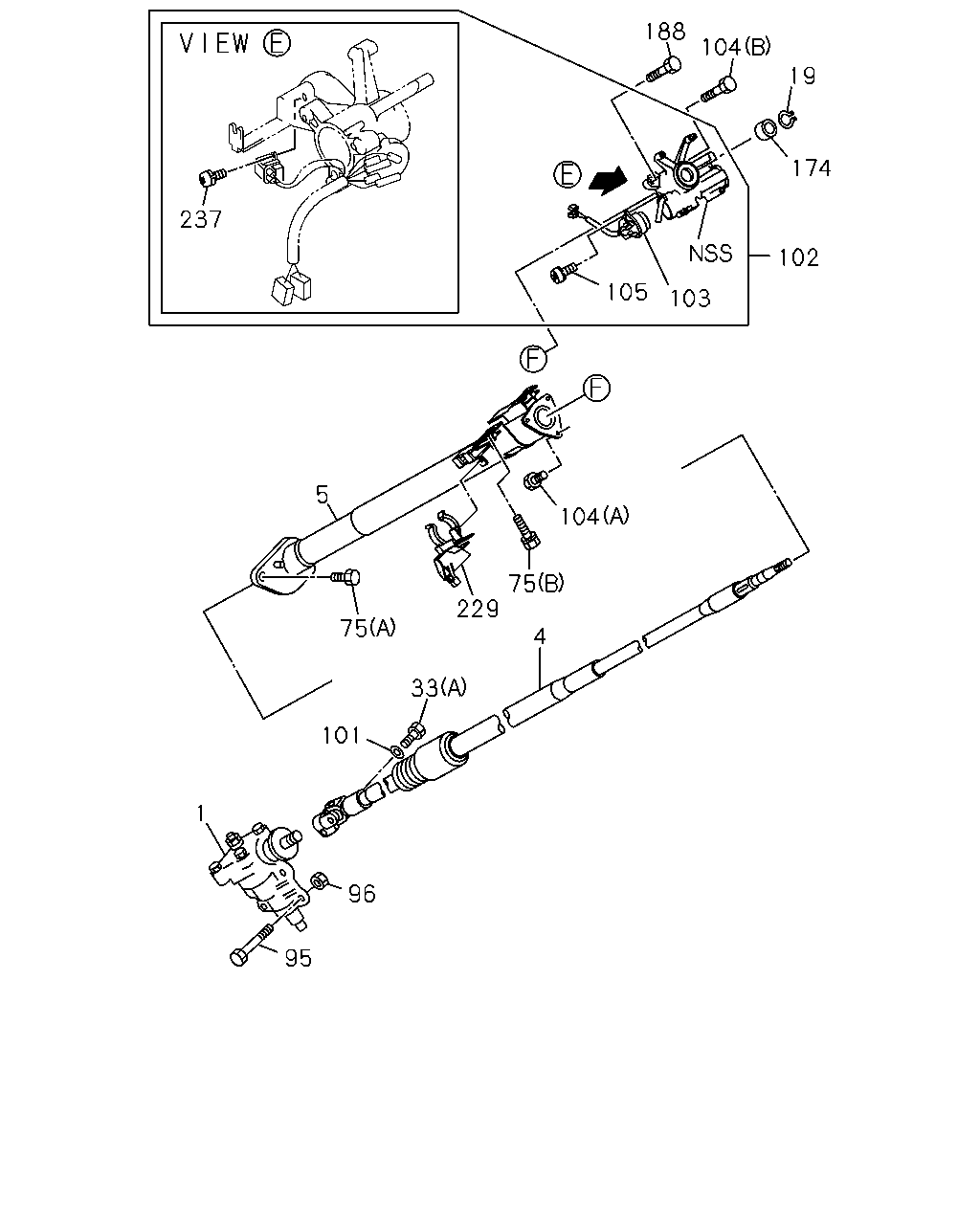

188 104 19 174 237 102 105 103 5 104 75 229 75 4 33 101 1 96 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-94375-203-4	01	1	9112-9208	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU)	8-94375-203-4	01	1	9209-9403	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97101-355-1	01	1	9404-9607	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU)	8-97101-355-1	01	1	9404-9607		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97109-986-0	01	1	9608-	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97080-321-1	01	1	9209-9403	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97101-354-1	01	1	9404-9504		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4JG2 ENG(RJC)	8-97101-354-1	01	1	9505-9607		●
4	SHAFT; STRG EXC. TILT STEERING<N33>	8-97066-992-0	01	1	9112-9112	●	●
4	SHAFT; STRG EXC. TILT STEERING<N33>	8-97077-929-1	01	1	9201-9504	●	●
4	SHAFT; STRG EXC. TILT STEERING<N33>	8-97112-178-0	01	1	9505-9607	●	●
4	SHAFT; STRG EXC. AIR BAG DRIVER<AJ3>,TILT STEERING<N33>	8-97112-178-0	01	1	9608-	●	●
4	SHAFT; STRG AIR BAG DRIVER<AJ3> EXC. TILT STEERING<N33>	8-97134-416-0	01	1	9608-	●	●
5	COLUMN; STRG EXC. TILT STEERING<N33>	8-97066-900-0	01	1	9112-9112	●	●
5	COLUMN; STRG EXC. TILT STEERING<N33>	8-97077-927-0	01	1	9201-9209	●	●
5	COLUMN; STRG EXC. TILT STEERING<N33> 920914-	8-97069-498-0	01	1	9209-9312	●	●
5	COLUMN; STRG EXC. TILT STEERING<N33>	8-97088-689-0	01	1	9401-9504	●	●
5	COLUMN; STRG EXC. TILT STEERING<N33>	8-97112-185-0	01	1	9505-9607	●	●
5	COLUMN; STRG EXC. AIR BAG DRIVER<AJ3>,TILT STEERING<N33>	8-97112-185-0	01	1	9608-	●	●
5	COLUMN; STRG AIR BAG DRIVER<AJ3> EXC. TILT STEERING<N33>	8-97134-413-0	01	1	9608-	●	●
19	RING; SNAP,STRG SHAFT ID=18.5	9-09180-420-0	01	1	9112-9504	●	●
19	RING; SNAP,STRG SHAFT ID=20.5	9-09180-022-0	01	1	9505-	●	●
33	BOLT; STRG SHAFT TO UNIT (A) M8X30	8-94247-692-0	01	1	9112-	●	●
33	BOLT; STRG SHAFT TO UNIT TILT STEERING<N33> (B)	8-94477-976-1	01	1	9112-	●	●
75	BOLT; STRG COLUMN (A) M8X25	8-94152-496-1	02	1	9112-	●	●
75	BOLT; STRG COLUMN (B) M8X32 W/LK&PL WASHER	8-97014-296-0	02	1	9112-9504	●	●
75	BOLT; STRG COLUMN (B) M8X35	8-97100-457-0	02	1	9505-	●	●
95	BOLT; STRG UNIT M10X92 FLANGE	8-94313-798-1	04	1	9112-	●	●
96	NUT; STRG UNIT M10 FLANGE	8-94313-797-0	04	1	9112-	●	●
101	WASHER; LK,STRG SHAFT TO UNIT ID=8.2	9-09150-508-0	01	1	9112-	●	●
102	LOCK ASM; STRG A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4)	8-94375-509-3	01	1	9112-9504	●	●
102	LOCK ASM; STRG A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC>	8-97124-157-1	01	1	9505-9509	●	●
102	LOCK ASM; STRG A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC>	8-97135-991-0	01	1	9510-	●	●
102	LOCK ASM; STRG A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC>	8-97128-155-0	01	1	9505-9509	●	●
102	LOCK ASM; STRG A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC>	8-97135-990-0	01	1	9510-	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN)	8-94375-507-0	01	1	9112-9205	●	●
102	LOCK ASM; STRG A/T THM(RMQ) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94375-507-0	01	1	9112-9205	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-94375-507-1	01	1	9206-9308	●	●
102	LOCK ASM; STRG A/T THM(RMQ) EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2)	8-94375-507-1	01	1	9206-9308	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN) EUROPE/CANARY EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC>	8-97124-158-1	01	1	9505-9509	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN) EUROPE/CANARY EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC>	8-97135-989-0	01	1	9510-9607	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN) IMMOBILIZER SYSTEM<7KC>	8-97135-989-0	01	1	9608-	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-94375-507-2	01	1	9309-9504	●	●
102	LOCK ASM; STRG A/T THM(RMQ) EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2)	8-94375-507-2	01	1	9309-9504	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN) EUROPE/CANARY EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC>	8-97081-618-3	01	1	9505-9509	●	●
102	LOCK ASM; STRG EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2)	8-97081-618-3	01	1	9505-9509	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN) EUROPE/CANARY EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC>	8-97135-987-0	01	1	9510-	●	●
102	LOCK ASM; STRG EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2)	8-97135-987-0	01	1	9510-	●	●
102	LOCK ASM; STRG SAUDI ARABIA EQUIPMENT(EU2)	8-94375-508-3	01	1	9206-9504	●	●
102	LOCK ASM; STRG SAUDI ARABIA EQUIPMENT(EU2)	8-97128-154-0	01	1	9505-9509	●	●
102	LOCK ASM; STRG SAUDI ARABIA EQUIPMENT(EU2)	8-97135-988-0	01	1	9510-	●	●
103	SWITCH; IGNITION A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4)	8-97017-855-0	01	1	9112-9205	●	●
103	SWITCH; IGNITION A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4)	8-97017-855-0	01	1	9206-9208	●	●
103	SWITCH; IGNITION SAUDI ARABIA EQUIPMENT(EU2)	8-97017-855-0	01	1	9206-9208	●	●
103	SWITCH; IGNITION M/T MUA 5 SPEED(RMN)	8-97018-792-0	01	1	9112-9205	●	●
103	SWITCH; IGNITION A/T THM(RMQ) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97018-792-0	01	1	9112-9205	●	●
103	SWITCH; IGNITION M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97018-792-0	01	1	9206-9208	●	●
103	SWITCH; IGNITION A/T THM(RMQ) EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2)	8-97018-792-0	01	1	9206-9208	●	●
103	SWITCH; IGNITION M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97090-861-0	01	1	9309-9504	●	●
103	SWITCH; IGNITION A/T THM(RMQ) EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2)	8-97090-861-0	01	1	9309-9504	●	●
103	SWITCH; IGNITION M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2),IMMOBILIZER SYSTEM<7KC>	8-97128-961-0	01	1	9505-9607	●	●
103	SWITCH; IGNITION A/T THM(RMQ) EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2)	8-97128-961-0	01	1	9505-9607	●	●
103	SWITCH; IGNITION EUROPE/CANARY EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC>	8-97128-961-0	01	1	9505-9607	●	●
103	SWITCH; IGNITION A/T THM(RMQ) IMMOBILIZER SYSTEM<7KC> EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97128-961-0	01	1	9608-	●	●
103	SWITCH; IGNITION M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97128-961-0	01	1	9608-	●	●
103	SWITCH; IGNITION SAUDI ARABIA EQUIPMENT(EU2)	8-97017-855-0	01	1	9209-9301	●	●
103	SWITCH; IGNITION SAUDI ARABIA EQUIPMENT(EU2)	8-97090-860-1	01	1	9302-9504	●	●
103	SWITCH; IGNITION A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4)	8-97090-860-1	01	1	9302-9504	●	●
103	SWITCH; IGNITION A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC>	8-97128-960-0	01	1	9505-	●	●
103	SWITCH; IGNITION SAUDI ARABIA EQUIPMENT(EU2)	8-97128-960-0	01	1	9505-	●	●
103	SWITCH; IGNITION EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97018-792-0	01	1	9209-9301	●	●
103	SWITCH; IGNITION M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97090-861-0	01	1	9302-9308	●	●
103	SWITCH; IGNITION A/T THM(RMQ) EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2)	8-97090-861-0	01	1	9302-9308	●	●
104	BOLT; STRG LOCK TO COLUMN (A) M6X16 W/LK WASHER	0-50040-616-0	01	1	9505-9707	●	●
104	BOLT; STRG LOCK TO COLUMN (A) M6X16 FLANGE	0-28080-616-0	01	1	9708-	●	●
104	BOLT; STRG LOCK TO COLUMN EUROPE/CANARY EQUIPMENT(EK4) M6X25 W/LK WASHER	9-01900-625-0	02	1	9112-9204	●	●
104	BOLT; STRG LOCK TO COLUMN EUROPE/CANARY EQUIPMENT(EK4) M6X25 W/LK WASHER	0-50040-625-0	02	1	9205-9208	●	●
104	BOLT; STRG LOCK TO COLUMN EXC. EUROPE/CANARY EQUIPMENT(EK4) M6X25 W/LK WASHER	9-01900-625-0	03	1	9112-9204	●	●
104	BOLT; STRG LOCK TO COLUMN EXC. EUROPE/CANARY EQUIPMENT(EK4) M6X25 W/LK WASHER	0-50040-625-0	03	1	9205-9208	●	●
104	BOLT; STRG LOCK TO COLUMN EUROPE/CANARY EQUIPMENT(EK4) M6X25 W/LK WASHER	0-50040-625-0	02	1	9209-9308	●	●
104	BOLT; STRG LOCK TO COLUMN EXC. EUROPE/CANARY EQUIPMENT(EK4) M6X25 W/LK WASHER	0-50040-625-0	03	1	9209-9308	●	●
104	BOLT; STRG LOCK TO COLUMN EUROPE/CANARY EQUIPMENT(EK4) M6X25 W/LK WASHER	0-50040-625-0	02	1	9309-9411	●	●
104	BOLT; STRG LOCK TO COLUMN EUROPE/CANARY EQUIPMENT(EK4) M6X25 W/LK&PL WASHER	8-97122-790-0	02	1	9412-9504	●	●
104	BOLT; STRG LOCK TO COLUMN EUROPE/CANARY EQUIPMENT(EK4) (B) M6X25 W/LK&PL WASHER	8-97122-790-0	01	1	9505-	●	●
104	BOLT; STRG LOCK TO COLUMN EXC. EUROPE/CANARY EQUIPMENT(EK4) M6X25 W/LK WASHER	0-50040-625-0	03	1	9309-9411	●	●
104	BOLT; STRG LOCK TO COLUMN EXC. EUROPE/CANARY EQUIPMENT(EK4) M6X25 W/LK&PL WASHER	8-97122-790-0	03	1	9412-9504	●	●
104	BOLT; STRG LOCK TO COLUMN EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) M6X25 W/LK&PL WASHER	8-97122-790-0	02	1	9505-	●	●
105	SCREW; IGN SW M4X12 W/LK WASHER	9-03910-412-0	01	1	9112-9504	●	●
105	SCREW; IGN SW EUROPE/CANARY EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> M4X12	9-03465-412-0	01	1	9505-9509	●	●
105	SCREW; IGN SW EUROPE/CANARY EQUIPMENT(EK4) M4X12	9-03465-412-0	01	1	9510-9607	●	●
105	SCREW; IGN SW M4X12	9-03465-412-0	01	1	9608-	●	●
105	SCREW; IGN SW EUROPE/CANARY EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> M3X8 W/LK WASHER	9-03910-308-0	01	1	9505-9509	●	●
174	RUBBER; CUSHION,STRG COLUMN	8-94385-036-0	01	1	9112-9504	●	●
174	RUBBER; CUSHION,STRG COLUMN	8-97081-806-0	01	1	9505-9605	●	●
174	RUBBER; CUSHION,STRG COLUMN	8-97176-325-0	01	1	9606-9708	●	●
174	RUBBER; CUSHION,STRG COLUMN	8-97170-762-0	01	1	9709-	●	●
188	BOLT; TORQUE,STEERING EUROPE/CANARY EQUIPMENT(EK4)	8-94474-206-0	01	1	9112-	●	●
229	PROTECTOR; STRG COLUMN	8-97109-627-2	01	1	9505-	●	●
237	SCREW; DOOR WARNING SW SAUDI ARABIA EQUIPMENT(EU2) M3X8 W/LK WASHER	9-03910-308-0	02	1	9309-9504	●	●
237	SCREW; DOOR WARNING SW A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4) M3X8 W/LK WASHER	9-03910-308-0	02	1	9309-9504	●	●
237	SCREW; DOOR WARNING SW A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> M3X8 W/LK WASHER	9-03910-308-0	01	1	9505-	●	●
237	SCREW; DOOR WARNING SW SAUDI ARABIA EQUIPMENT(EU2) M3X8 W/LK WASHER	9-03910-308-0	01	1	9505-	●	●

188 104 19 174 237 102 103 105 33 35 29 3 104 75 65 229 75 6 33 101 1 96 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-94375-203-4	01	1	9112-9208	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU)	8-94375-203-4	01	1	9209-9403	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97101-355-1	01	1	9404-9607	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU)	8-97101-355-1	01	1	9404-9607		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97109-986-0	01	1	9608-	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97080-321-1	01	1	9209-9403	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97101-354-1	01	1	9404-9504		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4JG2 ENG(RJC)	8-97101-354-1	01	1	9505-9607		●
3	SHAFT & COLUMN ASM; STRG TILT STEERING<N33>	8-97066-899-0	01	1	9112-9112	●	●
3	SHAFT & COLUMN ASM; STRG TILT STEERING<N33>	8-97077-931-0	01	1	9201-9208	●	●
3	SHAFT & COLUMN ASM; STRG TILT STEERING<N33>	8-97069-496-0	01	1	9209-9312	●	●
3	SHAFT & COLUMN ASM; STRG TILT STEERING<N33>	8-97088-690-1	01	1	9401-9504	●	●
3	SHAFT & COLUMN ASM; STRG TILT STEERING<N33>	8-97112-184-0	01	1	9505-9607	●	●
3	SHAFT & COLUMN ASM; STRG TILT STEERING<N33>	8-97134-412-0	01	1	9608-9708	●	●
3	SHAFT & COLUMN ASM; STRG TILT STEERING<N33>	8-97203-773-0	01	1	9709-	●	●
6	SHAFT; STRG LWR TILT STEERING<N33>	8-97066-993-0	01	1	9112-9112	●	●
6	SHAFT; STRG LWR TILT STEERING<N33>	8-97077-928-1	01	1	9201-9504	●	●
6	SHAFT; STRG LWR TILT STEERING<N33>	8-97112-176-0	01	1	9505-9607	●	●
6	SHAFT; STRG LWR TILT STEERING<N33>	8-97124-163-1	01	1	9608-	●	●
19	RING; SNAP,STRG SHAFT ID=18.5	9-09180-420-0	01	1	9112-9504	●	●
19	RING; SNAP,STRG SHAFT ID=20.5	9-09180-022-0	01	1	9505-	●	●
29	SPRING; COLUMN TILT STEERING<N33>	8-97066-904-0	01	1	9112-9112	●	●
29	SPRING; COLUMN TILT STEERING<N33>	8-97069-501-0	01	1	9201-	●	●
33	BOLT; STRG SHAFT TO UNIT (A) M8X30	8-94247-692-0	01	1	9112-	●	●
33	BOLT; STRG SHAFT TO UNIT TILT STEERING<N33> (B)	8-94477-976-1	01	1	9112-	●	●
35	WASHER; LK,STRG SHAFT TILT STEERING<N33>	8-94477-979-0	01	1	9112-	●	●
65	SPRING; STRG COLUMN TILT STEERING<N33>	8-97066-903-0	01	1	9112-9112	●	●
65	SPRING; STRG COLUMN TILT STEERING<N33>	8-97077-926-0	01	1	9201-9504	●	●
65	SPRING; STRG COLUMN TILT STEERING<N33>	8-97078-241-0	01	1	9505-	●	●
75	BOLT; STRG COLUMN (A) M8X25	8-94152-496-1	02	1	9112-	●	●
75	BOLT; STRG COLUMN (B) M8X32 W/LK&PL WASHER	8-97014-296-0	02	1	9112-9504	●	●
75	BOLT; STRG COLUMN (B) M8X35	8-97100-457-0	02	1	9505-	●	●
95	BOLT; STRG UNIT M10X92 FLANGE	8-94313-798-1	04	1	9112-	●	●
96	NUT; STRG UNIT M10 FLANGE	8-94313-797-0	04	1	9112-	●	●
101	WASHER; LK,STRG SHAFT TO UNIT ID=8.2	9-09150-508-0	01	1	9112-	●	●
102	LOCK ASM; STRG A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4)	8-94375-509-3	01	1	9112-9504	●	●
102	LOCK ASM; STRG A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC>	8-97124-157-1	01	1	9505-9509	●	●
102	LOCK ASM; STRG A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC>	8-97135-991-0	01	1	9510-	●	●
102	LOCK ASM; STRG A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC>	8-97128-155-0	01	1	9505-9509	●	●
102	LOCK ASM; STRG A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC>	8-97135-990-0	01	1	9510-	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN)	8-94375-507-0	01	1	9112-9205	●	●
102	LOCK ASM; STRG A/T THM(RMQ) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94375-507-0	01	1	9112-9205	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-94375-507-1	01	1	9206-9308	●	●
102	LOCK ASM; STRG A/T THM(RMQ) EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2)	8-94375-507-1	01	1	9206-9308	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN) EUROPE/CANARY EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC>	8-97124-158-1	01	1	9505-9509	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN) EUROPE/CANARY EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC>	8-97135-989-0	01	1	9510-9607	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN) IMMOBILIZER SYSTEM<7KC>	8-97135-989-0	01	1	9608-	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-94375-507-2	01	1	9309-9504	●	●
102	LOCK ASM; STRG A/T THM(RMQ) EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2)	8-94375-507-2	01	1	9309-9504	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN) EUROPE/CANARY EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC>	8-97081-618-3	01	1	9505-9509	●	●
102	LOCK ASM; STRG EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2)	8-97081-618-3	01	1	9505-9509	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN) EUROPE/CANARY EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC>	8-97135-987-0	01	1	9510-	●	●
102	LOCK ASM; STRG EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2)	8-97135-987-0	01	1	9510-	●	●
102	LOCK ASM; STRG SAUDI ARABIA EQUIPMENT(EU2)	8-94375-508-3	01	1	9206-9504	●	●
102	LOCK ASM; STRG SAUDI ARABIA EQUIPMENT(EU2)	8-97128-154-0	01	1	9505-9509	●	●
102	LOCK ASM; STRG SAUDI ARABIA EQUIPMENT(EU2)	8-97135-988-0	01	1	9510-	●	●
103	SWITCH; IGNITION A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4)	8-97017-855-0	01	1	9112-9205	●	●
103	SWITCH; IGNITION A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4)	8-97017-855-0	01	1	9206-9208	●	●
103	SWITCH; IGNITION SAUDI ARABIA EQUIPMENT(EU2)	8-97017-855-0	01	1	9206-9208	●	●
103	SWITCH; IGNITION M/T MUA 5 SPEED(RMN)	8-97018-792-0	01	1	9112-9205	●	●
103	SWITCH; IGNITION A/T THM(RMQ) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97018-792-0	01	1	9112-9205	●	●
103	SWITCH; IGNITION M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97018-792-0	01	1	9206-9208	●	●
103	SWITCH; IGNITION A/T THM(RMQ) EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2)	8-97018-792-0	01	1	9206-9208	●	●
103	SWITCH; IGNITION M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97090-861-0	01	1	9309-9504	●	●
103	SWITCH; IGNITION A/T THM(RMQ) EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2)	8-97090-861-0	01	1	9309-9504	●	●
103	SWITCH; IGNITION M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2),IMMOBILIZER SYSTEM<7KC>	8-97128-961-0	01	1	9505-9607	●	●
103	SWITCH; IGNITION A/T THM(RMQ) EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2)	8-97128-961-0	01	1	9505-9607	●	●
103	SWITCH; IGNITION EUROPE/CANARY EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC>	8-97128-961-0	01	1	9505-9607	●	●
103	SWITCH; IGNITION A/T THM(RMQ) IMMOBILIZER SYSTEM<7KC> EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97128-961-0	01	1	9608-	●	●
103	SWITCH; IGNITION M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97128-961-0	01	1	9608-	●	●
103	SWITCH; IGNITION SAUDI ARABIA EQUIPMENT(EU2)	8-97017-855-0	01	1	9209-9301	●	●
103	SWITCH; IGNITION SAUDI ARABIA EQUIPMENT(EU2)	8-97090-860-1	01	1	9302-9504	●	●
103	SWITCH; IGNITION A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4)	8-97090-860-1	01	1	9302-9504	●	●
103	SWITCH; IGNITION A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC>	8-97128-960-0	01	1	9505-	●	●
103	SWITCH; IGNITION SAUDI ARABIA EQUIPMENT(EU2)	8-97128-960-0	01	1	9505-	●	●
103	SWITCH; IGNITION EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97018-792-0	01	1	9209-9301	●	●
103	SWITCH; IGNITION M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97090-861-0	01	1	9302-9308	●	●
103	SWITCH; IGNITION A/T THM(RMQ) EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2)	8-97090-861-0	01	1	9302-9308	●	●
104	BOLT; STRG LOCK TO COLUMN (A) M6X16 W/LK WASHER	0-50040-616-0	01	1	9505-9707	●	●
104	BOLT; STRG LOCK TO COLUMN (A) M6X16 FLANGE	0-28080-616-0	01	1	9708-	●	●
104	BOLT; STRG LOCK TO COLUMN EUROPE/CANARY EQUIPMENT(EK4) M6X25 W/LK WASHER	9-01900-625-0	02	1	9112-9204	●	●
104	BOLT; STRG LOCK TO COLUMN EUROPE/CANARY EQUIPMENT(EK4) M6X25 W/LK WASHER	0-50040-625-0	02	1	9205-9208	●	●
104	BOLT; STRG LOCK TO COLUMN EXC. EUROPE/CANARY EQUIPMENT(EK4) M6X25 W/LK WASHER	9-01900-625-0	03	1	9112-9204	●	●
104	BOLT; STRG LOCK TO COLUMN EXC. EUROPE/CANARY EQUIPMENT(EK4) M6X25 W/LK WASHER	0-50040-625-0	03	1	9205-9208	●	●
104	BOLT; STRG LOCK TO COLUMN EUROPE/CANARY EQUIPMENT(EK4) M6X25 W/LK WASHER	0-50040-625-0	02	1	9209-9308	●	●
104	BOLT; STRG LOCK TO COLUMN EXC. EUROPE/CANARY EQUIPMENT(EK4) M6X25 W/LK WASHER	0-50040-625-0	03	1	9209-9308	●	●
104	BOLT; STRG LOCK TO COLUMN EUROPE/CANARY EQUIPMENT(EK4) M6X25 W/LK WASHER	0-50040-625-0	02	1	9309-9411	●	●
104	BOLT; STRG LOCK TO COLUMN EUROPE/CANARY EQUIPMENT(EK4) M6X25 W/LK&PL WASHER	8-97122-790-0	02	1	9412-9504	●	●
104	BOLT; STRG LOCK TO COLUMN EUROPE/CANARY EQUIPMENT(EK4) (B) M6X25 W/LK&PL WASHER	8-97122-790-0	01	1	9505-	●	●
104	BOLT; STRG LOCK TO COLUMN EXC. EUROPE/CANARY EQUIPMENT(EK4) M6X25 W/LK WASHER	0-50040-625-0	03	1	9309-9411	●	●
104	BOLT; STRG LOCK TO COLUMN EXC. EUROPE/CANARY EQUIPMENT(EK4) M6X25 W/LK&PL WASHER	8-97122-790-0	03	1	9412-9504	●	●
104	BOLT; STRG LOCK TO COLUMN EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) M6X25 W/LK&PL WASHER	8-97122-790-0	02	1	9505-	●	●
105	SCREW; IGN SW M4X12 W/LK WASHER	9-03910-412-0	01	1	9112-9504	●	●
105	SCREW; IGN SW EUROPE/CANARY EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> M4X12	9-03465-412-0	01	1	9505-9509	●	●
105	SCREW; IGN SW EUROPE/CANARY EQUIPMENT(EK4) M4X12	9-03465-412-0	01	1	9510-9607	●	●
105	SCREW; IGN SW M4X12	9-03465-412-0	01	1	9608-	●	●
105	SCREW; IGN SW EUROPE/CANARY EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> M3X8 W/LK WASHER	9-03910-308-0	01	1	9505-9509	●	●
174	RUBBER; CUSHION,STRG COLUMN	8-94385-036-0	01	1	9112-9504	●	●
174	RUBBER; CUSHION,STRG COLUMN	8-97081-806-0	01	1	9505-9605	●	●
174	RUBBER; CUSHION,STRG COLUMN	8-97176-325-0	01	1	9606-9708	●	●
174	RUBBER; CUSHION,STRG COLUMN	8-97170-762-0	01	1	9709-	●	●
188	BOLT; TORQUE,STEERING EUROPE/CANARY EQUIPMENT(EK4)	8-94474-206-0	01	1	9112-	●	●
229	PROTECTOR; STRG COLUMN	8-97109-627-2	01	1	9505-	●	●
237	SCREW; DOOR WARNING SW SAUDI ARABIA EQUIPMENT(EU2) M3X8 W/LK WASHER	9-03910-308-0	02	1	9309-9504	●	●
237	SCREW; DOOR WARNING SW A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4) M3X8 W/LK WASHER	9-03910-308-0	02	1	9309-9504	●	●
237	SCREW; DOOR WARNING SW A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> M3X8 W/LK WASHER	9-03910-308-0	01	1	9505-	●	●
237	SCREW; DOOR WARNING SW SAUDI ARABIA EQUIPMENT(EU2) M3X8 W/LK WASHER	9-03910-308-0	01	1	9505-	●	●

188 19 174 104 102 237 103 105 237 33 35 29 13 65 75 3 75 6 33 101 1 96 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-94375-203-4	01	1	9112-9208	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU)	8-94375-203-4	01	1	9209-9403	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97101-355-1	01	1	9404-9607	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU)	8-97101-355-1	01	1	9404-9607		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97109-986-0	01	1	9608-	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97080-321-1	01	1	9209-9403	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97101-354-1	01	1	9404-9504		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. 4JG2 ENG(RJC)	8-97101-354-1	01	1	9505-9607		●
3	SHAFT & COLUMN ASM; STRG TILT STEERING<N33>	8-97066-899-0	01	1	9112-9112	●	●
3	SHAFT & COLUMN ASM; STRG TILT STEERING<N33>	8-97077-931-0	01	1	9201-9208	●	●
3	SHAFT & COLUMN ASM; STRG TILT STEERING<N33>	8-97069-496-0	01	1	9209-9312	●	●
3	SHAFT & COLUMN ASM; STRG TILT STEERING<N33>	8-97088-690-1	01	1	9401-9504	●	●
3	SHAFT & COLUMN ASM; STRG TILT STEERING<N33>	8-97112-184-0	01	1	9505-9607	●	●
3	SHAFT & COLUMN ASM; STRG TILT STEERING<N33>	8-97134-412-0	01	1	9608-9708	●	●
3	SHAFT & COLUMN ASM; STRG TILT STEERING<N33>	8-97203-773-0	01	1	9709-	●	●
6	SHAFT; STRG LWR TILT STEERING<N33>	8-97066-993-0	01	1	9112-9112	●	●
6	SHAFT; STRG LWR TILT STEERING<N33>	8-97077-928-1	01	1	9201-9504	●	●
6	SHAFT; STRG LWR TILT STEERING<N33>	8-97112-176-0	01	1	9505-9607	●	●
6	SHAFT; STRG LWR TILT STEERING<N33>	8-97124-163-1	01	1	9608-	●	●
13	COVER; SPR TILT STEERING<N33>	8-94477-983-0	01	1	9112-9312	●	●
19	RING; SNAP,STRG SHAFT ID=18.5	9-09180-420-0	01	1	9112-9504	●	●
19	RING; SNAP,STRG SHAFT ID=20.5	9-09180-022-0	01	1	9505-	●	●
29	SPRING; COLUMN TILT STEERING<N33>	8-97066-904-0	01	1	9112-9112	●	●
29	SPRING; COLUMN TILT STEERING<N33>	8-97069-501-0	01	1	9201-	●	●
33	BOLT; STRG SHAFT TO UNIT (A) M8X30	8-94247-692-0	01	1	9112-	●	●
33	BOLT; STRG SHAFT TO UNIT TILT STEERING<N33> (B)	8-94477-976-1	01	1	9112-	●	●
35	WASHER; LK,STRG SHAFT TILT STEERING<N33>	8-94477-979-0	01	1	9112-	●	●
65	SPRING; STRG COLUMN TILT STEERING<N33>	8-97066-903-0	01	1	9112-9112	●	●
65	SPRING; STRG COLUMN TILT STEERING<N33>	8-97077-926-0	01	1	9201-9504	●	●
65	SPRING; STRG COLUMN TILT STEERING<N33>	8-97078-241-0	01	1	9505-	●	●
75	BOLT; STRG COLUMN (A) M8X25	8-94152-496-1	02	1	9112-	●	●
75	BOLT; STRG COLUMN (B) M8X32 W/LK&PL WASHER	8-97014-296-0	02	1	9112-9504	●	●
75	BOLT; STRG COLUMN (B) M8X35	8-97100-457-0	02	1	9505-	●	●
95	BOLT; STRG UNIT M10X92 FLANGE	8-94313-798-1	04	1	9112-	●	●
96	NUT; STRG UNIT M10 FLANGE	8-94313-797-0	04	1	9112-	●	●
101	WASHER; LK,STRG SHAFT TO UNIT ID=8.2	9-09150-508-0	01	1	9112-	●	●
102	LOCK ASM; STRG A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4)	8-94375-509-3	01	1	9112-9504	●	●
102	LOCK ASM; STRG A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC>	8-97124-157-1	01	1	9505-9509	●	●
102	LOCK ASM; STRG A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC>	8-97135-991-0	01	1	9510-	●	●
102	LOCK ASM; STRG A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC>	8-97128-155-0	01	1	9505-9509	●	●
102	LOCK ASM; STRG A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC>	8-97135-990-0	01	1	9510-	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN)	8-94375-507-0	01	1	9112-9205	●	●
102	LOCK ASM; STRG A/T THM(RMQ) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94375-507-0	01	1	9112-9205	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-94375-507-1	01	1	9206-9308	●	●
102	LOCK ASM; STRG A/T THM(RMQ) EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2)	8-94375-507-1	01	1	9206-9308	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN) EUROPE/CANARY EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC>	8-97124-158-1	01	1	9505-9509	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN) EUROPE/CANARY EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC>	8-97135-989-0	01	1	9510-9607	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN) IMMOBILIZER SYSTEM<7KC>	8-97135-989-0	01	1	9608-	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-94375-507-2	01	1	9309-9504	●	●
102	LOCK ASM; STRG A/T THM(RMQ) EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2)	8-94375-507-2	01	1	9309-9504	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN) EUROPE/CANARY EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC>	8-97081-618-3	01	1	9505-9509	●	●
102	LOCK ASM; STRG EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2)	8-97081-618-3	01	1	9505-9509	●	●
102	LOCK ASM; STRG M/T MUA 5 SPEED(RMN) EUROPE/CANARY EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC>	8-97135-987-0	01	1	9510-	●	●
102	LOCK ASM; STRG EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2)	8-97135-987-0	01	1	9510-	●	●
102	LOCK ASM; STRG SAUDI ARABIA EQUIPMENT(EU2)	8-94375-508-3	01	1	9206-9504	●	●
102	LOCK ASM; STRG SAUDI ARABIA EQUIPMENT(EU2)	8-97128-154-0	01	1	9505-9509	●	●
102	LOCK ASM; STRG SAUDI ARABIA EQUIPMENT(EU2)	8-97135-988-0	01	1	9510-	●	●
103	SWITCH; IGNITION A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4)	8-97017-855-0	01	1	9112-9205	●	●
103	SWITCH; IGNITION A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4)	8-97017-855-0	01	1	9206-9208	●	●
103	SWITCH; IGNITION SAUDI ARABIA EQUIPMENT(EU2)	8-97017-855-0	01	1	9206-9208	●	●
103	SWITCH; IGNITION M/T MUA 5 SPEED(RMN)	8-97018-792-0	01	1	9112-9205	●	●
103	SWITCH; IGNITION A/T THM(RMQ) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97018-792-0	01	1	9112-9205	●	●
103	SWITCH; IGNITION M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97018-792-0	01	1	9206-9208	●	●
103	SWITCH; IGNITION A/T THM(RMQ) EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2)	8-97018-792-0	01	1	9206-9208	●	●
103	SWITCH; IGNITION M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97090-861-0	01	1	9309-9504	●	●
103	SWITCH; IGNITION A/T THM(RMQ) EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2)	8-97090-861-0	01	1	9309-9504	●	●
103	SWITCH; IGNITION M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2),IMMOBILIZER SYSTEM<7KC>	8-97128-961-0	01	1	9505-9607	●	●
103	SWITCH; IGNITION A/T THM(RMQ) EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2)	8-97128-961-0	01	1	9505-9607	●	●
103	SWITCH; IGNITION EUROPE/CANARY EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC>	8-97128-961-0	01	1	9505-9607	●	●
103	SWITCH; IGNITION A/T THM(RMQ) IMMOBILIZER SYSTEM<7KC> EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97128-961-0	01	1	9608-	●	●
103	SWITCH; IGNITION M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97128-961-0	01	1	9608-	●	●
103	SWITCH; IGNITION SAUDI ARABIA EQUIPMENT(EU2)	8-97017-855-0	01	1	9209-9301	●	●
103	SWITCH; IGNITION SAUDI ARABIA EQUIPMENT(EU2)	8-97090-860-1	01	1	9302-9504	●	●
103	SWITCH; IGNITION A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4)	8-97090-860-1	01	1	9302-9504	●	●
103	SWITCH; IGNITION A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC>	8-97128-960-0	01	1	9505-	●	●
103	SWITCH; IGNITION SAUDI ARABIA EQUIPMENT(EU2)	8-97128-960-0	01	1	9505-	●	●
103	SWITCH; IGNITION EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97018-792-0	01	1	9209-9301	●	●
103	SWITCH; IGNITION M/T MUA 5 SPEED(RMN) EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97090-861-0	01	1	9302-9308	●	●
103	SWITCH; IGNITION A/T THM(RMQ) EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2)	8-97090-861-0	01	1	9302-9308	●	●
104	BOLT; STRG LOCK TO COLUMN (A) M6X16 W/LK WASHER	0-50040-616-0	01	1	9505-9707	●	●
104	BOLT; STRG LOCK TO COLUMN (A) M6X16 FLANGE	0-28080-616-0	01	1	9708-	●	●
104	BOLT; STRG LOCK TO COLUMN EUROPE/CANARY EQUIPMENT(EK4) M6X25 W/LK WASHER	9-01900-625-0	02	1	9112-9204	●	●
104	BOLT; STRG LOCK TO COLUMN EUROPE/CANARY EQUIPMENT(EK4) M6X25 W/LK WASHER	0-50040-625-0	02	1	9205-9208	●	●
104	BOLT; STRG LOCK TO COLUMN EXC. EUROPE/CANARY EQUIPMENT(EK4) M6X25 W/LK WASHER	9-01900-625-0	03	1	9112-9204	●	●
104	BOLT; STRG LOCK TO COLUMN EXC. EUROPE/CANARY EQUIPMENT(EK4) M6X25 W/LK WASHER	0-50040-625-0	03	1	9205-9208	●	●
104	BOLT; STRG LOCK TO COLUMN EUROPE/CANARY EQUIPMENT(EK4) M6X25 W/LK WASHER	0-50040-625-0	02	1	9209-9308	●	●
104	BOLT; STRG LOCK TO COLUMN EXC. EUROPE/CANARY EQUIPMENT(EK4) M6X25 W/LK WASHER	0-50040-625-0	03	1	9209-9308	●	●
104	BOLT; STRG LOCK TO COLUMN EUROPE/CANARY EQUIPMENT(EK4) M6X25 W/LK WASHER	0-50040-625-0	02	1	9309-9411	●	●
104	BOLT; STRG LOCK TO COLUMN EUROPE/CANARY EQUIPMENT(EK4) M6X25 W/LK&PL WASHER	8-97122-790-0	02	1	9412-9504	●	●
104	BOLT; STRG LOCK TO COLUMN EUROPE/CANARY EQUIPMENT(EK4) (B) M6X25 W/LK&PL WASHER	8-97122-790-0	01	1	9505-	●	●
104	BOLT; STRG LOCK TO COLUMN EXC. EUROPE/CANARY EQUIPMENT(EK4) M6X25 W/LK WASHER	0-50040-625-0	03	1	9309-9411	●	●
104	BOLT; STRG LOCK TO COLUMN EXC. EUROPE/CANARY EQUIPMENT(EK4) M6X25 W/LK&PL WASHER	8-97122-790-0	03	1	9412-9504	●	●
104	BOLT; STRG LOCK TO COLUMN EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) M6X25 W/LK&PL WASHER	8-97122-790-0	02	1	9505-	●	●
105	SCREW; IGN SW M4X12 W/LK WASHER	9-03910-412-0	01	1	9112-9504	●	●
105	SCREW; IGN SW EUROPE/CANARY EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> M4X12	9-03465-412-0	01	1	9505-9509	●	●
105	SCREW; IGN SW EUROPE/CANARY EQUIPMENT(EK4) M4X12	9-03465-412-0	01	1	9510-9607	●	●
105	SCREW; IGN SW M4X12	9-03465-412-0	01	1	9608-	●	●
105	SCREW; IGN SW EUROPE/CANARY EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> M3X8 W/LK WASHER	9-03910-308-0	01	1	9505-9509	●	●
174	RUBBER; CUSHION,STRG COLUMN	8-94385-036-0	01	1	9112-9504	●	●
174	RUBBER; CUSHION,STRG COLUMN	8-97081-806-0	01	1	9505-9605	●	●
174	RUBBER; CUSHION,STRG COLUMN	8-97176-325-0	01	1	9606-9708	●	●
174	RUBBER; CUSHION,STRG COLUMN	8-97170-762-0	01	1	9709-	●	●
188	BOLT; TORQUE,STEERING EUROPE/CANARY EQUIPMENT(EK4)	8-94474-206-0	01	1	9112-	●	●
237	SCREW; DOOR WARNING SW SAUDI ARABIA EQUIPMENT(EU2) M3X8 W/LK WASHER	9-03910-308-0	02	1	9309-9504	●	●
237	SCREW; DOOR WARNING SW A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4) M3X8 W/LK WASHER	9-03910-308-0	02	1	9309-9504	●	●
237	SCREW; DOOR WARNING SW A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> M3X8 W/LK WASHER	9-03910-308-0	01	1	9505-	●	●
237	SCREW; DOOR WARNING SW SAUDI ARABIA EQUIPMENT(EU2) M3X8 W/LK WASHER	9-03910-308-0	01	1	9505-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
