Sayfa 4-30 - Isuzu EPC

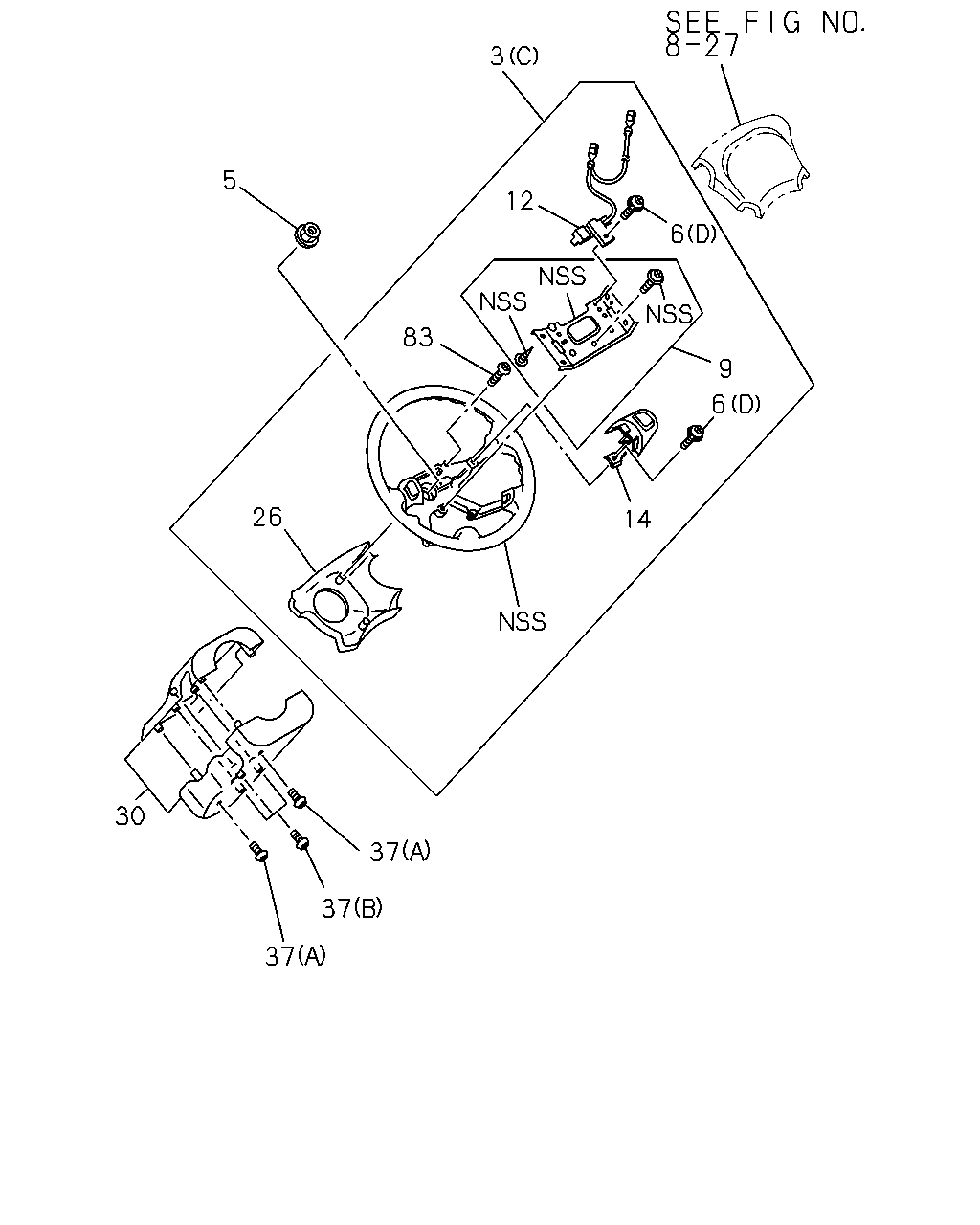

4-30 — STEERING WHEEL AND COWL (#33637) — 188 parça

20 6 7 3 6 6 26 63 9 5 37 37 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	WHEEL; STRG AIR BAG DRIVER<AJ3> STRG WHEEL URETHANE(NK4) (C) BLACK	8-97155-250-0	01	1	9608-	●	●
3	WHEEL; STRG AIR BAG DRIVER<AJ3> STRG WHEEL LEATHER(NK3) (C) BLACK	8-97155-689-1	01	1	9608-	●	●
3	WHEEL; STRG INTERIOR COLOR BROWN(130) STRG WHEEL URETHANE(NK4) (A) DARK BROWN	8-97004-133-1	01	1	9112-9112	●	●
3	WHEEL; STRG INTERIOR COLOR BROWN(130) STRG WHEEL URETHANE(NK4) (A) DARK BROWN	8-97009-176-0	01	1	9201-9504	●	●
3	WHEEL; STRG STRG WHEEL URETHANE(NK4) (B) BLACK	8-97151-440-3	01	1	9505-9511	●	●
3	WHEEL; STRG STRG WHEEL URETHANE(NK4) (B) BLACK	8-97156-020-0	01	1	9512-9607	●	●
3	WHEEL; STRG STRG WHEEL URETHANE(NK4) EXC. AIR BAG DRIVER<AJ3> (B) BLACK	8-97156-020-0	01	1	9608-	●	●
3	WHEEL; STRG INTERIOR COLOR BROWN(130) STRG WHEEL LEATHER(NK3) (A) DARK BROWN	8-97003-124-2	01	1	9112-9112	●	●
3	WHEEL; STRG INTERIOR COLOR BROWN(130) STRG WHEEL LEATHER(NK3) (A) DARK BROWN	8-97009-177-0	01	1	9201-9504	●	●
3	WHEEL; STRG STRG WHEEL LEATHER(NK3) (B) BLACK	8-97151-441-3	01	1	9505-9511	●	●
3	WHEEL; STRG STRG WHEEL LEATHER(NK3) (B) BLACK	8-97156-021-0	01	1	9512-9607	●	●
3	WHEEL; STRG STRG WHEEL LEATHER(NK3) EXC. AIR BAG DRIVER<AJ3> (B) BLACK	8-97155-688-1	01	1	9608-	●	●
3	WHEEL; STRG INTERIOR COLOR GRAY(153) STRG WHEEL URETHANE(NK4) (A) DARK GRAY	8-97003-122-1	01	1	9112-9112	●	●
3	WHEEL; STRG INTERIOR COLOR GRAY(153) STRG WHEEL URETHANE(NK4) (A) DARK GRAY	8-97009-175-0	01	1	9201-9504	●	●
3	WHEEL; STRG INTERIOR COLOR GRAY(153) STRG WHEEL LEATHER(NK3) (A) DARK GRAY	8-97003-126-2	01	1	9112-9112	●	●
3	WHEEL; STRG INTERIOR COLOR GRAY(153) STRG WHEEL LEATHER(NK3) (A) DARK GRAY	8-97009-178-0	01	1	9201-9504	●	●
5	NUT; STRG WHEEL TO SHAFT M12 W/TOOTH WASHER	8-94455-487-0	01	1	9112-	●	●
6	SCREW; HORN SPR CONTACT AIR BAG DRIVER<AJ3> STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) (D)	8-97122-618-0	03	1	9608-	●	●
6	SCREW; HORN SPR CONTACT INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153) STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) EXC. EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97036-514-0	01	1	9112-9307	●	●
6	SCREW; HORN SPR CONTACT INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153) STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) (A)	8-97036-514-0	01	1	9308-9504	●	●
6	SCREW; HORN SPR CONTACT INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153) STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B)	8-97036-515-0	02	1	9112-9307	●	●
6	SCREW; HORN SPR CONTACT INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153) STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) (B)	8-97036-515-0	02	1	9308-9504	●	●
6	SCREW; HORN SPR CONTACT INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153) STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) (C)	8-97061-474-0	02	1	9112-9504	●	●
7	SPRING; HORN CONTACT INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153) STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97036-511-0	01	1	9112-9307	●	●
7	SPRING; HORN CONTACT INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153) STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4)	8-97036-511-1	01	1	9308-9504	●	●
9	PLATE; HORN CONTACT AIR BAG DRIVER<AJ3> STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4)	8-97122-394-0	01	1	9608-	●	●
9	PLATE; HORN CONTACT INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153) STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97036-510-0	01	1	9112-9307	●	●
9	PLATE; HORN CONTACT INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153) STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4)	8-97036-510-0	01	1	9308-9504	●	●
20	SHROUD; PAD,STRG WHEEL INTERIOR COLOR BROWN(130) EUROPE/CANARY EQUIPMENT(EK4) STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) DARK BROWN	8-97007-440-0	01	1	9112-9208	●	●
20	SHROUD; PAD,STRG WHEEL INTERIOR COLOR BROWN(130) EUROPE/CANARY EQUIPMENT(EK4) STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) DARK BROWN	8-97009-948-0	01	1	9209-9504	●	●
20	SHROUD; PAD,STRG WHEEL STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) CHEVROLET BRAND<RWE> BLACK	8-97153-229-2	01	1	9505-9607	●	●
20	SHROUD; PAD,STRG WHEEL STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) CHEVROLET BRAND<RWE> EXC. AIR BAG DRIVER<AJ3> BLACK	8-97153-229-2	01	1	9608-	●	●
20	SHROUD; PAD,STRG WHEEL INTERIOR COLOR BROWN(130) STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) EXC. EUROPE/CANARY EQUIPMENT(EK4),VENEZUELA EQUIPMENT(S2L) DARK BROWN	8-97003-128-0	01	1	9112-9208	●	●
20	SHROUD; PAD,STRG WHEEL INTERIOR COLOR BROWN(130) STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) VENEZUELA EQUIPMENT(S2L) DARK BROWN	8-97004-138-0	01	1	9112-9208	●	●
20	SHROUD; PAD,STRG WHEEL INTERIOR COLOR BROWN(130) STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) EXC. EUROPE/CANARY EQUIPMENT(EK4) DARK BROWN	8-97003-128-0	01	1	9209-9504	●	●
20	SHROUD; PAD,STRG WHEEL STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) EXC. CHEVROLET BRAND<RWE>,GMC BRAND<RWT> BLACK	8-97151-448-2	01	1	9505-9607	●	●
20	SHROUD; PAD,STRG WHEEL STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) EXC. AIR BAG DRIVER<AJ3>,CHEVROLET BRAND<RWE>,GMC BRAND<RWT> BLACK	8-97151-448-2	01	1	9608-	●	●
20	SHROUD; PAD,STRG WHEEL INTERIOR COLOR GRAY(153) EUROPE/CANARY EQUIPMENT(EK4) STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) DARK GRAY	8-97007-441-0	01	1	9112-9208	●	●
20	SHROUD; PAD,STRG WHEEL INTERIOR COLOR GRAY(153) EUROPE/CANARY EQUIPMENT(EK4) STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) DARK GRAY	8-97009-949-0	01	1	9209-9504	●	●
20	SHROUD; PAD,STRG WHEEL STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) GMC BRAND<RWT> BLACK	8-97153-228-2	01	1	9505-9607	●	●
20	SHROUD; PAD,STRG WHEEL STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) GMC BRAND<RWT> EXC. AIR BAG DRIVER<AJ3> BLACK	8-97153-228-2	01	1	9608-	●	●
20	SHROUD; PAD,STRG WHEEL INTERIOR COLOR GRAY(153) STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) EXC. EUROPE/CANARY EQUIPMENT(EK4),VENEZUELA EQUIPMENT(S2L) DARK GRAY	8-97003-130-0	01	1	9112-9208	●	●
20	SHROUD; PAD,STRG WHEEL INTERIOR COLOR GRAY(153) STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) VENEZUELA EQUIPMENT(S2L) DARK GRAY	8-97004-942-0	01	1	9112-9208	●	●
20	SHROUD; PAD,STRG WHEEL INTERIOR COLOR GRAY(153) STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) EXC. EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY	8-97003-130-0	01	1	9209-9504	●	●
26	COVER; STRG WHEEL,LWR AIR BAG DRIVER<AJ3> STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) BLACK	8-97153-000-0	01	1	9608-	●	●
26	COVER; STRG WHEEL,LWR INTERIOR COLOR BROWN(130) STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) DARK BROWN	8-97006-500-0	01	1	9112-9504	●	●
26	COVER; STRG WHEEL,LWR STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) BLACK	8-97153-234-0	01	1	9505-9607	●	●
26	COVER; STRG WHEEL,LWR STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) EXC. AIR BAG DRIVER<AJ3> BLACK	8-97153-234-0	01	1	9608-	●	●
26	COVER; STRG WHEEL,LWR INTERIOR COLOR GRAY(153) STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) DARK GRAY	8-97006-502-0	01	1	9112-9504	●	●
30	COWL; STEERING INTERIOR COLOR BROWN(130) AUTO CRUISE CONT<K30> DARK BROWN	8-97003-134-2	01	1	9112-9504	●	●
30	COWL; STEERING EXC. IMMOBILIZER SYSTEM<7KC> BLACK	8-97098-330-5	01	1	9505-	●	●
30	COWL; STEERING INTERIOR COLOR BROWN(130) EXC. AUTO CRUISE CONT<K30> DARK BROWN	8-97004-128-2	01	1	9112-9504	●	●
30	COWL; STEERING IMMOBILIZER SYSTEM<7KC> BLACK	8-97153-245-4	01	1	9505-	●	●
30	COWL; STEERING INTERIOR COLOR GRAY(153) AUTO CRUISE CONT<K30> DARK GRAY	8-97003-136-2	01	1	9112-9504	●	●
30	COWL; STEERING INTERIOR COLOR GRAY(153) EXC. AUTO CRUISE CONT<K30> DARK GRAY	8-97003-131-2	01	1	9112-9504	●	●
37	SCREW; STRG COWL UPR (A) M5X16	5-09981-053-0	02	1	9112-9504	●	●
37	SCREW; STRG COWL UPR (A) M5X16	5-09981-053-0	04	1	9505-	●	●
37	SCREW; STRG COWL UPR (B) M4X12 W/PL WASHER	9-03900-412-0	03	1	9112-	●	●
63	SPACER; HORN CONTACT INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153) STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97036-512-0	01	1	9112-9307	●	●
63	SPACER; HORN CONTACT INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153) STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4)	8-97036-512-0	01	1	9308-9504	●	●

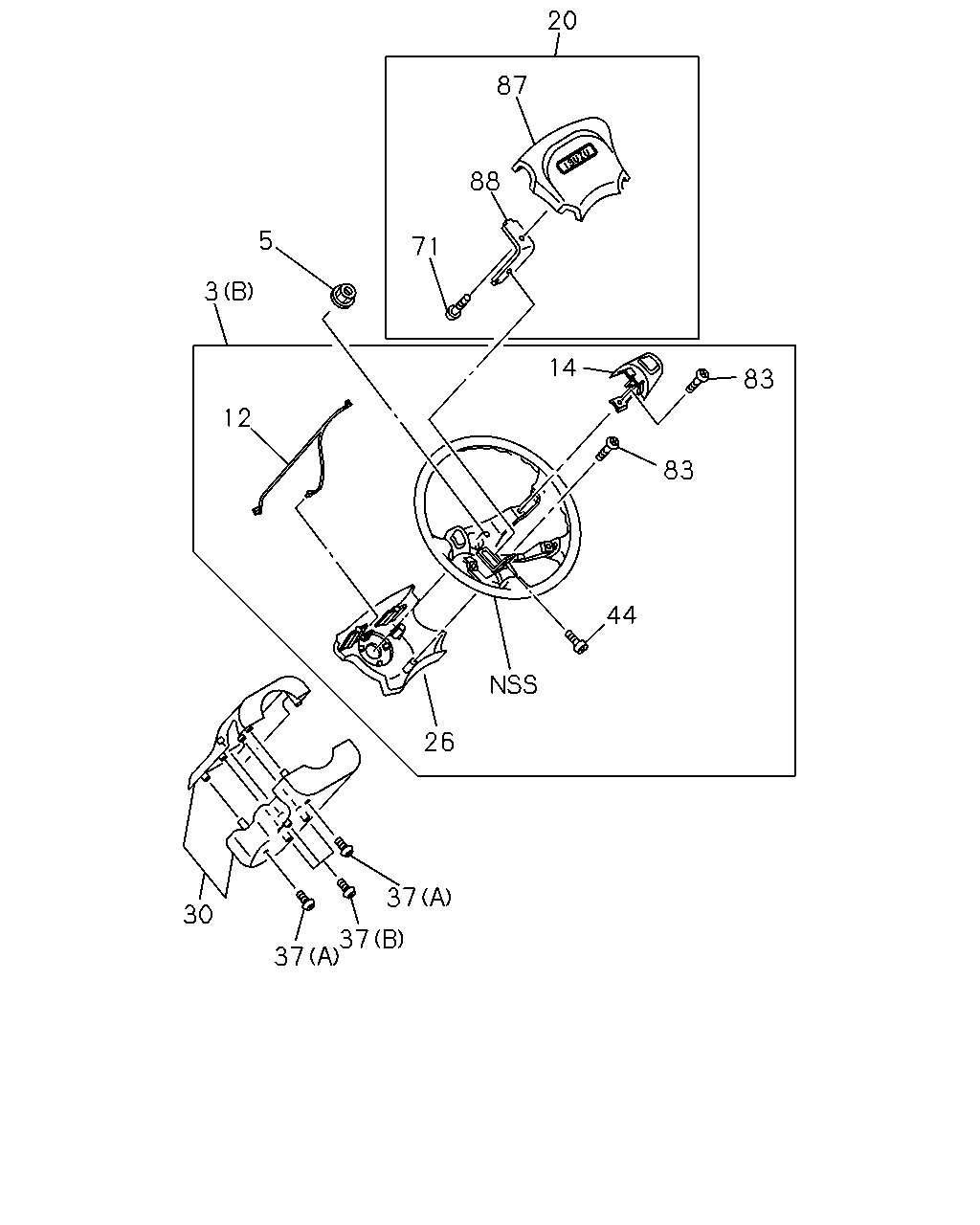

20 87 88 5 71 3 14 83 12 83 44 26 37 30 37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	WHEEL; STRG AIR BAG DRIVER<AJ3> STRG WHEEL URETHANE(NK4) (C) BLACK	8-97155-250-0	01	1	9608-	●	●
3	WHEEL; STRG AIR BAG DRIVER<AJ3> STRG WHEEL LEATHER(NK3) (C) BLACK	8-97155-689-1	01	1	9608-	●	●
3	WHEEL; STRG INTERIOR COLOR BROWN(130) STRG WHEEL URETHANE(NK4) (A) DARK BROWN	8-97004-133-1	01	1	9112-9112	●	●
3	WHEEL; STRG INTERIOR COLOR BROWN(130) STRG WHEEL URETHANE(NK4) (A) DARK BROWN	8-97009-176-0	01	1	9201-9504	●	●
3	WHEEL; STRG STRG WHEEL URETHANE(NK4) (B) BLACK	8-97151-440-3	01	1	9505-9511	●	●
3	WHEEL; STRG STRG WHEEL URETHANE(NK4) (B) BLACK	8-97156-020-0	01	1	9512-9607	●	●
3	WHEEL; STRG STRG WHEEL URETHANE(NK4) EXC. AIR BAG DRIVER<AJ3> (B) BLACK	8-97156-020-0	01	1	9608-	●	●
3	WHEEL; STRG INTERIOR COLOR BROWN(130) STRG WHEEL LEATHER(NK3) (A) DARK BROWN	8-97003-124-2	01	1	9112-9112	●	●
3	WHEEL; STRG INTERIOR COLOR BROWN(130) STRG WHEEL LEATHER(NK3) (A) DARK BROWN	8-97009-177-0	01	1	9201-9504	●	●
3	WHEEL; STRG STRG WHEEL LEATHER(NK3) (B) BLACK	8-97151-441-3	01	1	9505-9511	●	●
3	WHEEL; STRG STRG WHEEL LEATHER(NK3) (B) BLACK	8-97156-021-0	01	1	9512-9607	●	●
3	WHEEL; STRG STRG WHEEL LEATHER(NK3) EXC. AIR BAG DRIVER<AJ3> (B) BLACK	8-97155-688-1	01	1	9608-	●	●
3	WHEEL; STRG INTERIOR COLOR GRAY(153) STRG WHEEL URETHANE(NK4) (A) DARK GRAY	8-97003-122-1	01	1	9112-9112	●	●
3	WHEEL; STRG INTERIOR COLOR GRAY(153) STRG WHEEL URETHANE(NK4) (A) DARK GRAY	8-97009-175-0	01	1	9201-9504	●	●
3	WHEEL; STRG INTERIOR COLOR GRAY(153) STRG WHEEL LEATHER(NK3) (A) DARK GRAY	8-97003-126-2	01	1	9112-9112	●	●
3	WHEEL; STRG INTERIOR COLOR GRAY(153) STRG WHEEL LEATHER(NK3) (A) DARK GRAY	8-97009-178-0	01	1	9201-9504	●	●
5	NUT; STRG WHEEL TO SHAFT M12 W/TOOTH WASHER	8-94455-487-0	01	1	9112-	●	●
12	CORD; HORN AIR BAG DRIVER<AJ3> STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4)	8-97122-397-0	01	1	9608-	●	●
12	CORD; HORN STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4)	8-97124-010-0	01	1	9505-9607	●	●
12	CORD; HORN STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) EXC. AIR BAG DRIVER<AJ3>	8-97124-010-0	01	1	9608-	●	●
14	BUTTON; HORN,STRG WHEEL AIR BAG DRIVER<AJ3> STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) BLACK	8-97155-253-0	01	1	9608-	●	●
14	BUTTON; HORN,STRG WHEEL AIR BAG DRIVER<AJ3> STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) BLACK	8-97155-252-0	01	1	9608-	●	●
14	BUTTON; HORN,STRG WHEEL STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) BLACK	8-97153-236-0	01	1	9505-9511	●	●
14	BUTTON; HORN,STRG WHEEL STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) BLACK	8-97155-693-0	01	1	9512-9607	●	●
14	BUTTON; HORN,STRG WHEEL STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) EXC. AIR BAG DRIVER<AJ3> BLACK	8-97155-693-0	01	1	9608-	●	●
14	BUTTON; HORN,STRG WHEEL STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) BLACK	8-97153-235-0	01	1	9505-9511	●	●
14	BUTTON; HORN,STRG WHEEL STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) BLACK	8-97155-692-0	01	1	9512-9607	●	●
14	BUTTON; HORN,STRG WHEEL STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) EXC. AIR BAG DRIVER<AJ3> BLACK	8-97155-692-0	01	1	9608-	●	●
20	SHROUD; PAD,STRG WHEEL INTERIOR COLOR BROWN(130) EUROPE/CANARY EQUIPMENT(EK4) STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) DARK BROWN	8-97007-440-0	01	1	9112-9208	●	●
20	SHROUD; PAD,STRG WHEEL INTERIOR COLOR BROWN(130) EUROPE/CANARY EQUIPMENT(EK4) STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) DARK BROWN	8-97009-948-0	01	1	9209-9504	●	●
20	SHROUD; PAD,STRG WHEEL STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) CHEVROLET BRAND<RWE> BLACK	8-97153-229-2	01	1	9505-9607	●	●
20	SHROUD; PAD,STRG WHEEL STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) CHEVROLET BRAND<RWE> EXC. AIR BAG DRIVER<AJ3> BLACK	8-97153-229-2	01	1	9608-	●	●
20	SHROUD; PAD,STRG WHEEL INTERIOR COLOR BROWN(130) STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) EXC. EUROPE/CANARY EQUIPMENT(EK4),VENEZUELA EQUIPMENT(S2L) DARK BROWN	8-97003-128-0	01	1	9112-9208	●	●
20	SHROUD; PAD,STRG WHEEL INTERIOR COLOR BROWN(130) STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) VENEZUELA EQUIPMENT(S2L) DARK BROWN	8-97004-138-0	01	1	9112-9208	●	●
20	SHROUD; PAD,STRG WHEEL INTERIOR COLOR BROWN(130) STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) EXC. EUROPE/CANARY EQUIPMENT(EK4) DARK BROWN	8-97003-128-0	01	1	9209-9504	●	●
20	SHROUD; PAD,STRG WHEEL STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) EXC. CHEVROLET BRAND<RWE>,GMC BRAND<RWT> BLACK	8-97151-448-2	01	1	9505-9607	●	●
20	SHROUD; PAD,STRG WHEEL STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) EXC. AIR BAG DRIVER<AJ3>,CHEVROLET BRAND<RWE>,GMC BRAND<RWT> BLACK	8-97151-448-2	01	1	9608-	●	●
20	SHROUD; PAD,STRG WHEEL INTERIOR COLOR GRAY(153) EUROPE/CANARY EQUIPMENT(EK4) STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) DARK GRAY	8-97007-441-0	01	1	9112-9208	●	●
20	SHROUD; PAD,STRG WHEEL INTERIOR COLOR GRAY(153) EUROPE/CANARY EQUIPMENT(EK4) STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) DARK GRAY	8-97009-949-0	01	1	9209-9504	●	●
20	SHROUD; PAD,STRG WHEEL STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) GMC BRAND<RWT> BLACK	8-97153-228-2	01	1	9505-9607	●	●
20	SHROUD; PAD,STRG WHEEL STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) GMC BRAND<RWT> EXC. AIR BAG DRIVER<AJ3> BLACK	8-97153-228-2	01	1	9608-	●	●
20	SHROUD; PAD,STRG WHEEL INTERIOR COLOR GRAY(153) STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) EXC. EUROPE/CANARY EQUIPMENT(EK4),VENEZUELA EQUIPMENT(S2L) DARK GRAY	8-97003-130-0	01	1	9112-9208	●	●
20	SHROUD; PAD,STRG WHEEL INTERIOR COLOR GRAY(153) STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) VENEZUELA EQUIPMENT(S2L) DARK GRAY	8-97004-942-0	01	1	9112-9208	●	●
20	SHROUD; PAD,STRG WHEEL INTERIOR COLOR GRAY(153) STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) EXC. EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY	8-97003-130-0	01	1	9209-9504	●	●
26	COVER; STRG WHEEL,LWR AIR BAG DRIVER<AJ3> STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) BLACK	8-97153-000-0	01	1	9608-	●	●
26	COVER; STRG WHEEL,LWR INTERIOR COLOR BROWN(130) STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) DARK BROWN	8-97006-500-0	01	1	9112-9504	●	●
26	COVER; STRG WHEEL,LWR STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) BLACK	8-97153-234-0	01	1	9505-9607	●	●
26	COVER; STRG WHEEL,LWR STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) EXC. AIR BAG DRIVER<AJ3> BLACK	8-97153-234-0	01	1	9608-	●	●
26	COVER; STRG WHEEL,LWR INTERIOR COLOR GRAY(153) STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) DARK GRAY	8-97006-502-0	01	1	9112-9504	●	●
30	COWL; STEERING INTERIOR COLOR BROWN(130) AUTO CRUISE CONT<K30> DARK BROWN	8-97003-134-2	01	1	9112-9504	●	●
30	COWL; STEERING EXC. IMMOBILIZER SYSTEM<7KC> BLACK	8-97098-330-5	01	1	9505-	●	●
30	COWL; STEERING INTERIOR COLOR BROWN(130) EXC. AUTO CRUISE CONT<K30> DARK BROWN	8-97004-128-2	01	1	9112-9504	●	●
30	COWL; STEERING IMMOBILIZER SYSTEM<7KC> BLACK	8-97153-245-4	01	1	9505-	●	●
30	COWL; STEERING INTERIOR COLOR GRAY(153) AUTO CRUISE CONT<K30> DARK GRAY	8-97003-136-2	01	1	9112-9504	●	●
30	COWL; STEERING INTERIOR COLOR GRAY(153) EXC. AUTO CRUISE CONT<K30> DARK GRAY	8-97003-131-2	01	1	9112-9504	●	●
37	SCREW; STRG COWL UPR (A) M5X16	5-09981-053-0	02	1	9112-9504	●	●
37	SCREW; STRG COWL UPR (A) M5X16	5-09981-053-0	04	1	9505-	●	●
37	SCREW; STRG COWL UPR (B) M4X12 W/PL WASHER	9-03900-412-0	03	1	9112-	●	●
44	SCREW; STRG COWL STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) M5X19 W/LK&PL WASHER	8-94104-815-1	01	1	9505-9607	●	●
44	SCREW; STRG COWL STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) EXC. AIR BAG DRIVER<AJ3> M5X19 W/LK&PL WASHER	8-94104-815-1	01	1	9608-	●	●
71	SCREW; BRKT,STRG WHEEL STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4)	8-97124-023-0	03	1	9505-9505	●	●
71	SCREW; BRKT,STRG WHEEL STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4)	8-97124-023-0	01	1	9506-9607	●	●
71	SCREW; BRKT,STRG WHEEL STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) EXC. AIR BAG DRIVER<AJ3>	8-97124-023-0	01	1	9608-	●	●
83	SCREW; LWR COVER TO WHEEL AIR BAG DRIVER<AJ3> STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4)	8-97122-619-0	04	1	9608-	●	●
83	SCREW; LWR COVER TO WHEEL STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4)	8-97124-009-0	04	1	9505-9607	●	●
83	SCREW; LWR COVER TO WHEEL STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) EXC. AIR BAG DRIVER<AJ3>	8-97124-009-0	04	1	9608-	●	●
87	PAD; STEERING STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) CHEVROLET BRAND<RWE> BLACK	8-97153-243-0	01	1	9505-9607	●	●
87	PAD; STEERING STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) CHEVROLET BRAND<RWE> EXC. AIR BAG DRIVER<AJ3> BLACK	8-97153-243-0	01	1	9608-	●	●
87	PAD; STEERING STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) EXC. CHEVROLET BRAND<RWE>,GMC BRAND<RWT> BLACK	8-97153-238-0	01	1	9505-9607	●	●
87	PAD; STEERING STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) EXC. AIR BAG DRIVER<AJ3>,CHEVROLET BRAND<RWE>,GMC BRAND<RWT> BLACK	8-97153-238-0	01	1	9608-	●	●
87	PAD; STEERING STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) GMC BRAND<RWT> LIGHT BEIGE	8-97153-242-0	01	1	9505-9607	●	●
87	PAD; STEERING STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) GMC BRAND<RWT> EXC. AIR BAG DRIVER<AJ3> LIGHT BEIGE	8-97153-242-0	01	1	9608-	●	●
88	BRACKET PAD; STEERING STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4)	8-97124-022-0	01	1	9505-9607	●	●
88	BRACKET PAD; STEERING STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) EXC. AIR BAG DRIVER<AJ3>	8-97124-022-0	01	1	9608-	●	●

3 5 12 6 83 9 6 26 14 30 37 37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	WHEEL; STRG AIR BAG DRIVER<AJ3> STRG WHEEL URETHANE(NK4) (C) BLACK	8-97155-250-0	01	1	9608-	●	●
3	WHEEL; STRG AIR BAG DRIVER<AJ3> STRG WHEEL LEATHER(NK3) (C) BLACK	8-97155-689-1	01	1	9608-	●	●
3	WHEEL; STRG INTERIOR COLOR BROWN(130) STRG WHEEL URETHANE(NK4) (A) DARK BROWN	8-97004-133-1	01	1	9112-9112	●	●
3	WHEEL; STRG INTERIOR COLOR BROWN(130) STRG WHEEL URETHANE(NK4) (A) DARK BROWN	8-97009-176-0	01	1	9201-9504	●	●
3	WHEEL; STRG STRG WHEEL URETHANE(NK4) (B) BLACK	8-97151-440-3	01	1	9505-9511	●	●
3	WHEEL; STRG STRG WHEEL URETHANE(NK4) (B) BLACK	8-97156-020-0	01	1	9512-9607	●	●
3	WHEEL; STRG STRG WHEEL URETHANE(NK4) EXC. AIR BAG DRIVER<AJ3> (B) BLACK	8-97156-020-0	01	1	9608-	●	●
3	WHEEL; STRG INTERIOR COLOR BROWN(130) STRG WHEEL LEATHER(NK3) (A) DARK BROWN	8-97003-124-2	01	1	9112-9112	●	●
3	WHEEL; STRG INTERIOR COLOR BROWN(130) STRG WHEEL LEATHER(NK3) (A) DARK BROWN	8-97009-177-0	01	1	9201-9504	●	●
3	WHEEL; STRG STRG WHEEL LEATHER(NK3) (B) BLACK	8-97151-441-3	01	1	9505-9511	●	●
3	WHEEL; STRG STRG WHEEL LEATHER(NK3) (B) BLACK	8-97156-021-0	01	1	9512-9607	●	●
3	WHEEL; STRG STRG WHEEL LEATHER(NK3) EXC. AIR BAG DRIVER<AJ3> (B) BLACK	8-97155-688-1	01	1	9608-	●	●
3	WHEEL; STRG INTERIOR COLOR GRAY(153) STRG WHEEL URETHANE(NK4) (A) DARK GRAY	8-97003-122-1	01	1	9112-9112	●	●
3	WHEEL; STRG INTERIOR COLOR GRAY(153) STRG WHEEL URETHANE(NK4) (A) DARK GRAY	8-97009-175-0	01	1	9201-9504	●	●
3	WHEEL; STRG INTERIOR COLOR GRAY(153) STRG WHEEL LEATHER(NK3) (A) DARK GRAY	8-97003-126-2	01	1	9112-9112	●	●
3	WHEEL; STRG INTERIOR COLOR GRAY(153) STRG WHEEL LEATHER(NK3) (A) DARK GRAY	8-97009-178-0	01	1	9201-9504	●	●
5	NUT; STRG WHEEL TO SHAFT M12 W/TOOTH WASHER	8-94455-487-0	01	1	9112-	●	●
6	SCREW; HORN SPR CONTACT AIR BAG DRIVER<AJ3> STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) (D)	8-97122-618-0	03	1	9608-	●	●
6	SCREW; HORN SPR CONTACT INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153) STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) EXC. EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97036-514-0	01	1	9112-9307	●	●
6	SCREW; HORN SPR CONTACT INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153) STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) (A)	8-97036-514-0	01	1	9308-9504	●	●
6	SCREW; HORN SPR CONTACT INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153) STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B)	8-97036-515-0	02	1	9112-9307	●	●
6	SCREW; HORN SPR CONTACT INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153) STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) (B)	8-97036-515-0	02	1	9308-9504	●	●
6	SCREW; HORN SPR CONTACT INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153) STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) (C)	8-97061-474-0	02	1	9112-9504	●	●
9	PLATE; HORN CONTACT AIR BAG DRIVER<AJ3> STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4)	8-97122-394-0	01	1	9608-	●	●
9	PLATE; HORN CONTACT INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153) STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97036-510-0	01	1	9112-9307	●	●
9	PLATE; HORN CONTACT INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153) STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4)	8-97036-510-0	01	1	9308-9504	●	●
12	CORD; HORN AIR BAG DRIVER<AJ3> STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4)	8-97122-397-0	01	1	9608-	●	●
12	CORD; HORN STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4)	8-97124-010-0	01	1	9505-9607	●	●
12	CORD; HORN STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) EXC. AIR BAG DRIVER<AJ3>	8-97124-010-0	01	1	9608-	●	●
14	BUTTON; HORN,STRG WHEEL AIR BAG DRIVER<AJ3> STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) BLACK	8-97155-253-0	01	1	9608-	●	●
14	BUTTON; HORN,STRG WHEEL AIR BAG DRIVER<AJ3> STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) BLACK	8-97155-252-0	01	1	9608-	●	●
14	BUTTON; HORN,STRG WHEEL STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) BLACK	8-97153-236-0	01	1	9505-9511	●	●
14	BUTTON; HORN,STRG WHEEL STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) BLACK	8-97155-693-0	01	1	9512-9607	●	●
14	BUTTON; HORN,STRG WHEEL STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) EXC. AIR BAG DRIVER<AJ3> BLACK	8-97155-693-0	01	1	9608-	●	●
14	BUTTON; HORN,STRG WHEEL STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) BLACK	8-97153-235-0	01	1	9505-9511	●	●
14	BUTTON; HORN,STRG WHEEL STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) BLACK	8-97155-692-0	01	1	9512-9607	●	●
14	BUTTON; HORN,STRG WHEEL STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) EXC. AIR BAG DRIVER<AJ3> BLACK	8-97155-692-0	01	1	9608-	●	●
26	COVER; STRG WHEEL,LWR AIR BAG DRIVER<AJ3> STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) BLACK	8-97153-000-0	01	1	9608-	●	●
26	COVER; STRG WHEEL,LWR INTERIOR COLOR BROWN(130) STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) DARK BROWN	8-97006-500-0	01	1	9112-9504	●	●
26	COVER; STRG WHEEL,LWR STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) BLACK	8-97153-234-0	01	1	9505-9607	●	●
26	COVER; STRG WHEEL,LWR STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) EXC. AIR BAG DRIVER<AJ3> BLACK	8-97153-234-0	01	1	9608-	●	●
26	COVER; STRG WHEEL,LWR INTERIOR COLOR GRAY(153) STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) DARK GRAY	8-97006-502-0	01	1	9112-9504	●	●
30	COWL; STEERING INTERIOR COLOR BROWN(130) AUTO CRUISE CONT<K30> DARK BROWN	8-97003-134-2	01	1	9112-9504	●	●
30	COWL; STEERING EXC. IMMOBILIZER SYSTEM<7KC> BLACK	8-97098-330-5	01	1	9505-	●	●
30	COWL; STEERING INTERIOR COLOR BROWN(130) EXC. AUTO CRUISE CONT<K30> DARK BROWN	8-97004-128-2	01	1	9112-9504	●	●
30	COWL; STEERING IMMOBILIZER SYSTEM<7KC> BLACK	8-97153-245-4	01	1	9505-	●	●
30	COWL; STEERING INTERIOR COLOR GRAY(153) AUTO CRUISE CONT<K30> DARK GRAY	8-97003-136-2	01	1	9112-9504	●	●
30	COWL; STEERING INTERIOR COLOR GRAY(153) EXC. AUTO CRUISE CONT<K30> DARK GRAY	8-97003-131-2	01	1	9112-9504	●	●
37	SCREW; STRG COWL UPR (A) M5X16	5-09981-053-0	02	1	9112-9504	●	●
37	SCREW; STRG COWL UPR (A) M5X16	5-09981-053-0	04	1	9505-	●	●
37	SCREW; STRG COWL UPR (B) M4X12 W/PL WASHER	9-03900-412-0	03	1	9112-	●	●
83	SCREW; LWR COVER TO WHEEL AIR BAG DRIVER<AJ3> STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4)	8-97122-619-0	04	1	9608-	●	●
83	SCREW; LWR COVER TO WHEEL STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4)	8-97124-009-0	04	1	9505-9607	●	●
83	SCREW; LWR COVER TO WHEEL STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) EXC. AIR BAG DRIVER<AJ3>	8-97124-009-0	04	1	9608-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
