4-25 — REAR FINAL DRIVE (#33636) — 163 parça

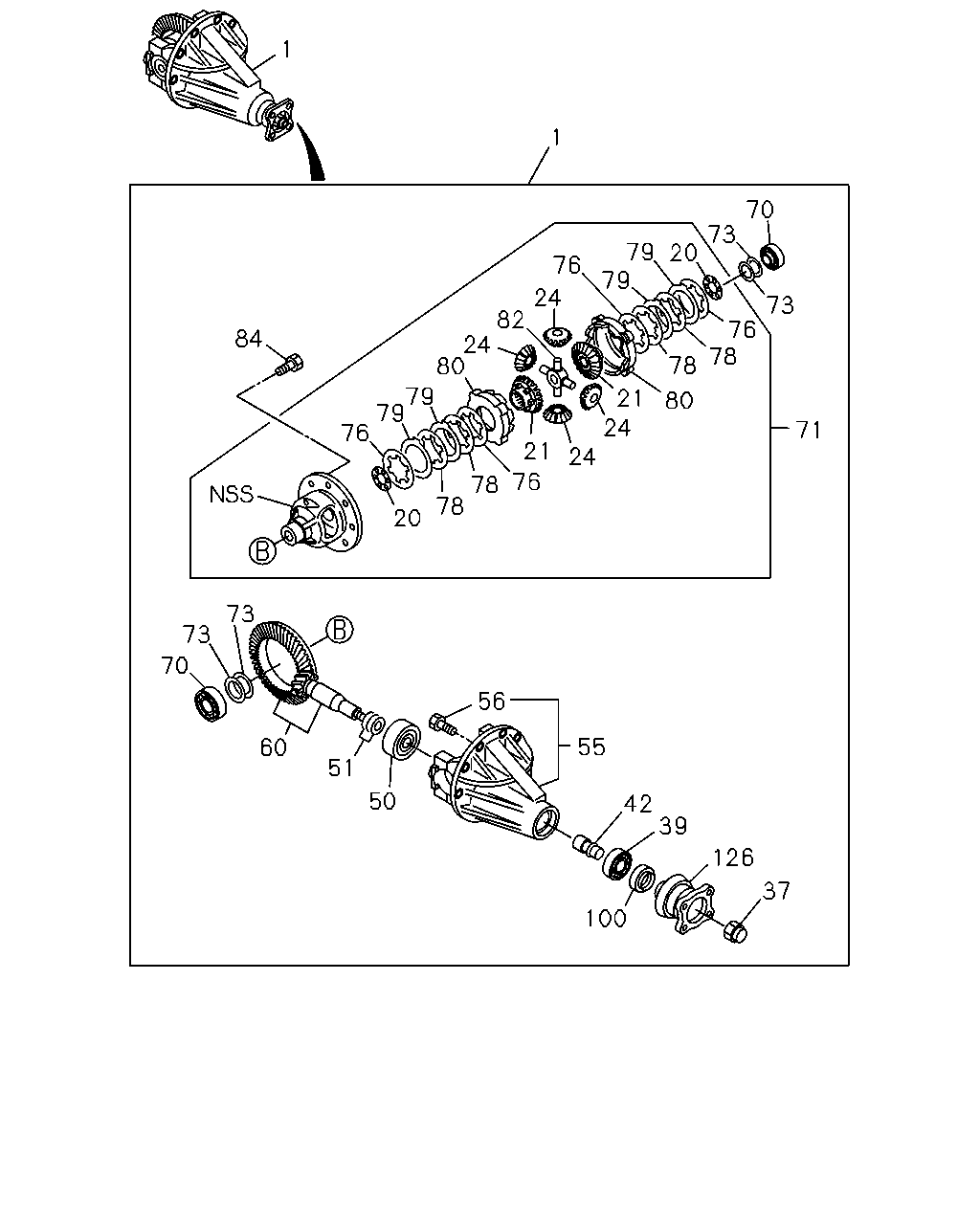

1 1 70 73 79 76 24 82 24 80 79 79 76 73 76 78 78 80 84 21 24 24 71 21 78 76 78 20 73 73 70 56 55 60 51 50 42 39 126 37 100 79 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) LIMITED SLIP DIFF(G80)	8-94376-238-1	01	1	9112-9201	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) LIMITED SLIP DIFF(G80)	8-97074-922-0	01	1	9202-9211	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) LIMITED SLIP DIFF(G80)	8-97087-824-0	01	1	9212-	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) EXC. LIMITED SLIP DIFF(G80)	8-94376-235-1	01	1	9112-9201	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) EXC. LIMITED SLIP DIFF(G80)	8-97074-919-0	01	1	9202-9211	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) EXC. LIMITED SLIP DIFF(G80)	8-97087-822-0	01	1	9212-	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(S7C) LIMITED SLIP DIFF(G80) 43/10	8-94376-237-1	01	1	9112-9201	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(S7C) LIMITED SLIP DIFF(G80)	8-97074-921-0	01	1	9202-	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(S7C) EXC. LIMITED SLIP DIFF(G80) 43/10	8-94376-234-0	01	1	9112-9201	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(S7C) EXC. LIMITED SLIP DIFF(G80)	8-97074-918-0	01	1	9202-	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(S2J) LIMITED SLIP DIFF(G80)	8-97039-306-1	01	1	9112-9201	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(S2J) LIMITED SLIP DIFF(G80) 43/9	8-97074-923-0	01	1	9202-	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(S2J) EXC. LIMITED SLIP DIFF(G80)	8-97039-241-0	01	1	9112-9201	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(S2J) EXC. LIMITED SLIP DIFF(G80) 43/9	8-97074-920-0	01	1	9202-	●	●
20	WASHER; THRUST,SIDE GEAR FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C) LIMITED SLIP DIFF(G80) T=1.60	8-94365-187-0	02	1	9112-9502	●	●
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF(G80) T=1.60	8-94365-187-0	02	1	9503-	●	●
20	WASHER; THRUST,SIDE GEAR FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C) LIMITED SLIP DIFF(G80) T=1.70	8-94365-188-0	02	1	9112-9502	●	●
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF(G80) T=1.70	8-94365-188-0	02	1	9503-	●	●
20	WASHER; THRUST,SIDE GEAR FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C) LIMITED SLIP DIFF(G80) T=1.50	8-94453-935-0	02	1	9112-9502	●	●
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF(G80) T=1.50	8-94453-935-0	02	1	9503-	●	●
20	WASHER; THRUST,SIDE GEAR FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C) LIMITED SLIP DIFF(G80) T=1.80	8-97066-412-0	02	1	9112-9502	●	●
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF(G80) T=1.80	8-97066-412-0	02	1	9503-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) T=0.80	8-94435-343-0	02	1	9112-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) T=0.90	8-94435-344-0	02	1	9112-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) T=1.10	8-94435-345-0	02	1	9112-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) T=1.20	8-94435-346-0	02	1	9112-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) T=1.30	8-94435-347-0	02	1	9112-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) T=1.00	9-41562-602-0	02	1	9112-	●	●
21	GEAR; SIDE,DIFF LIMITED SLIP DIFF(G80)	8-97023-090-0	02	1	9112-	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF(G80) Z=18	8-97033-028-0	02	1	9112-	●	●
24	GEAR; PINION,DIFF LIMITED SLIP DIFF(G80)	8-97023-089-0	04	1	9112-	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF(G80) Z=10	8-97033-027-0	02	1	9112-	●	●
37	NUT; DRIVING PINION M24 FLANGE	8-94376-261-1	01	1	9112-	●	●
39	BEARING; FINAL PINION NSK	9-00093-078-0	01	1	9112-	●	●
42	COLLAR; DIST,COLLAPSIBLE	8-97035-399-0	01	1	9112-	●	●
50	BEARING; FINAL PINION NSK	8-94435-342-0	01	1	9112-	●	●
51	SHIM; PINION,FINAL DRIVE T=1.94	8-94435-356-0	01	1	9112-	●	●
51	SHIM; PINION,FINAL DRIVE T=1.96	8-94435-357-0	01	1	9112-	●	●
51	SHIM; PINION,FINAL DRIVE T=1.98	8-94435-358-0	01	1	9112-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.00	8-94435-359-0	01	1	9112-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.02	8-94435-360-0	01	1	9112-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.04	8-94435-361-0	01	1	9112-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.06	8-94435-362-0	01	1	9112-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.08	8-94435-363-0	01	1	9112-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.10	8-94435-364-0	01	1	9112-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.12	8-94435-365-0	01	1	9112-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.14	8-94435-366-0	01	1	9112-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.16	8-94435-367-0	01	1	9112-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.18	8-94435-368-0	01	1	9112-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.20	8-94435-369-0	01	1	9112-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.22	8-94435-370-0	01	1	9112-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.24	8-94435-371-0	01	1	9112-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.26	8-94435-372-0	01	1	9112-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.28	8-94435-373-0	01	1	9112-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.30	8-94435-374-0	01	1	9112-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.32	8-94435-375-0	01	1	9112-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.34	8-94435-376-0	01	1	9112-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.36	8-94435-377-0	01	1	9112-	●	●
55	CARRIER; DIFF	8-94435-290-4	01	1	9112-	●	●
56	BOLT; BRG CAP M12X75	8-94435-341-0	04	1	9112-	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6)	8-94376-244-0	01	1	9112-9211	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6)	8-97087-826-0	01	1	9212-	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(S7C)	8-97039-238-1	01	1	9112-	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/9(S2J)	8-97039-242-1	01	1	9112-	●	●
70	BEARING; DIFF CAGE NSK	8-94435-355-0	02	1	9112-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF(G80)	8-97062-971-1	01	1	9112-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF(G80)	8-97033-029-0	01	1	9112-	●	●
73	SHIM; DIFF SIDE BRG T=0.12	8-94435-348-0	AR	1	9112-	●	●
73	SHIM; DIFF SIDE BRG T=0.15	8-94435-349-0	AR	1	9112-	●	●
73	SHIM; DIFF SIDE BRG T=0.18	8-94435-350-0	AR	1	9112-	●	●
73	SHIM; DIFF SIDE BRG T=0.25	8-94435-351-0	AR	1	9112-	●	●
73	SHIM; DIFF SIDE BRG T=0.30	8-94435-352-0	AR	1	9112-	●	●
73	SHIM; DIFF SIDE BRG T=0.50	8-94435-353-0	AR	1	9112-	●	●
76	DISC; BEVEL LIMITED SLIP DIFF(G80)	8-94453-938-0	04	1	9112-9304	●	●
76	DISC; BEVEL LIMITED SLIP DIFF(G80)	8-97096-209-0	04	1	9305-	●	●
78	DISC; FRICTION LIMITED SLIP DIFF(G80)	8-94453-937-0	04	1	9112-	●	●
79	PLATE; FRICTION LIMITED SLIP DIFF(G80) T=1.75	8-94453-936-0	04	1	9112-	●	●
80	RING; PRESSURE LIMITED SLIP DIFF(G80)	8-94453-931-0	02	1	9112-	●	●
82	SPIDER; DIFF PINION LIMITED SLIP DIFF(G80)	8-94453-932-0	01	1	9112-	●	●
84	BOLT; FINAL DRIVE GEAR M10X18.5	8-97038-064-0	12	1	9112-	●	●
100	SEAL; OIL,FINAL PINION NOK	8-94408-084-1	01	1	9112-	●	●
126	COUPLING; DRIVING PINION	8-94407-989-1	01	1	9112-9201	●	●
126	COUPLING; DRIVING PINION	8-97075-216-2	01	1	9202-	●	●

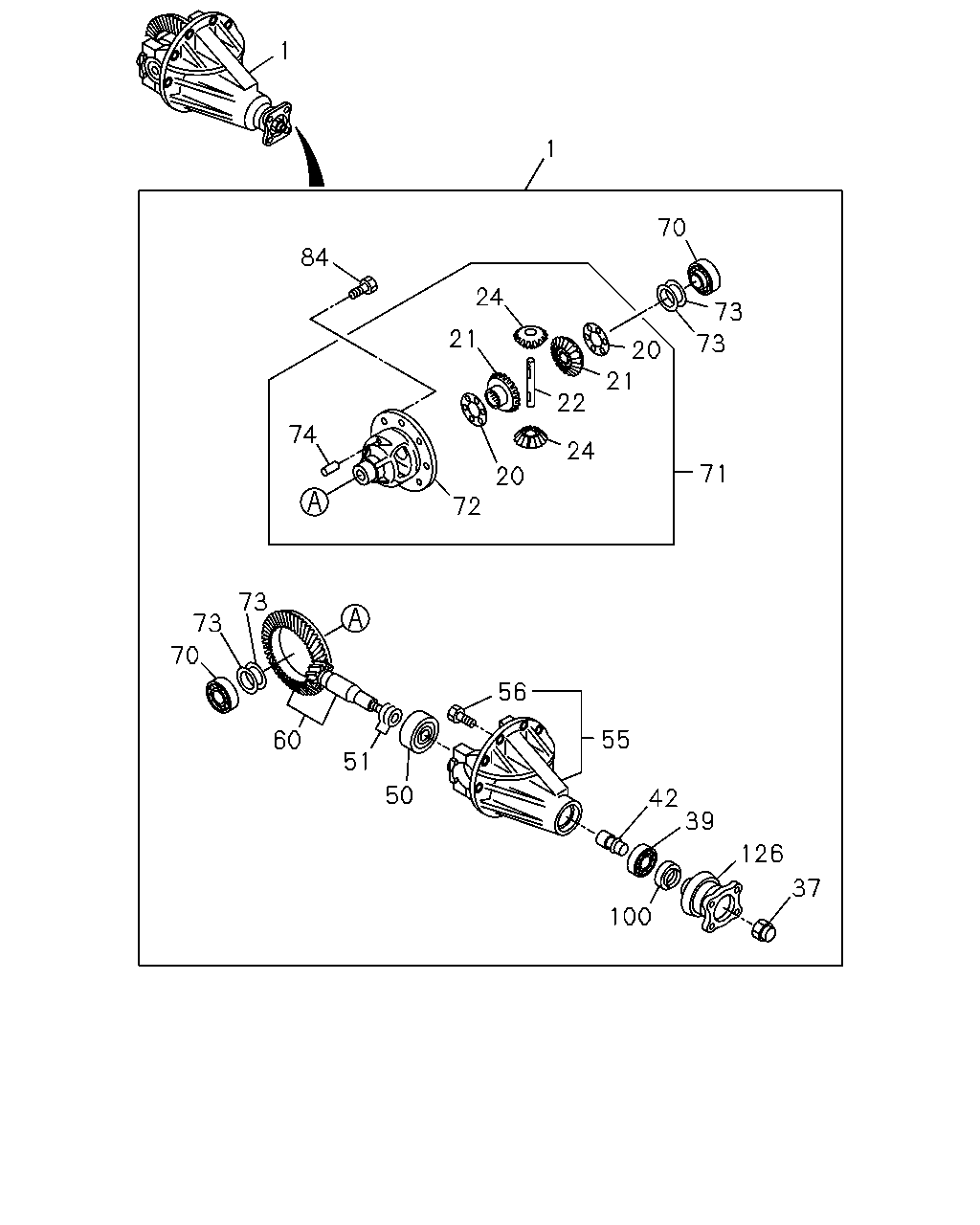

1 1 70 84 24 73 73 20 21 21 22 74 24 71 20 72 73 73 70 56 55 60 51 50 42 39 126 37 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) LIMITED SLIP DIFF(G80)	8-94376-238-1	01	1	9112-9201	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) LIMITED SLIP DIFF(G80)	8-97074-922-0	01	1	9202-9211	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) LIMITED SLIP DIFF(G80)	8-97087-824-0	01	1	9212-	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) EXC. LIMITED SLIP DIFF(G80)	8-94376-235-1	01	1	9112-9201	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) EXC. LIMITED SLIP DIFF(G80)	8-97074-919-0	01	1	9202-9211	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) EXC. LIMITED SLIP DIFF(G80)	8-97087-822-0	01	1	9212-	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(S7C) LIMITED SLIP DIFF(G80) 43/10	8-94376-237-1	01	1	9112-9201	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(S7C) LIMITED SLIP DIFF(G80)	8-97074-921-0	01	1	9202-	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(S7C) EXC. LIMITED SLIP DIFF(G80) 43/10	8-94376-234-0	01	1	9112-9201	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(S7C) EXC. LIMITED SLIP DIFF(G80)	8-97074-918-0	01	1	9202-	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(S2J) LIMITED SLIP DIFF(G80)	8-97039-306-1	01	1	9112-9201	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(S2J) LIMITED SLIP DIFF(G80) 43/9	8-97074-923-0	01	1	9202-	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(S2J) EXC. LIMITED SLIP DIFF(G80)	8-97039-241-0	01	1	9112-9201	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(S2J) EXC. LIMITED SLIP DIFF(G80) 43/9	8-97074-920-0	01	1	9202-	●	●
20	WASHER; THRUST,SIDE GEAR FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C) LIMITED SLIP DIFF(G80) T=1.60	8-94365-187-0	02	1	9112-9502	●	●
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF(G80) T=1.60	8-94365-187-0	02	1	9503-	●	●
20	WASHER; THRUST,SIDE GEAR FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C) LIMITED SLIP DIFF(G80) T=1.70	8-94365-188-0	02	1	9112-9502	●	●
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF(G80) T=1.70	8-94365-188-0	02	1	9503-	●	●
20	WASHER; THRUST,SIDE GEAR FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C) LIMITED SLIP DIFF(G80) T=1.50	8-94453-935-0	02	1	9112-9502	●	●
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF(G80) T=1.50	8-94453-935-0	02	1	9503-	●	●
20	WASHER; THRUST,SIDE GEAR FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C) LIMITED SLIP DIFF(G80) T=1.80	8-97066-412-0	02	1	9112-9502	●	●
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF(G80) T=1.80	8-97066-412-0	02	1	9503-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) T=0.80	8-94435-343-0	02	1	9112-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) T=0.90	8-94435-344-0	02	1	9112-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) T=1.10	8-94435-345-0	02	1	9112-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) T=1.20	8-94435-346-0	02	1	9112-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) T=1.30	8-94435-347-0	02	1	9112-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) T=1.00	9-41562-602-0	02	1	9112-	●	●
21	GEAR; SIDE,DIFF LIMITED SLIP DIFF(G80)	8-97023-090-0	02	1	9112-	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF(G80) Z=18	8-97033-028-0	02	1	9112-	●	●
22	PIN; CROSS,DIFF PINION EXC. LIMITED SLIP DIFF(G80)	8-94435-308-1	01	1	9112-	●	●
24	GEAR; PINION,DIFF LIMITED SLIP DIFF(G80)	8-97023-089-0	04	1	9112-	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF(G80) Z=10	8-97033-027-0	02	1	9112-	●	●
37	NUT; DRIVING PINION M24 FLANGE	8-94376-261-1	01	1	9112-	●	●
39	BEARING; FINAL PINION NSK	9-00093-078-0	01	1	9112-	●	●
42	COLLAR; DIST,COLLAPSIBLE	8-97035-399-0	01	1	9112-	●	●
50	BEARING; FINAL PINION NSK	8-94435-342-0	01	1	9112-	●	●
51	SHIM; PINION,FINAL DRIVE T=1.94	8-94435-356-0	01	1	9112-	●	●
51	SHIM; PINION,FINAL DRIVE T=1.96	8-94435-357-0	01	1	9112-	●	●
51	SHIM; PINION,FINAL DRIVE T=1.98	8-94435-358-0	01	1	9112-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.00	8-94435-359-0	01	1	9112-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.02	8-94435-360-0	01	1	9112-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.04	8-94435-361-0	01	1	9112-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.06	8-94435-362-0	01	1	9112-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.08	8-94435-363-0	01	1	9112-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.10	8-94435-364-0	01	1	9112-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.12	8-94435-365-0	01	1	9112-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.14	8-94435-366-0	01	1	9112-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.16	8-94435-367-0	01	1	9112-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.18	8-94435-368-0	01	1	9112-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.20	8-94435-369-0	01	1	9112-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.22	8-94435-370-0	01	1	9112-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.24	8-94435-371-0	01	1	9112-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.26	8-94435-372-0	01	1	9112-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.28	8-94435-373-0	01	1	9112-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.30	8-94435-374-0	01	1	9112-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.32	8-94435-375-0	01	1	9112-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.34	8-94435-376-0	01	1	9112-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.36	8-94435-377-0	01	1	9112-	●	●
55	CARRIER; DIFF	8-94435-290-4	01	1	9112-	●	●
56	BOLT; BRG CAP M12X75	8-94435-341-0	04	1	9112-	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6)	8-94376-244-0	01	1	9112-9211	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6)	8-97087-826-0	01	1	9212-	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(S7C)	8-97039-238-1	01	1	9112-	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/9(S2J)	8-97039-242-1	01	1	9112-	●	●
70	BEARING; DIFF CAGE NSK	8-94435-355-0	02	1	9112-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF(G80)	8-97062-971-1	01	1	9112-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF(G80)	8-97033-029-0	01	1	9112-	●	●
72	CAGE; DIFF EXC. LIMITED SLIP DIFF(G80)	8-94325-448-0	01	1	9112-	●	●
73	SHIM; DIFF SIDE BRG T=0.12	8-94435-348-0	AR	1	9112-	●	●
73	SHIM; DIFF SIDE BRG T=0.15	8-94435-349-0	AR	1	9112-	●	●
73	SHIM; DIFF SIDE BRG T=0.18	8-94435-350-0	AR	1	9112-	●	●
73	SHIM; DIFF SIDE BRG T=0.25	8-94435-351-0	AR	1	9112-	●	●
73	SHIM; DIFF SIDE BRG T=0.30	8-94435-352-0	AR	1	9112-	●	●
73	SHIM; DIFF SIDE BRG T=0.50	8-94435-353-0	AR	1	9112-	●	●
74	PIN; LK,CROSS PIN EXC. LIMITED SLIP DIFF(G80) OD=5 L=35	9-09878-096-0	01	1	9112-	●	●
84	BOLT; FINAL DRIVE GEAR M10X18.5	8-97038-064-0	12	1	9112-	●	●
100	SEAL; OIL,FINAL PINION NOK	8-94408-084-1	01	1	9112-	●	●
126	COUPLING; DRIVING PINION	8-94407-989-1	01	1	9112-9201	●	●
126	COUPLING; DRIVING PINION	8-97075-216-2	01	1	9202-	●	●
