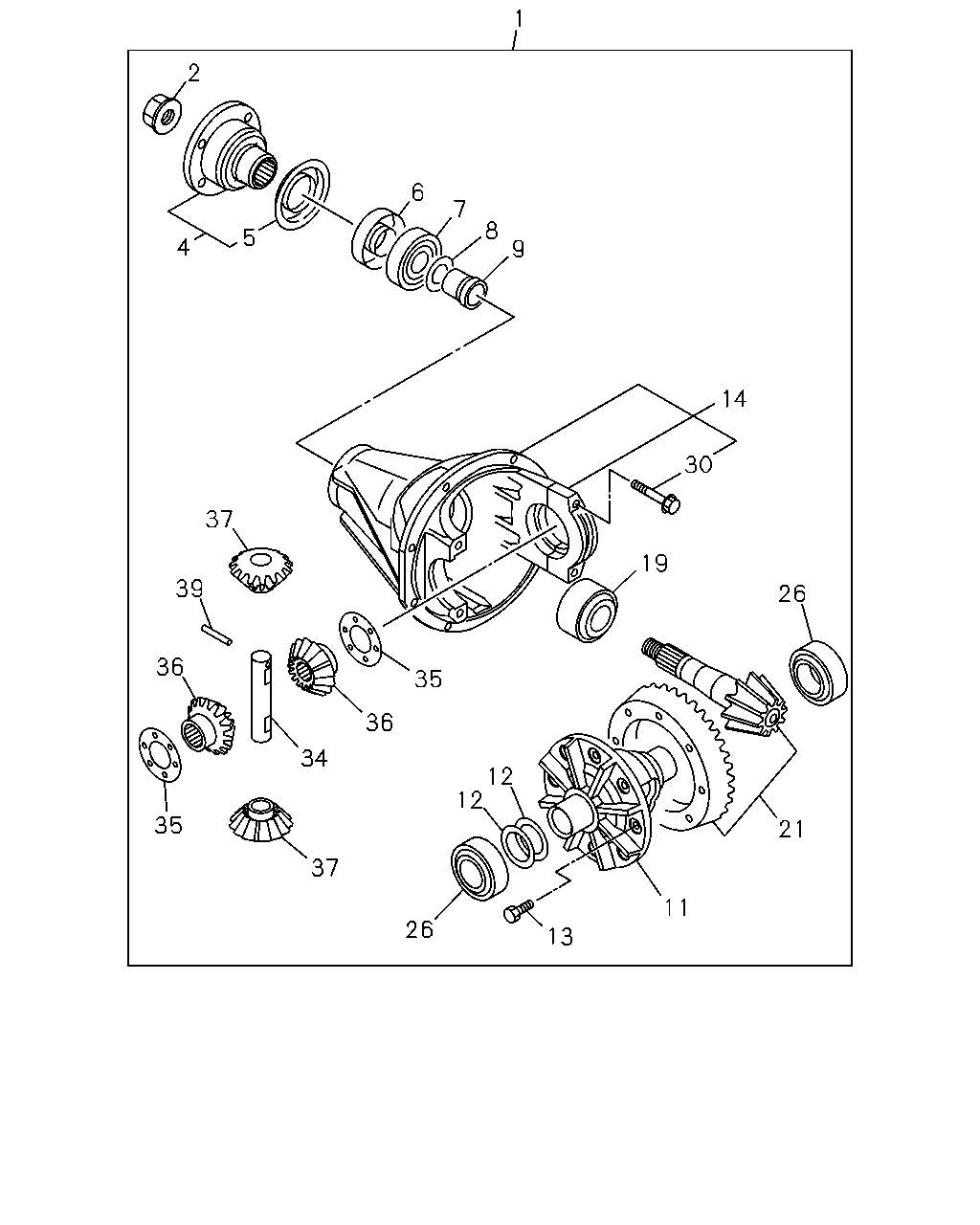

4-15 — FRONT FINAL DRIVE (#33633) — 56 parça

1 2 6 7 8 9 5 4 14 30 37 19 39 26 36 35 36 34 12 12 35 21 37 13 11 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 41/9(HC6)	8-94376-220-1	01	1	9112-	●	●
1	DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 43/10(S7C)	8-97039-250-0	01	1	9112-	●	●
1	DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 43/9(S2J)	8-97039-254-0	01	1	9112-	●	●
2	NUT; FINAL DRIVE PINION M18 LOCK NUT	8-94376-262-0	01	1	9112-	●	●
4	COUPLING; FINAL DRIVE PINION	8-94318-527-3	01	1	9112-	●	●
5	COVER; DUST,PINION,FINAL DRIVE	8-94318-409-0	01	1	9112-	●	●
6	SEAL; OIL,FINAL PINION	8-94318-520-1	01	1	9112-	●	●
7	BEARING; PINION,OUTER NSK	8-94472-099-0	01	1	9112-	●	●
8	SHIM; PINION,FINAL DRIVE T=2.18	9-41519-153-1	01	1	9112-	●	●
8	SHIM; PINION,FINAL DRIVE T=2.20	9-41519-154-1	01	1	9112-	●	●
8	SHIM; PINION,FINAL DRIVE T=2.22	9-41519-155-1	01	1	9112-	●	●
8	SHIM; PINION,FINAL DRIVE T=2.24	9-41519-156-1	01	1	9112-	●	●
8	SHIM; PINION,FINAL DRIVE T=2.26	9-41519-157-1	01	1	9112-	●	●
8	SHIM; PINION,FINAL DRIVE T=2.28	9-41519-158-1	01	1	9112-	●	●
8	SHIM; PINION,FINAL DRIVE T=2.30	9-41519-159-1	01	1	9112-	●	●
8	SHIM; PINION,FINAL DRIVE T=2.32	9-41519-160-1	01	1	9112-	●	●
8	SHIM; PINION,FINAL DRIVE T=2.34	9-41519-161-1	01	1	9112-	●	●
8	SHIM; PINION,FINAL DRIVE T=2.36	9-41519-162-1	01	1	9112-	●	●
8	SHIM; PINION,FINAL DRIVE T=2.38	9-41519-163-1	01	1	9112-	●	●
8	SHIM; PINION,FINAL DRIVE T=2.40	9-41519-164-1	01	1	9112-	●	●
8	SHIM; PINION,FINAL DRIVE T=2.42	9-41519-165-1	01	1	9112-	●	●
8	SHIM; PINION,FINAL DRIVE T=2.44	9-41519-166-1	01	1	9112-	●	●
8	SHIM; PINION,FINAL DRIVE T=2.46	9-41519-167-1	01	1	9112-	●	●
8	SHIM; PINION,FINAL DRIVE T=2.48	9-41519-168-1	01	1	9112-	●	●
8	SHIM; PINION,FINAL DRIVE T=2.50	9-41519-169-1	01	1	9112-	●	●
8	SHIM; PINION,FINAL DRIVE T=2.52	9-41519-170-1	01	1	9112-	●	●
8	SHIM; PINION,FINAL DRIVE T=2.54	9-41519-171-1	01	1	9112-	●	●
8	SHIM; PINION,FINAL DRIVE T=2.56	9-41519-172-1	01	1	9112-	●	●
9	COLLAR; DIST,PINION	8-94472-118-0	01	1	9112-9409	●	●
9	COLLAR; DIST,PINION	8-97117-080-0	01	1	9410-9410	●	●
9	COLLAR; DIST,PINION	8-94472-118-0	01	1	9411-	●	●
11	CAGE; FINAL PINION	8-94313-589-0	01	1	9112-9310	●	●
11	CAGE; FINAL PINION	8-97038-515-1	01	1	9311-	●	●
12	SHIM; FINAL PINION CAGE T=0.24	9-41519-109-0	AR	1	9112-	●	●
12	SHIM; FINAL PINION CAGE T=0.18	9-41519-110-0	AR	1	9112-9504	●	●
12	SHIM; FINAL PINION CAGE T=0.10	8-97130-386-0	AR	1	9505-	●	●
12	SHIM; FINAL PINION CAGE T=0.15	9-41519-111-0	AR	1	9112-	●	●
12	SHIM; FINAL PINION CAGE T=0.12	9-41519-112-0	AR	1	9112-9504	●	●
12	SHIM; FINAL PINION CAGE T=0.50	8-97130-387-0	AR	1	9505-	●	●
13	BOLT; FINAL PINION CAGE M10X17	8-97038-065-0	10	1	9112-	●	●
14	CARRIER ASM; FINAL DRIVE,FRT AXLE	8-94376-231-2	01	1	9112-	●	●
19	BEARING; PINION,INNER NSK	9-00093-621-0	01	1	9112-	●	●
21	GEAR SET; FINAL DRIVE,FRT FINAL GEAR RATIO 41/9(HC6)	8-94376-223-1	01	1	9112-	●	●
21	GEAR SET; FINAL DRIVE,FRT FINAL GEAR RATIO 43/10(S7C)	8-97039-251-1	01	1	9112-	●	●
21	GEAR SET; FINAL DRIVE,FRT FINAL GEAR RATIO 43/9(S2J)	8-97039-255-1	01	1	9112-	●	●
26	BEARING; DIFF CAGE NSK	9-00093-074-0	02	1	9112-	●	●
30	BOLT; DIFF CAGE SETTING M12X62	8-94376-322-0	04	1	9112-	●	●
34	PIN; CROSS,DIFF PINION	9-41521-044-1	01	1	9112-	●	●
35	WASHER; THRUST,SIDE GEAR T=1.00	5-41562-005-1	02	1	9112-	●	●
35	WASHER; THRUST,SIDE GEAR T=1.05	5-41562-006-1	02	1	9112-	●	●
35	WASHER; THRUST,SIDE GEAR T=1.10	5-41562-007-1	02	1	9112-	●	●
36	GEAR; SIDE,DIFF	8-94474-302-0	02	1	9112-9210	●	●
36	GEAR; SIDE,DIFF Z=17	8-97079-519-1	02	1	9211-	●	●
37	GEAR; PINION DIFF	8-94474-301-0	02	1	9112-9210	●	●
37	GEAR; PINION DIFF Z=10	8-97079-518-0	02	1	9211-	●	●
39	PIN; LK,CROSS PIN OD=5 L=35	9-09878-096-0	01	1	9112-	●	●
