Sayfa 4-12 - Isuzu EPC

4-12 — FRONT DRIVE SHAFT (#33632) — 445 parça

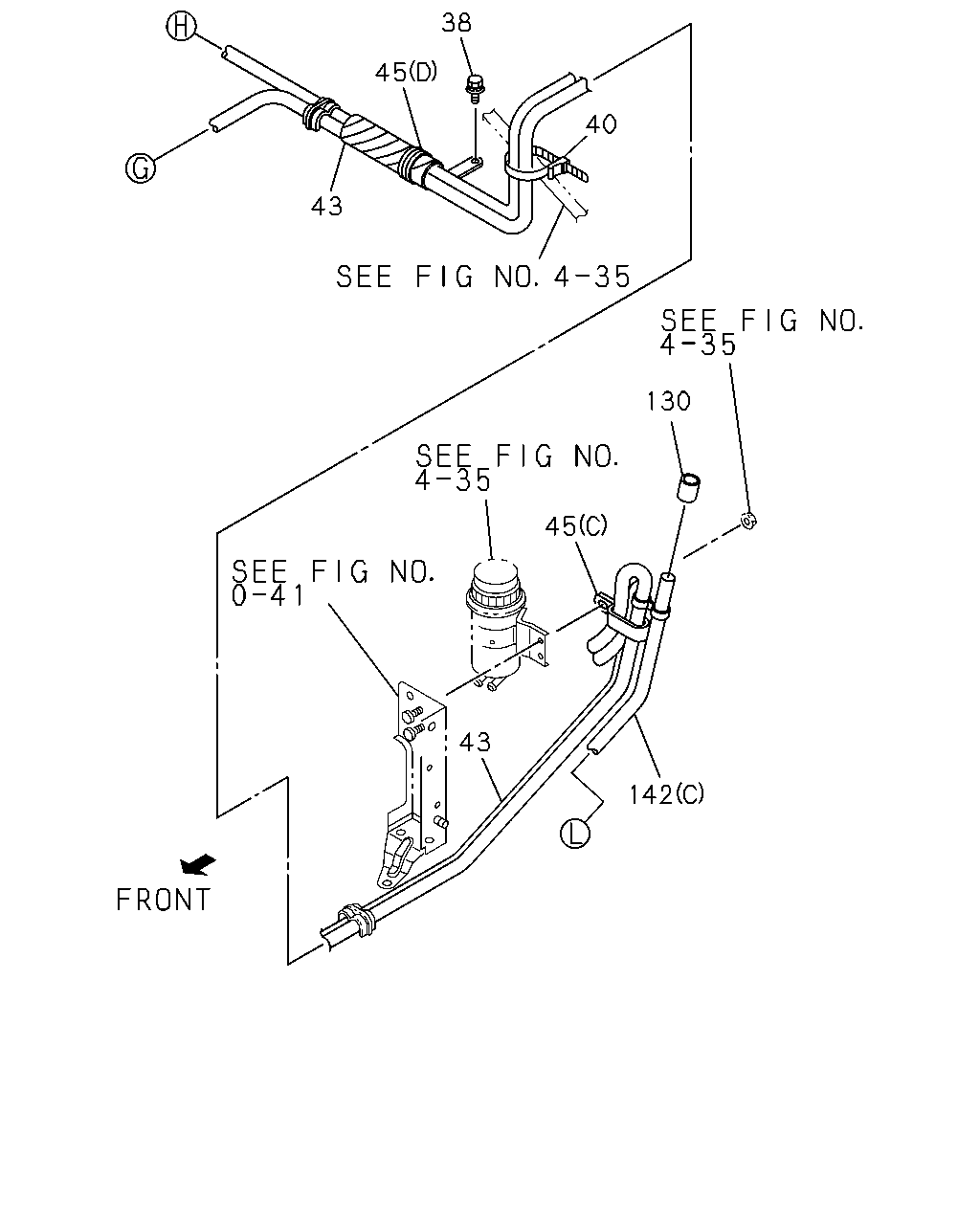

38 45 40 43 130 45 43 142

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	BOLT; AIR BREATHER,FRT AXLE M6X20 W/LK&PL WASHER	9-01960-620-0	01	1	9112-9204	●	●
38	BOLT; AIR BREATHER,FRT AXLE M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	9205-9709	●	●
38	BOLT; AIR BREATHER,FRT AXLE M6X20 FLANGE	0-28680-620-0	01	1	9710-	●	●
38	BOLT; AIR BREATHER,FRT AXLE 4ZE1 ENG(RLJ) M8X14	9-01960-814-0	01	1	9112-9204	●	●
38	BOLT; AIR BREATHER,FRT AXLE 4ZE1 ENG(RLJ) M8X14	0-50140-814-0	01	1	9205-	●	●
40	CLIP; BAND,AIR BREATHER HOSE L=140	5-09707-031-0	01	1	9112-9206	●	●
40	CLIP; BAND,AIR BREATHER HOSE L=170	5-09707-054-0	01	1	9207-	●	●
43	HOSE; RUBBER,AIR BREATHER 4JG2 ENG(RJC),4ZE1 ENG(RLJ) SHIFT ON THE FLY(7EX)	8-97133-281-0	01	1	9505-	●	●
43	HOSE; RUBBER,AIR BREATHER 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) L=1000 SERVICED BY L=3000	0-04550-300-0	01	1	9112-9308	●	●
43	HOSE; RUBBER,AIR BREATHER 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) L=1000 SERVICED BY L=3000	0-04750-300-0	01	1	9309-9504	●	●
43	HOSE; RUBBER,AIR BREATHER 4JG2 ENG(RJC),4ZE1 ENG(RLJ) EXC. SHIFT ON THE FLY(7EX) L=1000 SERVICED BY L=3000	0-04750-300-0	01	1	9505-	●	●
43	HOSE; RUBBER,AIR BREATHER 6VD1 SOHC ENG(RLU) L=1400 SERVICED BY L=3000	0-04550-300-0	01	1	9112-9212	●	●
43	HOSE; RUBBER,AIR BREATHER 6VD1 SOHC ENG(RLU) L=1400	8-97084-538-0	01	1	9301-9308	●	●
43	HOSE; RUBBER,AIR BREATHER 6VD1 SOHC ENG(RLU) L=1400 SERVICED BY L=3000	0-04750-300-0	01	1	9309-9504	●	●
43	HOSE; RUBBER,AIR BREATHER 6VD1 SOHC ENG(RLU) EXC. SHIFT ON THE FLY(7EX) L=1400 SERVICED BY L=3000	0-04750-300-0	01	1	9505-	●	●
45	CLIP (C) ID=11X2 L=16	9-09535-025-0	01	1	9112-9504	●	●
45	CLIP EXC. SHIFT ON THE FLY(7EX) (C) ID=11X2 L=16	9-09535-025-0	01	1	9505-	●	●
45	CLIP SHIFT ON THE FLY(7EX) (C) ID=28 L=40	1-09700-995-1	01	1	9505-9507	●	●
45	CLIP 4JG2 ENG(RJC),4ZE1 ENG(RLJ) SHIFT ON THE FLY(7EX) (C) ID=28 L=40	1-09700-995-1	01	1	9508-	●	●
45	CLIP SHIFT ON THE FLY(7EX) (E)	8-94466-385-0	01	1	9505-	●	●
45	CLIP 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) (D)	8-94161-321-1	01	1	9112-9504	●	●
45	CLIP 4JG2 ENG(RJC),4ZE1 ENG(RLJ) (D)	8-94161-321-1	01	1	9505-	●	●
45	CLIP 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (F) L=8.9	8-94435-551-1	04	1	9505-9508	●	●
45	CLIP 4ZE1 ENG(RLJ) SHIFT ON THE FLY(7EX) (F) L=8.9	8-94435-551-1	04	1	9509-	●	●
45	CLIP 6VD1 SOHC ENG(RLU) (A) ID=11 H=20 L=20	5-09700-351-0	01	1	9112-9504	●	●
45	CLIP 6VD1 SOHC ENG(RLU) EXC. SHIFT ON THE FLY(7EX) (A) ID=11 H=20 L=20	5-09700-351-0	01	1	9505-	●	●
45	CLIP 6VD1 SOHC ENG(RLU) (B) ID=11 L=40	9-09525-073-0	01	1	9112-9504	●	●
45	CLIP 6VD1 SOHC ENG(RLU) EXC. SHIFT ON THE FLY(7EX) (B) ID=11 L=40	9-09525-073-0	01	1	9505-	●	●
45	CLIP 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (J) ID=8 H=20 L=20	1-09700-604-0	01	1	9505-9508	●	●
45	CLIP 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (F) L=8.9	8-94435-551-1	03	1	9509-	●	●
45	CLIP 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (I) ID=22 L=40	5-09700-369-0	01	1	9505-	●	●
45	CLIP 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (G) ID=14.5 & 7.5	8-94315-424-0	01	1	9505-9512	●	●
45	CLIP 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (G) ID=11.8 & 7.5	1-09709-182-0	01	1	9601-	●	●
45	CLIP 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (H) ID=26 L=26	9-09915-417-1	01	1	9505-9507	●	●
45	CLIP 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (H) ID=26 L=26	9-09915-417-1	02	1	9508-	●	●
130	FILTER; OIL,FRT AXLE SHIFT ON THE FLY(7EX)	8-97101-779-0	01	1	9505-	●	●
142	HOSE; VSV SHIFT ON THE FLY(7EX) (A)	8-97101-810-0	01	1	9505-	●	●
142	HOSE; VSV SHIFT ON THE FLY(7EX) (B)	8-97101-811-2	01	1	9505-	●	●
142	HOSE; VSV 4JG2 ENG(RJC),4ZE1 ENG(RLJ) SHIFT ON THE FLY(7EX) (C)	8-97126-040-1	01	1	9505-	●	●

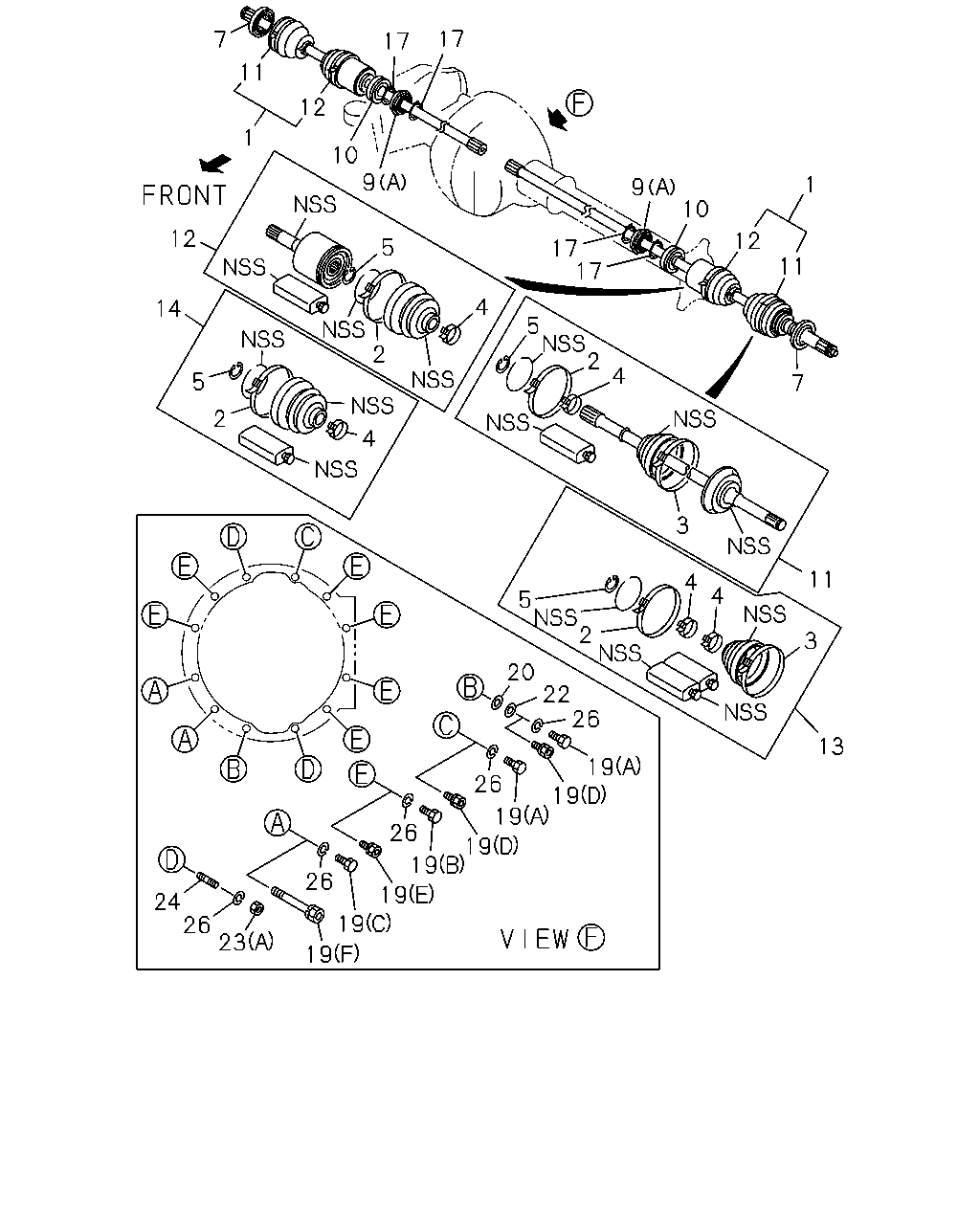

17 7 17 11 12 1 10 9 1 9 10 12 12 5 17 17 11 4 14 5 2 2 4 5 7 2 4 3 11 4 4 5 2 3 20 22 26 13 19 19 26 19 26 19 19 26 19 24 26 23 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT ASM; FRT DRIVE FRONT AXLE URETHANE BOOTS<6HV>	8-94374-782-1	01	1	9112-9505	●	●
1	SHAFT ASM; FRT DRIVE FRONT AXLE URETHANE BOOTS<6HV> EXC. SHIFT ON THE FLY(7EX)	8-94374-782-1	01	1	9506-	●	●
1	SHAFT ASM; FRT DRIVE FRONT AXLE URETHANE BOOTS<6HV>	8-94374-781-1	01	1	9112-9502	●	●
1	SHAFT ASM; FRT DRIVE FRONT AXLE URETHANE BOOTS<6HV>	8-97111-375-0	01	1	9503-9505	●	●
1	SHAFT ASM; FRT DRIVE FRONT AXLE URETHANE BOOTS<6HV> EXC. SHIFT ON THE FLY(7EX)	8-97111-375-0	01	1	9506-	●	●
1	SHAFT ASM; FRT DRIVE FRONT AXLE URETHANE BOOTS<6HV> SHIFT ON THE FLY(7EX)	8-97111-375-0	02	1	9505-	●	●
1	SHAFT ASM; FRT DRIVE EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94374-780-1	01	1	9112-9503	●	●
1	SHAFT ASM; FRT DRIVE EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97120-777-0	01	1	9504-9504	●	●
1	SHAFT ASM; FRT DRIVE EXC. FRONT AXLE URETHANE BOOTS<6HV>,SHIFT ON THE FLY(7EX)	8-97120-777-0	01	1	9505-9509	●	●
1	SHAFT ASM; FRT DRIVE EXC. FRONT AXLE URETHANE BOOTS<6HV>,SHIFT ON THE FLY(7EX)	8-97139-092-0	01	1	9510-	●	●
1	SHAFT ASM; FRT DRIVE EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94374-779-1	01	1	9112-9503	●	●
1	SHAFT ASM; FRT DRIVE EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97120-776-0	01	1	9504-9504	●	●
1	SHAFT ASM; FRT DRIVE EXC. FRONT AXLE URETHANE BOOTS<6HV>,SHIFT ON THE FLY(7EX)	8-97120-776-0	01	1	9505-9509	●	●
1	SHAFT ASM; FRT DRIVE EXC. FRONT AXLE URETHANE BOOTS<6HV>,SHIFT ON THE FLY(7EX)	8-97139-091-0	01	1	9510-	●	●
1	SHAFT ASM; FRT DRIVE SHIFT ON THE FLY(7EX) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97120-776-0	02	1	9505-9509	●	●
1	SHAFT ASM; FRT DRIVE SHIFT ON THE FLY(7EX) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97139-091-0	02	1	9510-	●	●
2	BAND; "A",FRT DRIVE SHAFT FRONT AXLE URETHANE BOOTS<6HV>	8-94313-085-0	02	1	9112-	●	●
2	BAND; "A",FRT DRIVE SHAFT EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94313-084-0	02	1	9112-9503	●	●
2	BAND; "A",FRT DRIVE SHAFT EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97131-401-0	02	1	9504-	●	●
3	BAND; "B",FRT DRIVE SHAFT FRONT AXLE URETHANE BOOTS<6HV>	8-94313-083-0	02	1	9112-	●	●
3	BAND; "B",FRT DRIVE SHAFT EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94313-082-0	02	1	9112-9503	●	●
3	BAND; "B",FRT DRIVE SHAFT EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94312-929-0	02	1	9504-	●	●
4	BAND; "C",FRT DRIVE SHAFT FRONT AXLE URETHANE BOOTS<6HV>	8-94310-658-0	04	1	9209-	●	●
4	BAND; "C",FRT DRIVE SHAFT EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94313-094-0	04	1	9209-9503	●	●
4	BAND; "C",FRT DRIVE SHAFT EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94313-094-0	02	1	9504-9509	●	●
4	BAND; "C",FRT DRIVE SHAFT EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97138-938-0	02	1	9510-	●	●
4	BAND; "C",FRT DRIVE SHAFT EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94312-931-0	02	1	9504-	●	●
5	RING; RET,FRT DRIVE SHAFT ID=26.9	9-09180-029-0	02	1	9112-9503	●	●
5	RING; RET,FRT DRIVE SHAFT FRONT AXLE URETHANE BOOTS<6HV> ID=26.9	9-09180-029-0	02	1	9504-	●	●
5	RING; RET,FRT DRIVE SHAFT EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97131-402-0	02	1	9504-	●	●
7	SEAL; DUST,DRIVE SHAFT	8-94407-726-2	02	1	9112-9501	●	●
7	SEAL; DUST,DRIVE SHAFT	8-97123-692-0	02	1	9502-	●	●
9	BEARING; AXLE SHAFT,INNER (A)	8-94407-724-0	02	1	9112-	●	●
9	BEARING; AXLE SHAFT,INNER SHIFT ON THE FLY(7EX) (B)	8-97101-878-0	01	1	9505-	●	●
10	SEAL; OIL,AXLE SHAFT,INNER	8-94366-610-0	02	1	9112-	●	●
11	JOINT ASM; OUTSIDE,FRT DRIVE SHAFT FRONT AXLE URETHANE BOOTS<6HV>	8-97063-623-0	01	1	9112-9505	●	●
11	JOINT ASM; OUTSIDE,FRT DRIVE SHAFT FRONT AXLE URETHANE BOOTS<6HV> EXC. SHIFT ON THE FLY(7EX)	8-97063-623-0	01	1	9506-	●	●
11	JOINT ASM; OUTSIDE,FRT DRIVE SHAFT FRONT AXLE URETHANE BOOTS<6HV>	8-97063-622-0	01	1	9112-9505	●	●
11	JOINT ASM; OUTSIDE,FRT DRIVE SHAFT FRONT AXLE URETHANE BOOTS<6HV> EXC. SHIFT ON THE FLY(7EX)	8-97063-622-0	01	1	9506-	●	●
11	JOINT ASM; OUTSIDE,FRT DRIVE SHAFT FRONT AXLE URETHANE BOOTS<6HV> SHIFT ON THE FLY(7EX)	8-97063-622-0	02	1	9505-	●	●
11	JOINT ASM; OUTSIDE,FRT DRIVE SHAFT EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97063-621-0	01	1	9112-9503	●	●
11	JOINT ASM; OUTSIDE,FRT DRIVE SHAFT EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97063-620-0	01	1	9112-9503	●	●
11	JOINT ASM; OUTSIDE,FRT DRIVE SHAFT EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97131-395-0	02	1	9504-	●	●
12	JOINT ASM FRONT AXLE URETHANE BOOTS<6HV>	8-94313-102-1	01	1	9112-9505	●	●
12	JOINT ASM FRONT AXLE URETHANE BOOTS<6HV> EXC. SHIFT ON THE FLY(7EX)	8-94313-102-1	01	1	9506-	●	●
12	JOINT ASM FRONT AXLE URETHANE BOOTS<6HV>	8-94313-101-1	01	1	9112-9505	●	●
12	JOINT ASM FRONT AXLE URETHANE BOOTS<6HV> EXC. SHIFT ON THE FLY(7EX)	8-94313-101-1	01	1	9506-	●	●
12	JOINT ASM FRONT AXLE URETHANE BOOTS<6HV> SHIFT ON THE FLY(7EX)	8-94313-101-1	02	1	9505-	●	●
12	JOINT ASM EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94313-100-1	01	1	9112-9503	●	●
12	JOINT ASM EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97131-398-0	01	1	9504-9504	●	●
12	JOINT ASM EXC. FRONT AXLE URETHANE BOOTS<6HV>,SHIFT ON THE FLY(7EX)	8-97131-398-0	01	1	9505-9509	●	●
12	JOINT ASM EXC. FRONT AXLE URETHANE BOOTS<6HV>,SHIFT ON THE FLY(7EX)	8-97138-979-0	01	1	9510-	●	●
12	JOINT ASM EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94313-099-1	01	1	9112-9503	●	●
12	JOINT ASM EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97131-397-0	01	1	9504-9504	●	●
12	JOINT ASM EXC. FRONT AXLE URETHANE BOOTS<6HV>,SHIFT ON THE FLY(7EX)	8-97131-397-0	01	1	9505-9509	●	●
12	JOINT ASM EXC. FRONT AXLE URETHANE BOOTS<6HV>,SHIFT ON THE FLY(7EX)	8-97138-978-0	01	1	9510-	●	●
12	JOINT ASM SHIFT ON THE FLY(7EX) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97131-397-0	02	1	9505-9509	●	●
12	JOINT ASM SHIFT ON THE FLY(7EX) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97138-978-0	02	1	9510-	●	●
13	BOOT KIT; OUTSIDE,FRT DRIVE SHAFT FRONT AXLE URETHANE BOOTS<6HV>	8-94313-106-0	02	1	9112-	●	●
13	BOOT KIT; OUTSIDE,FRT DRIVE SHAFT EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94313-105-0	02	1	9112-9503	●	●
13	BOOT KIT; OUTSIDE,FRT DRIVE SHAFT EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97131-399-0	02	1	9504-9509	●	●
13	BOOT KIT; OUTSIDE,FRT DRIVE SHAFT EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97138-981-0	02	1	9510-	●	●
14	BOOT KIT; IN SIDE,FRT DRIVE SHAFT FRONT AXLE URETHANE BOOTS<6HV>	8-94313-081-0	02	1	9112-	●	●
14	BOOT KIT; IN SIDE,FRT DRIVE SHAFT EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94313-080-0	02	1	9112-9503	●	●
14	BOOT KIT; IN SIDE,FRT DRIVE SHAFT EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97131-400-0	02	1	9504-9509	●	●
14	BOOT KIT; IN SIDE,FRT DRIVE SHAFT EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97138-980-0	02	1	9510-	●	●
17	RING; SNAP,DRIVE SHAFT TO TRANS AXLE ID=27.9	9-09180-030-0	04	1	9112-	●	●
19	BOLT; FRT AXLE (C) M8X90	9-01065-890-0	02	1	9112-9306	●	●
19	BOLT; FRT AXLE (F) M8X90 W/LK WASHER	8-97093-666-0	02	1	9307-	●	●
19	BOLT; FRT AXLE (B) M8X25	9-02060-825-0	06	1	9112-9306	●	●
19	BOLT; FRT AXLE (E) M8X25 W/LK WASHER	8-97093-664-0	06	1	9307-	●	●
19	BOLT; FRT AXLE (A) M8X30	9-02060-830-0	02	1	9112-9306	●	●
19	BOLT; FRT AXLE (D) M8X30 W/LK WASHER	8-97093-665-0	02	1	9307-	●	●
19	BOLT; FRT AXLE SHIFT ON THE FLY(7EX) (H) M12X22 FLANGE	0-28081-222-0	04	1	9505-	●	●
19	BOLT; FRT AXLE SHIFT ON THE FLY(7EX) (I) M8X20 FLANGE	0-28280-820-0	04	1	9505-	●	●
19	BOLT; FRT AXLE SHIFT ON THE FLY(7EX) (G) M8X25 W/LK&PL WASHER	8-94180-329-1	03	1	9505-	●	●
20	GASKET; AXLE CASE ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	9112-	●	●
22	WASHER; PL,AXLE CASE ID=8.4	9-09164-508-0	01	1	9112-	●	●
23	NUT; FRT AXLE (A) M8	9-09110-508-0	02	1	9112-	●	●
23	NUT; FRT AXLE SHIFT ON THE FLY(7EX) (B) M6 FLANGE	8-97063-399-0	02	1	9505-	●	●
24	STUD; CASE,FRT AXLE M8X25 L=37	9-04110-825-0	02	1	9112-	●	●
26	WASHER; LK,CASE,FRT AXLE ID=8.2	9-09150-608-0	12	1	9112-9306	●	●
26	WASHER; LK,CASE,FRT AXLE ID=8.2	9-09150-608-0	02	1	9307-	●	●

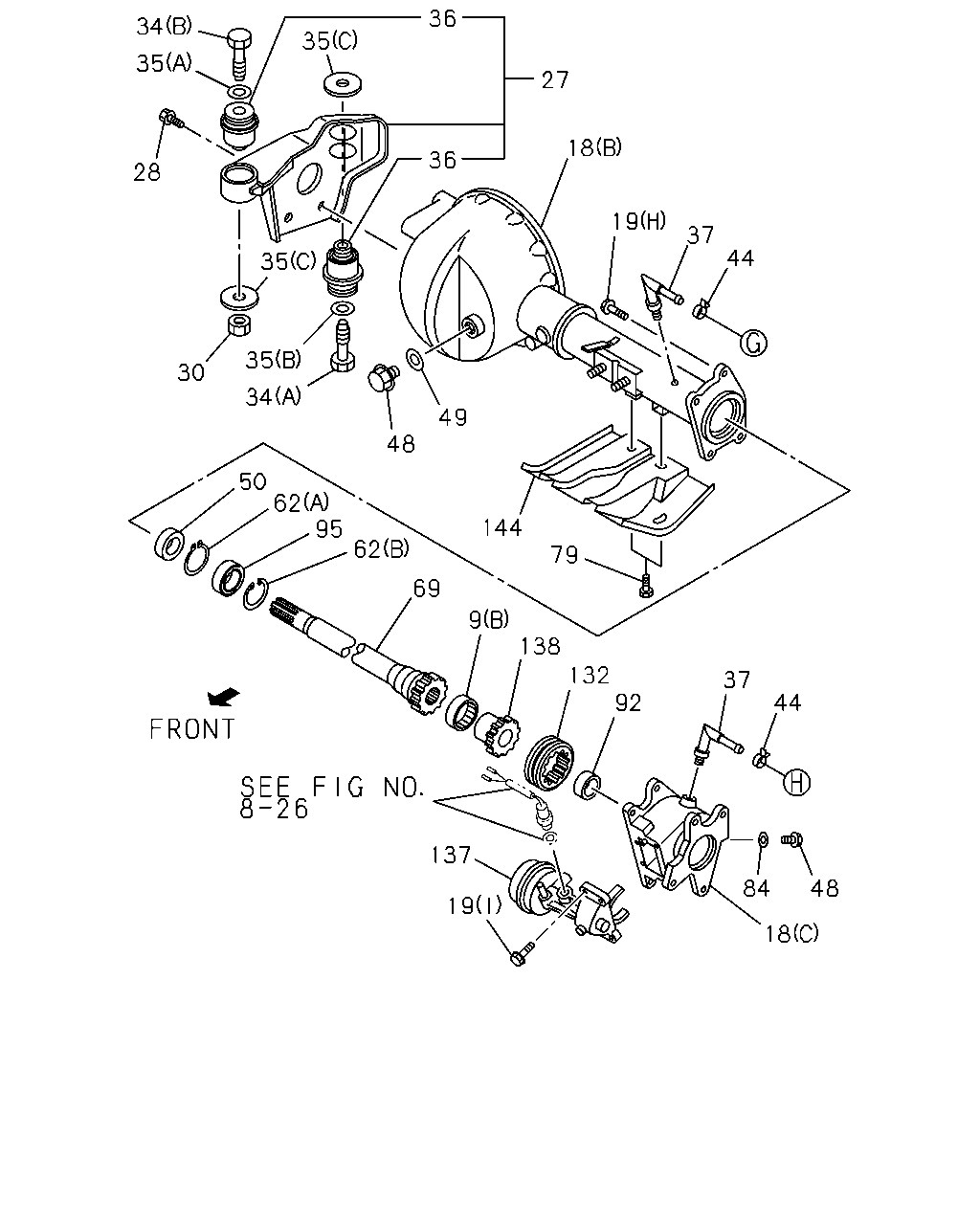

36 34 35 35 27 18 36 28 19 37 44 35 35 34 30 49 48 50 62 95 62 144 79 69 9 138 132 92 37 44 137 48 84 19 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	BEARING; AXLE SHAFT,INNER (A)	8-94407-724-0	02	1	9112-	●	●
9	BEARING; AXLE SHAFT,INNER SHIFT ON THE FLY(7EX) (B)	8-97101-878-0	01	1	9505-	●	●
18	CASE; FRT AXLE (A)	8-97018-230-0	01	1	9112-9504	●	●
18	CASE; FRT AXLE EXC. SHIFT ON THE FLY(7EX) (A)	8-97018-230-0	01	1	9505-	●	●
18	CASE; FRT AXLE SHIFT ON THE FLY(7EX) (C)	8-97081-658-2	01	1	9505-	●	●
18	CASE; FRT AXLE SHIFT ON THE FLY(7EX) (B)	8-97101-757-3	01	1	9505-	●	●
19	BOLT; FRT AXLE (C) M8X90	9-01065-890-0	02	1	9112-9306	●	●
19	BOLT; FRT AXLE (F) M8X90 W/LK WASHER	8-97093-666-0	02	1	9307-	●	●
19	BOLT; FRT AXLE (B) M8X25	9-02060-825-0	06	1	9112-9306	●	●
19	BOLT; FRT AXLE (E) M8X25 W/LK WASHER	8-97093-664-0	06	1	9307-	●	●
19	BOLT; FRT AXLE (A) M8X30	9-02060-830-0	02	1	9112-9306	●	●
19	BOLT; FRT AXLE (D) M8X30 W/LK WASHER	8-97093-665-0	02	1	9307-	●	●
19	BOLT; FRT AXLE SHIFT ON THE FLY(7EX) (H) M12X22 FLANGE	0-28081-222-0	04	1	9505-	●	●
19	BOLT; FRT AXLE SHIFT ON THE FLY(7EX) (I) M8X20 FLANGE	0-28280-820-0	04	1	9505-	●	●
19	BOLT; FRT AXLE SHIFT ON THE FLY(7EX) (G) M8X25 W/LK&PL WASHER	8-94180-329-1	03	1	9505-	●	●
27	BRACKET; AXLE CASE	8-94382-043-0	01	1	9112-9409	●	●
27	BRACKET; AXLE CASE	8-97113-948-0	01	1	9410-	●	●
27	BRACKET; AXLE CASE	8-94382-042-0	01	1	9112-	●	●
28	BOLT; BRKT TO AXLE CASE M12X25	0-20801-225-0	08	1	9112-9501	●	●
28	BOLT; BRKT TO AXLE CASE M12X22 FLANGE	0-28081-222-0	08	1	9410-	●	●
30	NUT; FRT AXLE MTG M14	9-99110-514-0	02	1	9112-	●	●
34	BOLT; FRT AXLE MTG (A) M14X84	8-94452-339-2	02	1	9112-	●	●
34	BOLT; FRT AXLE MTG (B) M14X75	9-91066-475-0	02	1	9112-	●	●
35	WASHER; FRT AXLE MTG (A) ID=14 OD=40	8-94457-273-0	02	1	9112-	●	●
35	WASHER; FRT AXLE MTG (B) ID=15 OD=36	9-09164-714-0	02	1	9112-	●	●
35	WASHER; FRT AXLE MTG (C) ID=14 OD=50	8-97093-581-0	04	1	9304-	●	●
36	BUSHING; RUBBER,FRT AXLE MTG	8-97018-240-0	04	1	9112-	●	●
37	BREATHER; FRT AXLE CASE	8-94226-943-0	01	1	9112-9504	●	●
37	BREATHER; FRT AXLE CASE	8-94226-943-0	01	1	9505-	●	●
37	BREATHER; FRT AXLE CASE SHIFT ON THE FLY(7EX)	8-94226-943-0	01	1	9505-	●	●
44	CLIP; AIR BREATHER HOSE ID=11 WHITE	5-09707-005-1	01	1	9112-9306	●	●
44	CLIP; AIR BREATHER HOSE ID=11	8-94238-570-0	01	1	9307-9504	●	●
44	CLIP; AIR BREATHER HOSE ID=11	8-94238-570-0	01	1	9505-9709	●	●
44	CLIP; AIR BREATHER HOSE SHIFT ON THE FLY(7EX) ID=11	8-94238-570-0	01	1	9505-9709	●	●
44	CLIP; AIR BREATHER HOSE ID=11	8-97173-219-0	01	1	9710-	●	●
44	CLIP; AIR BREATHER HOSE SHIFT ON THE FLY(7EX) ID=11	8-97173-219-0	01	1	9710-	●	●
48	PLUG; DRAIN,AXLE CASE M20X10.5	9-09662-005-0	01	1	9112-9504	●	●
48	PLUG; DRAIN,AXLE CASE SHIFT ON THE FLY(7EX) M20X10.5	9-09662-005-0	02	1	9505-	●	●
48	PLUG; DRAIN,AXLE CASE EXC. SHIFT ON THE FLY(7EX) M20X10.5	9-09662-005-0	01	1	9505-	●	●
49	GASKET; DRAIN PLUG ID=20 OD=30	8-94462-734-0	01	1	9112-	●	●
50	SEAL; OIL,SHAFT,FRT AXLE SHIFT ON THE FLY(7EX)	8-97084-507-0	01	1	9505-	●	●
62	RING; SNAP,AXLE SHAFT SHIFT ON THE FLY(7EX) (A) ID=37.0	9-09180-040-0	01	1	9505-	●	●
62	RING; SNAP,AXLE SHAFT SHIFT ON THE FLY(7EX) (B) ID=57.9	9-09180-162-0	01	1	9505-	●	●
69	SHAFT; AXLE,FRT INNER SHIFT ON THE FLY(7EX)	8-97130-566-1	01	1	9505-9711	●	●
69	SHAFT; AXLE,FRT INNER SHIFT ON THE FLY(7EX)	8-97188-174-0	01	1	9712-	●	●
79	BOLT; BRKT SHIFT ON THE FLY(7EX)	0-28481-016-0	02	1	9505-	●	●
84	GASKET; PLUG,OIL FILLER SHIFT ON THE FLY(7EX) ID=20 OD=30	8-94462-734-0	01	1	9505-	●	●
92	SPACER; FRT DRIVE SHAFT SHIFT ON THE FLY(7EX)	8-97101-762-0	01	1	9505-9512	●	●
95	BEARING; AXLE SHAFT,FRT SHIFT ON THE FLY(7EX)	8-97103-392-0	01	1	9505-	●	●
132	SLEEVE; RUBBER,HOSE SHIFT ON THE FLY(7EX)	8-97130-567-1	01	1	9505-	●	●
137	ACTUATOR; AXLE SHIFT ON THE FLY(7EX)	8-97101-856-3	01	1	9505-	●	●
138	GEAR; CLUTCH SHIFT ON THE FLY(7EX)	8-97081-660-0	01	1	9505-9512	●	●
138	GEAR; CLUTCH SHIFT ON THE FLY(7EX)	8-97134-857-0	01	1	9601-	●	●
144	PROTECTOR SHIFT ON THE FLY(7EX)	8-97101-788-2	01	1	9505-	●	●

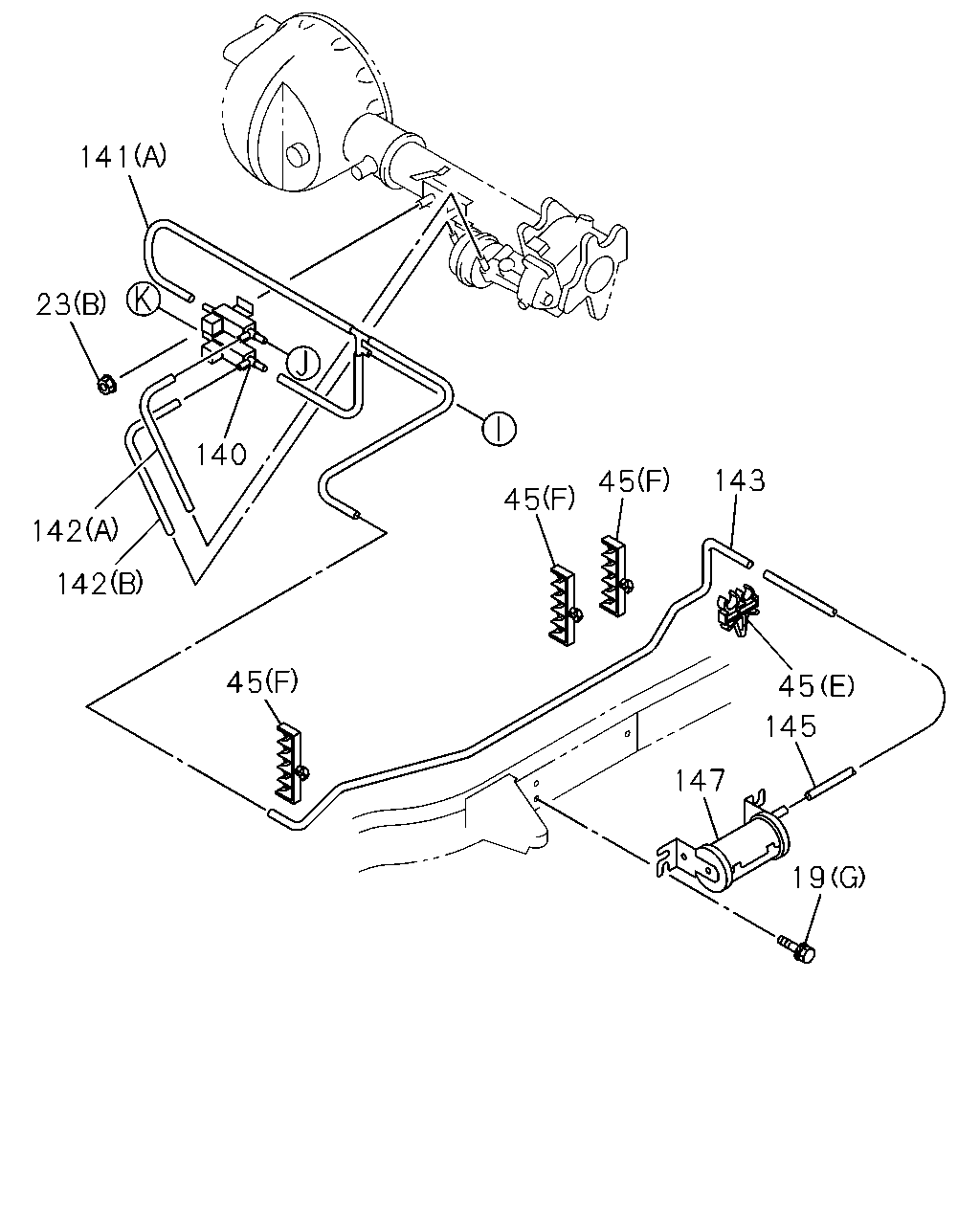

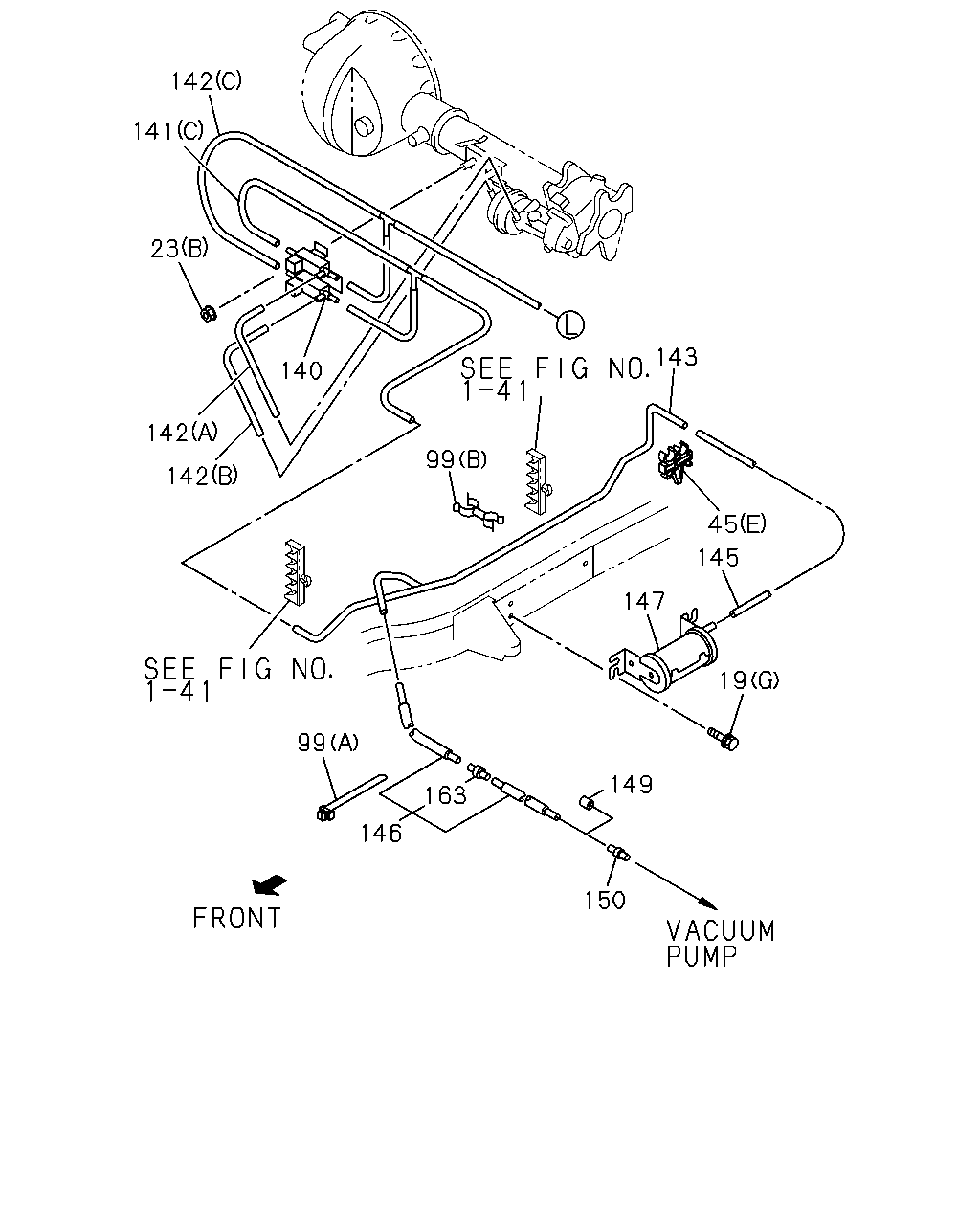

142 141 23 143 140 142 99 142 45 145 147 19 99 149 163 146 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	BOLT; FRT AXLE (C) M8X90	9-01065-890-0	02	1	9112-9306	●	●
19	BOLT; FRT AXLE (F) M8X90 W/LK WASHER	8-97093-666-0	02	1	9307-	●	●
19	BOLT; FRT AXLE (B) M8X25	9-02060-825-0	06	1	9112-9306	●	●
19	BOLT; FRT AXLE (E) M8X25 W/LK WASHER	8-97093-664-0	06	1	9307-	●	●
19	BOLT; FRT AXLE (A) M8X30	9-02060-830-0	02	1	9112-9306	●	●
19	BOLT; FRT AXLE (D) M8X30 W/LK WASHER	8-97093-665-0	02	1	9307-	●	●
19	BOLT; FRT AXLE SHIFT ON THE FLY(7EX) (H) M12X22 FLANGE	0-28081-222-0	04	1	9505-	●	●
19	BOLT; FRT AXLE SHIFT ON THE FLY(7EX) (I) M8X20 FLANGE	0-28280-820-0	04	1	9505-	●	●
19	BOLT; FRT AXLE SHIFT ON THE FLY(7EX) (G) M8X25 W/LK&PL WASHER	8-94180-329-1	03	1	9505-	●	●
23	NUT; FRT AXLE (A) M8	9-09110-508-0	02	1	9112-	●	●
23	NUT; FRT AXLE SHIFT ON THE FLY(7EX) (B) M6 FLANGE	8-97063-399-0	02	1	9505-	●	●
45	CLIP (C) ID=11X2 L=16	9-09535-025-0	01	1	9112-9504	●	●
45	CLIP EXC. SHIFT ON THE FLY(7EX) (C) ID=11X2 L=16	9-09535-025-0	01	1	9505-	●	●
45	CLIP SHIFT ON THE FLY(7EX) (C) ID=28 L=40	1-09700-995-1	01	1	9505-9507	●	●
45	CLIP 4JG2 ENG(RJC),4ZE1 ENG(RLJ) SHIFT ON THE FLY(7EX) (C) ID=28 L=40	1-09700-995-1	01	1	9508-	●	●
45	CLIP SHIFT ON THE FLY(7EX) (E)	8-94466-385-0	01	1	9505-	●	●
45	CLIP 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) (D)	8-94161-321-1	01	1	9112-9504	●	●
45	CLIP 4JG2 ENG(RJC),4ZE1 ENG(RLJ) (D)	8-94161-321-1	01	1	9505-	●	●
45	CLIP 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (F) L=8.9	8-94435-551-1	04	1	9505-9508	●	●
45	CLIP 4ZE1 ENG(RLJ) SHIFT ON THE FLY(7EX) (F) L=8.9	8-94435-551-1	04	1	9509-	●	●
45	CLIP 6VD1 SOHC ENG(RLU) (A) ID=11 H=20 L=20	5-09700-351-0	01	1	9112-9504	●	●
45	CLIP 6VD1 SOHC ENG(RLU) EXC. SHIFT ON THE FLY(7EX) (A) ID=11 H=20 L=20	5-09700-351-0	01	1	9505-	●	●
45	CLIP 6VD1 SOHC ENG(RLU) (B) ID=11 L=40	9-09525-073-0	01	1	9112-9504	●	●
45	CLIP 6VD1 SOHC ENG(RLU) EXC. SHIFT ON THE FLY(7EX) (B) ID=11 L=40	9-09525-073-0	01	1	9505-	●	●
45	CLIP 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (J) ID=8 H=20 L=20	1-09700-604-0	01	1	9505-9508	●	●
45	CLIP 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (F) L=8.9	8-94435-551-1	03	1	9509-	●	●
45	CLIP 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (I) ID=22 L=40	5-09700-369-0	01	1	9505-	●	●
45	CLIP 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (G) ID=14.5 & 7.5	8-94315-424-0	01	1	9505-9512	●	●
45	CLIP 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (G) ID=11.8 & 7.5	1-09709-182-0	01	1	9601-	●	●
45	CLIP 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (H) ID=26 L=26	9-09915-417-1	01	1	9505-9507	●	●
45	CLIP 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (H) ID=26 L=26	9-09915-417-1	02	1	9508-	●	●
99	CLIP; RUBBER HOSE 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX) (A) L=250	5-09707-030-0	02	1	9505-9505	●	●
99	CLIP; RUBBER HOSE 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX) (A) L=200	8-94464-835-0	02	1	9506-	●	●
99	CLIP; RUBBER HOSE 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX) (B) ID=8 & 4.8	8-94430-297-0	01	1	9505-9505	●	●
99	CLIP; RUBBER HOSE 4ZE1 ENG(RLJ) SHIFT ON THE FLY(7EX) (C) L=112	8-94232-618-0	01	1	9506-	●	●
99	CLIP; RUBBER HOSE 4ZE1 ENG(RLJ) SHIFT ON THE FLY(7EX) (D) ID=13 & 16.5	8-94169-028-0	01	1	9608-	●	●
140	VALVE UNIT; AXLE SHIFT ON THE FLY(7EX)	8-97101-858-1	01	1	9505-	●	●
141	HOSE; VACUUM 4JG2 ENG(RJC),4ZE1 ENG(RLJ) SHIFT ON THE FLY(7EX) (C)	8-97101-781-2	01	1	9505-	●	●
141	HOSE; VACUUM 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (A)	8-97131-140-0	01	1	9505-	●	●
141	HOSE; VACUUM 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (B)	8-97133-280-0	01	1	9505-	●	●
142	HOSE; VSV SHIFT ON THE FLY(7EX) (A)	8-97101-810-0	01	1	9505-	●	●
142	HOSE; VSV SHIFT ON THE FLY(7EX) (B)	8-97101-811-2	01	1	9505-	●	●
142	HOSE; VSV 4JG2 ENG(RJC),4ZE1 ENG(RLJ) SHIFT ON THE FLY(7EX) (C)	8-97126-040-1	01	1	9505-	●	●
143	PIPE; VACUUM 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX)	8-97101-861-2	01	1	9505-9607	●	●
143	PIPE; VACUUM 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX)	8-97133-855-0	01	1	9608-	●	●
143	PIPE; VACUUM 4ZE1 ENG(RLJ) SHIFT ON THE FLY(7EX)	8-97101-862-3	01	1	9505-	●	●
143	PIPE; VACUUM 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX)	8-97131-126-0	01	1	9505-9508	●	●
143	PIPE; VACUUM 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX)	8-97133-591-0	01	1	9509-	●	●
145	HOSE; VAC TANK SHIFT ON THE FLY(7EX) L=150 SERVICED BY L=3000	0-04740-300-0	01	1	9505-	●	●
146	HOSE; CHECK VLV 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX)	8-97131-141-0	01	1	9505-9608	●	●
146	HOSE; CHECK VLV 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX)	8-97164-608-0	01	1	9609-	●	●
146	HOSE; CHECK VLV 4ZE1 ENG(RLJ) SHIFT ON THE FLY(7EX)	8-97110-374-1	01	1	9505-	●	●
147	TANK; VACUUM SHIFT ON THE FLY(7EX)	8-97102-100-2	01	1	9505-	●	●
149	CAP; RUBBER 4JG2 ENG(RJC) EXC. SHIFT ON THE FLY(7EX) ID=4	8-94217-809-0	01	1	9505-	●	●
150	JOINT 4JG2 ENG(RJC) EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE/CANARY EQUIPMENT(EK4) 2WAY	8-94313-805-0	01	1	9506-	●	●
163	VALVE; CHECK 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX)	8-97024-129-2	01	1	9505-9607	●	●
163	VALVE; CHECK 4JG2 ENG(RJC),4ZE1 ENG(RLJ) SHIFT ON THE FLY(7EX)	8-97024-129-2	01	1	9608-	●	●

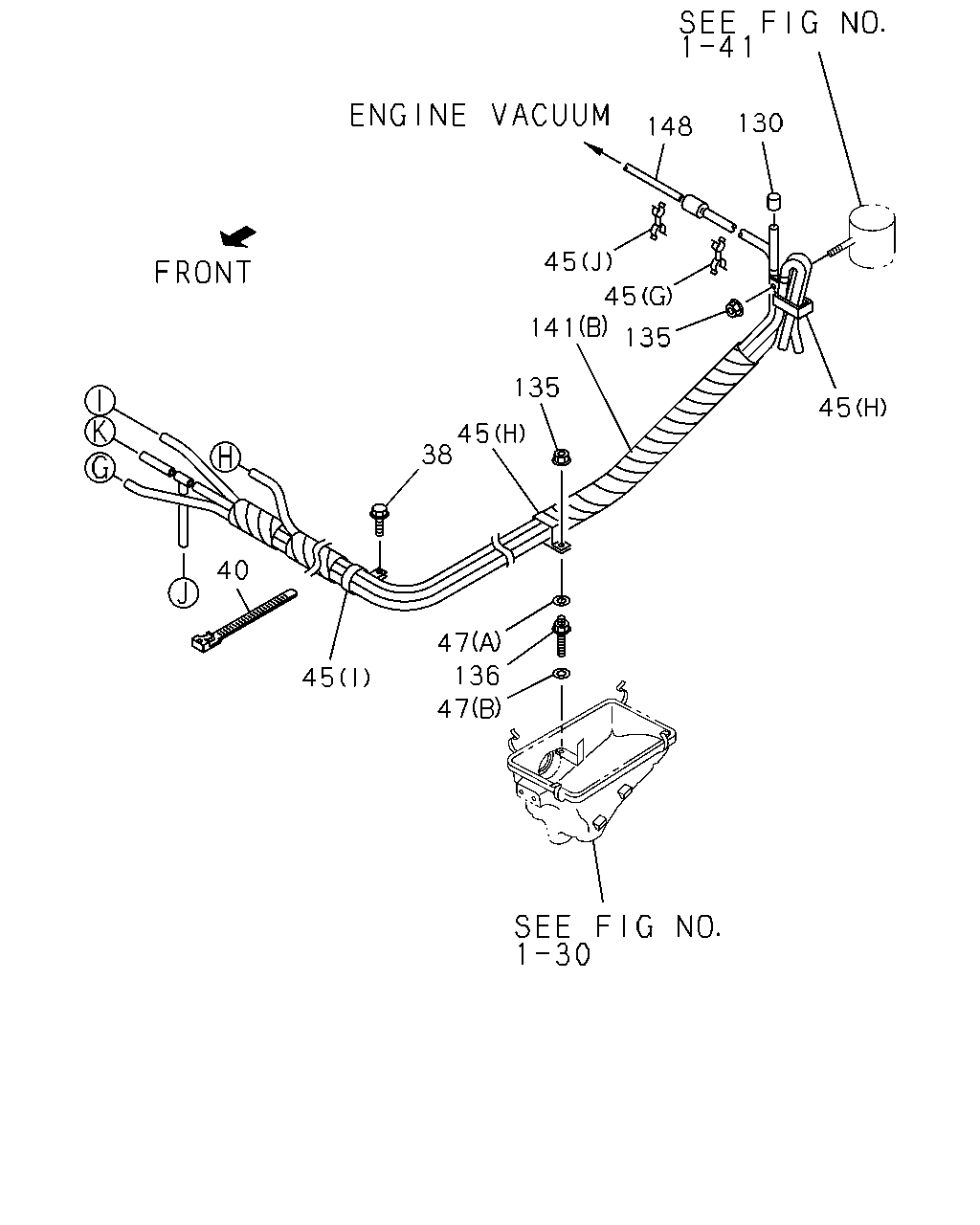

130 148 45 45 141 135 135 45 45 38 40 47 136 47 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	BOLT; AIR BREATHER,FRT AXLE M6X20 W/LK&PL WASHER	9-01960-620-0	01	1	9112-9204	●	●
38	BOLT; AIR BREATHER,FRT AXLE M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	9205-9709	●	●
38	BOLT; AIR BREATHER,FRT AXLE M6X20 FLANGE	0-28680-620-0	01	1	9710-	●	●
38	BOLT; AIR BREATHER,FRT AXLE 4ZE1 ENG(RLJ) M8X14	9-01960-814-0	01	1	9112-9204	●	●
38	BOLT; AIR BREATHER,FRT AXLE 4ZE1 ENG(RLJ) M8X14	0-50140-814-0	01	1	9205-	●	●
40	CLIP; BAND,AIR BREATHER HOSE L=140	5-09707-031-0	01	1	9112-9206	●	●
40	CLIP; BAND,AIR BREATHER HOSE L=170	5-09707-054-0	01	1	9207-	●	●
45	CLIP (C) ID=11X2 L=16	9-09535-025-0	01	1	9112-9504	●	●
45	CLIP EXC. SHIFT ON THE FLY(7EX) (C) ID=11X2 L=16	9-09535-025-0	01	1	9505-	●	●
45	CLIP SHIFT ON THE FLY(7EX) (C) ID=28 L=40	1-09700-995-1	01	1	9505-9507	●	●
45	CLIP 4JG2 ENG(RJC),4ZE1 ENG(RLJ) SHIFT ON THE FLY(7EX) (C) ID=28 L=40	1-09700-995-1	01	1	9508-	●	●
45	CLIP SHIFT ON THE FLY(7EX) (E)	8-94466-385-0	01	1	9505-	●	●
45	CLIP 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) (D)	8-94161-321-1	01	1	9112-9504	●	●
45	CLIP 4JG2 ENG(RJC),4ZE1 ENG(RLJ) (D)	8-94161-321-1	01	1	9505-	●	●
45	CLIP 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (F) L=8.9	8-94435-551-1	04	1	9505-9508	●	●
45	CLIP 4ZE1 ENG(RLJ) SHIFT ON THE FLY(7EX) (F) L=8.9	8-94435-551-1	04	1	9509-	●	●
45	CLIP 6VD1 SOHC ENG(RLU) (A) ID=11 H=20 L=20	5-09700-351-0	01	1	9112-9504	●	●
45	CLIP 6VD1 SOHC ENG(RLU) EXC. SHIFT ON THE FLY(7EX) (A) ID=11 H=20 L=20	5-09700-351-0	01	1	9505-	●	●
45	CLIP 6VD1 SOHC ENG(RLU) (B) ID=11 L=40	9-09525-073-0	01	1	9112-9504	●	●
45	CLIP 6VD1 SOHC ENG(RLU) EXC. SHIFT ON THE FLY(7EX) (B) ID=11 L=40	9-09525-073-0	01	1	9505-	●	●
45	CLIP 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (J) ID=8 H=20 L=20	1-09700-604-0	01	1	9505-9508	●	●
45	CLIP 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (F) L=8.9	8-94435-551-1	03	1	9509-	●	●
45	CLIP 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (I) ID=22 L=40	5-09700-369-0	01	1	9505-	●	●
45	CLIP 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (G) ID=14.5 & 7.5	8-94315-424-0	01	1	9505-9512	●	●
45	CLIP 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (G) ID=11.8 & 7.5	1-09709-182-0	01	1	9601-	●	●
45	CLIP 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (H) ID=26 L=26	9-09915-417-1	01	1	9505-9507	●	●
45	CLIP 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (H) ID=26 L=26	9-09915-417-1	02	1	9508-	●	●
47	WASHER; CLIP 6VD1 SOHC ENG(RLU) (A) ID=8.4 OD=18	9-09160-608-0	01	1	9112-	●	●
47	WASHER; CLIP 6VD1 SOHC ENG(RLU) (B) ID=8.4 OD=26	9-09164-808-0	01	1	9112-	●	●
130	FILTER; OIL,FRT AXLE SHIFT ON THE FLY(7EX)	8-97101-779-0	01	1	9505-	●	●
135	NUT; BREATHER 6VD1 SOHC ENG(RLU) M8 FLANGE	0-91150-108-0	02	1	9112-	●	●
136	STUD; BREATHER 6VD1 SOHC ENG(RLU) M8X12,M8X30 L=50	8-97032-290-0	01	1	9112-	●	●
141	HOSE; VACUUM 4JG2 ENG(RJC),4ZE1 ENG(RLJ) SHIFT ON THE FLY(7EX) (C)	8-97101-781-2	01	1	9505-	●	●
141	HOSE; VACUUM 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (A)	8-97131-140-0	01	1	9505-	●	●
141	HOSE; VACUUM 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (B)	8-97133-280-0	01	1	9505-	●	●
148	HOSE & JOINT ASM 4ZE1 ENG(RLJ) SHIFT ON THE FLY(7EX)	8-97110-378-2	01	1	9505-	●	●
148	HOSE & JOINT ASM 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX)	8-97101-786-3	01	1	9505-9508	●	●
148	HOSE & JOINT ASM 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX)	8-97133-592-1	01	1	9509-	●	●

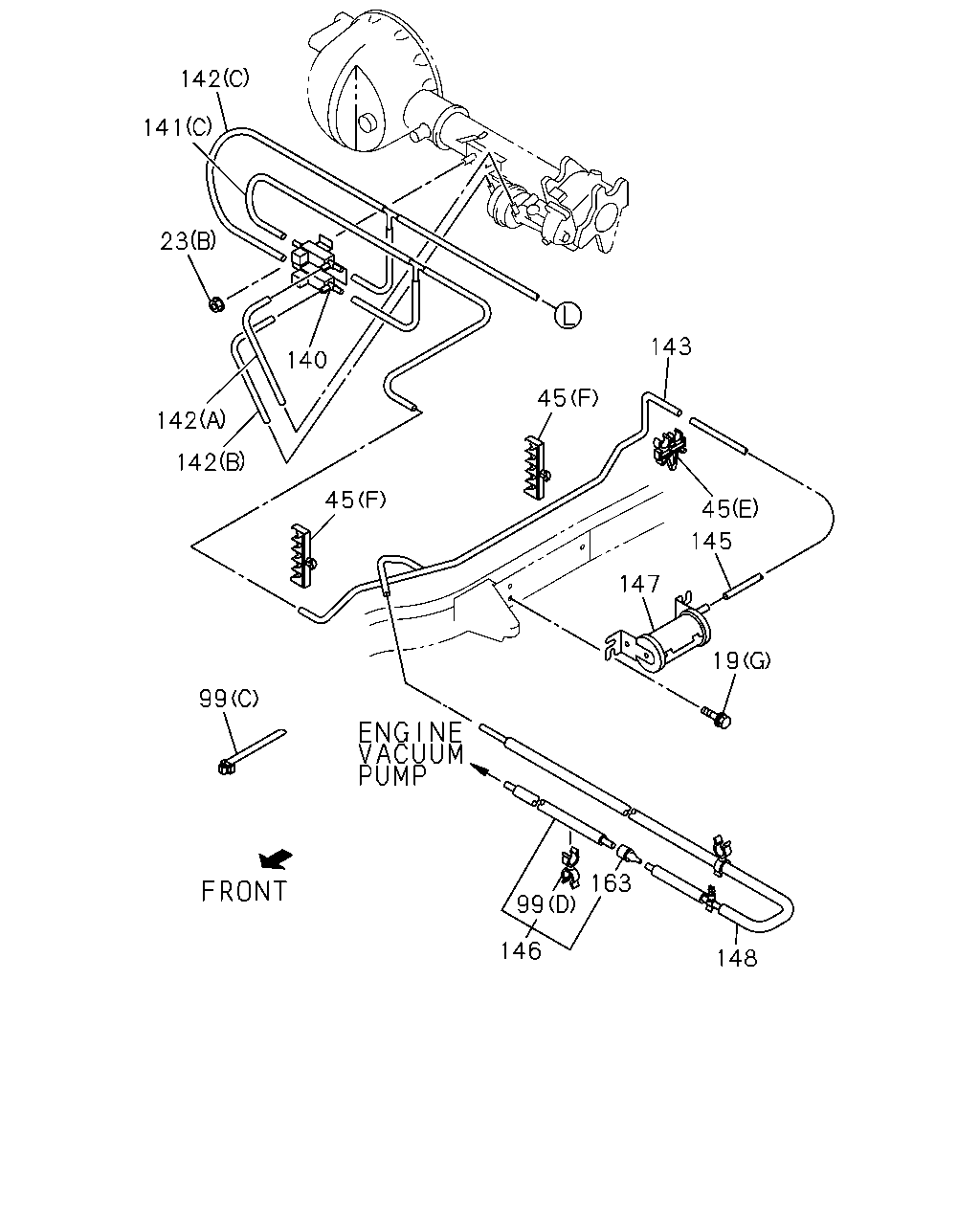

142 141 23 143 140 45 142 142 45 45 145 147 19 99 163 99 146 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	BOLT; FRT AXLE (C) M8X90	9-01065-890-0	02	1	9112-9306	●	●
19	BOLT; FRT AXLE (F) M8X90 W/LK WASHER	8-97093-666-0	02	1	9307-	●	●
19	BOLT; FRT AXLE (B) M8X25	9-02060-825-0	06	1	9112-9306	●	●
19	BOLT; FRT AXLE (E) M8X25 W/LK WASHER	8-97093-664-0	06	1	9307-	●	●
19	BOLT; FRT AXLE (A) M8X30	9-02060-830-0	02	1	9112-9306	●	●
19	BOLT; FRT AXLE (D) M8X30 W/LK WASHER	8-97093-665-0	02	1	9307-	●	●
19	BOLT; FRT AXLE SHIFT ON THE FLY(7EX) (H) M12X22 FLANGE	0-28081-222-0	04	1	9505-	●	●
19	BOLT; FRT AXLE SHIFT ON THE FLY(7EX) (I) M8X20 FLANGE	0-28280-820-0	04	1	9505-	●	●
19	BOLT; FRT AXLE SHIFT ON THE FLY(7EX) (G) M8X25 W/LK&PL WASHER	8-94180-329-1	03	1	9505-	●	●
23	NUT; FRT AXLE (A) M8	9-09110-508-0	02	1	9112-	●	●
23	NUT; FRT AXLE SHIFT ON THE FLY(7EX) (B) M6 FLANGE	8-97063-399-0	02	1	9505-	●	●
45	CLIP (C) ID=11X2 L=16	9-09535-025-0	01	1	9112-9504	●	●
45	CLIP EXC. SHIFT ON THE FLY(7EX) (C) ID=11X2 L=16	9-09535-025-0	01	1	9505-	●	●
45	CLIP SHIFT ON THE FLY(7EX) (C) ID=28 L=40	1-09700-995-1	01	1	9505-9507	●	●
45	CLIP 4JG2 ENG(RJC),4ZE1 ENG(RLJ) SHIFT ON THE FLY(7EX) (C) ID=28 L=40	1-09700-995-1	01	1	9508-	●	●
45	CLIP SHIFT ON THE FLY(7EX) (E)	8-94466-385-0	01	1	9505-	●	●
45	CLIP 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) (D)	8-94161-321-1	01	1	9112-9504	●	●
45	CLIP 4JG2 ENG(RJC),4ZE1 ENG(RLJ) (D)	8-94161-321-1	01	1	9505-	●	●
45	CLIP 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (F) L=8.9	8-94435-551-1	04	1	9505-9508	●	●
45	CLIP 4ZE1 ENG(RLJ) SHIFT ON THE FLY(7EX) (F) L=8.9	8-94435-551-1	04	1	9509-	●	●
45	CLIP 6VD1 SOHC ENG(RLU) (A) ID=11 H=20 L=20	5-09700-351-0	01	1	9112-9504	●	●
45	CLIP 6VD1 SOHC ENG(RLU) EXC. SHIFT ON THE FLY(7EX) (A) ID=11 H=20 L=20	5-09700-351-0	01	1	9505-	●	●
45	CLIP 6VD1 SOHC ENG(RLU) (B) ID=11 L=40	9-09525-073-0	01	1	9112-9504	●	●
45	CLIP 6VD1 SOHC ENG(RLU) EXC. SHIFT ON THE FLY(7EX) (B) ID=11 L=40	9-09525-073-0	01	1	9505-	●	●
45	CLIP 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (J) ID=8 H=20 L=20	1-09700-604-0	01	1	9505-9508	●	●
45	CLIP 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (F) L=8.9	8-94435-551-1	03	1	9509-	●	●
45	CLIP 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (I) ID=22 L=40	5-09700-369-0	01	1	9505-	●	●
45	CLIP 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (G) ID=14.5 & 7.5	8-94315-424-0	01	1	9505-9512	●	●
45	CLIP 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (G) ID=11.8 & 7.5	1-09709-182-0	01	1	9601-	●	●
45	CLIP 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (H) ID=26 L=26	9-09915-417-1	01	1	9505-9507	●	●
45	CLIP 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (H) ID=26 L=26	9-09915-417-1	02	1	9508-	●	●
99	CLIP; RUBBER HOSE 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX) (A) L=250	5-09707-030-0	02	1	9505-9505	●	●
99	CLIP; RUBBER HOSE 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX) (A) L=200	8-94464-835-0	02	1	9506-	●	●
99	CLIP; RUBBER HOSE 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX) (B) ID=8 & 4.8	8-94430-297-0	01	1	9505-9505	●	●
99	CLIP; RUBBER HOSE 4ZE1 ENG(RLJ) SHIFT ON THE FLY(7EX) (C) L=112	8-94232-618-0	01	1	9506-	●	●
99	CLIP; RUBBER HOSE 4ZE1 ENG(RLJ) SHIFT ON THE FLY(7EX) (D) ID=13 & 16.5	8-94169-028-0	01	1	9608-	●	●
140	VALVE UNIT; AXLE SHIFT ON THE FLY(7EX)	8-97101-858-1	01	1	9505-	●	●
141	HOSE; VACUUM 4JG2 ENG(RJC),4ZE1 ENG(RLJ) SHIFT ON THE FLY(7EX) (C)	8-97101-781-2	01	1	9505-	●	●
141	HOSE; VACUUM 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (A)	8-97131-140-0	01	1	9505-	●	●
141	HOSE; VACUUM 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (B)	8-97133-280-0	01	1	9505-	●	●
142	HOSE; VSV SHIFT ON THE FLY(7EX) (A)	8-97101-810-0	01	1	9505-	●	●
142	HOSE; VSV SHIFT ON THE FLY(7EX) (B)	8-97101-811-2	01	1	9505-	●	●
142	HOSE; VSV 4JG2 ENG(RJC),4ZE1 ENG(RLJ) SHIFT ON THE FLY(7EX) (C)	8-97126-040-1	01	1	9505-	●	●
143	PIPE; VACUUM 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX)	8-97101-861-2	01	1	9505-9607	●	●
143	PIPE; VACUUM 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX)	8-97133-855-0	01	1	9608-	●	●
143	PIPE; VACUUM 4ZE1 ENG(RLJ) SHIFT ON THE FLY(7EX)	8-97101-862-3	01	1	9505-	●	●
143	PIPE; VACUUM 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX)	8-97131-126-0	01	1	9505-9508	●	●
143	PIPE; VACUUM 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX)	8-97133-591-0	01	1	9509-	●	●
145	HOSE; VAC TANK SHIFT ON THE FLY(7EX) L=150 SERVICED BY L=3000	0-04740-300-0	01	1	9505-	●	●
146	HOSE; CHECK VLV 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX)	8-97131-141-0	01	1	9505-9608	●	●
146	HOSE; CHECK VLV 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX)	8-97164-608-0	01	1	9609-	●	●
146	HOSE; CHECK VLV 4ZE1 ENG(RLJ) SHIFT ON THE FLY(7EX)	8-97110-374-1	01	1	9505-	●	●
147	TANK; VACUUM SHIFT ON THE FLY(7EX)	8-97102-100-2	01	1	9505-	●	●
148	HOSE & JOINT ASM 4ZE1 ENG(RLJ) SHIFT ON THE FLY(7EX)	8-97110-378-2	01	1	9505-	●	●
148	HOSE & JOINT ASM 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX)	8-97101-786-3	01	1	9505-9508	●	●
148	HOSE & JOINT ASM 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX)	8-97133-592-1	01	1	9509-	●	●
163	VALVE; CHECK 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX)	8-97024-129-2	01	1	9505-9607	●	●
163	VALVE; CHECK 4JG2 ENG(RJC),4ZE1 ENG(RLJ) SHIFT ON THE FLY(7EX)	8-97024-129-2	01	1	9608-	●	●

141 23 140 45 143 45 142 142 45 45 145 147 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	BOLT; FRT AXLE (C) M8X90	9-01065-890-0	02	1	9112-9306	●	●
19	BOLT; FRT AXLE (F) M8X90 W/LK WASHER	8-97093-666-0	02	1	9307-	●	●
19	BOLT; FRT AXLE (B) M8X25	9-02060-825-0	06	1	9112-9306	●	●
19	BOLT; FRT AXLE (E) M8X25 W/LK WASHER	8-97093-664-0	06	1	9307-	●	●
19	BOLT; FRT AXLE (A) M8X30	9-02060-830-0	02	1	9112-9306	●	●
19	BOLT; FRT AXLE (D) M8X30 W/LK WASHER	8-97093-665-0	02	1	9307-	●	●
19	BOLT; FRT AXLE SHIFT ON THE FLY(7EX) (H) M12X22 FLANGE	0-28081-222-0	04	1	9505-	●	●
19	BOLT; FRT AXLE SHIFT ON THE FLY(7EX) (I) M8X20 FLANGE	0-28280-820-0	04	1	9505-	●	●
19	BOLT; FRT AXLE SHIFT ON THE FLY(7EX) (G) M8X25 W/LK&PL WASHER	8-94180-329-1	03	1	9505-	●	●
23	NUT; FRT AXLE (A) M8	9-09110-508-0	02	1	9112-	●	●
23	NUT; FRT AXLE SHIFT ON THE FLY(7EX) (B) M6 FLANGE	8-97063-399-0	02	1	9505-	●	●
45	CLIP (C) ID=11X2 L=16	9-09535-025-0	01	1	9112-9504	●	●
45	CLIP EXC. SHIFT ON THE FLY(7EX) (C) ID=11X2 L=16	9-09535-025-0	01	1	9505-	●	●
45	CLIP SHIFT ON THE FLY(7EX) (C) ID=28 L=40	1-09700-995-1	01	1	9505-9507	●	●
45	CLIP 4JG2 ENG(RJC),4ZE1 ENG(RLJ) SHIFT ON THE FLY(7EX) (C) ID=28 L=40	1-09700-995-1	01	1	9508-	●	●
45	CLIP SHIFT ON THE FLY(7EX) (E)	8-94466-385-0	01	1	9505-	●	●
45	CLIP 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) (D)	8-94161-321-1	01	1	9112-9504	●	●
45	CLIP 4JG2 ENG(RJC),4ZE1 ENG(RLJ) (D)	8-94161-321-1	01	1	9505-	●	●
45	CLIP 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (F) L=8.9	8-94435-551-1	04	1	9505-9508	●	●
45	CLIP 4ZE1 ENG(RLJ) SHIFT ON THE FLY(7EX) (F) L=8.9	8-94435-551-1	04	1	9509-	●	●
45	CLIP 6VD1 SOHC ENG(RLU) (A) ID=11 H=20 L=20	5-09700-351-0	01	1	9112-9504	●	●
45	CLIP 6VD1 SOHC ENG(RLU) EXC. SHIFT ON THE FLY(7EX) (A) ID=11 H=20 L=20	5-09700-351-0	01	1	9505-	●	●
45	CLIP 6VD1 SOHC ENG(RLU) (B) ID=11 L=40	9-09525-073-0	01	1	9112-9504	●	●
45	CLIP 6VD1 SOHC ENG(RLU) EXC. SHIFT ON THE FLY(7EX) (B) ID=11 L=40	9-09525-073-0	01	1	9505-	●	●
45	CLIP 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (J) ID=8 H=20 L=20	1-09700-604-0	01	1	9505-9508	●	●
45	CLIP 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (F) L=8.9	8-94435-551-1	03	1	9509-	●	●
45	CLIP 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (I) ID=22 L=40	5-09700-369-0	01	1	9505-	●	●
45	CLIP 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (G) ID=14.5 & 7.5	8-94315-424-0	01	1	9505-9512	●	●
45	CLIP 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (G) ID=11.8 & 7.5	1-09709-182-0	01	1	9601-	●	●
45	CLIP 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (H) ID=26 L=26	9-09915-417-1	01	1	9505-9507	●	●
45	CLIP 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (H) ID=26 L=26	9-09915-417-1	02	1	9508-	●	●
140	VALVE UNIT; AXLE SHIFT ON THE FLY(7EX)	8-97101-858-1	01	1	9505-	●	●
141	HOSE; VACUUM 4JG2 ENG(RJC),4ZE1 ENG(RLJ) SHIFT ON THE FLY(7EX) (C)	8-97101-781-2	01	1	9505-	●	●
141	HOSE; VACUUM 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (A)	8-97131-140-0	01	1	9505-	●	●
141	HOSE; VACUUM 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (B)	8-97133-280-0	01	1	9505-	●	●
142	HOSE; VSV SHIFT ON THE FLY(7EX) (A)	8-97101-810-0	01	1	9505-	●	●
142	HOSE; VSV SHIFT ON THE FLY(7EX) (B)	8-97101-811-2	01	1	9505-	●	●
142	HOSE; VSV 4JG2 ENG(RJC),4ZE1 ENG(RLJ) SHIFT ON THE FLY(7EX) (C)	8-97126-040-1	01	1	9505-	●	●
143	PIPE; VACUUM 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX)	8-97101-861-2	01	1	9505-9607	●	●
143	PIPE; VACUUM 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX)	8-97133-855-0	01	1	9608-	●	●
143	PIPE; VACUUM 4ZE1 ENG(RLJ) SHIFT ON THE FLY(7EX)	8-97101-862-3	01	1	9505-	●	●
143	PIPE; VACUUM 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX)	8-97131-126-0	01	1	9505-9508	●	●
143	PIPE; VACUUM 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX)	8-97133-591-0	01	1	9509-	●	●
145	HOSE; VAC TANK SHIFT ON THE FLY(7EX) L=150 SERVICED BY L=3000	0-04740-300-0	01	1	9505-	●	●
147	TANK; VACUUM SHIFT ON THE FLY(7EX)	8-97102-100-2	01	1	9505-	●	●

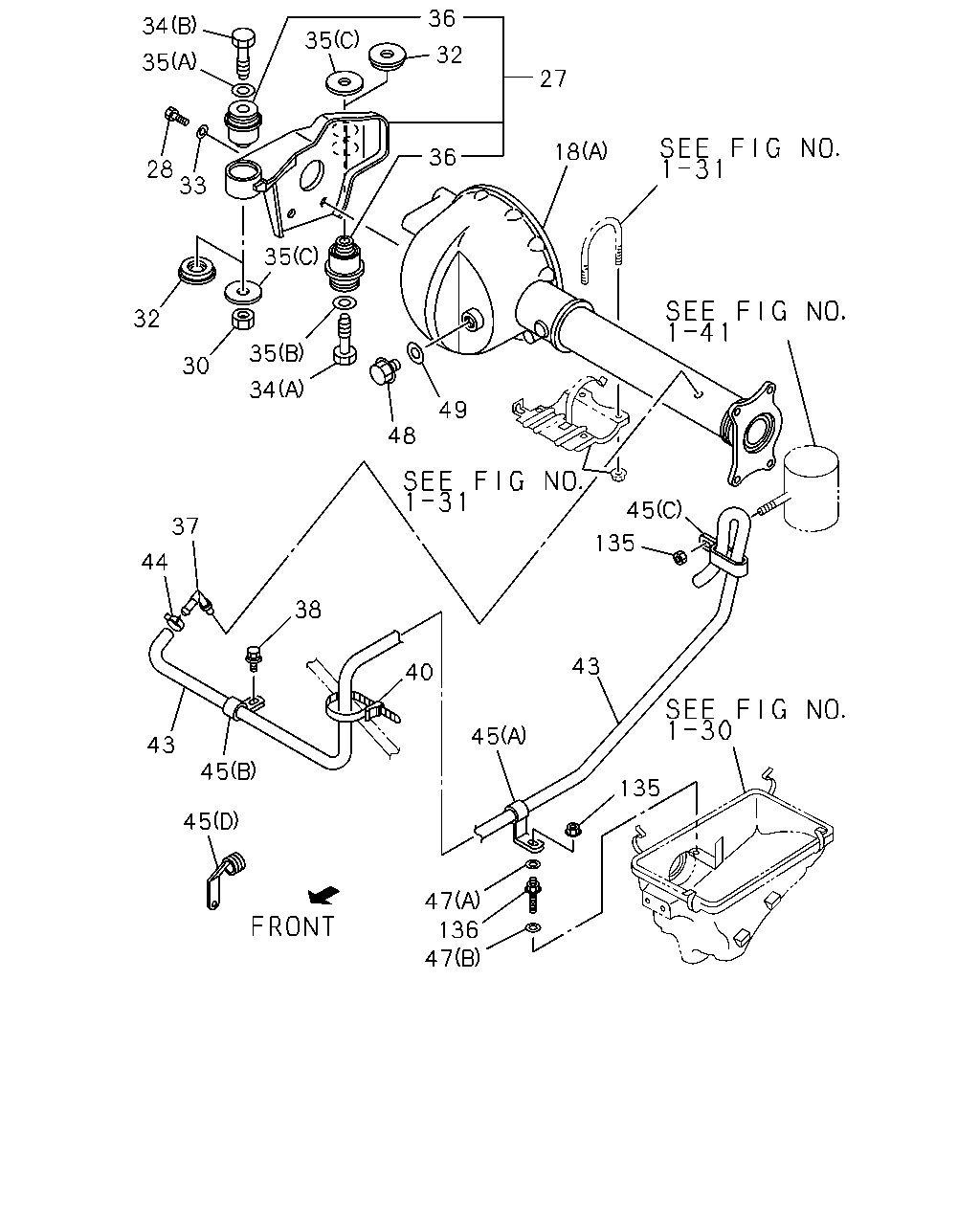

36 34 35 35 32 27 18 36 28 33 35 32 35 34 30 49 48 45 135 37 44 38 43 40 45 43 45 135 45 47 136 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	CASE; FRT AXLE (A)	8-97018-230-0	01	1	9112-9504	●	●
18	CASE; FRT AXLE EXC. SHIFT ON THE FLY(7EX) (A)	8-97018-230-0	01	1	9505-	●	●
18	CASE; FRT AXLE SHIFT ON THE FLY(7EX) (C)	8-97081-658-2	01	1	9505-	●	●
18	CASE; FRT AXLE SHIFT ON THE FLY(7EX) (B)	8-97101-757-3	01	1	9505-	●	●
27	BRACKET; AXLE CASE	8-94382-043-0	01	1	9112-9409	●	●
27	BRACKET; AXLE CASE	8-97113-948-0	01	1	9410-	●	●
27	BRACKET; AXLE CASE	8-94382-042-0	01	1	9112-	●	●
28	BOLT; BRKT TO AXLE CASE M12X25	0-20801-225-0	08	1	9112-9501	●	●
28	BOLT; BRKT TO AXLE CASE M12X22 FLANGE	0-28081-222-0	08	1	9410-	●	●
30	NUT; FRT AXLE MTG M14	9-99110-514-0	02	1	9112-	●	●
32	SPACER; FRT AXLE MTG ID=14.2 OD=50	8-94419-772-0	04	1	9112-9303	●	●
33	WASHER; LK,BRKT TO AXLE CASE ID=12.2	9-09150-512-0	08	1	9112-9408	●	●
33	WASHER; LK,BRKT TO AXLE CASE ID=12.2	9-09150-612-0	08	1	9409-9501	●	●
34	BOLT; FRT AXLE MTG (A) M14X84	8-94452-339-2	02	1	9112-	●	●
34	BOLT; FRT AXLE MTG (B) M14X75	9-91066-475-0	02	1	9112-	●	●
35	WASHER; FRT AXLE MTG (A) ID=14 OD=40	8-94457-273-0	02	1	9112-	●	●
35	WASHER; FRT AXLE MTG (B) ID=15 OD=36	9-09164-714-0	02	1	9112-	●	●
35	WASHER; FRT AXLE MTG (C) ID=14 OD=50	8-97093-581-0	04	1	9304-	●	●
36	BUSHING; RUBBER,FRT AXLE MTG	8-97018-240-0	04	1	9112-	●	●
37	BREATHER; FRT AXLE CASE	8-94226-943-0	01	1	9112-9504	●	●
37	BREATHER; FRT AXLE CASE	8-94226-943-0	01	1	9505-	●	●
37	BREATHER; FRT AXLE CASE SHIFT ON THE FLY(7EX)	8-94226-943-0	01	1	9505-	●	●
38	BOLT; AIR BREATHER,FRT AXLE M6X20 W/LK&PL WASHER	9-01960-620-0	01	1	9112-9204	●	●
38	BOLT; AIR BREATHER,FRT AXLE M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	9205-9709	●	●
38	BOLT; AIR BREATHER,FRT AXLE M6X20 FLANGE	0-28680-620-0	01	1	9710-	●	●
38	BOLT; AIR BREATHER,FRT AXLE 4ZE1 ENG(RLJ) M8X14	9-01960-814-0	01	1	9112-9204	●	●
38	BOLT; AIR BREATHER,FRT AXLE 4ZE1 ENG(RLJ) M8X14	0-50140-814-0	01	1	9205-	●	●
40	CLIP; BAND,AIR BREATHER HOSE L=140	5-09707-031-0	01	1	9112-9206	●	●
40	CLIP; BAND,AIR BREATHER HOSE L=170	5-09707-054-0	01	1	9207-	●	●
43	HOSE; RUBBER,AIR BREATHER 4JG2 ENG(RJC),4ZE1 ENG(RLJ) SHIFT ON THE FLY(7EX)	8-97133-281-0	01	1	9505-	●	●
43	HOSE; RUBBER,AIR BREATHER 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) L=1000 SERVICED BY L=3000	0-04550-300-0	01	1	9112-9308	●	●
43	HOSE; RUBBER,AIR BREATHER 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) L=1000 SERVICED BY L=3000	0-04750-300-0	01	1	9309-9504	●	●
43	HOSE; RUBBER,AIR BREATHER 4JG2 ENG(RJC),4ZE1 ENG(RLJ) EXC. SHIFT ON THE FLY(7EX) L=1000 SERVICED BY L=3000	0-04750-300-0	01	1	9505-	●	●
43	HOSE; RUBBER,AIR BREATHER 6VD1 SOHC ENG(RLU) L=1400 SERVICED BY L=3000	0-04550-300-0	01	1	9112-9212	●	●
43	HOSE; RUBBER,AIR BREATHER 6VD1 SOHC ENG(RLU) L=1400	8-97084-538-0	01	1	9301-9308	●	●
43	HOSE; RUBBER,AIR BREATHER 6VD1 SOHC ENG(RLU) L=1400 SERVICED BY L=3000	0-04750-300-0	01	1	9309-9504	●	●
43	HOSE; RUBBER,AIR BREATHER 6VD1 SOHC ENG(RLU) EXC. SHIFT ON THE FLY(7EX) L=1400 SERVICED BY L=3000	0-04750-300-0	01	1	9505-	●	●
44	CLIP; AIR BREATHER HOSE ID=11 WHITE	5-09707-005-1	01	1	9112-9306	●	●
44	CLIP; AIR BREATHER HOSE ID=11	8-94238-570-0	01	1	9307-9504	●	●
44	CLIP; AIR BREATHER HOSE ID=11	8-94238-570-0	01	1	9505-9709	●	●
44	CLIP; AIR BREATHER HOSE SHIFT ON THE FLY(7EX) ID=11	8-94238-570-0	01	1	9505-9709	●	●
44	CLIP; AIR BREATHER HOSE ID=11	8-97173-219-0	01	1	9710-	●	●
44	CLIP; AIR BREATHER HOSE SHIFT ON THE FLY(7EX) ID=11	8-97173-219-0	01	1	9710-	●	●
45	CLIP (C) ID=11X2 L=16	9-09535-025-0	01	1	9112-9504	●	●
45	CLIP EXC. SHIFT ON THE FLY(7EX) (C) ID=11X2 L=16	9-09535-025-0	01	1	9505-	●	●
45	CLIP SHIFT ON THE FLY(7EX) (C) ID=28 L=40	1-09700-995-1	01	1	9505-9507	●	●
45	CLIP 4JG2 ENG(RJC),4ZE1 ENG(RLJ) SHIFT ON THE FLY(7EX) (C) ID=28 L=40	1-09700-995-1	01	1	9508-	●	●
45	CLIP SHIFT ON THE FLY(7EX) (E)	8-94466-385-0	01	1	9505-	●	●
45	CLIP 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) (D)	8-94161-321-1	01	1	9112-9504	●	●
45	CLIP 4JG2 ENG(RJC),4ZE1 ENG(RLJ) (D)	8-94161-321-1	01	1	9505-	●	●
45	CLIP 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (F) L=8.9	8-94435-551-1	04	1	9505-9508	●	●
45	CLIP 4ZE1 ENG(RLJ) SHIFT ON THE FLY(7EX) (F) L=8.9	8-94435-551-1	04	1	9509-	●	●
45	CLIP 6VD1 SOHC ENG(RLU) (A) ID=11 H=20 L=20	5-09700-351-0	01	1	9112-9504	●	●
45	CLIP 6VD1 SOHC ENG(RLU) EXC. SHIFT ON THE FLY(7EX) (A) ID=11 H=20 L=20	5-09700-351-0	01	1	9505-	●	●
45	CLIP 6VD1 SOHC ENG(RLU) (B) ID=11 L=40	9-09525-073-0	01	1	9112-9504	●	●
45	CLIP 6VD1 SOHC ENG(RLU) EXC. SHIFT ON THE FLY(7EX) (B) ID=11 L=40	9-09525-073-0	01	1	9505-	●	●
45	CLIP 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (J) ID=8 H=20 L=20	1-09700-604-0	01	1	9505-9508	●	●
45	CLIP 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (F) L=8.9	8-94435-551-1	03	1	9509-	●	●
45	CLIP 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (I) ID=22 L=40	5-09700-369-0	01	1	9505-	●	●
45	CLIP 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (G) ID=14.5 & 7.5	8-94315-424-0	01	1	9505-9512	●	●
45	CLIP 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (G) ID=11.8 & 7.5	1-09709-182-0	01	1	9601-	●	●
45	CLIP 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (H) ID=26 L=26	9-09915-417-1	01	1	9505-9507	●	●
45	CLIP 6VD1 SOHC ENG(RLU) SHIFT ON THE FLY(7EX) (H) ID=26 L=26	9-09915-417-1	02	1	9508-	●	●
47	WASHER; CLIP 6VD1 SOHC ENG(RLU) (A) ID=8.4 OD=18	9-09160-608-0	01	1	9112-	●	●
47	WASHER; CLIP 6VD1 SOHC ENG(RLU) (B) ID=8.4 OD=26	9-09164-808-0	01	1	9112-	●	●
48	PLUG; DRAIN,AXLE CASE M20X10.5	9-09662-005-0	01	1	9112-9504	●	●
48	PLUG; DRAIN,AXLE CASE SHIFT ON THE FLY(7EX) M20X10.5	9-09662-005-0	02	1	9505-	●	●
48	PLUG; DRAIN,AXLE CASE EXC. SHIFT ON THE FLY(7EX) M20X10.5	9-09662-005-0	01	1	9505-	●	●
49	GASKET; DRAIN PLUG ID=20 OD=30	8-94462-734-0	01	1	9112-	●	●
135	NUT; BREATHER 6VD1 SOHC ENG(RLU) M8 FLANGE	0-91150-108-0	02	1	9112-	●	●
136	STUD; BREATHER 6VD1 SOHC ENG(RLU) M8X12,M8X30 L=50	8-97032-290-0	01	1	9112-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
