4-01 — PROPELLER SHAFT (#33629) — 120 parça

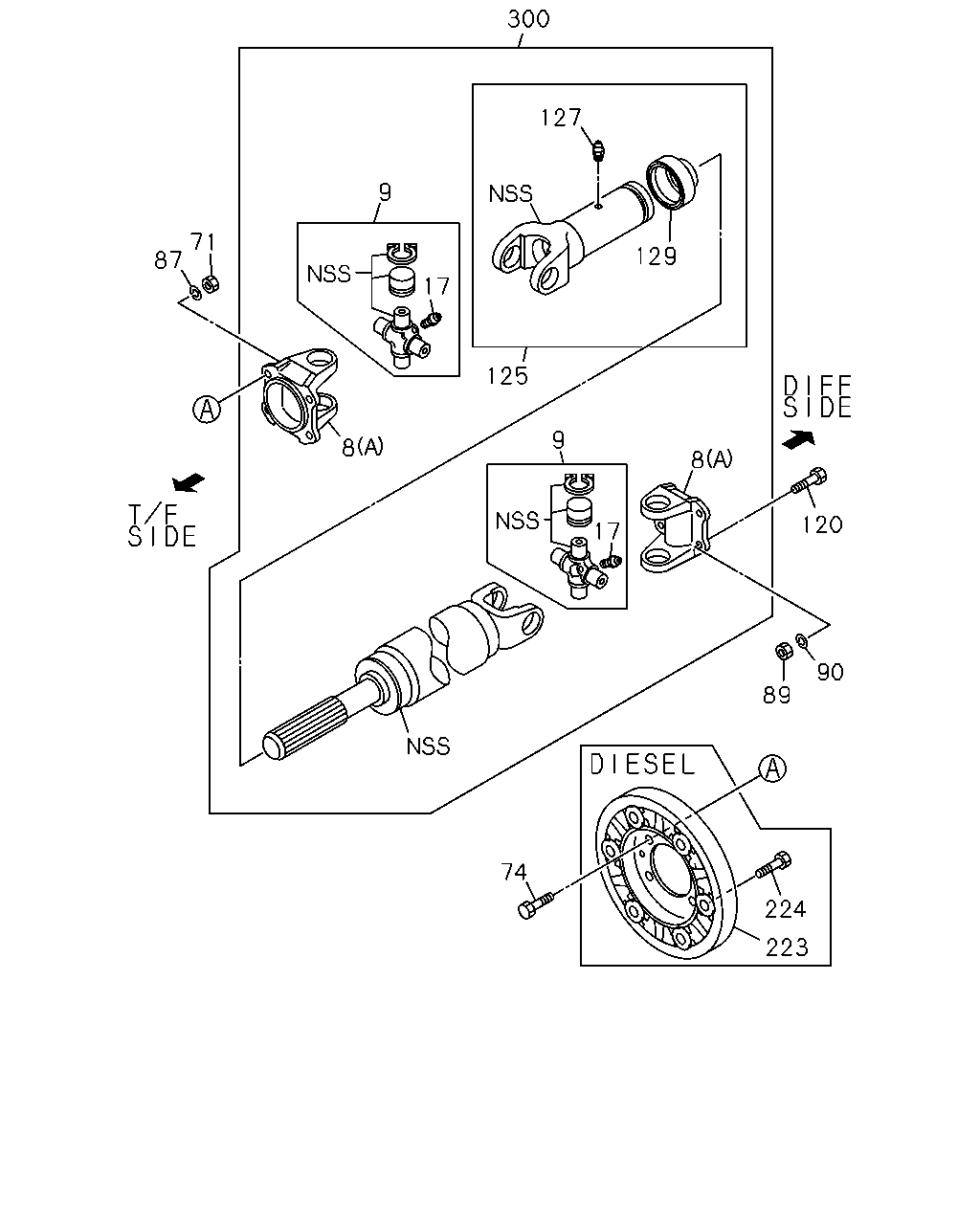

çizim 66968
300 127 9 71 87 129 17 125 9 8 8 120 17 90 89 74 224 223
BalonParca AdiParca NoAdetTipApplied Date A B C D
8 YOKE; FLANGE,PROP SHAFT
(A) REAR 		8-94381-615-1 02 1 9112-9305 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) REAR 		8-97087-078-0 02 1 9306-9504 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) REAR 		8-97087-078-0 02 1 9505- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) FRONT 		8-97020-310-0 02 1 9112-9504 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) FRONT 		8-97020-310-0 02 1 9505- ● ● ●
9 JOURNAL ASM; PROP SHAFT
FRONT 		8-97071-811-0 02 1 9112-9409 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
FRONT 		8-97080-897-0 02 1 9410-9607 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
FRONT 		8-97080-897-1 02 1 9608-9705 ● ● ●
9 JOURNAL ASM; PROP SHAFT
FRONT 		8-97029-526-1 02 1 9706- ● ● ●
9 JOURNAL ASM; PROP SHAFT
REAR 		8-97071-812-1 02 1 9112-9504 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
REAR 		8-97071-812-1 02 1 9505-9705 ● ● ●
9 JOURNAL ASM; PROP SHAFT
REAR 		8-97180-697-0 02 1 9706- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
REAR 		8-94310-818-0 02 1 9112-9501 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
REAR M6 STRAIGHT 		9-09031-006-0 02 1 9404-9504 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
REAR M6 STRAIGHT 		9-09031-006-0 02 1 9505- ● ● ●
71 NUT; YOKE
REAR M10 		8-94159-009-0 04 1 9112-9504 ● ● ● ●
71 NUT; YOKE
REAR M10 		8-94159-009-1 04 1 9505- ● ● ●
74 BOLT; YOKE,TRANS
REAR M10X32 		8-94146-551-2 04 1 9112-9504 ● ●
74 BOLT; YOKE,TRANS
M/T MUA 5 SPEED(RMN) REAR M10X32 		8-94146-551-2 04 1 9505- ●
74 BOLT; YOKE,TRANS
REAR M10X27 		8-94146-552-2 04 1 9112-9710 ● ●
74 BOLT; YOKE,TRANS
REAR M10X29 		8-97168-458-1 04 1 9711- ● ●
87 WASHER; LK,1ST PROP TO 2ND PROP
REAR ID=10.2 		9-09150-610-0 04 1 9112-9504 ● ● ● ●
87 WASHER; LK,1ST PROP TO 2ND PROP
REAR ID=10.2 		9-09150-610-0 04 1 9505- ● ● ●
89 NUT; YOKE TO RR AXLE
M10 		8-94159-009-0 12 1 9112-9504 ● ● ● ●
89 NUT; YOKE TO RR AXLE
M10 		8-94159-009-0 12 1 9505-9607 ● ● ●
89 NUT; YOKE TO RR AXLE
FRONT M10 		8-94159-009-1 08 1 9608- ● ● ●
89 NUT; YOKE TO RR AXLE
REAR M10 		8-94159-009-1 04 1 9608- ● ● ●
90 WASHER; LK,YOKE TO RR AXLE
ID=10.2 		9-09150-610-0 12 1 9112-9504 ● ● ● ●
90 WASHER; LK,YOKE TO RR AXLE
REAR ID=10.2 		9-09150-610-0 04 1 9505- ● ● ●
90 WASHER; LK,YOKE TO RR AXLE
FRONT ID=10.2 		9-09150-610-0 08 1 9505- ● ● ●
120 BOLT; YOKE TO RR AXLE
M10X27 		8-94146-552-2 12 1 9112-9504 ● ● ● ●
120 BOLT; YOKE TO RR AXLE
REAR M10X27 		8-94146-552-2 04 1 9505-9710 ● ● ●
120 BOLT; YOKE TO RR AXLE
REAR M10X29 		8-97168-458-1 04 1 9711- ● ● ●
120 BOLT; YOKE TO RR AXLE
FRONT M10X27 		8-94146-552-2 08 1 9505-9710 ● ● ●
120 BOLT; YOKE TO RR AXLE
FRONT M10X29 		8-97168-458-1 08 1 9711- ● ● ●
125 YOKE ASM; SPLINED,PROP SHAFT
REAR 		8-97020-307-0 01 1 9112-9305 ● ● ● ●
125 YOKE ASM; SPLINED,PROP SHAFT
REAR L=177 		8-97049-301-1 01 1 9306-9504 ● ● ● ●
125 YOKE ASM; SPLINED,PROP SHAFT
REAR L=177 		8-97049-301-1 01 1 9505- ● ● ●
127 NIPPLE; GREASE,SPLINED YOKE
REAR M6 STRAIGHT 		9-09031-006-0 01 1 9112-9504 ● ● ● ●
127 NIPPLE; GREASE,SPLINED YOKE
REAR M6 STRAIGHT 		9-09031-006-0 01 1 9505- ● ● ●
129 COVER; SPLINED YOKE
REAR 		8-97020-597-1 01 1 9112-9504 ● ● ● ●
129 COVER; SPLINED YOKE
REAR 		8-97020-597-1 01 1 9505- ● ● ●
223 RING; PROP SHAFT
REAR 		8-97066-320-0 01 1 9112-9312 ● ●
223 RING; PROP SHAFT
REAR 		8-97083-601-1 01 1 9401-9504 ● ●
223 RING; PROP SHAFT
M/T MUA 5 SPEED(RMN) REAR 		8-97083-601-1 01 1 9505-9610 ●
223 RING; PROP SHAFT
M/T MUA 5 SPEED(RMN) REAR 		8-97169-906-0 01 1 9611- ●
224 BOLT; RING
REAR M6X16 W/LK WASHER 		9-01900-616-0 01 1 9112-9204 ● ●
224 BOLT; RING
REAR M6X16 W/LK WASHER 		0-50040-616-0 01 1 9205-9504 ● ●
224 BOLT; RING
M/T MUA 5 SPEED(RMN) REAR M6X16 W/LK WASHER 		0-50040-616-0 01 1 9505- ●
300 SHAFT ASM; PROP,RR
2 DOOR SHORT(UB***C) 		8-97066-321-1 01 1 9112-9306 ● ●
300 SHAFT ASM; PROP,RR
2 DOOR SHORT(UB***C) 		8-97087-074-1 01 1 9307-9308 ● ●
300 SHAFT ASM; PROP,RR
2 DOOR SHORT(UB***C) 		8-97093-352-1 01 1 9309-9504 ● ●
300 SHAFT ASM; PROP,RR
2 DOOR SHORT(UB***C) M/T MUA 5 SPEED(RMN) 		8-97093-352-1 01 1 9505-9705 ●
300 SHAFT ASM; PROP,RR
2 DOOR SHORT(UB***C) M/T MUA 5 SPEED(RMN) 		8-97180-974-0 01 1 9706- ●
300 SHAFT ASM; PROP,RR
4 DOOR LONG(UB***F) 		8-97066-324-1 01 1 9112-9306 ● ●
300 SHAFT ASM; PROP,RR
4 DOOR LONG(UB***F) 		8-97087-075-2 01 1 9307-9404 ● ●
300 SHAFT ASM; PROP,RR
4 DOOR LONG(UB***F) 		8-97113-424-0 01 1 9405-9504 ● ●
300 SHAFT ASM; PROP,RR
4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) 		8-97113-424-0 01 1 9505-9705 ●
300 SHAFT ASM; PROP,RR
4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) 		8-97180-980-0 01 1 9706- ●
300 SHAFT ASM; PROP,RR
2 DOOR SHORT(UB***C) 		8-94376-299-2 01 1 9112-9306 ●
300 SHAFT ASM; PROP,RR
2 DOOR SHORT(UB***C) 		8-97087-071-2 01 1 9307-9308 ●
300 SHAFT ASM; PROP,RR
2 DOOR SHORT(UB***C) 		8-97093-350-1 01 1 9309-9705 ●
300 SHAFT ASM; PROP,RR
2 DOOR SHORT(UB***C) 		8-97180-972-0 01 1 9706- ●
300 SHAFT ASM; PROP,RR
4 DOOR LONG(UB***F) 		8-94376-303-2 01 1 9112-9306 ●
300 SHAFT ASM; PROP,RR
4 DOOR LONG(UB***F) 		8-97087-073-2 01 1 9307-9404 ●
300 SHAFT ASM; PROP,RR
4 DOOR LONG(UB***F) 		8-97113-423-0 01 1 9405-9705 ●
300 SHAFT ASM; PROP,RR
4 DOOR LONG(UB***F) 		8-97180-979-0 01 1 9706- ●
300 SHAFT ASM; PROP,RR
2 DOOR SHORT(UB***C) A/T THM(RMQ) 		8-94376-298-2 01 1 9112-9306 ●
300 SHAFT ASM; PROP,RR
2 DOOR SHORT(UB***C) A/T THM(RMQ) 		8-97087-070-2 01 1 9307-9308 ●
300 SHAFT ASM; PROP,RR
2 DOOR SHORT(UB***C) A/T THM(RMQ) 		8-97093-349-1 01 1 9309-9705 ●
300 SHAFT ASM; PROP,RR
2 DOOR SHORT(UB***C) A/T THM(RMQ) 		8-97180-971-0 01 1 9706- ●
300 SHAFT ASM; PROP,RR
2 DOOR SHORT(UB***C) M/T MUA 5 SPEED(RMN) 		8-94376-297-2 01 1 9112-9306 ●
300 SHAFT ASM; PROP,RR
2 DOOR SHORT(UB***C) M/T MUA 5 SPEED(RMN) 		8-97087-069-2 01 1 9307-9308 ●
300 SHAFT ASM; PROP,RR
2 DOOR SHORT(UB***C) M/T MUA 5 SPEED(RMN) 		8-97093-348-1 01 1 9309-9705 ●
300 SHAFT ASM; PROP,RR
2 DOOR SHORT(UB***C) M/T MUA 5 SPEED(RMN) 		8-97180-970-0 01 1 9706- ●
300 SHAFT ASM; PROP,RR
4 DOOR LONG(UB***F) A/T THM(RMQ) 		8-94376-295-2 01 1 9112-9306 ●
300 SHAFT ASM; PROP,RR
4 DOOR LONG(UB***F) A/T THM(RMQ) 		8-97087-067-1 01 1 9307-9308 ●
300 SHAFT ASM; PROP,RR
4 DOOR LONG(UB***F) A/T THM(RMQ) 		8-97093-346-1 01 1 9309-9705 ●
300 SHAFT ASM; PROP,RR
4 DOOR LONG(UB***F) A/T THM(RMQ) 		8-97180-968-0 01 1 9706- ●
300 SHAFT ASM; PROP,RR
4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) 		8-94376-293-2 01 1 9112-9306 ●
300 SHAFT ASM; PROP,RR
4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) 		8-97087-066-2 01 1 9307-9404 ●
300 SHAFT ASM; PROP,RR
4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) 		8-97113-422-0 01 1 9405-9705 ●
300 SHAFT ASM; PROP,RR
4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) 		8-97180-978-0 01 1 9706- ●

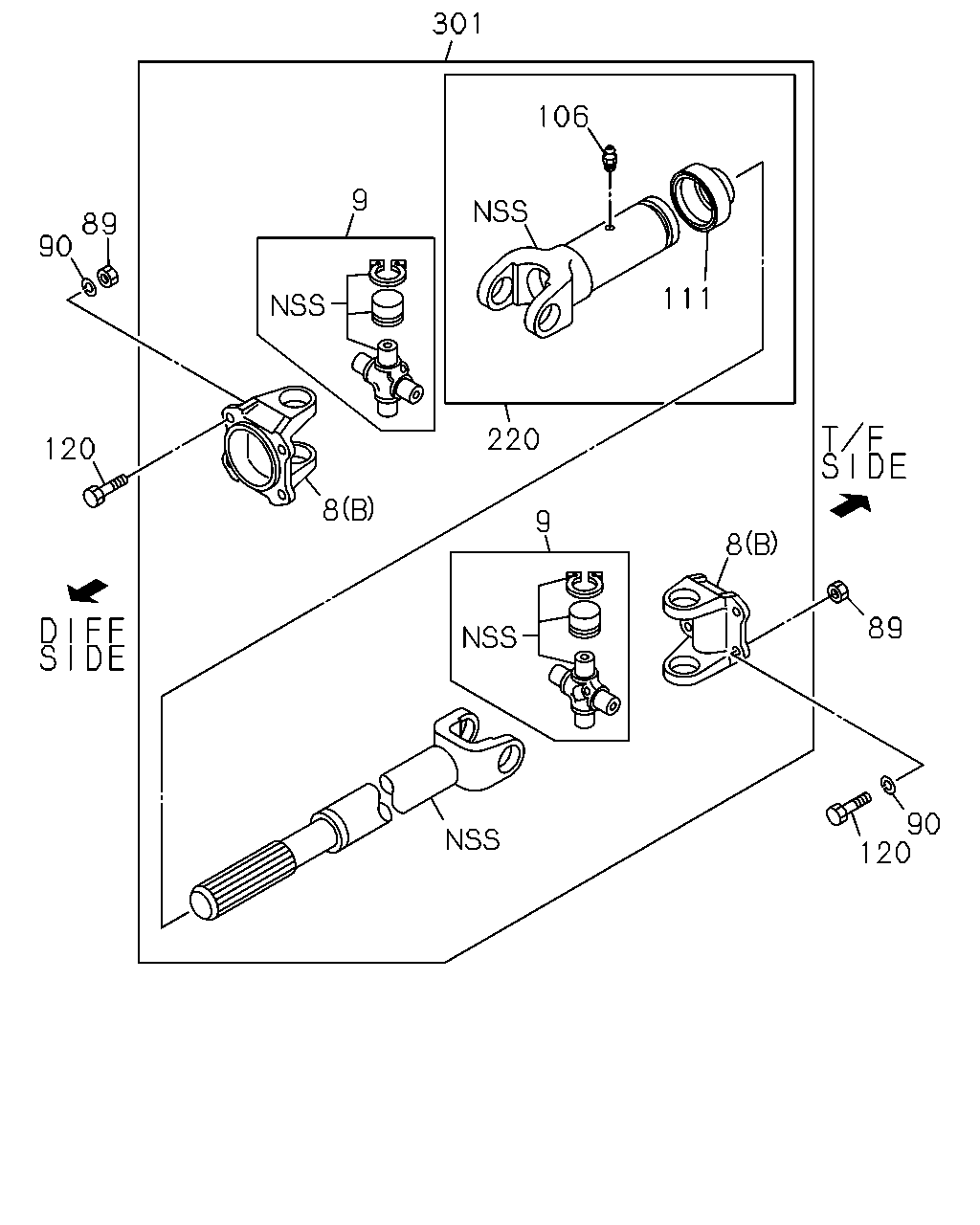

çizim 67603
301 106 9 89 90 111 220 120 8 9 8 89 90 120
BalonParca AdiParca NoAdetTipApplied Date A B C D
8 YOKE; FLANGE,PROP SHAFT
(A) REAR 		8-94381-615-1 02 1 9112-9305 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) REAR 		8-97087-078-0 02 1 9306-9504 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) REAR 		8-97087-078-0 02 1 9505- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) FRONT 		8-97020-310-0 02 1 9112-9504 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) FRONT 		8-97020-310-0 02 1 9505- ● ● ●
9 JOURNAL ASM; PROP SHAFT
FRONT 		8-97071-811-0 02 1 9112-9409 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
FRONT 		8-97080-897-0 02 1 9410-9607 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
FRONT 		8-97080-897-1 02 1 9608-9705 ● ● ●
9 JOURNAL ASM; PROP SHAFT
FRONT 		8-97029-526-1 02 1 9706- ● ● ●
9 JOURNAL ASM; PROP SHAFT
REAR 		8-97071-812-1 02 1 9112-9504 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
REAR 		8-97071-812-1 02 1 9505-9705 ● ● ●
9 JOURNAL ASM; PROP SHAFT
REAR 		8-97180-697-0 02 1 9706- ● ● ●
89 NUT; YOKE TO RR AXLE
M10 		8-94159-009-0 12 1 9112-9504 ● ● ● ●
89 NUT; YOKE TO RR AXLE
M10 		8-94159-009-0 12 1 9505-9607 ● ● ●
89 NUT; YOKE TO RR AXLE
FRONT M10 		8-94159-009-1 08 1 9608- ● ● ●
89 NUT; YOKE TO RR AXLE
REAR M10 		8-94159-009-1 04 1 9608- ● ● ●
90 WASHER; LK,YOKE TO RR AXLE
ID=10.2 		9-09150-610-0 12 1 9112-9504 ● ● ● ●
90 WASHER; LK,YOKE TO RR AXLE
REAR ID=10.2 		9-09150-610-0 04 1 9505- ● ● ●
90 WASHER; LK,YOKE TO RR AXLE
FRONT ID=10.2 		9-09150-610-0 08 1 9505- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FRONT M6 STRAIGHT 		9-09031-006-0 01 1 9112-9504 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FRONT M6 STRAIGHT 		9-09031-006-0 01 1 9505- ● ● ●
111 RING; SLEEVE
FRONT 		8-97020-597-1 01 1 9112-9504 ● ● ● ●
111 RING; SLEEVE
FRONT 		8-97020-597-1 01 1 9505- ● ● ●
120 BOLT; YOKE TO RR AXLE
M10X27 		8-94146-552-2 12 1 9112-9504 ● ● ● ●
120 BOLT; YOKE TO RR AXLE
REAR M10X27 		8-94146-552-2 04 1 9505-9710 ● ● ●
120 BOLT; YOKE TO RR AXLE
REAR M10X29 		8-97168-458-1 04 1 9711- ● ● ●
120 BOLT; YOKE TO RR AXLE
FRONT M10X27 		8-94146-552-2 08 1 9505-9710 ● ● ●
120 BOLT; YOKE TO RR AXLE
FRONT M10X29 		8-97168-458-1 08 1 9711- ● ● ●
220 YOKE; SPLINED
FRONT 		8-97020-307-0 01 1 9112-9305 ● ● ● ●
220 YOKE; SPLINED
FRONT L=177 		8-97049-301-1 01 1 9306- ● ● ●
301 SHAFT ASM; PROP,FRT
L=396 		8-94376-304-4 01 1 9112-9504 ● ●
301 SHAFT ASM; PROP,FRT
M/T MUA 5 SPEED(RMN) L=396 		8-94376-304-4 01 1 9505-9705 ●
301 SHAFT ASM; PROP,FRT
M/T MUA 5 SPEED(RMN) L=396 		8-97180-425-0 01 1 9706- ●
301 SHAFT ASM; PROP,FRT
M/T MUA 5 SPEED(RMN) 		8-94376-303-4 01 1 9112-9705 ● ●
301 SHAFT ASM; PROP,FRT
M/T MUA 5 SPEED(RMN) L=404 		8-97180-424-0 01 1 9706- ● ●
301 SHAFT ASM; PROP,FRT
A/T THM(RMQ) L=536 		8-94376-301-4 01 1 9112-9705 ●
301 SHAFT ASM; PROP,FRT
A/T THM(RMQ) L=631 		8-97180-423-0 01 1 9706- ●
