◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50659 - UBS-LHD ▶ 3 - Brakes, Brake System ▶ 3-60 - BRAKE PIPING; VACUUM ▶
3-60 — BRAKE PIPING; VACUUM (#33628) — 30 parça

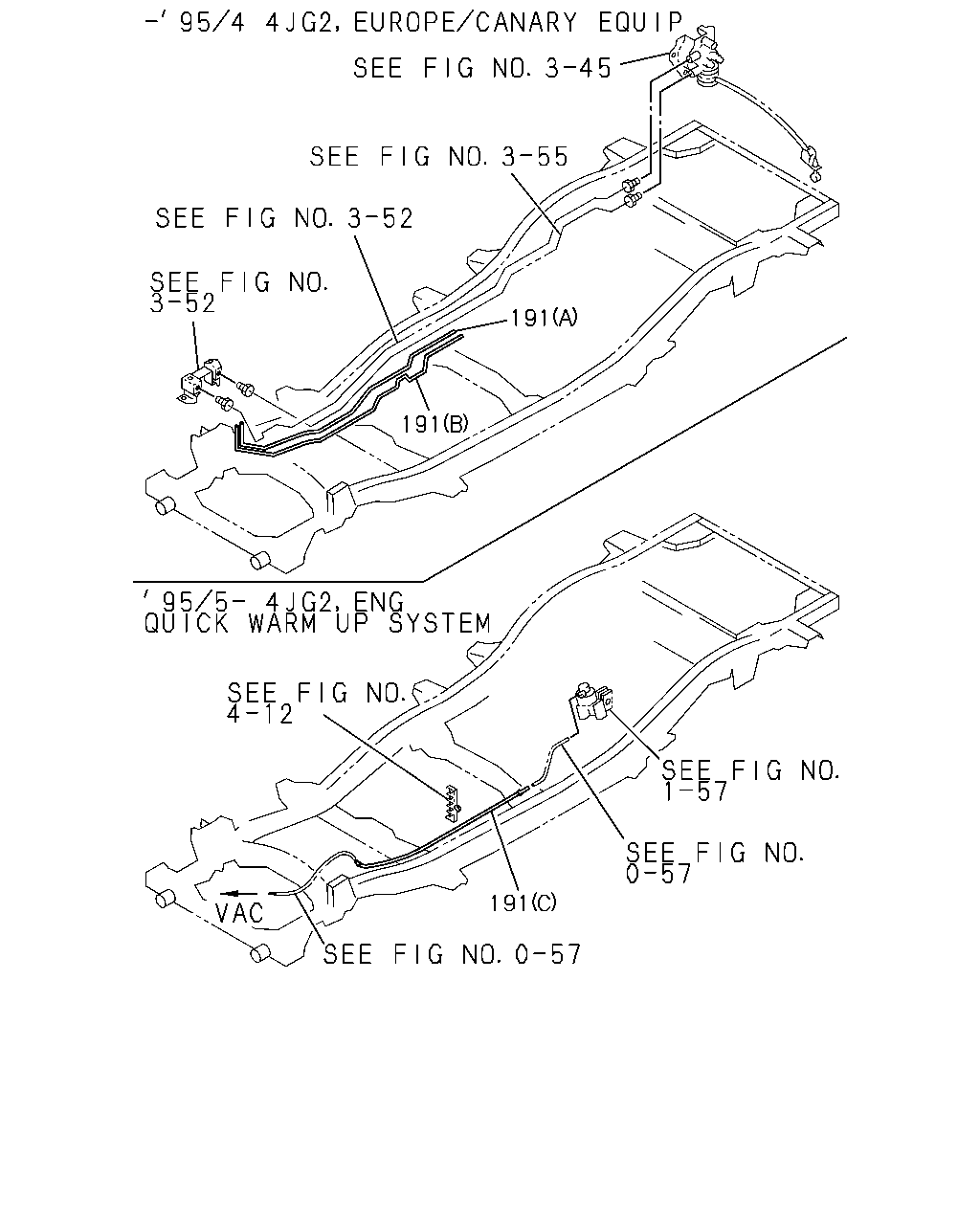

çizim 66256
191 191 191
BalonParca AdiParca NoAdetTipApplied Date A B
191 PIPE; VAC
4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) (A) 		8-97043-602-1 01 1 9112-9504 ● ●
191 PIPE; VAC
4JG2 ENG(RJC) ENG QUICK WARM UP SYSTEM<6JZ> (C) 		8-97109-533-2 01 1 9505-9607 ● ●
191 PIPE; VAC
4JG2 ENG(RJC) ENG QUICK WARM UP SYSTEM<6JZ> (C) 		8-97133-271-1 01 1 9608- ● ●
191 PIPE; VAC
4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97043-603-1 01 1 9112-9503 ● ●

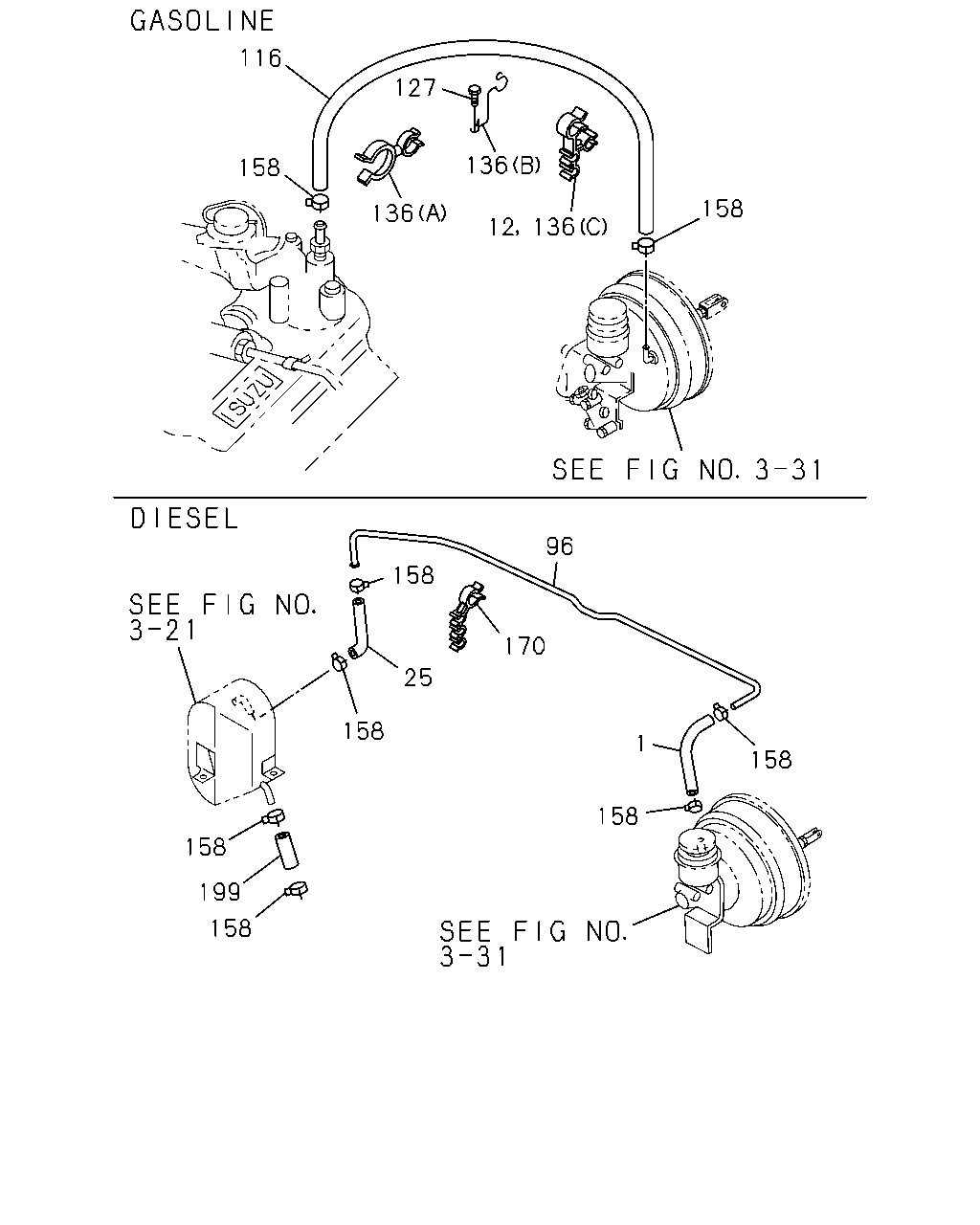

çizim 68567
116 127 136 158 158 136 12 136 96 158 170 25 158 1 158 158 158 199 158
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; VAC,M/VAC TO VAC PIPE
4JG2 ENG(RJC),4JG1 ENG(RLT) L=140 SERVICED BY L=1000 		0-08358-100-0 01 1 9112-9308 ● ●
1 HOSE; VAC,M/VAC TO VAC PIPE
4JG2 ENG(RJC),4JG1 ENG(RLT) L=140 SERVICED BY L=3000 		0-08358-300-0 01 1 9309-9504 ● ●
1 HOSE; VAC,M/VAC TO VAC PIPE
4JG2 ENG(RJC) L=140 SERVICED BY L=3000 		0-08358-300-0 01 1 9505- ● ●
12 CLIP; HOSE
6VD1 SOHC ENG(RLU) 		8-97049-783-1 01 1 9112- ● ●
25 HOSE; VAC TANK TO VAC PIPE
4JG2 ENG(RJC),4JG1 ENG(RLT) L=230 SERVICED BY L=3000 		0-08358-300-0 01 1 9112-9504 ● ●
25 HOSE; VAC TANK TO VAC PIPE
4JG2 ENG(RJC) L=230 SERVICED BY L=3000 		0-08358-300-0 01 1 9505-9607 ● ●
25 HOSE; VAC TANK TO VAC PIPE
4JG2 ENG(RJC) L=230 SERVICED BY L=1000 		0-08358-100-0 01 1 9608- ● ●
96 PIPE; VAC,M/VAC TO VAC PUMP
4JG2 ENG(RJC),4JG1 ENG(RLT) 		8-94374-845-3 01 1 9112-9504 ● ●
96 PIPE; VAC,M/VAC TO VAC PUMP
4JG2 ENG(RJC) 		8-94374-845-4 01 1 9505- ● ●
116 HOSE; VAC,M/VAC
4ZE1 ENG(RLJ) 		8-97038-472-0 01 1 9112- ● ●
116 HOSE; VAC,M/VAC
6VD1 SOHC ENG(RLU) 		8-97018-371-1 01 1 9112-9607 ● ●
116 HOSE; VAC,M/VAC
6VD1 SOHC ENG(RLU) 		8-97138-391-0 01 1 9608- ● ●
127 BOLT; CLIP
4ZE1 ENG(RLJ) M6X12 FLANGE 		0-28080-612-0 01 1 9209- ● ●
136 CLIP; VAC HOSE
4ZE1 ENG(RLJ) (A) 		8-94357-279-0 01 1 9209- ● ●
136 CLIP; VAC HOSE
4ZE1 ENG(RLJ) (B) 		8-94486-777-1 01 1 9209- ● ●
136 CLIP; VAC HOSE
4ZE1 ENG(RLJ) (C) 		8-97049-783-1 01 1 9209- ● ●
158 CLIP; HOSE
4JG2 ENG(RJC),4JG1 ENG(RLT) ID=16 		8-94238-568-0 06 1 9112-9504 ● ●
158 CLIP; HOSE
4JG2 ENG(RJC) ID=16 		8-94238-568-0 06 1 9505-9704 ● ●
158 CLIP; HOSE
4JG2 ENG(RJC) ID=16 		8-97173-222-0 06 1 9705- ● ●
158 CLIP; HOSE
4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) ID=16 		8-94238-568-0 02 1 9112-9704 ● ●
158 CLIP; HOSE
4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) ID=16 		8-97173-222-0 02 1 9705- ● ●
170 CLIP; VAC PIPE
4JG2 ENG(RJC),4JG1 ENG(RLT) ID=10 & 4.8 & 4.8 & 4.8 		8-97062-919-0 01 1 9112-9504 ● ●
170 CLIP; VAC PIPE
4JG2 ENG(RJC) ID=10 & 4.8 & 4.8 & 4.8 		8-97062-919-0 01 1 9505- ● ●
199 HOSE; VAC,VAC TANK TO VAC PUMP
4JG2 ENG(RJC),4JG1 ENG(RLT) L=230 SERVICED BY L=3000 		0-08358-300-0 01 1 9112-9504 ● ●
199 HOSE; VAC,VAC TANK TO VAC PUMP
4JG2 ENG(RJC) L=230 SERVICED BY L=3000 		0-08358-300-0 01 1 9505-9607 ● ●
199 HOSE; VAC,VAC TANK TO VAC PUMP
4JG2 ENG(RJC) L=230 SERVICED BY L=1000 		0-08358-100-0 01 1 9608- ● ●
