3-55 — BRAKE PIPING; OIL,REAR (#33626) — 105 parça

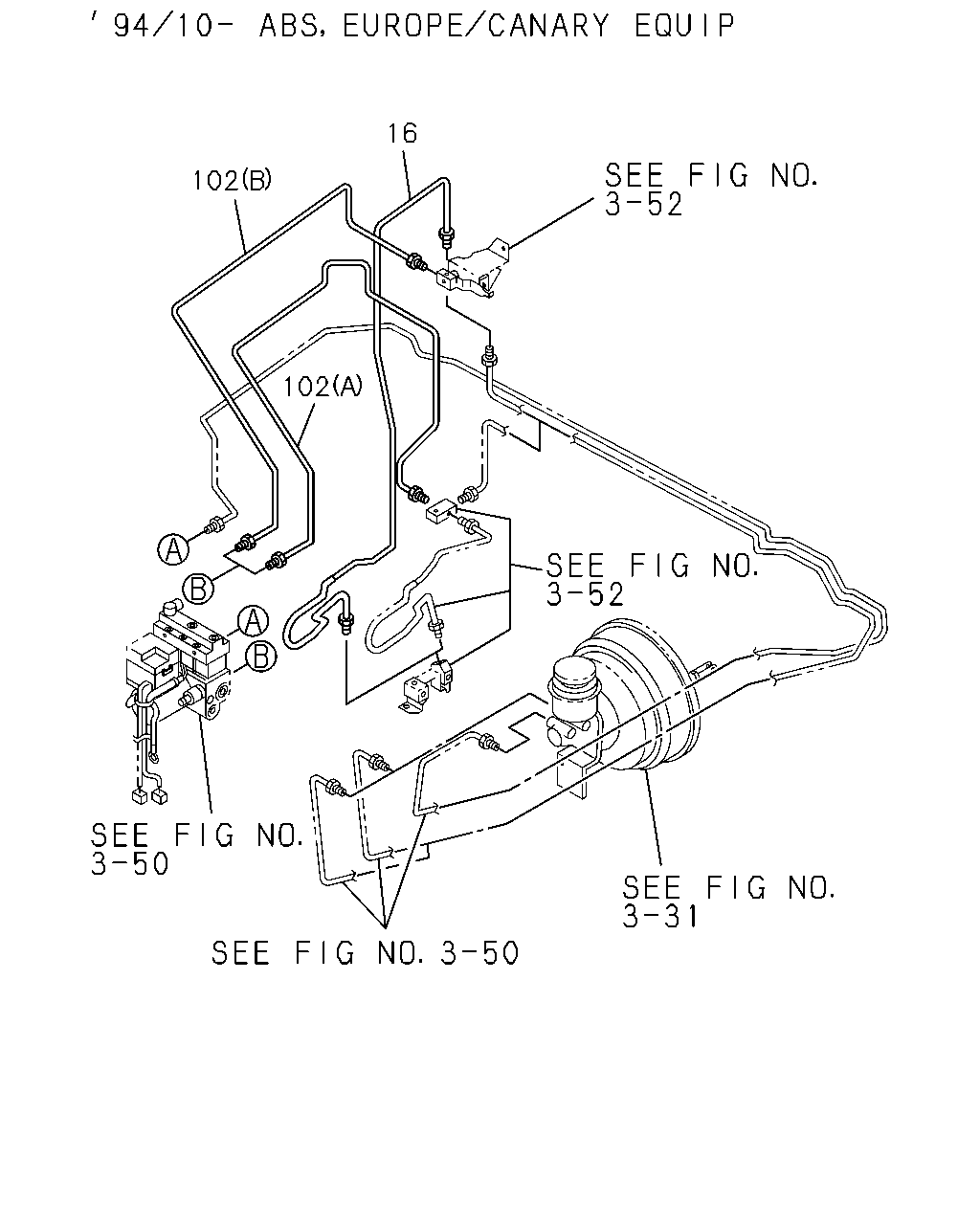

16 102 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	PIPE; OIL,VLV TO RR FLEX HOSE 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5)	8-97110-839-1	01	1	9410-9607	●	●
16	PIPE; OIL,VLV TO RR FLEX HOSE 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5)	8-97145-523-1	01	1	9608-9707	●	●
16	PIPE; OIL,VLV TO RR FLEX HOSE 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5)	8-97181-836-0	01	1	9708-	●	●
102	PIPE; ASM,3 WAY TO ABS 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) (A)	8-97114-469-1	01	1	9410-9607	●	●
102	PIPE; ASM,3 WAY TO ABS 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) (A)	8-97110-884-1	01	1	9608-	●	●
102	PIPE; ASM,3 WAY TO ABS 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) (B)	8-97114-467-1	01	1	9410-9607	●	●
102	PIPE; ASM,3 WAY TO ABS 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) (B)	8-97110-883-1	01	1	9608-	●	●

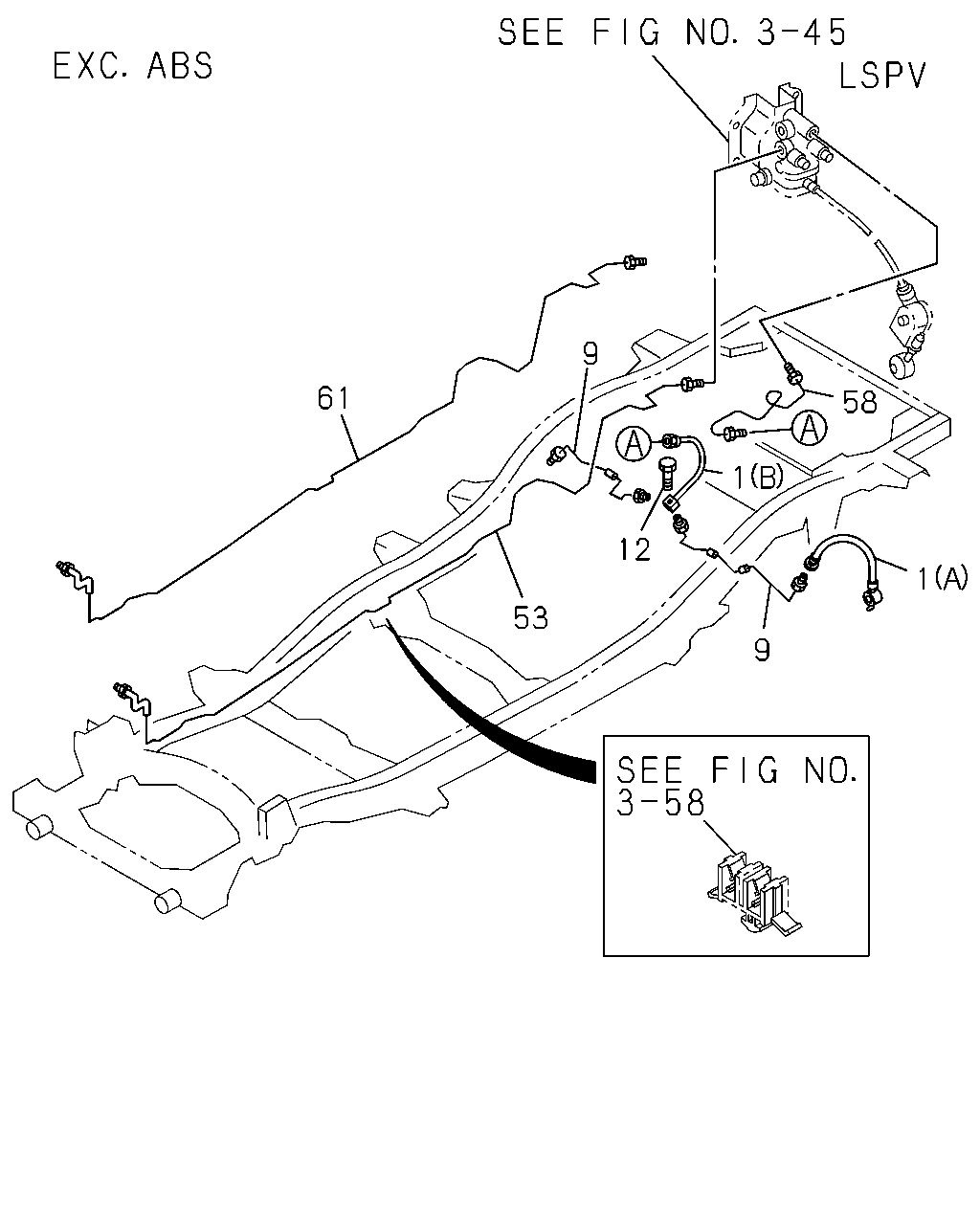

9 58 61 1 12 1 53 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,RR BRK (A)	8-94382-793-2	02	1	9112-	●	●
1	HOSE; FLEX,RR BRK (B)	8-94385-432-2	01	1	9112-	●	●
9	PIPE; BRK,RR AXLE	8-97041-709-2	01	1	9112-	●	●
9	PIPE; BRK,RR AXLE	8-94374-974-3	01	1	9112-	●	●
12	BOLT; FLEX HOSE TO RR AXLE M8X30 W/LK&PL WASHER	9-01960-830-0	01	1	9112-9204	●	●
12	BOLT; FLEX HOSE TO RR AXLE M8X30 W/LK&PL WASHER	0-50140-830-0	01	1	9205-9412	●	●
12	BOLT; FLEX HOSE TO RR AXLE M8X30 FLANGE	0-28680-830-0	01	1	9501-	●	●
53	PIPE ASM; BRK,LSV 3 WAY 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5)	8-97043-690-1	01	1	9112-9504	●
53	PIPE ASM; BRK,LSV 3 WAY 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5)	8-97112-715-1	01	1	9505-9601	●
53	PIPE ASM; BRK,LSV 3 WAY 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5)	8-97143-189-1	01	1	9602-	●
53	PIPE ASM; BRK,LSV 3 WAY 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5)	8-94374-811-1	01	1	9112-9504	●
53	PIPE ASM; BRK,LSV 3 WAY 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5)	8-94374-811-1	01	1	9505-9607	●
53	PIPE ASM; BRK,LSV 3 WAY 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5)	8-97143-339-1	01	1	9608-	●
53	PIPE ASM; BRK,LSV 3 WAY 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5)	8-97131-175-0	01	1	9505-9601		●
53	PIPE ASM; BRK,LSV 3 WAY 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5)	8-97143-193-0	01	1	9602-9607		●
53	PIPE ASM; BRK,LSV 3 WAY 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5)	8-97043-692-1	01	1	9112-9504		●
53	PIPE ASM; BRK,LSV 3 WAY 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5)	8-97131-021-0	01	1	9505-9601		●
53	PIPE ASM; BRK,LSV 3 WAY 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5)	8-97143-191-1	01	1	9602-		●
53	PIPE ASM; BRK,LSV 3 WAY 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5)	8-94374-812-1	01	1	9112-9504		●
53	PIPE ASM; BRK,LSV 3 WAY 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5)	8-94374-812-1	01	1	9505-9607		●
53	PIPE ASM; BRK,LSV 3 WAY 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5)	8-97143-340-1	01	1	9608-		●
58	PIPE; BRK,LSV TO RR AXLE EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5)	8-94374-813-0	01	1	9112-9409	●	●
58	PIPE; BRK,LSV TO RR AXLE EUROPE/CANARY EQUIPMENT(EK4)	8-97122-776-0	01	1	9410-9504	●	●
58	PIPE; BRK,LSV TO RR AXLE EUROPE/CANARY EQUIPMENT(EK4)	8-97117-967-1	01	1	9505-9607	●	●
58	PIPE; BRK,LSV TO RR AXLE EUROPE/CANARY EQUIPMENT(EK4)	8-97122-776-1	01	1	9608-	●	●
61	PIPE ASM; BRK 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4)	8-97143-194-1	01	1	9608-	●
61	PIPE ASM; BRK 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5)	8-97143-192-1	01	1	9608-	●
61	PIPE ASM; BRK 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4)	8-97143-343-1	01	1	9608-	●
61	PIPE ASM; BRK 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5)	8-97143-341-1	01	1	9608-	●
61	PIPE ASM; BRK 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4)	8-97143-195-1	01	1	9608-		●
61	PIPE ASM; BRK 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5)	8-97143-193-1	01	1	9608-		●
61	PIPE ASM; BRK 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4)	8-97143-344-1	01	1	9608-		●
61	PIPE ASM; BRK 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5)	8-97143-342-1	01	1	9608-		●

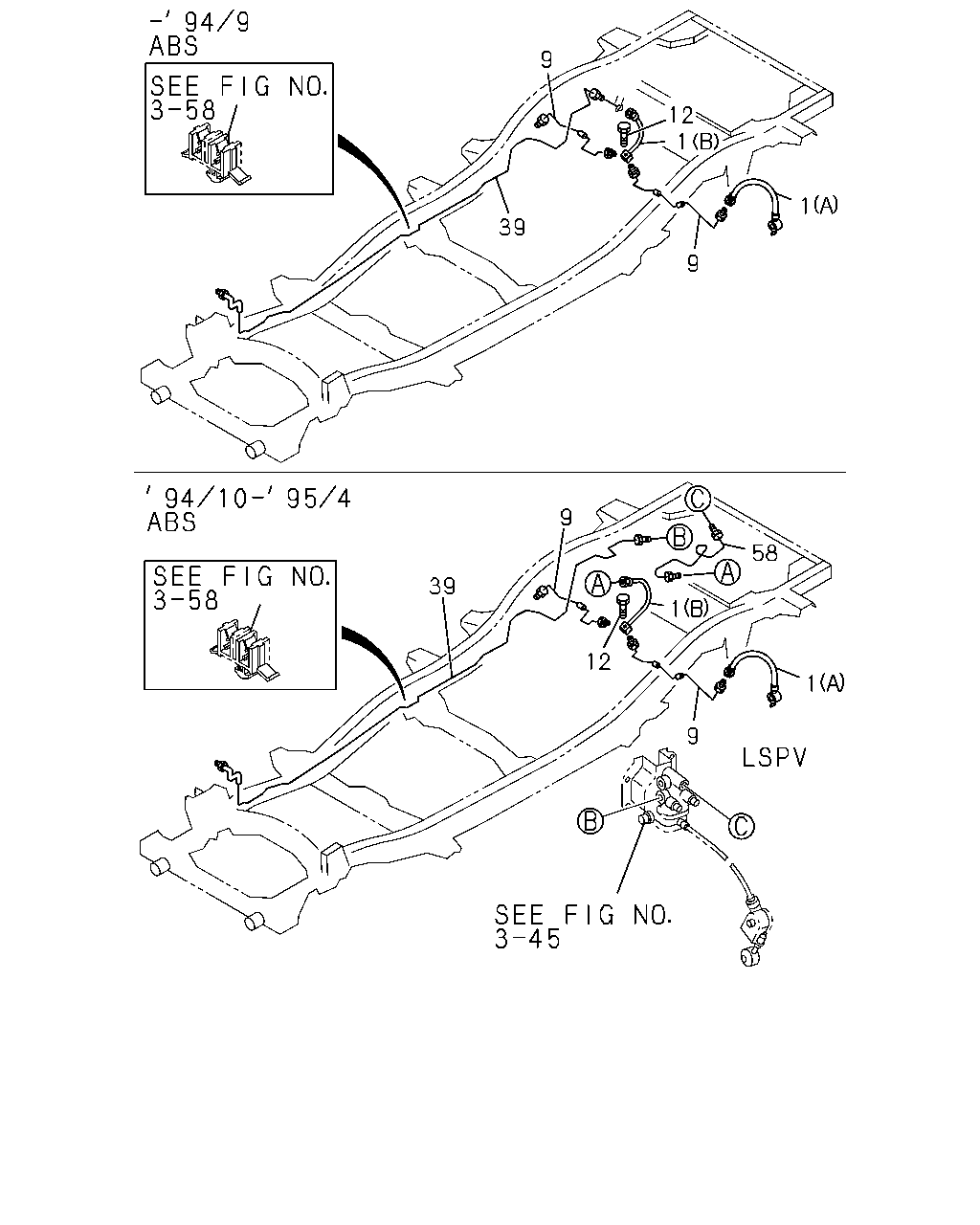

9 12 1 1 39 9 9 58 1 39 12 1 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,RR BRK (A)	8-94382-793-2	02	1	9112-	●	●
1	HOSE; FLEX,RR BRK (B)	8-94385-432-2	01	1	9112-	●	●
9	PIPE; BRK,RR AXLE	8-97041-709-2	01	1	9112-	●	●
9	PIPE; BRK,RR AXLE	8-94374-974-3	01	1	9112-	●	●
12	BOLT; FLEX HOSE TO RR AXLE M8X30 W/LK&PL WASHER	9-01960-830-0	01	1	9112-9204	●	●
12	BOLT; FLEX HOSE TO RR AXLE M8X30 W/LK&PL WASHER	0-50140-830-0	01	1	9205-9412	●	●
12	BOLT; FLEX HOSE TO RR AXLE M8X30 FLANGE	0-28680-830-0	01	1	9501-	●	●
39	PIPE; OIL,UNION TO RR FLEX HOSE 4JG1 ENG(RLT)	8-94374-803-1	01	1	9112-9504	●
39	PIPE; OIL,UNION TO RR FLEX HOSE 4JG2 ENG(RJC)	8-97043-687-1	01	1	9112-9409	●
39	PIPE; OIL,UNION TO RR FLEX HOSE 4JG2 ENG(RJC) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97043-687-1	01	1	9410-9504	●
39	PIPE; OIL,UNION TO RR FLEX HOSE 4JG2 ENG(RJC) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97112-712-3	01	1	9505-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE 4ZE1 ENG(RLJ)	8-94374-800-2	01	1	9112-9504	●
39	PIPE; OIL,UNION TO RR FLEX HOSE 6VD1 SOHC ENG(RLU)	8-94374-825-1	01	1	9112-9409	●
39	PIPE; OIL,UNION TO RR FLEX HOSE 6VD1 SOHC ENG(RLU) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94374-825-1	01	1	9410-9504	●
39	PIPE; OIL,UNION TO RR FLEX HOSE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94374-825-1	01	1	9505-9607	●
39	PIPE; OIL,UNION TO RR FLEX HOSE 4ZE1 ENG(RLJ) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94374-825-2	01	1	9608-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE 6VD1 SOHC ENG(RLU) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97122-275-1	01	1	9608-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE 4JG1 ENG(RLT)	8-97012-430-1	01	1	9112-9504		●
39	PIPE; OIL,UNION TO RR FLEX HOSE 4JG2 ENG(RJC)	8-97043-688-1	01	1	9112-9409		●
39	PIPE; OIL,UNION TO RR FLEX HOSE 4JG2 ENG(RJC) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97043-688-1	01	1	9410-9504		●
39	PIPE; OIL,UNION TO RR FLEX HOSE 4JG2 ENG(RJC) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97112-713-3	01	1	9505-		●
39	PIPE; OIL,UNION TO RR FLEX HOSE 4ZE1 ENG(RLJ)	8-94374-801-2	01	1	9112-9504		●
39	PIPE; OIL,UNION TO RR FLEX HOSE 6VD1 SOHC ENG(RLU)	8-94374-826-1	01	1	9112-9308		●
39	PIPE; OIL,UNION TO RR FLEX HOSE 6VD1 SOHC ENG(RLU)	8-97094-702-0	01	1	9309-9409		●
39	PIPE; OIL,UNION TO RR FLEX HOSE 6VD1 SOHC ENG(RLU) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97094-702-0	01	1	9410-9504		●
39	PIPE; OIL,UNION TO RR FLEX HOSE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97094-702-0	01	1	9505-9607		●
39	PIPE; OIL,UNION TO RR FLEX HOSE 4ZE1 ENG(RLJ) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97094-702-1	01	1	9608-		●
39	PIPE; OIL,UNION TO RR FLEX HOSE 6VD1 SOHC ENG(RLU) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97122-276-1	01	1	9608-		●
58	PIPE; BRK,LSV TO RR AXLE EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5)	8-94374-813-0	01	1	9112-9409	●	●
58	PIPE; BRK,LSV TO RR AXLE EUROPE/CANARY EQUIPMENT(EK4)	8-97122-776-0	01	1	9410-9504	●	●
58	PIPE; BRK,LSV TO RR AXLE EUROPE/CANARY EQUIPMENT(EK4)	8-97117-967-1	01	1	9505-9607	●	●
58	PIPE; BRK,LSV TO RR AXLE EUROPE/CANARY EQUIPMENT(EK4)	8-97122-776-1	01	1	9608-	●	●

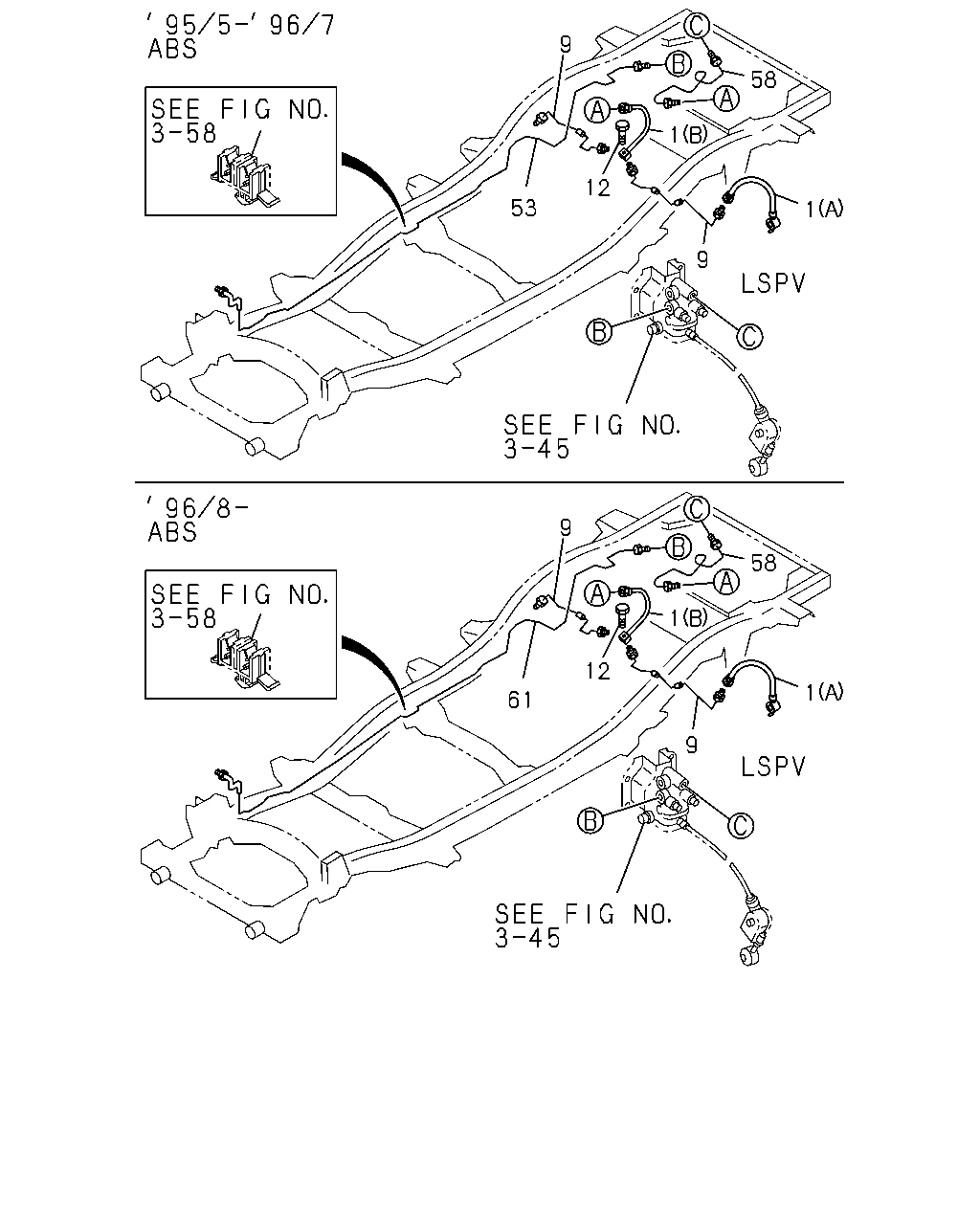

9 58 1 12 1 53 9 9 58 1 12 1 61 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,RR BRK (A)	8-94382-793-2	02	1	9112-	●	●
1	HOSE; FLEX,RR BRK (B)	8-94385-432-2	01	1	9112-	●	●
9	PIPE; BRK,RR AXLE	8-97041-709-2	01	1	9112-	●	●
9	PIPE; BRK,RR AXLE	8-94374-974-3	01	1	9112-	●	●
12	BOLT; FLEX HOSE TO RR AXLE M8X30 W/LK&PL WASHER	9-01960-830-0	01	1	9112-9204	●	●
12	BOLT; FLEX HOSE TO RR AXLE M8X30 W/LK&PL WASHER	0-50140-830-0	01	1	9205-9412	●	●
12	BOLT; FLEX HOSE TO RR AXLE M8X30 FLANGE	0-28680-830-0	01	1	9501-	●	●
53	PIPE ASM; BRK,LSV 3 WAY 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5)	8-97043-690-1	01	1	9112-9504	●
53	PIPE ASM; BRK,LSV 3 WAY 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5)	8-97112-715-1	01	1	9505-9601	●
53	PIPE ASM; BRK,LSV 3 WAY 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5)	8-97143-189-1	01	1	9602-	●
53	PIPE ASM; BRK,LSV 3 WAY 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5)	8-94374-811-1	01	1	9112-9504	●
53	PIPE ASM; BRK,LSV 3 WAY 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5)	8-94374-811-1	01	1	9505-9607	●
53	PIPE ASM; BRK,LSV 3 WAY 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5)	8-97143-339-1	01	1	9608-	●
53	PIPE ASM; BRK,LSV 3 WAY 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5)	8-97131-175-0	01	1	9505-9601		●
53	PIPE ASM; BRK,LSV 3 WAY 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5)	8-97143-193-0	01	1	9602-9607		●
53	PIPE ASM; BRK,LSV 3 WAY 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5)	8-97043-692-1	01	1	9112-9504		●
53	PIPE ASM; BRK,LSV 3 WAY 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5)	8-97131-021-0	01	1	9505-9601		●
53	PIPE ASM; BRK,LSV 3 WAY 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5)	8-97143-191-1	01	1	9602-		●
53	PIPE ASM; BRK,LSV 3 WAY 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5)	8-94374-812-1	01	1	9112-9504		●
53	PIPE ASM; BRK,LSV 3 WAY 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5)	8-94374-812-1	01	1	9505-9607		●
53	PIPE ASM; BRK,LSV 3 WAY 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5)	8-97143-340-1	01	1	9608-		●
58	PIPE; BRK,LSV TO RR AXLE EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5)	8-94374-813-0	01	1	9112-9409	●	●
58	PIPE; BRK,LSV TO RR AXLE EUROPE/CANARY EQUIPMENT(EK4)	8-97122-776-0	01	1	9410-9504	●	●
58	PIPE; BRK,LSV TO RR AXLE EUROPE/CANARY EQUIPMENT(EK4)	8-97117-967-1	01	1	9505-9607	●	●
58	PIPE; BRK,LSV TO RR AXLE EUROPE/CANARY EQUIPMENT(EK4)	8-97122-776-1	01	1	9608-	●	●
61	PIPE ASM; BRK 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4)	8-97143-194-1	01	1	9608-	●
61	PIPE ASM; BRK 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5)	8-97143-192-1	01	1	9608-	●
61	PIPE ASM; BRK 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4)	8-97143-343-1	01	1	9608-	●
61	PIPE ASM; BRK 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5)	8-97143-341-1	01	1	9608-	●
61	PIPE ASM; BRK 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4)	8-97143-195-1	01	1	9608-		●
61	PIPE ASM; BRK 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5)	8-97143-193-1	01	1	9608-		●
61	PIPE ASM; BRK 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4)	8-97143-344-1	01	1	9608-		●
61	PIPE ASM; BRK 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5)	8-97143-342-1	01	1	9608-		●
