Sayfa 3-52 - Isuzu EPC

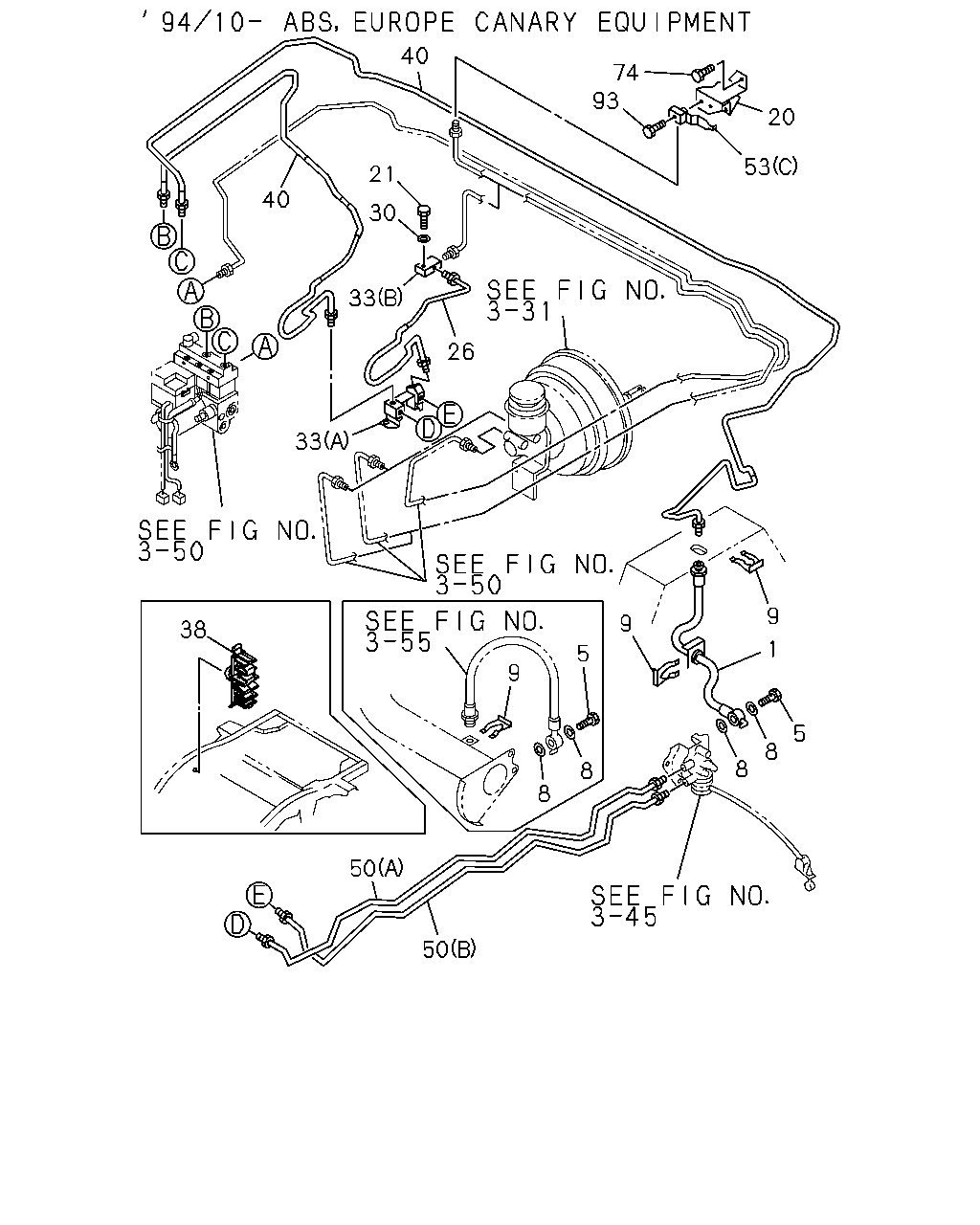

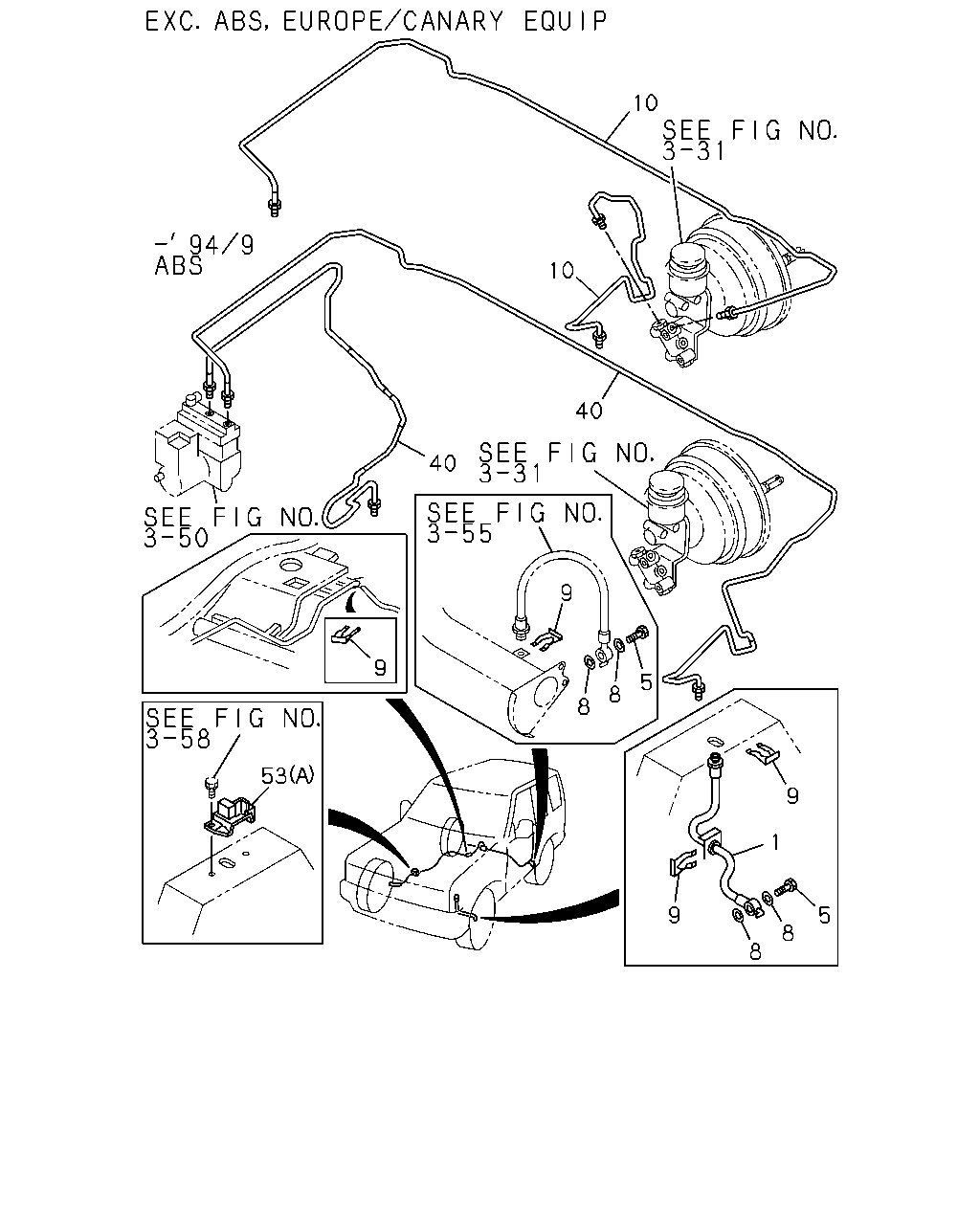

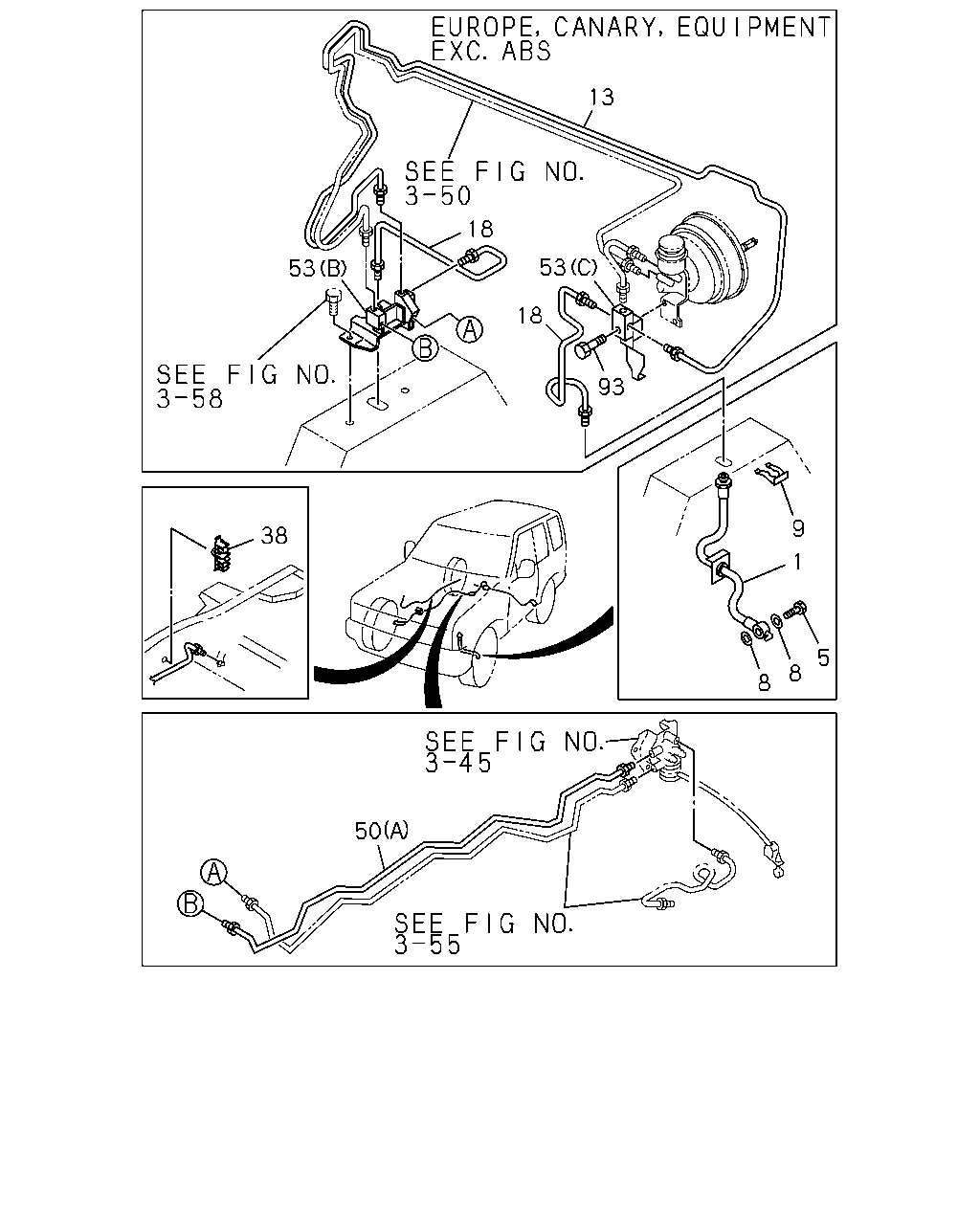

3-52 — BRAKE PIPING; OIL,FRONT (#33625) — 155 parça

10 10 40 40 9 9 8 5 8 53 9 1 9 5 8 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,FRT BRK	8-94385-433-1	02	1	9112-	●	●
5	BOLT; EYE,FLEX HOSE,FRT BRK M10X22	5-09675-017-0	04	1	9112-	●	●
8	GASKET; FLEX HOSE,FRT BRK ID=10.2 OD=16.0	9-09571-410-0	08	1	9112-	●	●
9	CLIP; FLEX HOSE,FRT BRK	8-94137-662-0	07	1	9112-	●	●
10	PIPE; OIL,VLV TO FRT FLEX HOSE 4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. EUROPE/CANARY EQUIPMENT(EK4),ANTI LOCK BRAKE(JE5)	8-97038-460-2	01	1	9112-9709	●	●
10	PIPE; OIL,VLV TO FRT FLEX HOSE 4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. EUROPE/CANARY EQUIPMENT(EK4),ANTI LOCK BRAKE(JE5)	8-97184-325-2	01	1	9710-	●	●
10	PIPE; OIL,VLV TO FRT FLEX HOSE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EXC. EUROPE/CANARY EQUIPMENT(EK4),ANTI LOCK BRAKE(JE5)	8-97023-381-2	01	1	9112-9504	●	●
10	PIPE; OIL,VLV TO FRT FLEX HOSE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EXC. EUROPE/CANARY EQUIPMENT(EK4),ANTI LOCK BRAKE(JE5)	8-97114-786-1	01	1	9505-9709	●	●
10	PIPE; OIL,VLV TO FRT FLEX HOSE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EXC. EUROPE/CANARY EQUIPMENT(EK4),ANTI LOCK BRAKE(JE5)	8-97184-327-2	01	1	9710-	●	●
10	PIPE; OIL,VLV TO FRT FLEX HOSE 4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. EUROPE/CANARY EQUIPMENT(EK4),ANTI LOCK BRAKE(JE5)	8-97038-461-4	01	1	9112-	●	●
10	PIPE; OIL,VLV TO FRT FLEX HOSE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EXC. EUROPE/CANARY EQUIPMENT(EK4),ANTI LOCK BRAKE(JE5)	8-97023-382-5	01	1	9112-9403	●	●
10	PIPE; OIL,VLV TO FRT FLEX HOSE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EXC. EUROPE/CANARY EQUIPMENT(EK4),ANTI LOCK BRAKE(JE5)	8-97114-328-0	01	1	9404-9504	●	●
10	PIPE; OIL,VLV TO FRT FLEX HOSE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EXC. EUROPE/CANARY EQUIPMENT(EK4),ANTI LOCK BRAKE(JE5)	8-97114-787-1	01	1	9505-	●	●
40	PIPE; BRK,HYDRAULIC UNIT TO FRT BRK ANTI LOCK BRAKE(JE5)	8-94374-823-5	01	1	9112-9409	●	●
40	PIPE; BRK,HYDRAULIC UNIT TO FRT BRK ANTI LOCK BRAKE(JE5) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94374-823-5	01	1	9410-9504	●	●
40	PIPE; BRK,HYDRAULIC UNIT TO FRT BRK 4JG2 ENG(RJC) ANTI LOCK BRAKE(JE5)	8-97038-458-2	01	1	9112-9504	●	●
40	PIPE; BRK,HYDRAULIC UNIT TO FRT BRK 4JG2 ENG(RJC) ANTI LOCK BRAKE(JE5)	8-97038-458-2	01	1	9505-9607	●	●
40	PIPE; BRK,HYDRAULIC UNIT TO FRT BRK 4JG2 ENG(RJC) ANTI LOCK BRAKE(JE5)	8-97110-185-2	01	1	9608-9709	●	●
40	PIPE; BRK,HYDRAULIC UNIT TO FRT BRK 4JG2 ENG(RJC) ANTI LOCK BRAKE(JE5)	8-97184-446-0	01	1	9710-	●	●
40	PIPE; BRK,HYDRAULIC UNIT TO FRT BRK 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5)	8-97114-461-0	01	1	9410-9504	●	●
40	PIPE; BRK,HYDRAULIC UNIT TO FRT BRK 4JG2 ENG(RJC) ANTI LOCK BRAKE(JE5)	8-97114-461-0	01	1	9505-9607	●	●
40	PIPE; BRK,HYDRAULIC UNIT TO FRT BRK 4JG2 ENG(RJC) ANTI LOCK BRAKE(JE5)	8-97145-357-1	01	1	9608-9707	●	●
40	PIPE; BRK,HYDRAULIC UNIT TO FRT BRK 4JG2 ENG(RJC) ANTI LOCK BRAKE(JE5)	8-97181-839-0	01	1	9708-	●	●
40	PIPE; BRK,HYDRAULIC UNIT TO FRT BRK 6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5)	8-94374-822-5	01	1	9112-9607	●	●
40	PIPE; BRK,HYDRAULIC UNIT TO FRT BRK 6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5)	8-97109-797-1	01	1	9608-9709	●	●
40	PIPE; BRK,HYDRAULIC UNIT TO FRT BRK 6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5)	8-97184-444-0	01	1	9710-	●	●
40	PIPE; BRK,HYDRAULIC UNIT TO FRT BRK 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5)	8-97114-464-1	01	1	9410-9504	●	●
40	PIPE; BRK,HYDRAULIC UNIT TO FRT BRK 6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5)	8-97114-464-1	01	1	9505-9607	●	●
40	PIPE; BRK,HYDRAULIC UNIT TO FRT BRK 6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5)	8-97147-768-1	01	1	9608-9707	●	●
40	PIPE; BRK,HYDRAULIC UNIT TO FRT BRK 6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5)	8-97181-838-0	01	1	9708-	●	●
53	CONNECTOR; OIL PIPE ANTI LOCK BRAKE(JE5) (A)	8-94385-273-0	01	1	9112-9409	●	●
53	CONNECTOR; OIL PIPE EXC. EUROPE/CANARY EQUIPMENT(EK4),ANTI LOCK BRAKE(JE5) (A)	8-94385-273-0	01	1	9112-9409	●	●
53	CONNECTOR; OIL PIPE EXC. EUROPE/CANARY EQUIPMENT(EK4) (A)	8-94385-273-1	01	1	9410-9412	●	●
53	CONNECTOR; OIL PIPE EXC. EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97115-928-0	01	1	9501-	●	●
53	CONNECTOR; OIL PIPE EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5) (B)	8-97012-436-2	01	1	9112-9503	●	●
53	CONNECTOR; OIL PIPE EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5) (B)	8-97115-929-0	01	1	9504-9607	●	●
53	CONNECTOR; OIL PIPE EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5) (B)	8-97162-282-0	01	1	9608-	●	●
53	CONNECTOR; OIL PIPE EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5) (C)	8-97012-437-2	01	1	9112-9409	●	●
53	CONNECTOR; OIL PIPE EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5) (C)	8-97012-437-2	01	1	9410-	●	●
53	CONNECTOR; OIL PIPE 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) (C)	8-97012-437-2	01	1	9410-	●	●

13 18 53 53 18 93 9 1 38 5 8 8 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,FRT BRK	8-94385-433-1	02	1	9112-	●	●
5	BOLT; EYE,FLEX HOSE,FRT BRK M10X22	5-09675-017-0	04	1	9112-	●	●
8	GASKET; FLEX HOSE,FRT BRK ID=10.2 OD=16.0	9-09571-410-0	08	1	9112-	●	●
9	CLIP; FLEX HOSE,FRT BRK	8-94137-662-0	07	1	9112-	●	●
13	PIPE; OIL,UNION TO UNION 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5)	8-97038-468-3	01	1	9112-9607	●	●
13	PIPE; OIL,UNION TO UNION 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5)	8-97145-521-1	01	1	9608-	●	●
13	PIPE; OIL,UNION TO UNION 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5)	8-94374-807-3	01	1	9112-9504	●	●
13	PIPE; OIL,UNION TO UNION 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5)	8-94374-807-3	01	1	9505-9607	●	●
13	PIPE; OIL,UNION TO UNION 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5)	8-97145-520-0	01	1	9608-	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5)	8-94374-798-3	01	1	9112-9709	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5)	8-97184-328-0	01	1	9710-	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5)	8-94374-808-2	01	1	9112-	●	●
38	CLIP 4JG2 ENG(RJC) L=8.9	8-94435-551-1	01	1	9511-		●
50	PIPE; BRK,UNION TO VLV 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) (B)	8-97122-772-0	01	1	9410-9504	●
50	PIPE; BRK,UNION TO VLV 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) (B)	8-97114-472-3	01	1	9505-9601	●
50	PIPE; BRK,UNION TO VLV 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) (B)	8-97143-192-0	01	1	9602-9607	●
50	PIPE; BRK,UNION TO VLV 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5) (A)	8-97043-689-2	01	1	9112-9409	●
50	PIPE; BRK,UNION TO VLV 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97122-661-0	01	1	9410-9504	●
50	PIPE; BRK,UNION TO VLV 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97112-714-2	01	1	9505-9601	●
50	PIPE; BRK,UNION TO VLV 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97143-194-0	01	1	9602-9607	●
50	PIPE; BRK,UNION TO VLV 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) (B)	8-97122-774-0	01	1	9410-9504	●
50	PIPE; BRK,UNION TO VLV 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) (B)	8-97114-470-2	01	1	9505-9607	●
50	PIPE; BRK,UNION TO VLV 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5) (A)	8-94374-809-2	01	1	9112-9409	●
50	PIPE; BRK,UNION TO VLV 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97122-770-0	01	1	9410-9504	●
50	PIPE; BRK,UNION TO VLV 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97117-605-1	01	1	9505-9607	●
50	PIPE; BRK,UNION TO VLV 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) (B)	8-97122-773-0	01	1	9410-9504		●
50	PIPE; BRK,UNION TO VLV 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5) (A)	8-97043-691-2	01	1	9112-9409		●
50	PIPE; BRK,UNION TO VLV 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97122-662-0	01	1	9410-9504		●
50	PIPE; BRK,UNION TO VLV 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97131-022-0	01	1	9505-9601		●
50	PIPE; BRK,UNION TO VLV 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97143-195-0	01	1	9602-9607		●
50	PIPE; BRK,UNION TO VLV 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) (B)	8-97122-775-0	01	1	9410-9504		●
50	PIPE; BRK,UNION TO VLV 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) (B)	8-97114-471-2	01	1	9505-9607		●
50	PIPE; BRK,UNION TO VLV 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5) (A)	8-94374-810-2	01	1	9112-9409		●
50	PIPE; BRK,UNION TO VLV 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97122-771-0	01	1	9410-9504		●
50	PIPE; BRK,UNION TO VLV 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97117-607-1	01	1	9505-9607		●
53	CONNECTOR; OIL PIPE ANTI LOCK BRAKE(JE5) (A)	8-94385-273-0	01	1	9112-9409	●	●
53	CONNECTOR; OIL PIPE EXC. EUROPE/CANARY EQUIPMENT(EK4),ANTI LOCK BRAKE(JE5) (A)	8-94385-273-0	01	1	9112-9409	●	●
53	CONNECTOR; OIL PIPE EXC. EUROPE/CANARY EQUIPMENT(EK4) (A)	8-94385-273-1	01	1	9410-9412	●	●
53	CONNECTOR; OIL PIPE EXC. EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97115-928-0	01	1	9501-	●	●
53	CONNECTOR; OIL PIPE EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5) (B)	8-97012-436-2	01	1	9112-9503	●	●
53	CONNECTOR; OIL PIPE EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5) (B)	8-97115-929-0	01	1	9504-9607	●	●
53	CONNECTOR; OIL PIPE EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5) (B)	8-97162-282-0	01	1	9608-	●	●
53	CONNECTOR; OIL PIPE EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5) (C)	8-97012-437-2	01	1	9112-9409	●	●
53	CONNECTOR; OIL PIPE EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5) (C)	8-97012-437-2	01	1	9410-	●	●
53	CONNECTOR; OIL PIPE 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) (C)	8-97012-437-2	01	1	9410-	●	●
93	BOLT; CONNECTOR EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5) M8X40 W/LK WASHER	0-50040-840-0	01	1	9112-9409	●	●
93	BOLT; CONNECTOR EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5) M8X40 W/LK WASHER	0-50040-840-0	01	1	9410-	●	●
93	BOLT; CONNECTOR 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) M8X40 W/LK WASHER	0-50040-840-0	01	1	9410-	●	●

40 74 93 20 53 21 40 30 33 26 33 9 1 9 38 5 9 5 8 8 8 8 50 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,FRT BRK	8-94385-433-1	02	1	9112-	●	●
5	BOLT; EYE,FLEX HOSE,FRT BRK M10X22	5-09675-017-0	04	1	9112-	●	●
8	GASKET; FLEX HOSE,FRT BRK ID=10.2 OD=16.0	9-09571-410-0	08	1	9112-	●	●
9	CLIP; FLEX HOSE,FRT BRK	8-94137-662-0	07	1	9112-	●	●
20	BRACKET; UNION,OIL PIPE 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) EXC. ANTI THEFT<UA6>	8-97072-528-0	01	1	9410-	●	●
21	BOLT; UNION BRKT 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) M6X30 W/LK&PL WASHER	0-50140-630-0	01	1	9410-	●	●
26	PIPE; BRK,JOINT TO 2 WAY 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5)	8-97110-840-1	01	1	9410-9607	●	●
26	PIPE; BRK,JOINT TO 2 WAY 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5)	8-97145-522-1	01	1	9608-9707	●	●
26	PIPE; BRK,JOINT TO 2 WAY 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5)	8-97181-561-1	01	1	9708-	●	●
30	WASHER; PL,UNION 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) ID=6.4	1-09985-038-0	01	1	9410-	●	●
33	UNION; OIL PIPE EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) (A)	8-97110-846-1	01	1	9410-	●	●
33	UNION; OIL PIPE 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) (B)	8-94406-895-0	01	1	9410-	●	●
38	CLIP 4JG2 ENG(RJC) L=8.9	8-94435-551-1	01	1	9511-		●
40	PIPE; BRK,HYDRAULIC UNIT TO FRT BRK ANTI LOCK BRAKE(JE5)	8-94374-823-5	01	1	9112-9409	●	●
40	PIPE; BRK,HYDRAULIC UNIT TO FRT BRK ANTI LOCK BRAKE(JE5) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94374-823-5	01	1	9410-9504	●	●
40	PIPE; BRK,HYDRAULIC UNIT TO FRT BRK 4JG2 ENG(RJC) ANTI LOCK BRAKE(JE5)	8-97038-458-2	01	1	9112-9504	●	●
40	PIPE; BRK,HYDRAULIC UNIT TO FRT BRK 4JG2 ENG(RJC) ANTI LOCK BRAKE(JE5)	8-97038-458-2	01	1	9505-9607	●	●
40	PIPE; BRK,HYDRAULIC UNIT TO FRT BRK 4JG2 ENG(RJC) ANTI LOCK BRAKE(JE5)	8-97110-185-2	01	1	9608-9709	●	●
40	PIPE; BRK,HYDRAULIC UNIT TO FRT BRK 4JG2 ENG(RJC) ANTI LOCK BRAKE(JE5)	8-97184-446-0	01	1	9710-	●	●
40	PIPE; BRK,HYDRAULIC UNIT TO FRT BRK 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5)	8-97114-461-0	01	1	9410-9504	●	●
40	PIPE; BRK,HYDRAULIC UNIT TO FRT BRK 4JG2 ENG(RJC) ANTI LOCK BRAKE(JE5)	8-97114-461-0	01	1	9505-9607	●	●
40	PIPE; BRK,HYDRAULIC UNIT TO FRT BRK 4JG2 ENG(RJC) ANTI LOCK BRAKE(JE5)	8-97145-357-1	01	1	9608-9707	●	●
40	PIPE; BRK,HYDRAULIC UNIT TO FRT BRK 4JG2 ENG(RJC) ANTI LOCK BRAKE(JE5)	8-97181-839-0	01	1	9708-	●	●
40	PIPE; BRK,HYDRAULIC UNIT TO FRT BRK 6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5)	8-94374-822-5	01	1	9112-9607	●	●
40	PIPE; BRK,HYDRAULIC UNIT TO FRT BRK 6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5)	8-97109-797-1	01	1	9608-9709	●	●
40	PIPE; BRK,HYDRAULIC UNIT TO FRT BRK 6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5)	8-97184-444-0	01	1	9710-	●	●
40	PIPE; BRK,HYDRAULIC UNIT TO FRT BRK 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5)	8-97114-464-1	01	1	9410-9504	●	●
40	PIPE; BRK,HYDRAULIC UNIT TO FRT BRK 6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5)	8-97114-464-1	01	1	9505-9607	●	●
40	PIPE; BRK,HYDRAULIC UNIT TO FRT BRK 6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5)	8-97147-768-1	01	1	9608-9707	●	●
40	PIPE; BRK,HYDRAULIC UNIT TO FRT BRK 6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5)	8-97181-838-0	01	1	9708-	●	●
50	PIPE; BRK,UNION TO VLV 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) (B)	8-97122-772-0	01	1	9410-9504	●
50	PIPE; BRK,UNION TO VLV 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) (B)	8-97114-472-3	01	1	9505-9601	●
50	PIPE; BRK,UNION TO VLV 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) (B)	8-97143-192-0	01	1	9602-9607	●
50	PIPE; BRK,UNION TO VLV 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5) (A)	8-97043-689-2	01	1	9112-9409	●
50	PIPE; BRK,UNION TO VLV 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97122-661-0	01	1	9410-9504	●
50	PIPE; BRK,UNION TO VLV 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97112-714-2	01	1	9505-9601	●
50	PIPE; BRK,UNION TO VLV 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97143-194-0	01	1	9602-9607	●
50	PIPE; BRK,UNION TO VLV 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) (B)	8-97122-774-0	01	1	9410-9504	●
50	PIPE; BRK,UNION TO VLV 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) (B)	8-97114-470-2	01	1	9505-9607	●
50	PIPE; BRK,UNION TO VLV 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5) (A)	8-94374-809-2	01	1	9112-9409	●
50	PIPE; BRK,UNION TO VLV 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97122-770-0	01	1	9410-9504	●
50	PIPE; BRK,UNION TO VLV 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97117-605-1	01	1	9505-9607	●
50	PIPE; BRK,UNION TO VLV 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) (B)	8-97122-773-0	01	1	9410-9504		●
50	PIPE; BRK,UNION TO VLV 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5) (A)	8-97043-691-2	01	1	9112-9409		●
50	PIPE; BRK,UNION TO VLV 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97122-662-0	01	1	9410-9504		●
50	PIPE; BRK,UNION TO VLV 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97131-022-0	01	1	9505-9601		●
50	PIPE; BRK,UNION TO VLV 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97143-195-0	01	1	9602-9607		●
50	PIPE; BRK,UNION TO VLV 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) (B)	8-97122-775-0	01	1	9410-9504		●
50	PIPE; BRK,UNION TO VLV 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) (B)	8-97114-471-2	01	1	9505-9607		●
50	PIPE; BRK,UNION TO VLV 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5) (A)	8-94374-810-2	01	1	9112-9409		●
50	PIPE; BRK,UNION TO VLV 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97122-771-0	01	1	9410-9504		●
50	PIPE; BRK,UNION TO VLV 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97117-607-1	01	1	9505-9607		●
53	CONNECTOR; OIL PIPE ANTI LOCK BRAKE(JE5) (A)	8-94385-273-0	01	1	9112-9409	●	●
53	CONNECTOR; OIL PIPE EXC. EUROPE/CANARY EQUIPMENT(EK4),ANTI LOCK BRAKE(JE5) (A)	8-94385-273-0	01	1	9112-9409	●	●
53	CONNECTOR; OIL PIPE EXC. EUROPE/CANARY EQUIPMENT(EK4) (A)	8-94385-273-1	01	1	9410-9412	●	●
53	CONNECTOR; OIL PIPE EXC. EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97115-928-0	01	1	9501-	●	●
53	CONNECTOR; OIL PIPE EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5) (B)	8-97012-436-2	01	1	9112-9503	●	●
53	CONNECTOR; OIL PIPE EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5) (B)	8-97115-929-0	01	1	9504-9607	●	●
53	CONNECTOR; OIL PIPE EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5) (B)	8-97162-282-0	01	1	9608-	●	●
53	CONNECTOR; OIL PIPE EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5) (C)	8-97012-437-2	01	1	9112-9409	●	●
53	CONNECTOR; OIL PIPE EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5) (C)	8-97012-437-2	01	1	9410-	●	●
53	CONNECTOR; OIL PIPE 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) (C)	8-97012-437-2	01	1	9410-	●	●
74	BOLT; BRKT 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) EXC. ANTI THEFT<UA6> M6X16 W/LK&PL WASHER	0-50140-616-0	02	1	9410-9705	●	●
74	BOLT; BRKT 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) EXC. ANTI THEFT<UA6> M6X16 FLANGE	0-28680-616-0	02	1	9706-	●	●
93	BOLT; CONNECTOR EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5) M8X40 W/LK WASHER	0-50040-840-0	01	1	9112-9409	●	●
93	BOLT; CONNECTOR EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5) M8X40 W/LK WASHER	0-50040-840-0	01	1	9410-	●	●
93	BOLT; CONNECTOR 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) M8X40 W/LK WASHER	0-50040-840-0	01	1	9410-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
