Sayfa 3-50 - Isuzu EPC

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#33624) — 166 parça

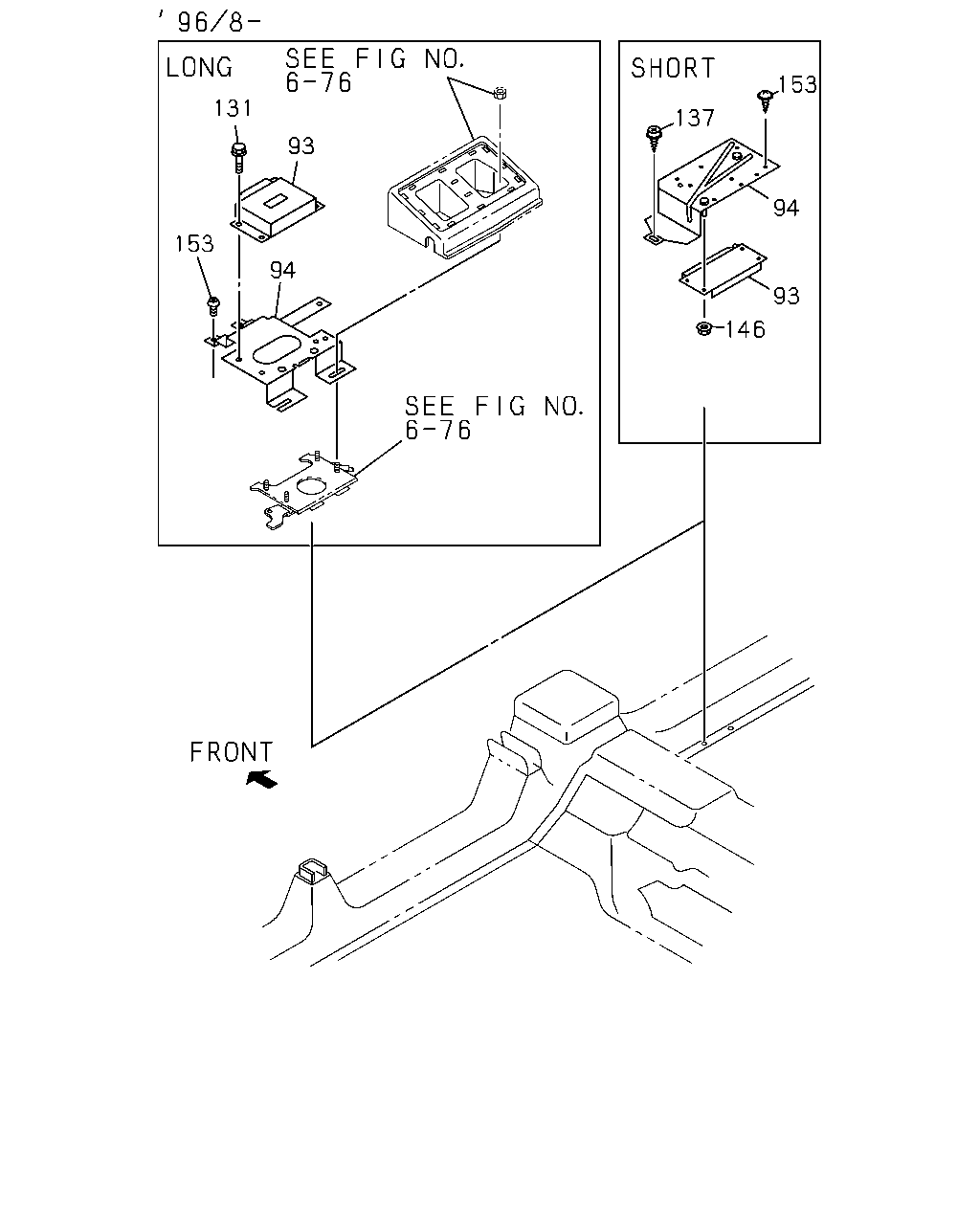

153 131 137 93 94 153 94 93 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
93	CONTROL UNIT; ABS ANTI LOCK BRAKE(JE5)	8-97066-414-0	01	1	9112-9308	●	●
93	CONTROL UNIT; ABS ANTI LOCK BRAKE(JE5)	8-97085-391-0	01	1	9309-9410	●	●
93	CONTROL UNIT; ABS ANTI LOCK BRAKE(JE5)	8-97114-360-0	01	1	9411-9607	●	●
93	CONTROL UNIT; ABS ANTI LOCK BRAKE(JE5)	8-97131-976-2	01	1	9608-	●	●
94	BRACKET; ABS CONT UNIT ANTI LOCK BRAKE(JE5)	8-97085-392-1	01	1	9309-9504	●	●
94	BRACKET; ABS CONT UNIT ANTI LOCK BRAKE(JE5)	8-97102-615-0	01	1	9505-9607	●	●
94	BRACKET; ABS CONT UNIT ANTI LOCK BRAKE(JE5)	8-97131-979-2	01	1	9608-	●
94	BRACKET; ABS CONT UNIT ANTI LOCK BRAKE(JE5)	8-97131-977-1	01	1	9608-		●
131	BOLT; BRKT ANTI LOCK BRAKE(JE5) M6X20 W/WASHER	8-94112-987-1	03	1	9608-		●
137	SCREW; COVER ANTI LOCK BRAKE(JE5)	8-94164-662-0	01	1	9608-	●
146	NUT; BRKT ANTI LOCK BRAKE(JE5) M6 FLANGE	0-91150-206-0	02	1	9608-	●
146	NUT; BRKT ANTI LOCK BRAKE(JE5) M5 FLANGE	5-09440-003-0	04	1	9505-9607	●	●
146	NUT; BRKT ANTI LOCK BRAKE(JE5) M4	9-99110-404-0	01	1	9608-	●	●
153	SCREW; BRKT FIX ANTI LOCK BRAKE(JE5) M5X12 TAPPING W/PL WASHER	0-74110-512-0	02	1	9608-	●	●

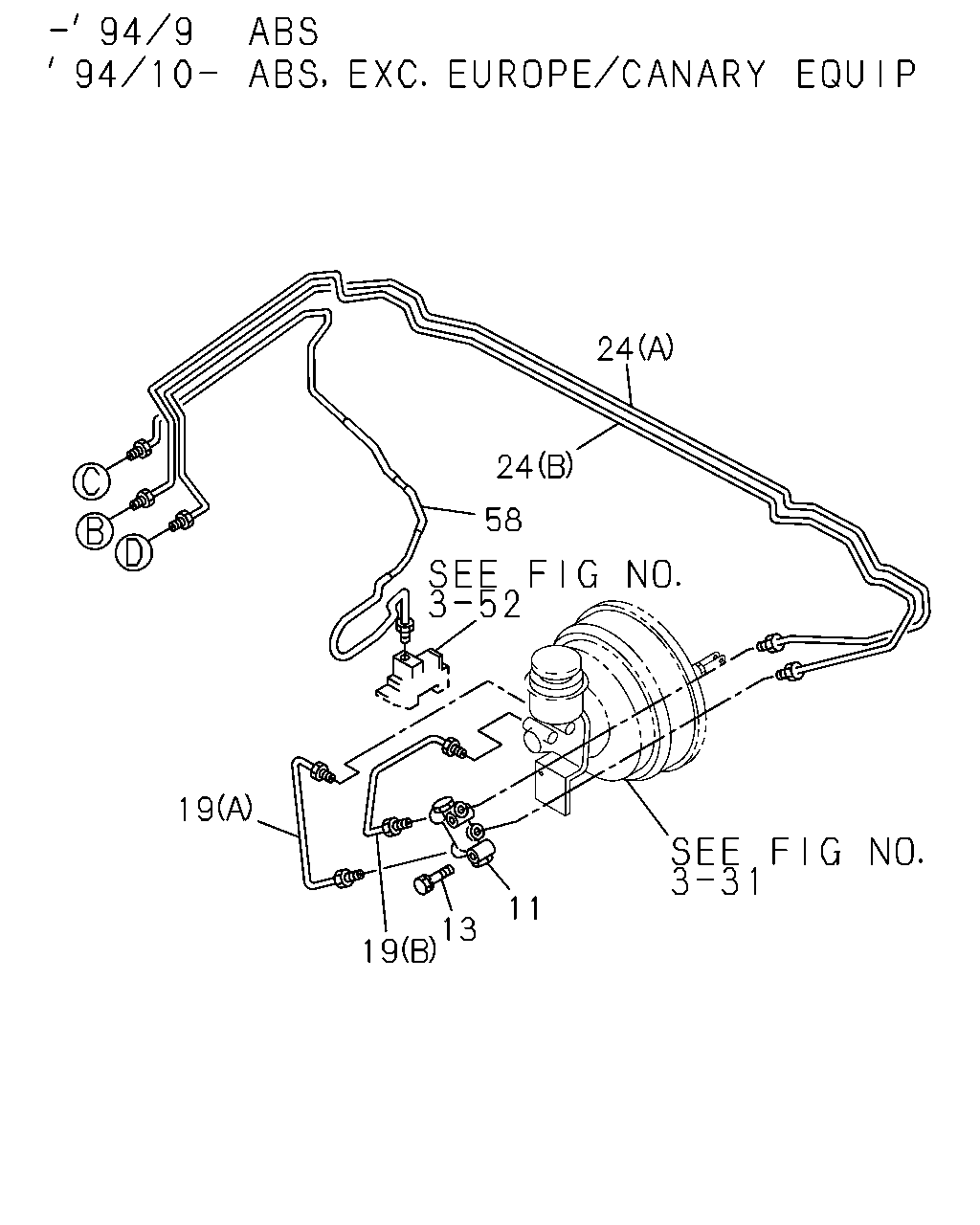

24 24 58 19 11 13 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	VALVE; BRK CONT ANTI LOCK BRAKE(JE5)	8-94376-321-0	01	1	9112-9409	●	●
11	VALVE; BRK CONT ANTI LOCK BRAKE(JE5) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94376-321-0	01	1	9410-	●	●
11	VALVE; BRK CONT EXC. EUROPE/CANARY EQUIPMENT(EK4),ANTI LOCK BRAKE(JE5)	8-94137-648-3	01	1	9112-	●	●
13	BOLT; VLV TO BRKT EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) M8X40 W/LK WASHER	9-01900-840-0	02	1	9112-9204	●	●
13	BOLT; VLV TO BRKT EXC. EUROPE/CANARY EQUIPMENT(EK4) M8X40 W/LK WASHER	9-01900-840-0	02	1	9112-9204	●	●
13	BOLT; VLV TO BRKT EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) M8X40 W/LK WASHER	0-50040-840-0	02	1	9205-9409	●	●
13	BOLT; VLV TO BRKT EXC. EUROPE/CANARY EQUIPMENT(EK4) M8X40 W/LK WASHER	0-50040-840-0	02	1	9205-9409	●	●
13	BOLT; VLV TO BRKT EXC. EUROPE/CANARY EQUIPMENT(EK4) M8X40 W/LK WASHER	0-50040-840-0	02	1	9410-	●	●
19	PIPE; BRK,M/CYL TO UNION EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) (A)	8-94374-817-1	01	1	9112-9409	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. EUROPE/CANARY EQUIPMENT(EK4) (A)	8-94374-817-1	01	1	9112-9409	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. EUROPE/CANARY EQUIPMENT(EK4) (A)	8-94374-817-3	01	1	9410-	●	●
19	PIPE; BRK,M/CYL TO UNION EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) (B)	8-94374-818-1	01	1	9112-9409	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. EUROPE/CANARY EQUIPMENT(EK4) (B)	8-94374-818-1	01	1	9112-9409	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. EUROPE/CANARY EQUIPMENT(EK4) (B)	8-94374-818-3	01	1	9410-	●	●
19	PIPE; BRK,M/CYL TO UNION EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5) (A)	8-94374-796-1	01	1	9112-9701	●	●
19	PIPE; BRK,M/CYL TO UNION EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5) (A)	8-97172-531-1	01	1	9702-	●	●
19	PIPE; BRK,M/CYL TO UNION EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5) (B)	8-94374-797-5	01	1	9112-	●	●
19	PIPE; BRK,M/CYL TO UNION 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) (D)	8-97110-831-4	01	1	9410-	●	●
19	PIPE; BRK,M/CYL TO UNION 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) (C)	8-97110-830-3	01	1	9410-	●	●
24	PIPE; BRK,PROPORTIONING VLV 4JG2 ENG(RJC) ANTI LOCK BRAKE(JE5) (A)FRONT	8-97038-456-2	01	1	9112-9409	●	●
24	PIPE; BRK,PROPORTIONING VLV 4JG2 ENG(RJC) ANTI LOCK BRAKE(JE5) EXC. EUROPE/CANARY EQUIPMENT(EK4) (A)FRONT	8-97038-456-2	01	1	9410-9607	●	●
24	PIPE; BRK,PROPORTIONING VLV 4JG2 ENG(RJC) ANTI LOCK BRAKE(JE5) EXC. EUROPE/CANARY EQUIPMENT(EK4) (A)FRONT	8-97110-183-1	01	1	9608-	●	●
24	PIPE; BRK,PROPORTIONING VLV 4JG2 ENG(RJC) ANTI LOCK BRAKE(JE5) (B)REAR	8-97038-457-2	01	1	9112-9409	●	●
24	PIPE; BRK,PROPORTIONING VLV 4JG2 ENG(RJC) ANTI LOCK BRAKE(JE5) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B)REAR	8-97038-457-2	01	1	9410-9607	●	●
24	PIPE; BRK,PROPORTIONING VLV 4JG2 ENG(RJC) ANTI LOCK BRAKE(JE5) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B)REAR	8-97110-184-1	01	1	9608-	●	●
24	PIPE; BRK,PROPORTIONING VLV 6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5) (A)FRONT	8-94374-819-4	01	1	9112-9403	●	●
24	PIPE; BRK,PROPORTIONING VLV 6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5) (A)FRONT	8-97114-326-0	01	1	9404-9409	●	●
24	PIPE; BRK,PROPORTIONING VLV 6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5) EXC. EUROPE/CANARY EQUIPMENT(EK4) (A)FRONT	8-97114-326-0	01	1	9410-9607	●	●
24	PIPE; BRK,PROPORTIONING VLV 6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5) EXC. EUROPE/CANARY EQUIPMENT(EK4) (A)FRONT	8-97109-803-1	01	1	9608-	●	●
24	PIPE; BRK,PROPORTIONING VLV 6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5) (B)REAR	8-94374-821-4	01	1	9112-9403	●	●
24	PIPE; BRK,PROPORTIONING VLV 6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5) (B)REAR	8-97114-327-0	01	1	9404-9409	●	●
24	PIPE; BRK,PROPORTIONING VLV 6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B)REAR	8-97114-327-0	01	1	9410-9607	●	●
24	PIPE; BRK,PROPORTIONING VLV 6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B)REAR	8-97109-805-1	01	1	9608-	●	●
58	PIPE; BRK,UNION TO HYDRAULIC UNIT ANTI LOCK BRAKE(JE5)	8-94374-824-6	01	1	9112-9409	●	●
58	PIPE; BRK,UNION TO HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94374-824-6	01	1	9410-9504	●	●
58	PIPE; BRK,UNION TO HYDRAULIC UNIT 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5)	8-97114-460-0	01	1	9410-9504	●	●
58	PIPE; BRK,UNION TO HYDRAULIC UNIT 4JG2 ENG(RJC) ANTI LOCK BRAKE(JE5)	8-97114-460-0	01	1	9505-9607	●	●
58	PIPE; BRK,UNION TO HYDRAULIC UNIT 4JG2 ENG(RJC) ANTI LOCK BRAKE(JE5)	8-97145-358-1	01	1	9608-9707	●	●
58	PIPE; BRK,UNION TO HYDRAULIC UNIT 4JG2 ENG(RJC) ANTI LOCK BRAKE(JE5)	8-97181-840-0	01	1	9708-	●	●
58	PIPE; BRK,UNION TO HYDRAULIC UNIT 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5)	8-97114-465-1	01	1	9410-9504	●	●
58	PIPE; BRK,UNION TO HYDRAULIC UNIT 6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5)	8-97114-465-1	01	1	9505-9607	●	●
58	PIPE; BRK,UNION TO HYDRAULIC UNIT 6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5)	8-97145-553-1	01	1	9608-9707	●	●
58	PIPE; BRK,UNION TO HYDRAULIC UNIT 6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5)	8-97181-837-0	01	1	9708-	●	●

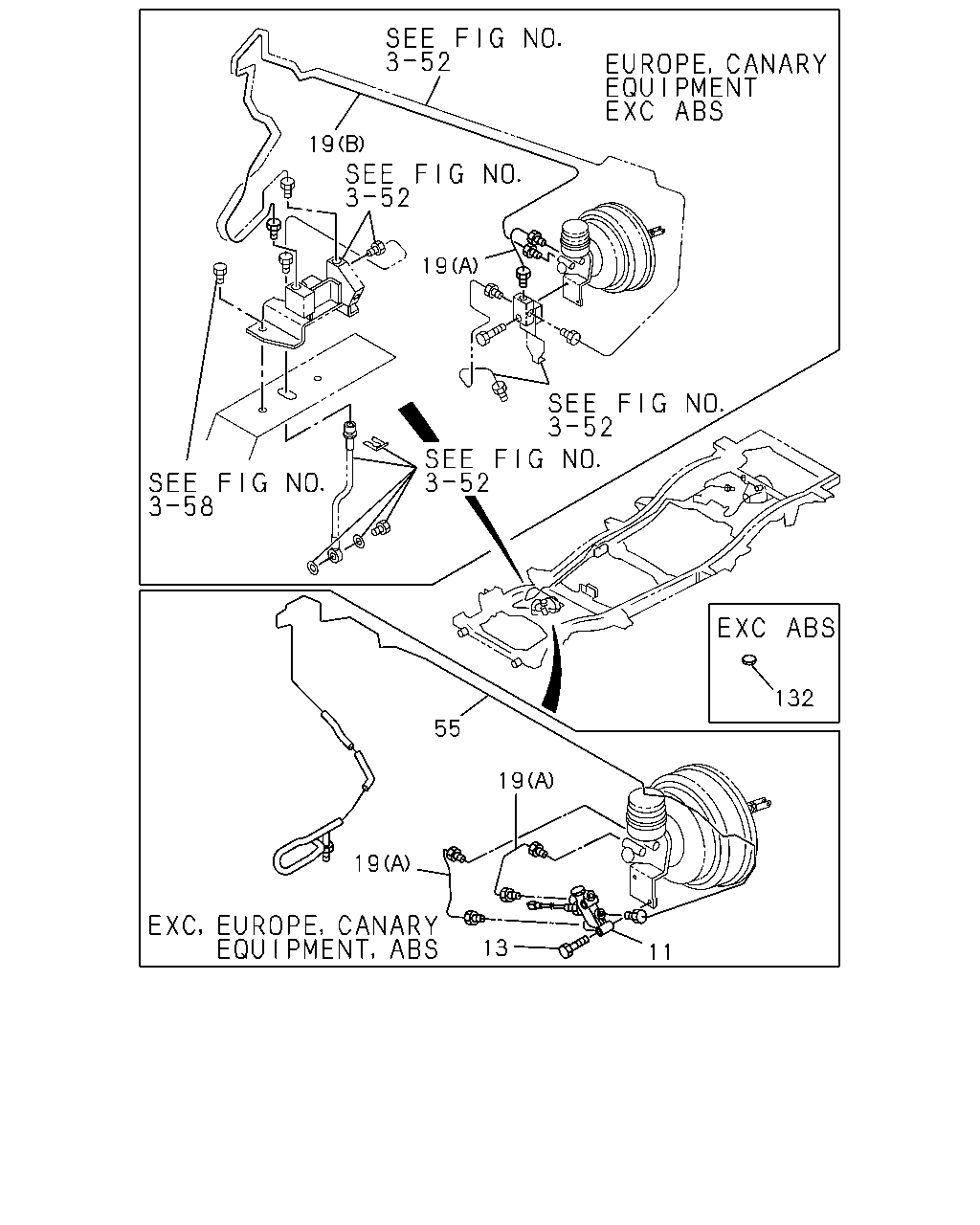

19 19 132 55 19 19 13 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	VALVE; BRK CONT ANTI LOCK BRAKE(JE5)	8-94376-321-0	01	1	9112-9409	●	●
11	VALVE; BRK CONT ANTI LOCK BRAKE(JE5) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94376-321-0	01	1	9410-	●	●
11	VALVE; BRK CONT EXC. EUROPE/CANARY EQUIPMENT(EK4),ANTI LOCK BRAKE(JE5)	8-94137-648-3	01	1	9112-	●	●
13	BOLT; VLV TO BRKT EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) M8X40 W/LK WASHER	9-01900-840-0	02	1	9112-9204	●	●
13	BOLT; VLV TO BRKT EXC. EUROPE/CANARY EQUIPMENT(EK4) M8X40 W/LK WASHER	9-01900-840-0	02	1	9112-9204	●	●
13	BOLT; VLV TO BRKT EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) M8X40 W/LK WASHER	0-50040-840-0	02	1	9205-9409	●	●
13	BOLT; VLV TO BRKT EXC. EUROPE/CANARY EQUIPMENT(EK4) M8X40 W/LK WASHER	0-50040-840-0	02	1	9205-9409	●	●
13	BOLT; VLV TO BRKT EXC. EUROPE/CANARY EQUIPMENT(EK4) M8X40 W/LK WASHER	0-50040-840-0	02	1	9410-	●	●
19	PIPE; BRK,M/CYL TO UNION EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) (A)	8-94374-817-1	01	1	9112-9409	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. EUROPE/CANARY EQUIPMENT(EK4) (A)	8-94374-817-1	01	1	9112-9409	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. EUROPE/CANARY EQUIPMENT(EK4) (A)	8-94374-817-3	01	1	9410-	●	●
19	PIPE; BRK,M/CYL TO UNION EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) (B)	8-94374-818-1	01	1	9112-9409	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. EUROPE/CANARY EQUIPMENT(EK4) (B)	8-94374-818-1	01	1	9112-9409	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. EUROPE/CANARY EQUIPMENT(EK4) (B)	8-94374-818-3	01	1	9410-	●	●
19	PIPE; BRK,M/CYL TO UNION EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5) (A)	8-94374-796-1	01	1	9112-9701	●	●
19	PIPE; BRK,M/CYL TO UNION EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5) (A)	8-97172-531-1	01	1	9702-	●	●
19	PIPE; BRK,M/CYL TO UNION EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5) (B)	8-94374-797-5	01	1	9112-	●	●
19	PIPE; BRK,M/CYL TO UNION 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) (D)	8-97110-831-4	01	1	9410-	●	●
19	PIPE; BRK,M/CYL TO UNION 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) (C)	8-97110-830-3	01	1	9410-	●	●
55	PIPE; BRK,VLV TO UNION 4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. EUROPE/CANARY EQUIPMENT(EK4),ANTI LOCK BRAKE(JE5)	8-97038-462-4	01	1	9112-	●	●
55	PIPE; BRK,VLV TO UNION 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EXC. EUROPE/CANARY EQUIPMENT(EK4),ANTI LOCK BRAKE(JE5)	8-97023-383-5	01	1	9112-9504	●	●
55	PIPE; BRK,VLV TO UNION 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EXC. EUROPE/CANARY EQUIPMENT(EK4),ANTI LOCK BRAKE(JE5)	8-97114-788-1	01	1	9505-	●	●
132	TAPE; SEALING EXC. ANTI LOCK BRAKE(JE5) OD=16	8-94111-207-1	02	1	9203-9203	●	●

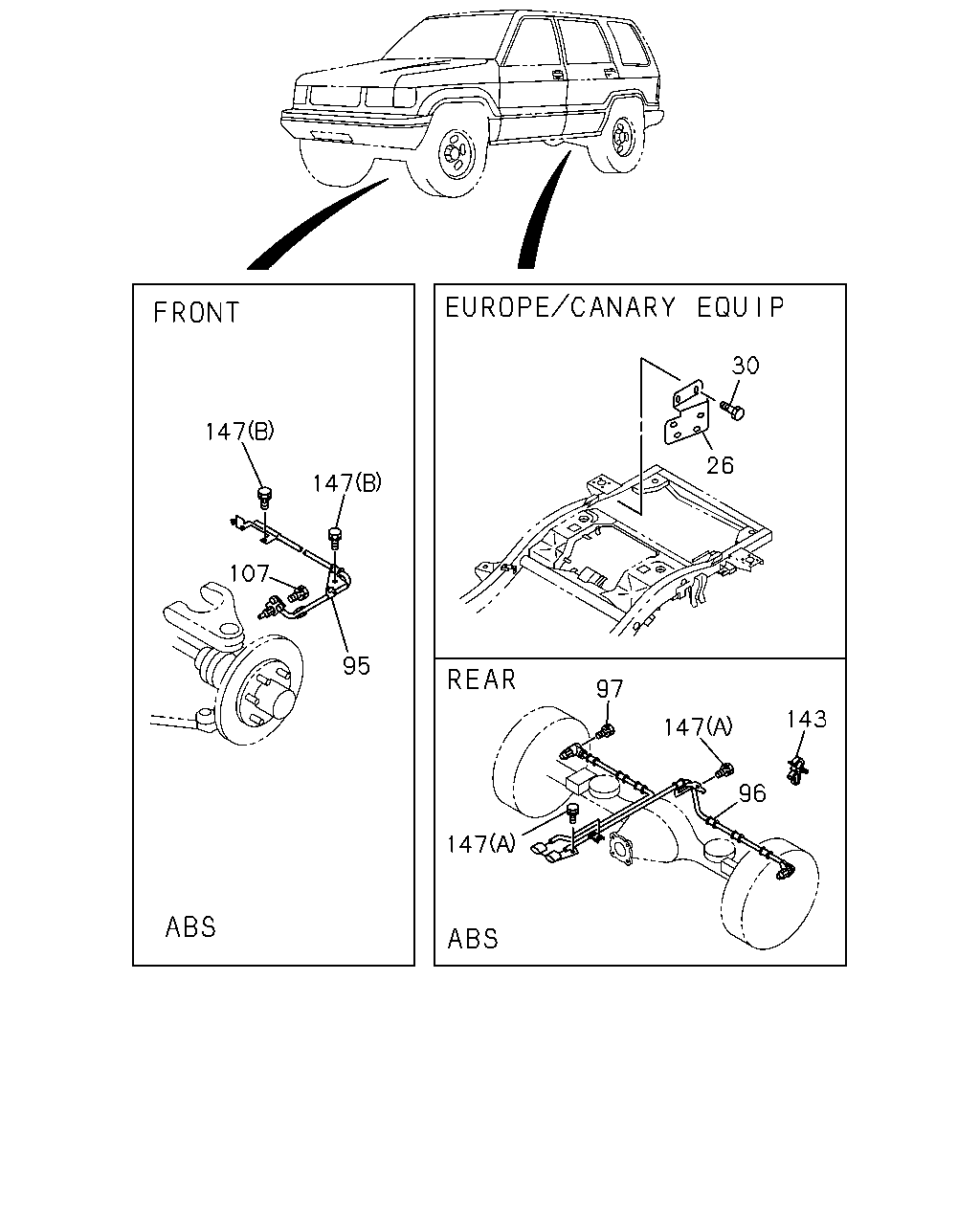

30 147 26 147 107 95 97 143 147 96 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	BRACKET; PROPORTIONING VLV EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5)	8-97012-292-0	01	1	9112-9409	●	●
26	BRACKET; PROPORTIONING VLV EUROPE/CANARY EQUIPMENT(EK4)	8-97012-292-0	01	1	9410-9603	●	●
26	BRACKET; PROPORTIONING VLV EUROPE/CANARY EQUIPMENT(EK4)	8-97139-069-0	01	1	9604-	●	●
30	BOLT; PROPORTIONING BRKT TO BODY EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5) M8X18 W/LK&PL WASHER	0-50140-818-0	03	1	9112-9409	●	●
30	BOLT; PROPORTIONING BRKT TO BODY EUROPE/CANARY EQUIPMENT(EK4) M8X18 W/LK&PL WASHER	0-50140-818-0	03	1	9410-	●	●
95	SENSOR; SPD,FRT WHEEL ANTI LOCK BRAKE(JE5)	8-94374-858-5	01	1	9112-9509	●	●
95	SENSOR; SPD,FRT WHEEL ANTI LOCK BRAKE(JE5)	8-97128-740-0	01	1	9510-9607	●	●
95	SENSOR; SPD,FRT WHEEL ANTI LOCK BRAKE(JE5)	8-97115-781-1	01	1	9608-	●	●
95	SENSOR; SPD,FRT WHEEL ANTI LOCK BRAKE(JE5)	8-94374-857-5	01	1	9112-9509	●	●
95	SENSOR; SPD,FRT WHEEL ANTI LOCK BRAKE(JE5)	8-97128-739-0	01	1	9510-9607	●	●
95	SENSOR; SPD,FRT WHEEL ANTI LOCK BRAKE(JE5)	8-97115-780-1	01	1	9608-	●	●
96	SENSOR; SPD,RR WHEEL ANTI LOCK BRAKE(JE5)	8-94374-860-6	01	1	9112-9508	●	●
96	SENSOR; SPD,RR WHEEL ANTI LOCK BRAKE(JE5)	8-97110-577-1	01	1	9509-	●	●
97	BOLT; SPD SENSOR TO AXLE ANTI LOCK BRAKE(JE5) M8X14 W/LK WASHER	0-50040-814-0	02	1	9112-	●	●
107	BOLT; WHEEL SPD SENSOR ANTI LOCK BRAKE(JE5) M6X14 HEX SOCKET	9-05820-614-0	02	1	9112-	●	●
143	CLIP; SPEED SENSOR ANTI LOCK BRAKE(JE5)	8-97069-960-0	02	1	9410-	●	●
147	BOLT; SPEED SENSOR ANTI LOCK BRAKE(JE5) (A) M8X20 FLANGE	0-28480-820-0	05	1	9112-	●	●
147	BOLT; SPEED SENSOR ANTI LOCK BRAKE(JE5) (B) M6X16 W/LK WASHER	9-01900-616-0	02	1	9112-9204	●	●
147	BOLT; SPEED SENSOR ANTI LOCK BRAKE(JE5) (B) M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-	●	●

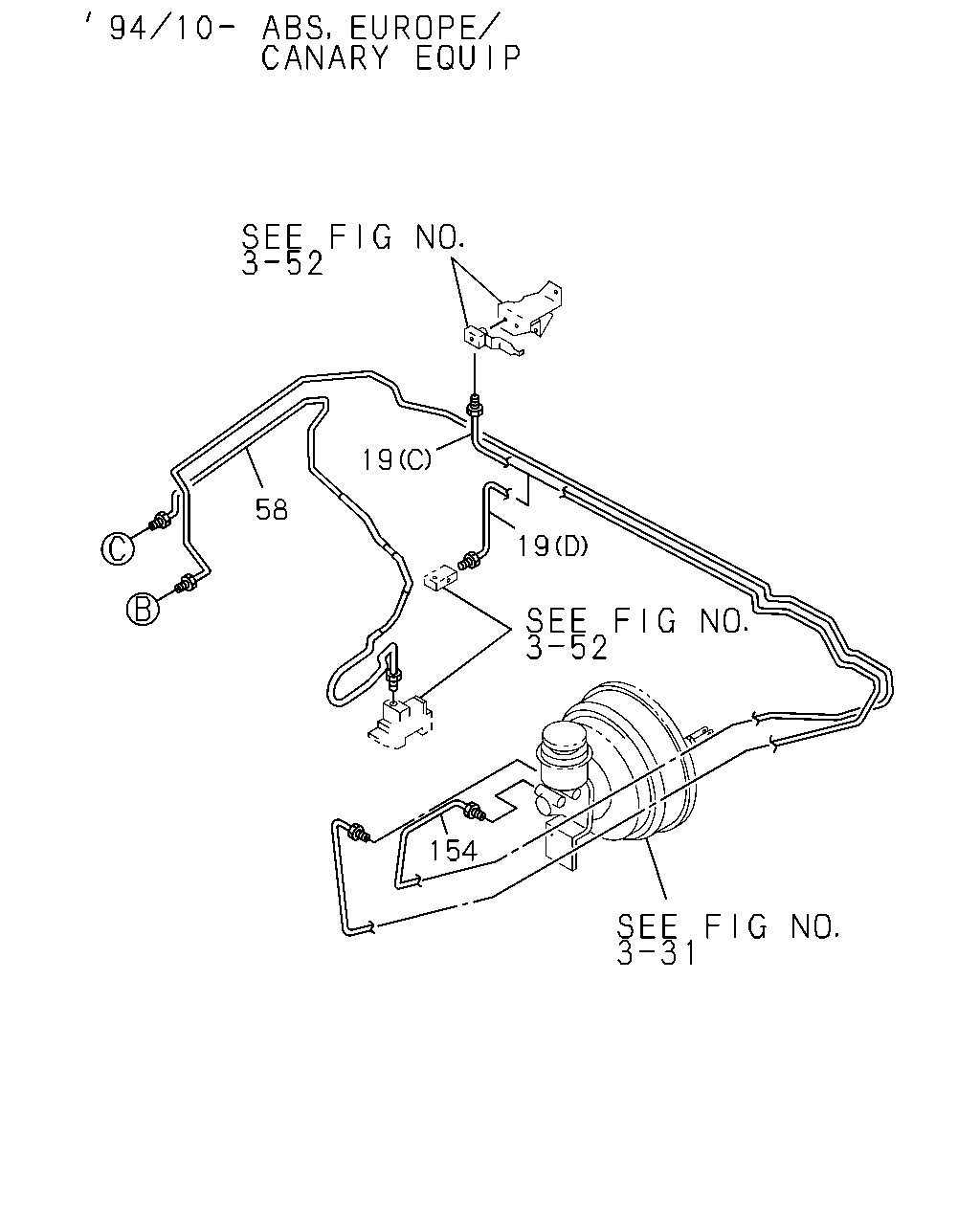

19 58 19 154

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	PIPE; BRK,M/CYL TO UNION EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) (A)	8-94374-817-1	01	1	9112-9409	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. EUROPE/CANARY EQUIPMENT(EK4) (A)	8-94374-817-1	01	1	9112-9409	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. EUROPE/CANARY EQUIPMENT(EK4) (A)	8-94374-817-3	01	1	9410-	●	●
19	PIPE; BRK,M/CYL TO UNION EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) (B)	8-94374-818-1	01	1	9112-9409	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. EUROPE/CANARY EQUIPMENT(EK4) (B)	8-94374-818-1	01	1	9112-9409	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. EUROPE/CANARY EQUIPMENT(EK4) (B)	8-94374-818-3	01	1	9410-	●	●
19	PIPE; BRK,M/CYL TO UNION EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5) (A)	8-94374-796-1	01	1	9112-9701	●	●
19	PIPE; BRK,M/CYL TO UNION EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5) (A)	8-97172-531-1	01	1	9702-	●	●
19	PIPE; BRK,M/CYL TO UNION EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5) (B)	8-94374-797-5	01	1	9112-	●	●
19	PIPE; BRK,M/CYL TO UNION 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) (D)	8-97110-831-4	01	1	9410-	●	●
19	PIPE; BRK,M/CYL TO UNION 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) (C)	8-97110-830-3	01	1	9410-	●	●
58	PIPE; BRK,UNION TO HYDRAULIC UNIT ANTI LOCK BRAKE(JE5)	8-94374-824-6	01	1	9112-9409	●	●
58	PIPE; BRK,UNION TO HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94374-824-6	01	1	9410-9504	●	●
58	PIPE; BRK,UNION TO HYDRAULIC UNIT 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5)	8-97114-460-0	01	1	9410-9504	●	●
58	PIPE; BRK,UNION TO HYDRAULIC UNIT 4JG2 ENG(RJC) ANTI LOCK BRAKE(JE5)	8-97114-460-0	01	1	9505-9607	●	●
58	PIPE; BRK,UNION TO HYDRAULIC UNIT 4JG2 ENG(RJC) ANTI LOCK BRAKE(JE5)	8-97145-358-1	01	1	9608-9707	●	●
58	PIPE; BRK,UNION TO HYDRAULIC UNIT 4JG2 ENG(RJC) ANTI LOCK BRAKE(JE5)	8-97181-840-0	01	1	9708-	●	●
58	PIPE; BRK,UNION TO HYDRAULIC UNIT 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5)	8-97114-465-1	01	1	9410-9504	●	●
58	PIPE; BRK,UNION TO HYDRAULIC UNIT 6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5)	8-97114-465-1	01	1	9505-9607	●	●
58	PIPE; BRK,UNION TO HYDRAULIC UNIT 6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5)	8-97145-553-1	01	1	9608-9707	●	●
58	PIPE; BRK,UNION TO HYDRAULIC UNIT 6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5)	8-97181-837-0	01	1	9708-	●	●
154	PIPE ASM; M/CYL TO ABS 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5)	8-97114-468-1	01	1	9410-9607	●	●
154	PIPE ASM; M/CYL TO ABS 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5)	8-97110-835-1	01	1	9608-	●	●
154	PIPE ASM; M/CYL TO ABS 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5)	8-97114-466-1	01	1	9410-9607	●	●
154	PIPE ASM; M/CYL TO ABS 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5)	8-97110-834-1	01	1	9608-	●	●

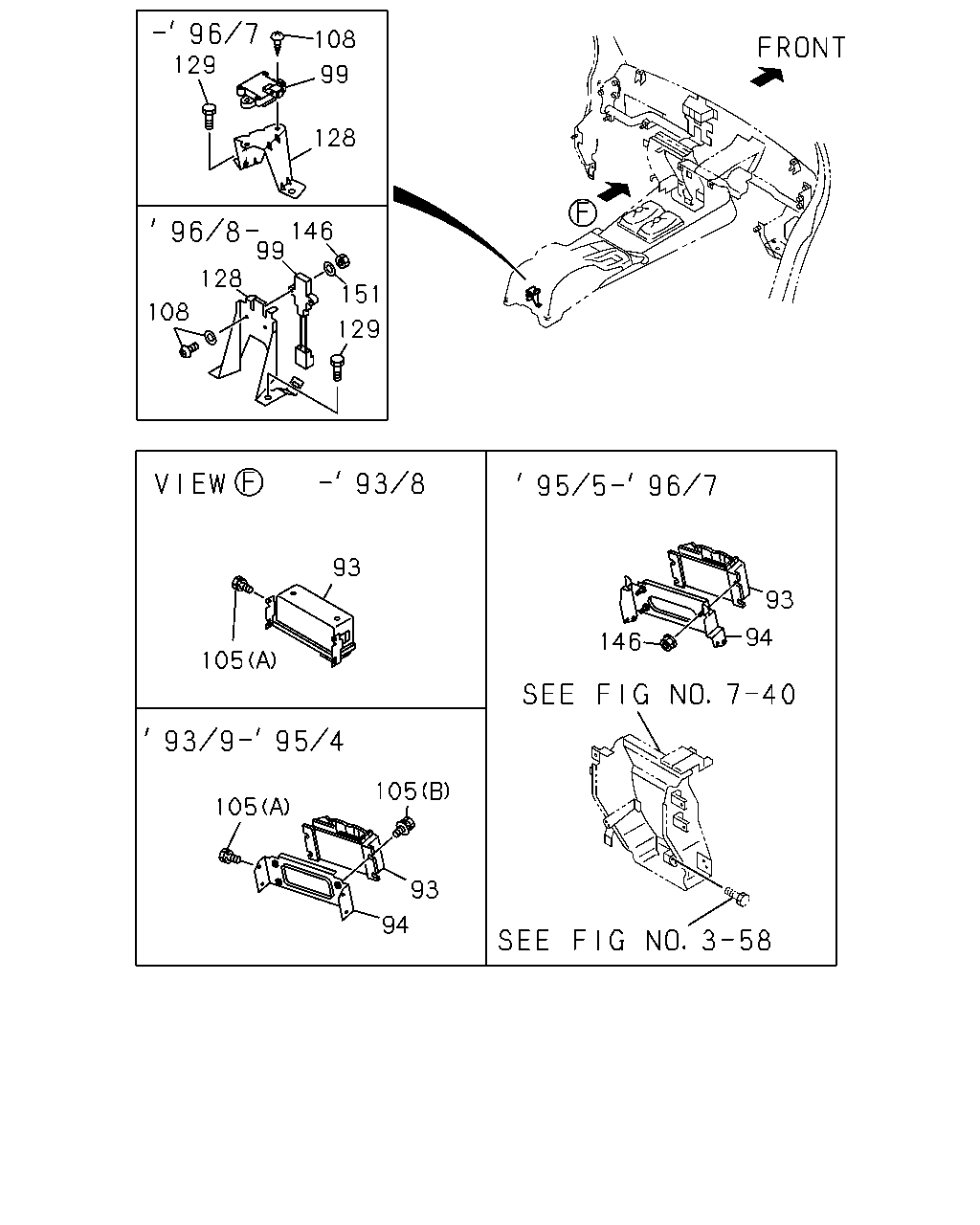

129 108 99 128 146 99 128 108 151 129 93 93 94 146 105 105 105 93 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
93	CONTROL UNIT; ABS ANTI LOCK BRAKE(JE5)	8-97066-414-0	01	1	9112-9308	●	●
93	CONTROL UNIT; ABS ANTI LOCK BRAKE(JE5)	8-97085-391-0	01	1	9309-9410	●	●
93	CONTROL UNIT; ABS ANTI LOCK BRAKE(JE5)	8-97114-360-0	01	1	9411-9607	●	●
93	CONTROL UNIT; ABS ANTI LOCK BRAKE(JE5)	8-97131-976-2	01	1	9608-	●	●
94	BRACKET; ABS CONT UNIT ANTI LOCK BRAKE(JE5)	8-97085-392-1	01	1	9309-9504	●	●
94	BRACKET; ABS CONT UNIT ANTI LOCK BRAKE(JE5)	8-97102-615-0	01	1	9505-9607	●	●
94	BRACKET; ABS CONT UNIT ANTI LOCK BRAKE(JE5)	8-97131-979-2	01	1	9608-	●
94	BRACKET; ABS CONT UNIT ANTI LOCK BRAKE(JE5)	8-97131-977-1	01	1	9608-		●
99	SENSOR; DECELERATION ANTI LOCK BRAKE(JE5)	8-94467-772-1	01	1	9112-9607	●	●
99	SENSOR; DECELERATION ANTI LOCK BRAKE(JE5)	8-97133-553-1	01	1	9608-	●	●
105	BOLT; CONT UNIT ANTI LOCK BRAKE(JE5) (A) M6X14	8-94153-946-0	04	1	9112-9112	●	●
105	BOLT; CONT UNIT ANTI LOCK BRAKE(JE5) (A) M6X16	8-97069-289-0	04	1	9201-9504	●	●
105	BOLT; CONT UNIT ANTI LOCK BRAKE(JE5) (B) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	9309-9504	●	●
108	SCREW; DECELERATION SENSOR ANTI LOCK BRAKE(JE5)	9-03090-620-0	02	1	9112-9607	●	●
108	SCREW; DECELERATION SENSOR ANTI LOCK BRAKE(JE5)	8-97120-371-0	02	1	9608-	●	●
128	BRACKET; DECELERATION SENSOR ANTI LOCK BRAKE(JE5)	8-94377-750-1	01	1	9112-9112	●	●
128	BRACKET; DECELERATION SENSOR ANTI LOCK BRAKE(JE5)	8-97073-016-0	01	1	9201-9304	●	●
128	BRACKET; DECELERATION SENSOR ANTI LOCK BRAKE(JE5)	8-97087-094-1	01	1	9305-9607	●	●
128	BRACKET; DECELERATION SENSOR ANTI LOCK BRAKE(JE5)	8-97110-060-1	01	1	9608-	●	●
129	BOLT; BRKT ANTI LOCK BRAKE(JE5) M6X14 FLANGE	0-28080-614-0	02	1	9112-9708	●	●
129	BOLT; BRKT ANTI LOCK BRAKE(JE5) M6X12 FLANGE	0-28080-612-0	02	1	9709-	●	●
146	NUT; BRKT ANTI LOCK BRAKE(JE5) M6 FLANGE	0-91150-206-0	02	1	9608-	●
146	NUT; BRKT ANTI LOCK BRAKE(JE5) M5 FLANGE	5-09440-003-0	04	1	9505-9607	●	●
146	NUT; BRKT ANTI LOCK BRAKE(JE5) M4	9-99110-404-0	01	1	9608-	●	●
151	WASHER; PL,BRKT ANTI LOCK BRAKE(JE5) ID=4.3	9-09160-504-0	01	1	9608-	●	●

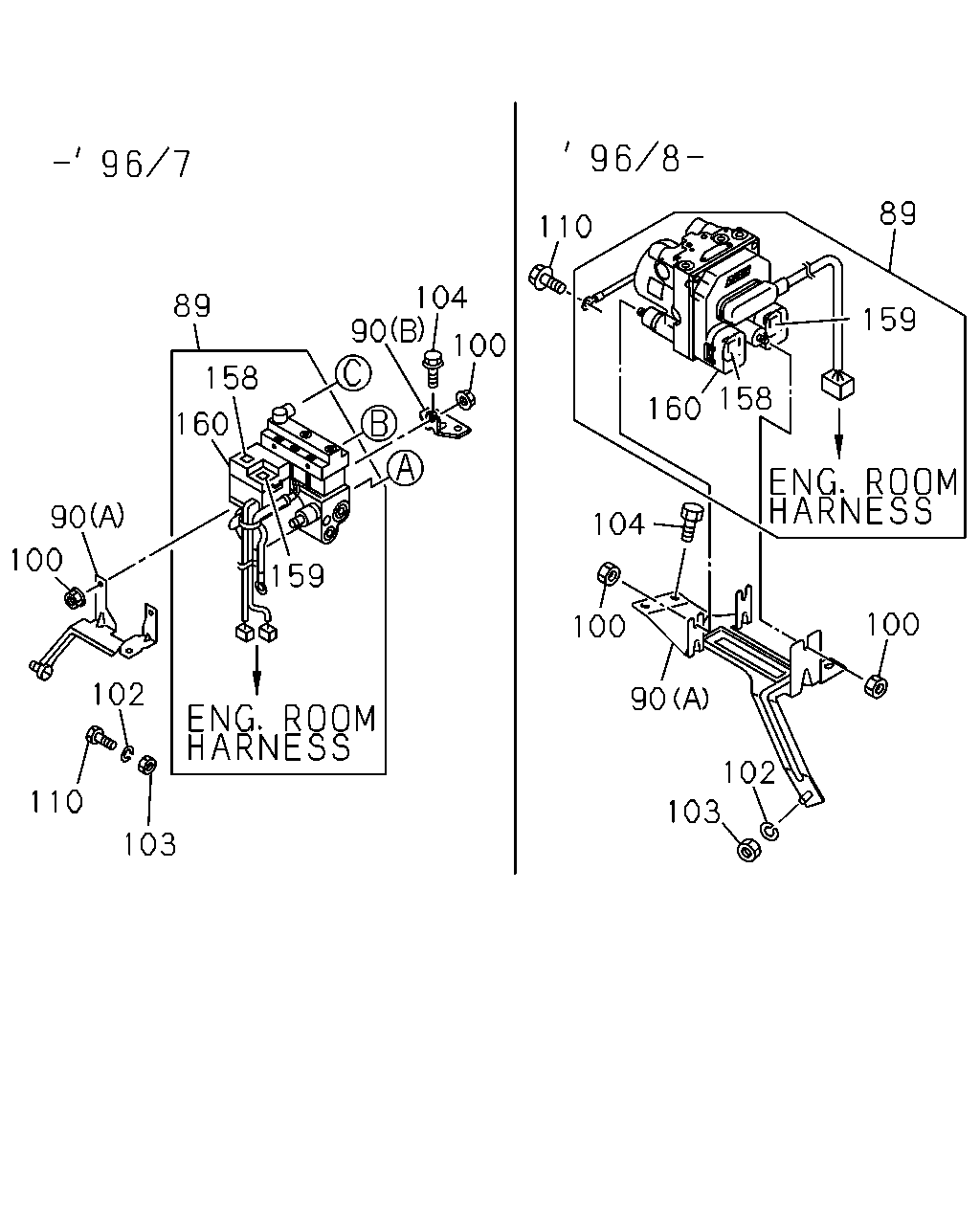

89 110 104 90 89 159 100 158 160 158 160 90 100 159 104 100 100 102 90 102 103 110 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
89	HYDRAULIC UNIT; ANTI LOCK BRK ANTI LOCK BRAKE(JE5)	8-94374-855-6	01	1	9112-9607	●	●
89	HYDRAULIC UNIT; ANTI LOCK BRK ANTI LOCK BRAKE(JE5)	8-97110-058-2	01	1	9608-	●	●
90	BRACKET; HYDRAULIC UNIT,ABS ANTI LOCK BRAKE(JE5) (A)	8-94374-856-1	01	1	9112-9607	●	●
90	BRACKET; HYDRAULIC UNIT,ABS ANTI LOCK BRAKE(JE5) (A)	8-97110-059-0	01	1	9608-	●	●
90	BRACKET; HYDRAULIC UNIT,ABS ANTI LOCK BRAKE(JE5) (B)	8-94377-749-0	01	1	9112-9607	●	●
100	NUT; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) M8 FLANGE	0-91150-108-0	03	1	9112-	●	●
102	WASHER; PL,HYDRAULIC UNIT BRKT ANTI LOCK BRAKE(JE5) ID=8.4 OD=22	9-09160-708-0	01	1	9112-	●	●
103	NUT; HYDRAULIC UNIT BRKT ANTI LOCK BRAKE(JE5) M8 FLANGE	0-91150-108-0	01	1	9112-	●	●
104	BOLT; BRKT TO BODY ANTI LOCK BRAKE(JE5) M8X14 FLANGE	0-28080-814-0	02	1	9112-9302	●	●
104	BOLT; BRKT TO BODY ANTI LOCK BRAKE(JE5) M8X16 FLANGE	0-28480-816-0	02	1	9303-	●	●
110	BOLT; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) M8X22	8-94122-771-0	01	1	9112-9308	●	●
110	BOLT; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9309-	●	●
158	RELAY; MOTOR,ABS ANTI LOCK BRAKE(JE5)	8-97131-839-0	01	1	9309-9607	●	●
158	RELAY; MOTOR,ABS ANTI LOCK BRAKE(JE5)	8-97133-915-0	01	1	9608-	●	●
159	RELAY; VALVE,ABS ANTI LOCK BRAKE(JE5)	8-97131-840-0	01	1	9309-	●	●
160	COVER; RELAY BOX ANTI LOCK BRAKE(JE5)	8-97131-845-0	01	1	9309-9607	●	●
160	COVER; RELAY BOX ANTI LOCK BRAKE(JE5)	8-97133-917-0	02	1	9608-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
