Isuzu WW
▶
SUV
▶
UBS
▶
50659 - UBS-LHD
▶
3 - Brakes, Brake System
▶
3-45 - LOAD SENSING PROPORTIONING VALVE
▶

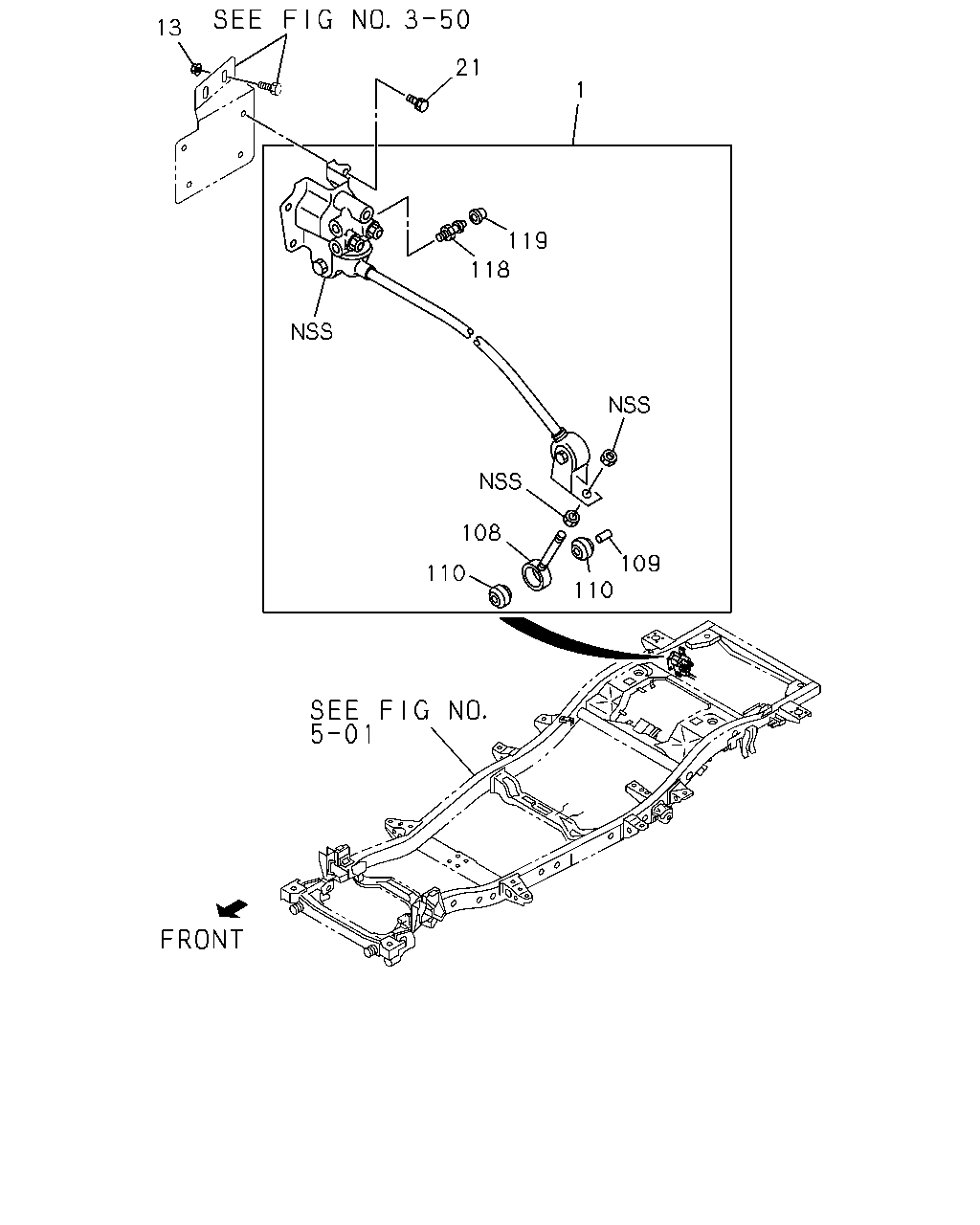

3-45 — LOAD SENSING PROPORTIONING VALVE
(#33623) — 14 parça
Tümü
A - UBS6VC
B - UBS6VF
13
21
1
119
118
108
109
110
110
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
VALVE ASM; LOAD SENSING PROPORTIONING
EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5)
8-97012-334-1
01
1
9112-9409
●
●
1
VALVE ASM; LOAD SENSING PROPORTIONING
EUROPE/CANARY EQUIPMENT(EK4)
8-97012-334-1
01
1
9410-
●
●
13
NUT; LSPV TO BRKT
EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5)
8-97039-201-0
02
1
9112-9409
●
●
13
NUT; LSPV TO BRKT
EUROPE/CANARY EQUIPMENT(EK4)
8-97039-201-0
02
1
9410-9603
●
●
21
BOLT; BRKT
EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5) M8X16 W/LK WASHER
0-50040-816-0
04
1
9112-9409
●
●
21
BOLT; BRKT
EUROPE/CANARY EQUIPMENT(EK4) M8X16 W/LK WASHER
0-50040-816-0
04
1
9410-
●
●
108
SHACKLE; LSPV
EUROPE/CANARY EQUIPMENT(EK4)
8-97045-985-0
01
1
9112-9607
●
●
108
SHACKLE; LSPV
EUROPE/CANARY EQUIPMENT(EK4)
8-97173-366-0
01
1
9608-
●
●
109
COLLAR; LSPV
EUROPE/CANARY EQUIPMENT(EK4)
8-97139-186-0
01
1
9112-9607
●
●
109
COLLAR; LSPV
EUROPE/CANARY EQUIPMENT(EK4)
8-97139-186-0
03
1
9608-
●
●
110
BUSHING; LSPV
EUROPE/CANARY EQUIPMENT(EK4)
8-97045-986-0
02
1
9112-9607
●
●
110
BUSHING; LSPV
EUROPE/CANARY EQUIPMENT(EK4) L=1350
8-97148-631-0
02
1
9608-
●
●
118
SCREW; BLEEDER,LSPV
EUROPE/CANARY EQUIPMENT(EK4)
8-97093-663-0
01
1
9112-
●
●
119
CAP; BLEEDER SCREW,LSPV
EUROPE/CANARY EQUIPMENT(EK4)
8-97093-662-0
01
1
9112-
●
●
