◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50659 - UBS-LHD ▶ 3 - Brakes, Brake System ▶ 3-30 - BRAKE MASTER CYLINDER ▶
3-30 — BRAKE MASTER CYLINDER (#33621) — 16 parça

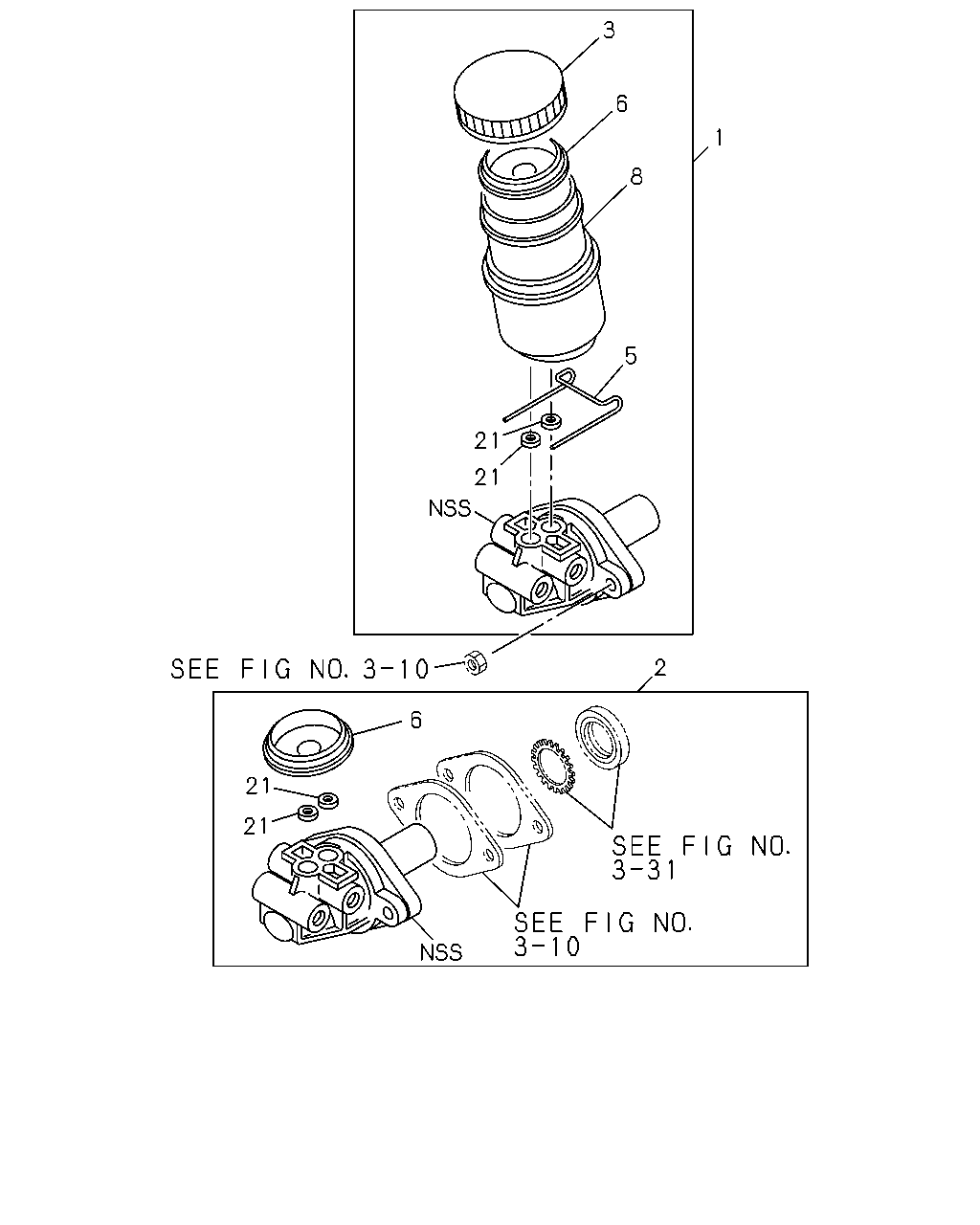

çizim 68623
3 6 1 8 5 21 21 2 6 21 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER ASM; BRK MASTER 8-94375-411-2 01 1 9112-9308 ● ●
1 CYLINDER ASM; BRK MASTER 8-97089-677-0 01 1 9309-9509 ● ●
1 CYLINDER ASM; BRK MASTER
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97089-677-0 01 1 9510-9704 ● ●
1 CYLINDER ASM; BRK MASTER
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97178-010-0 01 1 9705- ● ●
1 CYLINDER ASM; BRK MASTER
EUROPE/CANARY EQUIPMENT(EK4) 		8-97137-618-0 01 1 9510-9704 ● ●
1 CYLINDER ASM; BRK MASTER
EUROPE/CANARY EQUIPMENT(EK4) 		8-97178-011-0 01 1 9705- ● ●
2 REPAIR KIT; BRK,M/CYL 8-97061-569-0 01 1 9112-9308 ● ●
2 REPAIR KIT; BRK,M/CYL 8-97089-737-0 01 1 9309-9704 ● ●
2 REPAIR KIT; BRK,M/CYL 8-97178-913-0 01 1 9705- ● ●
3 CAP; OIL TANK 8-94124-872-0 01 1 9112-9509 ● ●
3 CAP; OIL TANK
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-94124-872-0 01 1 9510- ● ●
3 CAP; OIL TANK
EUROPE/CANARY EQUIPMENT(EK4) 		8-97138-667-0 01 1 9510- ● ●
5 RETAINER; DIAPH,M/CYL 8-97061-568-0 01 1 9112- ● ●
6 DIAPHRAGM; BRK M/CYL 8-94124-873-0 01 1 9112- ● ●
8 TANK; OIL,M/CYL 8-97061-565-0 01 1 9112- ● ●
21 GROMMET; BRK M/CYL 8-97061-567-0 02 1 9112- ● ●
