2-39 — POWER ASSISTOR (#3362) — 127 parça

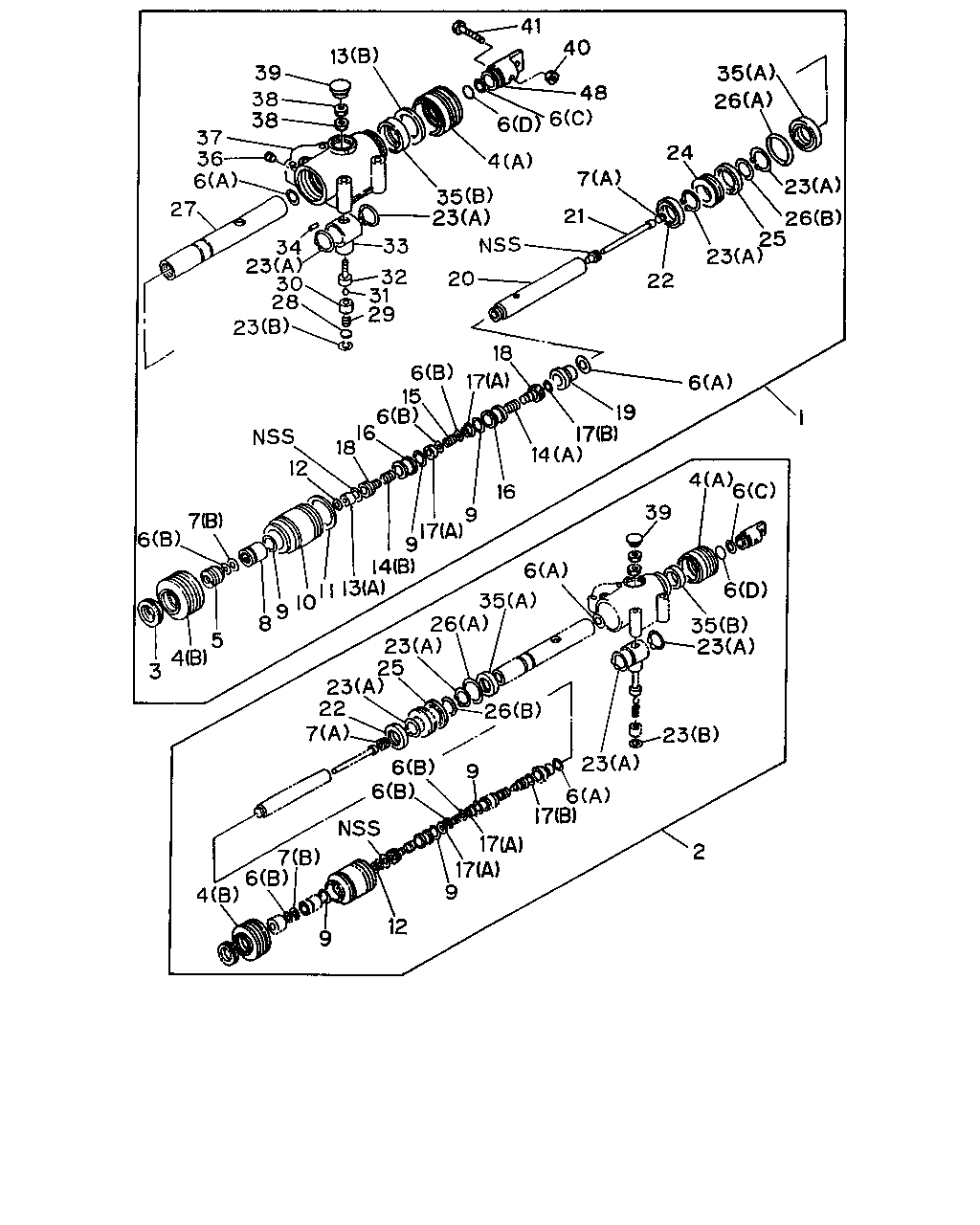

çizim 6357
39 13 38 38 37 36 6 27 23 34 30 28 23 33 32 31 29 35 23 4 6 6 48 40 41 35 26 23 26 24 25 7 23 21 22 20 18 6 17 19 17 6 14 15 6 16 18 12 7 6 3 9 8 5 4 10 11 13 9 14 16 17 9 7 23 25 23 22 26 39 6 35 4 6 6 35 23 23 23 6 17 17 17 9 12 9 4 6 6 6 7 9 26 1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 ASSISTOR ASM; POWER,SHIFT
ASSISTER SHIFT CONTROL<WX8> 		1-33730-060-3 01 1 9002- ●
1 ASSISTOR ASM; POWER,SHIFT
ASSISTER SHIFT CONTROL<WX8> 		1-33730-062-2 01 1 9002-9310 ● ●
1 ASSISTOR ASM; POWER,SHIFT
ASSISTER SHIFT CONTROL<WX8> 		1-33730-062-4 01 1 9311- ●
1 ASSISTOR ASM; POWER,SHIFT
ASSISTER SHIFT CONTROL<WX8> 		1-33730-063-2 01 1 9211-9306 ●
2 REPAIR KIT; POWER SHIFTER
ASSISTER SHIFT CONTROL<WX8> 		1-33739-362-0 01 1 9002- ●
2 REPAIR KIT; POWER SHIFTER
ASSISTER SHIFT CONTROL<WX8> 		1-33739-360-0 01 1 9002-9310 ● ● ●
2 REPAIR KIT; POWER SHIFTER
ASSISTER SHIFT CONTROL<WX8> 		1-33739-360-0 01 1 9311- ●
3 NUT; LK,ROD
ASSISTER SHIFT CONTROL<WX8> 		1-33739-025-0 01 1 9002-9310 ● ● ● ●
3 NUT; LK,ROD
ASSISTER SHIFT CONTROL<WX8> 		1-33739-025-0 01 1 9311- ● ●
4 BOOT; POWER SHIFTER
ASSISTER SHIFT CONTROL<WX8> (A) 		1-33739-030-0 01 1 9002-9310 ● ● ● ●
4 BOOT; POWER SHIFTER
ASSISTER SHIFT CONTROL<WX8> (A) 		1-33739-030-0 01 1 9311- ● ●
4 BOOT; POWER SHIFTER
ASSISTER SHIFT CONTROL<WX8> (B) 		1-33739-038-0 01 1 9002-9310 ● ● ● ●
4 BOOT; POWER SHIFTER
ASSISTER SHIFT CONTROL<WX8> (B) 		1-33739-038-0 01 1 9311- ● ●
5 CONNECTOR; CYL
ASSISTER SHIFT CONTROL<WX8> 		1-33739-428-0 01 1 9002-9101 ●
5 CONNECTOR; CYL
ASSISTER SHIFT CONTROL<WX8> 		1-33739-103-0 01 1 9002-9101 ●
5 CONNECTOR; CYL
ASSISTER SHIFT CONTROL<WX8> 		1-33739-103-0 01 1 9102-9310 ● ● ● ●
5 CONNECTOR; CYL
ASSISTER SHIFT CONTROL<WX8> 		1-33739-103-0 01 1 9311- ● ●
6 GASKET
ASSISTER SHIFT CONTROL<WX8> (A) 		1-33739-070-0 01 1 9002- ●
6 GASKET
ASSISTER SHIFT CONTROL<WX8> (C) 		1-33739-080-0 01 1 9002- ●
6 GASKET
ASSISTER SHIFT CONTROL<WX8> (D) 		1-33739-365-0 01 1 9002- ●
6 GASKET
ASSISTER SHIFT CONTROL<WX8> (B) 		1-33739-013-0 03 1 9002-9310 ● ● ● ●
6 GASKET
ASSISTER SHIFT CONTROL<WX8> (B) 		1-33739-013-0 03 1 9311- ● ●
6 GASKET
ASSISTER SHIFT CONTROL<WX8> (A) 		1-33739-008-0 02 1 9002-9310 ● ● ●
6 GASKET
ASSISTER SHIFT CONTROL<WX8> (A) 		1-33739-008-0 02 1 9311- ●
6 GASKET
ASSISTER SHIFT CONTROL<WX8> (C),(D) 		1-33739-080-0 02 1 9002-9306 ● ● ●
6 GASKET
ASSISTER SHIFT CONTROL<WX8> (C),(D) 		1-33739-080-0 02 1 9307- ●
7 FILTER; AIR
ASSISTER SHIFT CONTROL<WX8> (A) 		1-33739-032-0 01 1 9002-9310 ● ● ● ●
7 FILTER; AIR
ASSISTER SHIFT CONTROL<WX8> (A) 		1-33739-032-0 01 1 9311- ● ●
7 FILTER; AIR
ASSISTER SHIFT CONTROL<WX8> (B) 		1-33739-033-0 01 1 9002-9310 ● ● ● ●
7 FILTER; AIR
ASSISTER SHIFT CONTROL<WX8> (B) 		1-33739-033-0 01 1 9311- ● ●
8 TUBE
ASSISTER SHIFT CONTROL<WX8> 		1-33739-431-0 01 1 9002- ●
8 TUBE
ASSISTER SHIFT CONTROL<WX8> 		1-33739-126-0 01 1 9002-9310 ● ● ●
8 TUBE
ASSISTER SHIFT CONTROL<WX8> 		1-33739-126-0 01 1 9311- ●
9 RING; SQUARE
ASSISTER SHIFT CONTROL<WX8> 		1-33739-086-0 03 1 9002-9310 ● ● ● ●
9 RING; SQUARE
ASSISTER SHIFT CONTROL<WX8> 		1-33739-086-0 03 1 9311- ● ●
10 CYLINDER; POWER SHIFTER
ASSISTER SHIFT CONTROL<WX8> 		1-33739-352-0 01 1 9002-9310 ● ● ● ●
10 CYLINDER; POWER SHIFTER
ASSISTER SHIFT CONTROL<WX8> 		1-33739-352-0 01 1 9311- ● ●
11 PLATE; CYL
ASSISTER SHIFT CONTROL<WX8> 		1-33739-108-0 01 1 9002-9310 ● ● ● ●
11 PLATE; CYL
ASSISTER SHIFT CONTROL<WX8> 		1-33739-108-0 01 1 9311- ● ●
12 RING; RET
ASSISTER SHIFT CONTROL<WX8> 		1-33739-016-0 01 1 9002-9310 ● ● ● ●
12 RING; RET
ASSISTER SHIFT CONTROL<WX8> 		1-33739-016-0 01 1 9311- ● ●
13 RETAINER
ASSISTER SHIFT CONTROL<WX8> (A) 		1-33739-429-0 01 1 9002- ●
13 RETAINER
ASSISTER SHIFT CONTROL<WX8> (B) 		1-33739-426-0 01 1 9002-9310 ● ● ● ●
13 RETAINER
ASSISTER SHIFT CONTROL<WX8> (B) 		1-33739-426-0 01 1 9311- ● ●
13 RETAINER
ASSISTER SHIFT CONTROL<WX8> (A) 		1-33739-015-0 01 1 9002-9310 ● ● ●
13 RETAINER
ASSISTER SHIFT CONTROL<WX8> (A) 		1-33739-015-0 01 1 9311- ●
14 SPRING; VALVE LIFTER
ASSISTER SHIFT CONTROL<WX8> (A) 		1-33739-347-0 01 1 9002- ●
14 SPRING; VALVE LIFTER
ASSISTER SHIFT CONTROL<WX8> (B) 		1-33739-354-0 01 1 9002- ●
14 SPRING; VALVE LIFTER
ASSISTER SHIFT CONTROL<WX8> (A) 		1-33739-009-0 01 1 9002-9310 ● ● ●
14 SPRING; VALVE LIFTER
ASSISTER SHIFT CONTROL<WX8> (A) 		1-33739-009-0 01 1 9311- ●
14 SPRING; VALVE LIFTER
ASSISTER SHIFT CONTROL<WX8> (B) 		1-33739-034-0 01 1 9002-9310 ● ● ●
14 SPRING; VALVE LIFTER
ASSISTER SHIFT CONTROL<WX8> (B) 		1-33739-034-0 01 1 9311- ●
15 SPRING; VALVE SEAL
ASSISTER SHIFT CONTROL<WX8> 		1-33739-014-0 01 1 9002-9310 ● ● ● ●
15 SPRING; VALVE SEAL
ASSISTER SHIFT CONTROL<WX8> 		1-33739-014-0 01 1 9311- ● ●
16 SEAT; VALVE
ASSISTER SHIFT CONTROL<WX8> 		1-33739-067-0 02 1 9002-9310 ● ● ● ●
16 SEAT; VALVE
ASSISTER SHIFT CONTROL<WX8> 		1-33739-067-0 02 1 9311- ● ●
17 SEAL ASM; VALVE
ASSISTER SHIFT CONTROL<WX8> (B) 		1-33739-065-0 02 1 9002- ●
17 SEAL ASM; VALVE
ASSISTER SHIFT CONTROL<WX8> (A) 		1-33739-012-0 02 1 9002-9310 ● ● ● ●
17 SEAL ASM; VALVE
ASSISTER SHIFT CONTROL<WX8> (A) 		1-33739-012-0 02 1 9311- ● ●
18 LIFTER; VALVE
ASSISTER SHIFT CONTROL<WX8> 		1-33739-430-0 02 1 9002-9106 ●
18 LIFTER; VALVE
ASSISTER SHIFT CONTROL<WX8> 		1-33739-500-0 02 1 9107- ●
18 LIFTER; VALVE
ASSISTER SHIFT CONTROL<WX8> 		1-33739-007-0 02 1 9002-9310 ● ● ●
18 LIFTER; VALVE
ASSISTER SHIFT CONTROL<WX8> 		1-33739-007-0 02 1 9311- ●
19 BUSHING; CYL
ASSISTER SHIFT CONTROL<WX8> 		1-33739-427-0 01 1 9002- ●
20 ROD ASM; W/CAP
ASSISTER SHIFT CONTROL<WX8> 		1-33739-346-0 01 1 9002- ●
20 ROD ASM; W/CAP
ASSISTER SHIFT CONTROL<WX8> 		1-33739-101-0 01 1 9002-9310 ● ● ●
20 ROD ASM; W/CAP
ASSISTER SHIFT CONTROL<WX8> 		1-33739-101-0 01 1 9311- ●
21 PIPE; AIR,POWER SHIFTER
ASSISTER SHIFT CONTROL<WX8> ID=7 L=113 		1-33739-006-0 01 1 9002-9306 ● ● ● ●
21 PIPE; AIR,POWER SHIFTER
ASSISTER SHIFT CONTROL<WX8> 		1-33739-048-0 01 1 9307-9310 ● ● ● ●
21 PIPE; AIR,POWER SHIFTER
ASSISTER SHIFT CONTROL<WX8> 		1-33739-048-0 01 1 9311- ● ●
22 SEAL; OIL
ASSISTER SHIFT CONTROL<WX8> 		1-33739-353-0 01 1 9002-9310 ● ● ● ●
22 SEAL; OIL
ASSISTER SHIFT CONTROL<WX8> 		1-33739-353-0 01 1 9311- ● ●
23 RING; RET
ASSISTER SHIFT CONTROL<WX8> (A) 		1-33739-022-0 04 1 9002-9310 ● ● ● ●
23 RING; RET
ASSISTER SHIFT CONTROL<WX8> (A) 		1-33739-022-0 04 1 9311- ● ●
23 RING; RET
ASSISTER SHIFT CONTROL<WX8> (B) 		1-47819-109-0 01 1 9002-9310 ● ● ● ●
23 RING; RET
ASSISTER SHIFT CONTROL<WX8> (B) 		1-47819-109-0 01 1 9311- ● ●
24 PISTON
ASSISTER SHIFT CONTROL<WX8> 		1-33739-499-0 01 1 9107-9109 ●
24 PISTON
ASSISTER SHIFT CONTROL<WX8> 		1-33739-499-0 01 1 9110-9310 ● ● ● ●
24 PISTON
ASSISTER SHIFT CONTROL<WX8> 		1-33739-499-0 01 1 9311- ● ●
24 PISTON
ASSISTER SHIFT CONTROL<WX8> 		1-33739-349-0 01 1 9002-9106 ● ● ●
24 PISTON
ASSISTER SHIFT CONTROL<WX8> 		1-33739-349-0 01 1 9107-9109 ● ●
25 RING; "X",PISTON
ASSISTER SHIFT CONTROL<WX8> 		1-33739-350-0 01 1 9002-9310 ● ● ● ●
25 RING; "X",PISTON
ASSISTER SHIFT CONTROL<WX8> 		1-33739-350-0 01 1 9311- ● ●
26 GASKET
ASSISTER SHIFT CONTROL<WX8> (A) 		1-33739-122-0 01 1 9002- ●
26 GASKET
ASSISTER SHIFT CONTROL<WX8> (B) 		1-33739-124-0 01 1 9002- ●
26 GASKET
ASSISTER SHIFT CONTROL<WX8> (A) 		1-33739-028-0 01 1 9002-9310 ● ● ●
26 GASKET
ASSISTER SHIFT CONTROL<WX8> (A) 		1-33739-028-0 01 1 9311- ●
26 GASKET
ASSISTER SHIFT CONTROL<WX8> (B) 		1-33739-129-0 01 1 9002-9310 ● ● ●
26 GASKET
ASSISTER SHIFT CONTROL<WX8> (B) 		1-33739-129-0 01 1 9311- ●
27 ROD; POWER SHIFTER
ASSISTER SHIFT CONTROL<WX8> 		1-33739-348-0 01 1 9002- ●
27 ROD; POWER SHIFTER
ASSISTER SHIFT CONTROL<WX8> 		1-33739-355-0 01 1 9002-9310 ● ● ●
27 ROD; POWER SHIFTER
ASSISTER SHIFT CONTROL<WX8> 		1-33739-355-0 01 1 9311- ●
28 PLATE; POWER SHIFTER
ASSISTER SHIFT CONTROL<WX8> 		1-33739-094-0 01 1 9002-9310 ● ● ● ●
28 PLATE; POWER SHIFTER
ASSISTER SHIFT CONTROL<WX8> 		1-33739-094-0 01 1 9311- ● ●
29 SPRING; BALL
ASSISTER SHIFT CONTROL<WX8> 		1-33739-095-0 01 1 9002-9310 ● ● ● ●
29 SPRING; BALL
ASSISTER SHIFT CONTROL<WX8> 		1-33739-095-0 01 1 9311- ● ●
30 PLUG
ASSISTER SHIFT CONTROL<WX8> 		1-33739-273-0 01 1 9002-9310 ● ● ● ●
30 PLUG
ASSISTER SHIFT CONTROL<WX8> 		1-33739-273-0 01 1 9311- ● ●
31 BALL; STEEL
ASSISTER SHIFT CONTROL<WX8> 		1-33739-096-0 01 1 9002-9310 ● ● ● ●
31 BALL; STEEL
ASSISTER SHIFT CONTROL<WX8> 		1-33739-096-0 01 1 9311- ● ●
32 BOLT; STRIKER
ASSISTER SHIFT CONTROL<WX8> 		1-33739-269-0 01 1 9002-9310 ● ● ● ●
32 BOLT; STRIKER
ASSISTER SHIFT CONTROL<WX8> 		1-33739-269-0 01 1 9311- ● ●
33 STRIKER; POWER SHIFTER
ASSISTER SHIFT CONTROL<WX8> 		1-33739-351-0 01 1 9002-9310 ● ● ● ●
33 STRIKER; POWER SHIFTER
ASSISTER SHIFT CONTROL<WX8> 		1-33739-351-0 01 1 9311- ● ●
34 PIN; STRAIGHT,POWER SHIFTER
ASSISTER SHIFT CONTROL<WX8> 		1-33739-271-0 01 1 9002-9310 ● ● ● ●
34 PIN; STRAIGHT,POWER SHIFTER
ASSISTER SHIFT CONTROL<WX8> 		1-33739-271-0 01 1 9311- ● ●
35 GASKET; CUP
ASSISTER SHIFT CONTROL<WX8> (A) 		1-33739-073-0 01 1 9002-9310 ● ● ● ●
35 GASKET; CUP
ASSISTER SHIFT CONTROL<WX8> (A) 		1-33739-073-0 01 1 9311- ● ●
35 GASKET; CUP
ASSISTER SHIFT CONTROL<WX8> (B) 		1-33739-075-0 01 1 9002-9310 ● ● ● ●
35 GASKET; CUP
ASSISTER SHIFT CONTROL<WX8> (B) 		1-33739-075-0 01 1 9311- ● ●
36 SCREW; SET
ASSISTER SHIFT CONTROL<WX8> 		1-33739-040-0 01 1 9002-9310 ● ● ● ●
36 SCREW; SET
ASSISTER SHIFT CONTROL<WX8> 		1-33739-040-0 01 1 9311- ● ●
37 HOUSING; POWER SHIFTER
ASSISTER SHIFT CONTROL<WX8> 		1-33739-105-0 01 1 9002-9310 ● ● ● ●
37 HOUSING; POWER SHIFTER
ASSISTER SHIFT CONTROL<WX8> 		1-33739-105-0 01 1 9311- ● ●
38 NUT; STRIKER BOLT
ASSISTER SHIFT CONTROL<WX8> M10 		9-09110-510-0 02 1 9002-9306 ● ● ● ●
38 NUT; STRIKER BOLT
ASSISTER SHIFT CONTROL<WX8> 		9-83315-080-0 02 1 9307-9310 ● ● ● ●
38 NUT; STRIKER BOLT
ASSISTER SHIFT CONTROL<WX8> 		9-83315-080-0 02 1 9311- ● ●
39 COVER; RUBBER
ASSISTER SHIFT CONTROL<WX8> 		1-33739-031-0 01 1 9002-9310 ● ● ● ●
39 COVER; RUBBER
ASSISTER SHIFT CONTROL<WX8> 		1-33739-031-0 01 1 9311- ● ●
40 NUT; LEVER
ASSISTER SHIFT CONTROL<WX8> 		1-33739-363-0 01 1 9002-9310 ● ● ● ●
40 NUT; LEVER
ASSISTER SHIFT CONTROL<WX8> 		1-33739-363-0 01 1 9311- ● ●
41 BOLT; SET,LEVER
ASSISTER SHIFT CONTROL<WX8> 		1-33739-339-0 01 1 9002-9310 ● ● ● ●
41 BOLT; SET,LEVER
ASSISTER SHIFT CONTROL<WX8> 		1-33739-339-0 01 1 9311-9503 ● ●
41 BOLT; SET,LEVER
ASSISTER SHIFT CONTROL<WX8> 		1-33739-043-0 01 1 9504- ● ●
48 LEVER; CONT,CABLE
ASSISTER SHIFT CONTROL<WX8> 		1-33739-358-0 01 1 9002-9310 ● ● ●
48 LEVER; CONT,CABLE
ASSISTER SHIFT CONTROL<WX8> 		1-33739-358-0 01 1 9311- ● ●
48 LEVER; CONT,CABLE
ASSISTER SHIFT CONTROL<WX8> 		1-33739-361-0 01 1 9002-9306 ●
