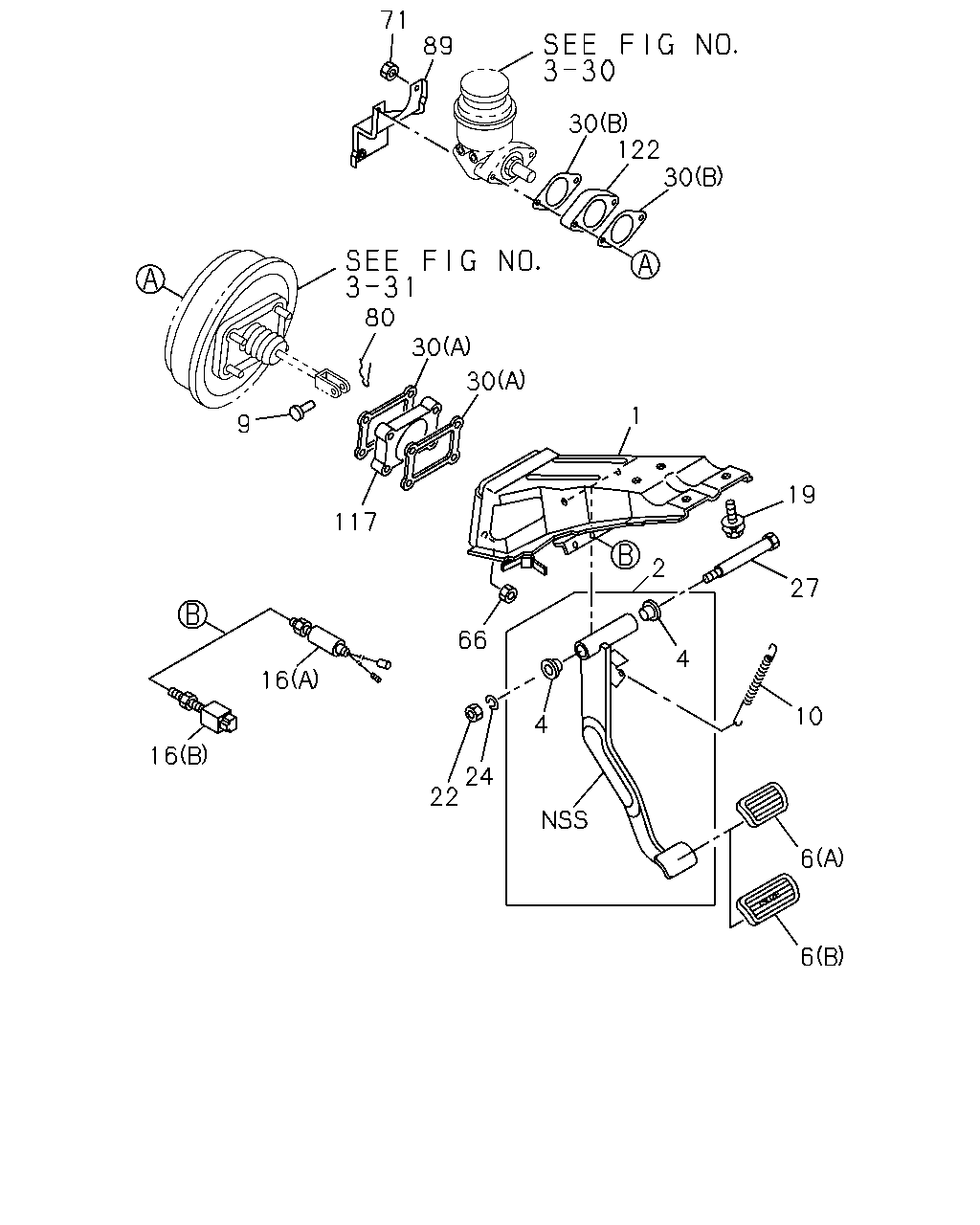

3-10 — BRAKE PEDAL AND CONTROL
(#33618) — 33 parça
Tümü
A - UBS6VC
B - UBS6VF
71
89
30
122
30
80
30
30
9
1
19
117
2
27
66
4
16
10
4
16
24
22
6
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BRACKET ASM; PEDAL
8-94381-238-3
01
1
9112-9504
●
●
1
BRACKET ASM; PEDAL
8-97093-778-3
01
1
9505-
●
●
2
PEDAL; BRK
A/T THM(RMQ)
8-94381-308-1
01
1
9112-9307
●
●
2
PEDAL; BRK
A/T THM(RMQ)
8-94381-240-2
01
1
9308-9504
●
●
2
PEDAL; BRK
A/T THM(RMQ)
8-97093-782-0
01
1
9505-
●
●
2
PEDAL; BRK
M/T MUA 5 SPEED(RMN)
8-94381-307-1
01
1
9112-9307
●
●
2
PEDAL; BRK
M/T MUA 5 SPEED(RMN)
8-94381-239-2
01
1
9308-9504
●
●
2
PEDAL; BRK
M/T MUA 5 SPEED(RMN)
8-97093-781-0
01
1
9505-
●
●
4
BUSHING; BRK PEDAL
8-94244-439-0
02
1
9505-
●
●
6
COVER; BRK PEDAL
A/T THM(RMQ) (B)
8-94249-897-0
01
1
9112-
●
●
6
COVER; BRK PEDAL
M/T MUA 5 SPEED(RMN) (A)
8-94222-524-1
01
1
9112-
●
●
9
PIN; JAW JOINT
8-94250-182-0
01
1
9112-
●
●
10
SPRING; RETURN,BRK PEDAL
8-94329-696-0
01
1
9112-
●
●
16
SWITCH; STOP LAMP
AUTO CRUISE CONT<K30> (A)
8-94109-863-0
01
1
9112-
●
●
16
SWITCH; STOP LAMP
EXC. AUTO CRUISE CONT<K30> (B) 12V 12A
8-94362-930-0
01
1
9112-
●
●
19
BOLT; BRKT
M8X16 W/LK&PL WASHER
9-01960-816-0
04
1
9112-9204
●
●
19
BOLT; BRKT
M8X16 W/LK&PL WASHER
0-50140-816-0
04
1
9205-9701
●
●
19
BOLT; BRKT
M8X12 FLANGE
0-28080-812-0
04
1
9702-
●
●
22
NUT; SHAFT
M10
9-09110-410-0
01
1
9112-
●
●
24
WASHER; PL,SHAFT
ID=10.2
9-09150-510-0
01
1
9112-
●
●
27
SHAFT; BRK PEDAL
8-94384-221-0
01
1
9112-
●
●
30
GASKET; M/VAC TO BODY
(A)
8-94111-590-0
02
1
9112-
●
●
30
GASKET; M/VAC TO BODY
(B)
8-97035-691-0
02
1
9112-9704
●
●
30
GASKET; M/VAC TO BODY
(B)
8-97178-015-0
02
1
9705-
●
●
66
NUT; SERVO TO BRKT
M8 FLANGE
5-09440-005-0
04
1
9112-
●
●
71
NUT; BRK M/CYL
M8 W/LK WASHER
8-94279-050-0
02
1
9112-
●
●
80
PIN; SNAP,BRK PEDAL
L=27.7
8-94111-137-0
01
1
9112-9301
●
●
80
PIN; SNAP,BRK PEDAL
L=27.7
8-94157-841-0
01
1
9302-
●
●
89
BRACKET; M/CYL
8-97035-505-1
01
1
9112-
●
●
117
SPACER; M/VAC TO BODY
8-94440-231-0
01
1
9112-
●
●
122
SPACER; BRK M/CYL
8-97035-690-0
01
1
9112-9704
●
●
122
SPACER; BRK M/CYL
8-97178-014-0
01
1
9705-
●
●
122
SPACER; BRK M/CYL
45X45 T=0.08
8-94238-288-1
01
1
9608-
●
●
