Isuzu WW
▶
SUV
▶
UBS
▶
50659 - UBS-LHD
▶
3 - Brakes, Brake System
▶
3-08 - PARKING BRAKE
▶

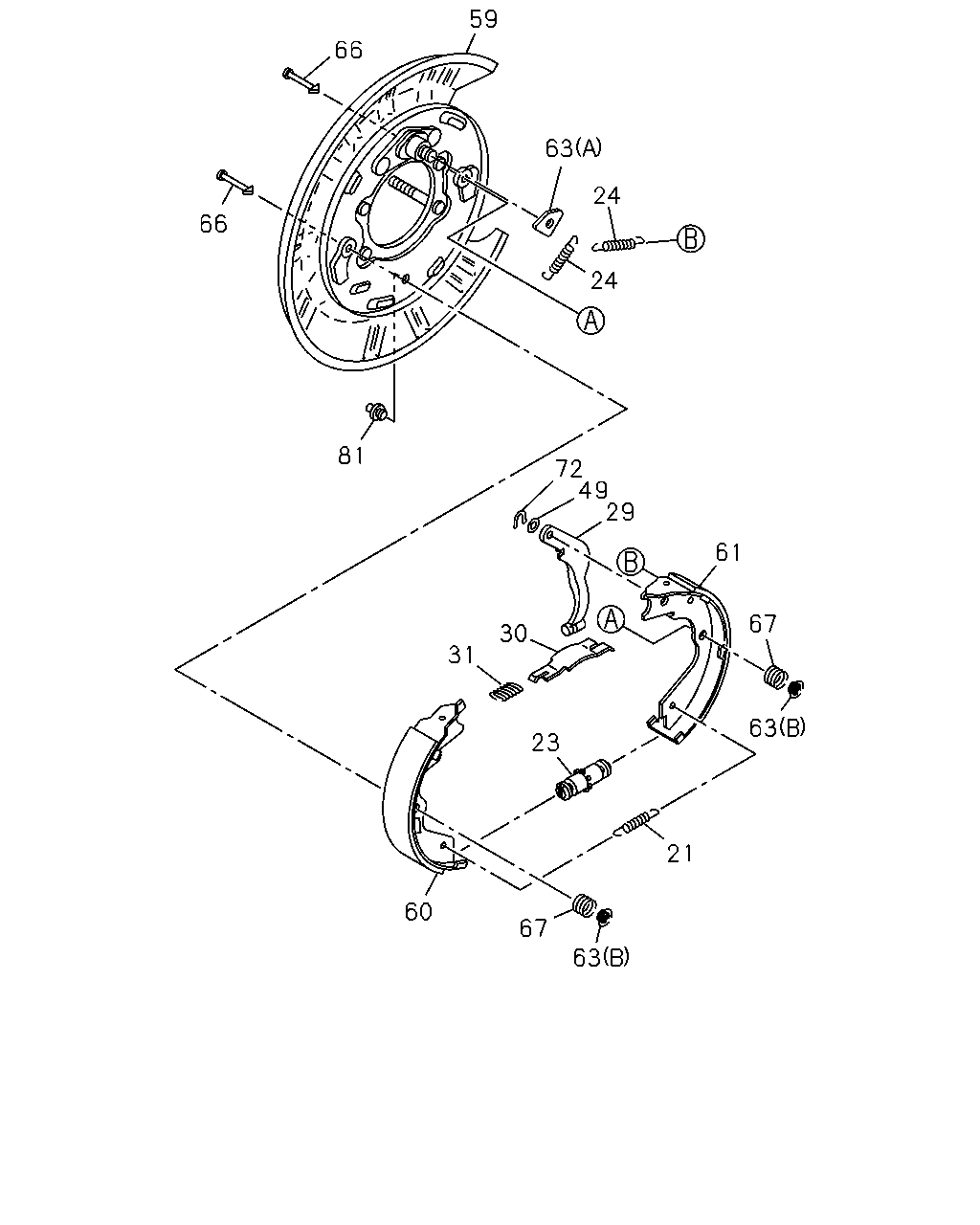

3-08 — PARKING BRAKE
(#33617) — 20 parça
Tümü
A - M/T MUA 5 SPEED
B - A/T THM
59
66
63
24
66
24
81
72
49
29
61
67
30
31
63
23
21
60
67
63
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
21
SPRING; RETURN,PARKING BRK SHOE
8-97034-749-0
02
1
9112-
●
●
23
SCREW; ADJ,PARKING BRK SHOE
8-97034-750-0
02
1
9112-
●
●
24
SPRING; BRK SHOE
8-97034-748-0
04
1
9112-
●
●
29
LEVER; PARKING BRK
8-97034-741-0
01
1
9112-
●
●
29
LEVER; PARKING BRK
8-97034-740-0
01
1
9112-
●
●
30
STRUT; PARKING BRK
8-97034-745-0
01
1
9112-
●
●
30
STRUT; PARKING BRK
8-97034-744-0
01
1
9112-
●
●
31
SPRING; SHOE TO STRUT
8-97034-746-0
02
1
9112-
●
●
49
WASHER; PARKING BRK LEVER
8-97034-742-0
02
1
9112-
●
●
59
COVER; DUST,PARKING BRK
8-97034-736-1
01
1
9112-
●
●
59
COVER; DUST,PARKING BRK
8-97034-735-1
01
1
9112-
●
●
60
SHOE; PARKING BRK,PRIMARY
LEADING
8-97034-737-0
02
1
9112-
●
●
61
SHOE; PARKING BRK,SECONDARY
TRAILING
8-97034-739-0
01
1
9112-
●
●
61
SHOE; PARKING BRK,SECONDARY
TRAILING
8-97034-738-0
01
1
9112-
●
●
63
RETAINER; PARKING BRK LEVER
(A)
8-97034-747-0
02
1
9112-
●
●
63
RETAINER; PARKING BRK LEVER
(B)
8-97034-753-0
04
1
9112-
●
●
66
PIN; SHOE HOLD,PARKING BRK
8-97034-751-0
04
1
9112-
●
●
67
SPRING; SHOE HOLD,PARKING BRK
8-97034-752-0
04
1
9112-
●
●
72
RING; SNAP
8-97034-743-0
02
1
9112-
●
●
81
COVER; CHECK HOLE,PARKING BRK
8-97034-754-0
04
1
9112-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
