3-06 — REAR DISC BRAKE CALIPER (#33616) — 26 parça

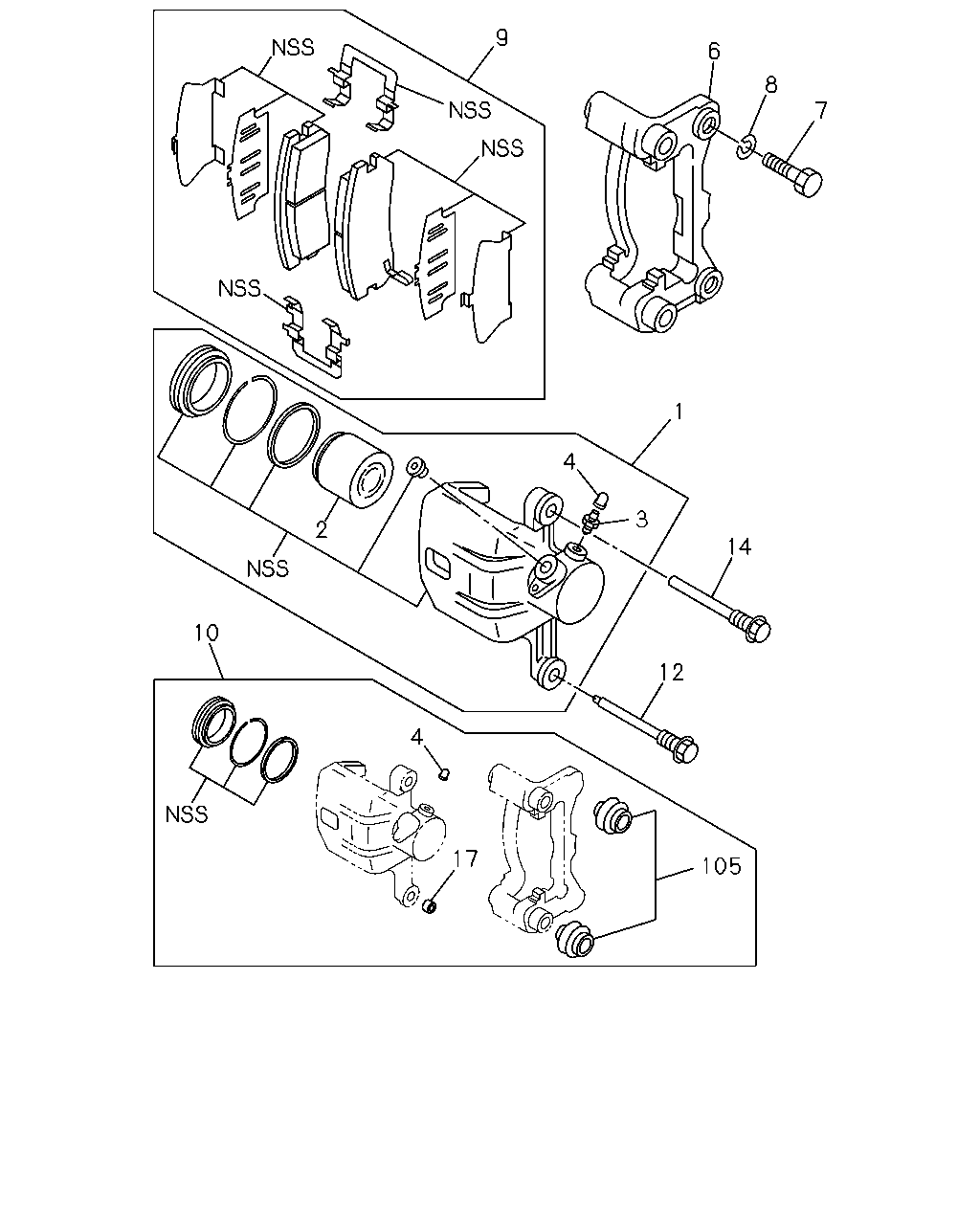

çizim 65910
9 6 8 7 1 4 3 2 14 10 12 4 17 105
BalonParca AdiParca NoAdetTipApplied Date A B
1 CALIPER; RR DISC BRK 8-97035-259-0 01 1 9112-9601 ● ●
1 CALIPER; RR DISC BRK 8-97144-479-0 01 1 9602- ● ●
1 CALIPER; RR DISC BRK 8-97035-258-0 01 1 9112-9601 ● ●
1 CALIPER; RR DISC BRK 8-97144-478-0 01 1 9602- ● ●
2 PISTON; CALIPER,RR 8-97035-261-0 02 1 9112- ● ●
3 SCREW; BLEEDER,CALIPER,RR 8-97109-754-0 02 1 9112-9601 ● ●
3 SCREW; BLEEDER,CALIPER,RR
EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) 		8-97109-754-0 02 1 9602-9602 ● ●
3 SCREW; BLEEDER,CALIPER,RR
EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) 		8-97113-867-0 02 1 9602-9602 ● ●
3 SCREW; BLEEDER,CALIPER,RR 8-97113-867-0 02 1 9603- ● ●
4 CAP; BLEEDER SCREW,CALIPER,RR 1-47619-009-0 02 1 9112- ● ●
6 BRACKET; SUPPORT,RR DISC BRK 8-97035-260-0 02 1 9112- ● ●
7 BOLT; DISC BRK
M12X27 		8-94425-585-0 04 1 9112-9502 ● ●
7 BOLT; DISC BRK
M12X27 		8-97126-215-1 04 1 9503- ● ●
8 WASHER; LK,DISC BRK
ID=12.2 		9-09150-812-0 04 1 9112- ● ●
9 PAD KIT; CALIPER,RR
EUROPE/CANARY EQUIPMENT(EK4) 		8-97039-269-0 01 1 9112-9504 ● ●
9 PAD KIT; CALIPER,RR
EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) 		8-97039-269-0 01 1 9505- ● ●
9 PAD KIT; CALIPER,RR
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97035-266-0 01 1 9112-9505 ● ●
9 PAD KIT; CALIPER,RR
EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) 		8-97035-266-0 01 1 9506- ● ●
10 REPAIR KIT; DISC BRK,RR 8-97035-265-0 01 1 9112-9601 ● ●
10 REPAIR KIT; DISC BRK,RR
EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) 		8-97035-265-0 01 1 9602-9602 ● ●
10 REPAIR KIT; DISC BRK,RR
EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) 		8-97134-718-0 01 1 9602-9602 ● ●
10 REPAIR KIT; DISC BRK,RR 8-97134-718-0 01 1 9603- ● ●
12 PIN; RET,CALIPER,RR DISC BRK 8-94362-821-0 02 1 9112- ● ●
14 PIN; GUIDE,CALIPER 8-94362-820-0 02 1 9112- ● ●
17 BUSHING 8-94362-822-0 02 1 9408- ● ●
105 BOOT; PIN 8-94362-823-0 04 1 9408- ● ●
