4-30 — STEERING WHEEL AND COWL (#33613) — 22 parça

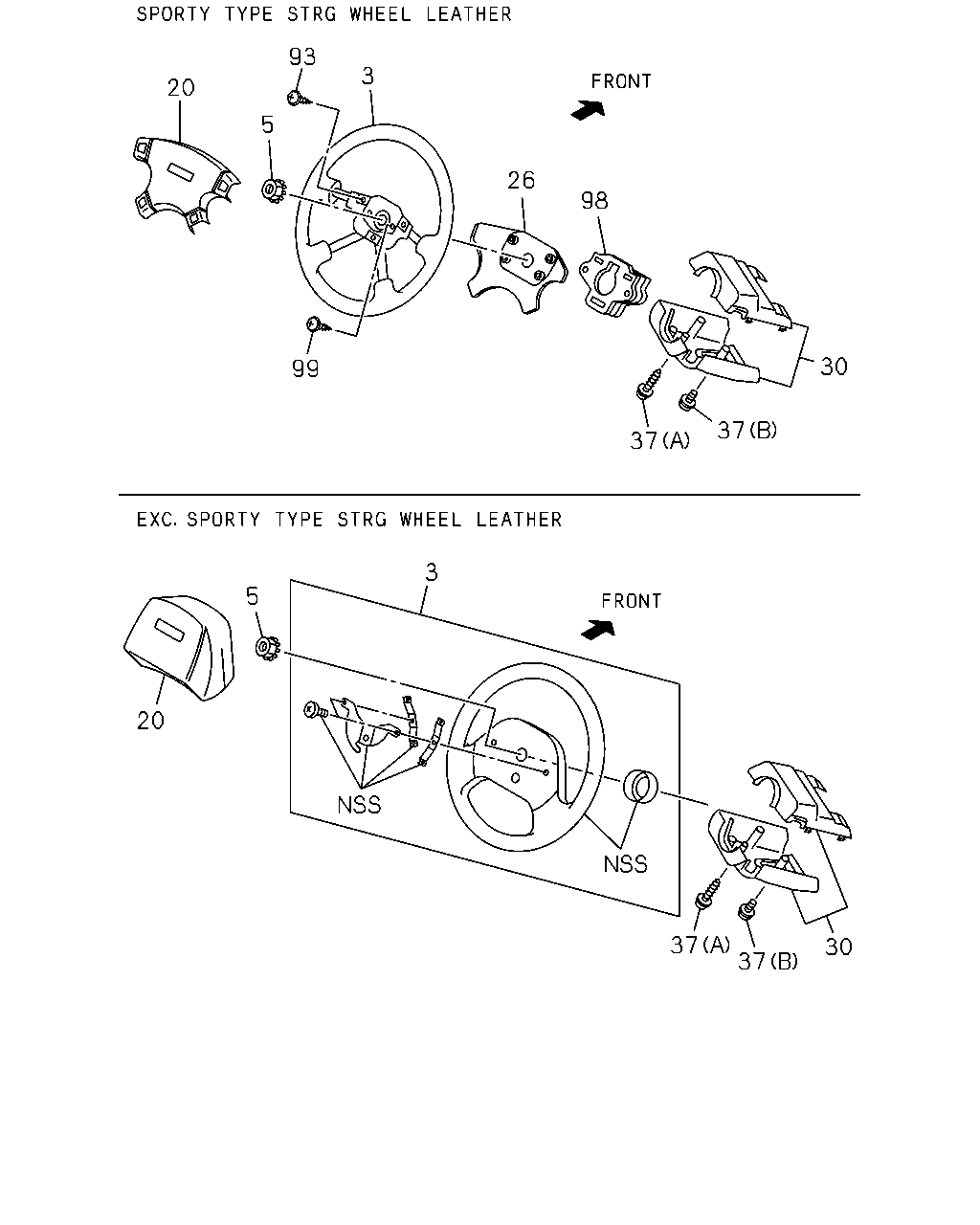

çizim 58754
93 3 20 5 26 98 30 99 37 37 3 5 20 37 37 30
BalonParca AdiParca NoAdetTipApplied Date
3 WHEEL; STRG
SPORTY TYPE STRG WHEEL LEATHER<NK4> BLACK IDN 		8-97958-824-0 01 1 0610-0707
3 WHEEL; STRG
INTERIOR COLOR GRAY(160),INTERIOR COLOR BEIGE(184) SPORTY TYPE STRG WHEEL LEATHER<NK4> BLACK IDN 		8-97958-824-0 01 1 0708-1009
3 WHEEL; STRG
SPORTY TYPE STRG WHEEL LEATHER<NK4> BLACK IDN 		8-97958-824-0 01 1 1010-
3 WHEEL; STRG
EXC. SPORTY TYPE STRG WHEEL LEATHER<NK4> BLACK PHI 		8-97296-209-1 01 1 0610-0707
3 WHEEL; STRG
INTERIOR COLOR GRAY(160),INTERIOR COLOR BEIGE(184) EXC. SPORTY TYPE STRG WHEEL LEATHER<NK4> BLACK PHI 		8-97296-209-1 01 1 0708-1009
3 WHEEL; STRG
EXC. SPORTY TYPE STRG WHEEL LEATHER<NK4> BLACK PHI 		8-97296-209-1 01 1 1010-
5 NUT; STRG WHEEL TO SHAFT
M12 W/TOOTH WASHER 		8-94455-487-1 01 1 0610-
20 SHROUD; PAD,STRG WHEEL
SPORTY TYPE STRG WHEEL LEATHER<NK4> BLACK IDN 		8-97958-825-0 01 1 0610-0707
20 SHROUD; PAD,STRG WHEEL
INTERIOR COLOR GRAY(160),INTERIOR COLOR BEIGE(184) SPORTY TYPE STRG WHEEL LEATHER<NK4> BLACK IDN 		8-97958-825-0 01 1 0708-1009
20 SHROUD; PAD,STRG WHEEL
SPORTY TYPE STRG WHEEL LEATHER<NK4> BLACK IDN 		8-97958-825-0 01 1 1010-
20 SHROUD; PAD,STRG WHEEL
EXC. SPORTY TYPE STRG WHEEL LEATHER<NK4> BLACK 		8-97154-757-1 01 1 0610-0707
20 SHROUD; PAD,STRG WHEEL
INTERIOR COLOR GRAY(160),INTERIOR COLOR BEIGE(184) EXC. SPORTY TYPE STRG WHEEL LEATHER<NK4> BLACK 		8-97154-757-1 01 1 0708-1009
20 SHROUD; PAD,STRG WHEEL
EXC. SPORTY TYPE STRG WHEEL LEATHER<NK4> BLACK 		8-97154-757-1 01 1 1010-
26 COVER; STRG WHEEL,LWR
SPORTY TYPE STRG WHEEL LEATHER<NK4> IDN 		8-97957-068-0 01 1 0610-
30 COWL; STEERING
BLACK PHI 		8-97976-683-0 01 1 0610-0707
30 COWL; STEERING
INTERIOR COLOR GRAY(160),INTERIOR COLOR BEIGE(184) BLACK PHI 		8-97976-683-0 01 1 0708-1009
30 COWL; STEERING
BLACK PHI 		8-97976-683-0 01 1 1010-
37 SCREW; STRG COWL UPR
(B) M4X12 W/PL WASHER 		0-36210-412-0 03 1 0610-
37 SCREW; STRG COWL UPR
(A) M5X16 		5-09981-053-0 02 1 0610-
93 SCREW; WHEEL COVER
SPORTY TYPE STRG WHEEL LEATHER<NK4> M4X16 TAPPING 		8-94361-921-0 04 1 0610-
98 DAMPER; STRG WHEEL
SPORTY TYPE STRG WHEEL LEATHER<NK4> PHI 		8-97241-211-1 01 1 0610-
99 SCREW; STRG,DPR
SPORTY TYPE STRG WHEEL LEATHER<NK4> M6X10 PHI 		1-09981-511-0 02 1 0610-
