◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 51128 - TBR-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25 - REAR FINAL DRIVE ▶
4-25 — REAR FINAL DRIVE (#33612) — 102 parça

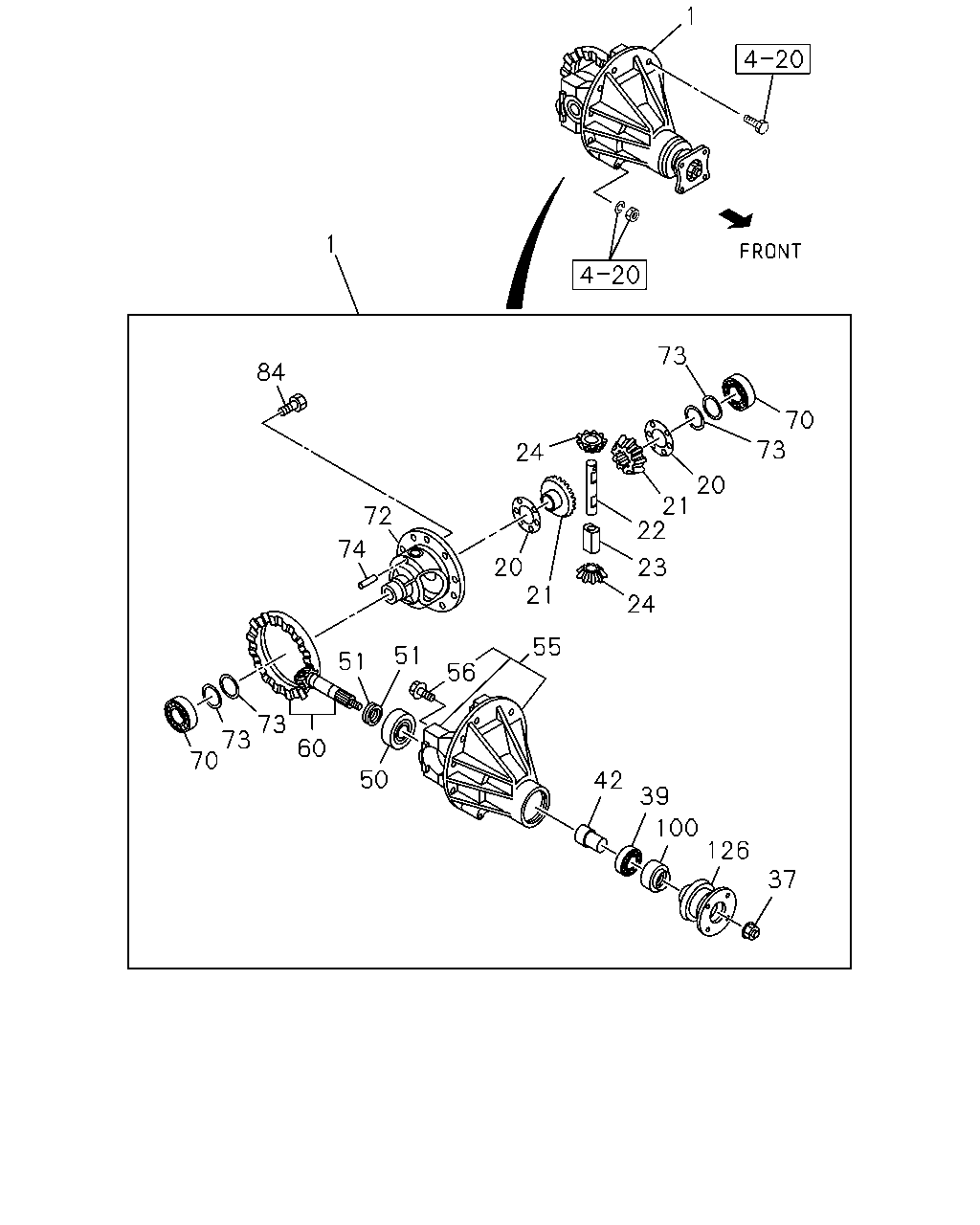

çizim 56524
1 1 73 84 70 73 24 20 21 22 72 74 20 21 23 24 55 51 51 56 73 73 70 60 50 42 39 100 126 37
BalonParca AdiParca NoAdetTipApplied Date
1 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/10(GT5) 41/10 		8-94474-305-3 01 1 0610-0808
1 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/10(GT5) 41/10 		8-98074-856-0 01 1 0809-
1 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/8(RU1) 41/8 		8-97302-762-0 01 1 0611-0903
1 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/8(RU1) 41/8 		8-98074-861-0 01 1 0904-
1 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 43/11(GW1) 43/11 		8-97304-194-0 01 1 0610-0807
1 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 43/11(GW1) 43/11 		8-98074-855-0 01 1 0808-
20 WASHER; THRUST,SIDE GEAR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) T=1.00 		5-41562-005-1 02 1 0610-0610
20 WASHER; THRUST,SIDE GEAR
T=1.00 		5-41562-005-1 02 1 0611-
20 WASHER; THRUST,SIDE GEAR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) T=1.05 		5-41562-006-1 02 1 0610-0610
20 WASHER; THRUST,SIDE GEAR
T=1.05 		5-41562-006-1 02 1 0611-
20 WASHER; THRUST,SIDE GEAR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) T=1.10 		5-41562-007-1 02 1 0610-0610
20 WASHER; THRUST,SIDE GEAR
T=1.10 		5-41562-007-1 02 1 0611-
21 GEAR; SIDE,DIFF
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) Z=17 		8-97079-519-2 02 1 0610-
21 GEAR; SIDE,DIFF
FINAL GEAR RATIO 41/8(RU1) Z=17 		8-97302-697-1 02 1 0611-
22 SPIDER; DIFF PINION
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) 		9-41521-044-1 01 1 0610-0610
22 SPIDER; DIFF PINION 9-41521-044-1 01 1 0611-
23 BLOCK; THRUST,DIFF BOX
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) 		9-41525-015-2 01 1 0610-0610
23 BLOCK; THRUST,DIFF BOX 9-41525-015-2 01 1 0611-
24 GEAR; PINION,DIFF
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) Z=10 		8-97079-518-0 02 1 0610-
24 GEAR; PINION,DIFF
FINAL GEAR RATIO 41/8(RU1) Z=10 		8-97302-696-0 02 1 0611-
37 NUT; DRIVING PINION
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) M18 LOCK NUT 		8-94376-262-0 01 1 0610-0610
37 NUT; DRIVING PINION
M18 LOCK NUT 		8-94376-262-0 01 1 0611-
39 BEARING; FINAL PINION
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) NSK 		8-94472-099-0 01 1 0610-0610
39 BEARING; FINAL PINION
NSK 		8-94472-099-0 01 1 0611-
39 BEARING; FINAL PINION
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) JTEKT 		8-94472-100-1 01 1 0610-0610
39 BEARING; FINAL PINION
JTEKT 		8-94472-100-1 01 1 0611-
42 COLLAR; DIST,COLLAPSIBLE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) 		8-94472-118-0 01 1 0610-0610
42 COLLAR; DIST,COLLAPSIBLE 8-94472-118-0 01 1 0611-
50 BEARING; FINAL PINION
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) NSK 		9-00093-621-0 01 1 0610-0610
50 BEARING; FINAL PINION
NSK 		9-00093-621-1 01 1 0611-
51 SHIM; PINION,FINAL DRIVE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) T=2.18 		9-41519-153-1 AR 1 0610-0610
51 SHIM; PINION,FINAL DRIVE
T=2.18 		9-41519-153-1 AR 1 0611-
51 SHIM; PINION,FINAL DRIVE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) T=2.20 		9-41519-154-1 AR 1 0610-0610
51 SHIM; PINION,FINAL DRIVE
T=2.20 		9-41519-154-1 AR 1 0611-
51 SHIM; PINION,FINAL DRIVE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) T=2.22 		9-41519-155-1 AR 1 0610-0610
51 SHIM; PINION,FINAL DRIVE
T=2.22 		9-41519-155-1 AR 1 0611-
51 SHIM; PINION,FINAL DRIVE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) T=2.24 		9-41519-156-1 AR 1 0610-0610
51 SHIM; PINION,FINAL DRIVE
T=2.24 		9-41519-156-1 AR 1 0611-
51 SHIM; PINION,FINAL DRIVE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) T=2.26 		9-41519-157-1 AR 1 0610-0610
51 SHIM; PINION,FINAL DRIVE
T=2.26 		9-41519-157-1 AR 1 0611-
51 SHIM; PINION,FINAL DRIVE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) T=2.28 		9-41519-158-1 AR 1 0610-0610
51 SHIM; PINION,FINAL DRIVE
T=2.28 		9-41519-158-1 AR 1 0611-
51 SHIM; PINION,FINAL DRIVE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) T=2.30 		9-41519-159-1 AR 1 0610-0610
51 SHIM; PINION,FINAL DRIVE
T=2.30 		9-41519-159-1 AR 1 0611-
51 SHIM; PINION,FINAL DRIVE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) T=2.32 		9-41519-160-1 AR 1 0610-0610
51 SHIM; PINION,FINAL DRIVE
T=2.32 		9-41519-160-1 AR 1 0611-
51 SHIM; PINION,FINAL DRIVE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) T=2.34 		9-41519-161-1 AR 1 0610-0610
51 SHIM; PINION,FINAL DRIVE
T=2.34 		9-41519-161-1 AR 1 0611-
51 SHIM; PINION,FINAL DRIVE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) T=2.36 		9-41519-162-1 AR 1 0610-0610
51 SHIM; PINION,FINAL DRIVE
T=2.36 		9-41519-162-1 AR 1 0611-
51 SHIM; PINION,FINAL DRIVE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) T=2.38 		9-41519-163-1 AR 1 0610-0610
51 SHIM; PINION,FINAL DRIVE
T=2.38 		9-41519-163-1 AR 1 0611-
51 SHIM; PINION,FINAL DRIVE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) T=2.40 		9-41519-164-1 AR 1 0610-0610
51 SHIM; PINION,FINAL DRIVE
T=2.40 		9-41519-164-1 AR 1 0611-
51 SHIM; PINION,FINAL DRIVE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) T=2.42 		9-41519-165-1 AR 1 0610-0610
51 SHIM; PINION,FINAL DRIVE
T=2.42 		9-41519-165-1 AR 1 0611-
51 SHIM; PINION,FINAL DRIVE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) T=2.44 		9-41519-166-1 AR 1 0610-0610
51 SHIM; PINION,FINAL DRIVE
T=2.44 		9-41519-166-1 AR 1 0611-
51 SHIM; PINION,FINAL DRIVE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) T=2.46 		9-41519-167-1 AR 1 0610-0610
51 SHIM; PINION,FINAL DRIVE
T=2.46 		9-41519-167-1 AR 1 0611-
51 SHIM; PINION,FINAL DRIVE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) T=2.48 		9-41519-168-1 AR 1 0610-0610
51 SHIM; PINION,FINAL DRIVE
T=2.48 		9-41519-168-1 AR 1 0611-
51 SHIM; PINION,FINAL DRIVE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) T=2.50 		9-41519-169-1 AR 1 0610-0610
51 SHIM; PINION,FINAL DRIVE
T=2.50 		9-41519-169-1 AR 1 0611-
51 SHIM; PINION,FINAL DRIVE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) T=2.52 		9-41519-170-1 AR 1 0610-0610
51 SHIM; PINION,FINAL DRIVE
T=2.52 		9-41519-170-1 AR 1 0611-
51 SHIM; PINION,FINAL DRIVE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) T=2.54 		9-41519-171-1 AR 1 0610-0610
51 SHIM; PINION,FINAL DRIVE
T=2.54 		9-41519-171-1 AR 1 0611-
51 SHIM; PINION,FINAL DRIVE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) T=2.56 		9-41519-172-1 AR 1 0610-0610
51 SHIM; PINION,FINAL DRIVE
T=2.56 		9-41519-172-1 AR 1 0611-
55 CARRIER; DIFF
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) 		5-41110-014-3 01 1 0610-0610
55 CARRIER; DIFF 5-41110-014-3 01 1 0611-
56 BOLT; BRG CAP
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) M12X62 		8-94376-322-0 04 1 0610-0610
56 BOLT; BRG CAP
M12X62 		8-94376-322-0 04 1 0611-
60 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 41/10(GT5) 41/10 		8-97063-573-0 01 1 0610-0808
60 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 41/10(GT5) 41/10 		8-98013-580-1 01 1 0809-
60 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 41/8(RU1) 41/8 		8-97220-400-0 01 1 0611-0903
60 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 41/8(RU1) 41/8 		8-98013-593-1 01 1 0904-
60 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 43/11(GW1) 43/11 		8-97072-382-0 01 1 0610-0807
60 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 43/11(GW1) 43/11 		8-98013-577-1 01 1 0808-
70 BEARING; DIFF CAGE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) NSK 		9-00093-074-0 02 1 0610-0610
70 BEARING; DIFF CAGE
NSK 		9-00093-074-1 02 1 0611-
72 CAGE; DIFF
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) 		8-97038-515-1 01 1 0610-0610
72 CAGE; DIFF 8-97038-515-1 01 1 0611-
73 SHIM; DIFF SIDE BRG
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) T=0.10 		8-97130-386-0 AR 1 0610-0610
73 SHIM; DIFF SIDE BRG
T=0.10 		8-97130-386-0 AR 1 0611-
73 SHIM; DIFF SIDE BRG
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) T=0.50 		8-97130-387-0 AR 1 0610-0610
73 SHIM; DIFF SIDE BRG
T=0.50 		8-97130-387-0 AR 1 0611-
73 SHIM; DIFF SIDE BRG
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) T=0.24 		9-41519-109-0 AR 1 0610-0610
73 SHIM; DIFF SIDE BRG
T=0.24 		9-41519-109-0 AR 1 0611-
73 SHIM; DIFF SIDE BRG
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) T=0.15 		9-41519-111-0 AR 1 0610-0610
73 SHIM; DIFF SIDE BRG
T=0.15 		9-41519-111-0 AR 1 0611-
74 PIN; LK,CROSS PIN
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) OD=5 L=35 		9-09878-096-0 01 1 0610-0610
74 PIN; LK,CROSS PIN
OD=5 L=35 		9-09878-096-0 01 1 0611-
84 BOLT; FINAL DRIVE GEAR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) M10X17 		8-97038-065-0 10 1 0610-0610
84 BOLT; FINAL DRIVE GEAR
M10X17 		8-97038-065-0 10 1 0611-
100 SEAL; OIL,FINAL PINION
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) NOK 		8-97146-826-0 01 1 0610-0610
100 SEAL; OIL,FINAL PINION
NOK 		8-97146-826-0 01 1 0611-
100 SEAL; OIL,FINAL PINION
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) TKK PHI 		8-97207-784-0 01 1 0610-0610
100 SEAL; OIL,FINAL PINION
TKK PHI 		8-97207-784-0 01 1 0611-
126 COUPLING; DRIVING PINION
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) 		8-94426-786-7 01 1 0610-0610
126 COUPLING; DRIVING PINION 8-94426-786-7 01 1 0611-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
