◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 51128 - TBR-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-20 - REAR AXLE CASE AND SHAFT ▶
4-20 — REAR AXLE CASE AND SHAFT (#33611) — 63 parça

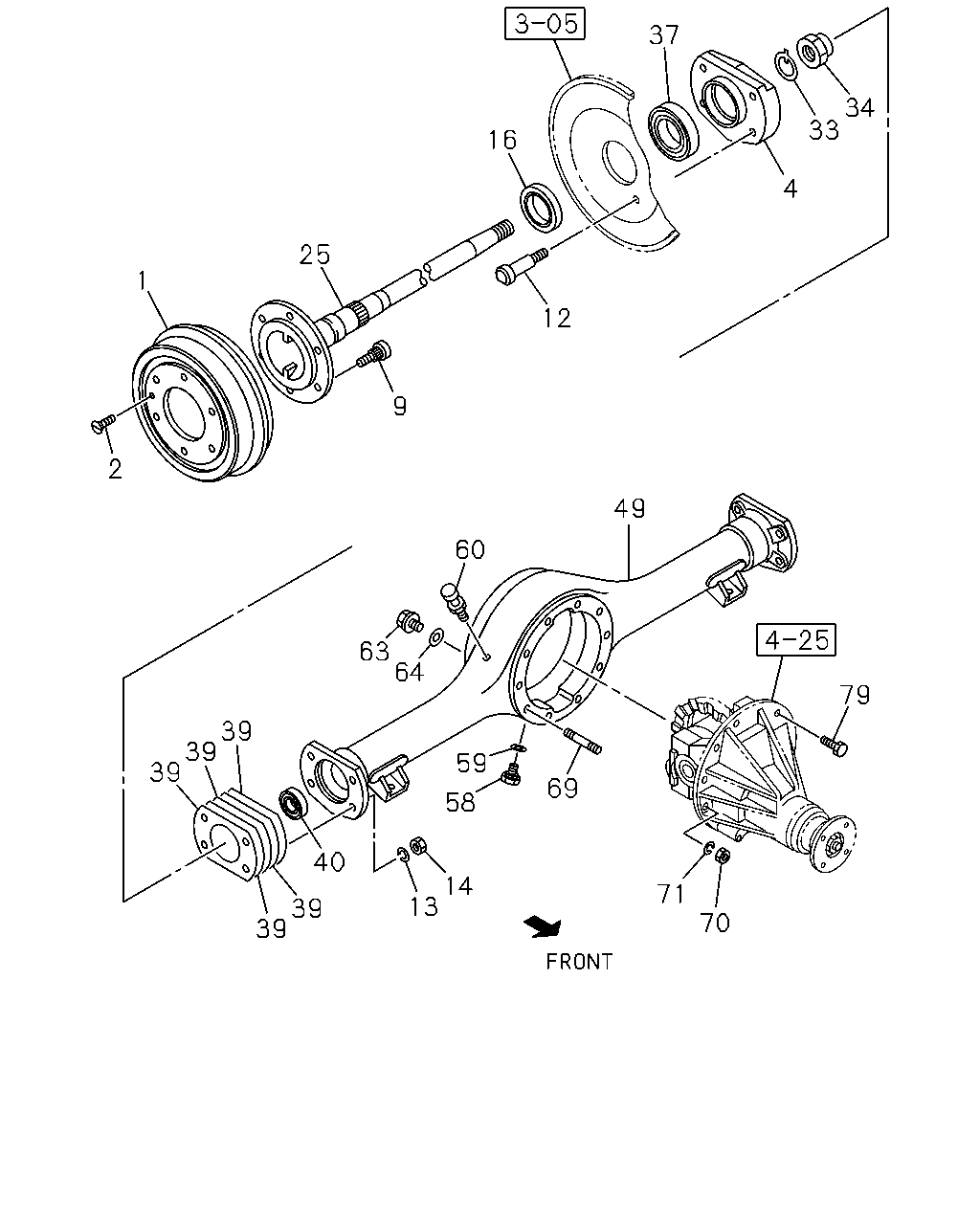

çizim 57501
37 34 33 16 4 25 1 12 9 2 49 60 63 64 79 39 39 39 59 69 58 40 14 13 71 39 39 70
BalonParca AdiParca NoAdetTipApplied Date
1 DRUM; BRK,RR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) IDN 		8-97956-672-0 02 1 0610-0610
1 DRUM; BRK,RR
IDN 		8-97956-672-0 02 1 0611-
2 BOLT; BRK DRUM
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) M6X16 CK-HEAD 		9-03090-616-0 02 1 0610-0610
2 BOLT; BRK DRUM
M6X16 CK-HEAD 		9-03090-616-0 02 1 0611-
4 HOLDER; BRG,AXLE SHAFT
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) 		8-94223-079-4 02 1 0610-0610
4 HOLDER; BRG,AXLE SHAFT 8-94223-079-4 02 1 0611-
9 PIN; WHEEL,RR AXLE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) M12X42.5 RH THREAD 		8-97213-870-0 12 1 0610-0610
9 PIN; WHEEL,RR AXLE
M12X42.5 RH THREAD 		8-97213-870-0 12 1 0611-
12 BOLT; BRG HOLDER TO CASE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) M12X72 		8-94477-674-2 04 1 0610-0610
12 BOLT; BRG HOLDER TO CASE
M12X72 		8-94477-674-2 04 1 0611-
12 BOLT; BRG HOLDER TO CASE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) M12X69 REAMER 		9-42119-603-2 04 1 0610-0610
12 BOLT; BRG HOLDER TO CASE
M12X69 REAMER 		9-42119-603-2 04 1 0611-
13 WASHER; LK,BRG HOLDER TO CASE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) ID=12.2 		0-91510-512-0 08 1 0610-0610
13 WASHER; LK,BRG HOLDER TO CASE
ID=12.2 		0-91510-512-0 08 1 0611-
14 NUT; BRG HOLDER TO CASE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) M12 		0-91110-512-0 08 1 0610-0610
14 NUT; BRG HOLDER TO CASE
M12 		0-91110-512-0 08 1 0611-
16 SEAL; OIL,RR HUB,OUTER
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) ID=47 OD=70 		8-94318-909-0 02 1 0610-0610
16 SEAL; OIL,RR HUB,OUTER
ID=47 OD=70 		8-94318-909-0 02 1 0611-
25 SHAFT; AXLE,RR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) THA 		8-97942-194-0 02 1 0610-0610
25 SHAFT; AXLE,RR
THA 		8-97942-194-0 02 1 0611-
33 WASHER; AXLE SHAFT
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) 		8-97086-473-0 02 1 0610-0610
33 WASHER; AXLE SHAFT 8-97086-473-0 02 1 0611-
34 NUT; AXLE SHAFT
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) 		8-94177-815-0 02 1 0610-0610
34 NUT; AXLE SHAFT 8-94177-815-0 02 1 0611-
37 BEARING; HUB INNER,RR AXLE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) NSK PHI 		9-00093-627-2 02 1 0610-0610
37 BEARING; HUB INNER,RR AXLE
NSK PHI 		9-00093-627-2 02 1 0611-
39 SHIM; BRG HOLDER
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) T=1.000 		8-94469-775-0 AR 1 0610-0610
39 SHIM; BRG HOLDER
T=1.000 		8-94469-775-0 AR 1 0611-
39 SHIM; BRG HOLDER
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) T=0.500 		8-94469-776-0 AR 1 0610-0610
39 SHIM; BRG HOLDER
T=0.500 		8-94469-776-0 AR 1 0611-
39 SHIM; BRG HOLDER
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) T=0.130 		8-94469-777-0 AR 1 0610-0610
39 SHIM; BRG HOLDER
T=0.130 		8-94469-777-0 AR 1 0611-
39 SHIM; BRG HOLDER
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) T=0.076 		8-94469-778-0 AR 1 0610-0610
39 SHIM; BRG HOLDER
T=0.076 		8-94469-778-0 AR 1 0611-
39 SHIM; BRG HOLDER
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) T=0.050 		8-94469-779-0 AR 1 0610-0610
39 SHIM; BRG HOLDER
T=0.050 		8-94469-779-0 AR 1 0611-
40 SEAL; OIL,REAR AXLE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) 		8-94318-910-0 02 1 0610-0610
40 SEAL; OIL,REAR AXLE 8-94318-910-0 02 1 0611-
49 CASE; RR AXLE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) IDN 		8-97958-930-2 01 1 0610-0610
49 CASE; RR AXLE
IDN 		8-97958-930-2 01 1 0611-
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) M16X12.5 		8-97109-869-0 01 1 0610-0610
58 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97109-869-0 01 1 0611-0805
58 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97307-060-0 01 1 0806-
59 GASKET; DRAIN PLUG
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) ID=16.2 OD=24 		9-09571-416-0 01 1 0610-0610
59 GASKET; DRAIN PLUG
ID=16.2 OD=24 		9-09571-416-0 01 1 0611-
60 BREATHER; RR AXLE CASE
L=29 		8-98006-960-0 01 1 0610-
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) M20X10.5 		9-09662-005-0 01 1 0610-0610
63 PLUG; OIL FILLER,AXLE CASE
M20X10.5 		9-09662-005-0 01 1 0611-0805
63 PLUG; OIL FILLER,AXLE CASE
M20X10.5 		8-98009-333-0 01 1 0806-
64 GASKET; OIL FILLER,AXLE CASE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) ID=20 OD=30 		8-94462-734-0 01 1 0610-0610
64 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 		8-94462-734-0 01 1 0611-
69 STUD; AXLE CASE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) M8X25 L=36 		5-09300-037-0 02 1 0610-0610
69 STUD; AXLE CASE
M8X25 L=36 		5-09300-037-0 02 1 0611-
70 NUT; CARRIER
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) M8 		5-09400-020-0 02 1 0610-0610
70 NUT; CARRIER
M8 		5-09400-020-0 02 1 0611-
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) ID=8.2 		0-91510-808-0 02 1 0610-0610
71 WASHER; LK,FINAL DRIVE SETTING
ID=8.2 		0-91510-808-0 02 1 0611-
79 BOLT; COVER TO CASE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) M8X25 W/LK WASHER 		8-98022-410-0 04 1 0610-0610
79 BOLT; COVER TO CASE
M8X25 W/LK WASHER 		8-98022-410-0 04 1 0611-
79 BOLT; COVER TO CASE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) M8X30 W/LK WASHER 		8-98022-411-0 02 1 0610-0610
79 BOLT; COVER TO CASE
M8X30 W/LK WASHER 		8-98022-411-0 02 1 0611-
79 BOLT; COVER TO CASE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1) M8X90 W/LK WASHER 		8-98022-412-0 02 1 0610-0610
79 BOLT; COVER TO CASE
M8X90 W/LK WASHER 		8-98022-412-0 02 1 0611-
