2-37B — MANUAL TRANSMISSION CONT; MISSION SIDE (#3361) — 53 parça

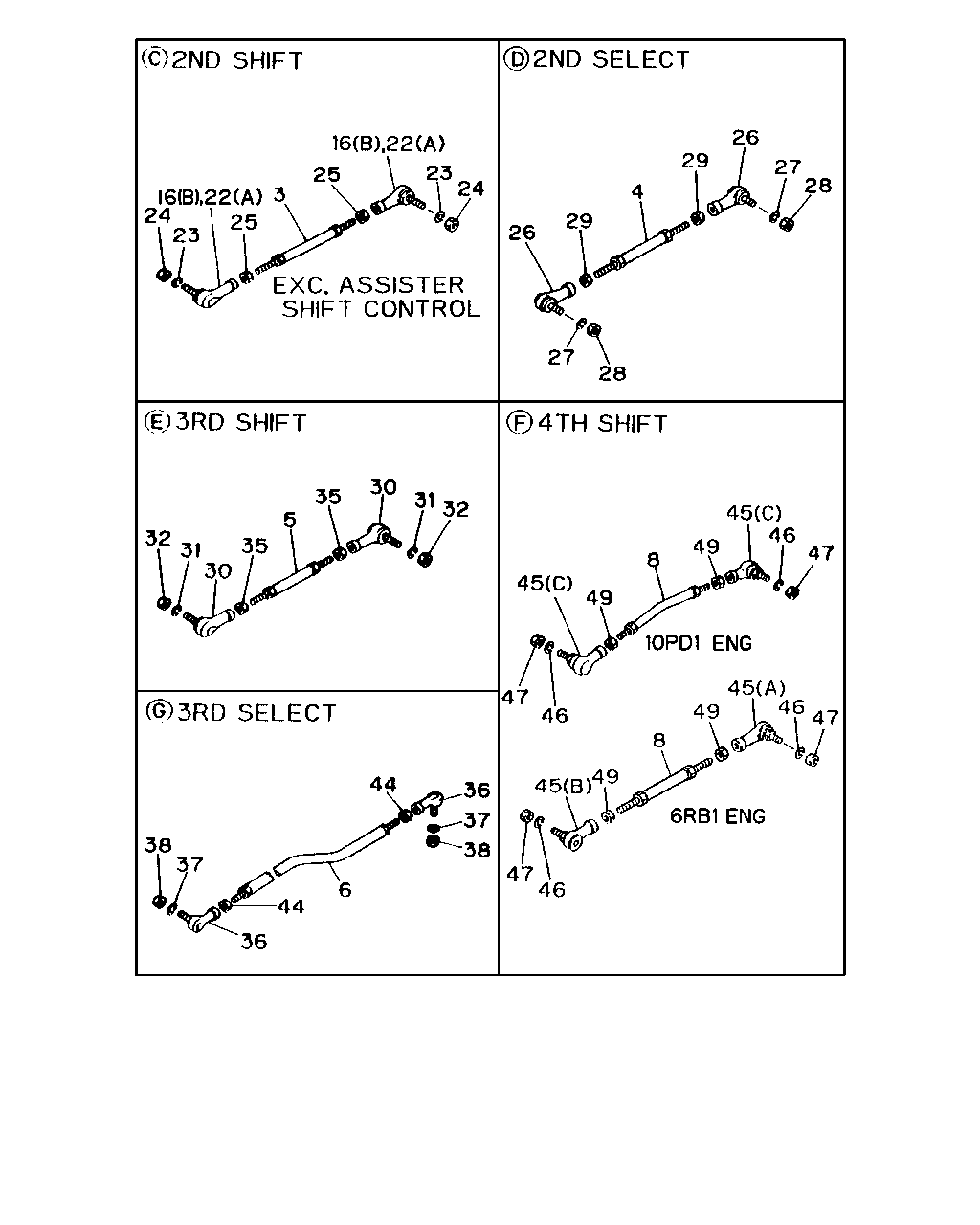

16 22 24 23 25 3 25 22 16 24 23 28 27 26 29 4 29 26 27 28 32 31 30 35 5 35 30 31 32 38 37 36 44 6 44 36 37 38 45 47 46 49 8 49 45 46 47 47 46 45 49 8 49 45 47 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
3	ROD; LINK,2ND SHIFT CAB SUSPENSION RIGID(W71) L=600	1-33652-510-0	01	1	9002-	●	●	●	●
3	ROD; LINK,2ND SHIFT EXC. CAB SUSPENSION RIGID(W71) L=595	1-33652-568-0	01	1	9002-	●	●	●	●
4	ROD; LINK,2ND SELECT L=585	1-33652-320-0	01	1	9002-	●	●	●	●
5	ROD; LINK,3RD SHIFT 6RB1 STD ENG(07L) L=1300	1-33652-342-0	01	1	9002-	●	●	●	●
5	ROD; LINK,3RD SHIFT 10PD1 STD ENG(40L) L=855	1-33652-321-0	01	1	9002-	●	●
6	ROD; LINK,3RD SELECT 6RB1 STD ENG(07L) L=1635	1-33652-425-2	01	1	9002-	●	●	●	●
6	ROD; LINK,3RD SELECT 10PD1 STD ENG(40L) L=1440	1-33652-340-0	01	1	9002-	●	●
8	ROD; LINK,4TH SHIFT 6RB1 STD ENG(07L) L=303	1-33652-433-1	01	1	9002-	●	●	●	●
8	ROD; LINK,4TH SHIFT 10PD1 STD ENG(40L) L=530	1-33652-394-1	01	1	9002-	●	●
16	JOINT ASM; BALL,CONT ROD (A) L=48	1-09760-038-1	02	1	9002-	●	●	●	●
16	JOINT ASM; BALL,CONT ROD EXC. ASSISTER SHIFT CONTROL<WX8>,CAB SUSPENSION RIGID(W71) (B)	1-09760-078-0	02	1	9301-	●	●	●	●
22	JOINT; BALL,SCREW,LINK ROD CAB SUSPENSION RIGID(W71) EXC. ASSISTER SHIFT CONTROL<WX8> (A)	1-09760-078-0	02	1	9002-	●	●	●	●
23	WASHER; LK,2ND LINK ROD ID=10.2	9-09150-510-0	02	1	9002-9301	●	●	●	●
24	NUT; 2ND LINK ROD,SHIFT M10	9-09110-410-0	02	1	9002-9301	●	●	●	●
24	NUT; 2ND LINK ROD,SHIFT M10	1-09440-050-0	02	1	9302-	●	●	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	9301-	●	●	●	●
26	JOINT; BALL,RIGHT SCREW,LINK ROD L=48	1-09760-038-1	02	1	9002-	●	●	●	●
27	WASHER; LK,2ND LINK ROD ID=8.2	9-09150-508-0	02	1	9002-9301	●	●	●	●
28	NUT; 2ND LINK ROD M8	9-09110-408-0	02	1	9002-9301	●	●	●	●
28	NUT; 2ND LINK ROD M8 FLANGE	1-09440-049-0	02	1	9302-	●	●	●	●
29	NUT; LK,RIGHT SCREW,LINK ROD M8	9-09111-408-0	02	1	9002-	●	●	●	●
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-078-0	02	1	9002-	●	●	●	●
31	WASHER; LK,3RD LINK ROD ID=10.2	9-09150-510-0	02	1	9002-	●	●	●	●
32	NUT; 3RD LINK ROD M10	9-09110-410-0	02	1	9002-9301	●	●	●	●
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-050-0	02	1	9302-	●	●	●	●
35	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	9002-	●	●	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD L=48	1-09760-038-1	02	1	9002-	●	●	●	●
37	WASHER; LK,3RD LINK ROD ID=8.2	9-09150-508-0	02	1	9002-9301	●	●	●	●
38	NUT; 3RD LINK ROD M8	9-09110-408-0	02	1	9002-9301	●	●	●	●
38	NUT; 3RD LINK ROD M8 FLANGE	1-09440-049-0	02	1	9302-	●	●	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD M8	9-09111-408-0	02	1	9002-	●	●	●	●
45	JOINT; BALL,RIGHT SCREW,LINK ROD 6RB1 STD ENG(07L) (A)	1-09760-078-0	01	1	9002-	●	●	●	●
45	JOINT; BALL,RIGHT SCREW,LINK ROD 6RB1 STD ENG(07L) (B)	1-33660-157-1	01	1	9002-	●	●	●	●
45	JOINT; BALL,RIGHT SCREW,LINK ROD 10PD1 STD ENG(40L) (C)	1-09760-078-0	02	1	9002-9501	●	●
45	JOINT; BALL,RIGHT SCREW,LINK ROD 10PD1 STD ENG(40L) (C)	1-09760-078-0	02	1	9502-	●
46	WASHER; LK,4TH LINK ROD ID=10.2	9-09150-510-0	02	1	9002-9301	●	●	●	●
47	NUT; 4TH LINK ROD M10	9-09110-410-0	02	1	9002-9301	●	●	●	●
47	NUT; 4TH LINK ROD M10	1-09440-050-0	02	1	9302-	●	●	●	●
49	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	9002-9501	●	●	●	●
49	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	9502-	●			●

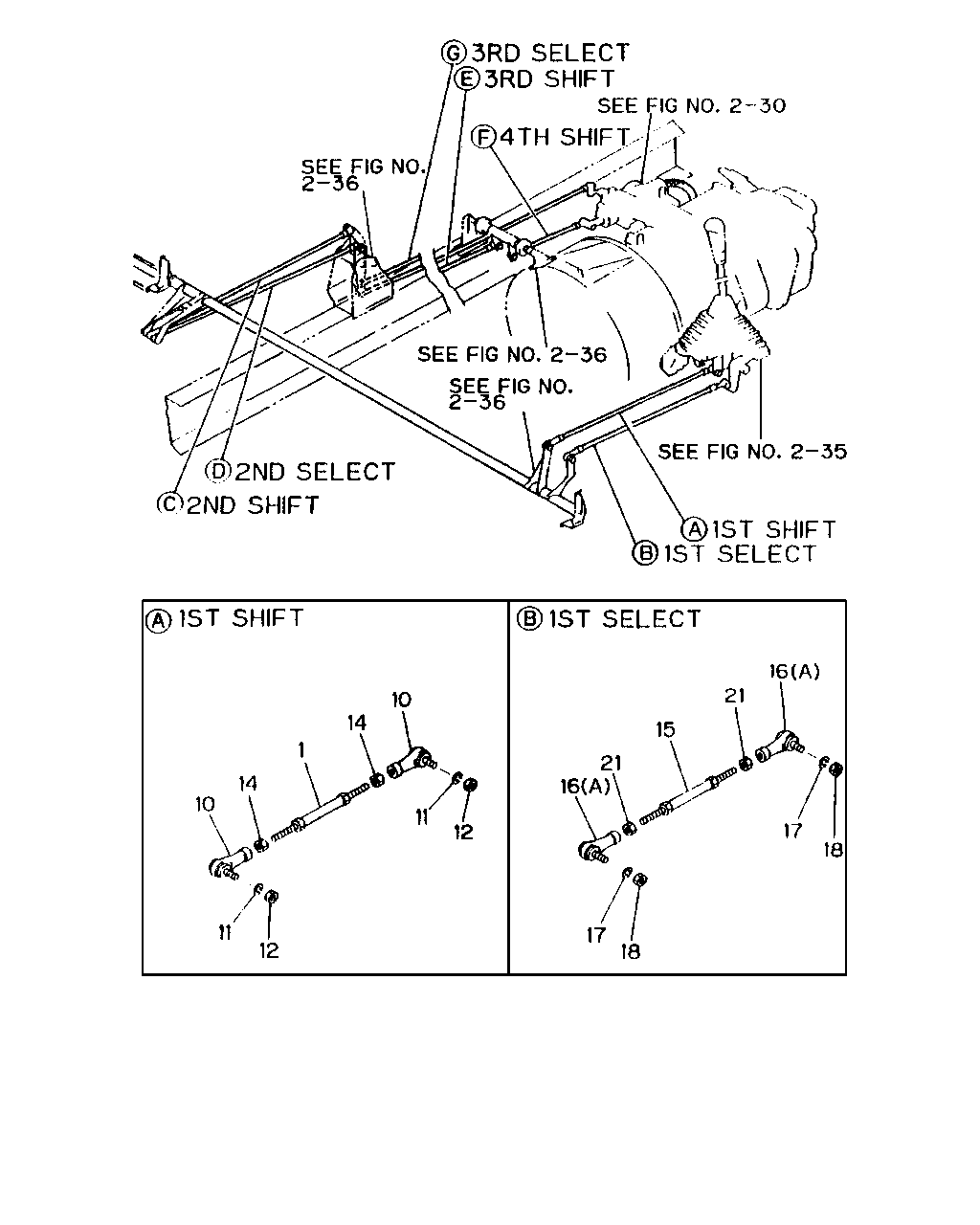

12 11 10 14 1 14 10 11 12 18 17 16 21 15 21 16 17 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	ROD; LINK,1ST SHIFT L=498	1-33652-269-1	01	1	9002-	●	●	●	●
10	JOINT ASM; BALL,SELECT ROD	1-09760-078-0	02	1	9002-	●	●	●	●
11	WASHER; LK,1ST LINK ROD,SHIFT ID=10.2	9-09150-510-0	02	1	9002-9301	●	●	●	●
12	NUT; 1ST LINK ROD,SHIFT M10	9-09110-510-0	02	1	9002-9301	●	●	●	●
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-050-0	02	1	9302-	●	●	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	9002-	●	●	●	●
15	ROD; LINK 1ST SHIFT L=513	1-33652-318-1	01	1	9002-	●	●	●	●
16	JOINT ASM; BALL,CONT ROD (A) L=48	1-09760-038-1	02	1	9002-	●	●	●	●
16	JOINT ASM; BALL,CONT ROD EXC. ASSISTER SHIFT CONTROL<WX8>,CAB SUSPENSION RIGID(W71) (B)	1-09760-078-0	02	1	9301-	●	●	●	●
17	WASHER; LK,1ST LINK ROD ID=8.2	9-09150-508-0	02	1	9002-9301	●	●	●	●
18	NUT; 1ST LINK ROD M8	9-09110-508-0	02	1	9002-9301	●	●	●	●
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-049-0	02	1	9302-	●	●	●	●
21	NUT; LK,RIGHT SCREW,LINK ROD M8	9-09111-408-0	02	1	9002-	●	●	●	●
