51128 - TBR-LHD
▶
3 - Brakes, Brake System
▶
3-52 - BRAKE PIPING; OIL,FRONT
▶
3-52 — BRAKE PIPING; OIL,FRONT
(#33604) — 12 parça
◀

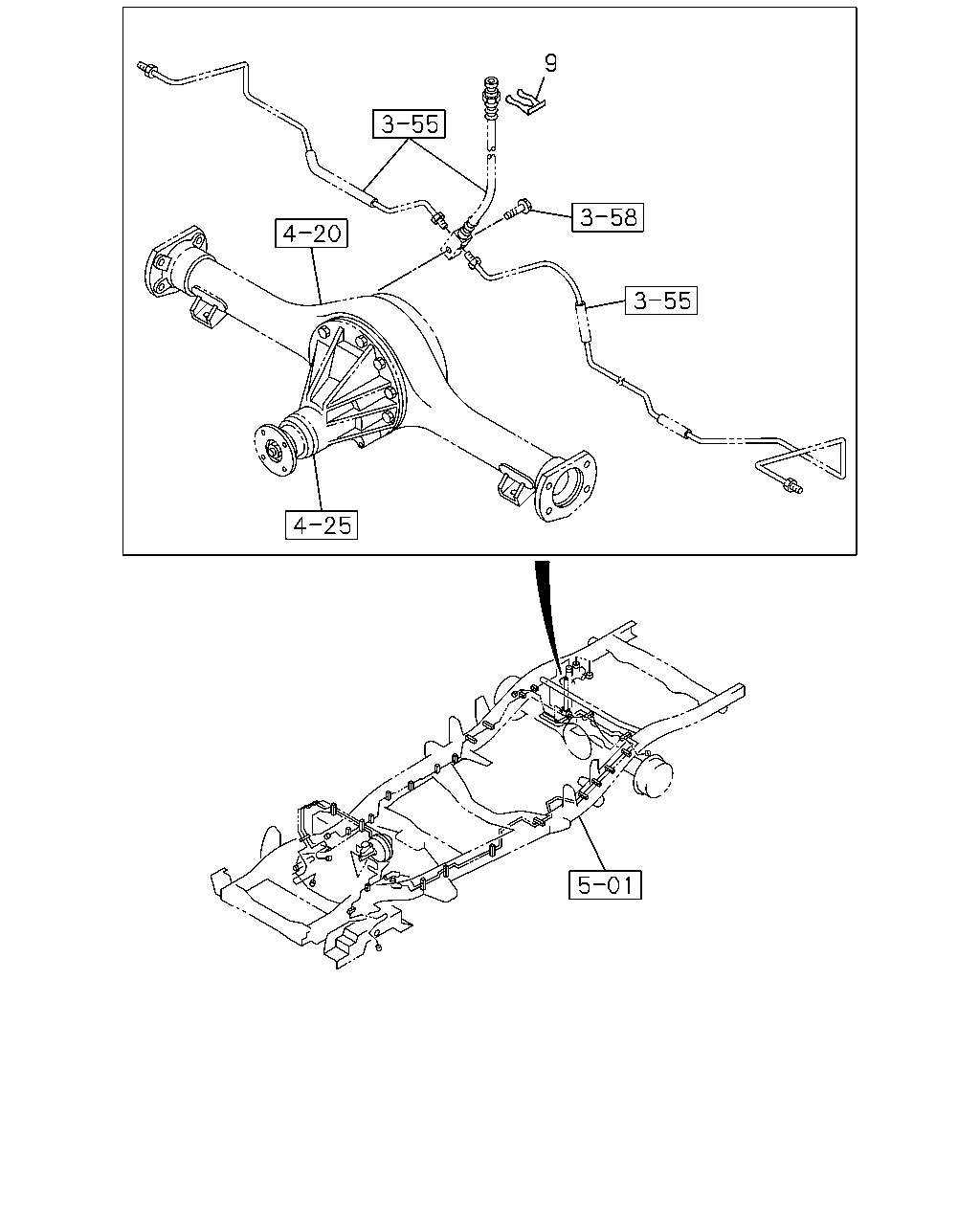

[352A] NO.2 (1 parça)

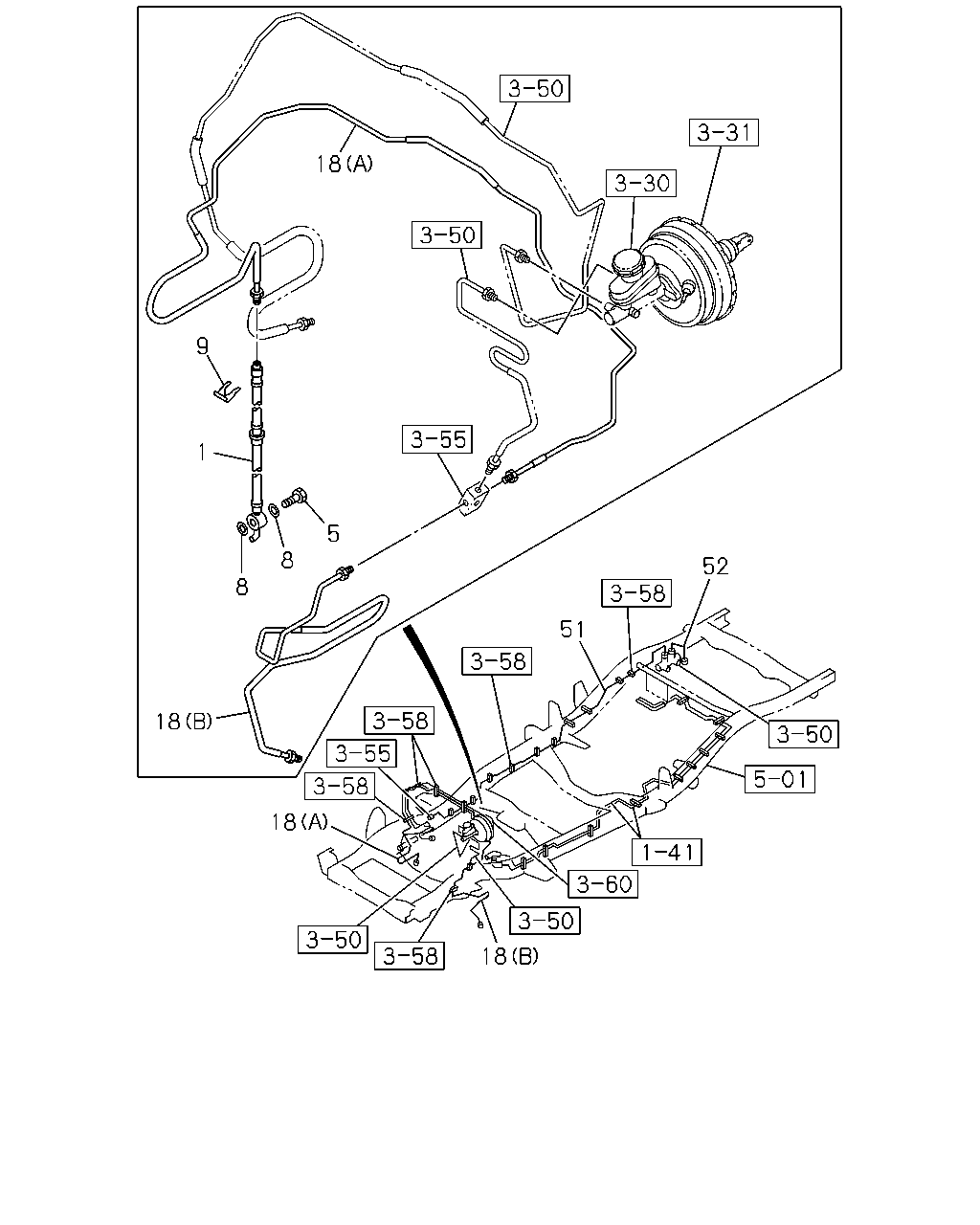

[352A] NO.1 (11 parça)
▶
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
CLIP; FLEX HOSE,FRT BRK
8-94137-662-0
05
1
0610-
18
9
1
5
8
52
8
51
18
18
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,FRT BRK
PHI
8-97175-367-2
02
1
0610-
5
BOLT; EYE,FLEX HOSE,FRT BRK
M10X22
8-97381-454-0
02
1
0610-0905
5
BOLT; EYE,FLEX HOSE,FRT BRK
M10X22
8-98014-005-0
02
1
0906-
8
GASKET; FLEX HOSE,FRT BRK
ID=10.2 OD=16.0
9-09571-410-0
04
1
0610-
9
CLIP; FLEX HOSE,FRT BRK
8-94137-662-0
05
1
0610-
18
PIPE; OIL,UNION TO FRT FLEX HOSE
GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) (B) PHI
8-97975-974-2
01
1
0610-
18
PIPE; OIL,UNION TO FRT FLEX HOSE
GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) (A) PHI
8-97977-839-0
01
1
0610-
18
PIPE; OIL,UNION TO FRT FLEX HOSE
GRADE XUV/SPORTIVO(RBG) (B) PHI
8-97975-975-0
01
1
0610-
18
PIPE; OIL,UNION TO FRT FLEX HOSE
GRADE XUV/SPORTIVO(RBG) (A) PHI
8-97977-840-0
01
1
0610-
51
PIPE; BRK
PHI
8-97976-138-0
01
1
0610-
52
PIPE; BRK
PHI
8-97976-123-0
01
1
0610-
