3-11 — PARKING BRAKE CONTROL (#33600) — 125 parça

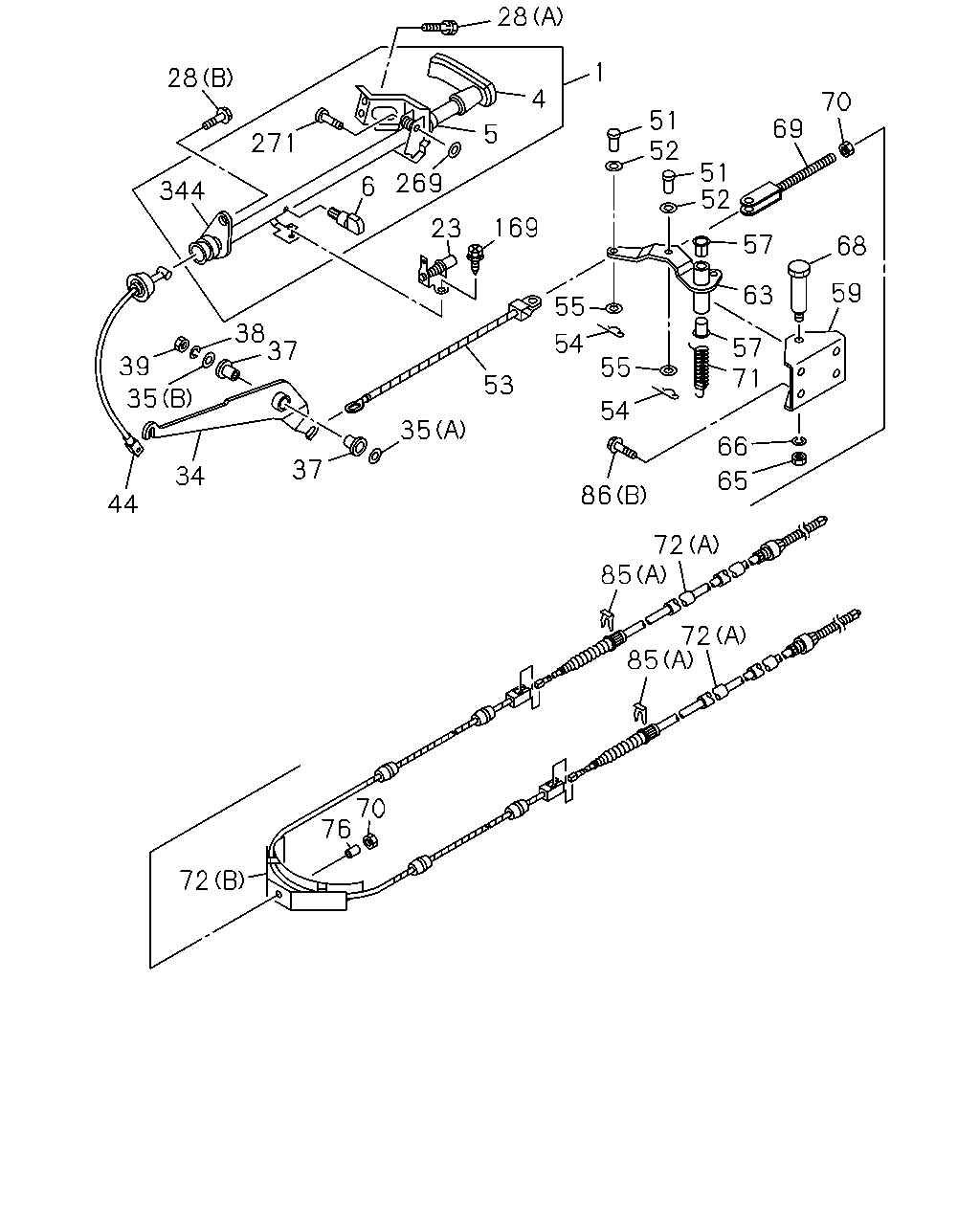

28 1 28 4 70 51 52 69 5 271 51 52 269 6 344 169 23 57 68 59 63 55 57 71 38 37 54 39 35 55 53 54 35 66 37 34 65 86 44 72 85 72 85 70 76 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	STEM ASM; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW>	8-97190-645-0	01	1	0610-
4	STEM; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW>	8-97309-829-0	01	1	0610-
5	BUSHING; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW>	8-97309-835-0	01	1	0610-
6	PIN; STEM,PARK BRK EXC. PARKING BRAKE FLOOR<7XW>	8-97162-045-0	01	1	0610-
23	SWITCH; PARKING BRK PARKING BRAKE FLOOR<7XW>	8-97179-726-0	01	1	0610-
23	SWITCH; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW>	8-94328-267-0	01	1	0610-
28	BOLT; HAND BRK LEVER (B) M8X20 FLANGE	0-28650-820-0	02	1	0610-
28	BOLT; HAND BRK LEVER EXC. PARKING BRAKE FLOOR<7XW> (A) M6X20 FLANGE	0-28650-620-0	02	1	0610-
34	LEVER; PARK BRK CONT EXC. PARKING BRAKE FLOOR<7XW>	8-97190-646-0	01	1	0610-
35	WASHER; PL,RELAY LEVER,PARK BRK EXC. PARKING BRAKE FLOOR<7XW> (A) ID=15.5 OD=24	8-94222-473-0	01	1	0610-
35	WASHER; PL,RELAY LEVER,PARK BRK EXC. PARKING BRAKE FLOOR<7XW> (B) ID=10.5 OD=26	9-09160-710-0	01	1	0610-
37	BUSHING; RELAY LEVER,PARK BRK EXC. PARKING BRAKE FLOOR<7XW>	5-46149-012-0	02	1	0610-
38	WASHER; LK,RELAY LEVER,PARK BRK EXC. PARKING BRAKE FLOOR<7XW> ID=10.2	0-91510-510-0	01	1	0610-
39	NUT; RELAY LEVER,PARK BRK EXC. PARKING BRAKE FLOOR<7XW> M10	0-91110-510-0	01	1	0610-
44	CABLE; PARKING BRK,FRT GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) EXC. PARKING BRAKE FLOOR<7XW> PHI	8-97562-229-0	01	1	0610-
44	CABLE; PARKING BRK,FRT GRADE XUV/SPORTIVO(RBG) EXC. PARKING BRAKE FLOOR<7XW> PHI	8-97562-230-0	01	1	0610-
51	PIN; JOINT,RELAY LEVER PARKING BRAKE FLOOR<7XW>	8-97202-452-0	01	1	0610-
51	PIN; JOINT,RELAY LEVER EXC. PARKING BRAKE FLOOR<7XW> OD=8 L=20	0-82353-820-0	02	1	0610-
52	WASHER; CURVED RELAY LEVER EXC. PARKING BRAKE FLOOR<7XW> ID=8.5 T=0.3	5-09509-001-0	02	1	0610-
53	CABLE; PARK BRK,FRT LWR EXC. PARKING BRAKE FLOOR<7XW>	8-97257-907-0	01	1	0610-
54	PIN; SNAP,CABLE TO LEVER EXC. PARKING BRAKE FLOOR<7XW> OD=1.8 L=15	0-81122-015-0	02	1	0610-
55	WASHER; PL,PARK BRK CABLE EXC. PARKING BRAKE FLOOR<7XW> ID=8.4 OD=16	0-91610-508-0	02	1	0610-
57	BUSHING; RELAY LEVER EXC. PARKING BRAKE FLOOR<7XW>	5-33659-053-0	02	1	0610-
59	BRACKET; RELAY LEVER EXC. PARKING BRAKE FLOOR<7XW>	8-94479-094-0	01	1	0610-
63	LEVER; RELAY,HAND BRK EXC. PARKING BRAKE FLOOR<7XW>	8-97257-904-0	01	1	0610-
65	NUT; RELAY LEVER EXC. PARKING BRAKE FLOOR<7XW> M10	0-91110-510-0	01	1	0610-
66	WASHER; LK,RELAY LEVER EXC. PARKING BRAKE FLOOR<7XW> ID=10.2	0-91510-510-0	01	1	0610-
68	PIN; FULCRUM,RELAY LEVER,PARK BRK EXC. PARKING BRAKE FLOOR<7XW>	8-94404-908-1	01	1	0610-
69	ROD; RELAY LEVER EXC. PARKING BRAKE FLOOR<7XW>	8-97257-905-0	01	1	0610-
70	NUT; EQUALIZER TO FRT CABLE EXC. PARKING BRAKE FLOOR<7XW> M10	0-91111-510-0	02	1	0610-
71	SPRING; RETURN,PARKING BRK TO BODY EXC. PARKING BRAKE FLOOR<7XW>	8-97257-980-0	01	1	0610-
72	CABLE; PARKING BRK GRADE XTI(RBD) PARKING BRAKE FLOOR<7XW> (C) PHI	8-97956-185-0	01	1	0610-
72	CABLE; PARKING BRK GRADE XTI(RBD) PARKING BRAKE FLOOR<7XW> (C) PHI	8-97956-184-0	01	1	0610-
72	CABLE; PARKING BRK GRADE XUV/SPORTIVO(RBG) PARKING BRAKE FLOOR<7XW> (C) IDN	8-97956-578-0	01	1	0610-
72	CABLE; PARKING BRK GRADE XUV/SPORTIVO(RBG) PARKING BRAKE FLOOR<7XW> (C) IDN	8-97956-577-0	01	1	0610-
72	CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (B) IDN	8-97562-242-0	01	1	0610-
72	CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (A) IDN	8-97956-181-3	01	1	0610-
72	CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (A) IDN	8-97956-180-1	01	1	0610-
76	SLEEVE; CABLE GUIDE,PARKING BRK EXC. PARKING BRAKE FLOOR<7XW>	8-97207-615-0	01	1	0610-
85	CLIP; BRKT (B)	8-94146-602-0	02	1	0610-
85	CLIP; BRKT EXC. PARKING BRAKE FLOOR<7XW> (B)	8-94146-602-0	02	1	0610-
85	CLIP; BRKT (C) ID=14	9-09916-883-0	01	1	0610-
85	CLIP; BRKT PARKING BRAKE FLOOR<7XW> (B)	8-94146-602-0	01	1	0610-
85	CLIP; BRKT EXC. PARKING BRAKE FLOOR<7XW> (A)	5-09709-039-0	02	1	0610-
86	BOLT (A) M6X12 FLANGE	0-28050-612-0	04	1	0610-
86	BOLT PARKING BRAKE FLOOR<7XW> (A) M6X12 FLANGE	0-28050-612-0	04	1	0610-
86	BOLT PARKING BRAKE FLOOR<7XW> (C) M6X16 FLANGE	0-28450-616-0	02	1	0610-
86	BOLT EXC. PARKING BRAKE FLOOR<7XW> (A) M6X12 FLANGE	0-28050-612-0	05	1	0610-
86	BOLT EXC. PARKING BRAKE FLOOR<7XW> (B) M8X20 FLANGE	0-28650-820-0	04	1	0610-
169	BOLT; SWITCH EXC. PARKING BRAKE FLOOR<7XW> M6X16 W/LK&PL WASHER	8-94452-505-0	01	1	0610-
269	WASHER; GUIDE TO BRKT,PARK BRK EXC. PARKING BRAKE FLOOR<7XW>	8-97309-834-0	01	1	0610-
271	PIN; GUIDE TO BRKT,PARK BRK EXC. PARKING BRAKE FLOOR<7XW>	8-97309-830-0	01	1	0610-
344	GASKET; DASH LWR EXC. PARKING BRAKE FLOOR<7XW>	8-97309-836-0	01	1	0610-

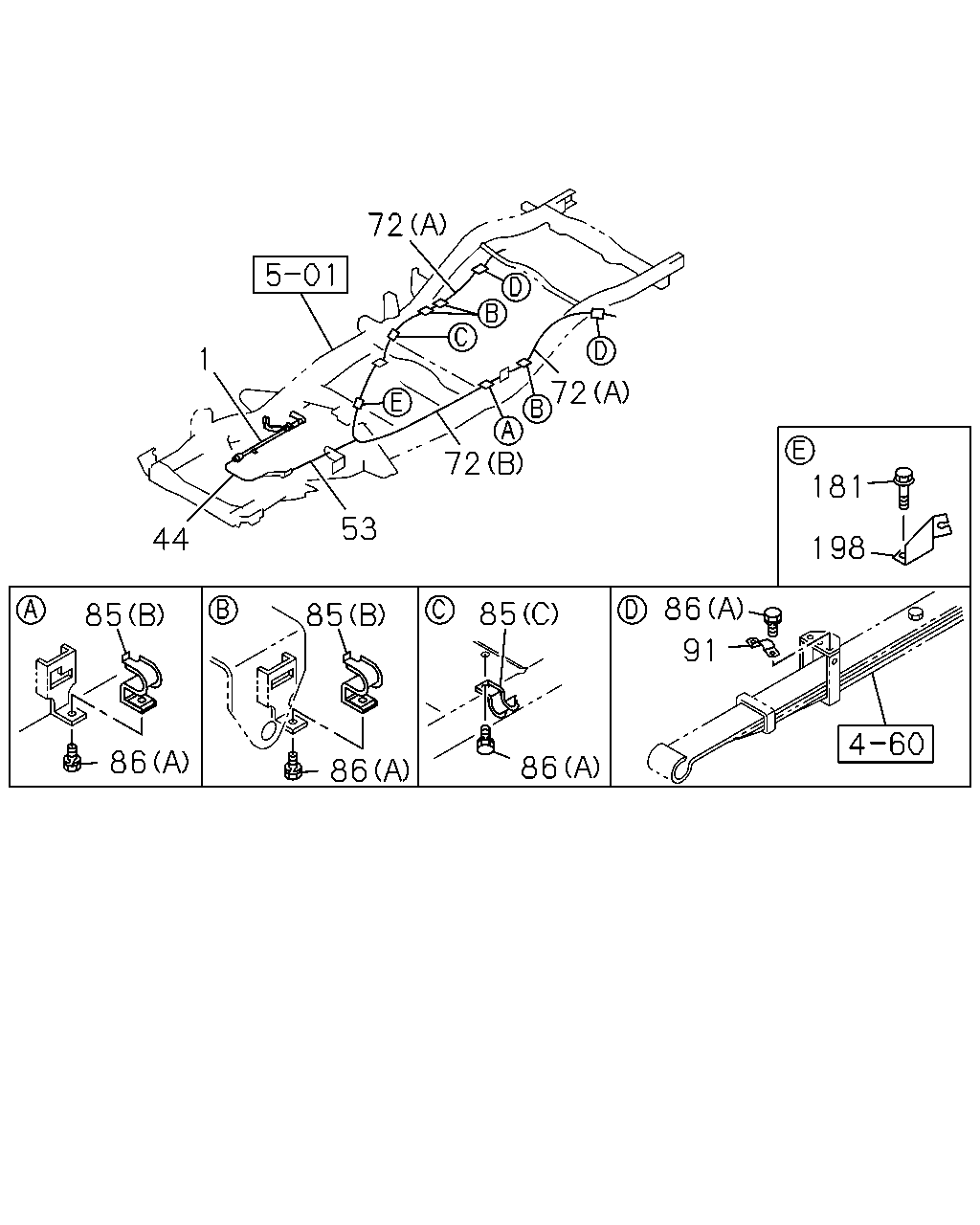

72 72 1 72 181 53 44 198 86 85 85 85 91 86 86 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	STEM ASM; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW>	8-97190-645-0	01	1	0610-
44	CABLE; PARKING BRK,FRT GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) EXC. PARKING BRAKE FLOOR<7XW> PHI	8-97562-229-0	01	1	0610-
44	CABLE; PARKING BRK,FRT GRADE XUV/SPORTIVO(RBG) EXC. PARKING BRAKE FLOOR<7XW> PHI	8-97562-230-0	01	1	0610-
53	CABLE; PARK BRK,FRT LWR EXC. PARKING BRAKE FLOOR<7XW>	8-97257-907-0	01	1	0610-
72	CABLE; PARKING BRK GRADE XTI(RBD) PARKING BRAKE FLOOR<7XW> (C) PHI	8-97956-185-0	01	1	0610-
72	CABLE; PARKING BRK GRADE XTI(RBD) PARKING BRAKE FLOOR<7XW> (C) PHI	8-97956-184-0	01	1	0610-
72	CABLE; PARKING BRK GRADE XUV/SPORTIVO(RBG) PARKING BRAKE FLOOR<7XW> (C) IDN	8-97956-578-0	01	1	0610-
72	CABLE; PARKING BRK GRADE XUV/SPORTIVO(RBG) PARKING BRAKE FLOOR<7XW> (C) IDN	8-97956-577-0	01	1	0610-
72	CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (B) IDN	8-97562-242-0	01	1	0610-
72	CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (A) IDN	8-97956-181-3	01	1	0610-
72	CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (A) IDN	8-97956-180-1	01	1	0610-
85	CLIP; BRKT (B)	8-94146-602-0	02	1	0610-
85	CLIP; BRKT EXC. PARKING BRAKE FLOOR<7XW> (B)	8-94146-602-0	02	1	0610-
85	CLIP; BRKT (C) ID=14	9-09916-883-0	01	1	0610-
85	CLIP; BRKT PARKING BRAKE FLOOR<7XW> (B)	8-94146-602-0	01	1	0610-
85	CLIP; BRKT EXC. PARKING BRAKE FLOOR<7XW> (A)	5-09709-039-0	02	1	0610-
86	BOLT (A) M6X12 FLANGE	0-28050-612-0	04	1	0610-
86	BOLT PARKING BRAKE FLOOR<7XW> (A) M6X12 FLANGE	0-28050-612-0	04	1	0610-
86	BOLT PARKING BRAKE FLOOR<7XW> (C) M6X16 FLANGE	0-28450-616-0	02	1	0610-
86	BOLT EXC. PARKING BRAKE FLOOR<7XW> (A) M6X12 FLANGE	0-28050-612-0	05	1	0610-
86	BOLT EXC. PARKING BRAKE FLOOR<7XW> (B) M8X20 FLANGE	0-28650-820-0	04	1	0610-
91	CLIP; PARKING BRK CABLE	8-97045-075-0	01	1	0610-
91	CLIP; PARKING BRK CABLE	8-97045-074-0	01	1	0610-
181	BOLT; BRKT EXC. PARKING BRAKE FLOOR<7XW> M6X16 FLANGE	0-28650-616-0	02	1	0610-
198	BRACKET; CABLE EXC. PARKING BRAKE FLOOR<7XW> PHI	8-97190-652-0	01	1	0610-

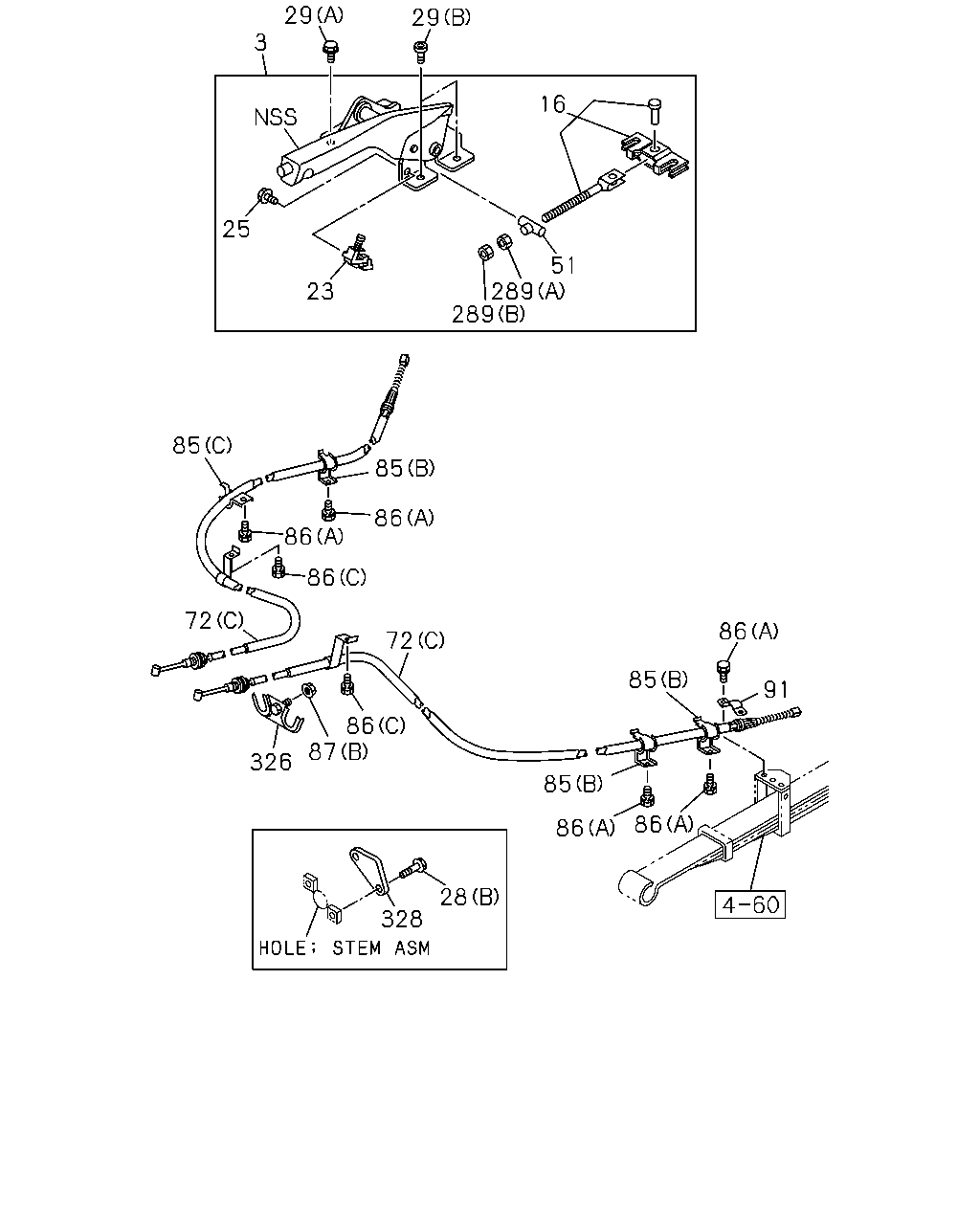

29 29 3 16 25 51 289 289 23 85 85 86 86 86 72 86 72 85 91 86 87 326 85 86 86 28 328

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	LEVER; PARKING BRK PARKING BRAKE FLOOR<7XW>	8-97378-131-0	01	1	0610-
16	BRACKET; PARKING BRK PARKING BRAKE FLOOR<7XW>	8-97202-451-0	01	1	0610-
23	SWITCH; PARKING BRK PARKING BRAKE FLOOR<7XW>	8-97179-726-0	01	1	0610-
23	SWITCH; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW>	8-94328-267-0	01	1	0610-
25	SCREW; SW,PARKING BRK PARKING BRAKE FLOOR<7XW>	8-97179-727-0	01	1	0610-
28	BOLT; HAND BRK LEVER (B) M8X20 FLANGE	0-28650-820-0	02	1	0610-
28	BOLT; HAND BRK LEVER EXC. PARKING BRAKE FLOOR<7XW> (A) M6X20 FLANGE	0-28650-620-0	02	1	0610-
29	BOLT; PARKING BRK LEVER TO BODY PARKING BRAKE FLOOR<7XW> (A) M8X20 FLANGE	0-28450-820-0	02	1	0610-
29	BOLT; PARKING BRK LEVER TO BODY PARKING BRAKE FLOOR<7XW> (B) M8X20 HEX SOCKET	0-58310-820-0	02	1	0610-0805
29	BOLT; PARKING BRK LEVER TO BODY PARKING BRAKE FLOOR<7XW> (B) M8X20 HEX SOCKET	0-58330-820-0	02	1	0806-
51	PIN; JOINT,RELAY LEVER PARKING BRAKE FLOOR<7XW>	8-97202-452-0	01	1	0610-
51	PIN; JOINT,RELAY LEVER EXC. PARKING BRAKE FLOOR<7XW> OD=8 L=20	0-82353-820-0	02	1	0610-
72	CABLE; PARKING BRK GRADE XTI(RBD) PARKING BRAKE FLOOR<7XW> (C) PHI	8-97956-185-0	01	1	0610-
72	CABLE; PARKING BRK GRADE XTI(RBD) PARKING BRAKE FLOOR<7XW> (C) PHI	8-97956-184-0	01	1	0610-
72	CABLE; PARKING BRK GRADE XUV/SPORTIVO(RBG) PARKING BRAKE FLOOR<7XW> (C) IDN	8-97956-578-0	01	1	0610-
72	CABLE; PARKING BRK GRADE XUV/SPORTIVO(RBG) PARKING BRAKE FLOOR<7XW> (C) IDN	8-97956-577-0	01	1	0610-
72	CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (B) IDN	8-97562-242-0	01	1	0610-
72	CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (A) IDN	8-97956-181-3	01	1	0610-
72	CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (A) IDN	8-97956-180-1	01	1	0610-
85	CLIP; BRKT (B)	8-94146-602-0	02	1	0610-
85	CLIP; BRKT EXC. PARKING BRAKE FLOOR<7XW> (B)	8-94146-602-0	02	1	0610-
85	CLIP; BRKT (C) ID=14	9-09916-883-0	01	1	0610-
85	CLIP; BRKT PARKING BRAKE FLOOR<7XW> (B)	8-94146-602-0	01	1	0610-
85	CLIP; BRKT EXC. PARKING BRAKE FLOOR<7XW> (A)	5-09709-039-0	02	1	0610-
86	BOLT (A) M6X12 FLANGE	0-28050-612-0	04	1	0610-
86	BOLT PARKING BRAKE FLOOR<7XW> (A) M6X12 FLANGE	0-28050-612-0	04	1	0610-
86	BOLT PARKING BRAKE FLOOR<7XW> (C) M6X16 FLANGE	0-28450-616-0	02	1	0610-
86	BOLT EXC. PARKING BRAKE FLOOR<7XW> (A) M6X12 FLANGE	0-28050-612-0	05	1	0610-
86	BOLT EXC. PARKING BRAKE FLOOR<7XW> (B) M8X20 FLANGE	0-28650-820-0	04	1	0610-
87	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0610-
87	NUT PARKING BRAKE FLOOR<7XW> (B) M10 FLANGE	0-91180-110-0	01	1	0610-
91	CLIP; PARKING BRK CABLE	8-97045-075-0	01	1	0610-
91	CLIP; PARKING BRK CABLE	8-97045-074-0	01	1	0610-
289	NUT; PARKING BRK PARKING BRAKE FLOOR<7XW> (A)	8-97202-449-0	01	1	0610-
289	NUT; PARKING BRK PARKING BRAKE FLOOR<7XW> (B)	8-97378-368-0	01	1	0610-
326	RETAINER; PARK CABLE PARKING BRAKE FLOOR<7XW> IDN	8-97562-256-0	01	1	0610-
328	PLATE; SEAL PARKING BRAKE FLOOR<7XW>	8-97064-242-1	01	1	0610-

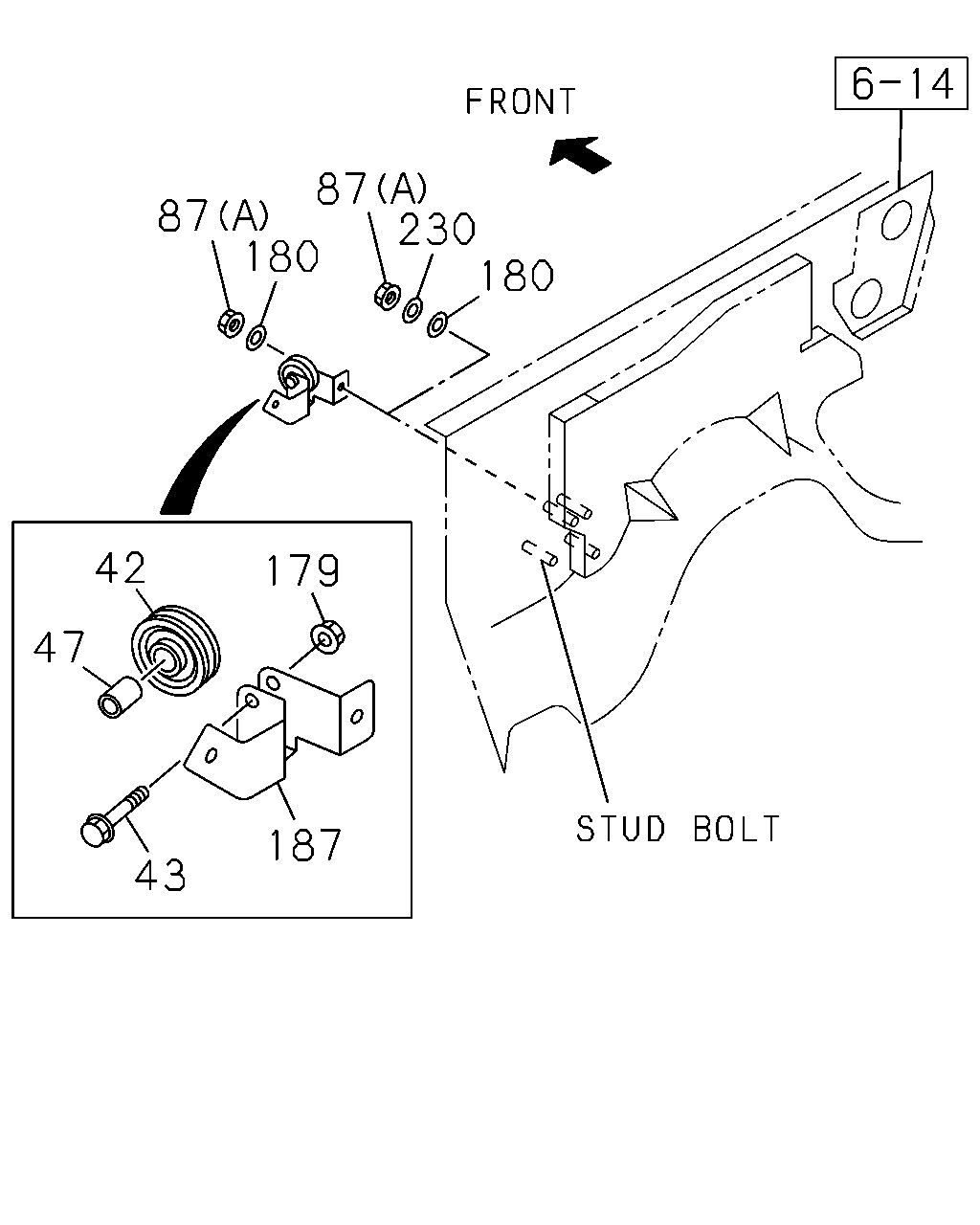

87 230 180 87 180 42 179 47 187 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
42	ROLLER; PARK BRK CABLE GRADE XUV/SPORTIVO(RBG) EXC. PARKING BRAKE FLOOR<7XW>	8-94341-286-0	01	1	0610-
43	BOLT; ROLLER,PARK BRK CABLE GRADE XUV/SPORTIVO(RBG) EXC. PARKING BRAKE FLOOR<7XW> M8X40 FLANGE	0-28650-840-0	01	1	0610-
47	COLLAR; ROLLER,PARK BRK CABLE GRADE XUV/SPORTIVO(RBG) EXC. PARKING BRAKE FLOOR<7XW>	9-46129-013-1	01	1	0610-
87	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0610-
87	NUT PARKING BRAKE FLOOR<7XW> (B) M10 FLANGE	0-91180-110-0	01	1	0610-
179	NUT; ROLLER,PARK BRK CABLE GRADE XUV/SPORTIVO(RBG) EXC. PARKING BRAKE FLOOR<7XW> M8	0-91110-508-0	01	1	0610-
180	GASKET; ROLLER BRKT,PARKING BRK	8-94334-899-1	02	1	0610-
187	BRACKET; HAND BRK GRADE XUV/SPORTIVO(RBG) EXC. PARKING BRAKE FLOOR<7XW> PHI	8-97307-197-2	01	1	0610-
230	WASHER; PL GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) ID=8.4 OD=22	0-91610-708-0	02	1	0610-
230	WASHER; PL GRADE XUV/SPORTIVO(RBG) PARKING BRAKE FLOOR<7XW> ID=8.4 OD=22	0-91610-708-0	02	1	0610-
