2-37A — MANUAL TRANSMISSION CONT; MISSION SIDE (#3360) — 109 parça
çizim 3986

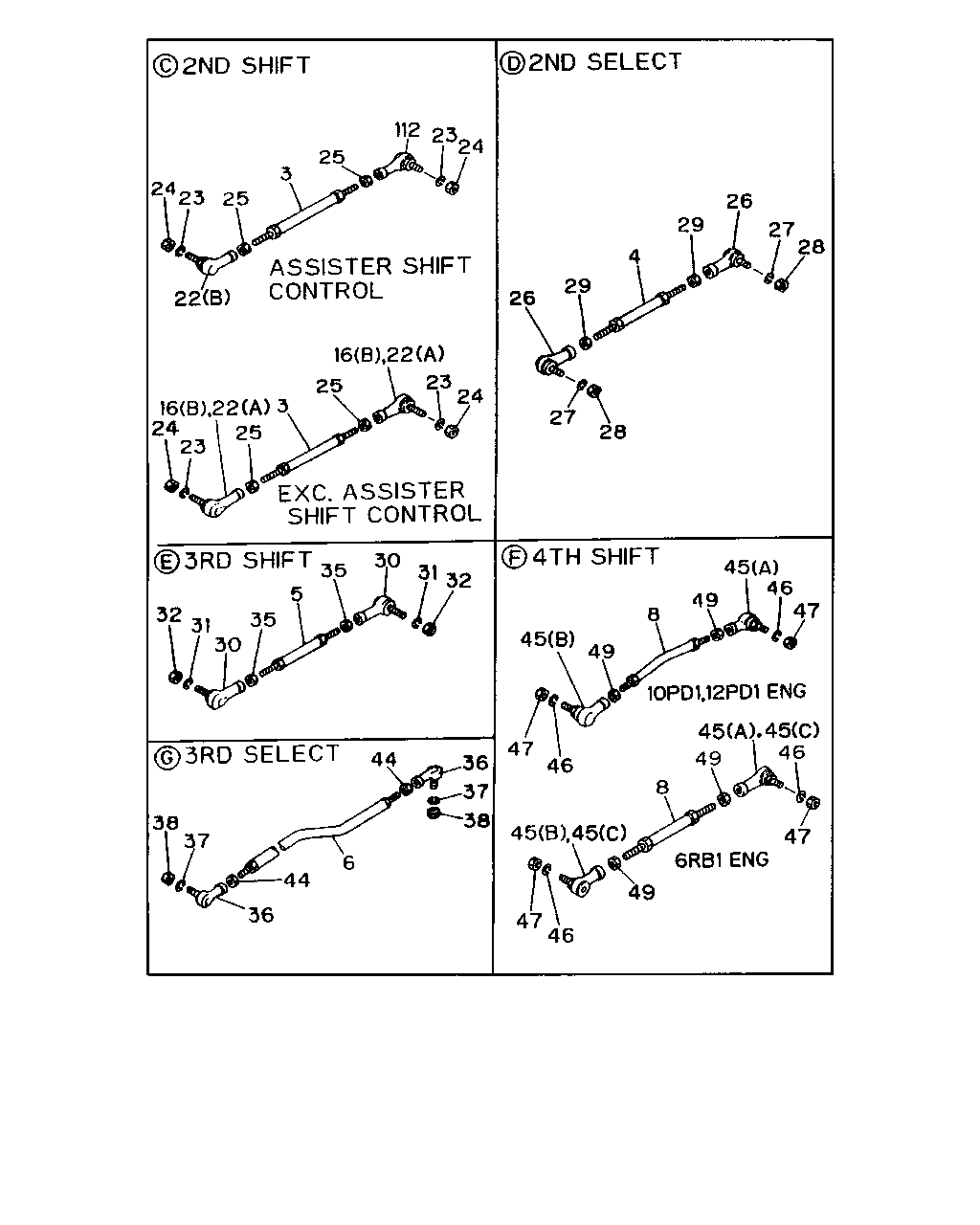

24 23 25 3 25 112 23 24 22 24 23 22 16 25 3 25 22 16 23 24 28 27 26 29 4 29 26 27 28 32 31 30 35 5 35 30 31 32 38 37 36 44 6 44 36 37 38 46 47 45 49 8 49 45 46 47 45 45 46 49 47 8 45 45 47 46 49
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
3 ROD; LINK,2ND SHIFT
CAB SUSPENSION RIGID(W71) L=600 		1-33652-510-0 01 1 9002- ● ● ● ● ● ● ●
3 ROD; LINK,2ND SHIFT
EXC. CAB SUSPENSION RIGID(W71) L=595 		1-33652-568-0 01 1 9002- ● ● ● ● ● ● ●
4 ROD; LINK,2ND SELECT
L=585 		1-33652-320-0 01 1 9002- ● ● ● ● ● ● ●
5 ROD; LINK,3RD SHIFT
MIXER TRUCK<RA2> L=1380 		1-33652-341-0 01 1 9002-9306 ●
5 ROD; LINK,3RD SHIFT
EXC. MIXER TRUCK<RA2> L=1300 		1-33652-342-0 01 1 9002- ●
5 ROD; LINK,3RD SHIFT
6RB1 STD ENG(07L) L=1300 		1-33652-342-0 01 1 9002- ● ● ● ●
5 ROD; LINK,3RD SHIFT
10PD1 STD ENG(40L) L=855 		1-33652-321-0 01 1 9002- ● ● ●
5 ROD; LINK,3RD SHIFT
12PD1 C ENG(43L) L=950 		1-33652-325-0 01 1 9307- ●
6 ROD; LINK,3RD SELECT
FIRE TRUCK<RA9> L=1576 		1-33652-543-0 01 1 9002-9304 ●
6 ROD; LINK,3RD SELECT
6RB1 STD ENG(07L) EXC. ASSISTER SHIFT CONTROL<WX8> L=1576 		1-33652-543-0 01 1 9002-9304 ● ● ●
6 ROD; LINK,3RD SELECT
FIRE TRUCK<RA9> L=1570 		1-33652-498-1 01 1 9307- ●
6 ROD; LINK,3RD SELECT
6RB1 STD ENG(07L) L=1570 		1-33652-498-1 01 1 9307- ● ● ●
6 ROD; LINK,3RD SELECT
MIXER TRUCK<RA2> L=1520 		1-33652-424-2 01 1 9002- ●
6 ROD; LINK,3RD SELECT
EXC. MIXER TRUCK<RA2> L=1440 		1-33652-423-2 01 1 9002- ● ●
6 ROD; LINK,3RD SELECT
ASSISTER SHIFT CONTROL<WX8> L=1238 		1-33652-583-1 01 1 9002- ●
6 ROD; LINK,3RD SELECT
EXC. ASSISTER SHIFT CONTROL<WX8> L=1255 		1-33652-330-0 01 1 9002- ●
6 ROD; LINK,3RD SELECT
10PD1 STD ENG(40L) ASSISTER SHIFT CONTROL<WX8> L=1408 		1-33652-606-1 01 1 9002- ● ●
6 ROD; LINK,3RD SELECT
10PD1 STD ENG(40L) EXC. ASSISTER SHIFT CONTROL<WX8> L=1409 		1-33652-444-0 01 1 9002-9306 ● ●
6 ROD; LINK,3RD SELECT
10PD1 STD ENG(40L) EXC. ASSISTER SHIFT CONTROL<WX8> L=1409 		1-33652-444-0 01 1 9307- ● ●
6 ROD; LINK,3RD SELECT
FIRE TRUCK<RA9> L=1409 		1-33652-444-0 01 1 9307- ●
6 ROD; LINK,3RD SELECT
12PD1 C ENG(43L) L=1502 		1-33652-585-1 01 1 9307- ●
6 ROD; LINK,3RD SELECT
ASSISTER SHIFT CONTROL<WX8> L=1570 		1-33652-498-1 01 1 9211-9304 ●
6 ROD; LINK,3RD SELECT
FIRE TRUCK<RA9> L=1570 		1-33652-498-1 01 1 9305-9306 ●
6 ROD; LINK,3RD SELECT
6RB1 STD ENG(07L) L=1570 		1-33652-498-1 01 1 9305-9306 ● ● ●
8 ROD; LINK,4TH SHIFT
L=120 		1-33652-336-1 01 1 9002-9402 ● ●
8 ROD; LINK,4TH SHIFT
L=174 		1-09765-205-0 01 1 9403- ● ●
8 ROD; LINK,4TH SHIFT
ASSISTER SHIFT CONTROL<WX8> L=175 		1-09765-200-0 01 1 9002-9106 ●
8 ROD; LINK,4TH SHIFT
ASSISTER SHIFT CONTROL<WX8> L=165 		1-09765-249-1 01 1 9107- ●
8 ROD; LINK,4TH SHIFT
EXC. ASSISTER SHIFT CONTROL<WX8> L=345 		1-33652-323-1 01 1 9002-9501 ● ●
8 ROD; LINK,4TH SHIFT
EXC. ASSISTER SHIFT CONTROL<WX8> L=335 		1-33652-655-1 01 1 9502-9602 ● ●
8 ROD; LINK,4TH SHIFT
EXC. ASSISTER SHIFT CONTROL<WX8> L=337 		1-33652-767-0 01 1 9603- ● ●
8 ROD; LINK,4TH SHIFT
ASSISTER SHIFT CONTROL<WX8> L=330 		1-33652-405-0 01 1 9002-9103 ● ●
8 ROD; LINK,4TH SHIFT
ASSISTER SHIFT CONTROL<WX8> L=320 		1-33652-648-1 01 1 9104- ● ●
8 ROD; LINK,4TH SHIFT
10PD1 STD ENG(40L),12PD1 C ENG(43L) EXC. ASSISTER SHIFT CONTROL<WX8> L=502 		1-33652-445-1 01 1 9002-9501 ● ●
8 ROD; LINK,4TH SHIFT
10PD1 STD ENG(40L),12PD1 C ENG(43L) EXC. ASSISTER SHIFT CONTROL<WX8> L=490 		1-33652-749-0 01 1 9502- ● ●
8 ROD; LINK,4TH SHIFT
6RB1 STD ENG(07L) EXC. ASSISTER SHIFT CONTROL<WX8> L=277 		1-33652-398-2 01 1 9002- ● ● ●
8 ROD; LINK,4TH SHIFT
ASSISTER SHIFT CONTROL<WX8> L=110 		1-09765-230-1 01 1 9211-9306 ●
16 JOINT ASM; BALL,CONT ROD
(A) L=48 		1-09760-038-1 02 1 9002- ● ● ● ● ● ● ●
16 JOINT ASM; BALL,CONT ROD
EXC. ASSISTER SHIFT CONTROL<WX8>,CAB SUSPENSION RIGID(W71) (B) 		1-09760-078-0 02 1 9301- ● ● ● ● ● ● ●
22 JOINT; BALL,SCREW,LINK ROD
CAB SUSPENSION RIGID(W71) EXC. ASSISTER SHIFT CONTROL<WX8> (A) 		1-09760-078-0 02 1 9002- ● ● ● ● ● ● ●
22 JOINT; BALL,SCREW,LINK ROD
ASSISTER SHIFT CONTROL<WX8> (B) 		1-09760-036-1 01 1 9002- ● ● ● ●
23 WASHER; LK,2ND LINK ROD
ID=10.2 		9-09150-510-0 02 1 9002-9301 ● ● ● ● ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 		9-09110-410-0 02 1 9002-9301 ● ● ● ● ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 		1-09440-050-0 02 1 9302- ● ● ● ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9301- ● ● ● ● ● ● ●
26 JOINT; BALL,RIGHT SCREW,LINK ROD
L=48 		1-09760-038-1 02 1 9002- ● ● ● ● ● ● ●
27 WASHER; LK,2ND LINK ROD
ID=8.2 		9-09150-508-0 02 1 9002-9301 ● ● ● ● ● ●
28 NUT; 2ND LINK ROD
M8 		9-09110-408-0 02 1 9002-9301 ● ● ● ● ● ●
28 NUT; 2ND LINK ROD
M8 FLANGE 		1-09440-049-0 02 1 9302- ● ● ● ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M8 		9-09111-408-0 02 1 9002- ● ● ● ● ● ● ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-078-0 02 1 9002- ● ● ● ● ● ● ●
31 WASHER; LK,3RD LINK ROD
ID=10.2 		9-09150-510-0 02 1 9002- ● ● ● ● ● ● ●
32 NUT; 3RD LINK ROD
M10 		9-09110-410-0 02 1 9002-9301 ● ● ● ● ● ●
32 NUT; 3RD LINK ROD
M10 FLANGE 		1-09440-050-0 02 1 9302- ● ● ● ● ● ● ●
35 NUT; LK,RIGHT SCREW,LINK ROD
MIXER TRUCK<RA2> M10 		9-09110-410-0 02 1 9002-9306 ●
35 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9002- ● ● ● ● ● ● ●
35 NUT; LK,RIGHT SCREW,LINK ROD
12PD1 C ENG(43L) M10 		9-09110-410-0 02 1 9307- ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
L=48 		1-09760-038-1 02 1 9002- ● ● ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
10PD1 STD ENG(40L),12PD1 C ENG(43L) L=48 		1-09760-038-1 02 1 9002- ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
FIRE TRUCK<RA9> L=48 		1-09760-038-1 02 1 9002- ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
6RB1 STD ENG(07L) RH THREAD 		1-09760-039-1 02 1 9002- ● ● ●
37 WASHER; LK,3RD LINK ROD
ID=8.2 		9-09150-508-0 02 1 9002-9301 ● ● ● ● ● ●
38 NUT; 3RD LINK ROD
M8 		9-09110-408-0 02 1 9002-9301 ● ● ● ● ● ●
38 NUT; 3RD LINK ROD
M8 FLANGE 		1-09440-049-0 02 1 9302- ● ● ● ● ● ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
M8 		9-09111-408-0 02 1 9002- ● ● ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
10PD1 STD ENG(40L),12PD1 C ENG(43L) M8 		9-09111-408-0 02 1 9002- ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
FIRE TRUCK<RA9> M8 		9-09111-408-0 02 1 9002- ●
44 NUT; LK,RIGHT SCREW,LINK ROD
6RB1 STD ENG(07L) M10 		9-09111-410-0 02 1 9002- ● ● ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD
EXC. ASSISTER SHIFT CONTROL<WX8> (A),(B) 		1-09760-078-0 02 1 9303- ● ● ● ● ● ● ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD
6RB1 STD ENG(07L) (A),(B) 		1-09760-078-0 02 1 9002-9106 ● ● ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD
10PD1 STD ENG(40L) (A),(B) 		1-09760-078-0 02 1 9002-9106 ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD
ASSISTER SHIFT CONTROL<WX8> (A),(B) 		1-09760-078-0 02 1 9002-9106 ● ● ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD
6RB1 STD ENG(07L),10PD1 STD ENG(40L) (A),(B) 		1-09760-078-0 02 1 9002-9106 ● ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD
EXC. ASSISTER SHIFT CONTROL<WX8> (A),(B) 		1-09760-036-1 02 1 9002-9302 ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD
ASSISTER SHIFT CONTROL<WX8> (A),(B) 		1-09760-082-0 02 1 9107-9501 ● ● ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD
V TYPE ENG<91L> (A),(B) 		1-09760-116-0 02 1 9502- ● ● ● ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD
FIRE ENGINE PACKAGE<WS2> (A),(B) 		1-09760-116-0 02 1 9502- ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD
L TYPE ENG<90L> (C) 		1-09760-078-0 02 1 9502- ● ● ● ● ●
46 WASHER; LK,4TH LINK ROD
ID=10.2 		9-09150-510-0 02 1 9002-9301 ● ● ● ● ● ● ●
47 NUT; 4TH LINK ROD
M10 		9-09110-410-0 02 1 9002-9301 ● ● ● ● ● ●
47 NUT; 4TH LINK ROD
M10 		1-09440-050-0 02 1 9302- ● ● ● ● ● ● ●
49 NUT; LK,RIGHT SCREW,LINK ROD
EXC. ASSISTER SHIFT CONTROL<WX8> M10 		9-09111-410-0 02 1 9002-9501 ● ● ● ● ● ● ●
49 NUT; LK,RIGHT SCREW,LINK ROD
L TYPE ENG<90L> M10 		9-09111-410-0 02 1 9502- ● ● ● ● ●
49 NUT; LK,RIGHT SCREW,LINK ROD
FIRE ENGINE PACKAGE<WS2> M10 		9-09111-410-0 02 1 9502- ●
49 NUT; LK,RIGHT SCREW,LINK ROD
ASSISTER SHIFT CONTROL<WX8> M12 		9-99111-412-0 02 1 9107-9501 ● ● ●
49 NUT; LK,RIGHT SCREW,LINK ROD
V TYPE ENG<91L> M12 		9-99111-412-0 02 1 9502- ● ● ● ●
49 NUT; LK,RIGHT SCREW,LINK ROD
FIRE ENGINE PACKAGE<WS2> M12 		9-99111-412-0 02 1 9502- ●
112 JOINT; RUBBER
ASSISTER SHIFT CONTROL<WX8> 		1-33660-157-1 01 1 9002- ● ● ● ●
çizim 37131
57 39 58 60 39
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
39 GASKET; FLEX HOSE
ASSISTER SHIFT CONTROL<WX8> ID=11 OD=18 		9-09572-510-0 02 1 9002- ● ● ● ●
57 NIPPLE; POWER ASSISTOR
ASSISTER SHIFT CONTROL<WX8> 		1-09660-137-0 01 1 9002-9302 ● ● ● ●
57 NIPPLE; POWER ASSISTOR
ASSISTER SHIFT CONTROL<WX8> 		1-09660-681-0 01 1 9303- ● ● ● ●
58 HOSE; FLEX,POWER ASSISTOR
ASSISTER SHIFT CONTROL<WX8> L=230 		0-07150-230-0 01 1 9002- ●
58 HOSE; FLEX,POWER ASSISTOR
ASSISTER SHIFT CONTROL<WX8> L=340 		0-07150-340-0 01 1 9002-9103 ● ● ●
58 HOSE; FLEX,POWER ASSISTOR
ASSISTER SHIFT CONTROL<WX8> L=360 		0-07150-360-0 01 1 9104- ● ● ●
60 CLIP; FLEX HOSE
ASSISTER SHIFT CONTROL<WX8> 		1-09709-183-1 01 1 9002-9103 ● ●
60 CLIP; FLEX HOSE
ASSISTER SHIFT CONTROL<WX8> 		8-94178-797-0 01 1 9104-9204 ● ●
çizim 39105

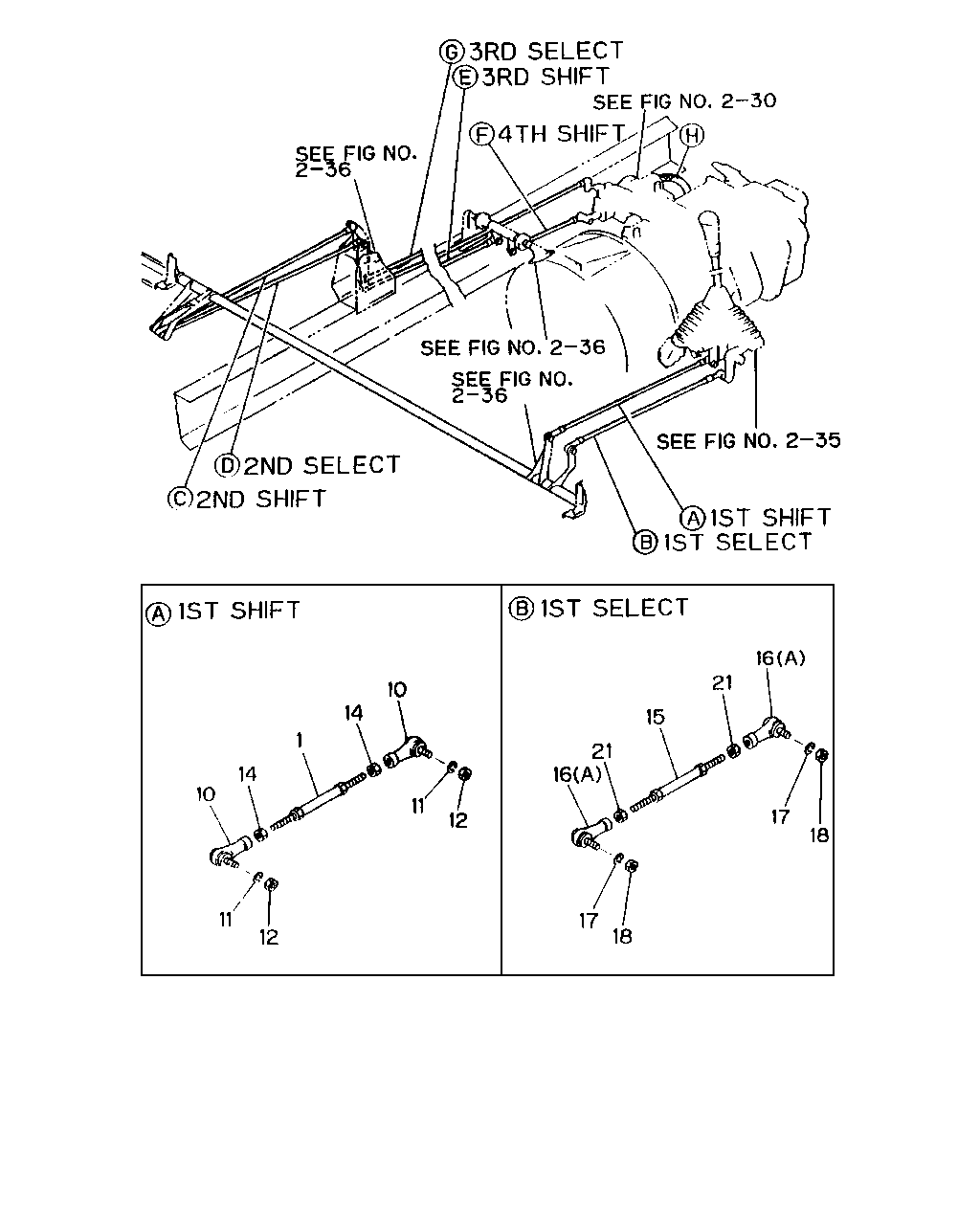

10 14 1 14 10 11 12 11 12 16 21 15 21 16 17 18 17 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 ROD; LINK,1ST SHIFT
L=498 		1-33652-269-1 01 1 9002- ● ● ● ● ● ● ●
10 JOINT ASM; BALL,SELECT ROD 1-09760-078-0 02 1 9002- ● ● ● ● ● ●
11 WASHER; LK,1ST LINK ROD,SHIFT
ID=10.2 		9-09150-510-0 02 1 9002-9301 ● ● ● ● ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
M10 		9-09110-510-0 02 1 9002-9301 ● ● ● ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-050-0 02 1 9302- ● ● ● ● ● ● ●
14 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9002- ● ● ● ● ● ● ●
15 ROD; LINK 1ST SHIFT
L=513 		1-33652-318-1 01 1 9002- ● ● ● ● ● ● ●
16 JOINT ASM; BALL,CONT ROD
(A) L=48 		1-09760-038-1 02 1 9002- ● ● ● ● ● ● ●
16 JOINT ASM; BALL,CONT ROD
EXC. ASSISTER SHIFT CONTROL<WX8>,CAB SUSPENSION RIGID(W71) (B) 		1-09760-078-0 02 1 9301- ● ● ● ● ● ● ●
17 WASHER; LK,1ST LINK ROD
ID=8.2 		9-09150-508-0 02 1 9002-9301 ● ● ● ● ● ● ●
18 NUT; 1ST LINK ROD
M8 		9-09110-508-0 02 1 9002-9301 ● ● ● ● ● ●
18 NUT; 1ST LINK ROD
M8 FLANGE 		1-09440-049-0 02 1 9302- ● ● ● ● ● ● ●
21 NUT; LK,RIGHT SCREW,LINK ROD
M8 		9-09111-408-0 02 1 9002- ● ● ● ● ● ● ●
