3 - Brakes, Brake System
▶

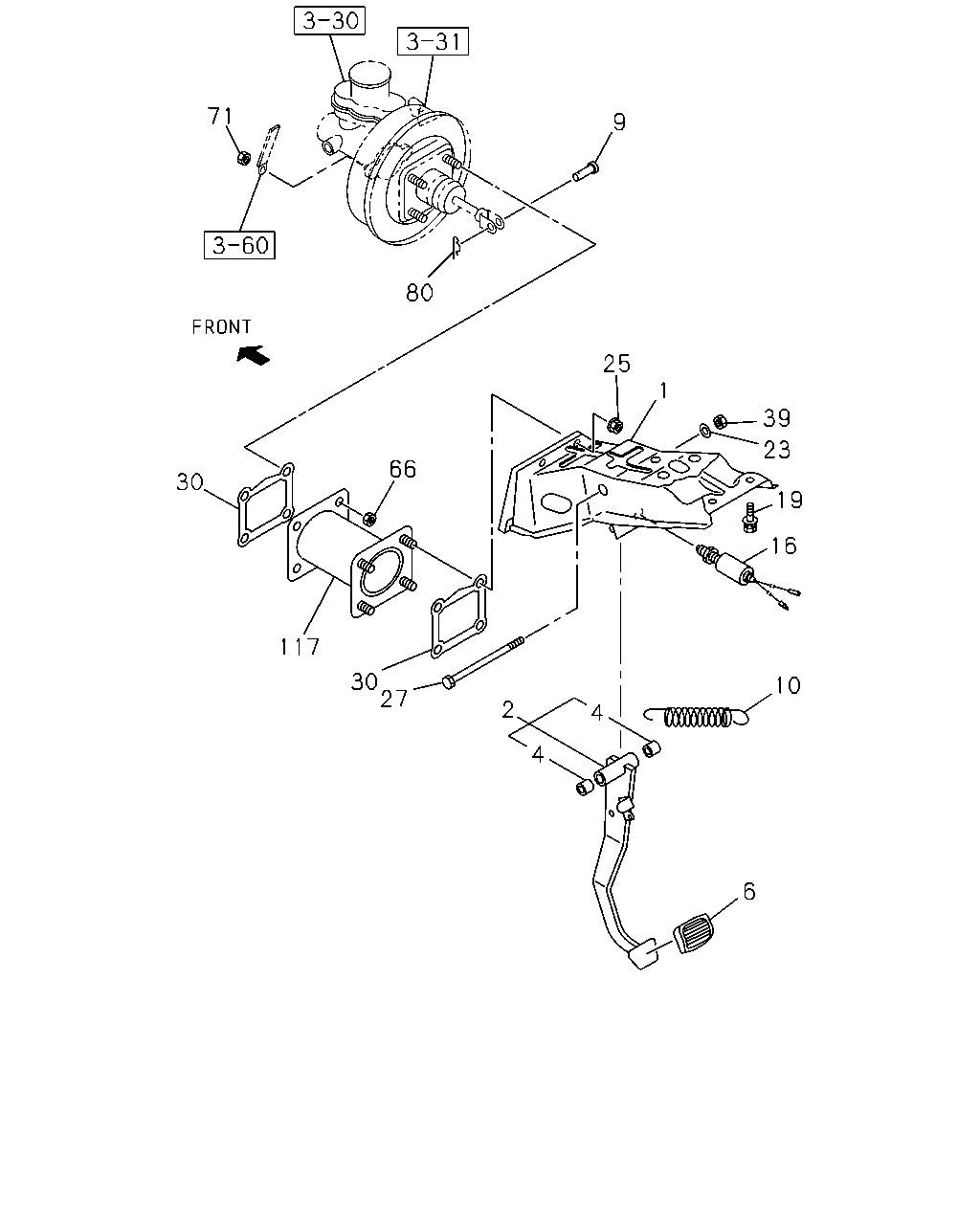

3-10 - BRAKE PEDAL AND CONTROL
▶
3-10 — BRAKE PEDAL AND CONTROL
(#33599) — 26 parça
71
9
80
25
1
39
23
66
30
19
16
117
30
27
10
2
4
4
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET ASM; PEDAL
M/T MSG 5 SPEED(M75)
8-97130-425-0
01
1
0610-0610
1
BRACKET ASM; PEDAL
8-97130-425-0
01
1
0611-
2
PEDAL; BRK
A/T AISIN(RMD)
8-97211-343-0
01
1
0611-
2
PEDAL; BRK
M/T MSG 5 SPEED(M75)
8-97130-426-0
01
1
0610-
4
BUSHING; BRK PEDAL
M/T MSG 5 SPEED(M75)
8-94244-439-0
02
1
0610-0610
4
BUSHING; BRK PEDAL
8-94244-439-0
02
1
0611-
6
COVER; BRK PEDAL
A/T AISIN(RMD)
5-31413-004-0
01
1
0611-
6
COVER; BRK PEDAL
M/T MSG 5 SPEED(M75)
8-94222-524-1
01
1
0610-
9
PIN; JAW JOINT
8-94250-182-0
01
1
0610-
10
SPRING; RETURN,BRK PEDAL
M/T MSG 5 SPEED(M75)
8-94329-696-0
01
1
0610-0610
10
SPRING; RETURN,BRK PEDAL
8-94329-696-0
01
1
0611-
16
SWITCH; STOP LAMP
8-94118-754-1
01
1
0610-
19
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
05
1
0610-
23
WASHER; LK,SHAFT
M/T MSG 5 SPEED(M75) ID=10.2
0-91510-510-0
01
1
0610-0610
23
WASHER; LK,SHAFT
ID=10.2
0-91510-510-0
01
1
0611-
25
NUT; FLANGE,MTG BRKT TO BODY
M8 FLANGE
5-09440-005-0
04
1
0610-0805
25
NUT; FLANGE,MTG BRKT TO BODY
M8 FLANGE
8-97581-233-0
04
1
0806-
27
SHAFT; BRK PEDAL
M/T MSG 5 SPEED(M75)
8-94480-803-0
01
1
0610-0610
27
SHAFT; BRK PEDAL
8-94480-803-0
01
1
0611-
30
GASKET; M/VAC TO BODY
THA
8-97943-457-0
02
1
0610-
39
NUT; STOPPER LK
M/T MSG 5 SPEED(M75) M10
0-91110-510-0
01
1
0610-0610
39
NUT; STOPPER LK
M10
0-91110-510-0
01
1
0611-
66
NUT; SERVO TO BRKT
THA
8-97943-949-0
04
1
0610-
71
NUT; BRK M/CYL
THA
8-97943-949-0
02
1
0610-
80
PIN; SNAP,BRK PEDAL
L=27.7
8-94157-841-0
01
1
0610-
117
SPACER; M/VAC TO BODY
THA
8-97943-938-0
01
1
0610-
