Isuzu WW
▶
AUV
▶
TBR
▶
51128 - TBR-LHD
▶
3 - Brakes, Brake System
▶
3-02 - FRONT DISC BRAKE CALIPER
▶

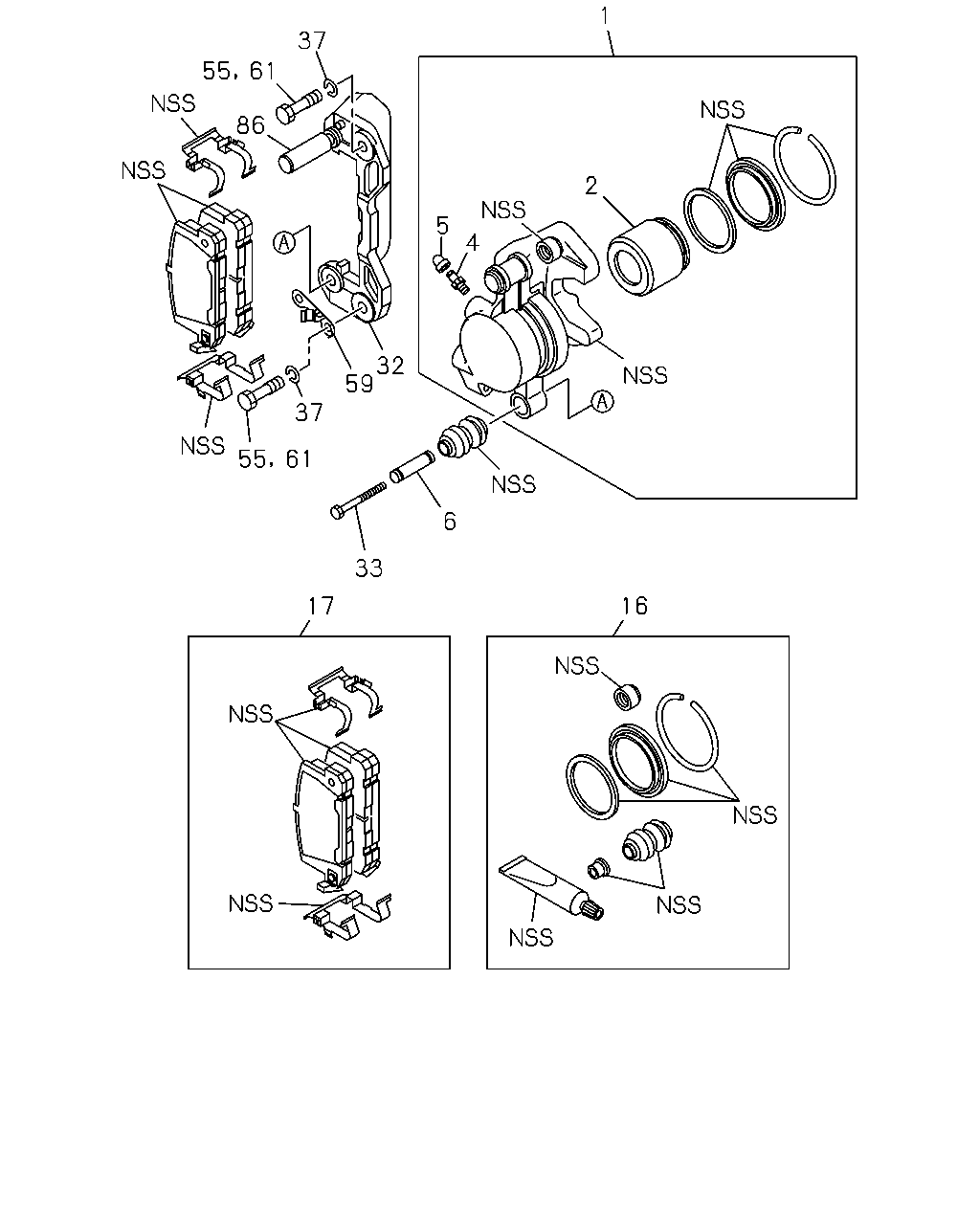

3-02 — FRONT DISC BRAKE CALIPER
(#33597) — 16 parça
1
37
55
61
86
2
5
4
32
59
37
55
61
6
33
17
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CALIPER; FRT DISC BRK
IDN
8-97956-915-0
01
1
0610-
1
CALIPER; FRT DISC BRK
IDN
8-97956-914-0
01
1
0610-
2
PISTON; CALIPER,DISC BRK,FRT
IDN
8-94438-689-0
02
1
0610-
4
SCREW; BLEEDER,DISC BRK,FRT
IDN
8-97113-867-0
02
1
0610-
5
CAP; BLEEDER,DISC BRK,FRT
IDN
1-47619-009-0
02
1
0610-
6
SLEEVE; BOOT,CALIPER
IDN
8-94136-644-0
02
1
0610-
16
REPAIR KIT; CALIPER,DISC BRK,FRT
IDN
8-97134-715-0
01
1
0610-
17
PAD KIT; CALIPER,DISC BRK,FRT
IDN
8-97956-925-0
01
1
0610-
32
SUPPORT; FRT DISC BRK
IDN
8-97956-918-0
02
1
0610-
33
BOLT; SUPPORT BRKT TO DISC BRK
M10X59.5 IDN
8-94438-712-0
02
1
0610-
37
WASHER; LK
ID=14.2
0-91510-814-0
04
1
0610-
55
BOLT; SUPPORT BRKT TO DISC BRK
M14X29
8-97327-422-0
02
1
0610-
59
BRACKET; FLEX HOSE,FRT
8-94433-667-1
01
1
0610-
59
BRACKET; FLEX HOSE,FRT
8-94433-666-1
01
1
0610-
61
BOLT; SUPPORT BRKT TO KNUCKLE
M14X29
8-97327-422-0
02
1
0610-
86
PIN; GUIDE
IDN
8-94438-694-0
02
1
0610-
