2-49 — AUTO TRANS INHIBITOR SWITCH (#33591) — 33 parça

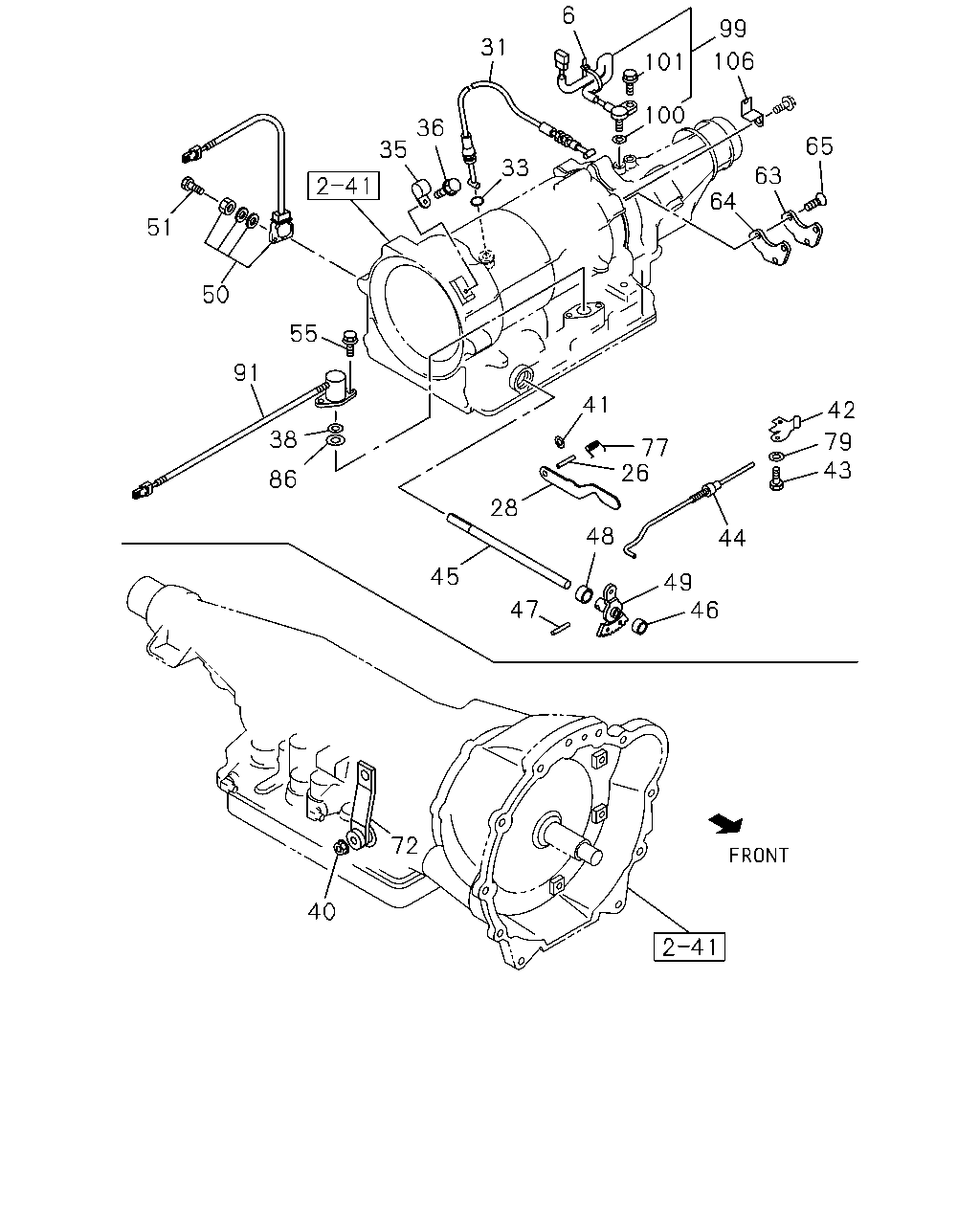

çizim 56623
6 99 31 106 101 100 36 35 65 33 63 64 51 50 55 91 41 42 38 79 43 77 26 86 28 48 44 45 49 46 47 72 40
BalonParca AdiParca NoAdetTipApplied Date
6 CLAMP; WIRING HARNESS,A/T 8-94473-565-0 01 1 0611-
26 SHAFT; PARKING PAWL,A/T 8-94473-587-0 01 1 0611-
28 PAWL; PARKING,A/T 8-97200-273-0 01 1 0611-
31 CABLE; THROTTLE,A/T 8-97264-784-1 01 1 0611-
33 GASKET; THROTTLE CABLE 8-94364-922-0 01 1 0611-
35 CLAMP; THROTTLE CABLE 8-97264-785-0 01 1 0611-
36 BOLT; CLAMP,THROTTLE CABLE
M6X10 		8-94252-680-0 01 1 0611-
38 GASKET; SOLENOID INNER 8-94479-719-0 01 1 0611-
40 NUT; LEVER TO SHAFT
M8 FLANGE 		0-91180-108-0 01 1 0611-
41 RETAINER; SPR,SHAFT 5-34488-002-0 01 1 0611-
42 BRACKET; PARKING LOCK 8-94323-522-0 01 1 0611-
43 BOLT; BRKT 8-94323-523-0 02 1 0611-
44 ROD ASM; PARKING PAWL 8-94473-589-0 01 1 0611-
45 SHAFT; VALVE LEVER 8-97264-788-0 01 1 0611-
46 SEAL; OIL 8-97065-695-0 02 1 0611-
47 PIN; ROLL SHAFT
D=4 		8-94257-081-0 01 1 0611-
48 COVER; SLEEVE 5-34125-002-0 01 1 0611-
49 LEVER ASM; CAM 8-97209-029-0 01 1 0611-
50 SWITCH; NEUTRAL,A/T 8-97209-145-0 01 1 0611-
51 SCREW; NEUTRAL SW,A/T 8-97200-272-0 01 1 0611-
55 BOLT; SOLENOID TO HSG,A/T
M8X14 W/WASHER 		8-94480-043-0 01 1 0611-
63 COVER; OIL GALLERY 5-34125-001-0 01 1 0611-
64 GASKET; OIL GALLERY COVER 8-97032-926-0 01 1 0611-
65 SCREW; COVER TO CASE 5-34128-001-0 03 1 0611-
72 LEVER; SELECT CONT 8-97174-097-0 01 1 0611-
77 SPRING; TORSION,PARKING BRK LK,A/T 8-94473-588-0 01 1 0611-
79 WASHER; PARKING BRK LK,A/T 5-34169-002-0 02 1 0611-
86 PLATE; SAFETY DEVICE 8-94479-720-0 01 1 0611-
91 HARNESS ASM; CABLE,A/T CONT 8-97264-787-0 01 1 0611-
99 SENSOR; SPD 8-97184-423-0 01 1 0611-
100 GASKET; SPD SENSOR 8-97184-424-0 01 1 0611-
101 BOLT; SPD SENSOR 8-94244-565-0 01 1 0611-
106 BRACKET; HARNESS 8-97264-786-0 01 1 0611-
