◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 51128 - TBR-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-48 - AUTO TRANS MULTIPLE-DISC CLUTCH ▶
2-48 — AUTO TRANS MULTIPLE-DISC CLUTCH (#33590) — 35 parça

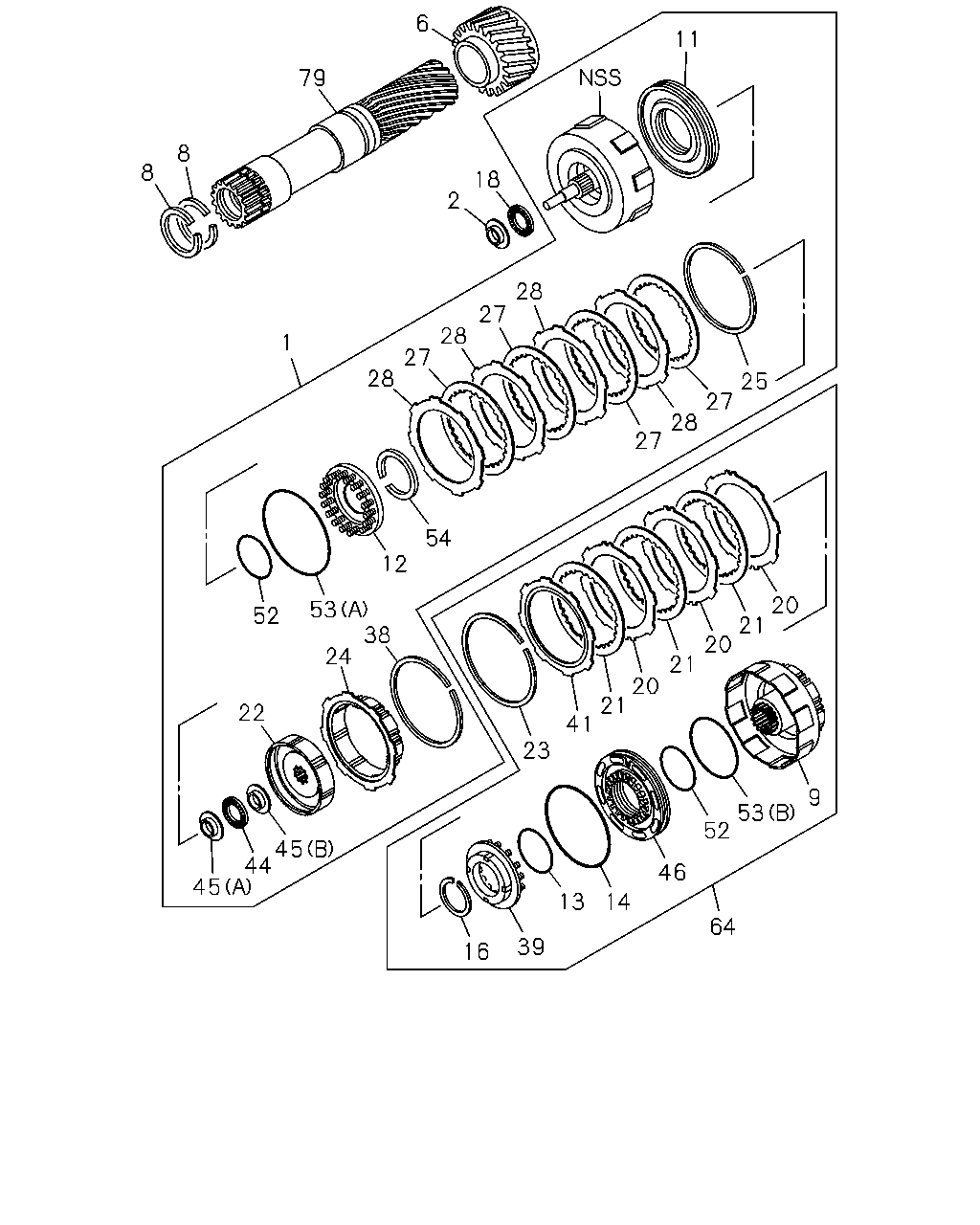

çizim 14216
6 11 79 8 8 18 2 28 27 28 27 28 1 25 27 28 27 54 12 20 53 38 52 21 20 24 21 20 21 22 41 23 9 53 52 45 44 46 45 13 14 64 39 16
BalonParca AdiParca NoAdetTipApplied Date
1 HUB ASM; CLU,INPUT SHAFT,A/T 8-97264-808-0 01 1 0611-
2 RACE; THRUST BRG,A/T 5-34218-001-0 01 1 0611-
6 GEAR; PLANETARY SUN,RR A/T 8-94405-309-0 01 1 0611-
8 RING; SEAL,PLANETARY GEAR,A/T 5-34314-001-0 02 1 0611-
9 HUB SUB ASM; DIRECT CLU & BRK,A/T 8-94165-991-0 01 1 0611-
11 PISTON ASM; CLU,A/T 8-94400-884-0 01 1 0611-
12 SPRING; CLU RETURN,A/T 8-97065-696-0 01 1 0611-
13 GASKET; INNER,CLU,A/T 8-97184-348-0 01 1 0611-
14 GASKET; OUTER,CLU,A/T 8-94364-920-0 01 1 0611-
16 RING; SNAP,CLU,A/T 5-34268-004-0 01 1 0611-
18 BEARING; THRUST,CLU,A/T 5-34218-002-0 01 1 0611-
20 DISC; CLU,A/T
T=2.0 		8-94250-338-0 03 1 0611-
21 DISC ASM; CLU & FACING,A/T 8-97264-809-0 03 1 0611-
22 HUB; FWD CLU,A/T 8-97264-810-0 01 1 0611-
23 RING; RET,CLU,A/T 5-34258-002-0 01 1 0611-
24 HUB; DIRECT CLU INPUT,A/T 8-94239-555-0 01 1 0611-
25 RING; RET,BACKING PLATE,A/T 5-34258-001-0 01 1 0611-
27 DISC ASM; CLU & FACING,A/T 8-97264-809-0 04 1 0611-
28 DISC; CLU,A/T
T=2.0 		8-94250-338-0 04 1 0611-
28 DISC; CLU,A/T
T=1.8 		8-94473-590-0 04 1 0611-
38 RING; RET,CLU,A/T 8-97128-818-0 01 1 0611-
39 SPRING; DIRECT CLU RETURN 8-97065-697-0 01 1 0611-
41 FLANGE; DIRECT CLU
H=3.95 		5-34256-002-0 01 1 0611-
41 FLANGE; DIRECT CLU
H=3.55 		8-97264-814-0 01 1 0611-
41 FLANGE; DIRECT CLU
H=3.75 		8-97264-815-0 01 1 0611-
44 BEARING; THRUST,INPUT SHAFT RR 5-34218-002-0 01 1 0611-
45 RACE; THRUST BRG,INPUT SHAFT
(A) 		5-34218-001-0 01 1 0611-
45 RACE; THRUST BRG,INPUT SHAFT
(B) 		5-34218-005-0 01 1 0611-
46 PISTON; DIRECT CLU,A/T 8-94165-992-0 01 1 0611-
52 GASKET; PISTON INNER,DIRECT CLU,A/T 8-97184-348-0 02 1 0611-
53 GASKET; PISTON OUTER,DIRECT CLU,A/T
(A) 		8-94364-920-0 01 1 0611-
53 GASKET; PISTON OUTER,DIRECT CLU,A/T
(B) 		8-97264-812-0 01 1 0611-
54 RING; SNAP,PISTON RETURN SPRING 5-34268-004-0 01 1 0611-
64 DRUM ASM; DIRECT CLU,A/T 8-97264-811-0 01 1 0611-
79 GEAR ASM; INPUT SUN 8-94405-308-0 01 1 0611-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
