2-36B — MANUAL TRANSMISSION CONT LINK AND CABLE (#3359) — 109 parça

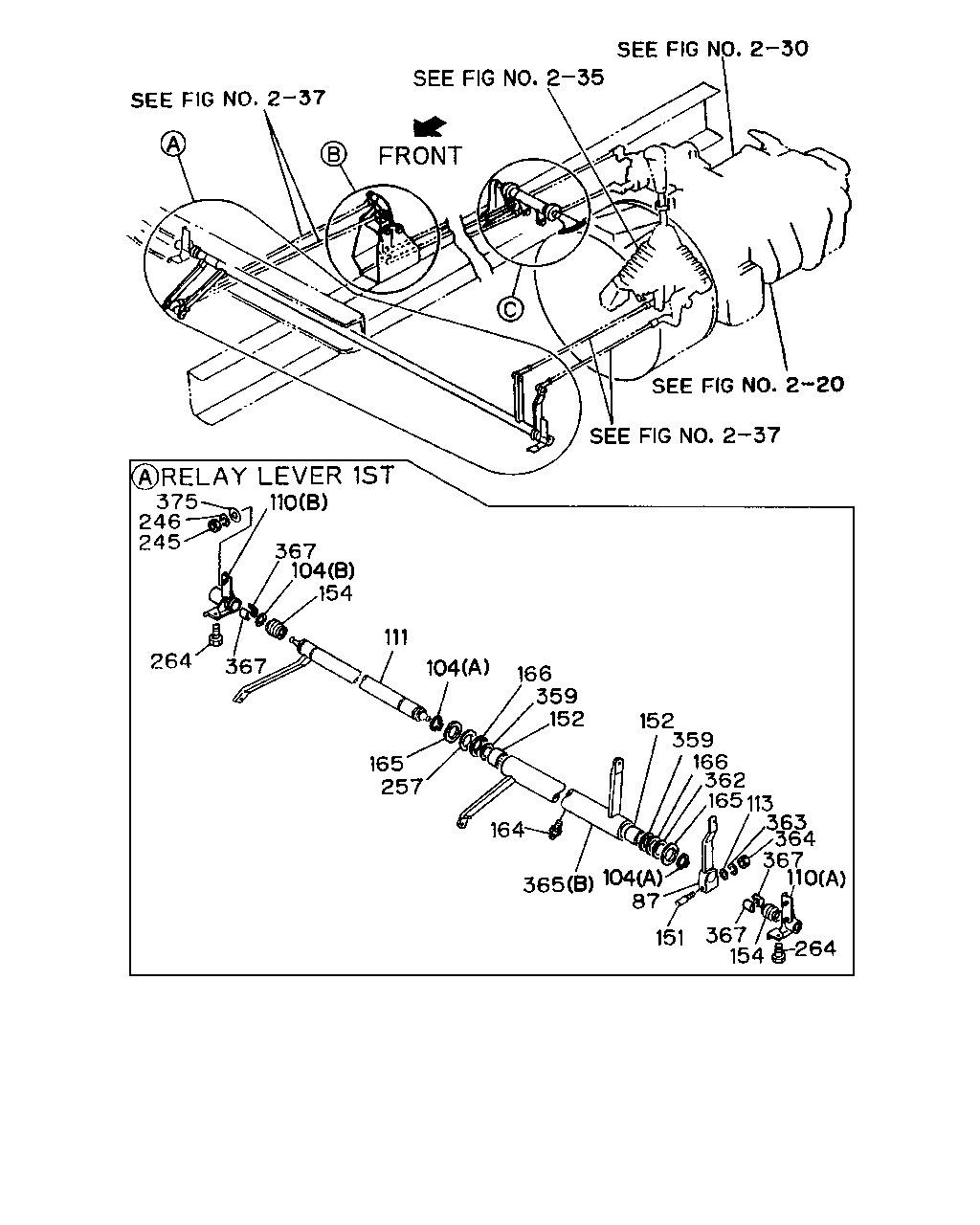

110 375 246 245 367 104 154 367 264 111 104 165 257 166 359 152 152 359 166 362 165 113 363 364 367 110 264 154 367 151 87 104 365 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
87	LEVER; RELAY,SELECT	1-33651-327-1	01	1	9002-	●	●	●	●
104	RING; SNAP (A) ID=32.2	9-09180-035-0	02	1	9307-	●	●	●	●
104	RING; SNAP (B) OD=23.5	9-09180-122-0	01	1	9307-	●	●	●	●
110	BRACKET; RELAY LEVER,1ST (A)	1-33657-261-3	01	1	9307-	●	●	●	●
110	BRACKET; RELAY LEVER,1ST (B)	1-33657-383-0	01	1	9307-	●	●	●	●
111	SHAFT; RELAY LEVER,1ST	1-33659-103-2	01	1	9307-	●	●	●	●
113	WASHER; RELAY LEVER ID=10.5 OD=26	9-09160-710-0	01	1	9002-	●	●	●	●
151	BOLT; KEY,RELAY LEVER	1-33659-063-0	01	1	9002-	●	●	●	●
152	BEARING; NEEDLE,RELAY LEVER	1-09811-328-0	02	1	9002-	●	●	●	●
154	COVER; DUST,RELAY LEVER	1-33659-068-0	02	1	9002-	●	●	●	●
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD PT1/8 ELBOW 67.5?	9-09031-110-0	01	1	9002-	●	●	●	●
165	WASHER; RELAY LEVER	1-09503-148-0	AR	1	9002-	●	●	●	●
166	WASHER; NYLON,RELAY LEVER	1-09509-040-0	02	1	9002-	●	●	●	●
245	NUT; BRKT,RELAY LEVER M8	9-09110-508-0	04	1	9002-	●	●	●	●
246	WASHER; LK,BRKT,RELAY LEVER ID=8.2	9-09150-508-0	04	1	9002-	●	●	●	●
257	PIECE; DIST,RELAY LEVER	1-09503-198-0	AR	1	9002-	●	●	●	●
264	BOLT; BRKT,RELAY LEVER M8X25 W/LK&PL WASHER	9-01970-825-0	02	1	9002-9005	●	●	●	●
264	BOLT; BRKT,RELAY LEVER M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9006-	●	●	●	●
359	SEAL; RUBBER,RELAY LEVER	1-09625-005-1	02	1	9002-	●	●	●	●
362	SHIM	1-09503-172-0	AR	1	9002-	●	●	●	●
363	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	01	1	9002-	●	●	●	●
364	NUT; KEY BOLT M10	9-09111-410-0	01	1	9002-	●	●	●	●
365	LEVER; RELAY,SELECT 10PD1 STD ENG(40L),12PD1 C ENG(43L) (A)	1-33651-249-4	01	1	9002-	●	●
365	LEVER; RELAY,SELECT (B)	1-33651-328-2	01	1	9002-	●	●	●	●
365	LEVER; RELAY,SELECT 6RB1 STD ENG(07L) (A)	1-33651-295-1	01	1	9002-	●	●	●	●
367	SEAT; BALL,CONT SHAFT	1-33659-053-0	04	1	9002-	●	●	●	●
375	WASHER; PL,BRKT,RELAY LEVER ID=8.4	9-09160-508-0	04	1	9002-	●	●	●	●

71 33 243 34 35 34 46 162 34 46 71 242 34 33 71 35 46 34 34 162 34 34 46 71 206

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
33	BOLT; BRKT,3RD RELAY LEVER 10PD1 STD ENG(40L) M14X45	9-92051-445-0	01	1	9002-9005	●	●
33	BOLT; BRKT,3RD RELAY LEVER 10PD1 STD ENG(40L) M14X45	0-20801-445-0	01	1	9006-	●	●
33	BOLT; BRKT,3RD RELAY LEVER 6RB1 STD ENG(07L) M12X45	9-01911-245-0	02	1	9002-9005	●	●	●	●
33	BOLT; BRKT,3RD RELAY LEVER 6RB1 STD ENG(07L) M12X45 W/LK WASHER	0-50041-245-0	02	1	9006-	●	●	●	●
33	BOLT; BRKT,3RD RELAY LEVER 10PD1 STD ENG(40L) M10X45 W/LK WASHER	0-50041-045-0	01	1	9002-9205	●	●
33	BOLT; BRKT,3RD RELAY LEVER 10PD1 STD ENG(40L) M10X40 W/LK WASHER	0-50041-040-0	01	1	9206-	●	●
34	SEAT; BALL,RELAY LEVER	1-33659-118-0	04	1	9002-	●	●	●	●
35	RING; SNAP,RELAY LEVER OD=23.5	9-09180-122-0	01	1	9002-	●	●	●	●
46	SEAL; DUST,RELAY LEVER	1-33659-076-0	02	1	9002-	●	●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 6RB1 STD ENG(07L) (C)	1-33657-193-2	01	1	9002-	●	●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 6RB1 STD ENG(07L) (D)	1-33657-200-0	01	1	9002-	●	●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 10PD1 STD ENG(40L) (A)	1-33657-223-0	01	1	9002-	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 10PD1 STD ENG(40L) (B)	1-33657-188-0	01	1	9002-	●	●
162	LEVER; RELAY 6RB1 STD ENG(07L)	1-33651-338-1	01	1	9002-	●	●	●	●
162	LEVER; RELAY 10PD1 STD ENG(40L)	1-33651-403-3	01	1	9002-	●	●
206	BOLT; BRKT,3RD RELAY LEVER,ENG 6RB1 STD ENG(07L) M12X30 W/LK WASHER	9-01911-230-0	02	1	9002-9005	●	●	●	●
206	BOLT; BRKT,3RD RELAY LEVER,ENG 6RB1 STD ENG(07L) M12X30 W/LK WASHER	0-50041-230-0	02	1	9006-	●	●	●	●
242	NUT; FLANGE 3RD RELAY LEVER 10PD1 STD ENG(40L) M8 FLANGE	5-09440-005-0	04	1	9002-	●	●
243	WASHER; LK,BRKT 10PD1 STD ENG(40L) ID=14.2	9-09150-614-0	01	1	9002-	●	●

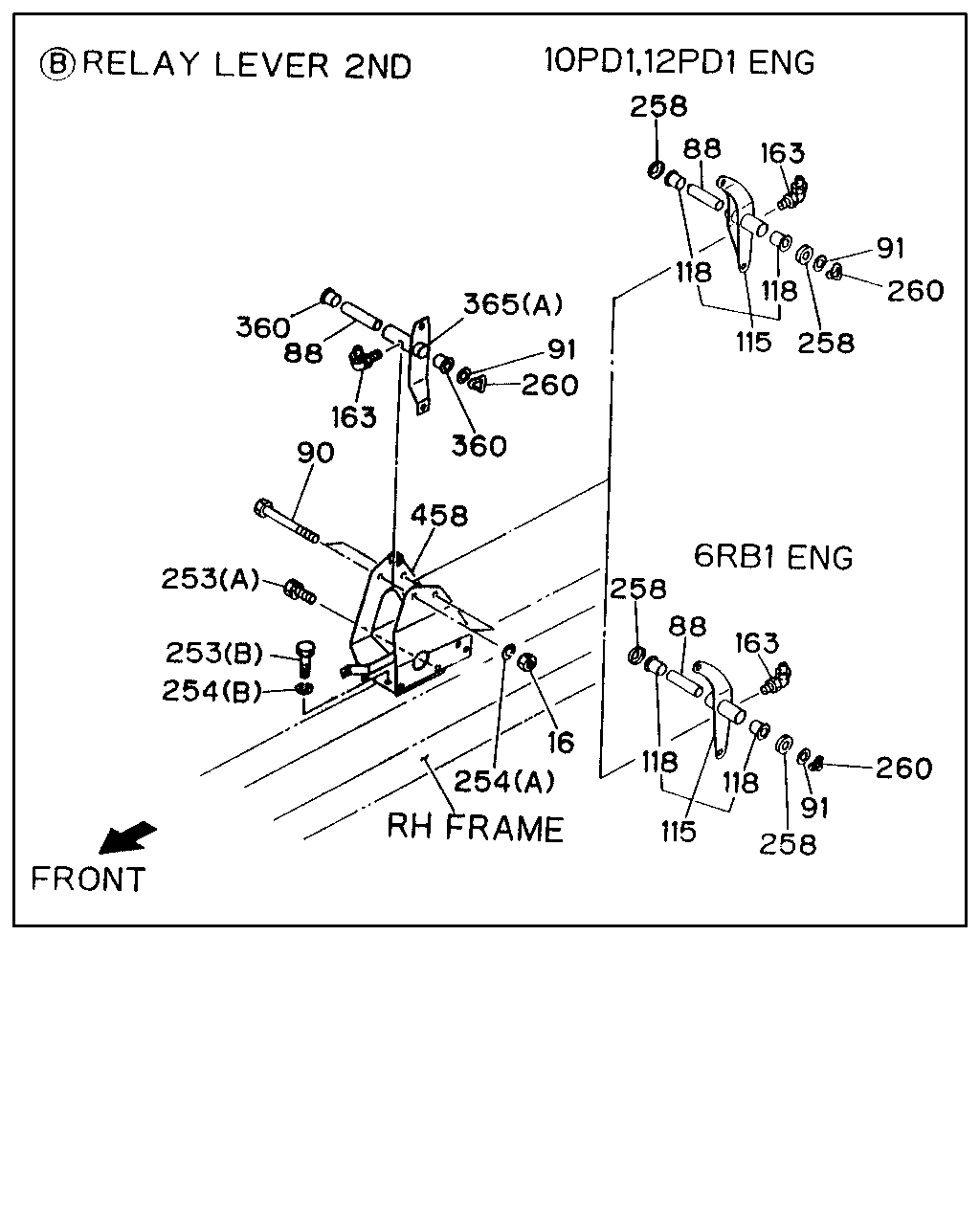

258 88 163 91 260 118 118 258 115 365 91 260 360 88 163 360 458 90 253 253 254 16 254 258 88 163 260 91 258 118 118 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
16	NUT; RELAY LEVER M14	9-99111-514-0	02	1	9002-	●	●	●	●
88	COLLAR; RELAY LEVER	1-33659-074-0	02	1	9002-	●	●	●	●
90	SHAFT	1-33619-125-0	02	1	9002-	●	●	●	●
91	SHIM; RELAY LEVER	1-33659-092-0	02	1	9002-	●	●	●	●
115	LEVER; RELAY,2ND SHIFT 6RB1 STD ENG(07L)	1-33651-505-1	01	1	9002-	●	●	●	●
115	LEVER; RELAY,2ND SHIFT 10PD1 STD ENG(40L)	1-33651-504-1	01	1	9002-	●	●
118	BUSHING; RELAY LEVER ID=22 OD=25 L=18	1-09330-050-0	02	1	9002-	●	●	●	●
163	NIPPLE; GREASE,RELAY LEVER PT1/8 ELBOW	9-09031-210-0	02	1	9002-	●	●	●	●
253	BOLT; BRKT,2ND RELAY LEVER (A) M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9002-	●	●	●	●
253	BOLT; BRKT,2ND RELAY LEVER 6RB1 STD ENG(07L) (B) M14X40	9-92051-440-0	02	1	9002-9005	●	●	●	●
253	BOLT; BRKT,2ND RELAY LEVER 6RB1 STD ENG(07L) (B) M14X40	0-20801-440-0	02	1	9006-	●	●	●	●
253	BOLT; BRKT,2ND RELAY LEVER 10PD1 STD ENG(40L) (B) M14X45	9-92051-445-0	02	1	9002-9005	●	●
253	BOLT; BRKT,2ND RELAY LEVER 10PD1 STD ENG(40L) (B) M14X45	0-20801-445-0	02	1	9006-	●	●
254	WASHER; LK,RELAY LEVER (A) ID=14.2	9-09150-514-0	02	1	9002-	●	●	●	●
254	WASHER; LK,RELAY LEVER (B) ID=14.2	9-09150-614-0	02	1	9002-	●	●	●	●
258	WASHER; RELAY LEVER	1-09509-041-0	02	1	9002-	●	●	●	●
260	WASHER; WAVED	1-33659-093-0	02	1	9002-	●	●	●	●
360	BUSHING; RELAY LEVER L=24	5-33659-054-0	02	1	9002-	●	●	●	●
365	LEVER; RELAY,SELECT 10PD1 STD ENG(40L),12PD1 C ENG(43L) (A)	1-33651-249-4	01	1	9002-	●	●
365	LEVER; RELAY,SELECT (B)	1-33651-328-2	01	1	9002-	●	●	●	●
365	LEVER; RELAY,SELECT 6RB1 STD ENG(07L) (A)	1-33651-295-1	01	1	9002-	●	●	●	●
458	BRACKET; 2ND RELAY LEVER	1-33657-210-4	01	1	9002-	●	●	●	●
458	BRACKET; 2ND RELAY LEVER 6RB1 STD ENG(07L)	1-33657-221-5	01	1	9002-	●	●	●	●

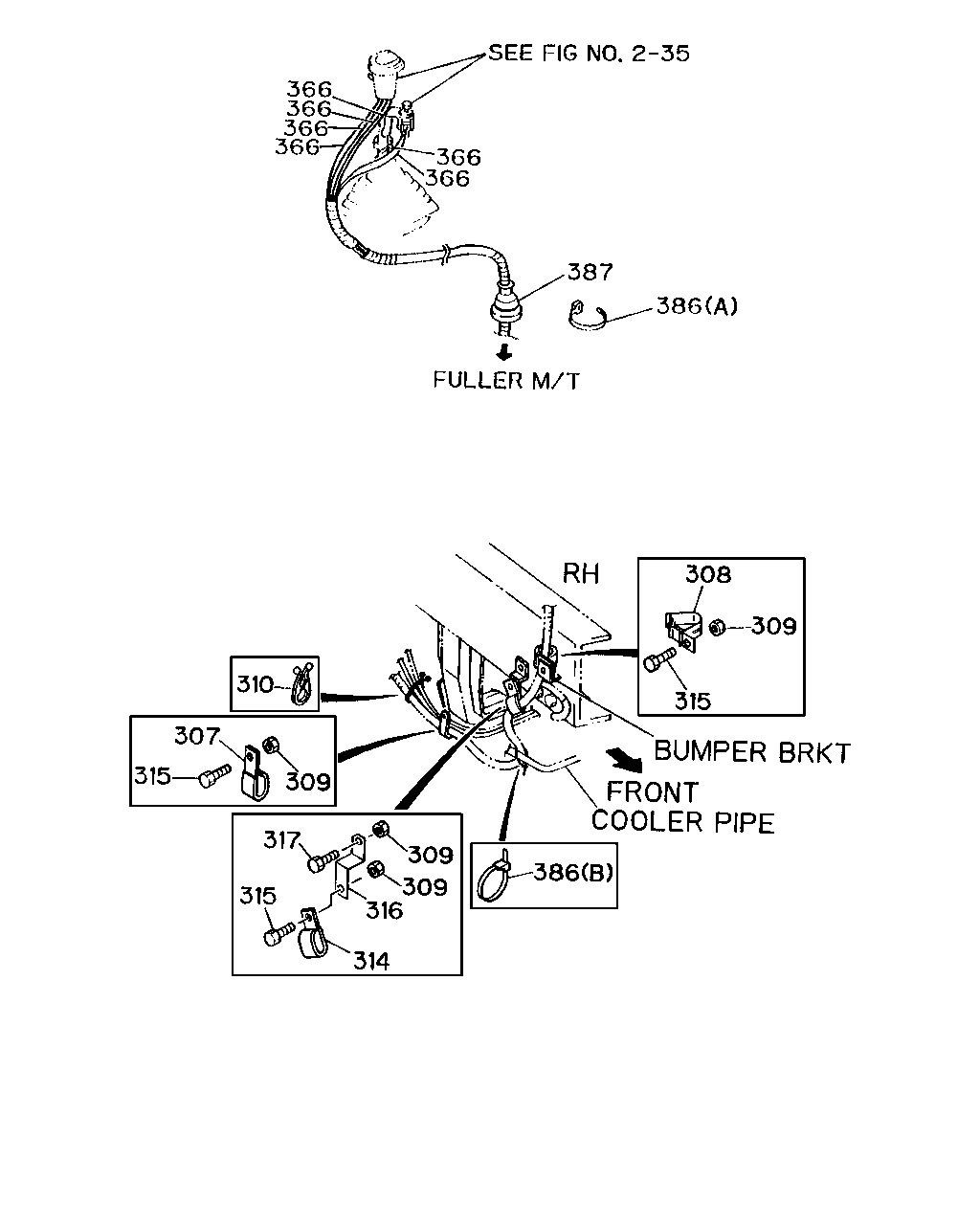

366 366 366 366 366 366 387 386 308 309 315 310 307 315 309 309 309 316 314 317 315 386

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
307	CLIP; PIPE BRKT ID=16 L=20	9-09525-536-0	01	1	9002-9007	●	●	●	●
308	CLIP; PIPE REINFORCEMENT BUMPER<VG7>	1-09700-780-1	01	1	9002-	●	●	●	●
308	CLIP; PIPE EXC. REINFORCEMENT BUMPER<VG7>	1-09700-772-2	01	1	9002-	●	●	●	●
309	NUT; PIPE CLIP REINFORCEMENT BUMPER<VG7> M8	9-09110-408-0	02	1	9002-	●	●	●	●
309	NUT; PIPE CLIP EXC. REINFORCEMENT BUMPER<VG7> M8	9-09110-408-0	01	1	9002-	●	●	●	●
309	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9002-	●	●	●	●
310	CLIP; TUBE 6RB1 STD ENG(07L) ID=13.5 & 11	1-09709-123-0	02	1	9002-9007	●	●	●	●
310	CLIP; TUBE 10PD1 STD ENG(40L) ID=13.5 & 9.5 & 11	1-09709-124-0	02	1	9002-9007	●	●
314	CLIP; PIPE,UNDER MBR ID=19.5X2 L=24.5	9-09917-356-0	01	1	9002-	●	●	●	●
315	BOLT; PIPE CLIP M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9007	●	●	●	●
315	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●	●	●
315	BOLT; PIPE CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●	●	●
315	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●	●	●
315	BOLT; PIPE CLIP REINFORCEMENT BUMPER<VG7> M8X20 W/LK&PL WASHER	9-01960-820-0	02	1	9002-9204	●	●	●	●
315	BOLT; PIPE CLIP REINFORCEMENT BUMPER<VG7> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9205-	●	●	●	●
315	BOLT; PIPE CLIP EXC. REINFORCEMENT BUMPER<VG7> M8X25 W/LK&PL WASHER	9-01960-825-0	01	1	9002-9204	●	●	●	●
315	BOLT; PIPE CLIP EXC. REINFORCEMENT BUMPER<VG7> M8X25 W/LK&PL WASHER	0-50140-825-0	01	1	9205-	●	●	●	●
316	BRACKET; CLIP	1-47465-449-1	01	1	9002-	●	●	●	●
317	BOLT; BRKT,SIDE MBR M8X30 W/LK WASHER	9-01900-830-0	01	1	9002-9204	●	●	●	●
317	BOLT; BRKT,SIDE MBR M8X30 W/LK WASHER	0-50040-830-0	01	1	9205-9302	●	●	●	●
317	BOLT; BRKT,SIDE MBR M8X30 FLANGE	0-28080-830-0	01	1	9303-	●	●	●	●
366	TUBE; NYLON,FULLER CONT L=6250 BLACK SERVICED BY L=30000 OD=3/8"	1-09369-315-0	AR	1	9002-9306	●	●	●	●
366	TUBE; NYLON,FULLER CONT L=5500 WHITE SERVICED BY L=30000	1-09368-256-0	AR	1	9002-9306	●	●
366	TUBE; NYLON,FULLER CONT 10PD1 STD ENG(40L) L=5500 RED	1-33619-359-0	01	1	9307-	●
366	TUBE; NYLON,FULLER CONT 10PD1 STD ENG(40L) L=5500 BLACK	1-33619-369-0	01	1	9307-	●
366	TUBE; NYLON,FULLER CONT 10PD1 STD ENG(40L) L=6050 BLUE	1-33619-377-0	01	1	9307-	●
366	TUBE; NYLON,FULLER CONT 10PD1 STD ENG(40L) L=5500 GREEN	1-33619-386-0	01	1	9307-	●
366	TUBE; NYLON,FULLER CONT 10PD1 STD ENG(40L) L=5150 YELLOW	1-33619-391-0	01	1	9307-	●
366	TUBE; NYLON,FULLER CONT 10PD1 STD ENG(40L) L=6050 ORANGE	1-33619-399-0	01	1	9307-	●
366	TUBE; NYLON,FULLER CONT 6RB1 STD ENG(07L) L=5700 RED	1-33619-361-0	01	1	9307-	●			●
366	TUBE; NYLON,FULLER CONT 6RB1 STD ENG(07L) L=5700 BLACK	1-33619-370-0	01	1	9307-	●			●
366	TUBE; NYLON,FULLER CONT 6RB1 STD ENG(07L) L=6250 BLUE	1-33619-379-0	01	1	9307-	●			●
366	TUBE; NYLON,FULLER CONT 6RB1 STD ENG(07L) L=5700 GREEN	1-33619-388-0	01	1	9307-	●			●
366	TUBE; NYLON,FULLER CONT 6RB1 STD ENG(07L) SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	9307-	●			●
366	TUBE; NYLON,FULLER CONT 6RB1 STD ENG(07L) SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	9307-	●			●
386	CLIP; CONT CABLE & TUBE (B) L=250	5-09707-030-0	02	1	9002-9007	●	●	●	●
386	CLIP; CONT CABLE & TUBE (B) L=250	5-09707-030-0	01	1	9002-	●	●	●	●
386	CLIP; CONT CABLE & TUBE (A) L=140	5-09707-031-0	01	1	9002-	●	●	●	●
387	GROMMET; CONT TUBE,FULLER	1-09332-102-0	01	1	9002-9306	●	●	●	●
387	GROMMET; CONT TUBE,FULLER	1-09332-135-0	01	1	9307-	●			●
