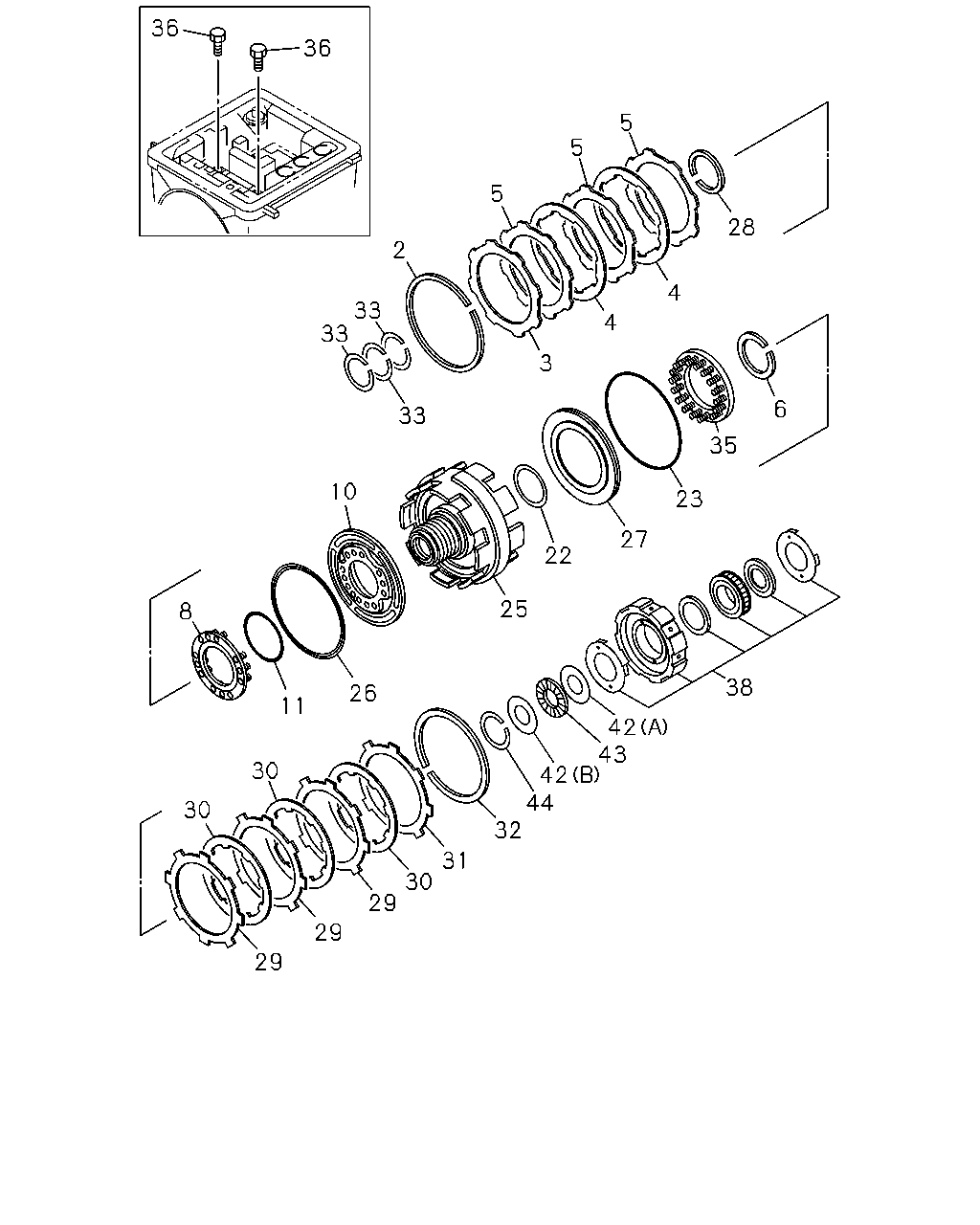

2-46 — AUTO TRANS SUPPORT AND PLANETARY GEAR (#33588) — 26 parça

36 36 5 5 5 28 2 4 33 33 4 3 6 33 35 10 23 27 22 25 8 38 26 11 42 43 42 44 32 30 30 31 30 29 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	RING; RET,FRT BRK,2ND BRK,A/T	5-34258-002-0	01	1	0611-
3	PLATE; CLU BACKING,2ND BRK,A/T H=3.95	5-34256-002-0	01	1	0611-
4	DISC ASM; CLU & FACING,2ND BRK,A/T	8-97209-039-0	02	1	0611-
5	DISC; CLU,2ND BRK,A/T T=1.8	5-34252-003-0	03	1	0611-
6	RING; SNAP,FRT BRK,A/T	5-34268-006-0	01	1	0611-
8	SPRING; RETURN,FRT BRK,A/T	8-97065-698-0	01	1	0611-
10	PISTON; BRK,FRT,2ND BRK,A/T	5-34261-006-1	01	1	0611-
11	GASKET; BRK PISTON,FRT,INNER,A/T	8-97184-348-0	01	1	0611-
22	GASKET; BRK PISTON,RR,INNER,A/T	8-97184-348-0	01	1	0611-
23	GASKET; BRK PISTON,RR,OUTER,A/T	8-97264-818-0	01	1	0611-
25	SUPPORT; CENTER,2ND BRK,A/T	8-94473-654-0	01	1	0611-
26	GASKET; BRK PISTON,FRT,OUTER,A/T	8-97264-817-0	01	1	0611-
27	PISTON; BRK,RR,2ND BRK,A/T	8-94250-366-0	01	1	0611-
28	RING; SNAP,RR BRK,A/T	5-34268-006-0	01	1	0611-
29	DISC; CLU,RR BRK,2ND BRK,A/T	8-94165-998-0	03	1	0611-
30	DISC ASM; CLU & FACING,2ND BRK,A/T	8-97264-820-0	03	1	0611-
31	PLATE; CLU BACKING,2ND BRK,A/T	8-94250-351-0	01	1	0611-
32	RING; RET,RR BRK,2ND BRK,A/T	5-34258-002-0	01	1	0611-
33	RING; SEALING,2ND BRK,A/T	8-97264-821-0	03	1	0611-
35	SPRING ASM; RETURN,RR BRK	8-97264-819-0	01	1	0611-
36	BOLT; SHOULDER SUPPORT TO CASE,A/T	8-97065-700-0	02	1	0611-
38	CLUTCH ASM; ONEWAY,2ND BRK,A/T	8-94166-001-0	01	1	0611-
42	RACE; THRUST BRG,A/T (B)	8-97264-825-0	01	1	0611-
42	RACE; THRUST BRG,A/T (A)	8-97289-104-0	01	1	0611-
43	BEARING; THRUST,A/T	5-34258-004-0	01	1	0611-
44	RING; RET	8-94166-000-0	01	1	0611-
