◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 51128 - TBR-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#33583) — 31 parça
çizim 13635
1 1 8 19 17 24 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER
THA 		8-97917-469-0 01 1 0610- ●
8 LEVER; CHANGE
GRADE XL(RBA),GRADE XT(RBB) EXC. CONVENIENT PACKAGE<6QZ> 		8-97301-135-2 01 1 0610-0610 ●
8 LEVER; CHANGE
GRADE XL(RBA),GRADE XT(RBB) FLOOR REMOTE SHIFT<M11> EXC. CONVENIENT PACKAGE<6QZ> 		8-97301-135-2 01 1 0611- ●
8 LEVER; CHANGE
GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> 		8-97288-449-2 01 1 0610-0610 ●
8 LEVER; CHANGE
GRADE XTI(RBD) 		8-97288-449-2 01 1 0610-0610 ●
8 LEVER; CHANGE
GRADE XT(RBB) FLOOR REMOTE SHIFT<M11> CONVENIENT PACKAGE<6QZ> 		8-97288-449-2 01 1 0611- ●
8 LEVER; CHANGE
GRADE XTI(RBD) FLOOR REMOTE SHIFT<M11> 		8-97288-449-2 01 1 0611- ●
8 LEVER; CHANGE
GRADE XUV/SPORTIVO(RBG) 		8-97263-256-2 01 1 0610-0610 ●
8 LEVER; CHANGE
GRADE XUV/SPORTIVO(RBG) FLOOR REMOTE SHIFT<M11> 		8-97263-256-2 01 1 0611- ●
9 BOLT; CHANGE LEVER
M8X20 FLANGE 		0-28650-820-0 03 1 0610- ●
17 GROMMET; TRANS SHIFT LEVER
GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) FLOOR REMOTE SHIFT<M11> 		8-97179-142-0 01 1 0610- ●
17 GROMMET; TRANS SHIFT LEVER
GRADE XUV/SPORTIVO(RBG) 		8-97261-780-0 01 1 0610-0610 ●
17 GROMMET; TRANS SHIFT LEVER
GRADE XUV/SPORTIVO(RBG) FLOOR REMOTE SHIFT<M11> 		8-97261-780-0 01 1 0611- ●
19 COVER; CHANGE LEVER
GRADE XL(RBA),GRADE XT(RBB) EXC. CONVENIENT PACKAGE<6QZ> 		8-97289-845-0 01 1 0610-0610 ●
19 COVER; CHANGE LEVER
GRADE XL(RBA),GRADE XT(RBB) FLOOR REMOTE SHIFT<M11> EXC. CONVENIENT PACKAGE<6QZ> 		8-97289-845-0 01 1 0611- ●
24 BUSHING; CHANGE LEVER 8-97161-606-0 01 1 0610- ●

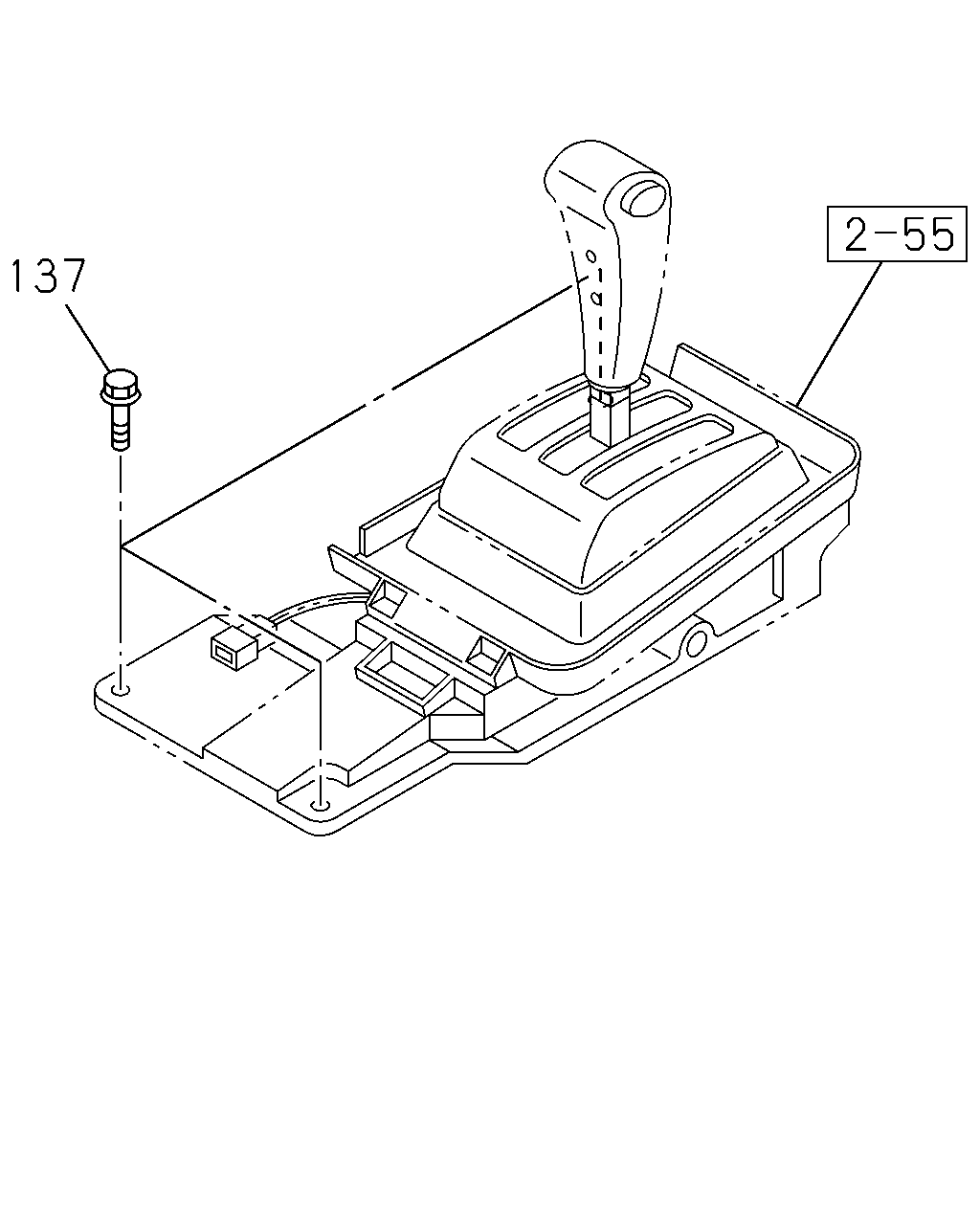

çizim 14083
137
BalonParca AdiParca NoAdetTipApplied Date A B
137 BOLT; GEAR CONT BRKT
M6X20 FLANGE 		0-28650-620-0 04 1 0611- ●
çizim 56997
1 1 8 17 24 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER
THA 		8-97917-469-0 01 1 0610- ●
8 LEVER; CHANGE
GRADE XL(RBA),GRADE XT(RBB) EXC. CONVENIENT PACKAGE<6QZ> 		8-97301-135-2 01 1 0610-0610 ●
8 LEVER; CHANGE
GRADE XL(RBA),GRADE XT(RBB) FLOOR REMOTE SHIFT<M11> EXC. CONVENIENT PACKAGE<6QZ> 		8-97301-135-2 01 1 0611- ●
8 LEVER; CHANGE
GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> 		8-97288-449-2 01 1 0610-0610 ●
8 LEVER; CHANGE
GRADE XTI(RBD) 		8-97288-449-2 01 1 0610-0610 ●
8 LEVER; CHANGE
GRADE XT(RBB) FLOOR REMOTE SHIFT<M11> CONVENIENT PACKAGE<6QZ> 		8-97288-449-2 01 1 0611- ●
8 LEVER; CHANGE
GRADE XTI(RBD) FLOOR REMOTE SHIFT<M11> 		8-97288-449-2 01 1 0611- ●
8 LEVER; CHANGE
GRADE XUV/SPORTIVO(RBG) 		8-97263-256-2 01 1 0610-0610 ●
8 LEVER; CHANGE
GRADE XUV/SPORTIVO(RBG) FLOOR REMOTE SHIFT<M11> 		8-97263-256-2 01 1 0611- ●
9 BOLT; CHANGE LEVER
M8X20 FLANGE 		0-28650-820-0 03 1 0610- ●
17 GROMMET; TRANS SHIFT LEVER
GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) FLOOR REMOTE SHIFT<M11> 		8-97179-142-0 01 1 0610- ●
17 GROMMET; TRANS SHIFT LEVER
GRADE XUV/SPORTIVO(RBG) 		8-97261-780-0 01 1 0610-0610 ●
17 GROMMET; TRANS SHIFT LEVER
GRADE XUV/SPORTIVO(RBG) FLOOR REMOTE SHIFT<M11> 		8-97261-780-0 01 1 0611- ●
24 BUSHING; CHANGE LEVER 8-97161-606-0 01 1 0610- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
