Isuzu WW
▶
AUV
▶
TBR
▶
51128 - TBR-LHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-30 - GEAR SHIFTER AND QUADRANT BOX
▶
2-30 — GEAR SHIFTER AND QUADRANT BOX
(#33582) — 31 parça
◀
[230A] NO.2 (13 parça)

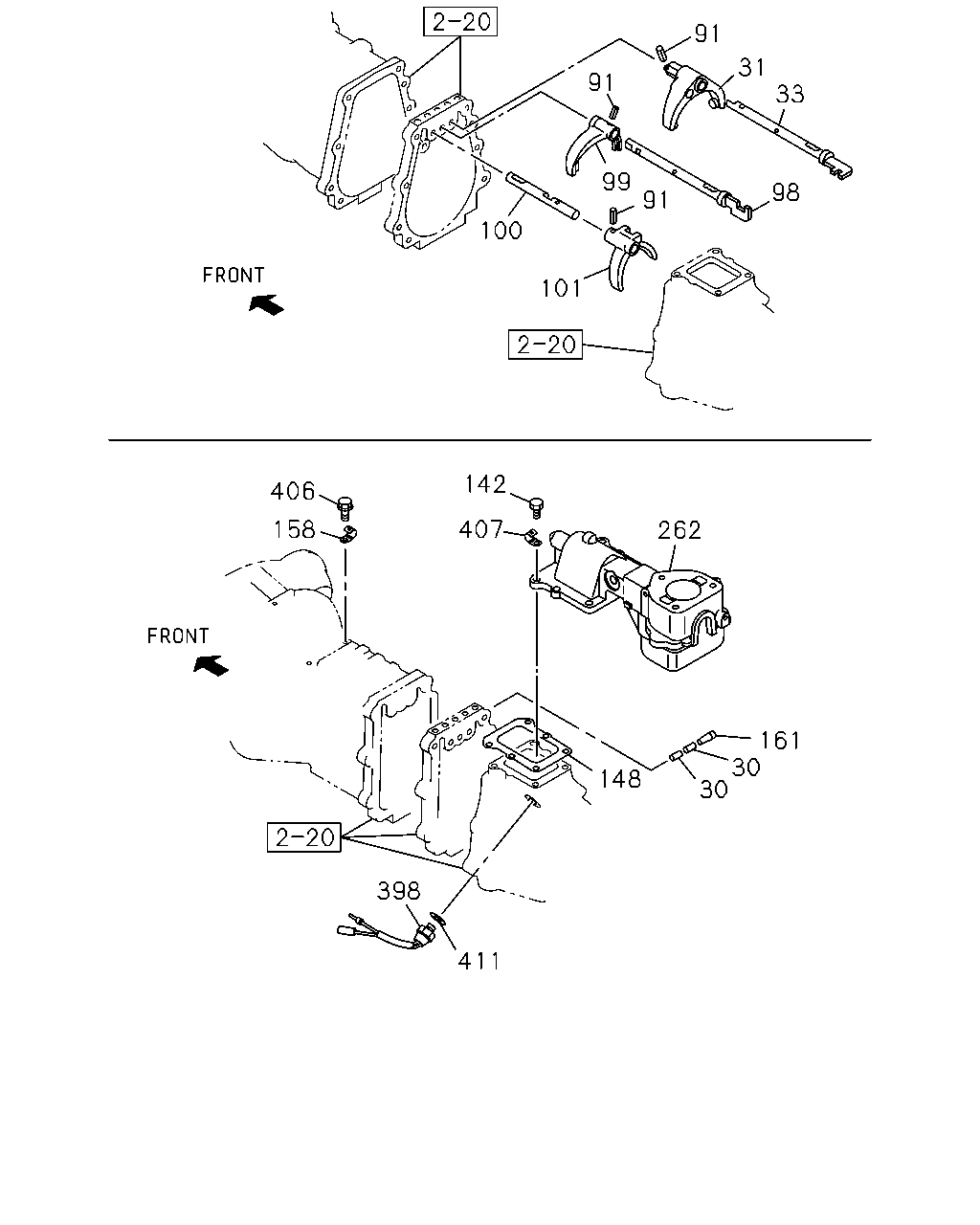

[230A] NO.1 (18 parça)
▶
262
288
271
22
271
289
22
132
261
174
248
459
268
274
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
22
CAP; RETURN SPR,SHIFT BLOCK
8-97181-326-0
02
1
0610-
132
SPRING; SELECT STOP
8-97181-395-0
01
1
0610-
174
SPRING; REV
8-97181-394-0
01
1
0610-
248
RETAINER; CONT BOX
8-97181-325-0
02
1
0610-1211
248
RETAINER; CONT BOX
8-98210-983-0
02
1
1212-
261
ROD; GEAR CONT
8-97257-825-0
01
1
0610-
262
BOX ASM; SHIFT CONT
8-98017-735-0
01
1
0610-
268
LEVER; CONT,INTERNAL
8-97184-894-0
01
1
0610-
271
BUSHING; QUAD BOX
ID=14 L=12
8-98017-908-0
02
1
0610-
274
COVER; SHAFT,QUAD BOX
8-97181-324-1
01
1
0610-
288
PLUG; AIR BREATHER
9-00097-517-0
01
1
0610-
289
SEAL; OIL,CONT SHAFT,QUAD BOX
8-98017-744-0
01
1
0610-
459
PIN; SPR,ROD TO ARM
OD=5
8-97184-905-0
01
1
0610-
91
31
91
33
99
98
91
100
101
142
406
158
407
262
161
30
30
148
398
411
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
30
PIN; INTER LK
OD=5.5 L=10
5-33534-002-1
02
1
0610-
31
ARM; SHIFT,LOW & 2ND
8-97024-503-1
01
1
0610-
33
ROD; SHIFT,LOW & 2ND
8-97213-047-0
01
1
0610-
91
PIN; SPR,SHIFT ARM
D=4.2 L=25
8-94171-541-0
03
1
0610-
98
ROD; SHIFT,TOP & 3RD
8-97213-045-0
01
1
0610-
99
ARM; SHIFT,4TH & 3RD
8-94435-153-1
01
1
0610-
100
ROD; SHIFT,REV & 5TH
PHI
8-97232-885-0
01
1
0610-
101
ARM; SHIFT,REV & 5TH
8-94455-851-3
01
1
0610-
142
BOLT; QUAD BOX
M8X22 FLANGE
8-97365-376-0
04
1
0610-
148
GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T).
8-97184-922-0
01
1
0610-
158
CLIP; HARNESS
ID=12 VINYL CHLORIDE
8-97367-984-1
02
1
0610-
161
PLUG; INTER LK HOLE
8-94239-543-1
01
1
0610-
262
BOX ASM; SHIFT CONT
8-98017-735-0
01
1
0610-
398
SWITCH; REV LAMP
8-98042-851-0
01
1
0610-
406
BOLT; HARNESS CLIP
M8X16 FLANGE
0-28050-816-0
01
1
0610-
407
CLIP; SWITCH HARNESS
ID=12 B=14 ID=8.5
5-09700-350-0
01
1
0610-0801
407
CLIP; SWITCH HARNESS
ID=12 VINYL CHLORIDE
8-97367-984-1
01
1
0802-
411
GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2
8-94462-114-0
01
1
0610-
