2-36A — MANUAL TRANSMISSION CONT LINK AND CABLE (#3358) — 80 parça

71 35 34 46 162 34 46 71 242 33 243 34 34 243 33 71 35 46 34 34 162 34 34 46 71 206

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
33	BOLT; BRKT,3RD RELAY LEVER MIXER TRUCK<RA2> M10X40 W/LK WASHER	9-01911-040-0	01	1	9002-9002	●
33	BOLT; BRKT,3RD RELAY LEVER MIXER TRUCK<RA2> M10X30 W/LK WASHER	0-50041-030-0	01	1	9003-9306	●
33	BOLT; BRKT,3RD RELAY LEVER 6RB1 STD ENG(07L) MIXER TRUCK<RA2> M14X45	9-92051-445-0	01	1	9002-9005	●
33	BOLT; BRKT,3RD RELAY LEVER 10PD1 STD ENG(40L) M14X45	9-92051-445-0	01	1	9002-9005		●	●	●
33	BOLT; BRKT,3RD RELAY LEVER 6RB1 STD ENG(07L) MIXER TRUCK<RA2> M14X45	0-20801-445-0	01	1	9006-	●
33	BOLT; BRKT,3RD RELAY LEVER 10PD1 STD ENG(40L) M14X45	0-20801-445-0	01	1	9006-		●	●	●
33	BOLT; BRKT,3RD RELAY LEVER 6RB1 STD ENG(07L) EXC. MIXER TRUCK<RA2> M12X45	9-01911-245-0	02	1	9002-9005	●	●	●		●	●
33	BOLT; BRKT,3RD RELAY LEVER 6RB1 STD ENG(07L) EXC. MIXER TRUCK<RA2> M12X45 W/LK WASHER	0-50041-245-0	02	1	9006-	●	●	●		●	●
33	BOLT; BRKT,3RD RELAY LEVER 10PD1 STD ENG(40L) M10X45 W/LK WASHER	0-50041-045-0	01	1	9002-9205		●	●	●
33	BOLT; BRKT,3RD RELAY LEVER 10PD1 STD ENG(40L) M10X40 W/LK WASHER	0-50041-040-0	01	1	9206-		●	●	●
33	BOLT; BRKT,3RD RELAY LEVER 12PD1 C ENG(43L) M14X50	0-10806-450-0	02	1	9307-		●
34	SEAT; BALL,RELAY LEVER EXC. MIXER TRUCK<RA2>	1-33659-118-0	04	1	9002-	●
34	SEAT; BALL,RELAY LEVER	1-33659-118-0	04	1	9002-		●	●	●	●	●
35	RING; SNAP,RELAY LEVER EXC. MIXER TRUCK<RA2> OD=23.5	9-09180-122-0	01	1	9002-	●
35	RING; SNAP,RELAY LEVER OD=23.5	9-09180-122-0	01	1	9002-		●	●	●	●	●
46	SEAL; DUST,RELAY LEVER EXC. MIXER TRUCK<RA2>	1-33659-076-0	02	1	9002-	●
46	SEAL; DUST,RELAY LEVER	1-33659-076-0	02	1	9002-		●	●	●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME MIXER TRUCK<RA2> (C)	1-33657-244-1	01	1	9202-	●
71	BRACKET; 3RD RELAY LEVER,FRAME MIXER TRUCK<RA2> (D)	1-33657-334-1	01	1	9202-	●
71	BRACKET; 3RD RELAY LEVER,FRAME 6RB1 STD ENG(07L) EXC. MIXER TRUCK<RA2> (C)	1-33657-193-2	01	1	9002-	●	●	●		●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 6RB1 STD ENG(07L) EXC. MIXER TRUCK<RA2> (D)	1-33657-200-0	01	1	9002-	●	●	●		●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 10PD1 STD ENG(40L) (A)	1-33657-223-0	01	1	9002-		●	●	●			●
71	BRACKET; 3RD RELAY LEVER,FRAME 10PD1 STD ENG(40L),12PD1 C ENG(43L) (B)	1-33657-188-0	01	1	9002-		●	●	●			●
71	BRACKET; 3RD RELAY LEVER,FRAME 12PD1 C ENG(43L) (A)	1-33657-224-0	01	1	9307-		●
162	LEVER; RELAY 6RB1 STD ENG(07L)	1-33651-270-4	01	1	9002-	●	●	●		●	●
162	LEVER; RELAY 10PD1 STD ENG(40L)	1-33651-271-2	01	1	9002-		●	●	●
162	LEVER; RELAY 12PD1 C ENG(43L)	1-33651-266-2	01	1	9307-		●
206	BOLT; BRKT,3RD RELAY LEVER,ENG 6RB1 STD ENG(07L) M12X30 W/LK WASHER	9-01911-230-0	02	1	9002-9005	●	●	●		●	●
206	BOLT; BRKT,3RD RELAY LEVER,ENG 6RB1 STD ENG(07L) M12X30 W/LK WASHER	0-50041-230-0	02	1	9006-	●	●	●		●	●
242	NUT; FLANGE 3RD RELAY LEVER 10PD1 STD ENG(40L) M8 FLANGE	5-09440-005-0	04	1	9002-		●	●	●
243	WASHER; LK,BRKT MIXER TRUCK<RA2> ID=14.2	9-09150-614-0	01	1	9002-	●
243	WASHER; LK,BRKT 10PD1 STD ENG(40L) ID=14.2	9-09150-614-0	01	1	9002-		●	●	●
243	WASHER; LK,BRKT 12PD1 C ENG(43L) ID=14.2	9-09150-614-0	02	1	9307-		●

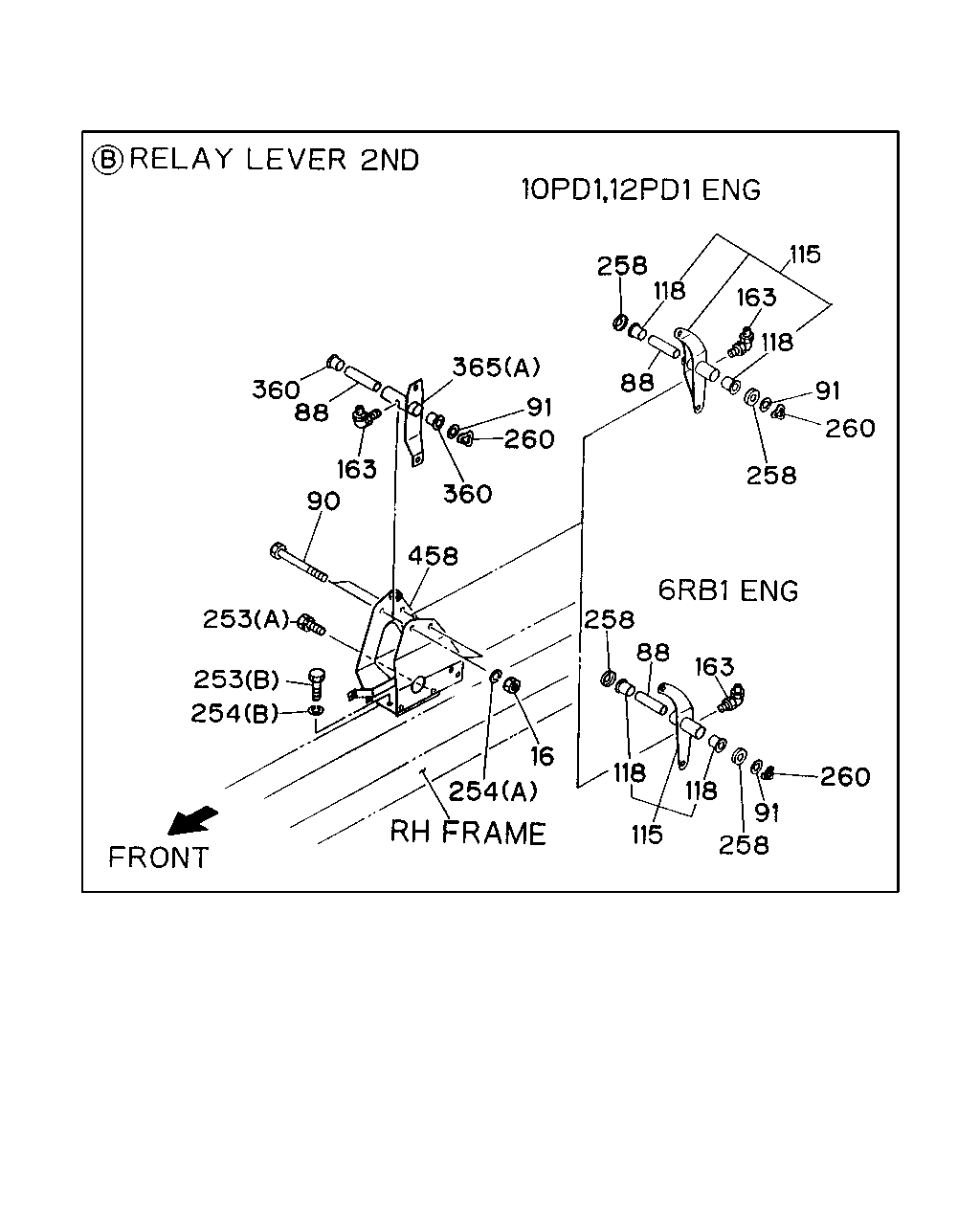

258 118 163 115 118 91 260 258 88 365 91 260 360 88 163 360 458 90 253 253 254 254 16 258 88 163 260 91 258 118 115 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
16	NUT; RELAY LEVER M14	9-99111-514-0	02	1	9002-	●	●	●	●	●	●	●
88	COLLAR; RELAY LEVER	1-33659-074-0	02	1	9002-	●	●	●	●	●	●	●
90	SHAFT	1-33619-125-0	02	1	9002-	●	●	●	●	●	●	●
91	SHIM; RELAY LEVER	1-33659-092-0	02	1	9002-	●	●	●	●	●	●	●
115	LEVER; RELAY,2ND SHIFT 6RB1 STD ENG(07L)	1-33651-505-1	01	1	9002-	●	●	●		●	●
115	LEVER; RELAY,2ND SHIFT 10PD1 STD ENG(40L)	1-33651-504-1	01	1	9002-		●	●	●
118	BUSHING; RELAY LEVER ID=22 OD=25 L=18	1-09330-050-0	02	1	9002-	●	●	●	●	●	●	●
163	NIPPLE; GREASE,RELAY LEVER PT1/8 ELBOW	9-09031-210-0	02	1	9002-	●	●	●	●	●	●	●
253	BOLT; BRKT,2ND RELAY LEVER (A) M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9002-	●	●	●	●	●	●	●
253	BOLT; BRKT,2ND RELAY LEVER 6RB1 STD ENG(07L) (B) M14X40	9-92051-440-0	02	1	9002-9005	●	●	●		●	●
253	BOLT; BRKT,2ND RELAY LEVER 6RB1 STD ENG(07L) (B) M14X40	0-20801-440-0	02	1	9006-	●	●	●		●	●
253	BOLT; BRKT,2ND RELAY LEVER 10PD1 STD ENG(40L) (B) M14X45	9-92051-445-0	02	1	9002-9005		●	●	●
253	BOLT; BRKT,2ND RELAY LEVER 10PD1 STD ENG(40L) (B) M14X45	0-20801-445-0	02	1	9006-		●	●	●
254	WASHER; LK,RELAY LEVER (A) ID=14.2	9-09150-514-0	02	1	9002-	●	●	●	●	●	●	●
254	WASHER; LK,RELAY LEVER (B) ID=14.2	9-09150-614-0	02	1	9002-	●	●	●	●	●	●	●
258	WASHER; RELAY LEVER	1-09509-041-0	02	1	9002-	●	●	●	●	●	●	●
260	WASHER; WAVED	1-33659-093-0	02	1	9002-	●	●	●	●	●	●	●
360	BUSHING; RELAY LEVER L=24	5-33659-054-0	02	1	9002-	●	●	●	●	●	●	●
365	LEVER; RELAY,SELECT (A)	1-33651-249-4	01	1	9002-	●	●	●	●	●	●	●
365	LEVER; RELAY,SELECT (B)	1-33651-328-2	01	1	9002-	●	●	●	●	●	●	●
458	BRACKET; 2ND RELAY LEVER	1-33657-210-4	01	1	9002-	●	●	●	●	●	●	●

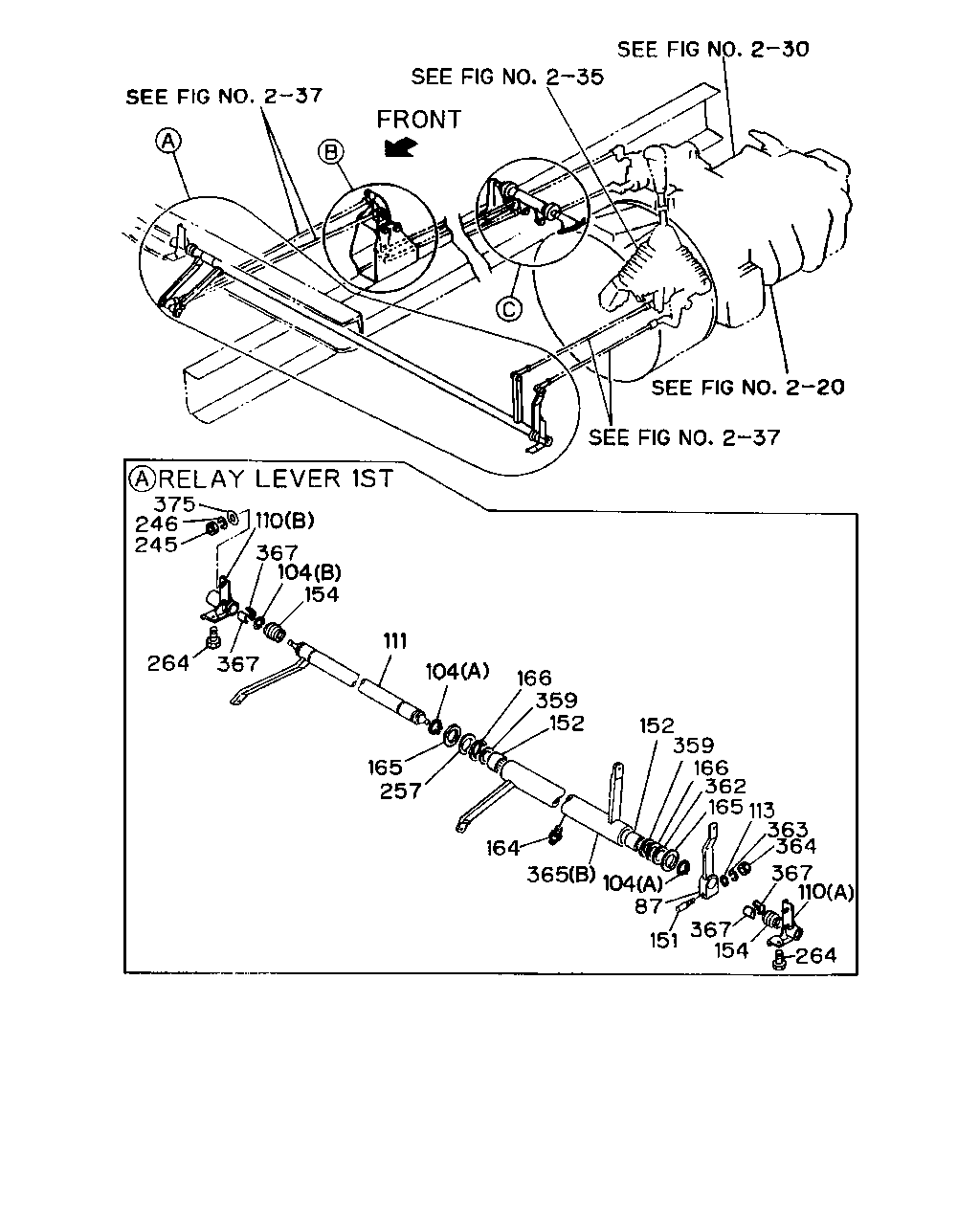

375 246 245 110 367 104 154 264 367 111 104 166 359 152 152 359 166 362 165 113 363 364 367 110 264 154 367 151 87 104 365 164 257 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
87	LEVER; RELAY,SELECT	1-33651-327-1	01	1	9002-	●	●	●	●	●	●	●
104	RING; SNAP (A) ID=32.2	9-09180-035-0	02	1	9307-	●	●	●	●	●	●	●
104	RING; SNAP (B) OD=23.5	9-09180-122-0	01	1	9307-	●	●	●	●	●	●	●
110	BRACKET; RELAY LEVER,1ST (A)	1-33657-261-3	01	1	9307-	●	●	●	●	●	●	●
110	BRACKET; RELAY LEVER,1ST (B)	1-33657-383-0	01	1	9307-	●	●	●	●	●	●	●
111	SHAFT; RELAY LEVER,1ST	1-33659-103-2	01	1	9307-	●	●	●	●	●	●	●
113	WASHER; RELAY LEVER ID=10.5 OD=26	9-09160-710-0	01	1	9002-	●	●	●	●	●	●	●
151	BOLT; KEY,RELAY LEVER	1-33659-063-0	01	1	9002-	●	●	●	●	●	●	●
152	BEARING; NEEDLE,RELAY LEVER	1-09811-328-0	02	1	9002-	●	●	●	●	●	●	●
154	COVER; DUST,RELAY LEVER	1-33659-068-0	02	1	9002-	●	●	●	●	●	●	●
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD PT1/8 ELBOW 67.5?	9-09031-110-0	01	1	9002-	●	●	●	●	●	●	●
165	WASHER; RELAY LEVER	1-09503-148-0	AR	1	9002-	●	●	●	●	●	●	●
166	WASHER; NYLON,RELAY LEVER	1-09509-040-0	02	1	9002-	●	●	●	●	●	●	●
245	NUT; BRKT,RELAY LEVER M8	9-09110-508-0	04	1	9002-	●	●	●	●	●	●	●
246	WASHER; LK,BRKT,RELAY LEVER ID=8.2	9-09150-508-0	04	1	9002-	●	●	●	●	●	●	●
257	PIECE; DIST,RELAY LEVER	1-09503-198-0	AR	1	9002-	●	●	●	●	●	●	●
264	BOLT; BRKT,RELAY LEVER M8X25 W/LK&PL WASHER	9-01970-825-0	02	1	9002-9005	●	●	●	●	●	●
264	BOLT; BRKT,RELAY LEVER M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9006-	●	●	●	●	●	●	●
359	SEAL; RUBBER,RELAY LEVER	1-09625-005-1	02	1	9002-	●	●	●	●	●	●	●
362	SHIM	1-09503-172-0	AR	1	9002-	●	●	●	●	●	●	●
363	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	01	1	9002-	●	●	●	●	●	●	●
364	NUT; KEY BOLT M10	9-09111-410-0	01	1	9002-	●	●	●	●	●	●	●
365	LEVER; RELAY,SELECT (A)	1-33651-249-4	01	1	9002-	●	●	●	●	●	●	●
365	LEVER; RELAY,SELECT (B)	1-33651-328-2	01	1	9002-	●	●	●	●	●	●	●
367	SEAT; BALL,CONT SHAFT	1-33659-053-0	04	1	9002-	●	●	●	●	●	●	●
375	WASHER; PL,BRKT,RELAY LEVER ID=8.4	9-09160-508-0	04	1	9002-	●	●	●	●	●	●	●
